The KV tag feature allows users to add equip/device/schedule/building entity, plot KV tag values for all entities, and update the KV value of string type tags in a summary table. For more information on summary tables refer to Summary Tables.

From the internal Portal,

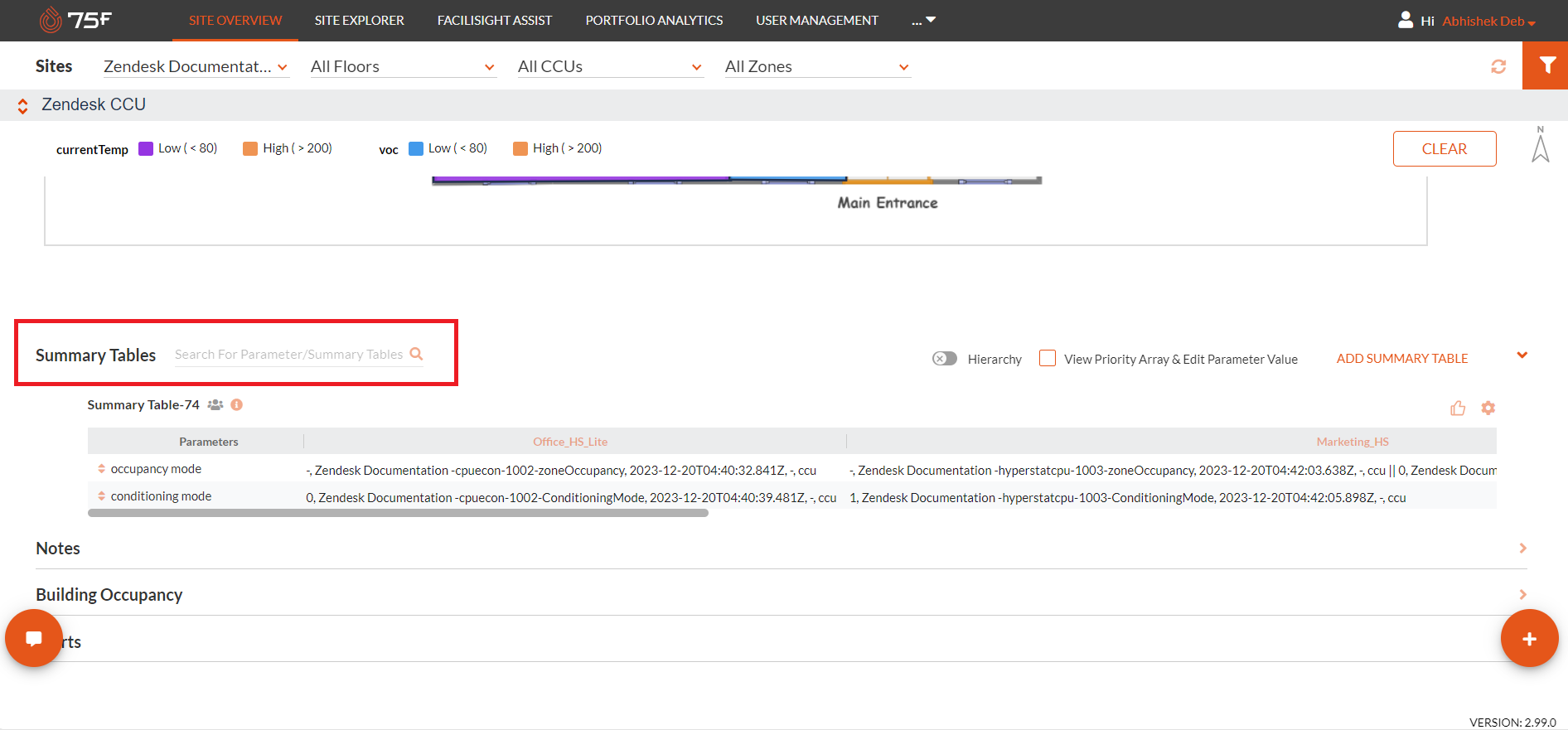

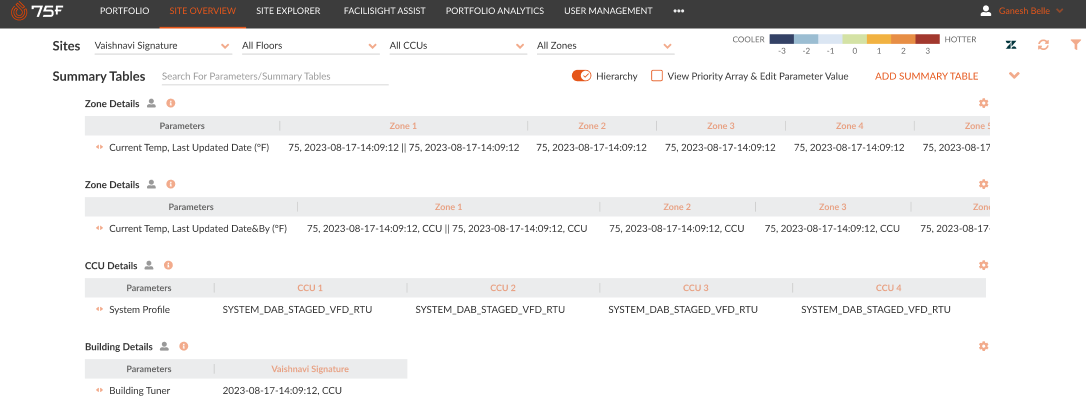

  • Select the Summary Table tab.

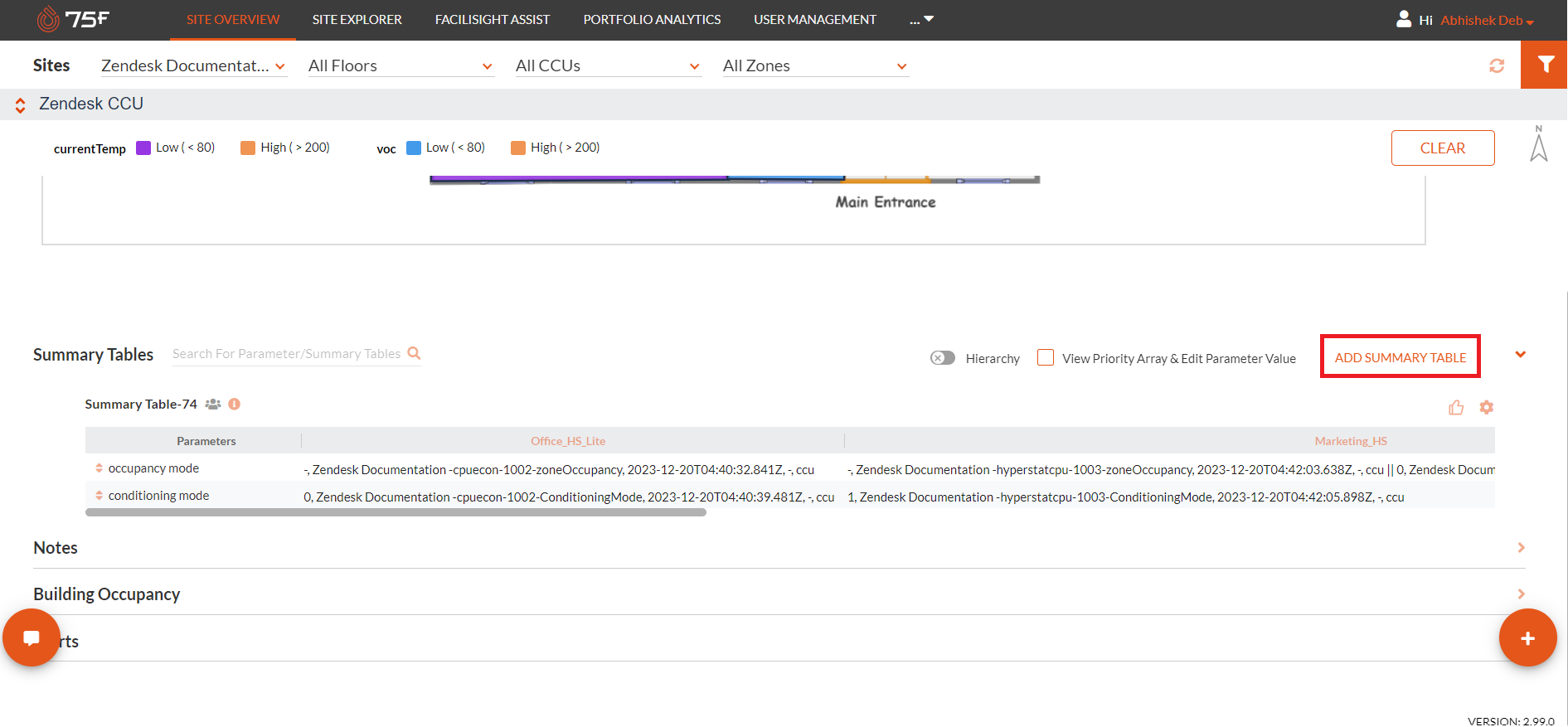

  • Click Add Summary table.


  • Create a New Summary table from the option.




| Selecting and Viewing a KV Tag Value

  • Select the Build Type from the Summary Table.

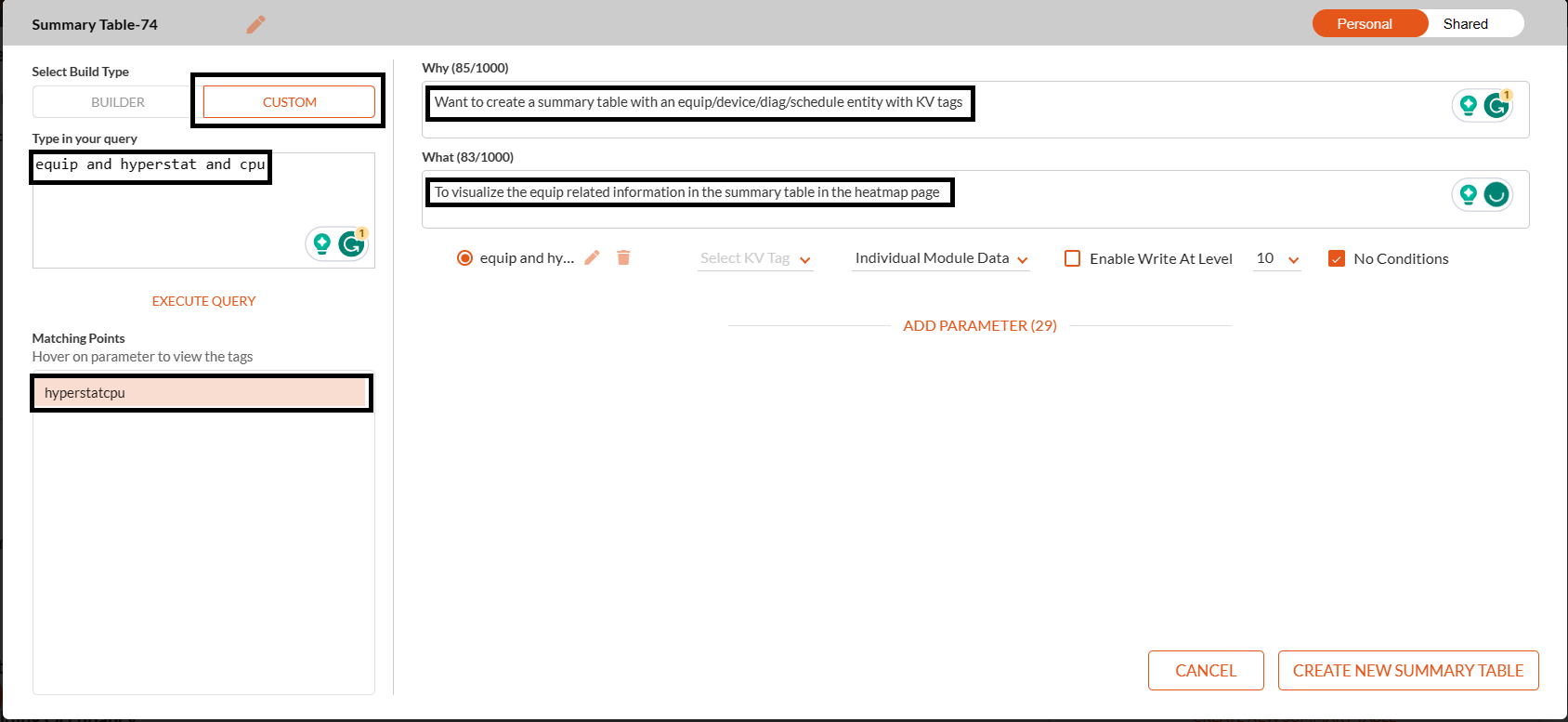

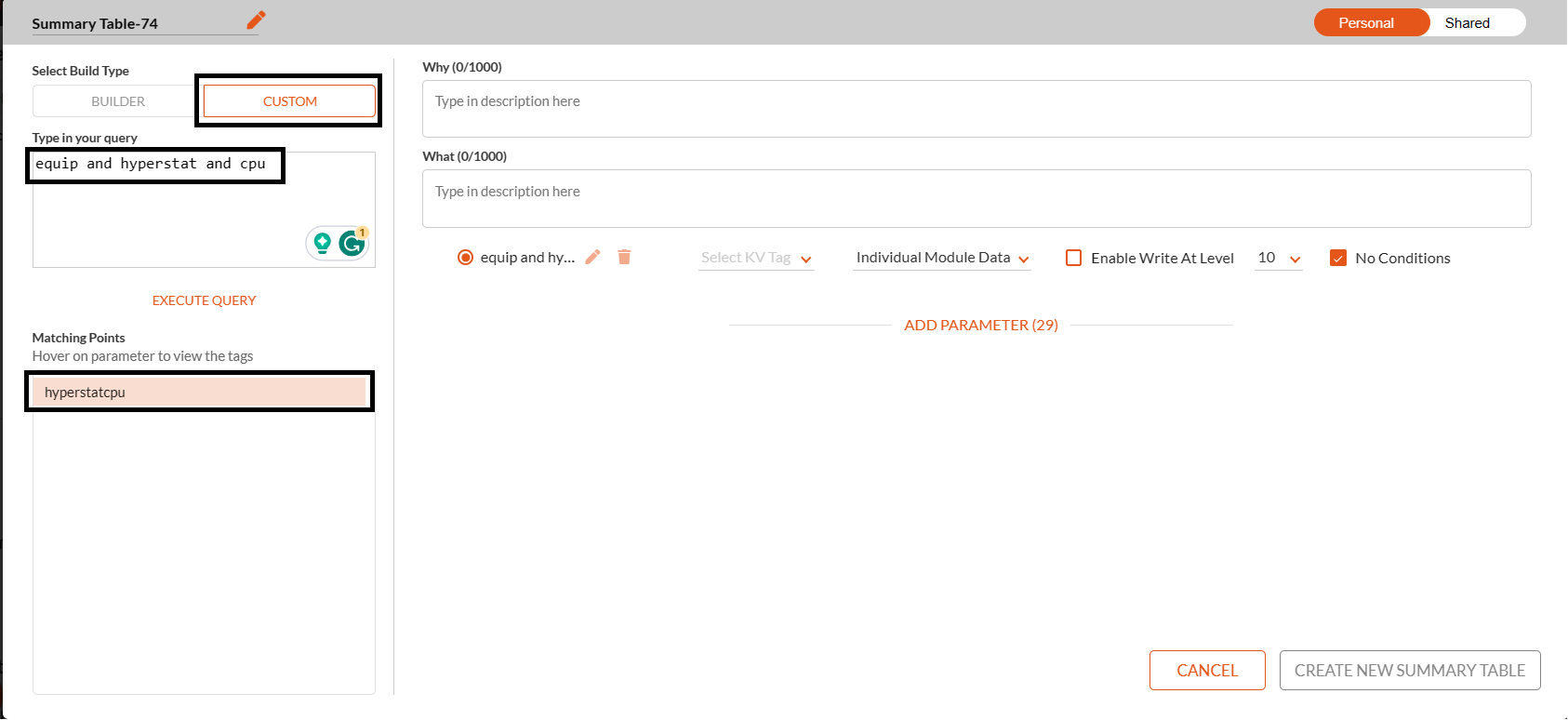

  • Type the required query.
  • The matching points are displayed.


  • Fill in the required particulars for Why and What in the summary table description.

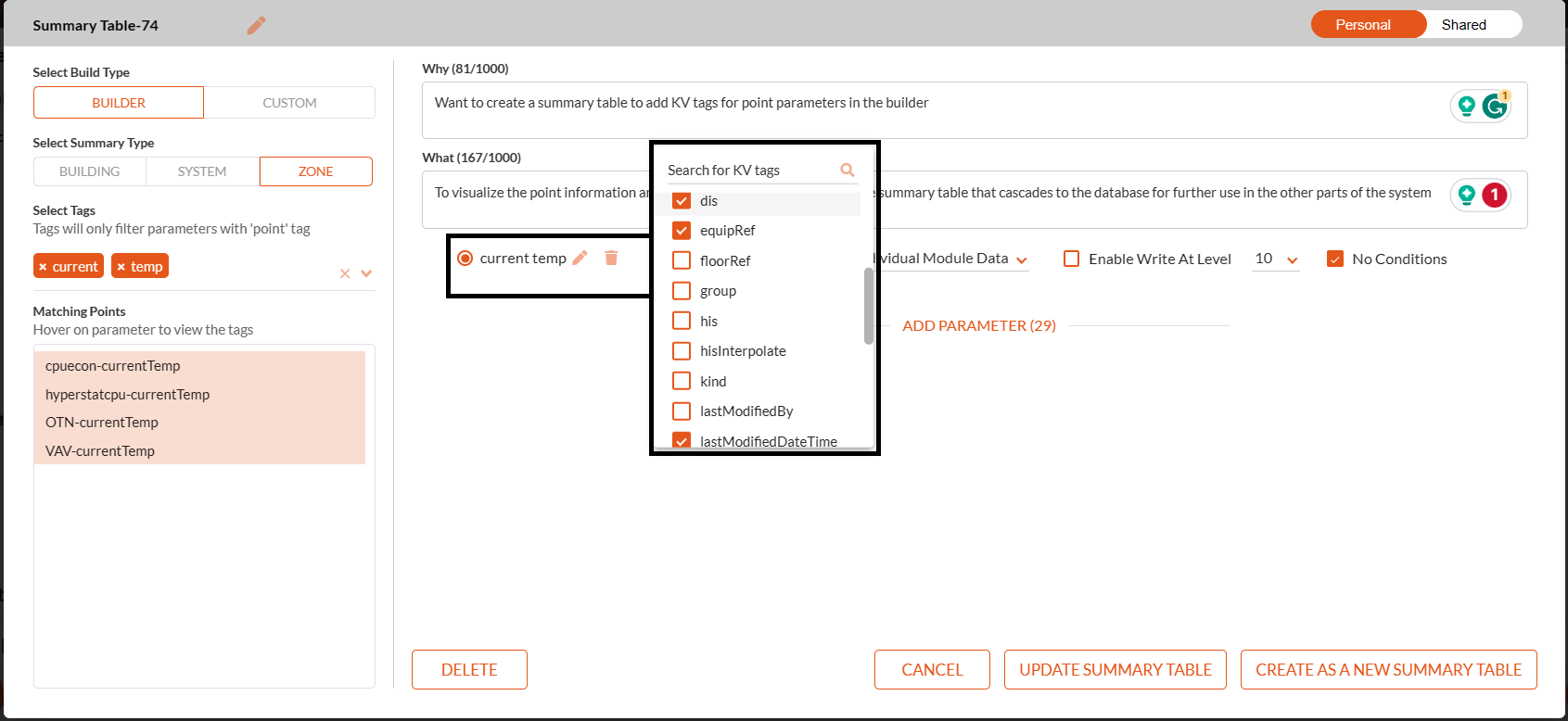

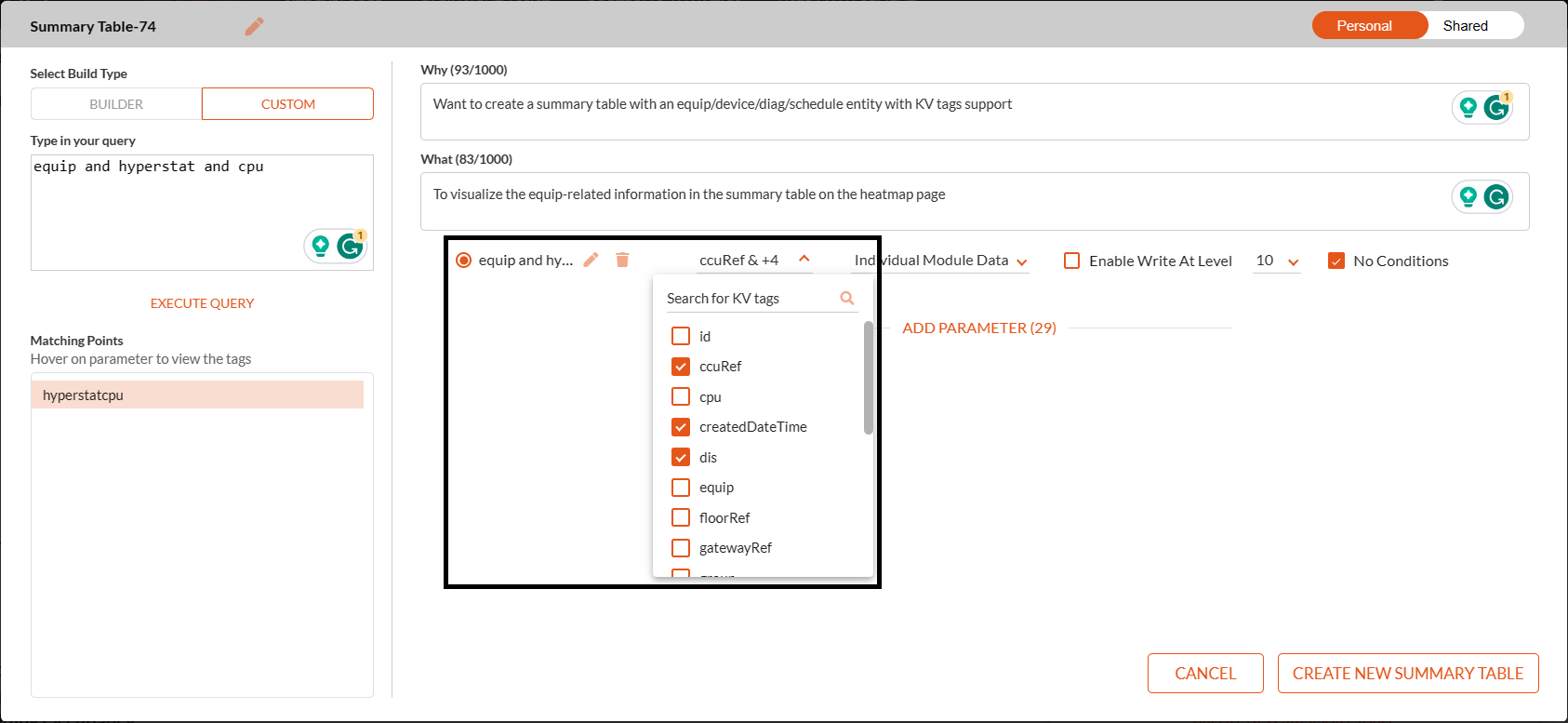

  • Search for the required KV tags from the dropdown list.

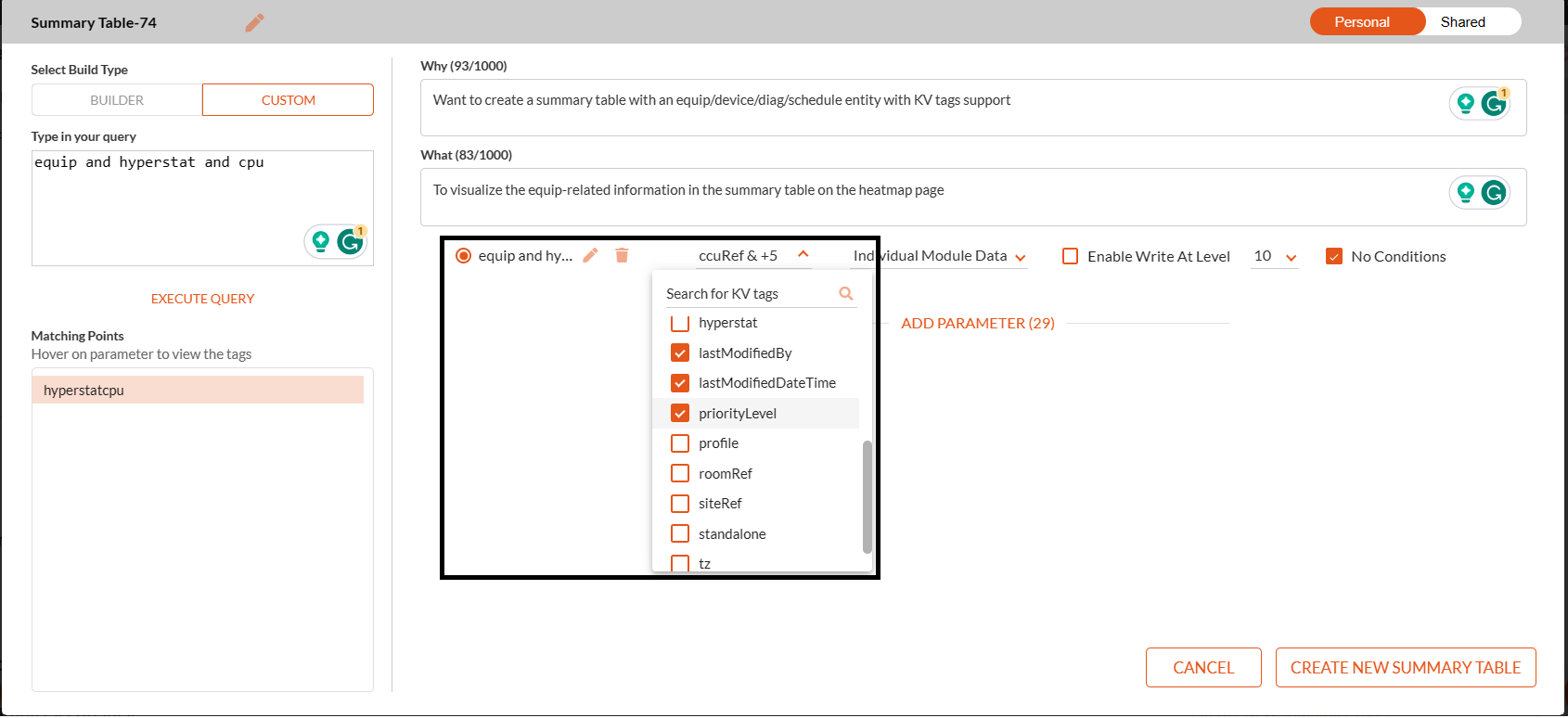

  • Select the KV tags from the dropdown list.


Once the "lastModifiedBy" tag is selected, then the platform from which it is selected is displayed.

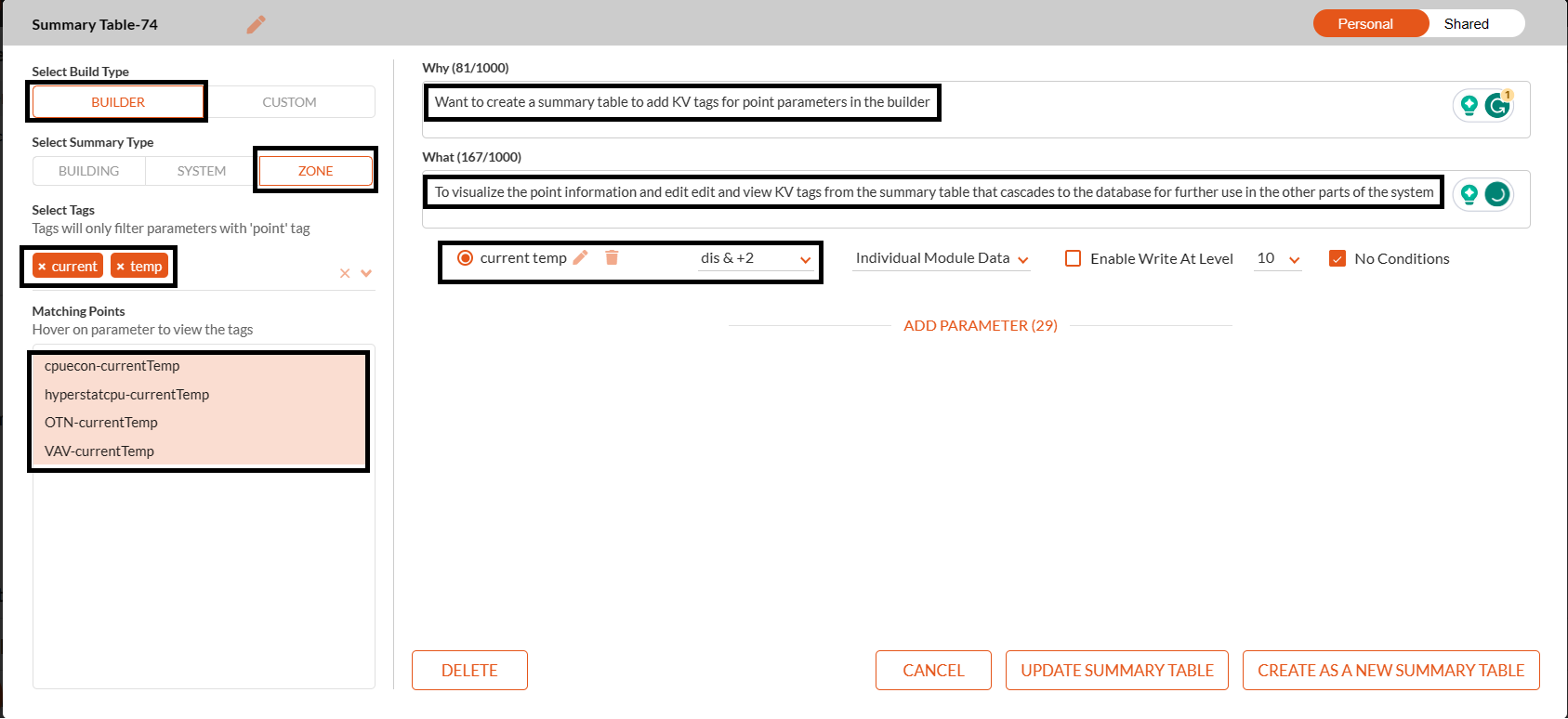

  • Select the Builder Type option from the selection
  • Enter the Summary table option as Zone.
  • Select the tags.
  • Select the matching points for the tags selected.
  • Enter the Why and What description.


  • Search and Select the KV tags from the dropdown list.

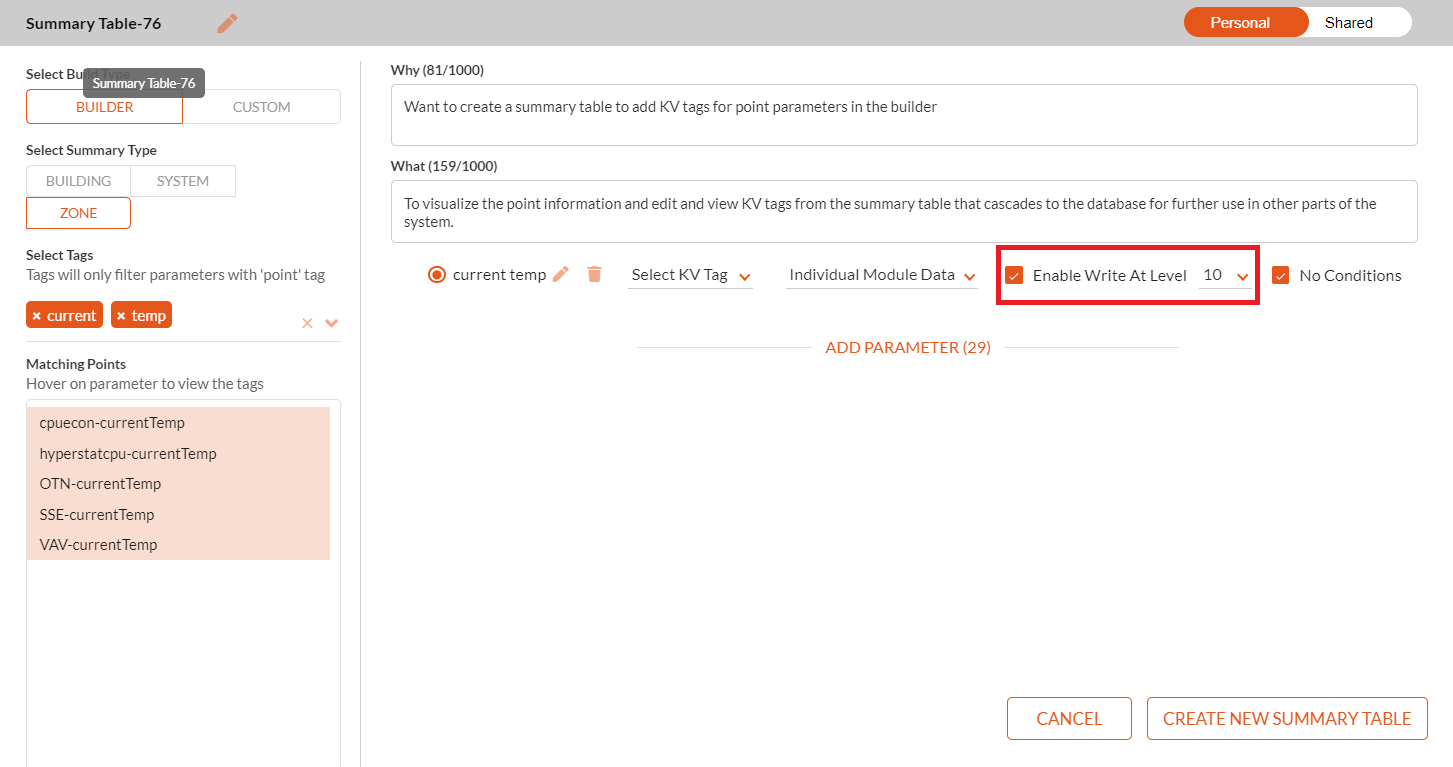

  • Select Enable at Write Level to enable write option for the parameters.

Enable Write.png

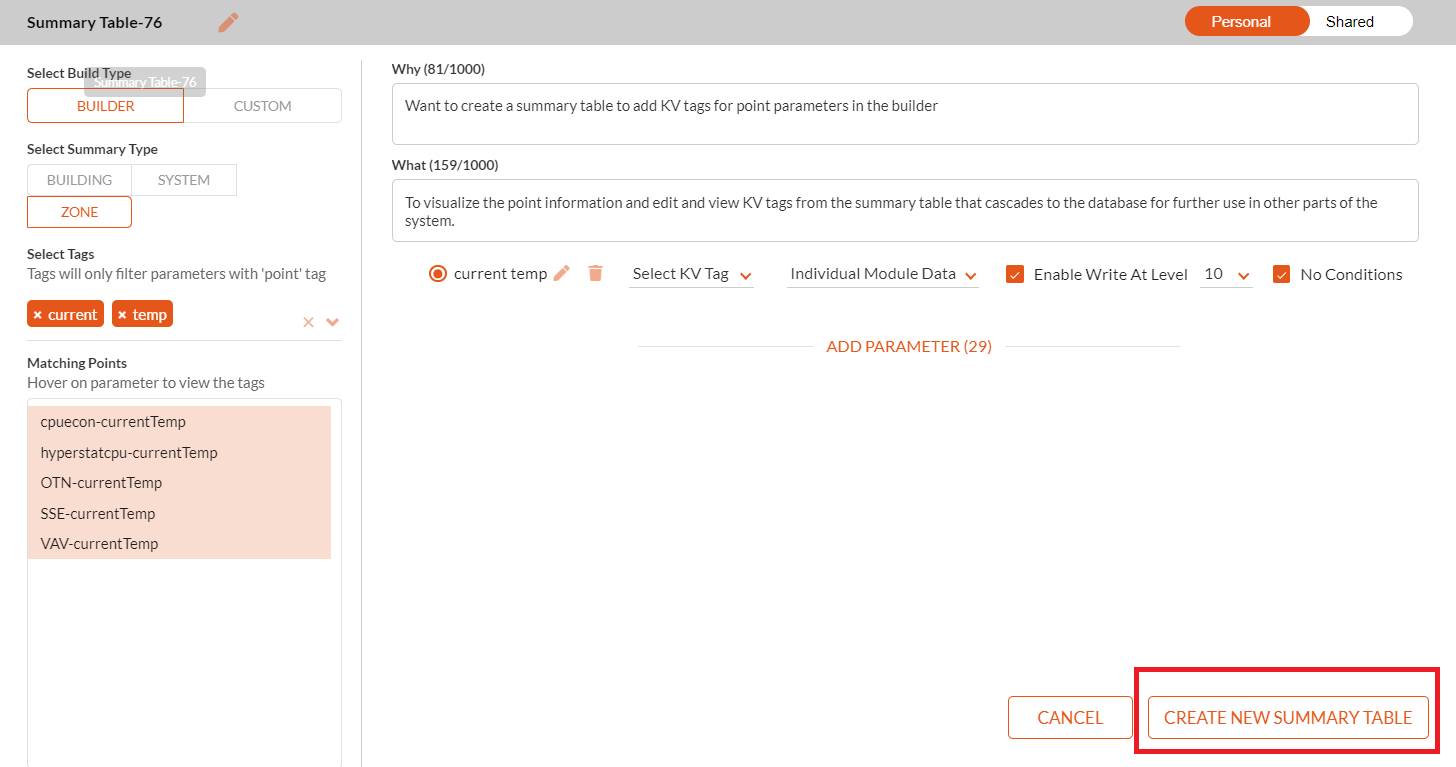

  • Click "Create a New Summary Table".

Create New10.png

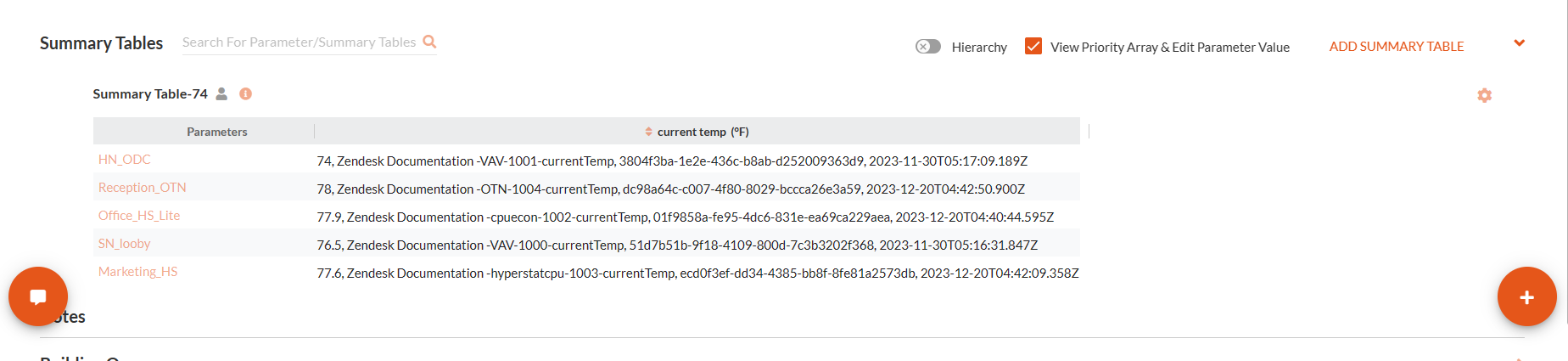

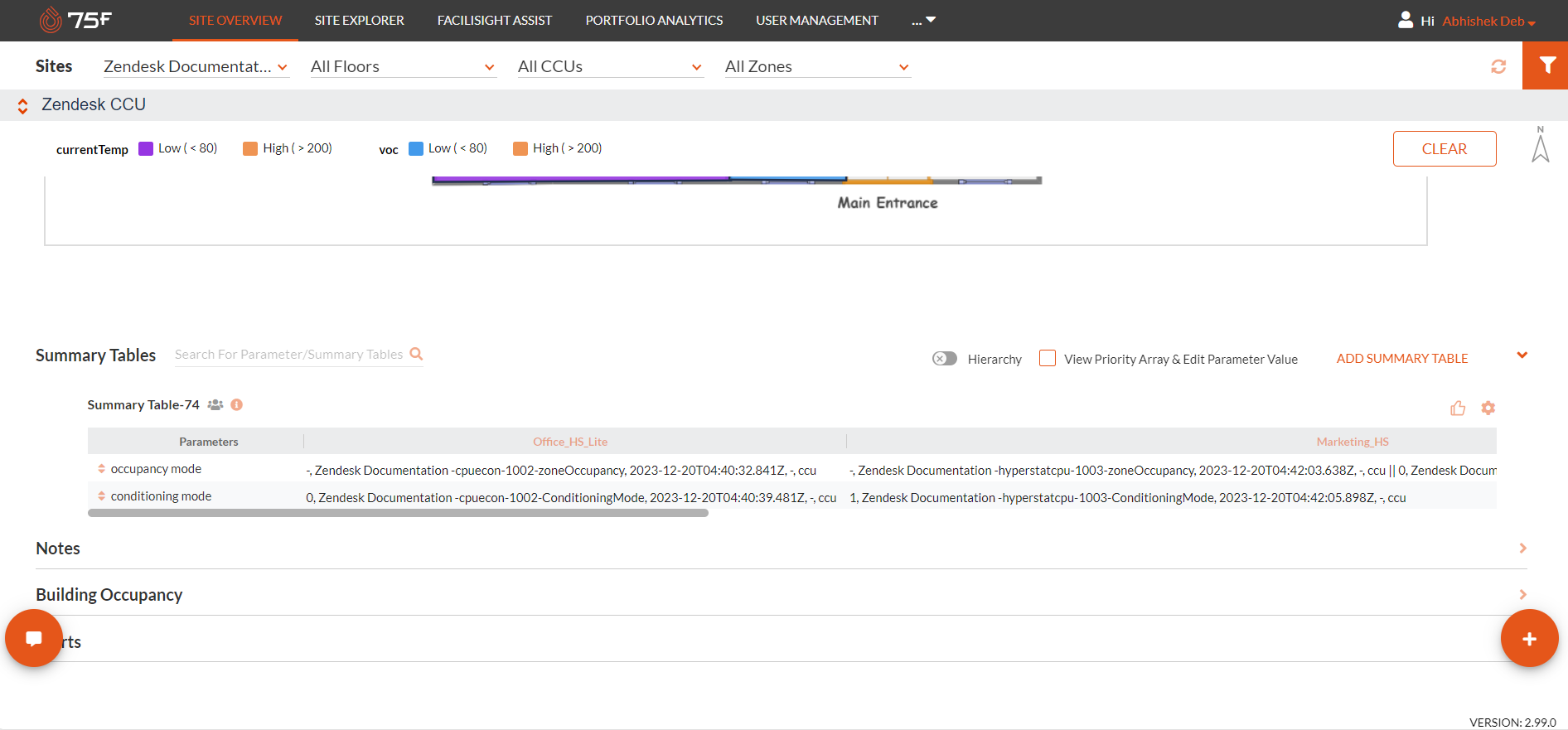

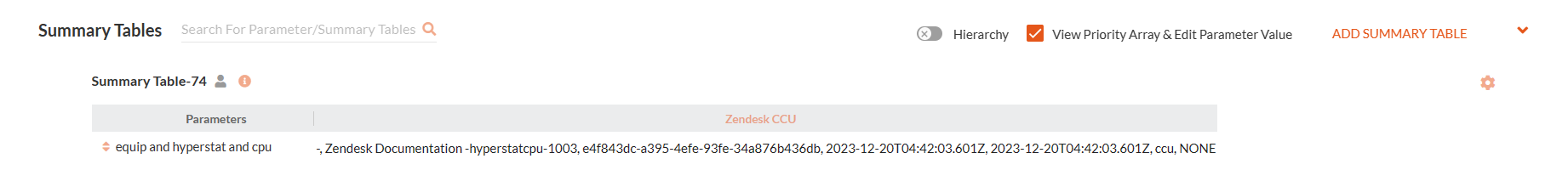

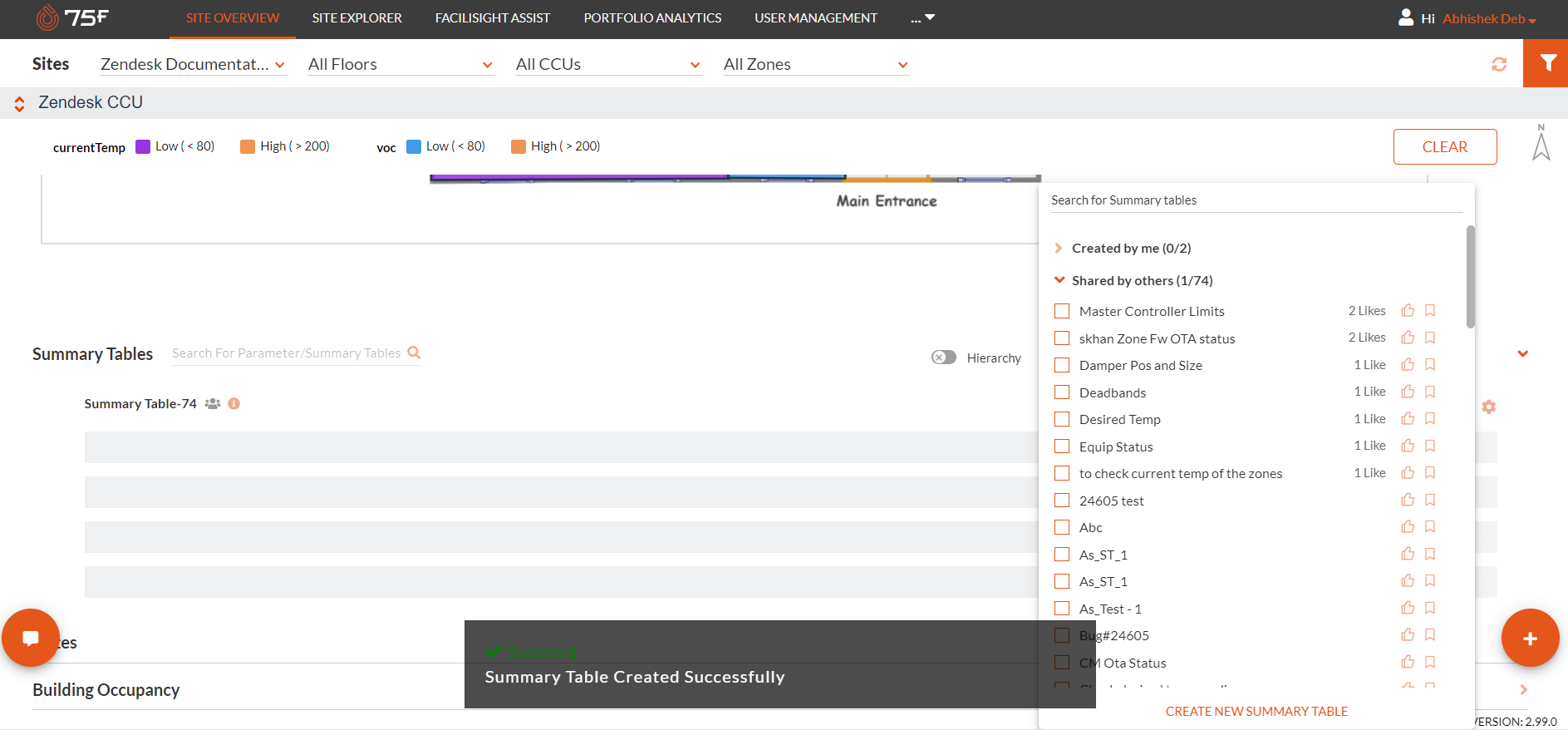

The table is created successfully.


| Editing a KV Tag Value

This provides the option to update string-type KV tags for the values provided in the table.

For example, if user selects "dis" as KV tag then user should be able to update dis for equip/device/schedule/diag/point entity based on site requirement.

Note: Users will only be able to update KV tags that are defined as string type on the summary table.


  • Select the check box to view the priority array and edit the parameter value.

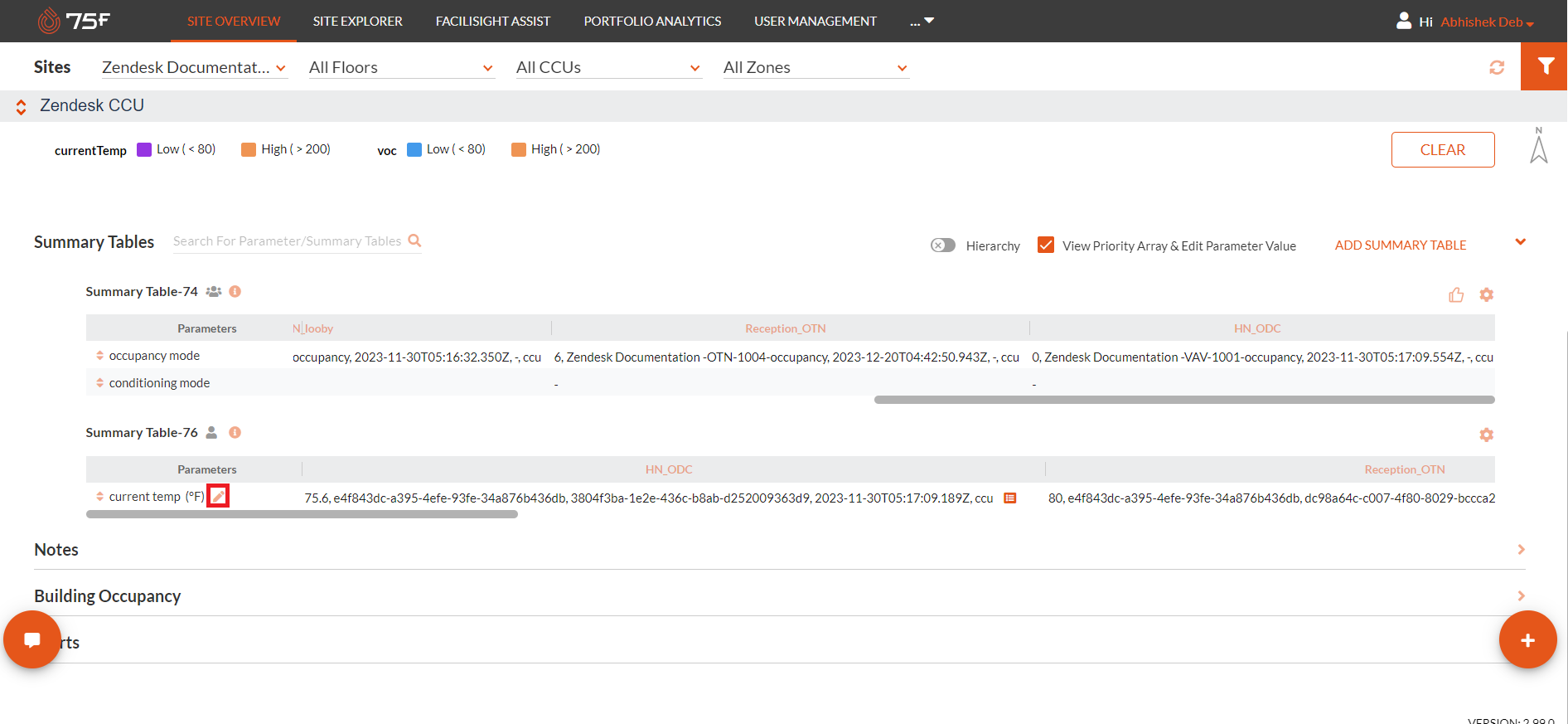

  • Click edit icon.pngto edit the point parameters for the KV tags provided.

KV tag 1.png

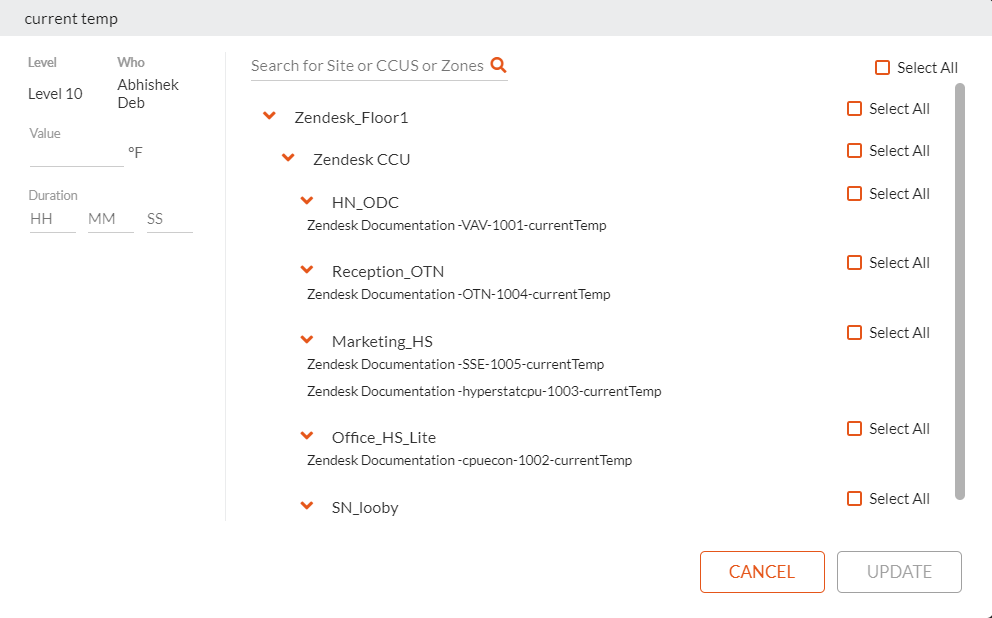

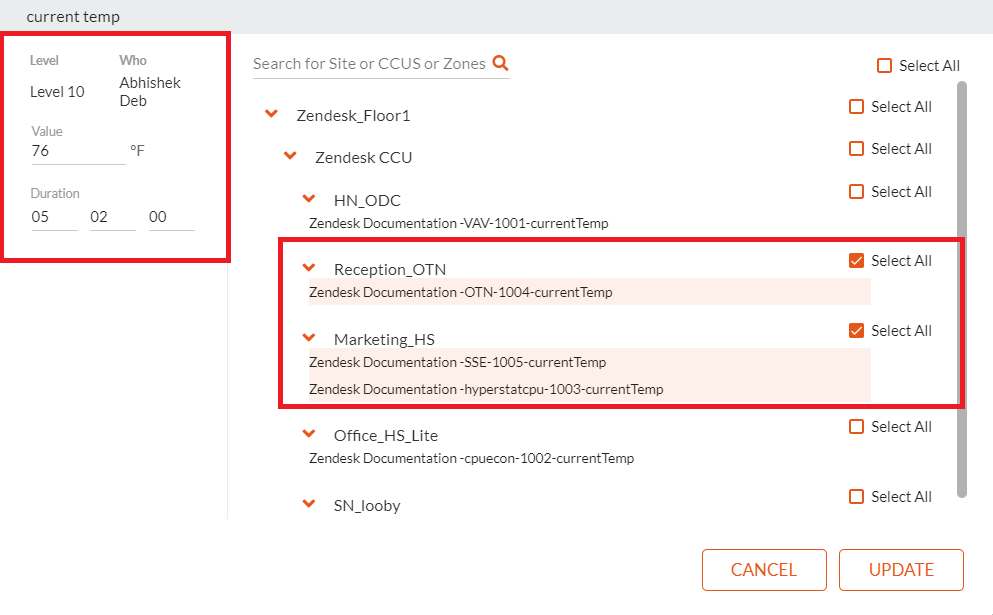

The update option is displayed.

KV tag 2.png

  • Add the required changes for the parameters on CCU/sites/zones.

KV tag 2.png

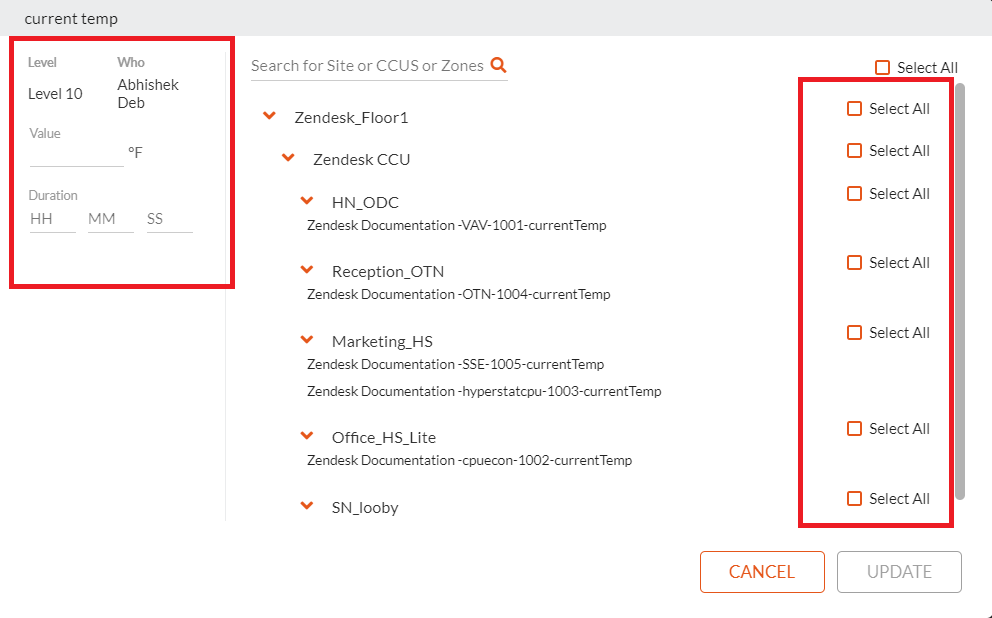

  • Enter the required values for the parameters.

KV tag 3.png

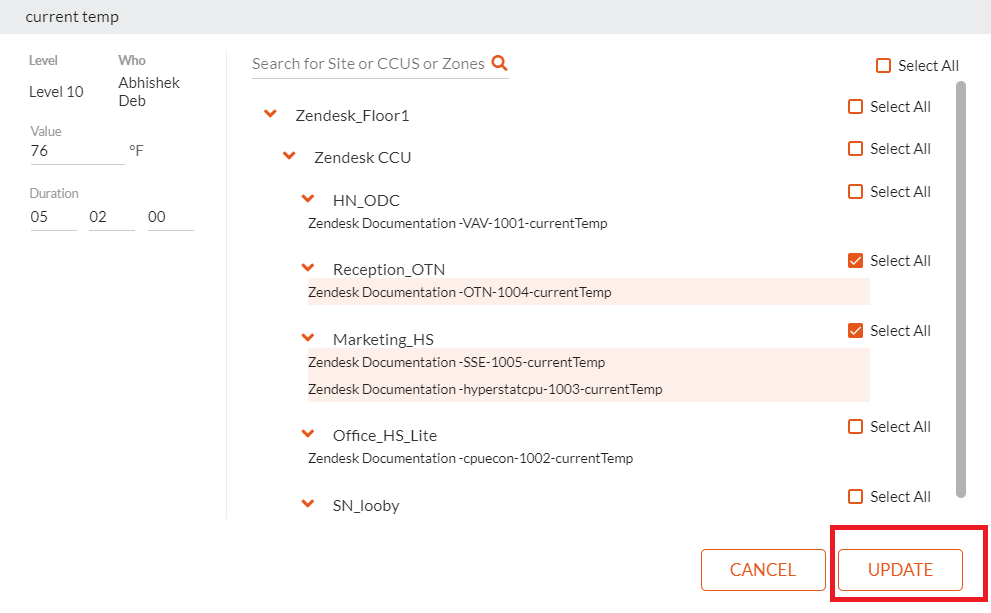

  • Click Update to update the parameters or cancel.

KV tag 4.png

The values have been updated.

| ENUM Mapping

If a point parameter has ENUM type value, the key and values are automatically mapped whenever a user adds a condition.

By default, "No Condition" will be checked for all types of points to simplify the operation of auto mapping of ENUM values.

Note: ENUM values would only appear if the same point consisting same ENUM values is queried.

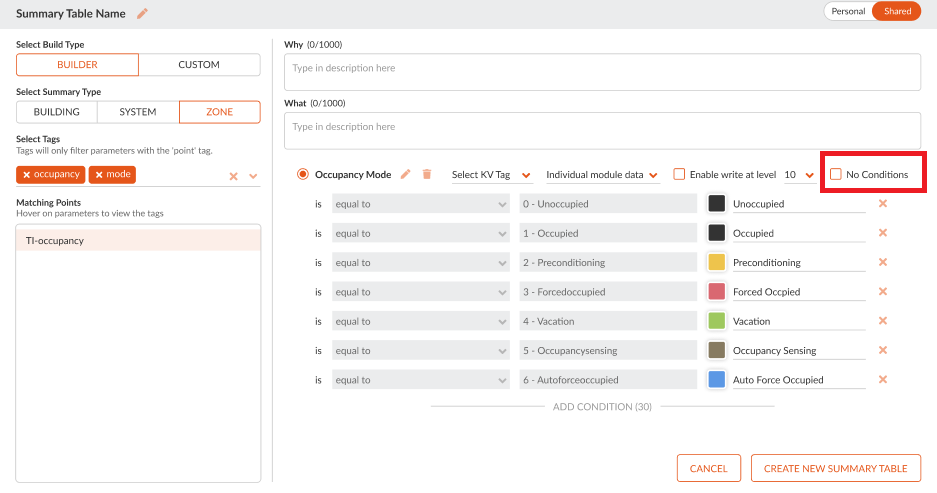

GetImage (1).png

  • Select No Condition to Auto populate the ENUM values.

GetImage (2).png
