The HyperStat is part of 75F's vertically-integrated suite of intelligent building solutions, delivering multi-mode sensing, remote monitoring and individual zone control for comfort and productivity of building occupants, for more information on refer to HyperStat Installation & Hyperstat UI

The HyperStat hardware is capable to work as a dependent device configured with a 75F's CCU configured for various system level profiles, or with any external Modbus or BACnet devices as a Modbus or BACnet slave, and it can also work as an independent or standalone device which can work as per profiles that can be configured in the Hyperstat itself.

This software side support on the Hyperstat device provides enhanced control of standalone equipment that is controlled and monitored by the 75F solution for both modulating and and multi-staged equipment.

The feature is introduced to address the HVAC needs of the customer who would like to user the 75F's Hyperstat alone for automating the HVAC operation based on certain profiles.

The profile supported for the standalone operation are.

  • CPU (Conventional Package Unit)
  • HPU (Heat Pump Unit)
  • 2Pipe FCU (Fan Coil Unit)
  • 4Pipe FCU (Fan Coil Unit)

| 2Pipe FCU (Fan Coil Unit) Configuration

From the Hyperstat home UI screen.


  • Press the + and buttons together navigate to the other screen of the hyperstat.

The inputs UI screen is displayed.


From the inputs UI screen.

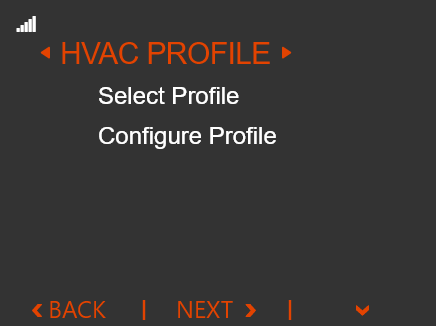

  • Press the next button several time to reach the HVAC profile screen.


  • Press the down arrow mceclip1.png button to navigate to the select profile option in the screen.


  • Press the select button to access the select profile.


  • Press the down arrow mceclip2.png button to select the 2 Pipe fan Coil Unit profile from the list available.


  • Press the back button to confirm the selection of the 2 Pipe fan Coil Unit profile and return to the HVAC profile screen.


  • Press the down arrow button twice to navigate to the Configure profile option.


  • Press select button to access the Configure profile option which opens the configuration options available for the CPU profile.

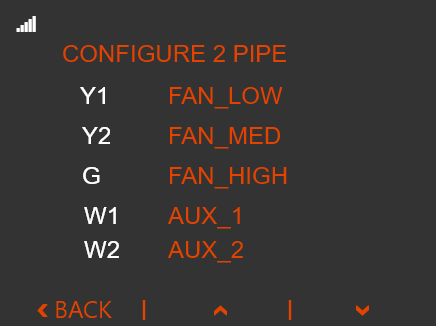

  • Press the down arrow to navigate to the configuration parameter under the 2Pipe fan coil unit profile.


  • Press the select button to access the parameters options available under the different configurable relays, analogs and other available options.


  • Press the down and up arrow to locate the required parameter to set for the relays, analogs and other available options.


  • Press the deselect button to confirm the selection.


  • Repeat the above step to navigate, access and select different parameter options for all the available relays, analogs and others, till the desired configuration settings are met.
  • Refer to the Configuration Parameter table below for the parameter options available under different relays, analogs and others and their purpose to help in the configuration.




| Configuration Parameters

Parameter

Purpose

Default Value

Values in the drop-down list

Relay 1 (Y1)

To enable control stages/ Humification/ occupancy/ water valve

Fan medium speed

Fan low speed

Fan medium speed

Fan highspeed

Aux Heating stage1

Aux Heating Stage2

Water Valve

Fan Enable

Occupied Enable

Humidifier

Dehumidifier

Relay 2 (Y2)





To enable control stages/ Humification/ occupancy/ water valve

Fan high speed   

Fan low speed

Fan medium speed

Fan highspeed

Aux Heating stage1

Aux Heating Stage2

Water Valve

Fan Enable

Occupied Enable

Humidifier

Dehumidifier

Relay 3 (G)



To enable control stages/ Humification/ occupancy/ water valve

Fan low speed

Fan low speed

Fan medium speed

Fan highspeed

Aux Heating stage1

Aux Heating Stage2

Water Valve

Fan Enable

Occupied Enable

Humidifier

Dehumidifier

Relay 4 (W1)



To enable control stages/ Humification/ occupancy/ water valve

Aux Heating Stage 1

Fan low speed

Fan medium speed

Fan highspeed

Aux Heating stage1

Aux Heating Stage2

Water Valve

Fan Enable

Occupied Enable

Humidifier

Dehumidifier.

Relay 6 (O/G)



To enable control stages/ Humification/ occupancy/ water valve

Water Valve

Fan low speed

Fan medium speed

Fan highspeed

Aux Heating stage1

Aux Heating Stage2

Water Valve

Fan Enable

Occupied Enable

Humidifier

Dehumidifier.

Analog out 1

To enable fan speed/ water valve / DCV damper

Water Valve

Water Valve

Fan Speed

DCV Damper

Analog out 2

To enable fan speed/ water valve / DCV damper

Fan speed

Water Valve

Fan Speed

DCV Damper

Analog out 3

To enable fan speed/ water valve / DCV damper

DVC Damper

Water Valve

Fan Speed

DCV Damper

Analog Min 1

To set the analog out values for modulating conditioning controls

2V

Range from 0V to 10V in 2V increments

Analog Max 1

To set the analog out values for modulating conditioning controls

10V

Range from 10V to 0V in 2V increments



Analog Min 2

To set the analog out values for modulating conditioning controls

2V

Range from 0V to 10V in 2V increments

Analog Max 2

To set the analog out values for modulating conditioning controls

10V

Range from 10V to 0V in 2V increments

Analog Min 3

To set the analog out values for modulating conditioning controls

2V

Range from 0V to 10V in 2V increments

Analog Max 3

To set the analog out values for modulating conditioning controls

10V

Range from 10V to 0V in 2V increments
