Single Stage Equipment - Helio Node

1 Minute Read

| How it Works

The SSE module is like a simple thermostat and works independently with no dependency on the main CCU. The CCU acts as an aggregator point, The system profile in this case is set to default and is not connected to any HVAC equipment.

The CCU at times is used for various system-level profiles like the DAD/VAV/OAO. So, while the CCU is in heating mode, the SSE is connected to a split AC for cooling the room (like a server room in winter).

Based on the equipment selection the SSE provides either heating/cooling.

Multiple SSE modules may be paired to a single zone.

The SSE module can be in setback mode based on the vacation or the unoccupied schedule, and since the SSE does not control any HVAC equipment it does not have a Zone priority.

| Wiring

| Configuration

From the Select Module Type screen for the HelioNode,

• Click the Single Stage Equipment option.

• Follow the instructions for pairing as shown below.

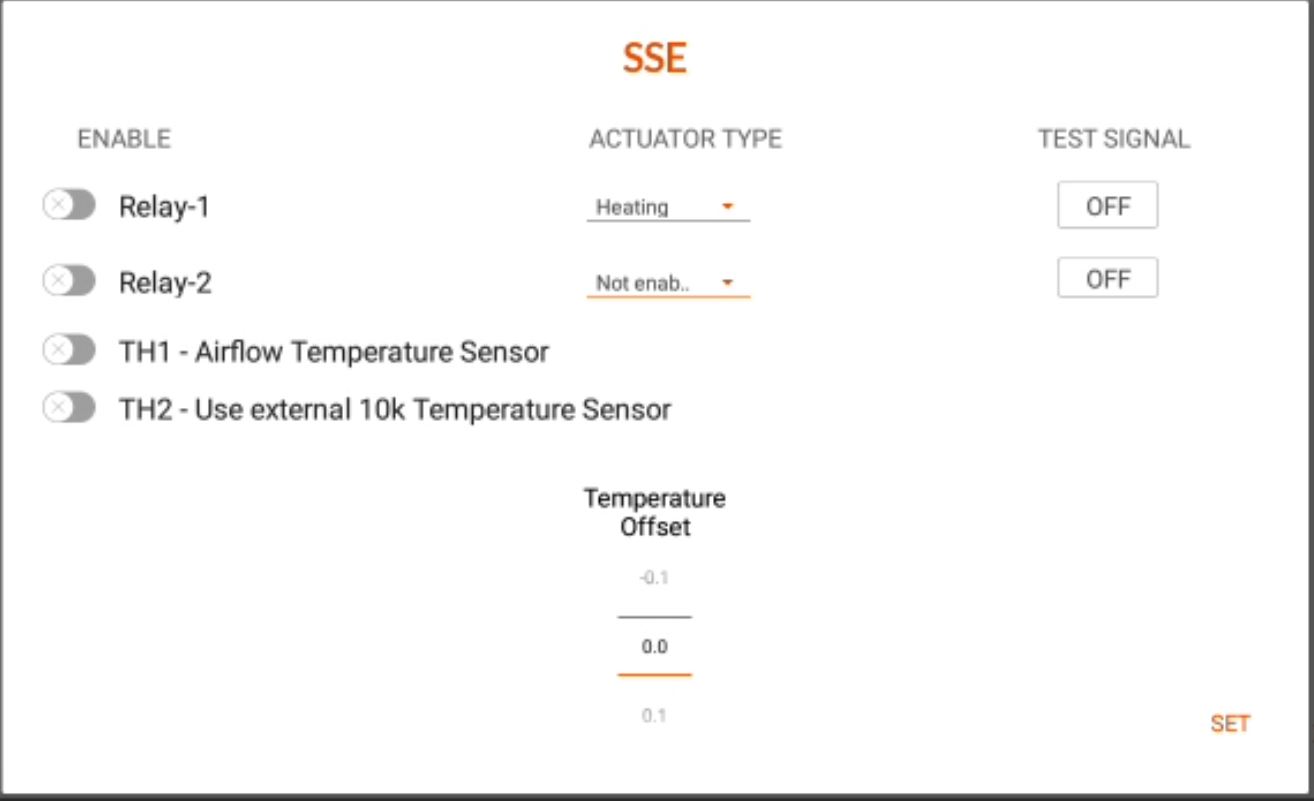

The configuration screen displays the following

• Relay-1
• Relay-2
• Thermistor-1
• Thermistor-2

Configuration Parameters

• Configure the required parameters.

• Click Set to confirm the configuration.

The Single stage equipment profile using the Helio Node is configured and ready to control the equipment.

The profile data that is aggregated by the CCU can be visualized in the portals.

Note: You can configure SSE modules from CCU but can reconfigure the values from the internal portal.
