Scheduling Standalone Stats

| Overview

The HyperStat Split now supports Real-Time Clock (RTC) functionality and scheduling capabilities, even in standalone mode. This means you can configure time-based:

• Setpoints

• Fan operations

• Operating modes

The process involves the following steps:

• Setting up Real Time Clock (RTC) on HyperStat Split

• Create scheduled events for weekdays.

• Create scheduled events for weekends.

| Setting Up Real Time Clock (RTC)

To set up the Real Time Clock (RTC)

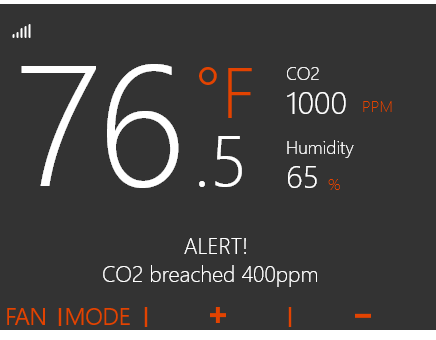

• On the home screen of your HyperStat Split device:

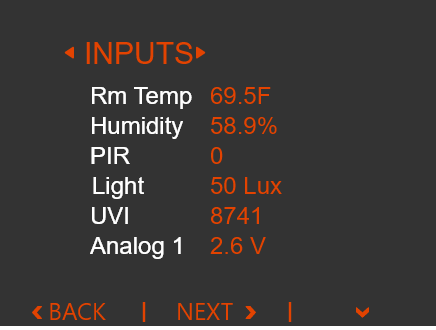

• Press the + & - buttons together to navigate to the inputs screen.

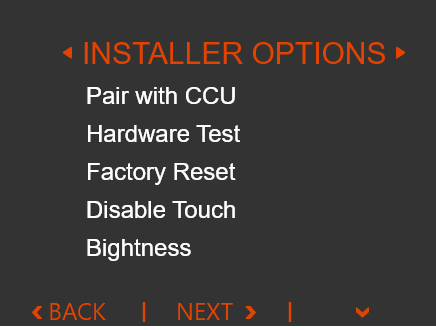

• Press the next button to navigate to the Installer options screen.

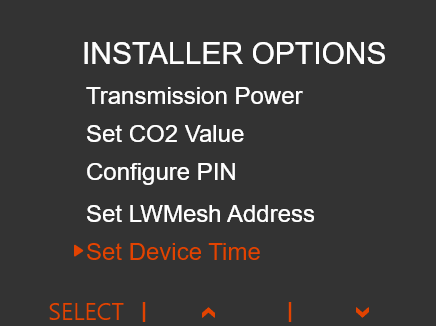

• Press the down arrow button to navigate to the Set Device Time option.

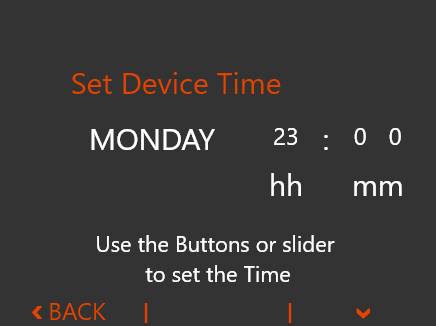

• Press the select button to access the Set Device Time option.

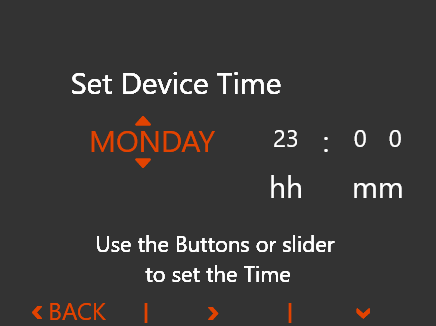

• Press the down arrow button to access the Day of the week.

• Use the down arrow button, or the slider to set the day of the week.

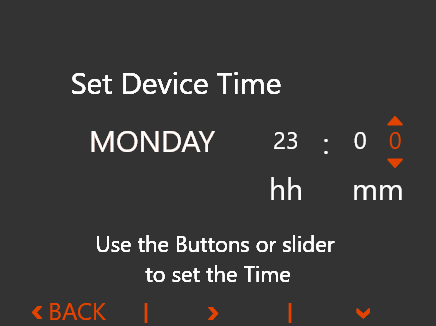

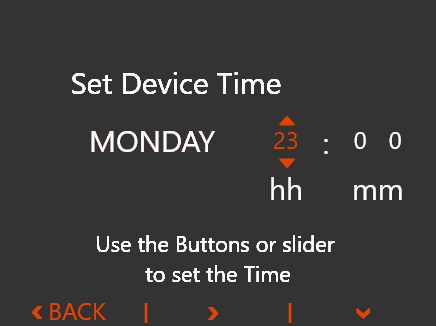

• Press the right arrow button to access the hour and digits of minute option as below

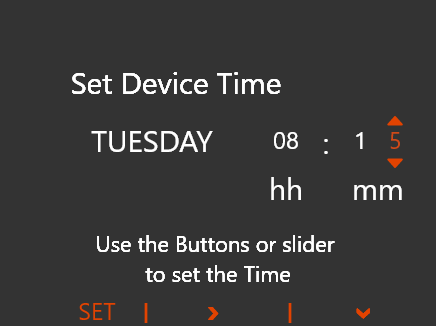

• Use the down arrow button, or the slider to set the hour and minutes for the device.
• Press the SET button to confirm the scheduled event.

| Setting Up Schedule Events

From the installer option screen

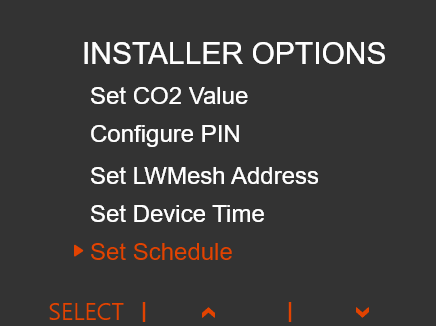

• Press the down arrow button to navigate to the Set Schedule option.

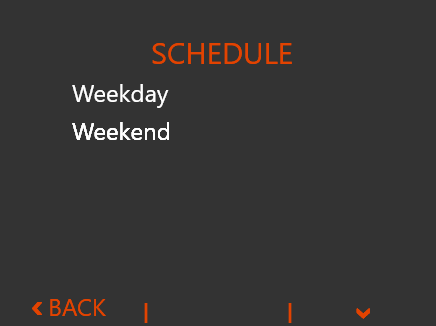

• Press the select button to access the Set Schedule option.

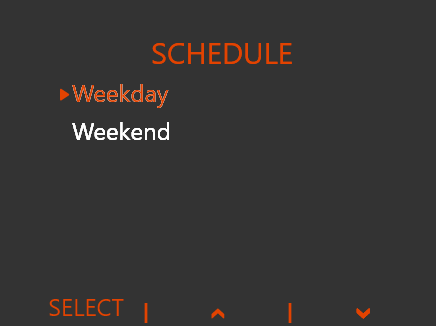

• Press the down arrow button to navigate to the Weekday Scheduling option.

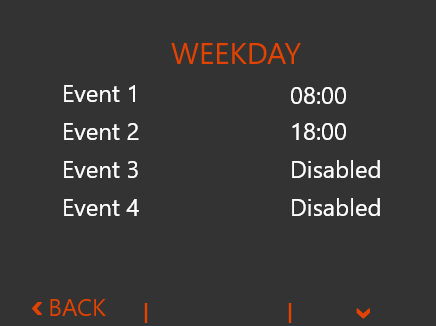

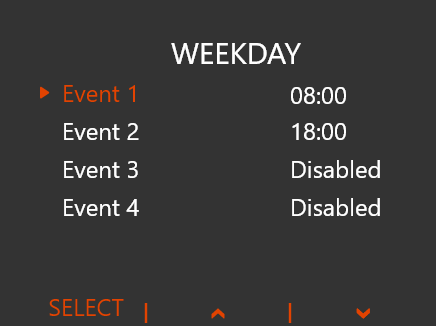

• Press the select button to access the weekday scheduled events.

• Press the down arrow button to access any schedule events.

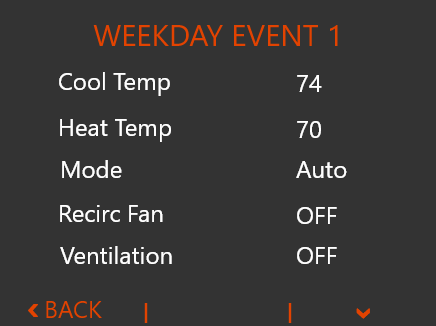

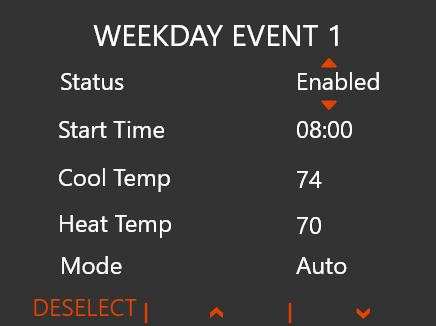

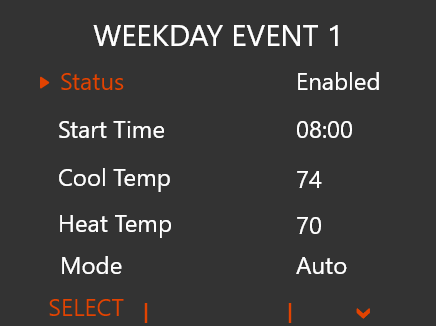

• Press the select button to configure the schedule event.

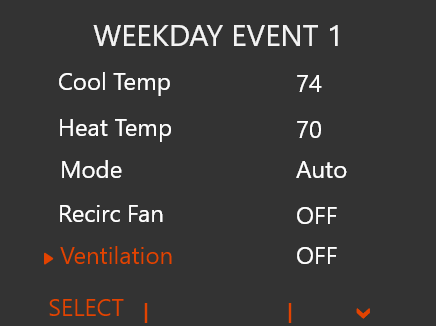

• Press the down arrow button to access configurable options.

• Press the select button to configure values for the configurable options.

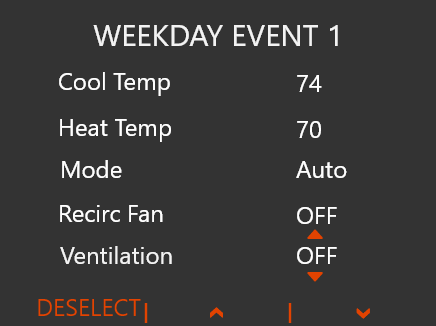

• Use the down/ Up arrow button, or the slider to set the values.
• Press the Deselect button to confirm the value configured.
• Repeat the steps to set the value for other configurable options, as below.

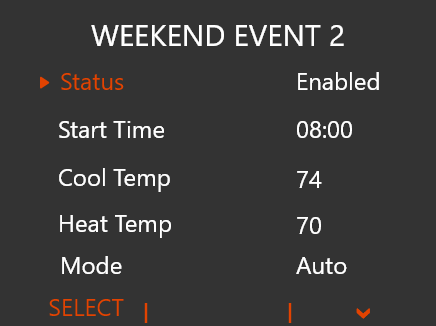

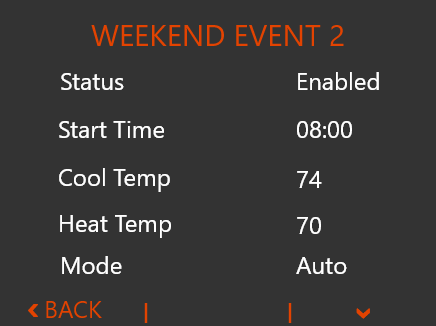

• As shown below, repeat the steps to set up the weekend event schedule.

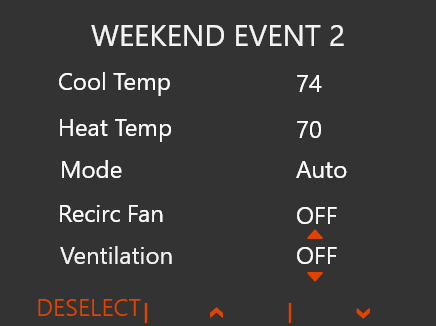

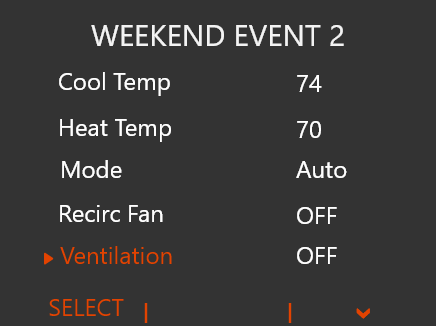

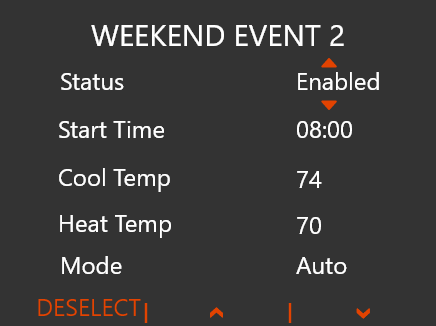

• Repeat steps to set the value for other options under a weekend schedule event, as below.

Note: An event will remain active until a new event overrides it. This applies to both weekday and weekend schedules.
