The VAV Staged RTU w/ VFD Fan System profile uses advanced sequences that are fully outlined in ASHRAE GPC 36. For a comprehensive understanding of how GPC 36 works, please read the document in full. Here we will discuss some basic field level understanding for a quick and dirty understanding of what should be expected.
For the basics on Trim and Respond logic, please reference either GPC36 or our outline here: Trim and Respond Overview
Below the profile configuration you can program the output voltage for the VFD during various stages of equipment operation.
Each zone is configured for parameters such as size of damper and min/max damper positions as input for tracking in the algorithms. A zone is assigned different priority levels based on individual needs - low, medium, high, or no priority; this lets the user designate which zones are more important than others for the operation of the AHU. With this in mind, the system will actively monitor the average zone temperature while weighing individual priority levels. As the load in the spaces shifts, the system will determine if an additional stage of cooling, heating or fan speed is needed.
Cooling - When staging cooling, the algorithm will divide your stages evenly among the cooling loop output scale.
- Cooling loop output > 0%, Cooling Stage 1 Turns On
- Cooling loop output > 50%, Cooling Stage 2 Turns On
- Cooling loop output <= 0%, Cooling Stage 1 Turns Off
- Cooling loop output <= 40%, Cooling Stage 2 Turns Off
Heating - When staging heating, the algorithm will divide your stages evenly among the heating loop output scale.
- Heating loop output > 0%, Heating Stage 1 Turns On
- Heating loop output > 50%, Heating Stage 2 Turns On
- Heating loop output <= 0%, Heating Stage 1 Turns Off
- Heating loop output <= 40%, Heating Stage 2 Turns Off
Recirculate - When recirculating with a VFD, the default output voltage will be 4v.
Once you've configured the system profile as a VAV system, the sequences for VAV applications in GPC36 will be followed. What you will need to do is select a few specific configuration parameters that define the physical characteristics AHU.

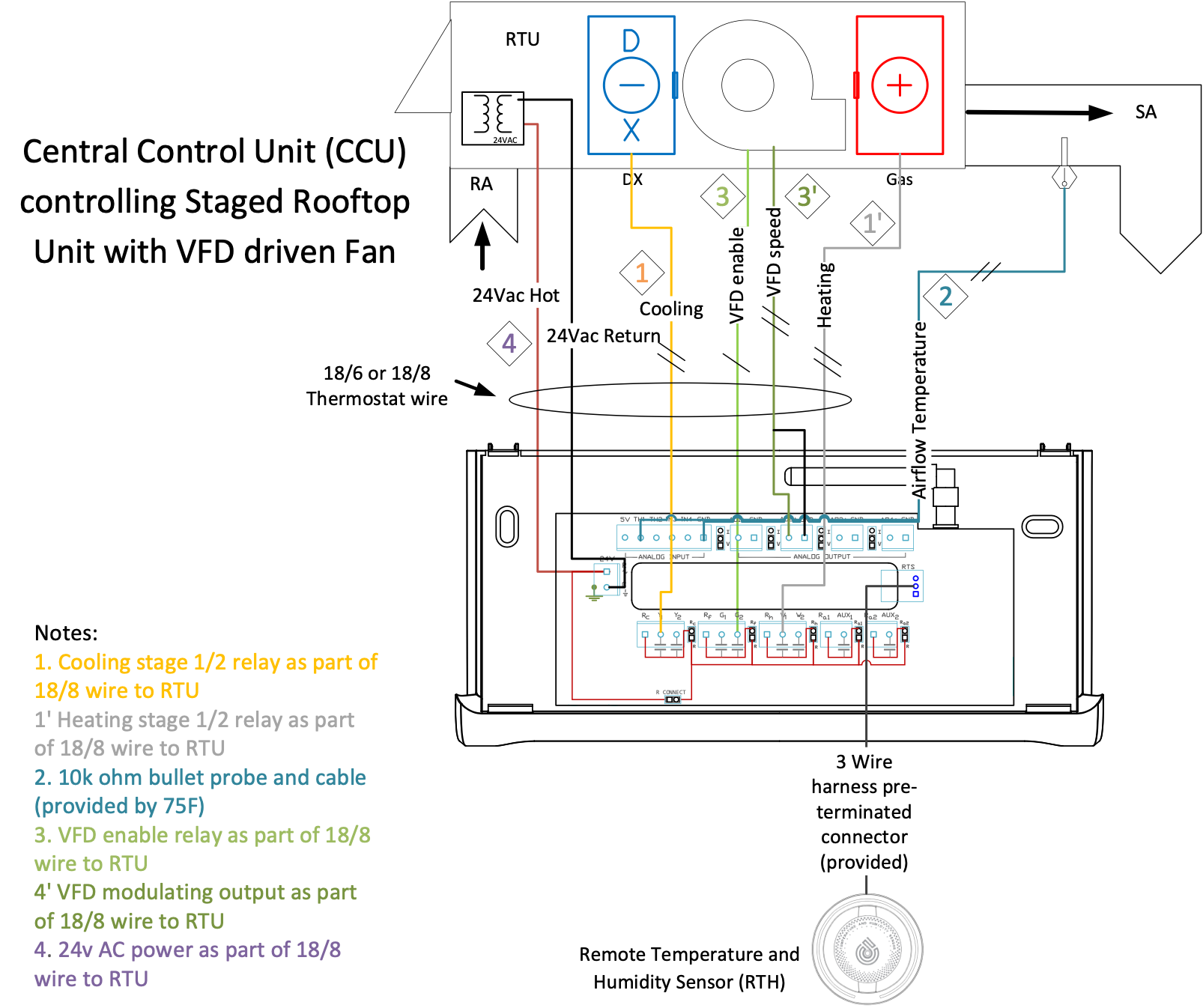

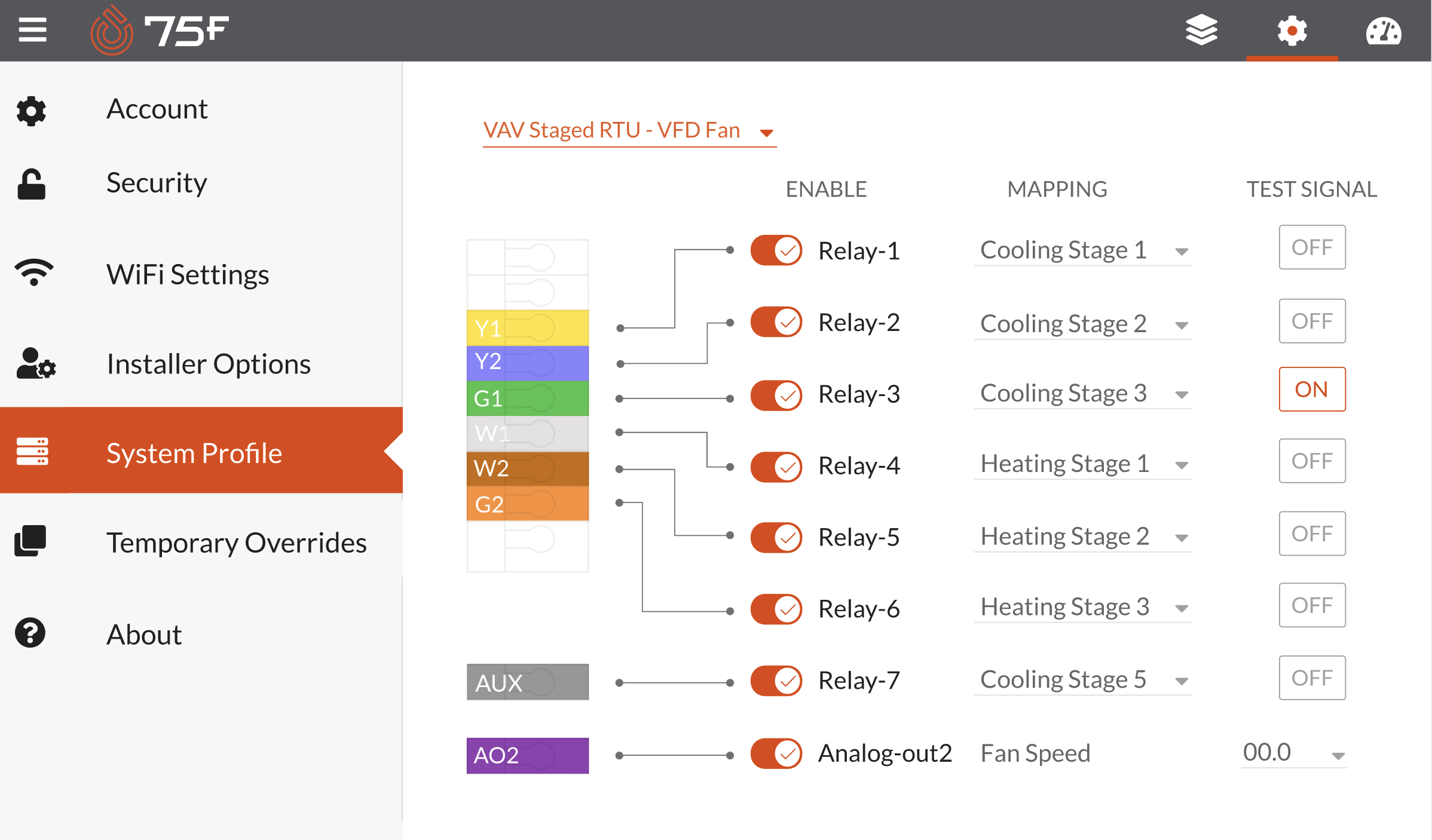

Relays 1-6 - By default are configured as a traditional thermostat connections. However, depending on your equipment, you can reconfigure (Mapping) any of these relays to act as heating, cooling, or fan.
Relay 7 -Auxiliary relay for humidifier or dehumidifier contact. This is a wet contact. If your equipment needs a dry contact, please see wiring information for which jumper to pull from the CM board.
Test Signal -At any point you can override the value the output the algorithm decided. This is used for troubleshooting and testing your equipment.
Analog-out2 -Fan Speed. Customized using the 'Analog-out2 During STAGE' options below.
Analog-out2 During 'STAGE' - Directly Set the VFD fan speed during a given Stage of mechanical conditioning. Whatever you set here is the speed the VFD will run when the given stage is calling.
