| Overview
The SmartNode V2 is an enhanced version of the SmartNode V1. It is a highly versatile input/output (IO) controller. Many applications can be set up out of the box with minimal configuration options. The SmartNode can also be used for more custom sequences outside its typical terminal application profiles.
| Precautions
- Please don't install devices in direct sunlight.
- Please don't install devices on an exterior wall.
- Please don't install devices near heat-producing equipment.
- Disconnect the power before installing. Please don't connect or disconnect wiring while power is applied.
- Please don't run the Wall Sensor harness next to the line voltage.
Install according to all state and local codes. - Please don't mount the SmartNode directly on the bottom of the ductwork. This can cause a potential trip hazard to the electronics in the case of condensation buildup.
- Mount the SmartNode between the angle encompassed by the 8 and 4 O'clock of the ductwork.
| Features
- Accurate Temperature measurement
- Accurate Humidity measurements
- Wireless communication to the Central Control Unit (CCU)
| Specifications
- Operating Environment: 0°F – 122°F
- Max power consumption: 5VA w/75F Smart Damper @ 24VAC
- Each Analog Out is capable of 20mA max
| Mounting & Wiring
| Wiring
The SmartNode is an IO controller that is capable of controlling many unique applications. you will know what terminal profile to use based on the equipment.
For wiring and specific terminal profile configuration, refer the link below.
Wall Sensor Harness
Both ends of the Wall Sensor harness are the same male connectors. Run one of the ends down the wall and feed through the 1-inch hole drilled previously. Plug into the Wall Sensor. Plug the other end into the RTS port on the SmartNode.
Powering the SmartNode
To power, the SmartNode runs your 18/2AWG bus line to the Power IN on the SmartNode. All devices with a shared transformer must be the same polarity. If you have another SmartNode that needs to be powered, daisy chains them from Power OUT to the next Power IN. Secure your cables so there is no excessive strain on any connections.
Connect the Smart Damper(s)
First, connect the primary damper RJ45 lead to the Damper1 port on the SmartNode. Run the Cat5 extension cable from the SmartNode Damper2 port (Male end) to the RJ45 lead (Female end) on the secondary damper. Ensure all connections are tight and cables managed so no excess stress occurs on any connection.
| Pairing & Configuring A SmartNode

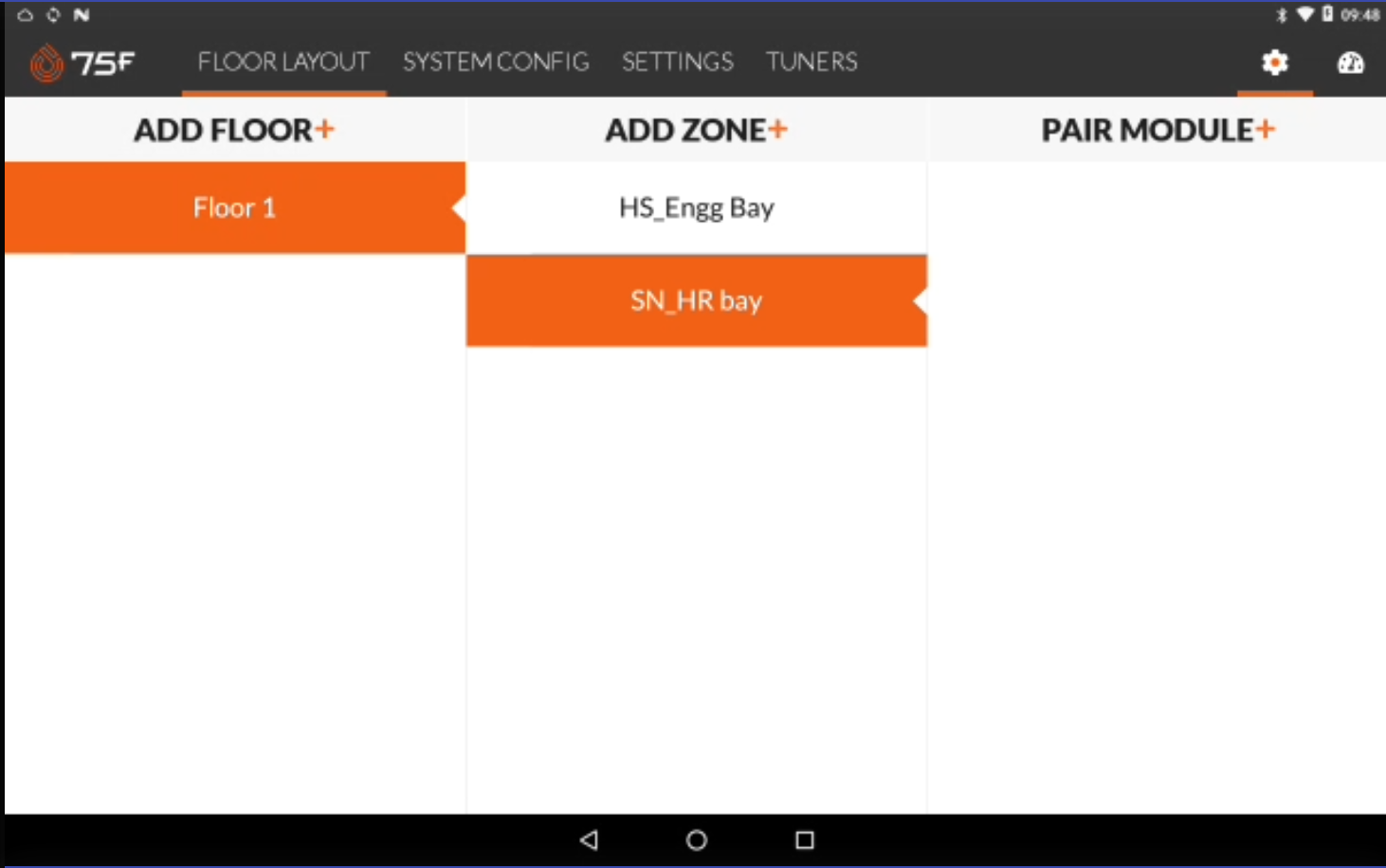

Pair the SmartNode with a zone that has been preconfigured or create and configure a zone yourself through Setup > Floor Plan on the CCU.
Once power is supplied to the system, and all SmartNodes display the default room.
- Disconnect the tablet from the CM and carry it with you. The pairing will be performed using Bluetooth.
- On the Wall Sensor push the small “Pair” button for 4 to 8 seconds. This puts the SmartNode into advertising mode. Alternatively, you can press the right button on the SmartNode until you reach advertising mode.
On the tablet choose the zone you wish to pair and press “Pair Module.” The pairing process will start. If no zones are displayed you will need to add all floors and rooms before pairing. Choose the type of profile the SmartNode will be.

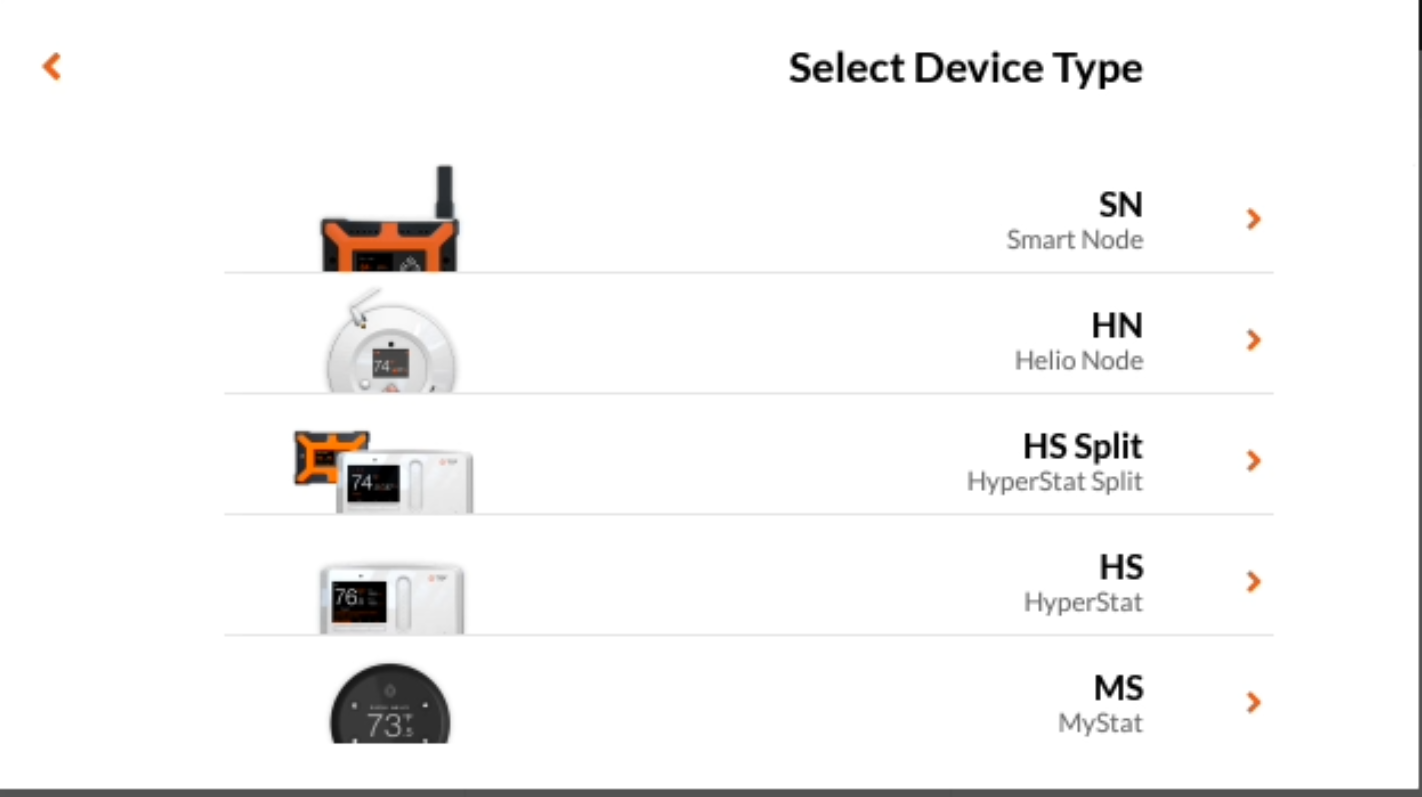

- Select SmartNode Device Type.

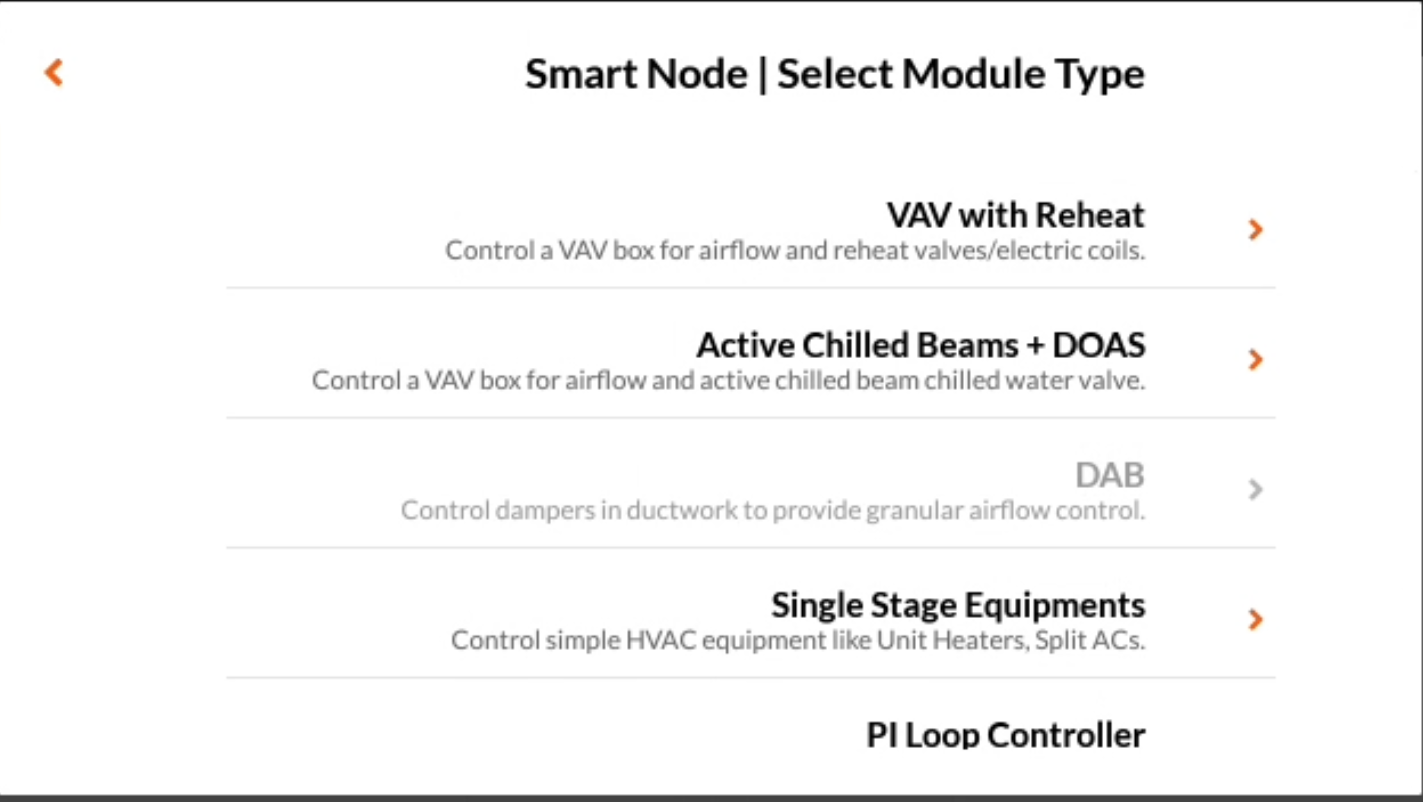

- Select the Terminal Profile that the SmartNode will be controlling.

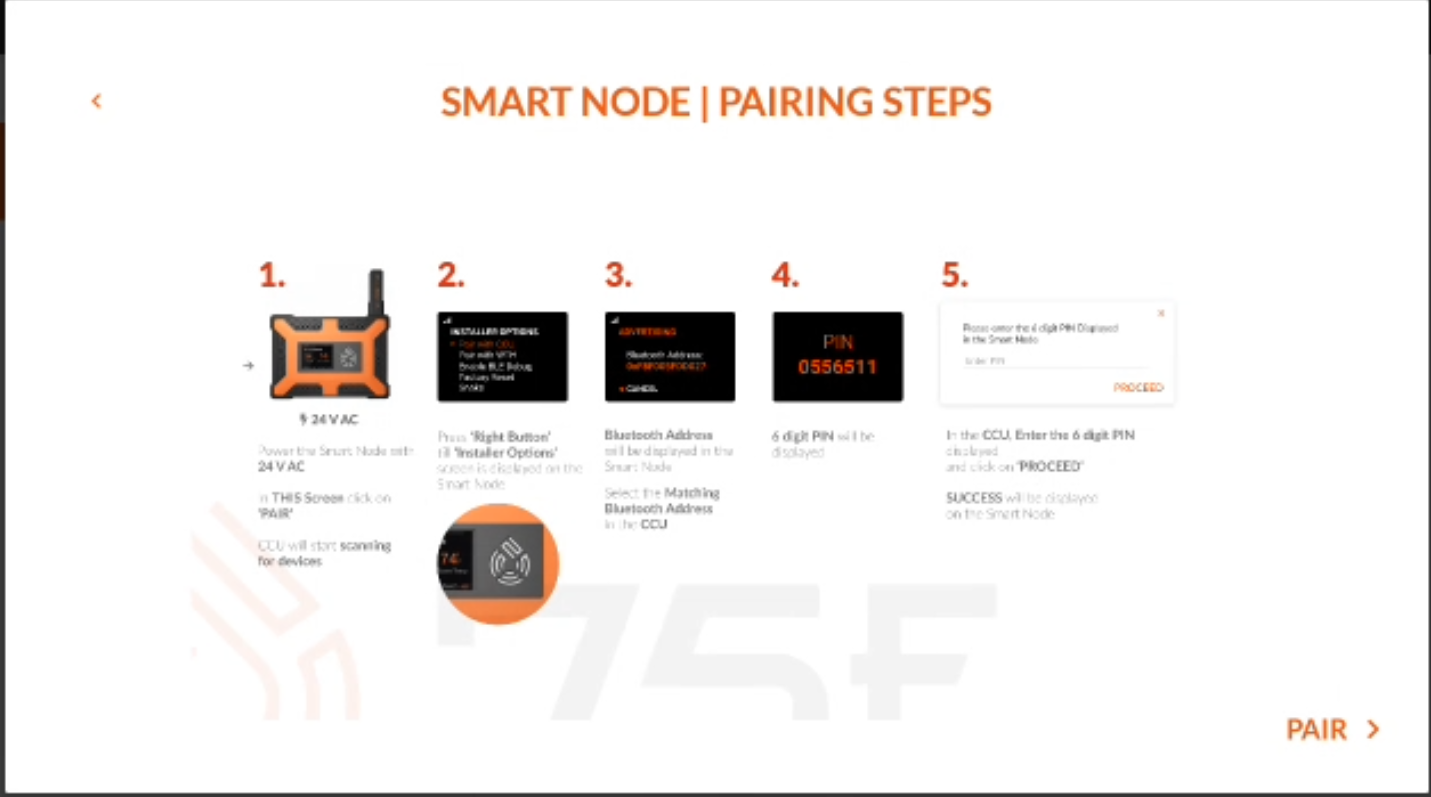

- Follow the pairing steps on the SmartNode and press Pair.

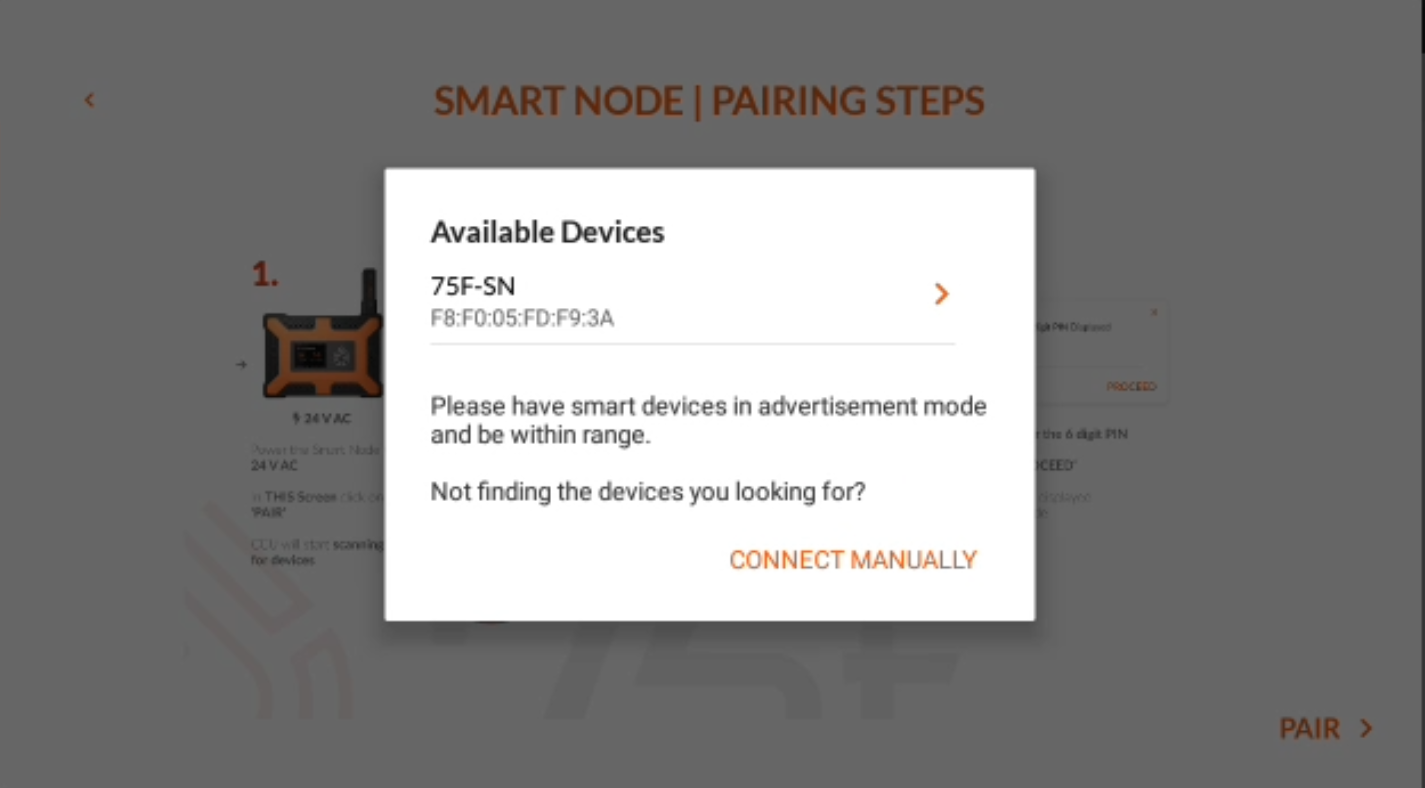

- Select the device Mac ID from the broadcasting window, or connect manually. for steps to manually pair a device refer to Alternate/ Manual Pairing for SmartNode
-

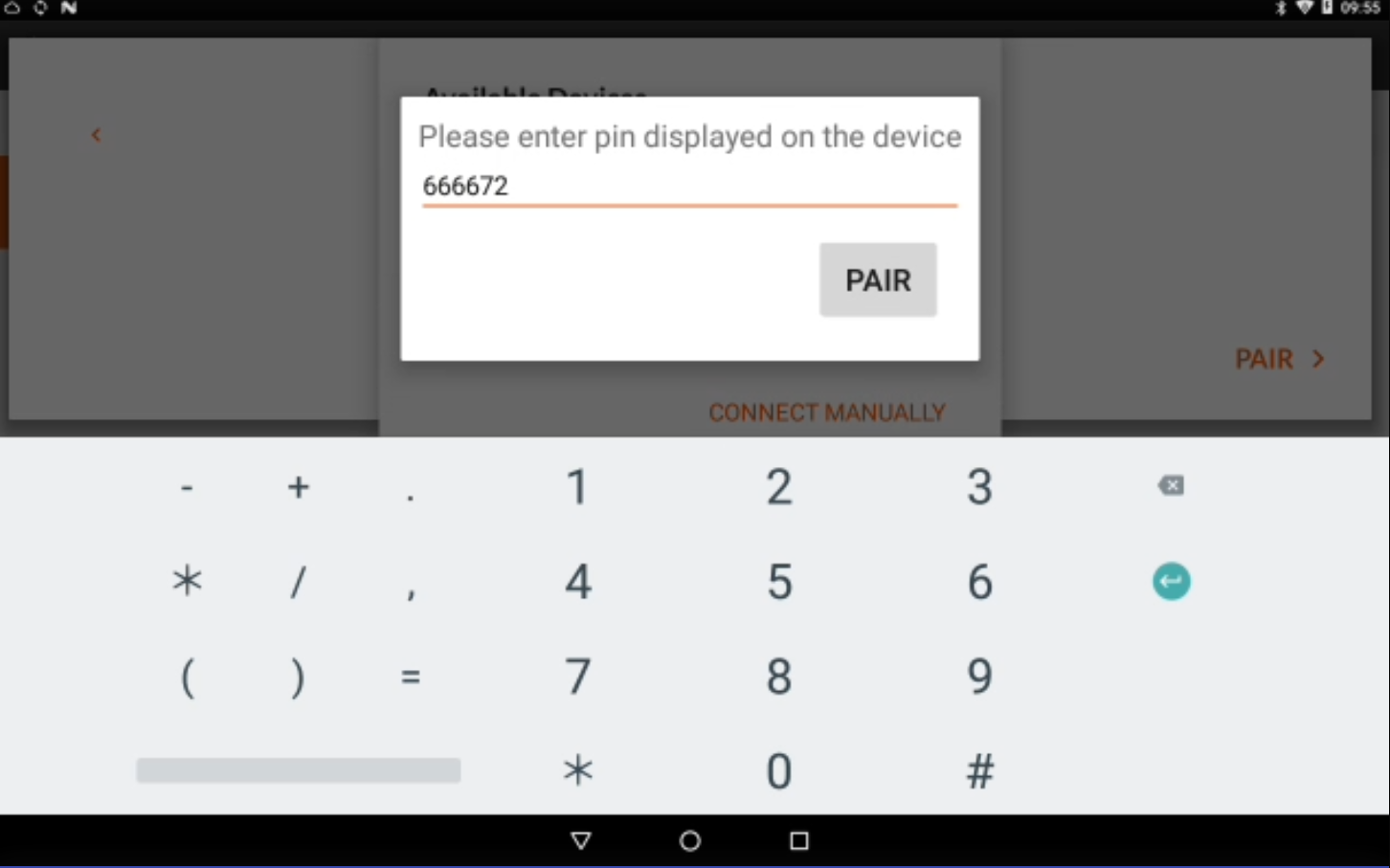

The tablet will request a PIN. Enter the PIN displayed on the SmartNode in the zone you are pairing.
Note: The pairing process will take a few more seconds and then complete displaying Success on the screen. After a few more seconds the SmartNode will display the new zone name. The tablet will not display any zone data until it is reconnected to the CM where it will communicate over a 900 Mhz channel.
| Troubleshooting - Pairing
Pairing Bluetooth devices comes with its own set of nuances that can cause the device to not pair successfully. But don't worry, this isn't uncommon and is almost always an easy hurdle with a couple simple steps.
If you're having trouble pairing your device with your CCU and are getting to a place where the device is displaying a MAC address or PIN but it is not being displayed on the CCU, try the steps below one at a time.
- Tap away from the pairing screens on the CCU and retry the pairing.
- Toggle the Bluetooth adapter Off and back On. Swipe down from the upper right and press the Bluetooth icon and wait for it to turn gray. Then tap it again and wait for it to turn white.
- Power cycle, or press the reset button on the device itself.
- Reboot your CCU.
