Site Pre- Configuration / Preconfigured Site

| Overview

Site Pre-Configuration is a feature of the 75F system that lets users preconfigure site-specific settings, automation sequences, and device configurations before deployment.

This allows installers to procure, set, and preconfigure 75F equipment and take it to the site for easy installation.

The following are the key advantages that come with the site pre-configuration

Remote Setup & Staging – Configure building automation settings remotely before hardware installation.
Standardization – Ensure consistency across multiple locations by using predefined templates.
Faster Deployment – Reduce on-site configuration time, enabling plug-and-play installation.
Cloud-Based Management – Utilize the 75F platform to push configurations remotely to CCUs
Custom Profiles – Define HVAC schedules, setpoints, zone controls, and automation sequences per site.

| Site Preconfiguration Process

The site pre-configuration process consists of a series of steps that the user needs to follow to preconfigure the required site before deployment of the actual devices to the site.

The following are the steps that make up the Site Pre-Configuration process for a new deployment.

Kit Procurement and App Installation
App Sign Up
Site Registration Via App
On-Site Installation & Commissioning
Post-Installation Handling

| Kit Procurement & App Installation

Kit Procurement

Procure the Site Preconfiguration kit.

The Site Preconfiguration kit is made of 1 CCU and 4 SmartNodes boxed together as a bundle.

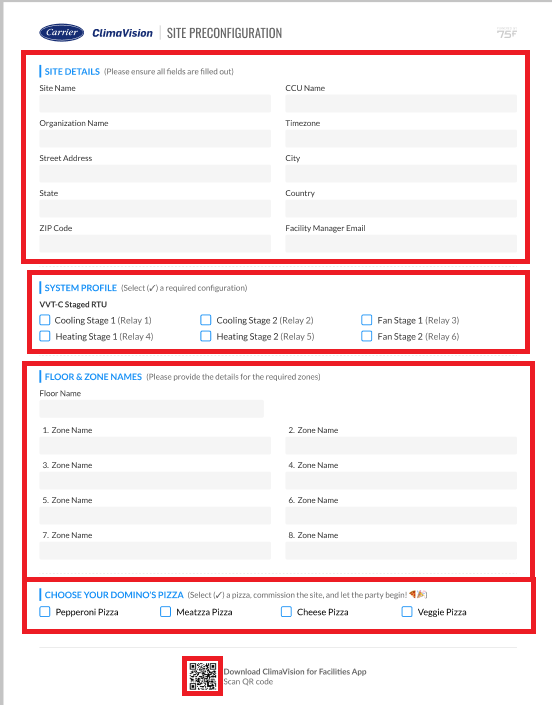

It also includes a preconfiguration form as shown below.

that can be used to fill in the site details, and used it during the preconfiguration process. and comes with the following sections.

Site Details
System Profile Configuration Details
Floor & Zone Details
A pizza ordering section (for pizza to be delivered before the site configuration is complete)
QR Code to download the Facilities App from the Android or Apple stores.

App Installation

Scan the QR code to download & install the Facilities App from the respective store.

| App Sign Up

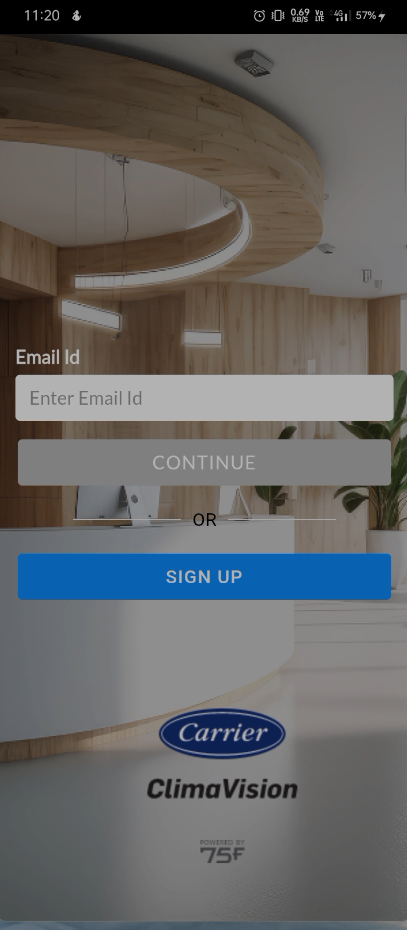

Once installed and launched, the sign-in / sign-up screen displays.

image (19).png

Click Sign-Up.

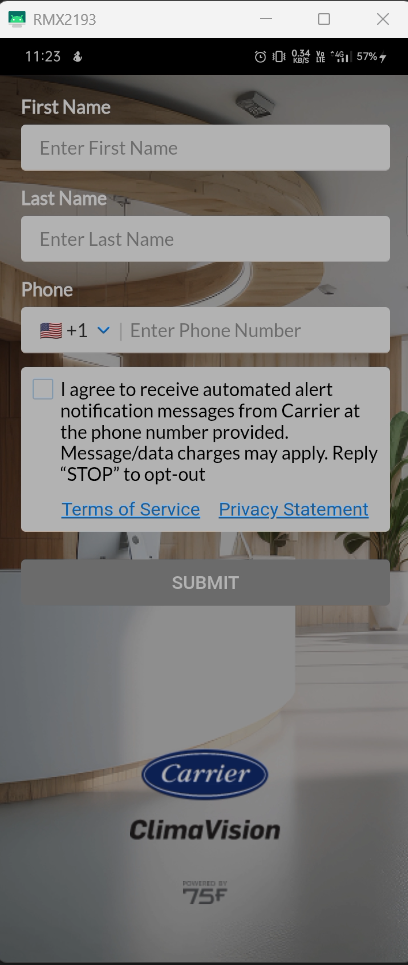

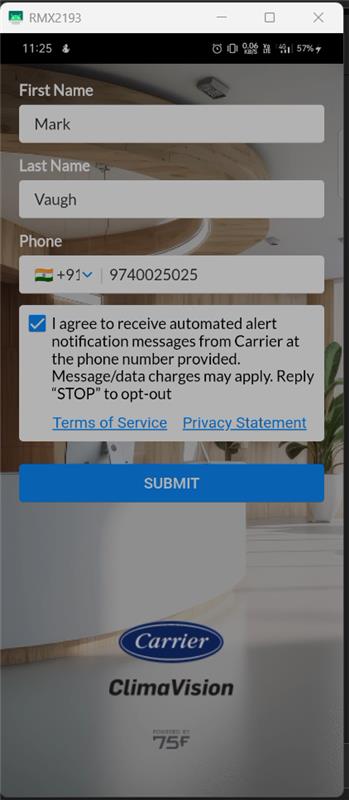

The sign-up screen displays as below.

image (17).png

Enter the first, last names, phone number with the corresponding country code, and check the box to accept terms and conditions, to complete the sign up form.
Click Submit to confirm sign-up.

image (6).jpg

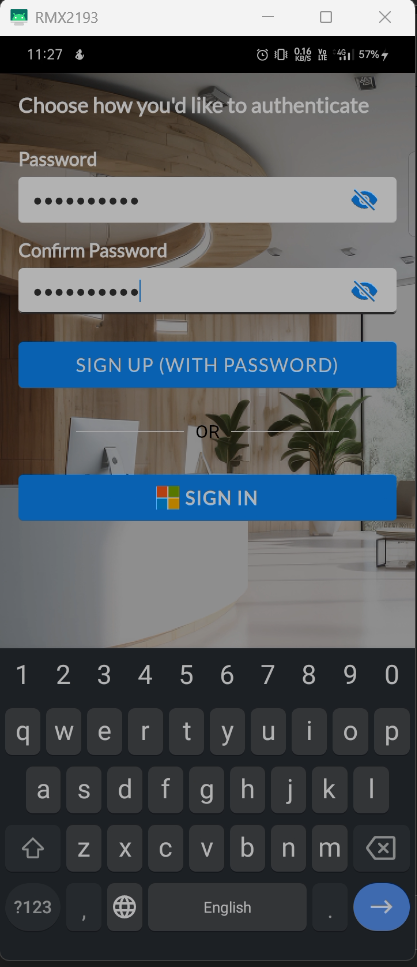

The password setting screen displays to set the sing-in password.

Enter and confirm the password to be used for signing in.
Click Sign Up (With Password) to confirm password.

Alternately, you can also sign up using Office 365.

image (15).png

The user is registered successfully, and the sign-in screen displays as below.

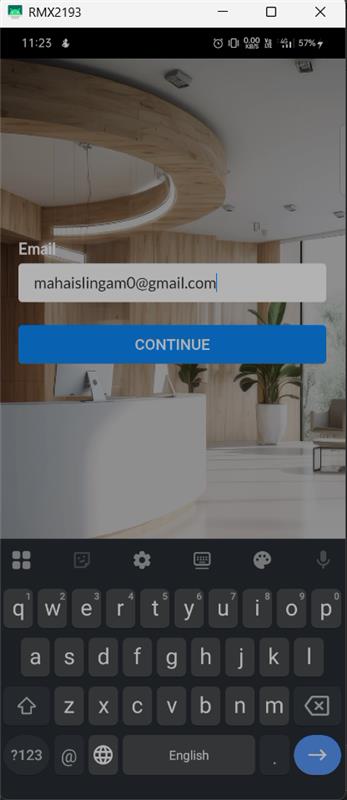

Enter the registered email ID and click Continue.

image (7).jpg

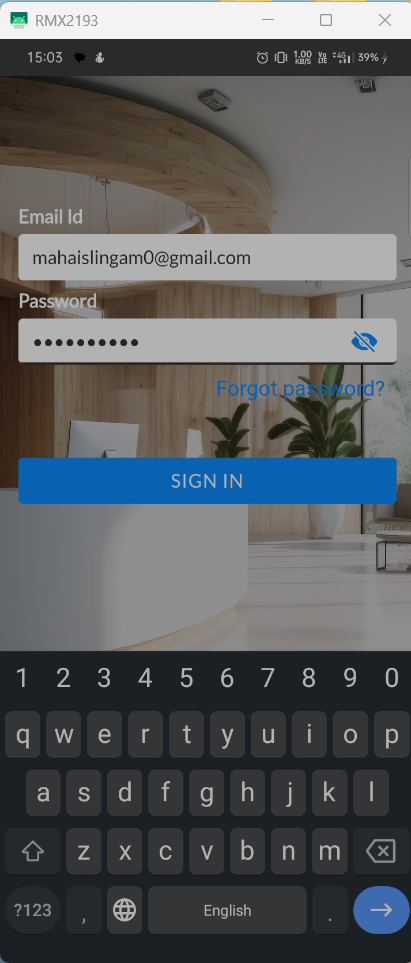

Enter the password.
Click Sign In.

image (9).png

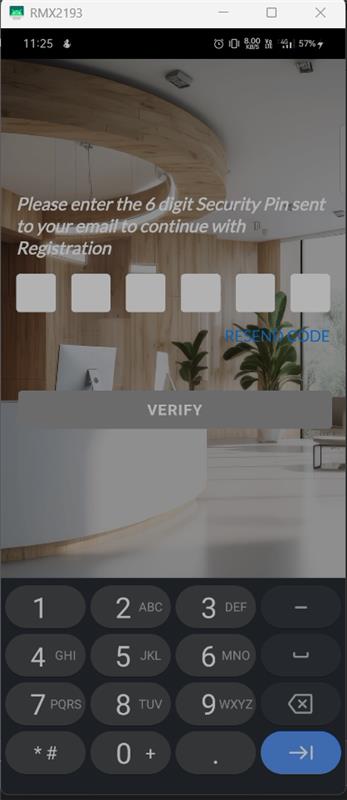

The passcode entry screen displays, and a 6-digit passcode is generated and sent to the registered email ID.

image (5).jpg

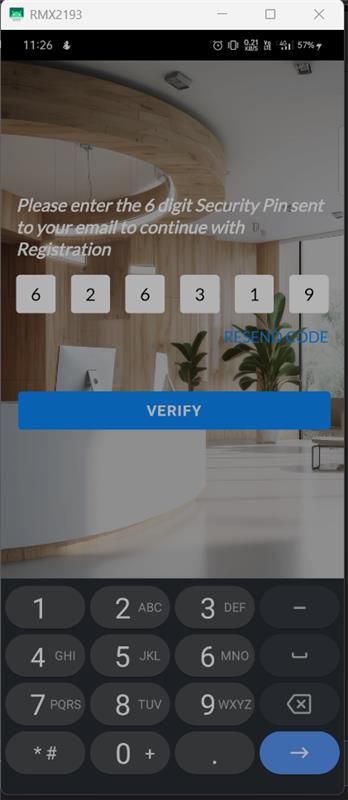

Enter the passcode received in the email.
Click Submit to confirm the sign-in.

image (4).jpg

| Site Registration Via App

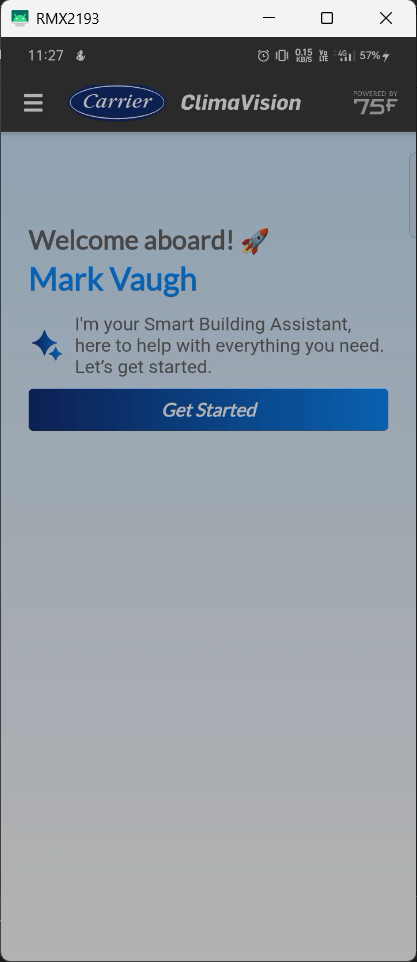

The App opens up to the welcome screen as shown below.

image (14).png

Click the menu icon to access the options available.

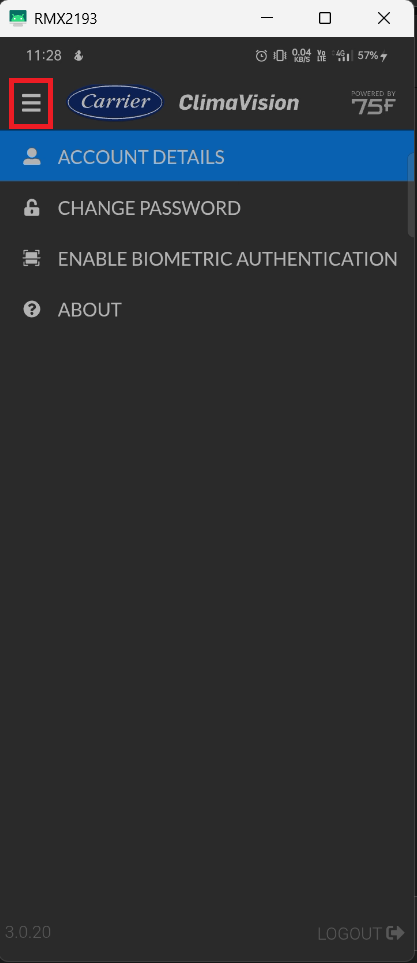

Select the Account Details option to view the profile information, as shown below.

image (13).png

Click the menu icon again to return to the welcome screen.
Click Get Started to start the preconguration process.

image (14).png

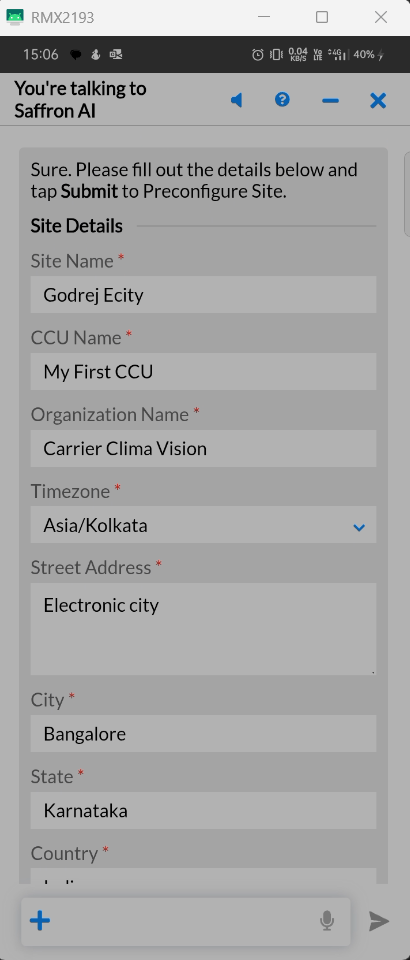

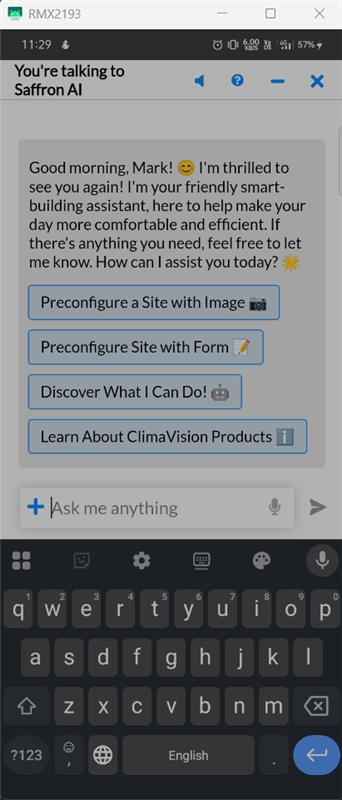

An AI chatbot screen, greeting the user and providing options to preconfigure the site displays.

image (3).jpg

You can preconfigure the site in two ways, one

Select Preconfigure a Site with Image.

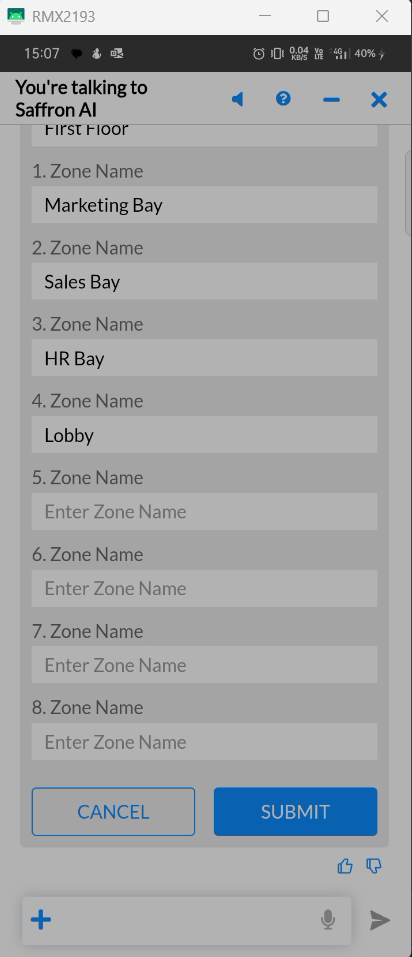

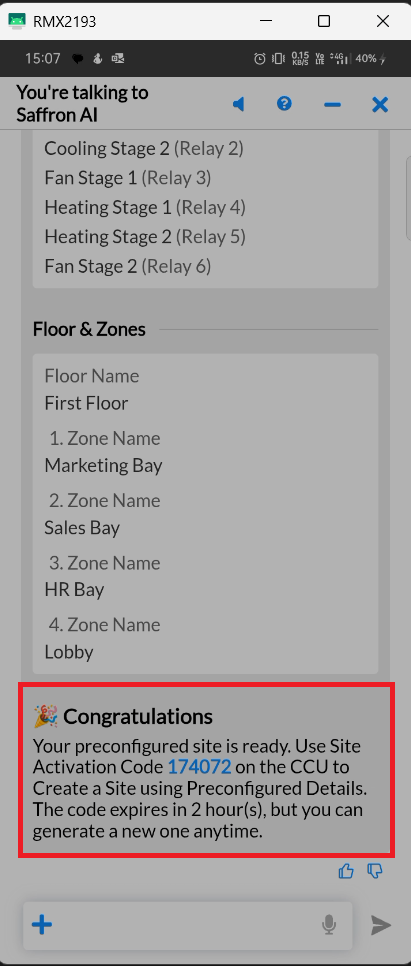

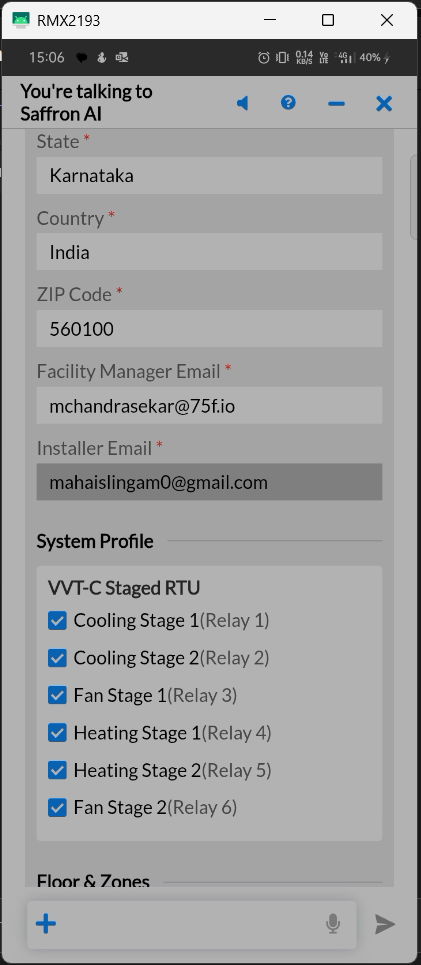

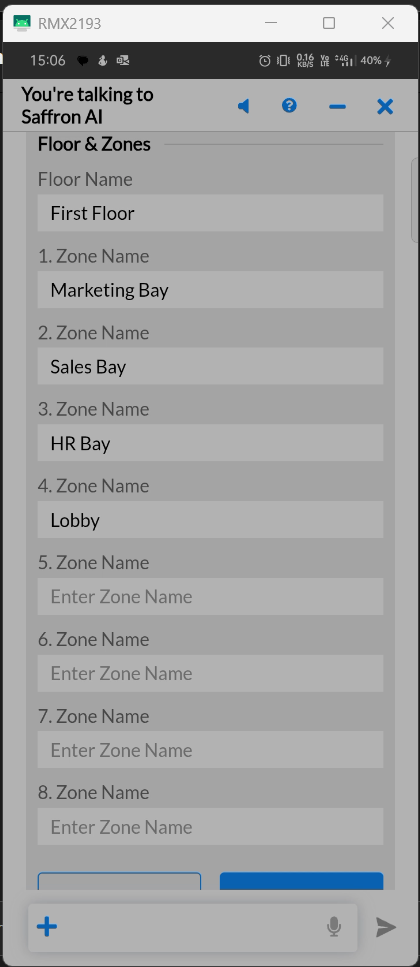

Fill in the form received with the kit, capture an image of the form, adn simply upload the image to populate the configuration details as shown below.

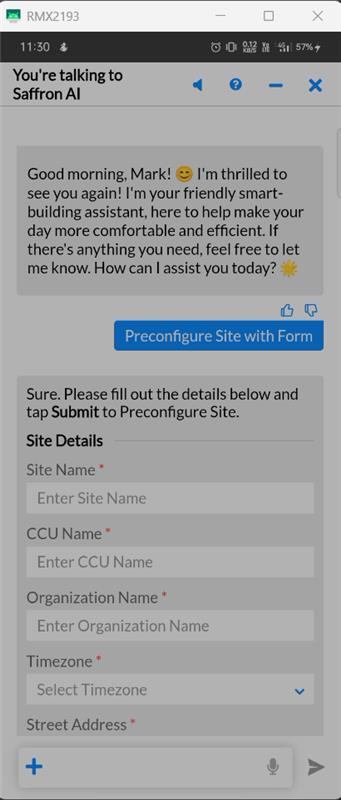

Alternately,
