Standalone HyperStat Split 4 Pipe Unit Ventilator + Economizer

5 Minute Read

| Overview

The HyperStat Split 4-Pipe Unit Ventilator profile extends 75F’s smart control capabilities to legacy unit ventilators, enabling intelligent, independent operation without requiring a connection to the Central Control Unit (CCU). In standalone mode, you configure the profile directly on the device, and control algorithms run locally to manage the connected unit ventilator based on configured parameters and available sensor inputs. For more information on the device and its components, refer to HyperStat Overview and Installation

The solution supports flexible equipment configurations, including fan speed control, heating and cooling water valve control, auxiliary heating, damper operation, and other supported control functions. Built-in standalone scheduling enables equipment operation based on configured occupancy schedules, while standalone algorithm tuners let you adjust control parameters to suit equipment requirements and operating conditions.

By combining local algorithm execution, configurable equipment control, scheduling, and tuning capabilities, the standalone profile provides an independent solution for managing unit ventilator operation, improving occupant comfort and supporting energy-efficient HVAC performance without relying on CCU connectivity.

The HyperStat Split supports the following standalone applications.

• 2 Pipe Unit Ventilator
• 4 Pipe Unit Ventilator

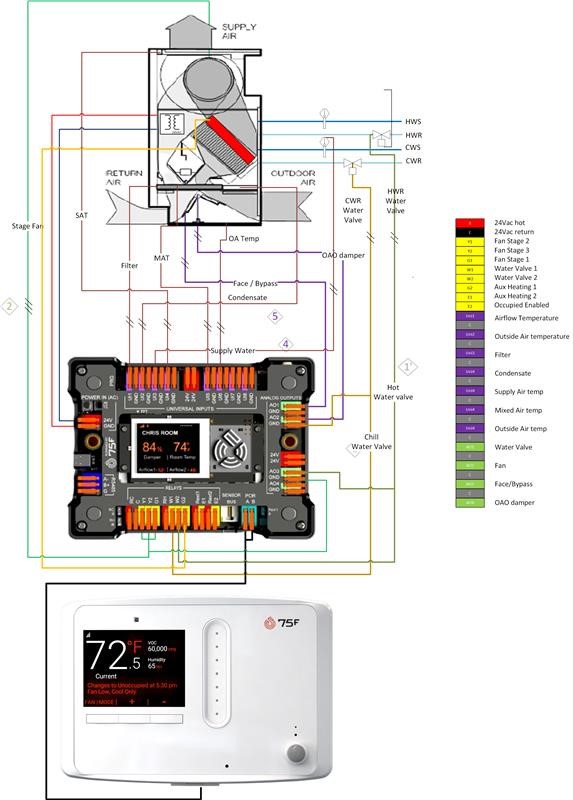

| Wiring

| Setting HyperStat Split to Standalone 4 Pipe Unit Ventilator Profile Operation

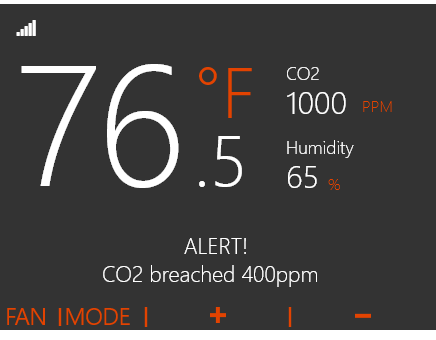

From the HyperLite home UI screen.

• Press the + and -  buttons together to navigate to the other screen of the HyperLite.

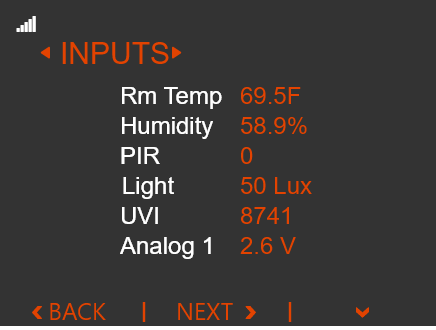

The inputs UI screen is displayed.

From the inputs UI screen.

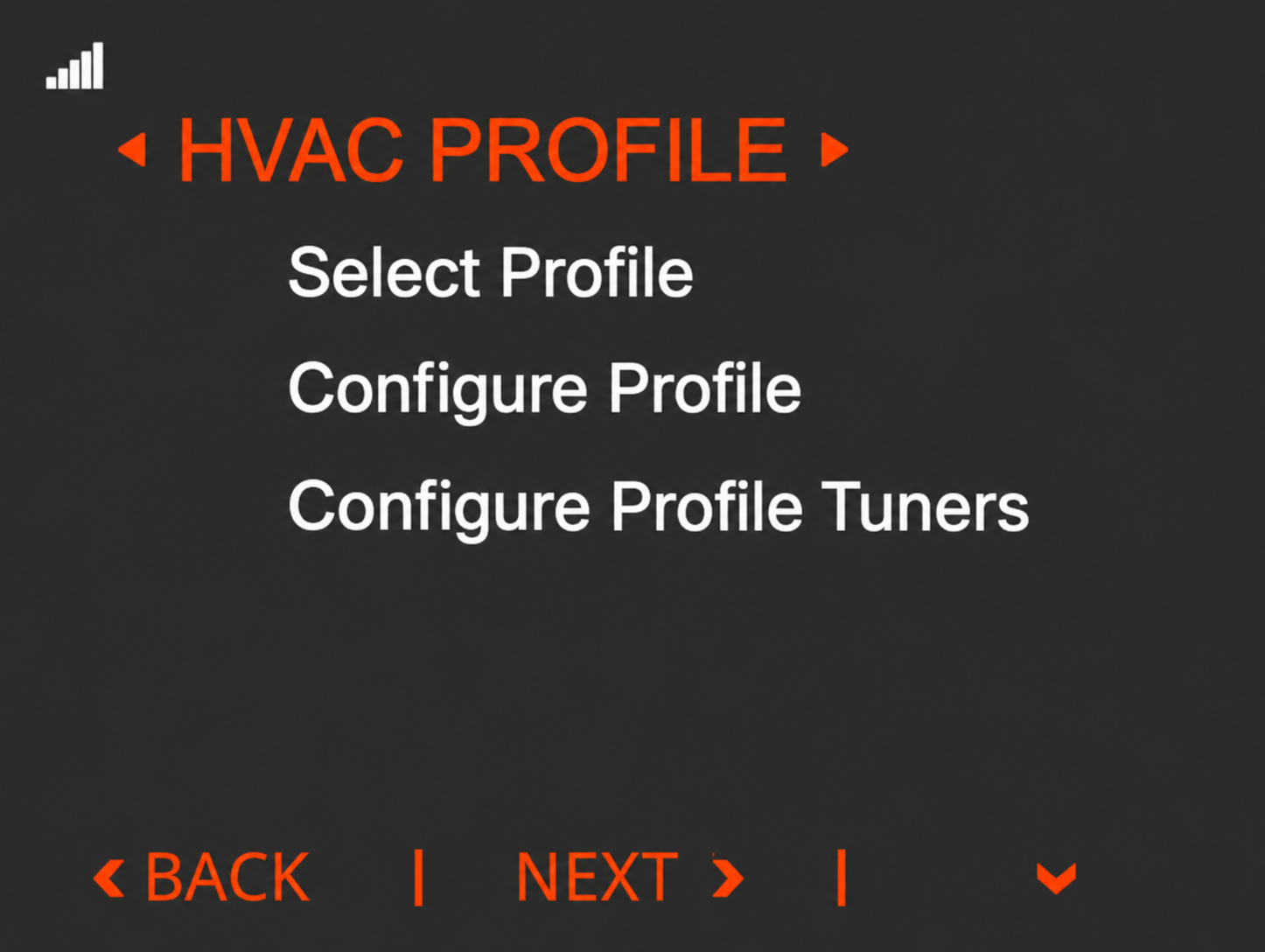

• Press the next button several times to reach the HVAC profile screen.

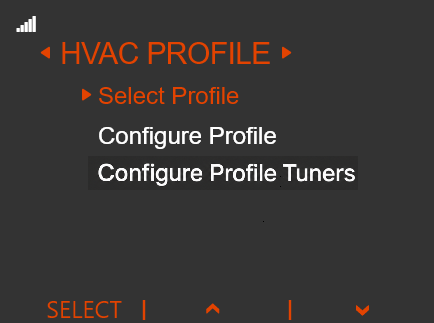

• Press the down arrow    button to navigate to the select profile option on the screen.

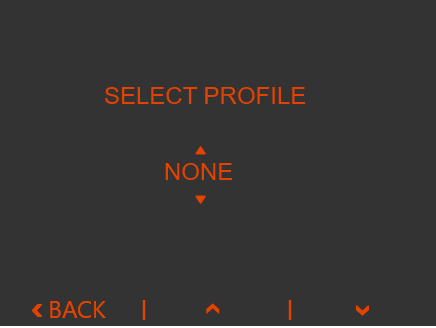

• Press the select button to access the select profile.

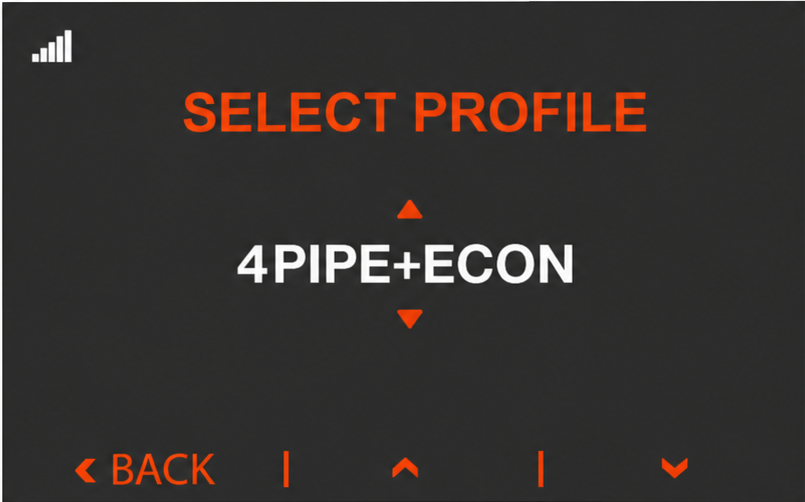

• Press the down arrow  button to select the 4 Pipe Unit Ventilator + Economizer (2PUV+ECON) profile from the list available.

• Press the back button to confirm setting HyperLite as standalone, select 4 Pipe Unit Ventilator + Economizer (2PUV+ECON) as profile, and return to the HVAC profile screen.

| Configuring Standalone 4 Pipe Unit Ventilator + Economizer (2PUV+ECON)

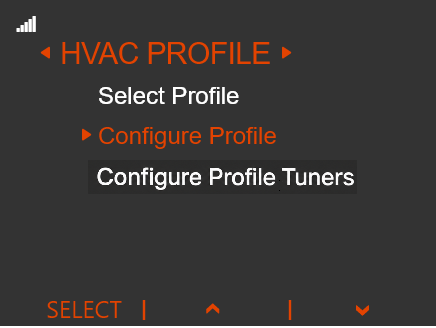

• Press the down arrow button twice to navigate to the Configure profile option.

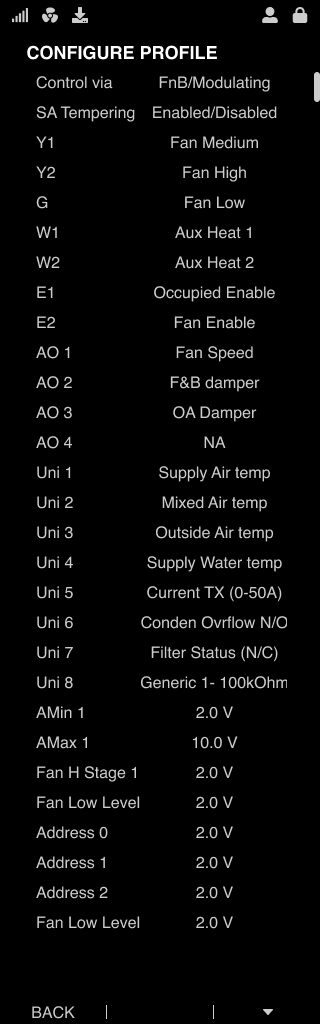

• Press the select button to access the Configure profile option, which opens the configuration options available for the 4 Pipe Unit Ventilator + Economizer (2PUV+ECON) profile.

• Press the down arrow to navigate to the configuration parameter under the 4 Pipe Unit Ventilator + Economizer (2PUV+ECON) profile.
• Press the select button to access the parameters options available under the different configurable relays, analogs, and other available options.
• Press the down and up arrows to locate the required parameter to set for the relays, analogs, and other available options.
• Press the deselect button to confirm the selection.
• Repeat the above step to navigate, access, and select different parameter options for all the available relays, analogs, and others, till the desired configuration settings are met.
• Refer to the Configuration Parameters section in HyperStat Split - 4Pipe Unit Ventilator Economizer, for options available under different relays, analogs, and others and their purpose to help in the configuration.

| Configuring Profile Tuners 4 Pipe Unit Ventilator + Economizer (2PUV+ECON)

From the HVAC Profiles screen.

• Press the down arrow to navigate to the Configure Profile Tuners under the 4 Pipe Unit Ventilator + Economizer (2PUV+ECON) profile.

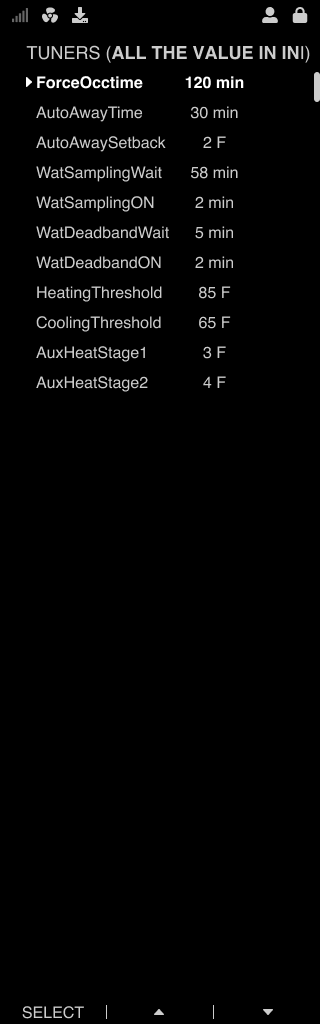

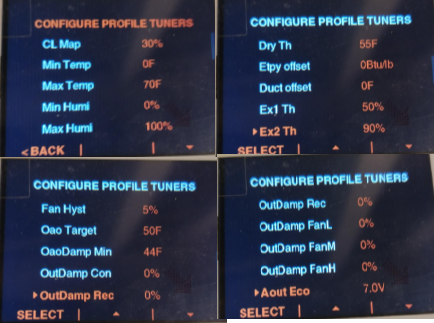

• Press the select button to access the tuner paramteres options available.

• Press the down and up arrows to locate the required tuner parameter to set.
• Press the up or down arrow to set the required parameters.
• Press the deselect button to confirm the selection.
• Repeat the above steps to navigate, access, and select different tuner parameter options and configure the required values for the tuners.

For more information on Tuners refer to sequence of operation section in HyperStat Split - 4Pipe Unit Ventilator Economizer.

| Scheduling the Standalone HyperStat Split

For information on scheduling the HyperStat Split for Standalone operation, refer to Scheduling Standalone HyperStat Split

| Managing Sensors

For information on connecting and managing sensors from the HyperStat Split in standalone mode, refer to Connect and Manage Wireless Sensors on HyperStat Split

| Controls & Operations

For information on Controls and Operations, refer to HyperStat Split - 4Pipe Unit Ventilator Economizer.
