Create, View and Edit Occupants for Zone Level Control

2 Minute Read

| Overview

With a further step towards achieving its vision of maximized comfort and productivity for building occupants, the 75F BMS system has introduced a new component into the system called the "75F Occupant App".

This 75F Occupant App provides the ultimate tailored occupant experience through effective zone control that allows for precise comfort adjustments by occupants of the building.

| Providing Zone Level Controls for the Via Occupant App

The 75F Occupant App is available in the Google play store and the Apple store for download.

Access to a particular zone via the app is provided from the Facilisight by a primary or a secondary facility manager.

Below, we'll outline the steps needed to add an occupant to the user list. This will provide them with zone control.

| Creating Occupant Access

Navigate to the Facilisight home screen.

• Access the 'User Management' section.

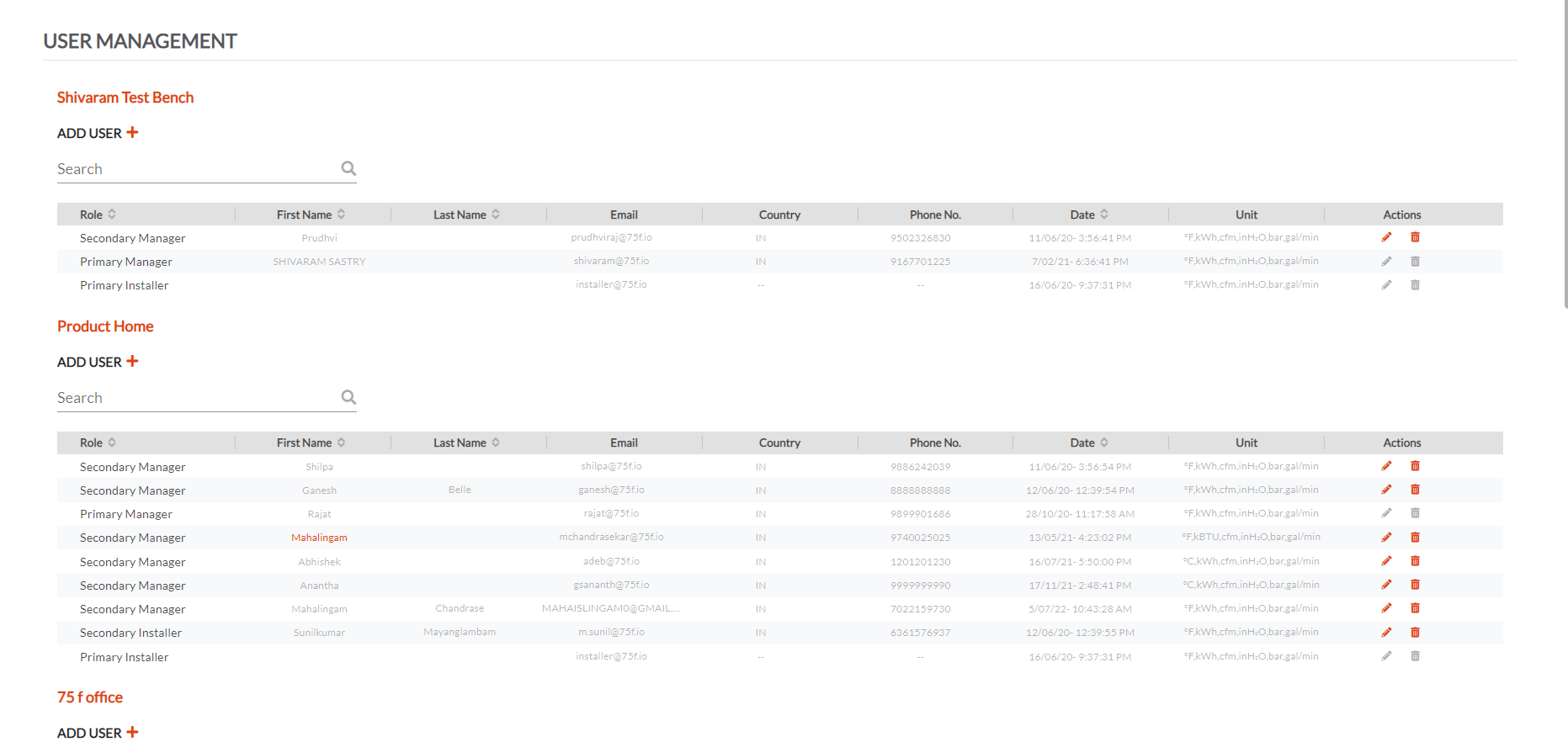

The following 'User Management' directory is displayed:

Under the building to which you would like to add the occupant:

• Click Add User option.

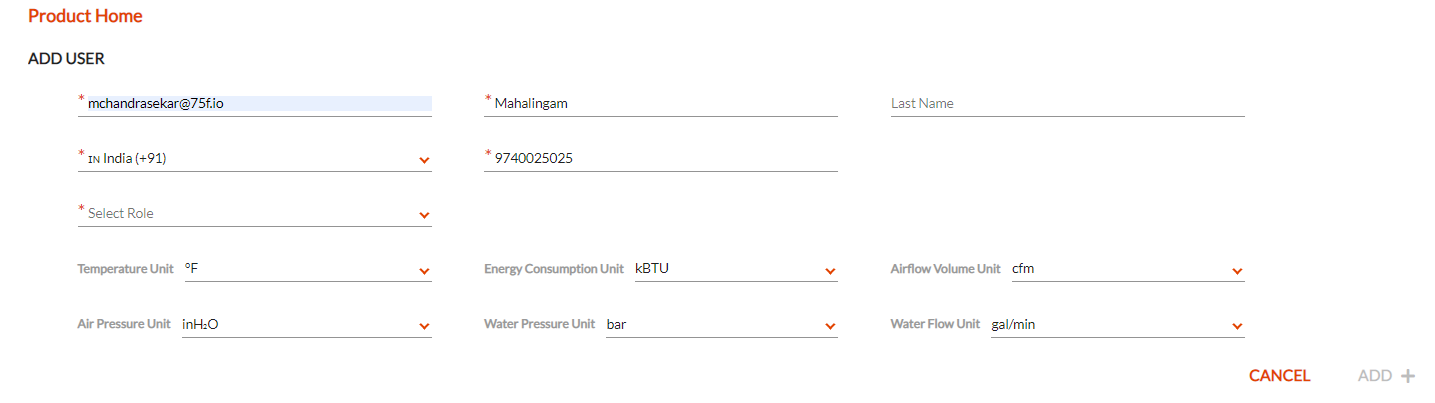

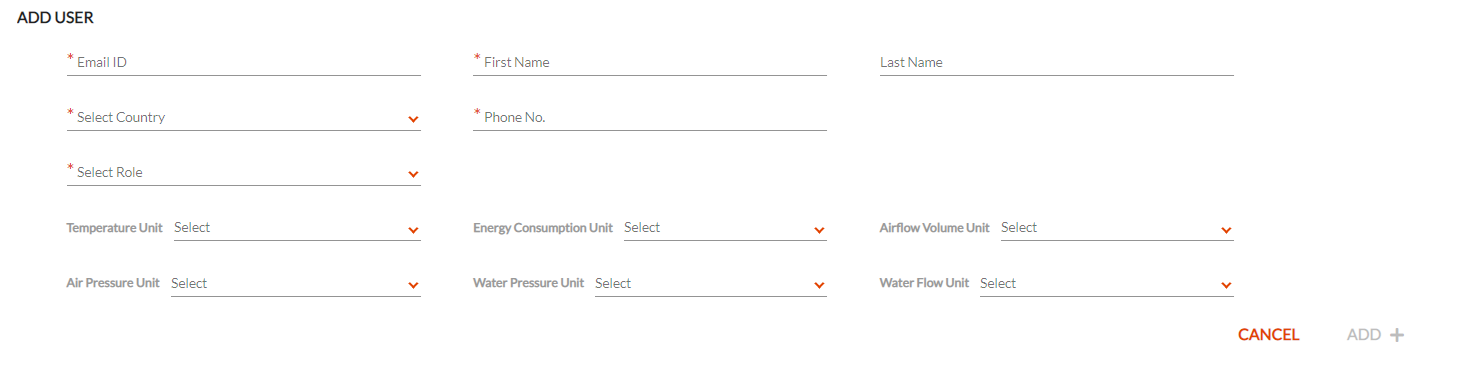

The following 'Add User' window is displayed:

• Enter the details of the occupant including email, first and last name, and phone number.

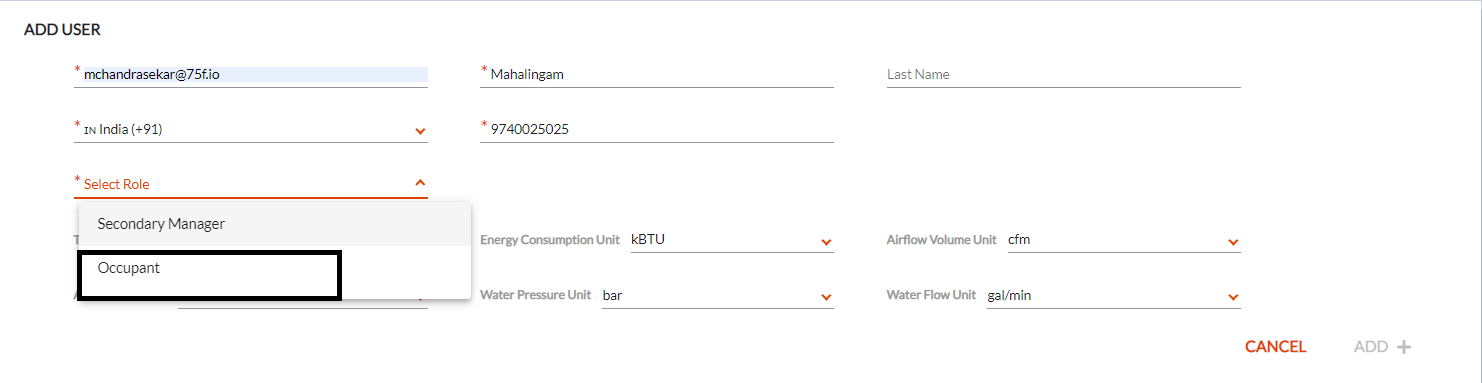

• Select the role as 'occupant' from the outlined role drop-down:

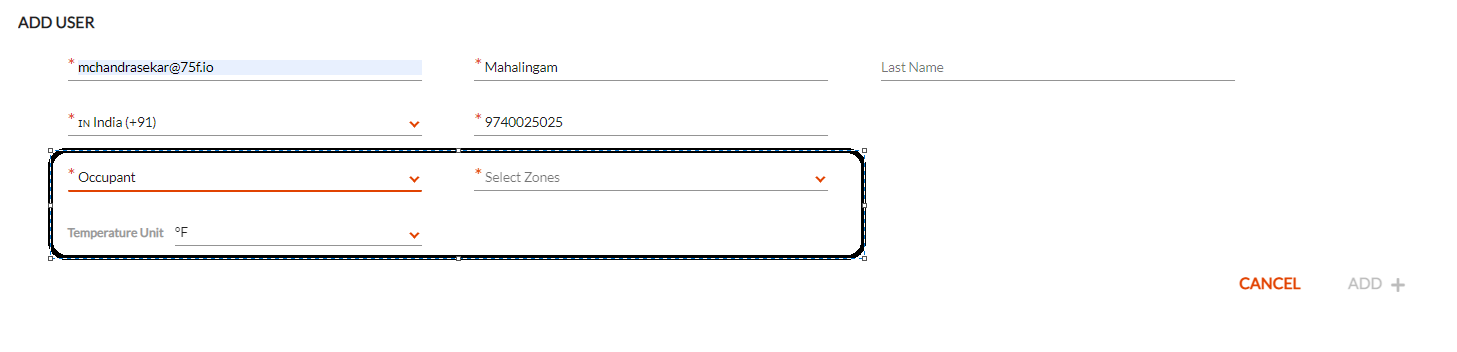

Once 'Occupant' is selected for the role of the user, a new field for defining the zone control is introduced in the add user window as shown below:

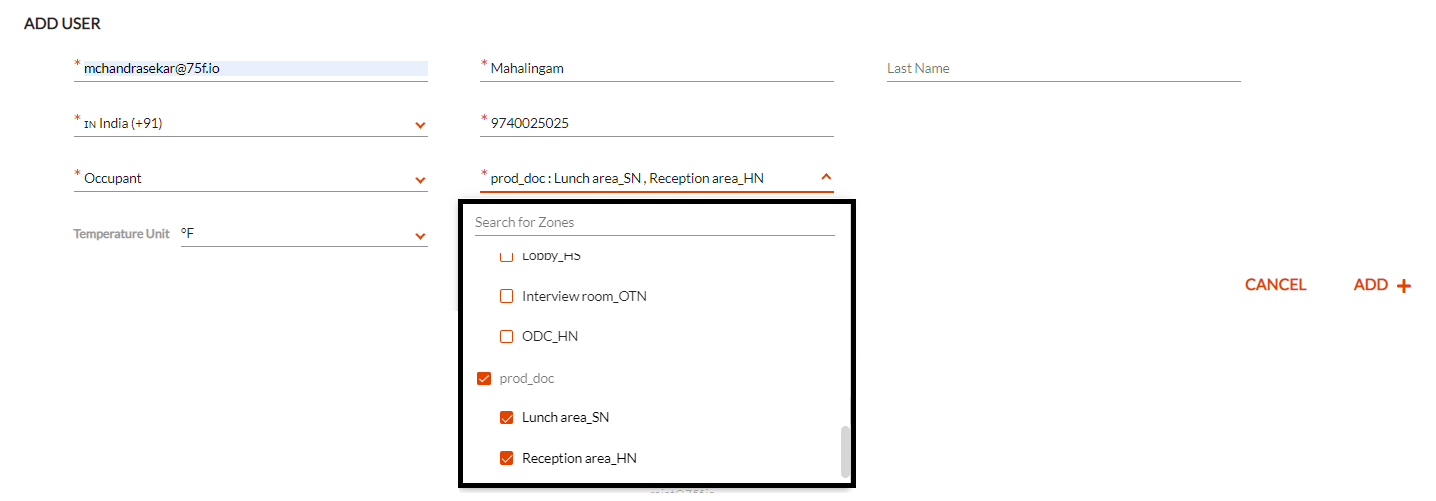

• Use the Select Zones drop-down to select the zone(s) for which you would like to provide control to the occupant via the occupant app:

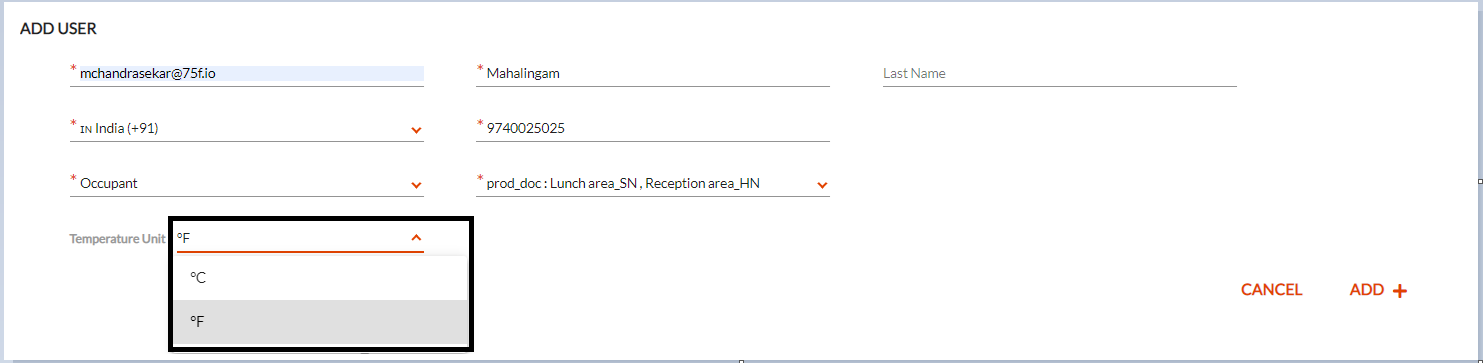

• Set the temperature unit preference for the occupant:

• Click 'Add +' to add the occupant and the zone level control you assigned.

The following 'User created successfully' message will display.

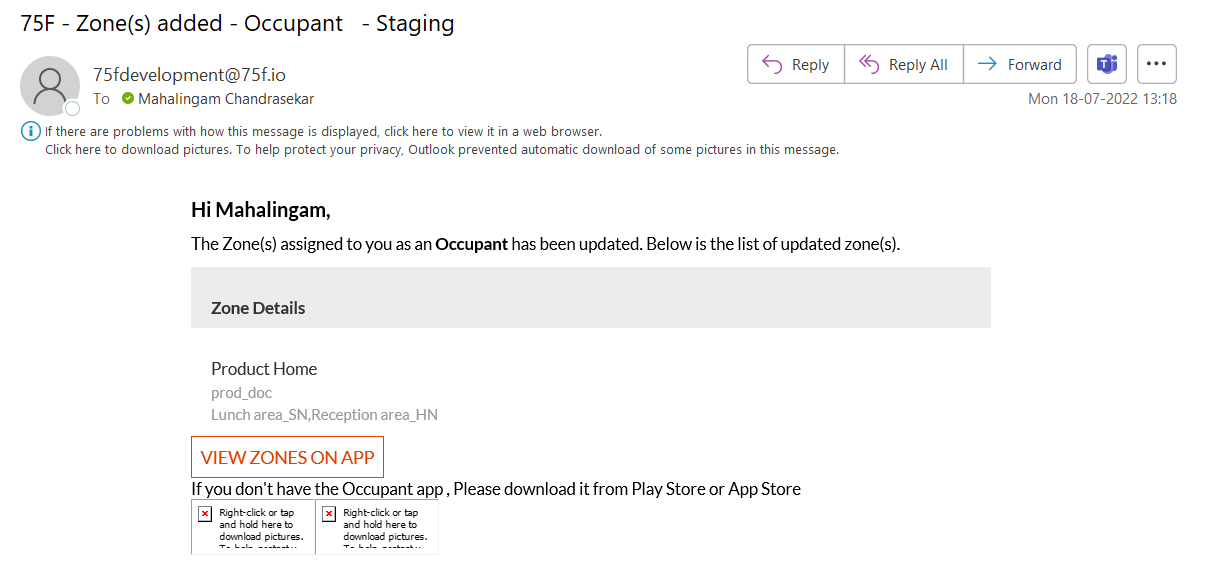

The occupant user gets added and receives a notification email as shown below:

| Viewing Occupants Added

From Facilisight home screen.

• Access the 'User Management' section.

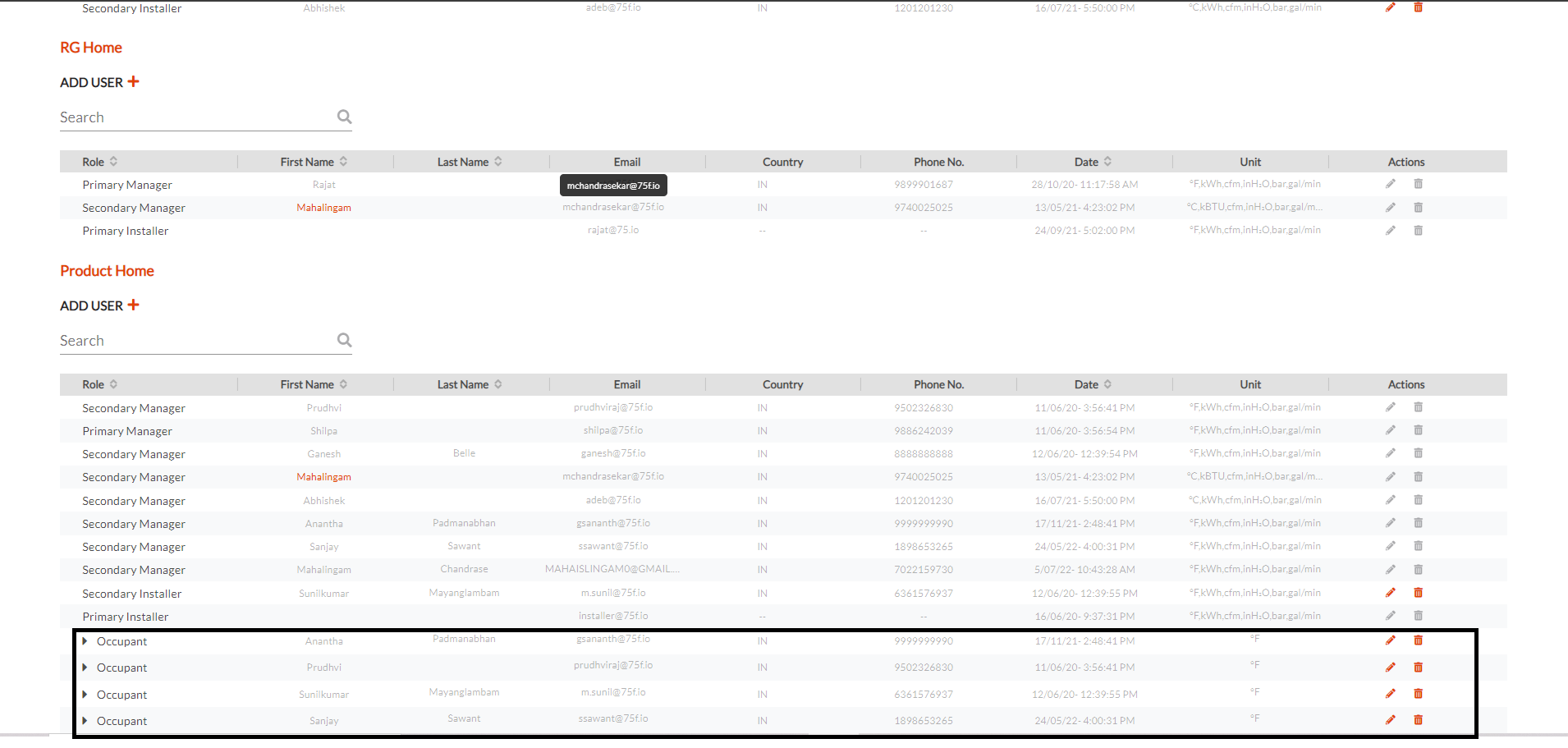

The following directory is displayed:

You can view the occupants provided with zone level control under the section

| Editing Occupants Added

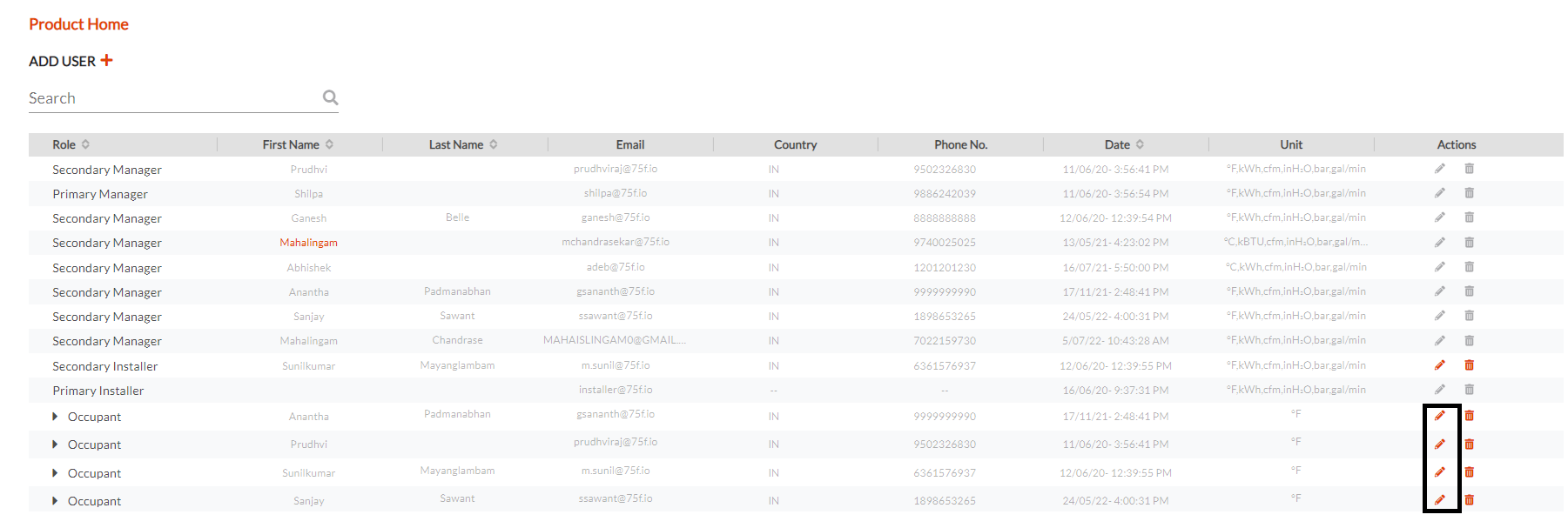

• Click the edit icon next to the occupants displayed.

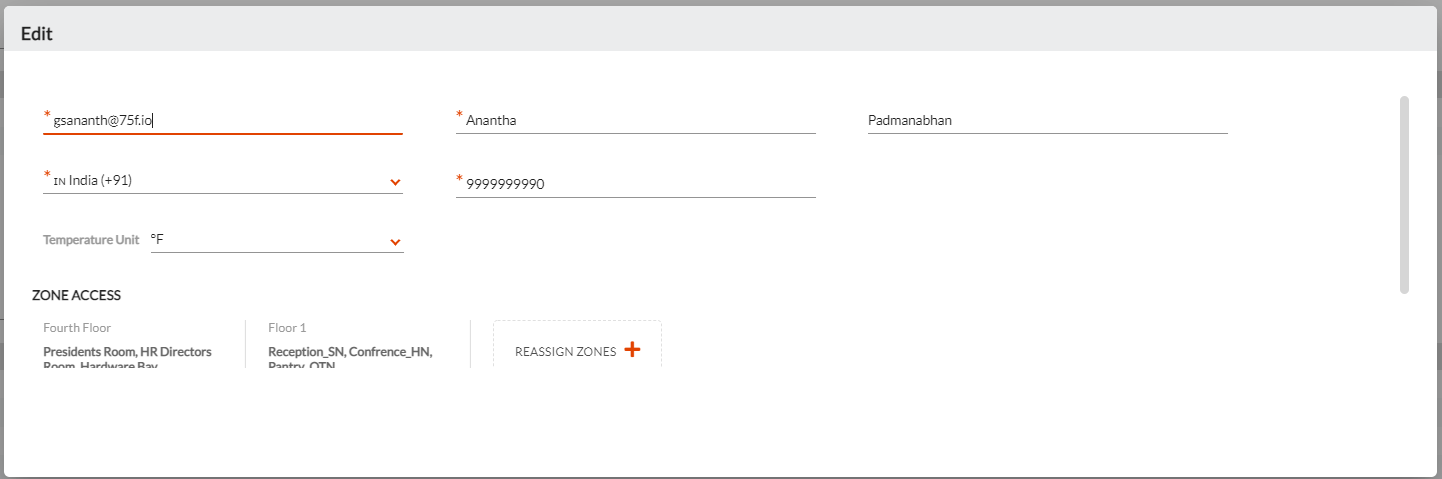

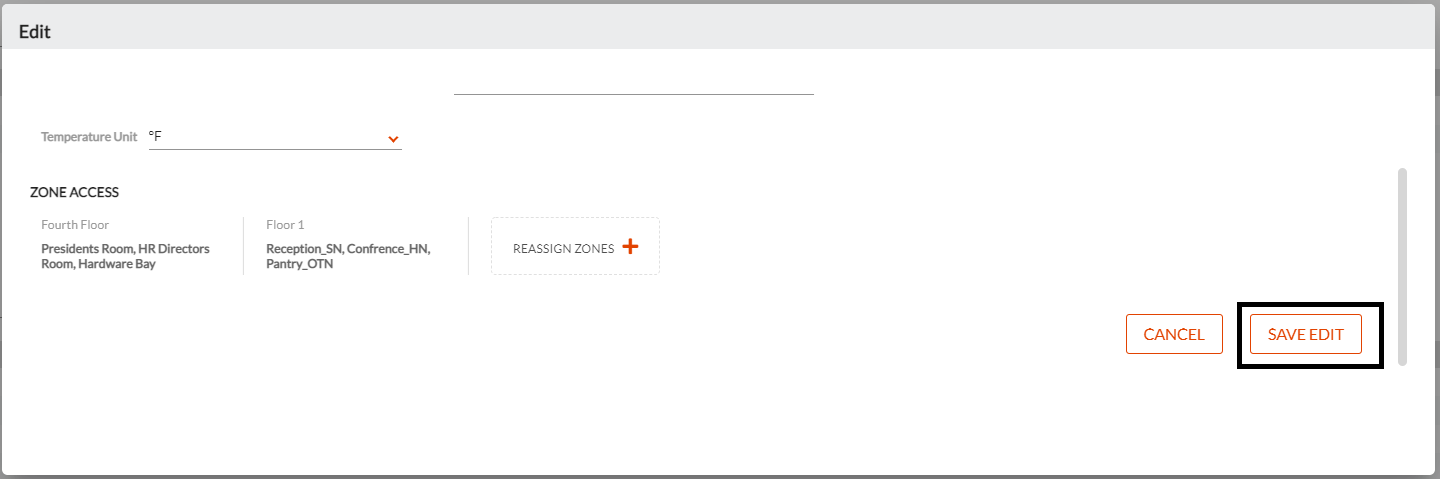

The edit window for editing the occupant details is displayed:

• Make any necessary edits and click 'Save Edit' to save the changes made.

| Deleting Occupants Added

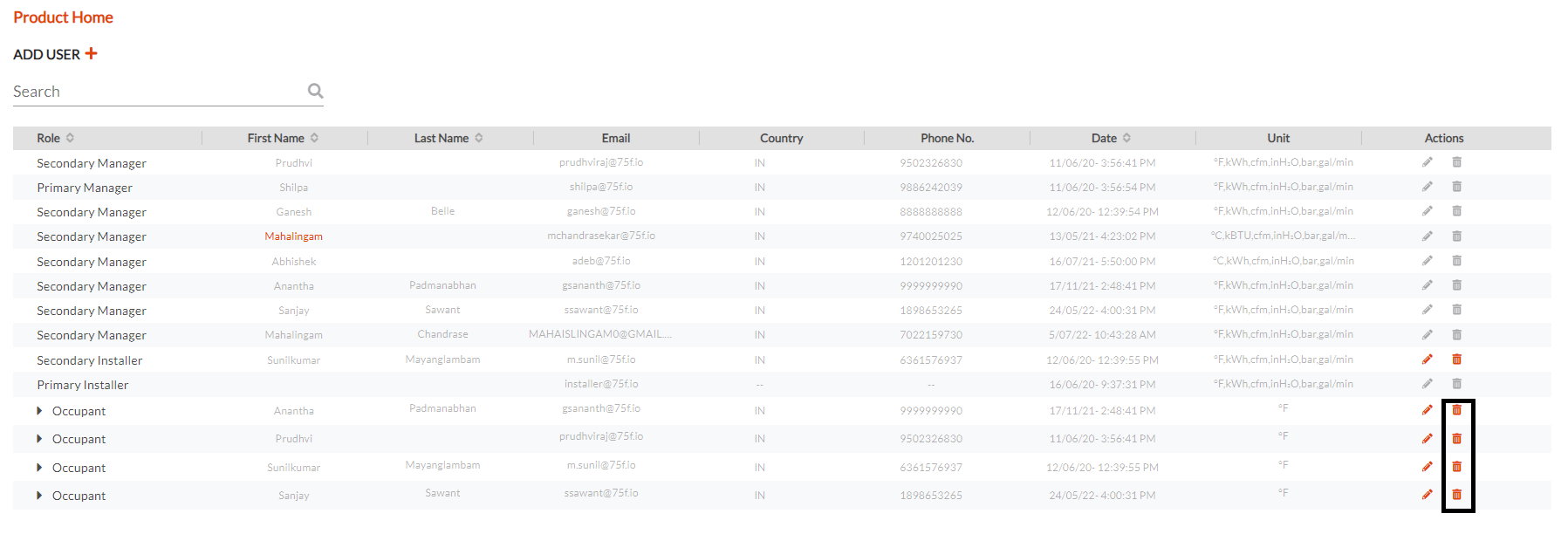

• Click the delete icon next to the occupants displayed.

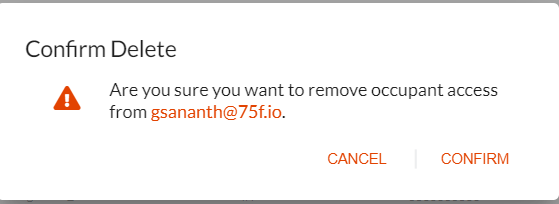

The following deletion confirmation window is displayed:

• Click Confirm to delete the occupant.

Note: Any zone can be assigned to more than one occupant, and only access to zones with temperature control can be provided.

Zones like CCU TI, EM, PI Loop, and Modbus Zones will not be available on the zones list.

The OTN TI is available under the zones for assigning the occupant.
