| Overview

Site Sequencer is a 75F internal application. It is another milestone in the journey towards platform play and greater interoperability of a wide range of BMS devices.  It is an enhanced application that could be an alternative to wire sheet programming that has existed for decades.

Site Sequencer with Blockly aims to make Building Automation System (BAS) custom programming effortless. Users can visually assemble building blocks to create a custom control sequence for any HVAC / building automation application.

The new approach aims to help sequence building, similar to coding but with a UI interface. It features a fresh look and feel that’s accessible and will dramatically streamline the overall logic programming workflow.

| Disadvantages With Wire Sheet Programming

Wire sheet programming is widely used to program custom sequences for various devices in the BMS world. However, it had the following disadvantages, which made it difficult for the integrator to use in the field.

  • The slow and laborious process of creation
  • Specialized training for users
  • Lesser intuitive UI-based usage
  • Spread across the canvas and for large sites navigation across this is always challenging.
  • Input and out mapping tracking difficulties when you have various systems under integration.
  • Limited Options concerning how local views are seen.
  • Workbench management also gets very difficult to manage.
  • Template Stations can be built but takes time to reconfigure their input and output.
  • Sharing is difficult considering how workstations have to be managed for individual needs and common global views.
  • Only HVAC folks are familiar with this.

| Advantages With Site Sequencer

The Site Sequencer is the new programming interface that will allow for custom sequences to be built for controlling control systems in the building space, addressing all the disadvantages the wire sheet programming had in itself.

  • Having a site sequencer allows us to have an additional custom calculating and sequencing capability into a Site, apart from the predefined sequences that are already running at the CCU system level.
  • The sequencer can create custom calculations and runs using the points of various equips that can exist in a Site.
  • Sequencer allows calculations and logic blocks to be created that allow users like a Commissioning team member, installers, and partners to custom-build specific rules that need to be run periodically to achieve an outcome.
  • Sequencer allows for entire sites created by third-party integrated BAS systems within the 75F cloud to have custom calculations done for their datasets.
  • 75F sequencer with its 75F equipment and non-75F equipment on the same site to allow logic blocks to be built across its data sets to derive various output parameters or alerts.
  • There are 75f connect modules kind of input/output extenders that can also be used to have custom sequences running and control equipment in a building. Sequencer can also be used for relays/analog ins and analog outs of SmartNodes, SmartStat, HelioNode, and HyperStats even if predefined profiles are running on them.
  • The sequencer will allow to setting up of IFTT rules, and Alerts, allowing all ports in the 75F stream of equipment to fully be put into use.
  • Installers and System Integrators will be able to make optimal use of the 75f deployed equipment and use all unused ports of the system. Site sequencer can also work on any point variable that is available in the Site Manager.

| Site Sequencer Capabilities

The site sequencer is enormously capable and can be put to use for a wide range of use cases, but the most efficient ways it can be put to use are categorized into the following.

  • Creating custom sequences across the platform
  • Creating rules based on points in the system
  • Creating alerts based on other points in the system

| Site Sequencer Components

The Site Sequencer is made of two parts

  • The Site Sequencer UI provides the canvas and the block to build the custom sequences.
  • The Runner that deploys the created custom sequences to the site

Site Sequencer and Runner Framework form a common software infrastructure that builds custom, web-enabled logic for accessing, automating, and controlling smart devices in real time over the cloud.

| Site Sequencer UI

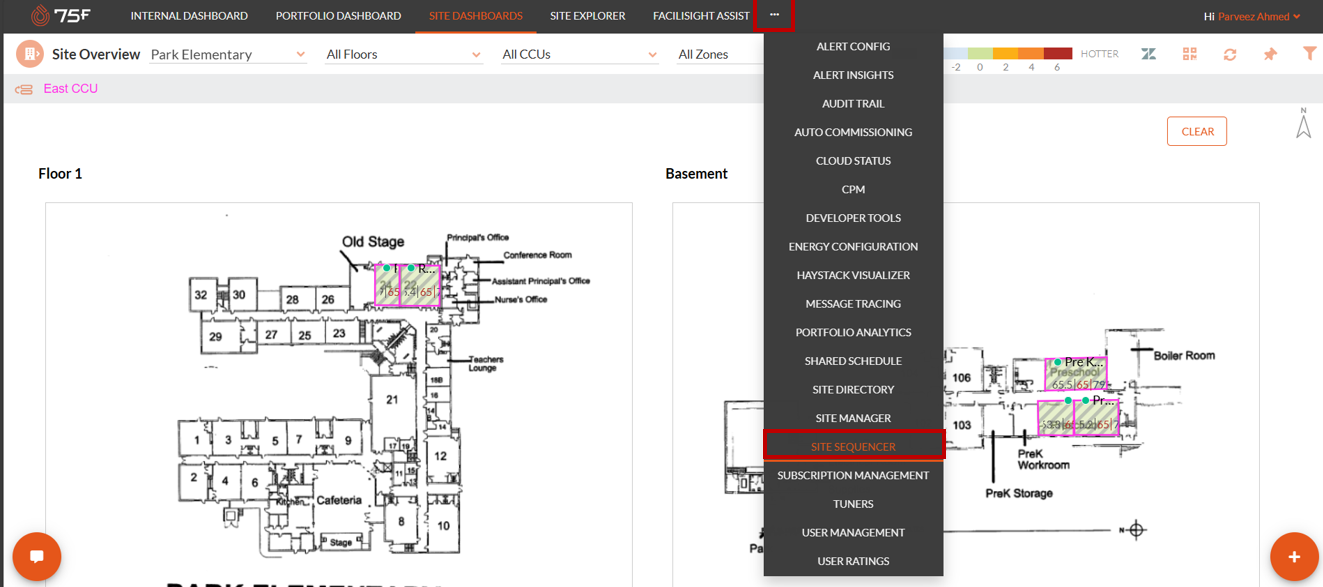

  • Access Site Sequencer UI from the internal portal, as shown below.

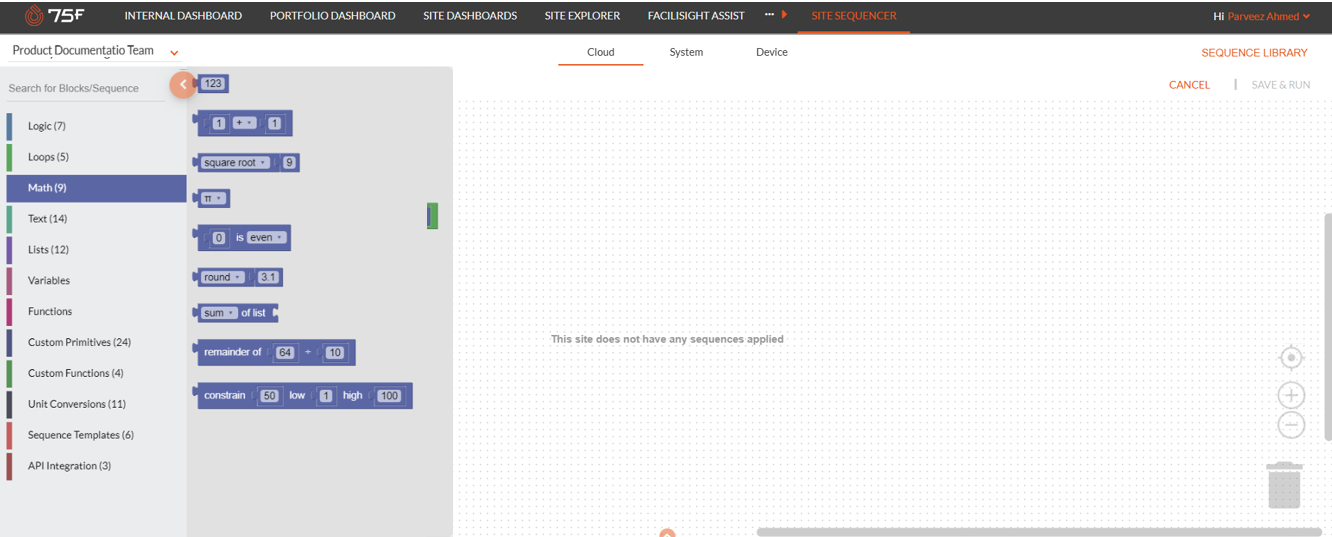

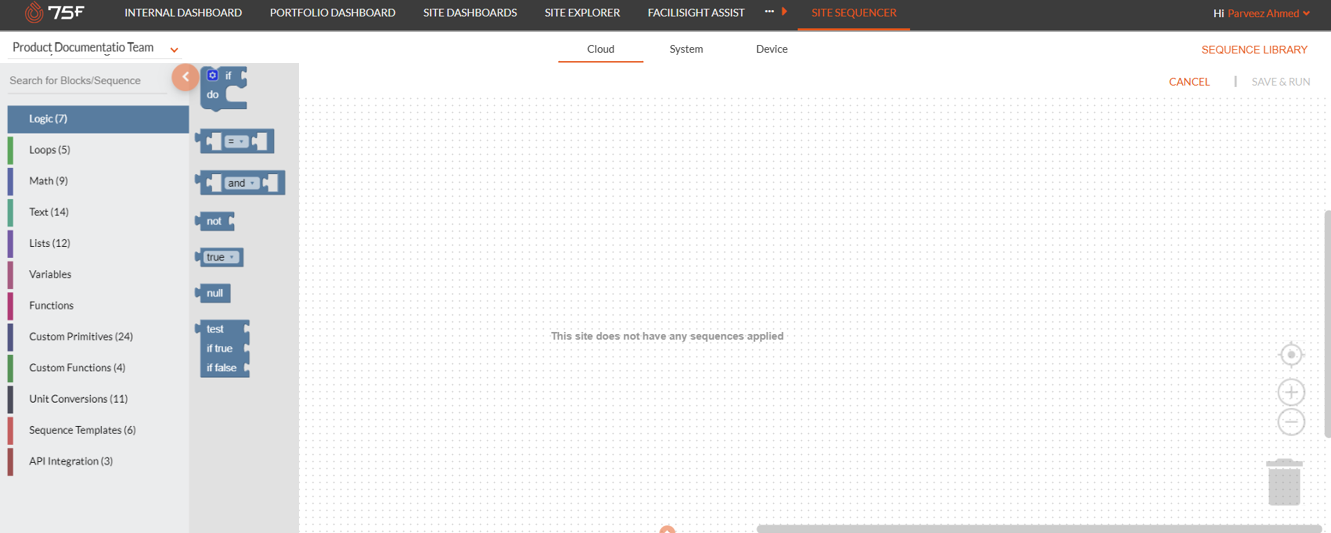

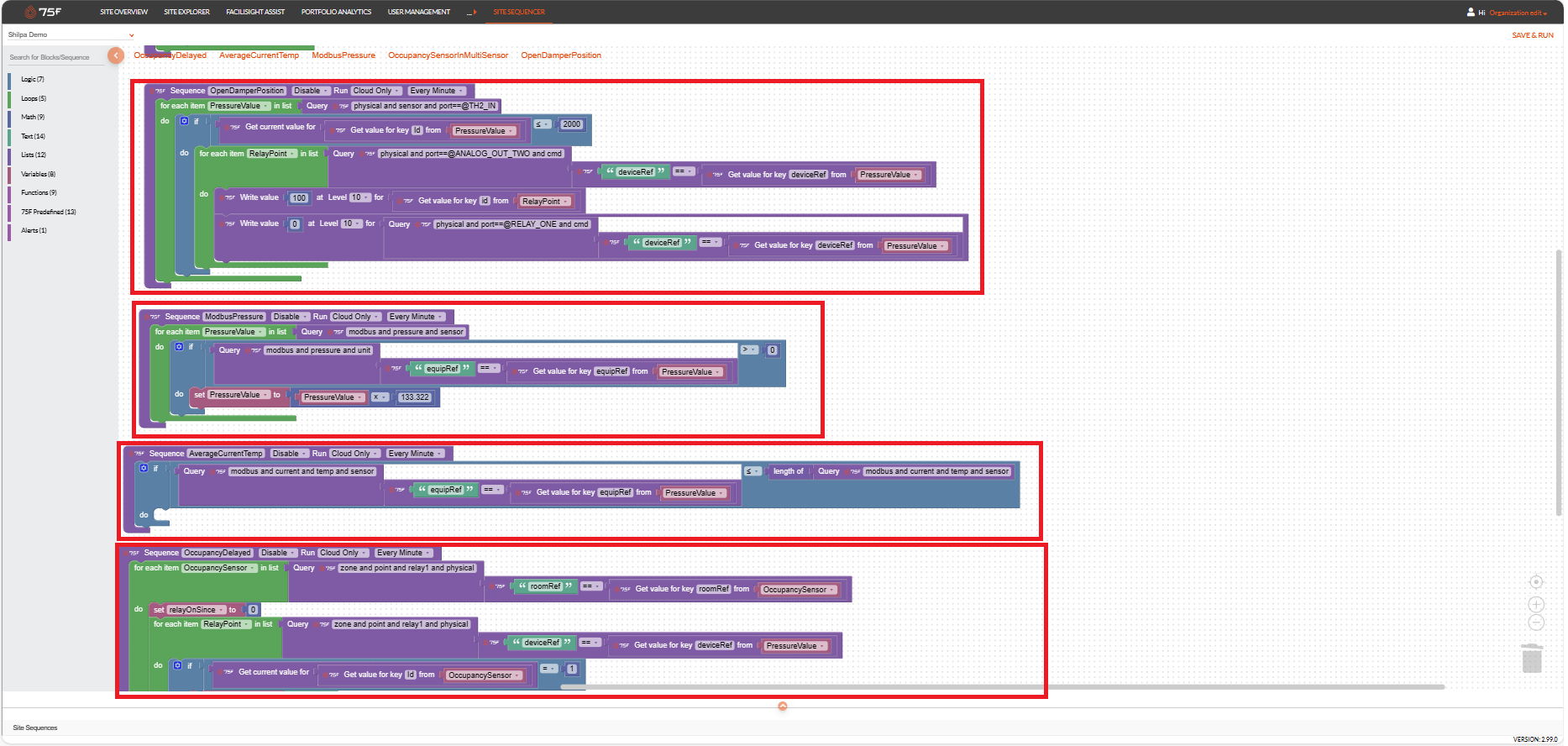

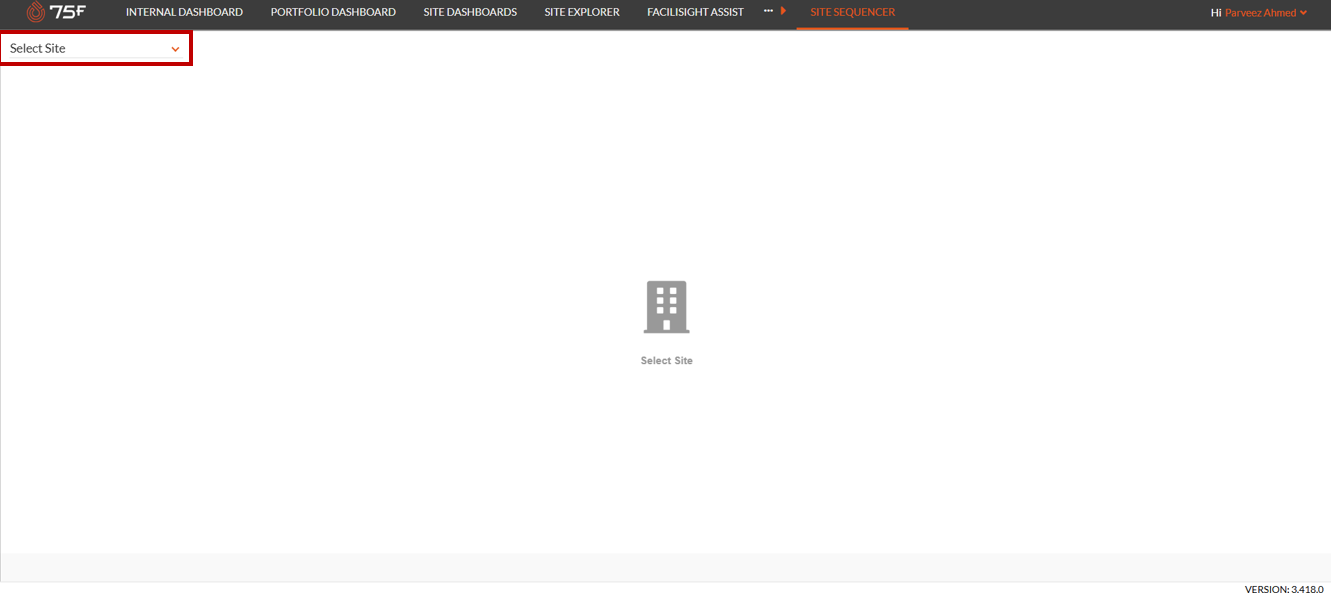

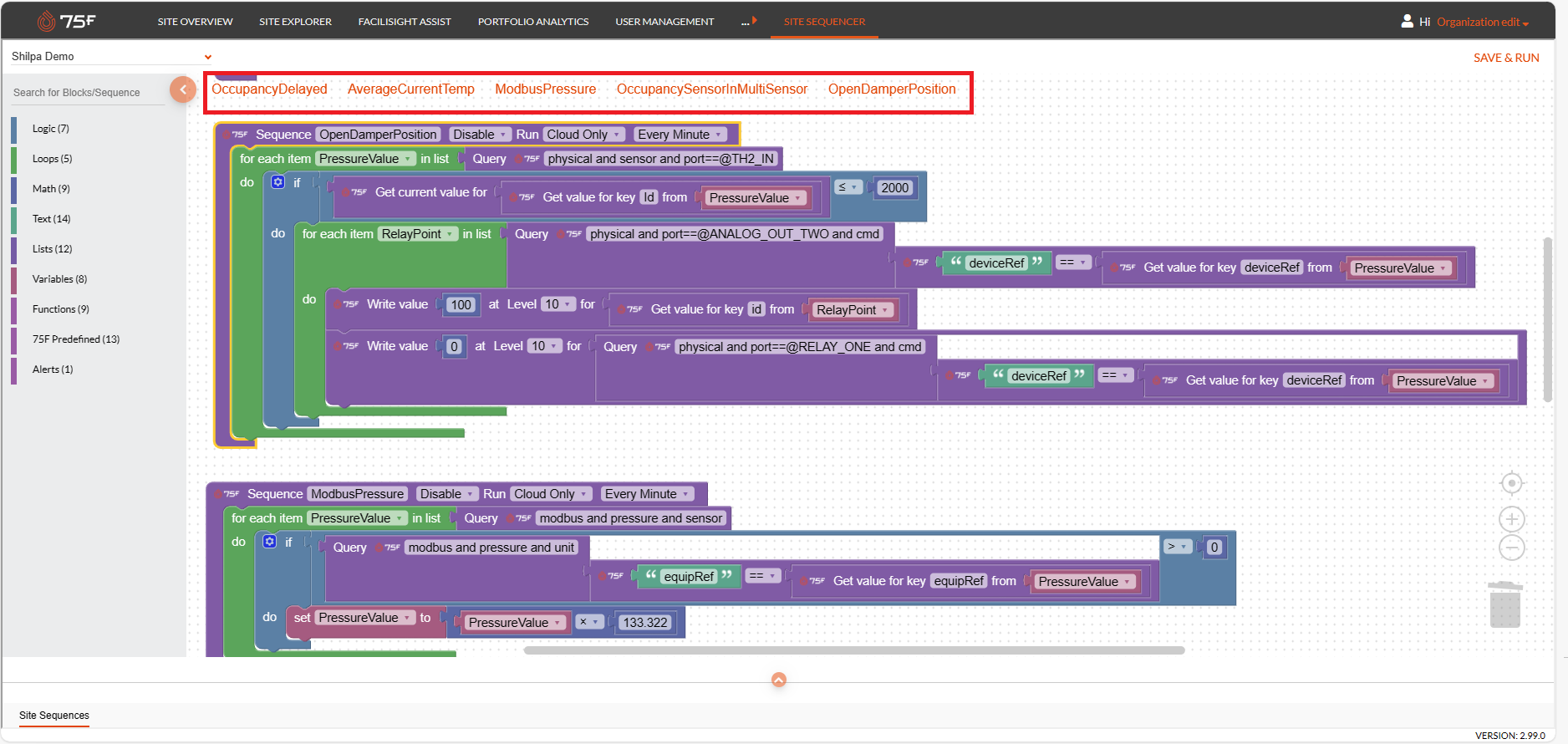

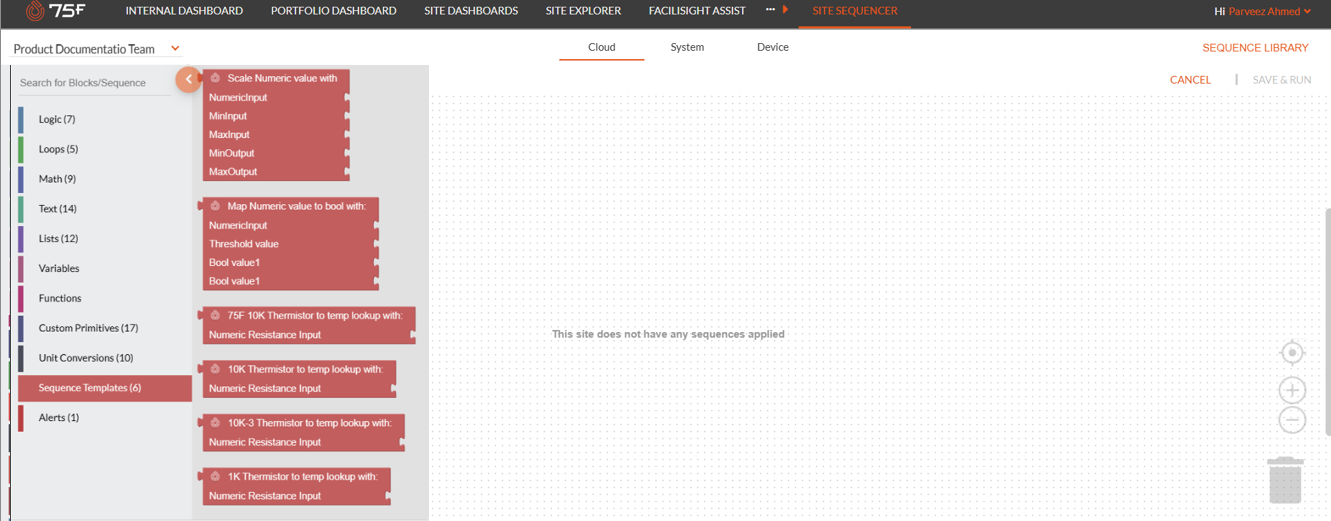

The site sequencer UI displays, as shown below, with the option to select a site and create sequences for the same.

  • Select the site for which the sequences need to be built.

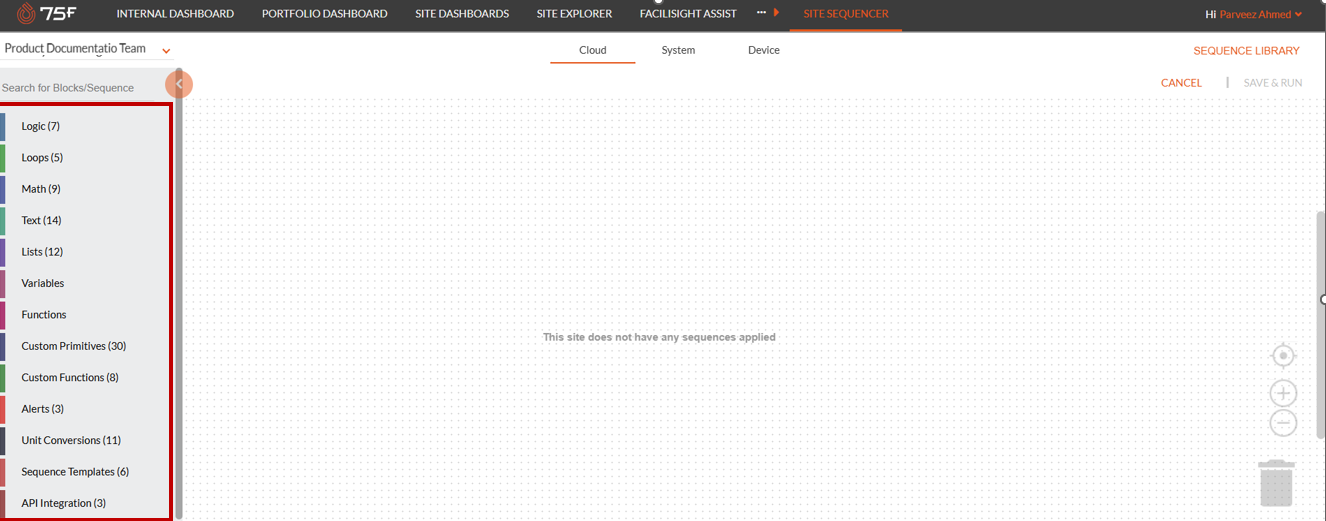

The operator type list displays.

Note: The Site Sequencer uses Blockly blocks as the base, the Blockly blocks help in building sequences for simple to complex Calculations, Analytics, and Condition-based Control Triggers.

  • Click an operator type to visualize the blocky blocks under it.

| Logic Operators

  • Use the blocks under the logic operators to build parts of the sequences that require logical decisions.

The table below talks about blocks under Logic operators.

Blocks  Description/Usage

use the block to build an action sequence based on an if condition.

Example:

use the block to build sequence steps that use the following logic operators for decisions.

  • equal to
  • Not equal to
  • Less than
  • Less than or equal to
  • Greater than
  • Greater than or equal to

Example:

use the block to build sequence steps that use the following logic operators for decisions.

  • AND
  • OR

Example:



use the block to build sequence steps that use a NOT logic operator for decision.



use the block to build sequence steps that use TRUE or FALSE logic operators for decisions.

use the block to build sequence steps that use the null operator to not return a value.

use the block to build sequence steps that could return steps based on whether the tested step is True or False.

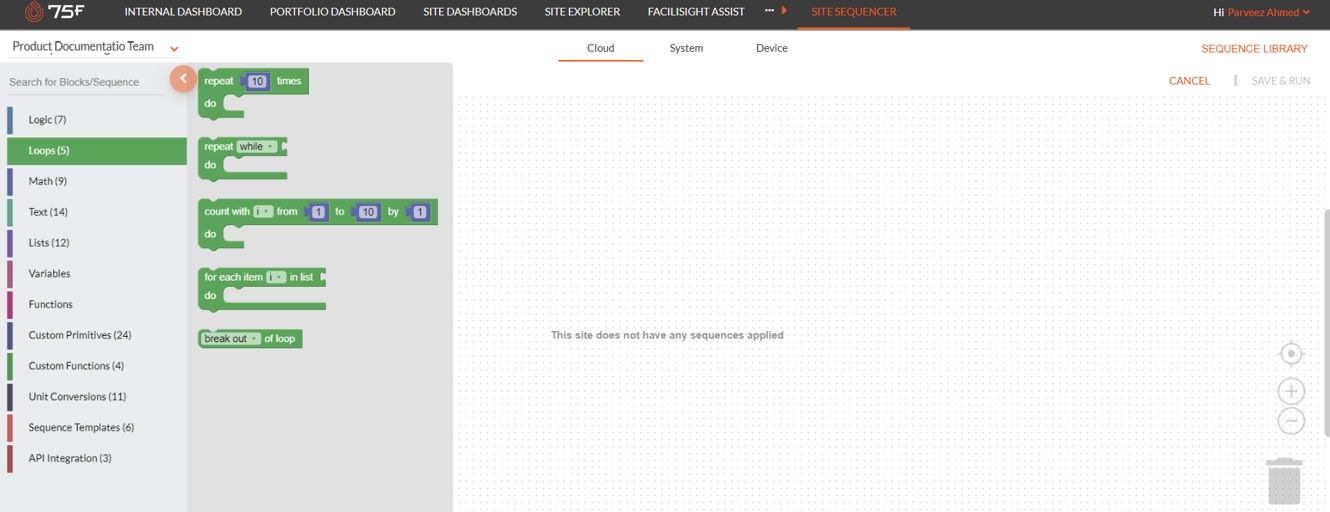

| Loop Operators

  • Use the blocks under the loop operators to build parts of the sequences that require looping.

The table below talks about blocks under Loop operators.

Blocks  Description/ Usage
use the block to build a sequence step that is to be looped for n number of times before it can proceed to another step.
use the block to build a sequence step that is to be looped based on a while/until condition, before it can proceed to another step.
use the block to build a sequence step that is to be looped for n number of times between a range, with a defined skip.

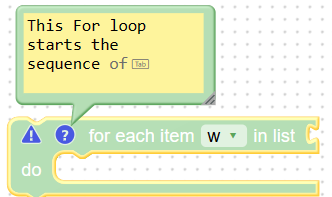

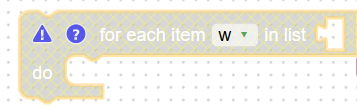

use the block to build a sequence step that is to be looped for every number in the list.
use the block to break out of a looped sequence step.



| Math Operators

  • Use the blocks under the math operators to build parts of the sequences that require simple to complex mathematical calculations.

The table below talks about blocks under Math operators.

Blocks  Description/ Usage

use the block to input just any random number with any sequence step.

use the block to input a simple calculation with any sequence step that uses the following mathematical operators

  • Addition
  • Subtraction
  • Multiplication
  • Division
  • Power of

use the block to input a simple calculation with any sequence step that uses the following mathematical operators

  • Square root
  • Absolute
  • Hifen
  • Log of
  • Antilog
  • 10 to the power of

use the block to input symbol-based value or formula with any sequence step that uses the following symbols & formulae

  • Pie
  • Antilog
  • Lamda
  • Square root of 2
  • Square root of 1/2
  • summation

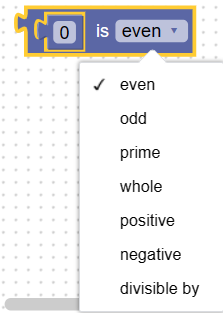

use the block to insert a simple check with any sequence step that uses the following checks

  • Even number
  • Odd number
  • Prime number
  • Positive number
  • Negative number
  • Divisible by

use the block to insert a simple round-up method with any sequence step that uses the following round up types

  • Round
  • Round Up
  • Round Down

use the block to insert a simple calculation or simple check to locate items in a list, with any sequence step that uses the following

  • Sum of List
  • Minimum in the list
  • Maximum in the list
  • Average of list
  • Median
  • Modes
  • Standard Deviation
  • Random item in the list

use the block to insert a simple calculation to find the remainder of a division calculation, with any sequence step.

use the block to insert a constrained value within a range with any sequence step.

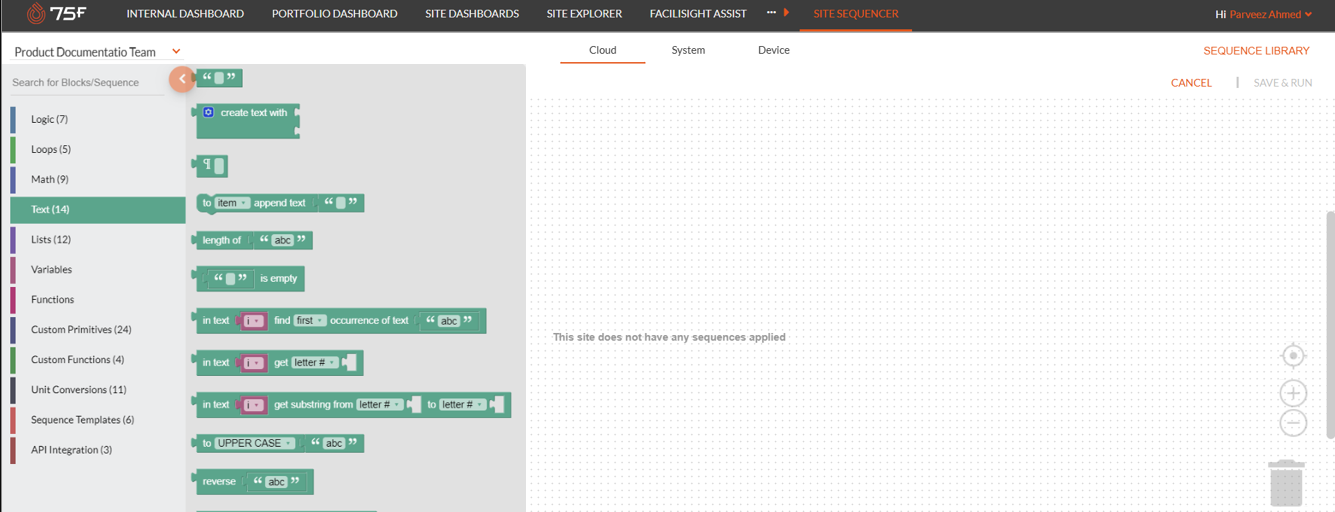

| Text Operators

  • Use the blocks under the text operators to build parts of the sequences that require simple to complex text manipulations and findings.

The table below talks about blocks under Text operators

Blocks  Description/ Usage
use the block to insert a simple test in any sequence step.
use the block to concatenate two strings in any sequence step.
use the block to punctuate paragraphs in any sequence step.
use the block to append a text to any item in any sequence step.
use the block to find the length of a string in any sequence step.
use the block to check if a string placeholder is empty in any sequence step.

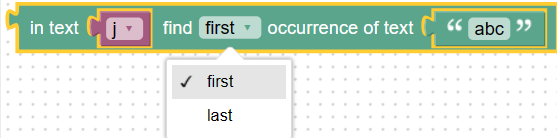

use the block to find the first/last occurrence of a letter in a string, in any sequence step.

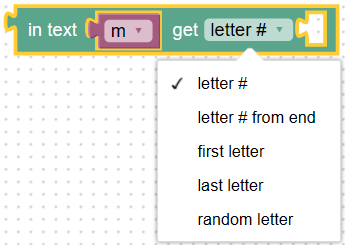

use the block to find a letter's occurrences in the following positions in a string, in any sequence step.

  • letter Number in a string
  • Letter number from end in a string
  • First letter in a string
  • last letter in a string
  • random letter in a string


use the block to find substring in the following positions in a string, in any sequence step.

  • letter Number1 in a string to letter number 2 in a string
  • First letter to a letter number in the string
  • letter number to the last letter in a string

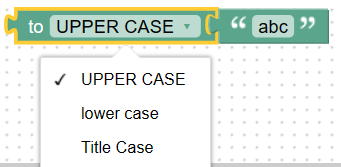

use the block to convert a string to the following, in any sequence step.

  • UPPER CASE
  • lower case
  • Title Case

use the block to reverse a string, in any sequence step.

use the block to count an alphabet in a string, in any sequence step.
use the block to replace an alphabet with another alphabet in a string, in any sequence step.

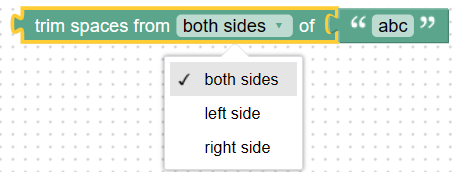

use the block to trim the spaces on left/right/both sides of a string, in any sequence step.

| List Operators

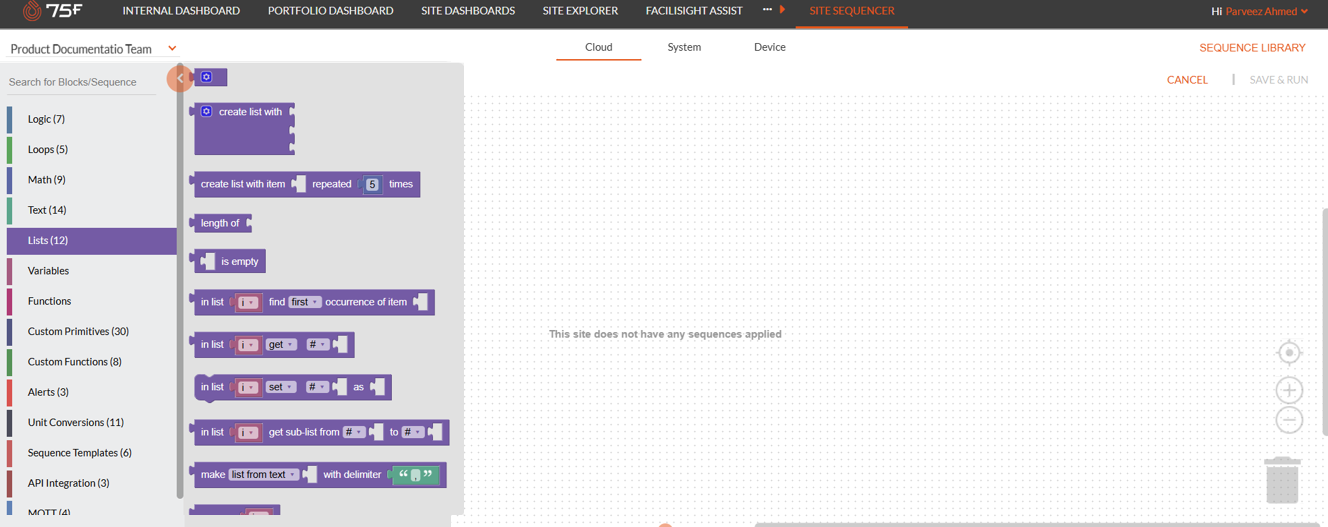

  • Use the blocks under the list operators to build parts of the sequences that require simple to complex list manipulations and findings from a list.

The table below talks about blocks under list operators.

Blocks  Description/ Usage

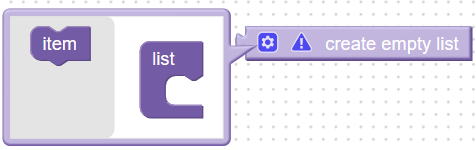

use the block to create an empty list, in any sequence step as below.

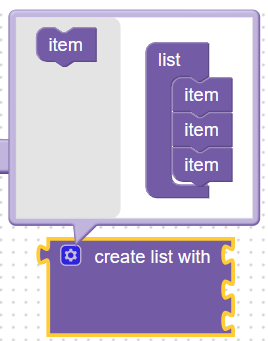

use the block to create a list with a defined list of items, in any sequence step as below.

use the block to create a list by repeating a specified item a, in any sequence step.
use the block to find the length of a list, in any sequence step.
use the block to verify if a list is empty, in any sequence step.
use the block to verify if a list is empty, in any sequence step.

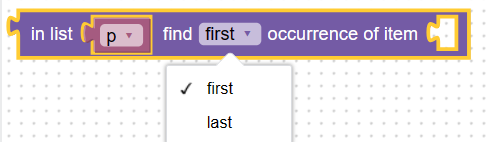

use the block to find the first/last item in a list, in any sequence step.

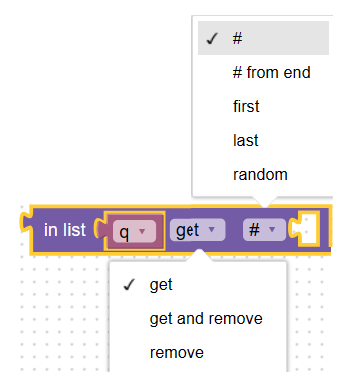

use the block to get/get and remove/ remove items at the following positions, in any sequence step.

  • Item at a position number
  • Item at a position number from the end
  • first item
  • Last item
  • Random item

use the block to set/insert items at the following positions as something, in any sequence step.

  • Item at a position number
  • Item at a position number from the end
  • first item
  • Last item
  • Random item

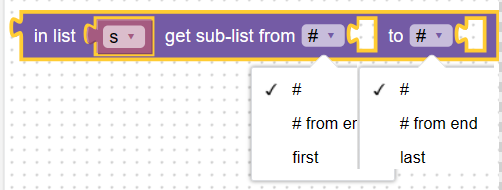

use the block to get the sub-list items at the following positions, in any sequence step.

  • Item at a position number to the last item
  • Item at a position number from the end to the last item
  • first item to the last item.

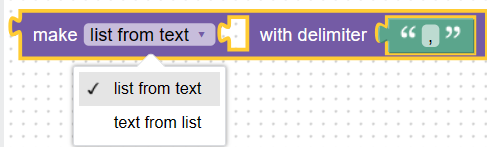

use the block to create a list from a delimited text string/ a delimited text from a list, in any sequence step.
use the block to reverse a list, in any sequence step.

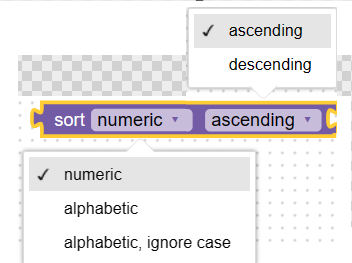

use the block to arrange list items in numeric/ alphabetic/ alphabetic, ignore case, ascending or descending order, in any sequence step.

| Variables

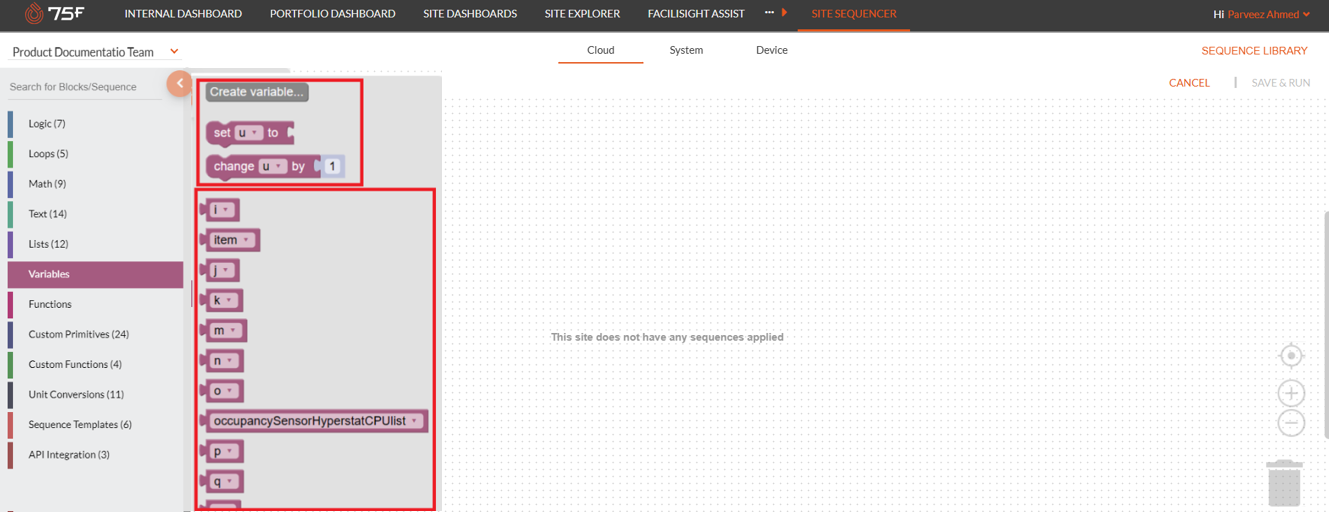

  • Use the blocks under the variables to create variables, set variables to parameters, and change variables by a value, to help build parts of the sequences.

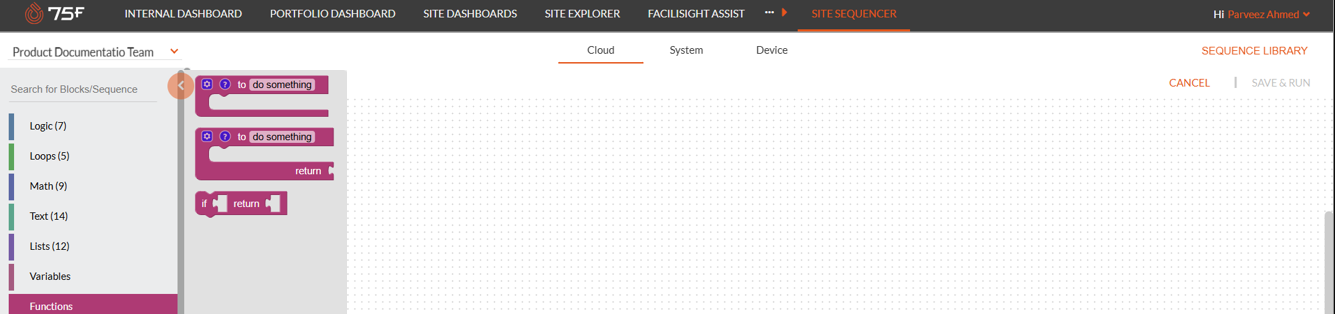

| Functions

  • Use the blocks under the functions to create an action step as parts of the sequence steps.

The table below talks about blocks under functions

Blocks  Description/ Usage

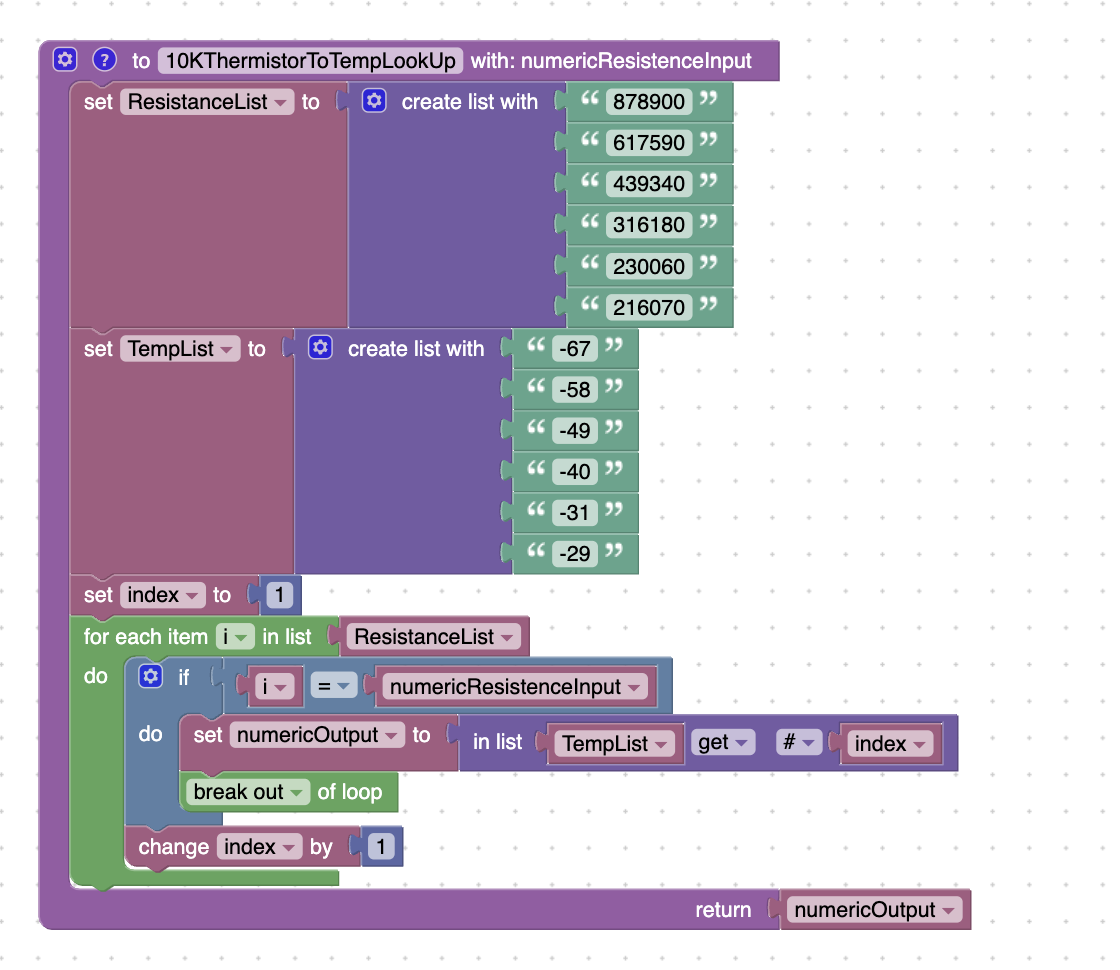

use the block to create an action step in any sequence step, as below

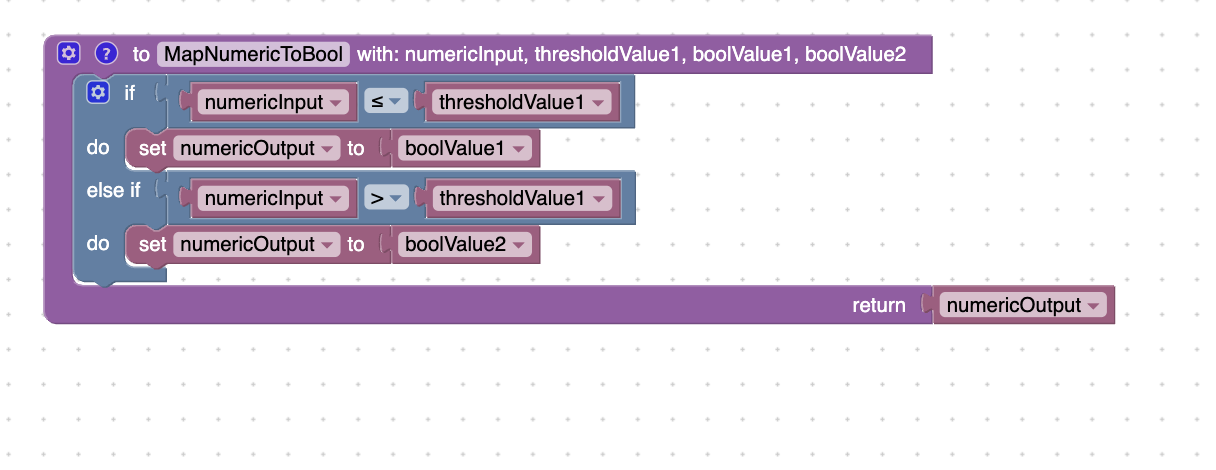

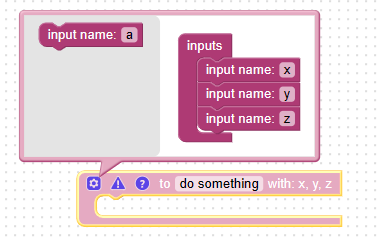

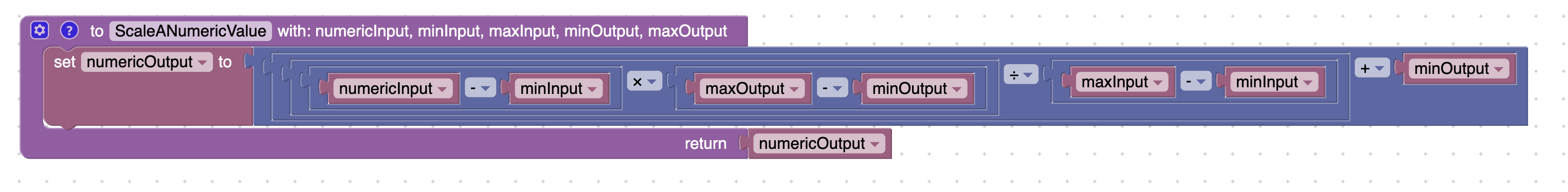

Use the block to create functions with more inputs, as below.



use the block to create an action step in any sequence step that can return something, as below.

use the block to retrieve something based on an if condition in any sequence.

Note: This can only be used with a sequence block, as below



Note: To try, understand, and get a good hands-on with the blocky default blocks and usage visit self-try blockly tutorial.

| Custom Primitives/ 75F Predefined Blocks

The site sequencer is built for extraordinary control capabilities, robust calculations, and complex Analytics. It comes with a full suite of the Blockly, along with customized 75f haystack-based predefined blocks. This makes it even more powerful.

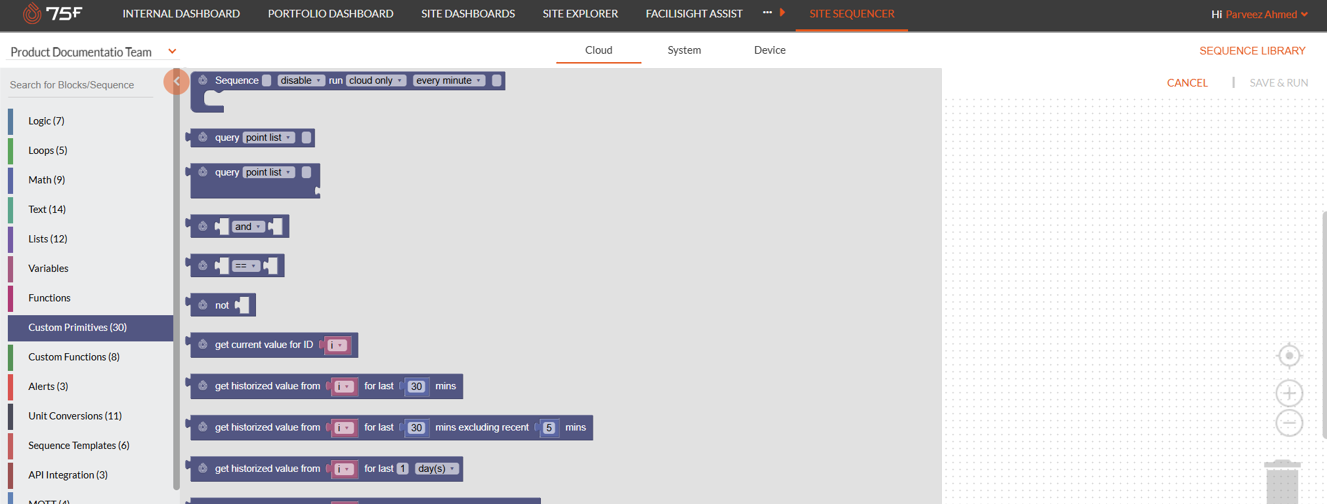

  • Use the blocks to create haystack-based operations as parts of the sequence steps.

The blocks added under this type are out of the box just like the other 75F products, and they do not require further manipulations or enhancements.

The table below talks about blocks under 75F haystack-based operators.

Blocks  Description/ Usage

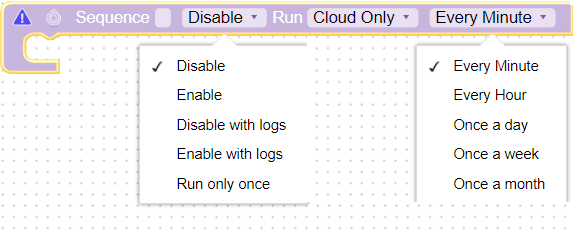

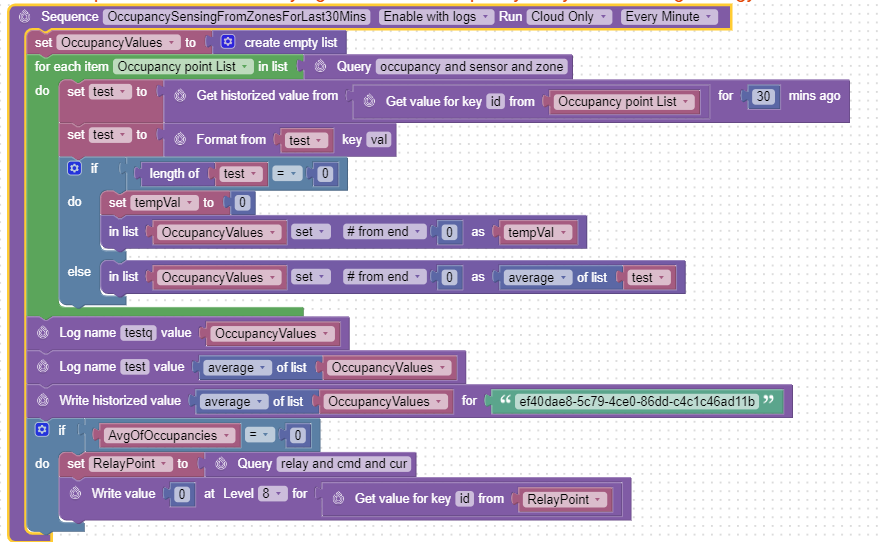

use the block:

  • To start building a sequence,
  • Name a sequence,
  • Enable/Disable/ Disable with logs/Enable with logs/ Run only once the sequence.
  • Define the duration for which the sequence should run from the following:
    • Every Minute
    • Every Hour
    • Once a Day
    • Once a Week
    • Once a Month

use the block to introduce a haystack database query step within a sequence to query for a Point or Point List, or Point with the current value

Example:

To query for a physical equip point analog out 2

Example for a Point

Point 1-1.png

Point 1-2.png

The query block with point returning only the first instance of the query in the logs, when enabled and run with logs.

use the block to introduce a haystack database query step within a sequence to query for a Point, Point List or Point with the current value.

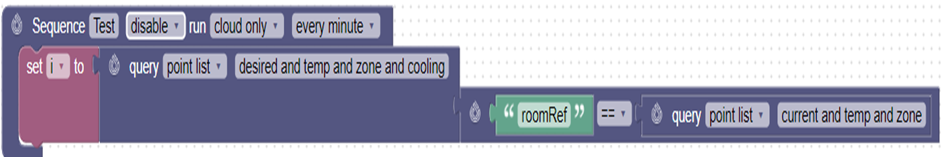

With an input that maps another point from the zone with the corresponding point queried earlier

Example:

A Tags-based haystack query to locate the desired temperature for the zones, and map the queried points with corresponding current temperature using the roomRef.

Example for a Point List:

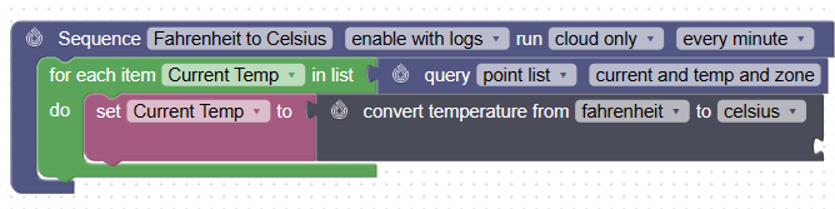

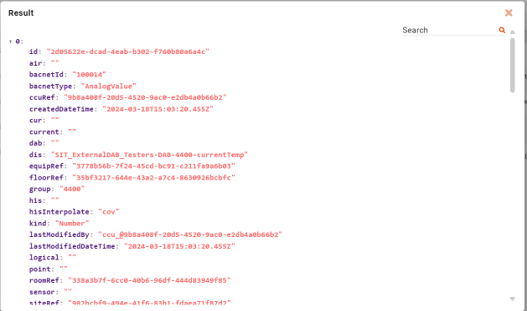

Point List 1.png

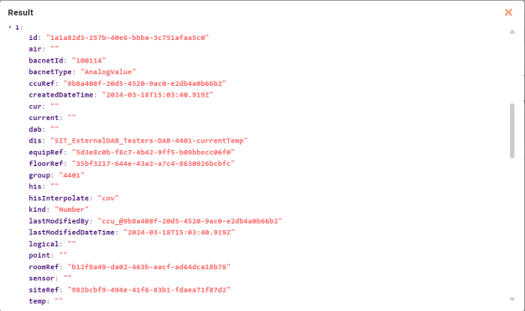

Point List 2.png

Point List 3.png

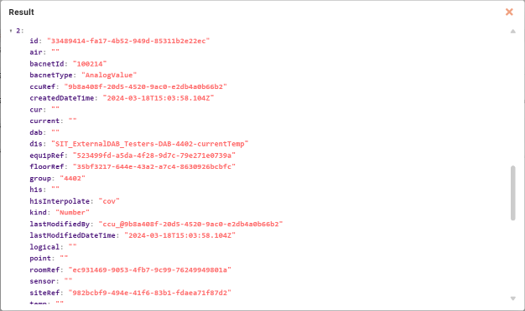

Point List 4.png

The query block with point list returning all instances of the query in the logs, when enabled and run with logs.

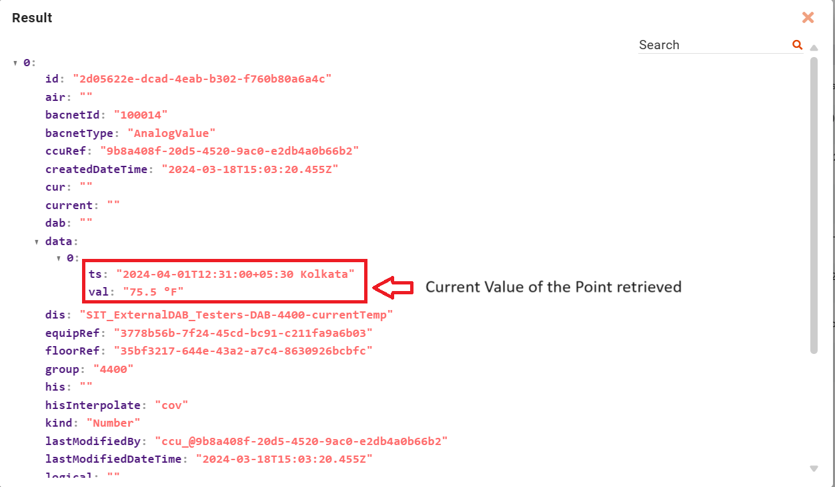

Example for a point with current value:

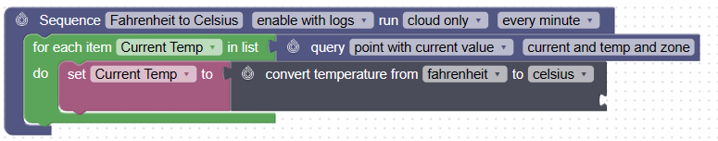

point with current value-1.png

point with current value -2.png

The query block with point with current value returning the current value of the first instance of the point 72.5F.

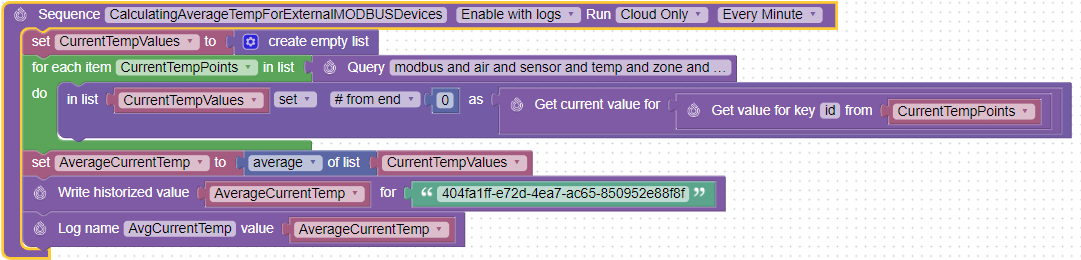

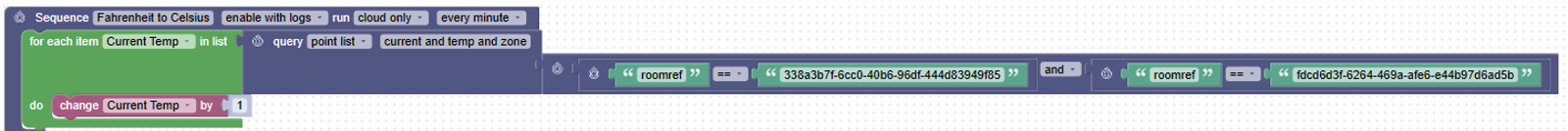

use the block to query more than one haystack point using the AND /OR operator in any sequence steps.

Example:

To query for the current temperature and humidity points from a zone

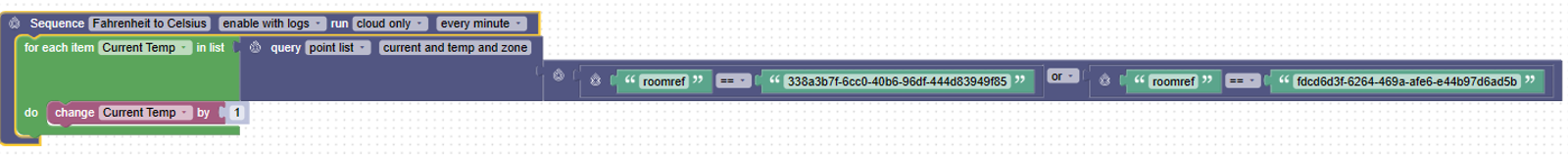

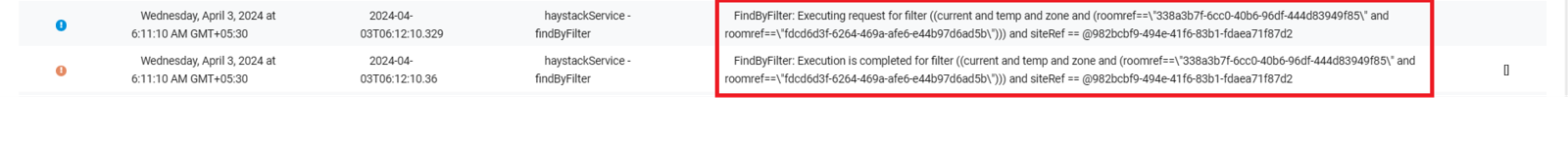

Example usage Query with input using AND/OR operators:

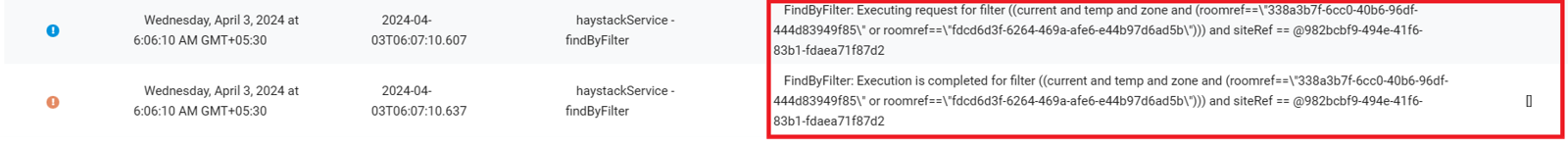

The logs displaying the query, trying to fetch the current temp values for the specified roomrefs using the AND/OR operator.

use the block to query and compare more than one haystack point using the Equal to /Not equal to operators in any sequence steps.

Example:

To compare and if the current temperature of the two zones is equal or not equal

Example usage Query with input using =/! = operators:





The logs displaying the query, trying to fetch the current temp values for the specified roomrefs using the =/! = operator.

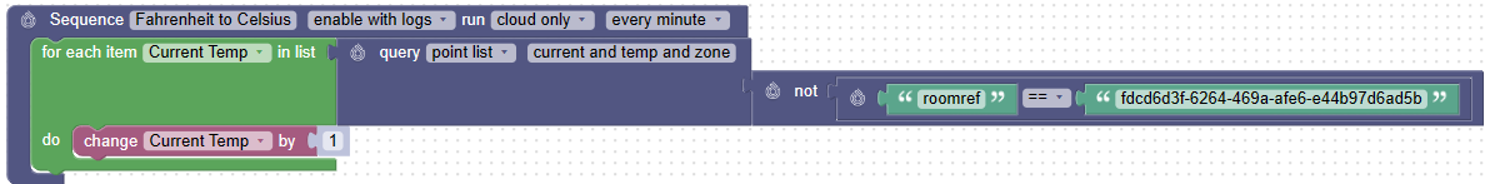

use the block to query more than a few haystack points using the NOT operators in any sequence steps, combining it with the AND and OR operators blocks mentioned above.

Example:

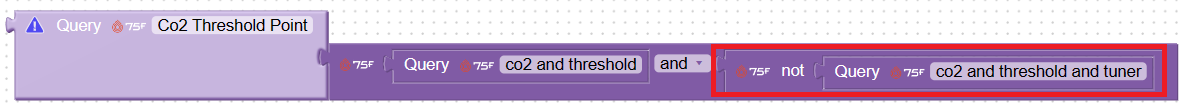

To filter the CO2 threshold point and not the tuner points

Example usage Query with input using NOT operator:

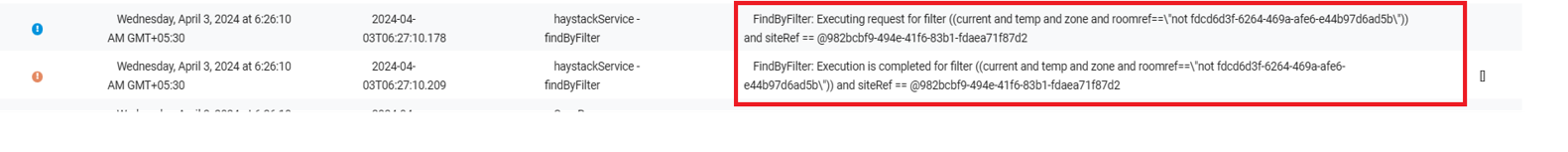

The logs displaying the query, trying to fetch the current temp values for all room refs except for the specified one.

use the block to get the current value of a variable set for a potential haystack point.
use the block to get the historized values of a variable set for a potential haystack point, for a specified duration.
use the block to get the historized values of a variable set for a potential haystack point, for a specified number of days.
use the block to get the historized values of a variable set for a potential haystack point, for a specified Date range.
use the block to get the historized values of a variable set for a potential haystack point, for a duration within a specified Date range.
  • use the block to get the historized values of a variable set for a potential haystack point.
  • Group the same by minutes/hours/days/Months/Year
  • Average or count the data, and find the min/max/sum on the data range filtered for
  • Interpolate the linear/COV data.
  • Also, filter the data for a specified number of days
  • use the block to get the historized values of a variable set for a potential haystack point.
  • Group the same by minutes/hours/days/Months/Year
  • Average or count the data, and find the min/max/sum on the data range filtered for
  • Interpolate the linear/COV data.
  • Also, filter the data for a specified date range
  • use the block to get the historized values of a variable set for a potential haystack point.
  • Group the same by minutes/hours/days/Months/Year
  • Average or count the data, and find the min/max/sum on the data range filtered for
  • Interpolate the linear/COV data.
  • Also, filter the data for a specified time duration within a specified date range.
use the block to get the current value of a variable set for a potential haystack point at a specified priority array level.
use the block to write a value, at a priority array level of a variable set for a potential haystack point.
use the block to write the historized value of a variable set for a potential haystack point.
use the block to get the value for a key name from a variable set for a potential haystack point.
use the block to get the value for a key name from a variable set for a potential haystack point and display the same, or display anything you want.
use the block to add a comment in a sequence alongside a 75F predefined block.

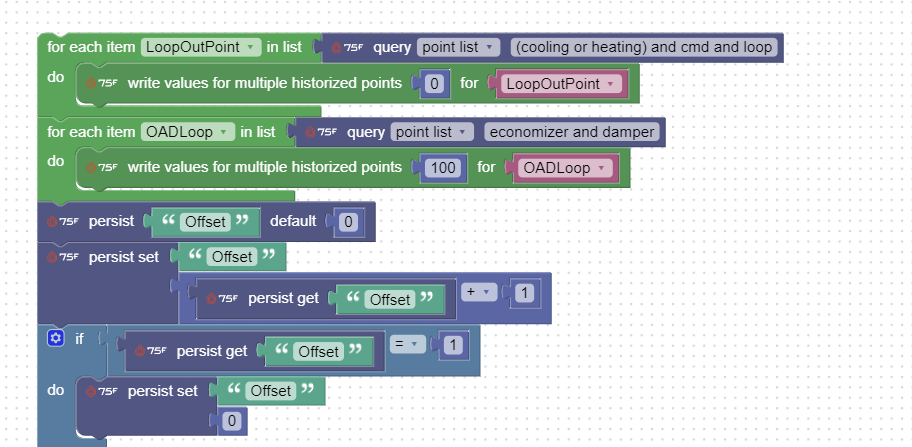

use this block to create and assign a default value to a variable.

use this block to set a given value to a variable, so that the variable value defined persists for every run of the sequence.

use this block to get the persisted value from the specified variable.

Example:

A screenshot of a computer

Description automatically generated

The site sequencer also comes with 75F proprietary alerting block, which provides out-of-box subblocks to specify all the parts of an alert. You can use it alongside any sequence steps in a sequence.

  • Use the block to create alerts for any point in the building management space.

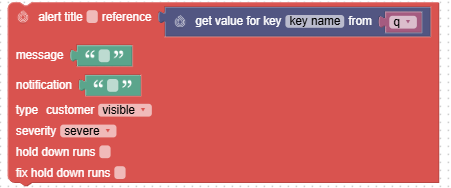

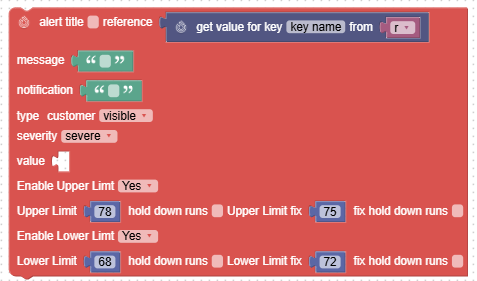

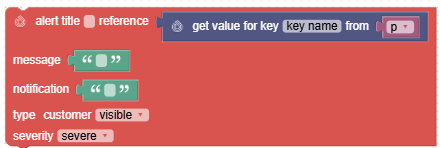

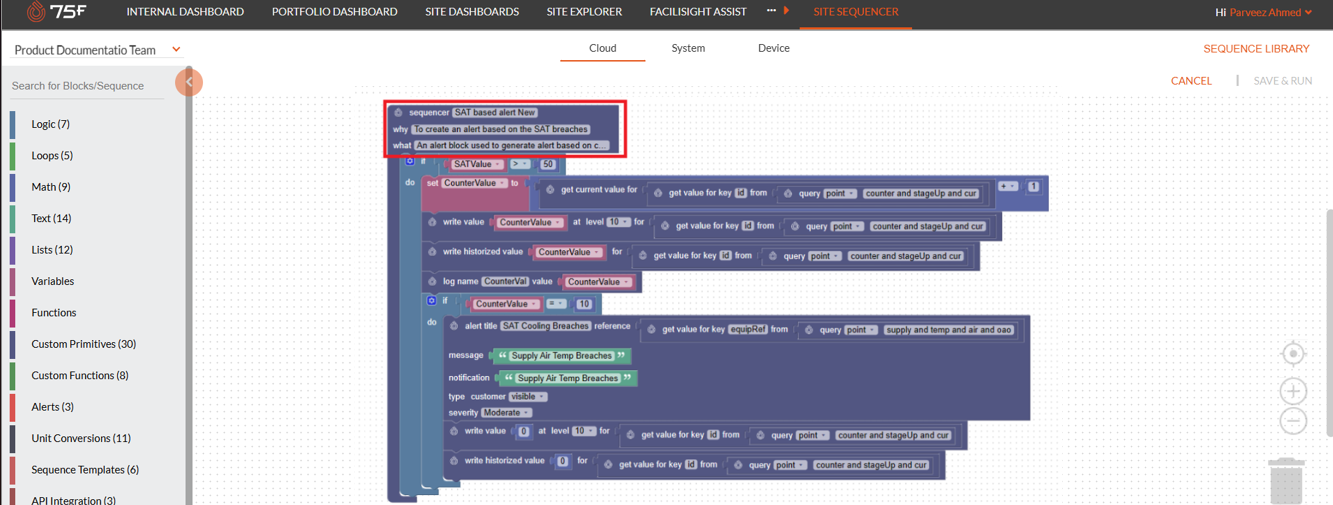

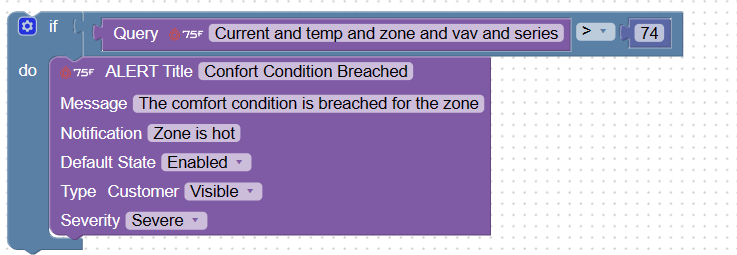

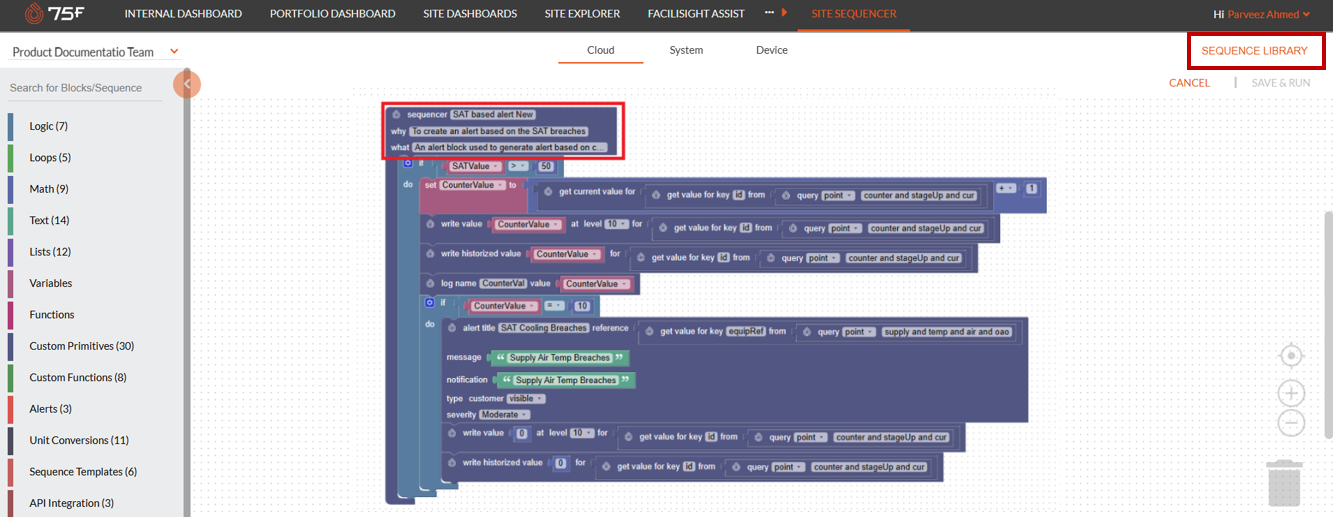

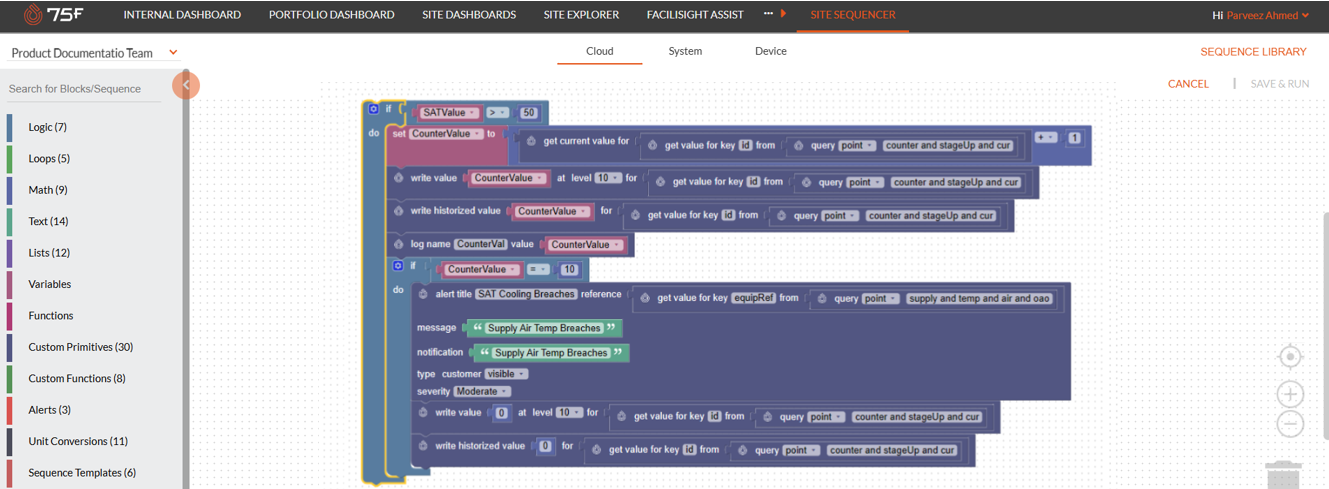

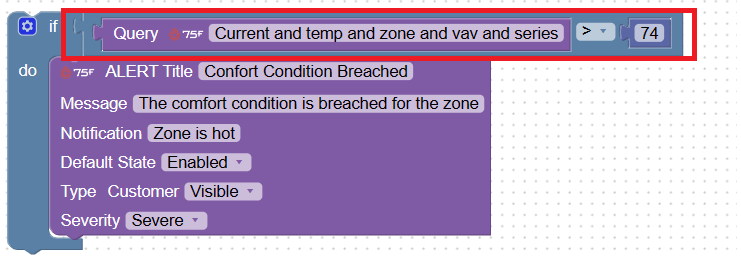

Below is an example sequence step using an alerting block:

| Custom Functions

  • Custom Functions hold pre-defined 75F blocks that help with bulk action.

The table below talks about blocks under the Custom Function section in detail.

Blocks  Description/ Usage

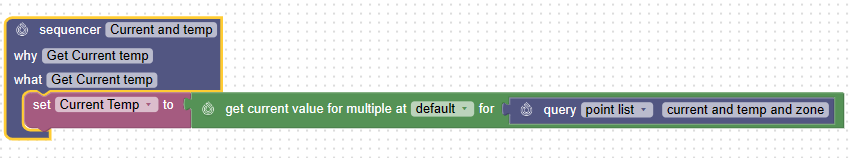

Use this block to get the current value for multiple points at the specified priority array level.

Use this block to write values of multiple writeable points at the specified priority array level.



Use this block to write values of multiple historized points.

Use this block to write values for multiple writeable & historized points as specified

| Unit Conversions

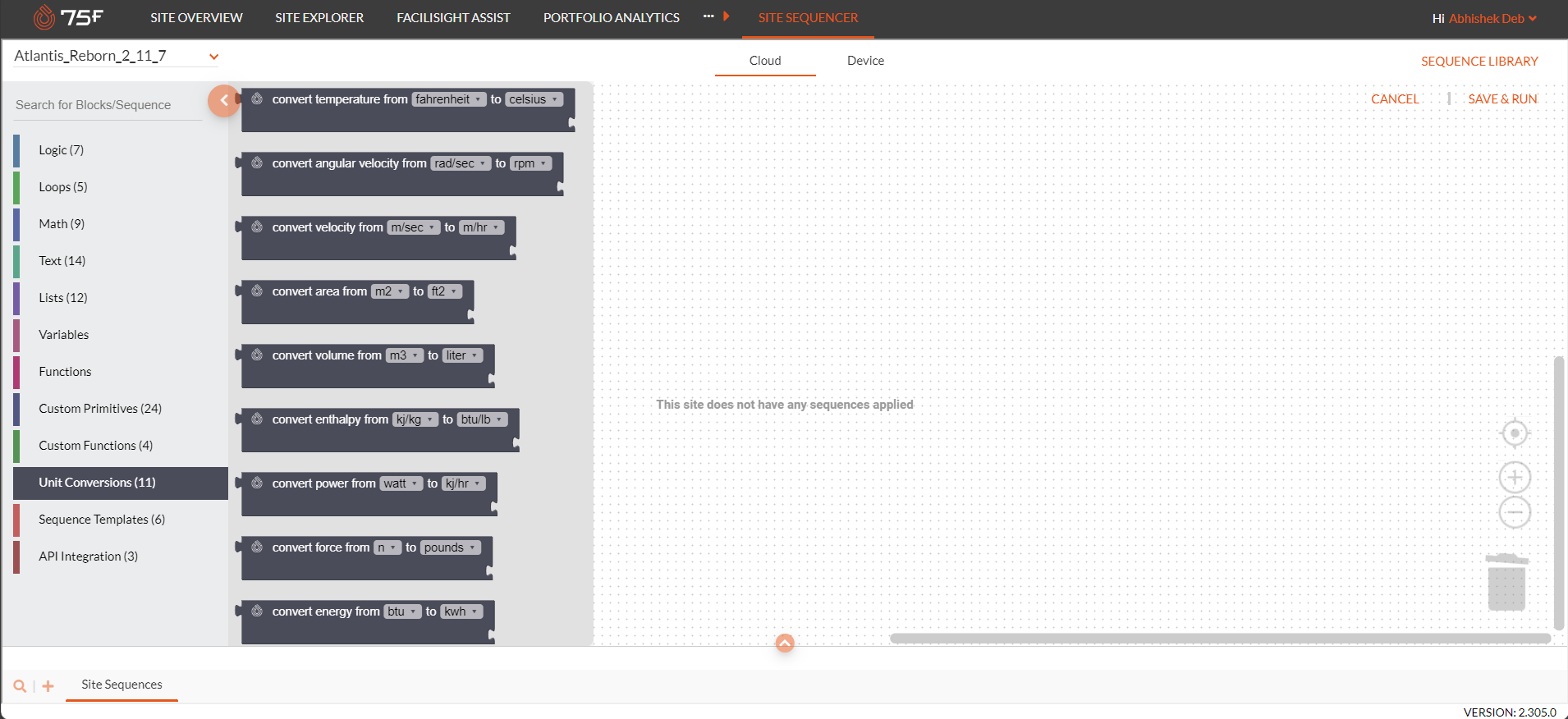

  • Use the blocks under the functions to create unit conversion as an action step as parts of the sequence.

The table below talks about blocks under the Unit conversion section in detail.

Blocks  Description/ Usage

Use this block to add a temperature unit conversion step in a sequence, to convert values from or to  Fahrenheit or Celsius or Kelvin, as in the table below.

The Table below

UnitInput

UnitOutput

Conversion Method

Celsius

Fahrenheit: F Unit

 9/5 *celsiusValue+32

Celsius

Kelvin : K Unit

 celsiusValue +273.15

Fahrenheit

Celsius : C Unit

5/9(fahrenheitValue−32)

Fahrenheit

Kelvin : K Unit

5/9(fahrenheitValue−32) + 273.15

Kelvin

Celsius: C Unit

kelvinValue−273.15C

Kelvin

Fahrenheit : F Unit

9/5*(kelvinValue −273.15)+32

Use this block to add a pressure unit conversion step in a sequence, to convert values from or to  psi or bar or pascal or inH2O or inHg, as in the table below

UnitInput

UnitOutput

Conversion Method

Psi

Bar

psi value / 14.5038

Psi

Pascal

6894.76 * psi value

Psi

inH2O

27.7076 * psi value

Psi

Inhg

2.03602 * psi value

Bar

Psi

14.5038 * bar value

Bar

Pascal

100000 * bar value

Bar

inH2O

401.865 * bar value

Bar

Inhg

29.53 * bar value

Pascal

Psi

pascal value / 6894.76

Pascal

Bar

pascal value / 100000

Pascal

inH2O

pascal value / 248.84

Pascal

Inhg

Pascal value / 3386.39

inH2O

Psi

inH2O Value / 27.7076

inH2O

Bar

inH2O Value / 401.865

inH2O

Pascal

248.84 * inH2O Value

inH2O

Inhg

inH2O Value / 13.6087

Inhg

Psi

inHg Value / 2.03602

Inhg

Bar

inHg Value / 29.53

Inhg

Pascal

3386.39 * inHg Value

Inhg

inH2O

13.6087 * inHg Value

Use this block to add an Angular velocity unit conversion step in a sequence, to convert values from or to  Rad/sec (Radian per second) or RPM (Revolutions per minute), as in the table below.

UnitInput

UnitOutput

Conversion Method

Rad/sec

RPM

RPM = (rad/s) * (60/2π) or

RPM = (rad/s) * 9.5493

RPM

Rad/sec

Rad/s = RPM * (2π/60) or

Rad/s = RPM * 0.1047

Use this block to add a velocity unit conversion step in a sequence, to convert values from or to  m/sec (meters per second) or m/Hr (meters per hour), as in the table below.

UnitInput

UnitOutput

Conversion Method

m/s

m/Hr

3600 * m/s value

m/Hr

m/s

m/Hr   / 3600



Use this block to add a conditioned area unit conversion step in a sequence, to convert values from or to  m2 (meter square) or ft2 (Feet square), as in the table below.

UnitInput

UnitOutput

Conversion Method

Meter per square

Feet per square

10.763910417 * m2 value

Feet per square

Meter per square

0.09290304 * ft2 value

Use this block to add a volume unit conversion step in a sequence, to convert values from or to  m3 (meter cube) or liter or Gallons, as in the table below

UnitInput

UnitOutput

Conversion Method

Cubic Meter

Liter

1000 * m3 value

Cubic Meter

Gallons

219.969152 * m3 value

Gallon

Liter

 4.546092 * gallon value

Gallon

Cubic Meter

 Gallon value / 219.969152

Liter

Gallons

Liter Value / 4.546092

Liter

Cubic Meter

0.001 * Liter Value

Use this block to add an Enthalpy unit conversion step in a sequence, to convert values from or to  kJ/kg (Kilo Joule per Kilogram)  or BTU/lb (British Thermal Unit per pound), as in the table below.

UnitInput

UnitOutput

Conversion Method

kJ/kg

BTU/Ib

0.429922614 * kJ/kg value

BTU/Ib

kJ/kg

2.326 * BTU/Ib value

Use this block to add a Power unit conversion step in a sequence, to convert values from or to  Watt or kJ/Hr (Kilo Joule per hour), as in the table below.

UnitInput

UnitOutput

Conversion Method

Watt

kJ/Hr

3.6 * watt value

kJ/Hr

Watt

0.2777777778 * kJ/Hr Value

Use this block to add a Force unit conversion step in a sequence, to convert values from or to  N(Newton) or Pounds, as in the table below.

UnitInput

UnitOutput

Conversion Method

N

Pounds

0.224808943 * N Value

Pounds

N

4.44822 * pounds Value

Use this block to add an Enregy unit conversion step in a sequence, to convert values from or to  BTU(British Thermal Unit) or kWh (Kilo Watt Hour) or Joule or Watt Hour, as in the below table.

UnitInput

UnitOutput

Conversion Method

BTU

kWh

Btu value / 3412.14

BTU

Joule

1055.06 * Btu value

BTU

Watt Hour

Btu value / 3.412

kWh

BTU

3412.14 * kwh value

Watt Hour

Joule

3600 * Wh Value

Joule

Watt Hour

Joule value / 3600

kWh

Watt Hour



kWh

Joule

3600000 * kWh Value

Watt Hour

BTU

3.412 * Watt Hour value

Watt Hour

kWh



Joule

kWh

kWh Value / 3600000

Joule

BTU

Joule Value / 1055.06

Use this block to add an Air flow unit conversion step in a sequence, to convert values from or to  M3/hr(meter Cube per hour) or ft3/hr(Feet Cube per hour), or L/s(Liters per second) or M3/s(meter Cube per second) or GPM(Gallons per minute) or CFM(Cubic Feet per minute),  as in the below table.

UnitInput

UnitOutput

Conversion Method

m3/hr

ft3/hr

35.3147 * m3/hr value

m3/hr

L/s

m3/hr   / 3.6

m3/hr

m3/s

m3/hr   / 3600

m3/hr

GPM

4.402867 * m3/hr value

m3/hr

CFM

m3/hr   /1.699

ft3/hr

m3/hr

ft3/hr   / 35.3147

ft3/hr

L/s

ft3/hr   / 127.133

ft3/hr

m3/s

ft3/hr   / 127133

ft3/hr

GPM

ft3/hr   / 8.02083

ft3/hr

CFM

ft3/hr   / 60

L/s

ft3/hr

127.133 * L/s value

L/s

m3/hr

3.6 * L/s value

L/s

m3/s

L/s   / 1000

L/s

GPM

15.85032 * L/s value

L/s

CFM

2.11888 * L/s value

m3/s

ft3/hr

127133 * m3/s value

m3/s

GPM

15850.323141 * m3/s value

m3/s

CFM

2118.88 * m3/s

m3/s

m3/hr

3600 * m3/s value

m3/s

L/s

1000 * m3/s

GPM

ft3/hr

8.02083 * GPM value

GPM

L/s

GPM / 15.85032

GPM

m3/s

GPM / 15850.323141

GPM

CFM

GPM / 7.480519

GPM

m3/hr

GPM / 4.402867

CFM

ft3/hr

60 * CFM Value

CFM

L/s

CFM / 2.11888

CFM

m3/s

CFM / 2118.88

CFM

GPM

7.480519 * CFM

CFM

m3/hr

1.6999 * CFM value

| Sequence Templates

Sequence templates hold pre-built sequences that can be readily used in any sequence for action. This eases the complexity of recreating those sequence combinations again and again.

  • Use the blocks under the functions to reuse any such template block as parts of the sequence.

The table below talks about blocks under the Sequence template section in detail.

Blocks  Description/ Usage

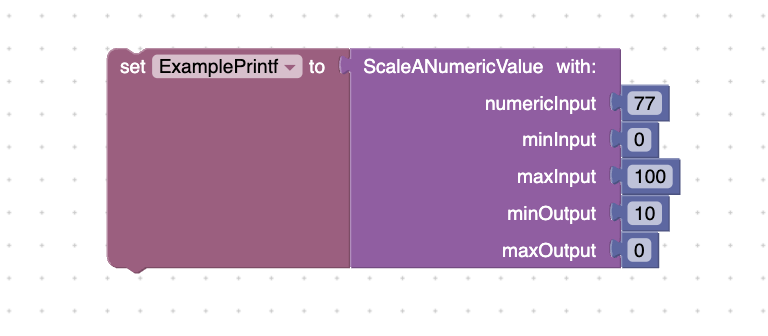

Use this block to scale a numeric input value for a min-max input and min-max output.

Example:

Indlnoxew
Indlnou!u
Indulxeu
Indulu!tu
Indulopownu
:quM armeAouawnNVB1eoS
01
— liupdalduexa

The block follows the below logic.

@ O ScaleANumericValue
numericOutput
set
to
with: numericlnput, minlnput, maxlnput, minOutput, maxOutput
minOutput
numericlnput
minlnput
maxOutput
minOutput
maxlnput
minlnput
return
numericOutput

Use this block to map a value to a boolean value based on the threshold value.

Example: Co2 value sensed for the threshold breach

The block follows the below logic.

MapNumericToBool
with: numericlnput, thresholdValue1, boolValue1 , boolValue2
numericlnput •
do Set
numericOutput
elseif
numericlnput
do set
numericOutput
thresholdValue1 -
boolValue1
threshoIdValue1 •
boolValue2
numericO

user the template block to engage a temperature lookup based on the resistance value in a 75F-based 10k type thermistor input as below.

ResistanceList
1 OKThermistorTOTempL00kUp
• with: numericResistencelnput
ut
to @ create list with
@ create list with
878900
617590
439340
316180
216070
TempLiSt •
index
to
-58
49
-31
-29
for each item in list
ResistanceList
numericResistencelnput
do
numericOutput
set
to , inlist(
TempList -
break out •
change
- index •
get
retum
index •
numericOu



user the template block to engage a temperature lookup based on the resistance value in an external 10k type-2 thermistor input as below.

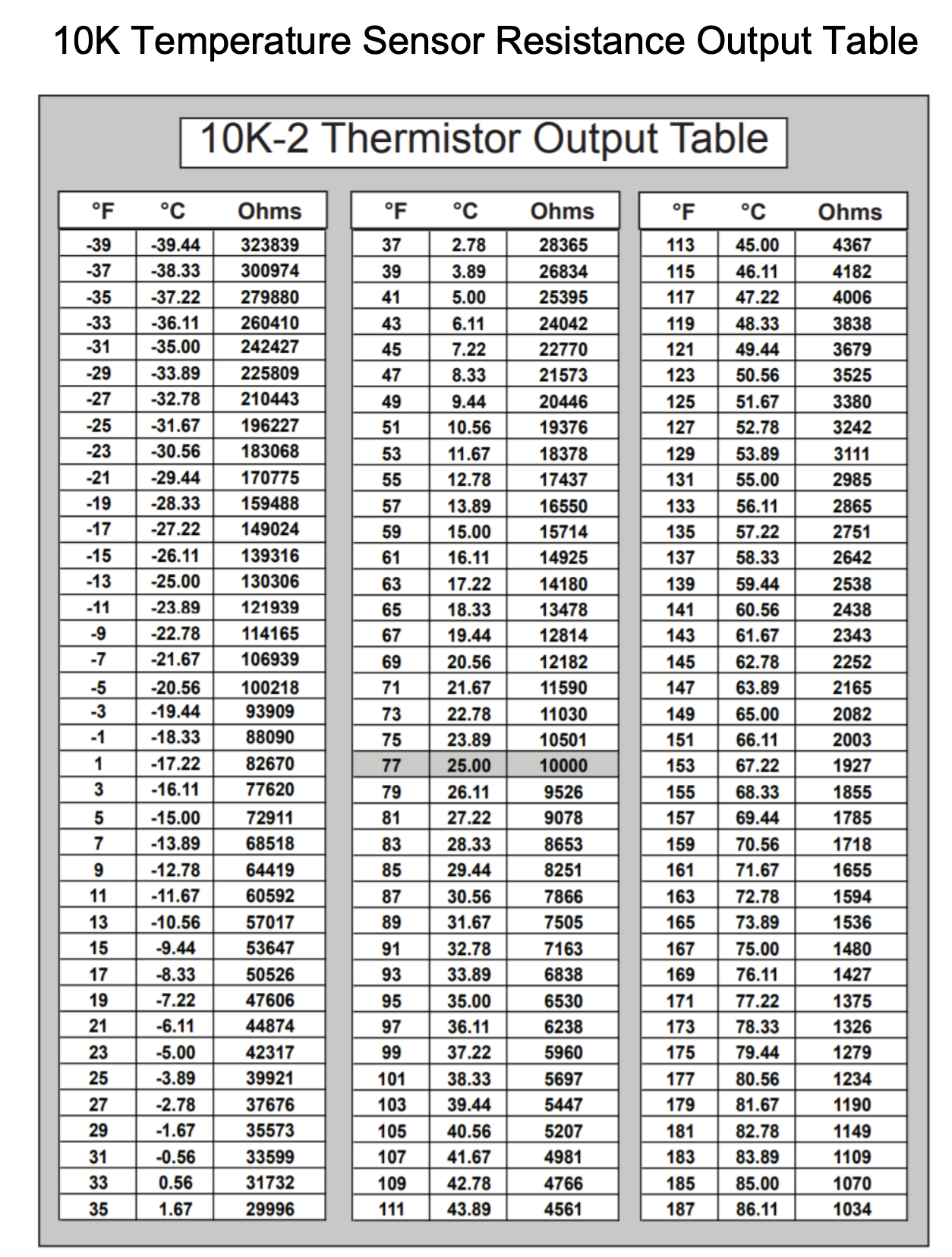

ち d ち 0 の oue あ の 区 」 osues の 」 n 一 e あ dw の ト YO L
SLULIO 0 。
91qeL ち d ち 0 」 9 懃 w 」 の 14 ト ー YO
sun-IO 0 。 ト
・ 囃 鰤 鰤 日 鰤 日 鰤
鬮 嫻 嫻 盟
ゴ ロ 煎 ロ 囂 叩 就 囂 就 卩
SUJUO 0 。
- 日 日 曦 日 曦 日 日 日 日 灘 日 鰤 日 讎 第 鬮

user the template block to engage a temperature lookup based on the resistance value in an external 10k type -3 thermistor input.

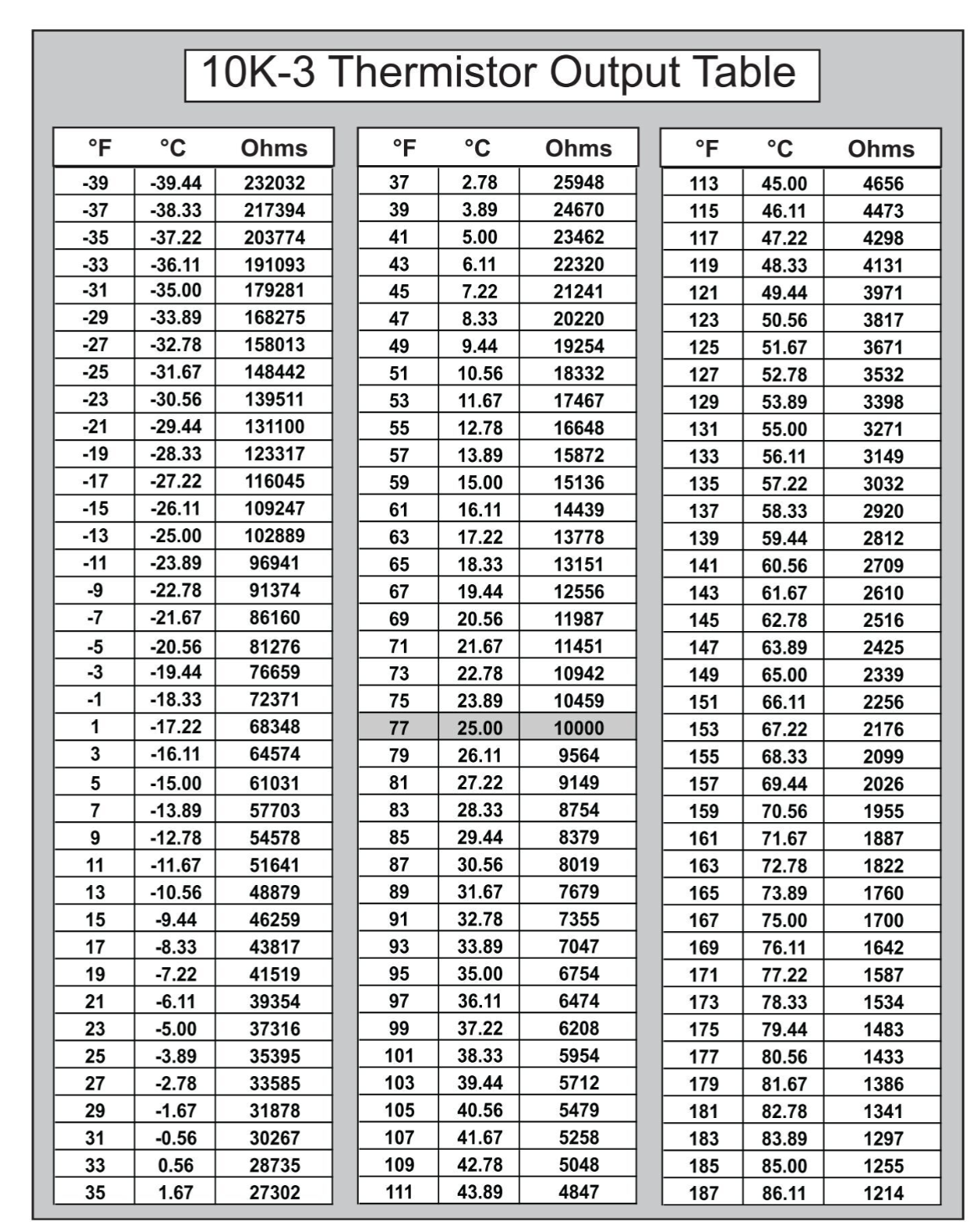

1 OK-3 Thermistor Output Table
-39
-37
-35
-33
-31
-29
-27
-25
-23
-21
-19
-17
-15
-13
-11
-9
-5
-3
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
-39.44
-38.33
-37.22
-36.11
-35.00
-33.89
-32.78
-31.67
-30.56
-29.44
-28.33
-27.22
-26.11
-25.00
-23.89
-22.78
-21.67
-20.56
-19.44
-18.33
-17.22
-16.11
-15.00
-13.89
-12.78
-11.67
-10.56
-9.44
-8.33
-7.22
-6.11
-5.00
-3.89
-2.78
-1.67
-0.56
0.56
1.67
Ohms
232032
217394
203774
191093
179281
168275
158013
148442
139511
131100
123317
116045
109247
102889
96941
91374
86160
81276
76659
72371
68348
64574
61031
57703
54578
51641
48879
46259
43817
41519
39354
37316
35395
33585
31878
30267
28735
27302
39
41
43
45
47
49
51
53
55
57
59
61
63
65
67
69
71
73
75
77
79
81
83
85
87
89
91
93
95
99
101
103
105
107
109
111
2.78
3.89
5.00
6.11
7.22
8.33
9.44
10.56
11.67
12.78
13.89
15.00
16.11
17.22
18.33
19.44
20.56
21.67
22.78
23.89
25.00
26.11
27.22
28.33
29.44
30.56
31.67
32.78
33.89
35.00
36.11
37.22
38.33
39.44
40.56
41.67
42.78
43.89
Ohms
25948
24670
23462
22320
21241
20220
19254
18332
17467
16648
15872
15136
14439
13778
13151
12556
11987
11451
10942
10459
10000
9564
9149
8754
8379
8019
7679
7355
7047
6754
6474
6208
5954
5712
5479
5258
4847
113
115
117
119
121
123
125
127
129
131
133
135
137
139
141
143
145
147
149
151
153
155
157
159
161
163
165
167
169
171
173
175
177
179
181
183
185
187
45.00
46.11
47.22
48.33
49.44
50.56
51.67
52.78
53.89
55.00
56.11
57.22
58.33
59.44
60.56
61.67
62.78
63.89
65.00
66.11
67.22
68.33
69.44
70.56
71.67
72.78
73.89
75.00
76.11
77.22
78.33
7944
80.56
81.67
82.78
83.89
85.00
86.11
Ohms
4656
4473
4131
3971
3817
3671
3532
3398
3271
3149
3032
2920
2812
2709
2610
2516
2425
2339
2256
2176
1955
1887
1822
1760
1700
1642
1587
1534
1483
1433
1386
1341
1297
1255
1214

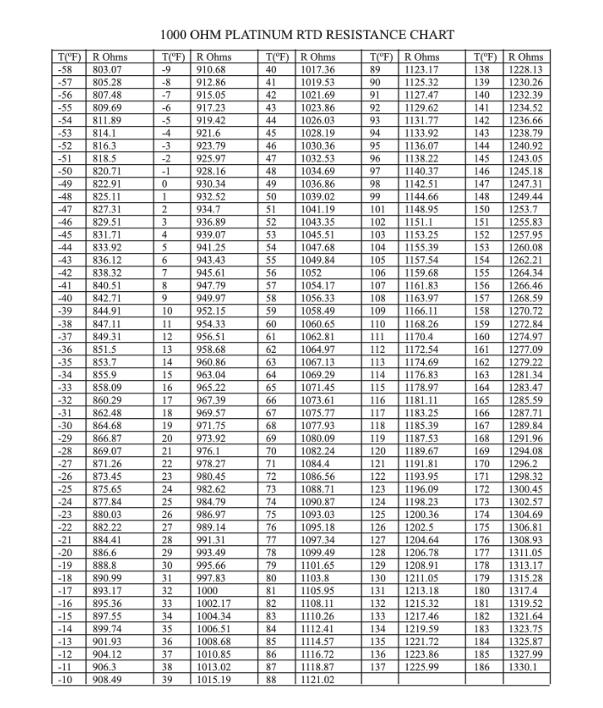

user the template block to engage a temperature lookup based on the resistance value in an external 1k thermistor input as below.



| Creating a Sequence

To create a sequence

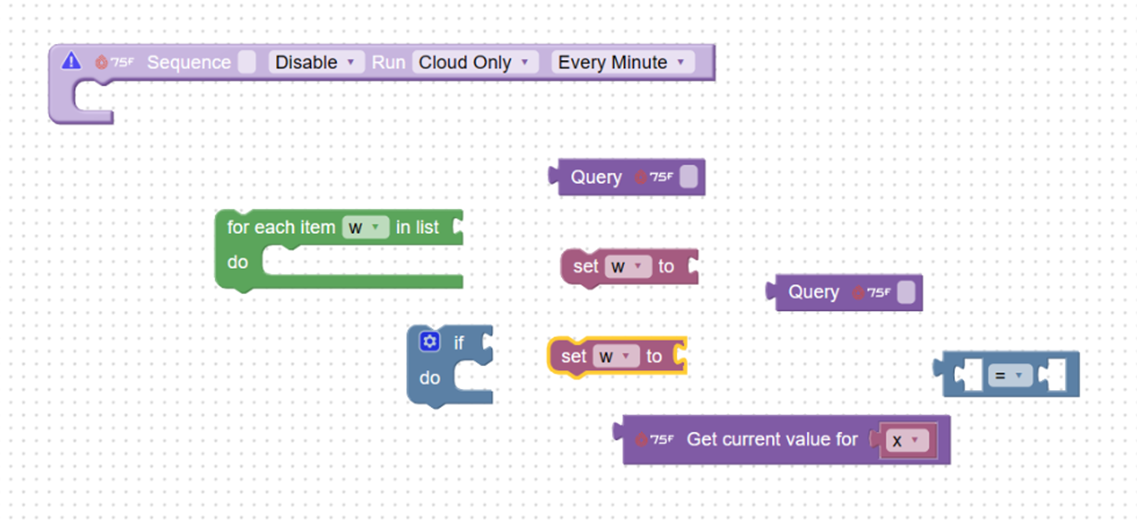

  • Drag and drop the required blocks from different operator-type sections onto the canvas, as below.

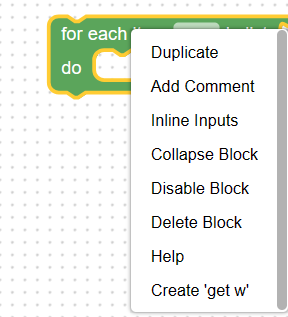

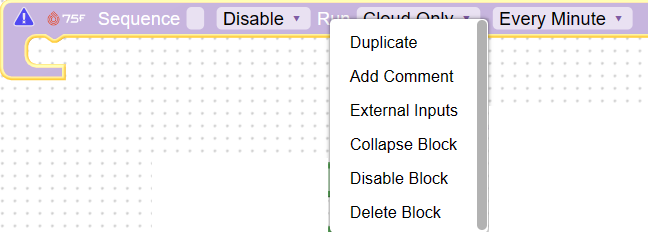

  • Right-click on the blocks to carry out the following manipulations on a block.



Option Description/ Usage
Duplicate

To duplicate a block to use again in the sequence

Note: You can copy paste the block for use in the sequences

Add Comment

Add a comment on the block brings a question mark    icon on the blocks as below.

  • Click the question mark    icon to add comment on the blocks as below.

Inline Inputs

To add an inputs placeholder in line, as below

Collapse Block

To collapse the block and display minimized view of the block, as below.

Disable Block

To simply disable or grey out the block, as below.

Delete Block To delete a block from the canvas.
Help To visit the Blockly help center for information.
Create 'get w' To create a variable right from the canvas.
  • Arrange the blocky sequentially based on the purpose and usage, as below.

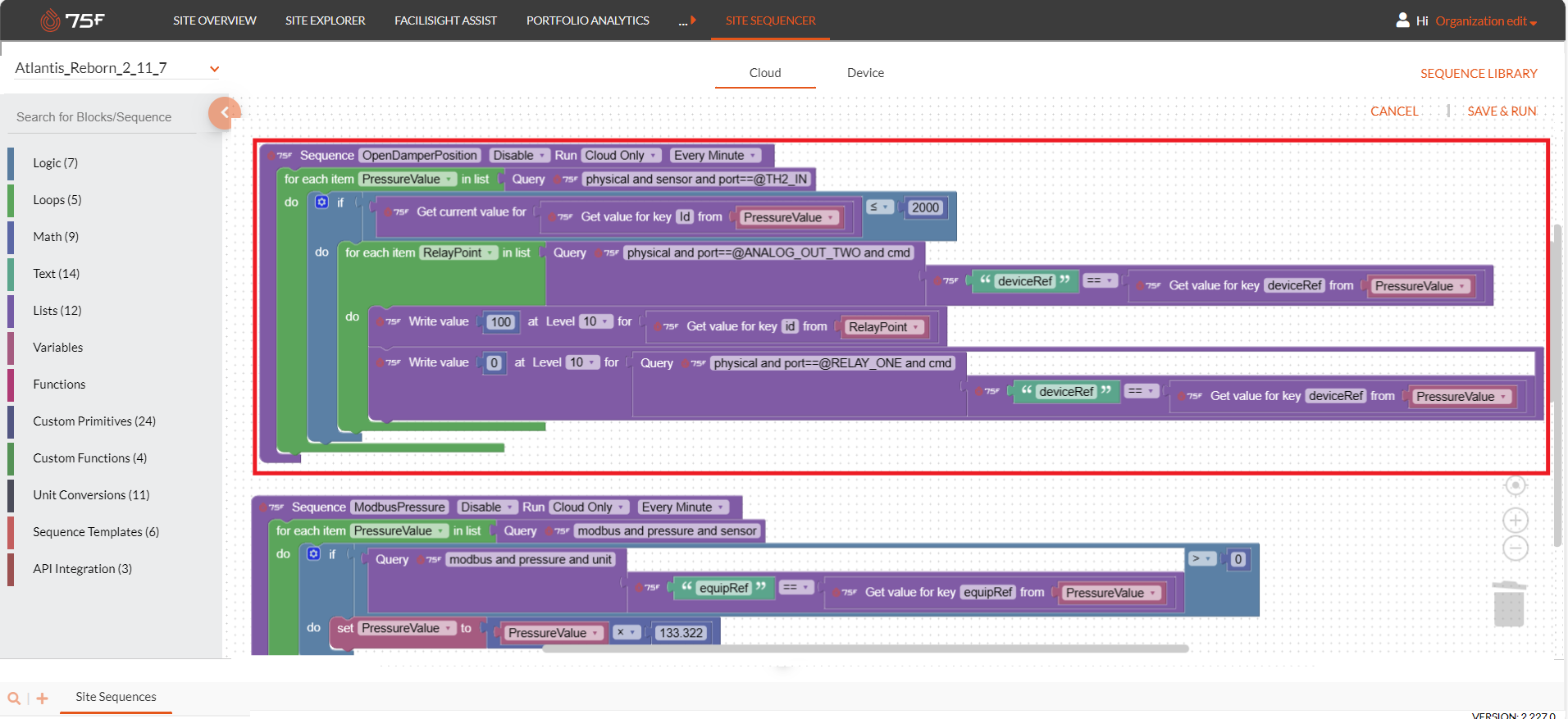

You can create an view more than a few sequences in the same canvas, as below.

  • Click on the sequence headers to focus on the particular sequence, as below.

  • Click Save & Run once the sequence is complete.

Note: The Save & Run button will not be enabled until the sequence is complete.

| Sample use Case & Sequence

Example Use Case 1

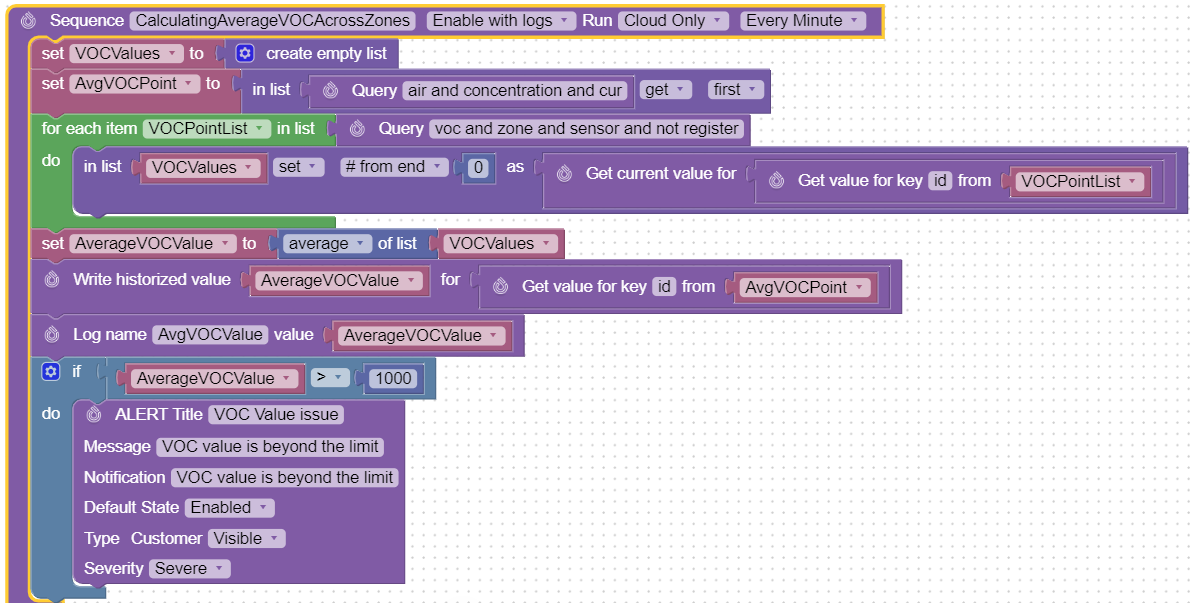

Below is a sequence created for a sample use case.

The sequence is created to constantly monitor the VOC values in zones of a building, compute the average VOV values for every minute, and generate an alert when the computed average values in greater than 1000 ppb.

The Table below talks about the steps and the blocks used in the sequence to achieve the use case.

Step Block Actions
Step 1 Sequence Block (Mandatory)
  • Sequence name - CalculatingAverageAcrossZones
  • Sequence run frequency- Every Minute
Step 2

Define Variable

  • Create a variable VOCValues
  • Create an empty list
  • Assign the variable to the empty list.
Step 3 Define Variable
  • Create a variable AvgVOCPoint
  • Query for the averageVOC point using air and concentration and cur. (Site manager generated point)
  • Look for the first averageVOC point in the list
Step 4

For Loop

  • Create a variable VOCPointList, and assign it to a list.
  • Query for individual zone VOC points using voc and zone and sensor and not register, and add to the above list.

For each item in the VOCPointList:

  • Get the current value from the value for the key "ID"
  • Populate it in the VOCValues list from the end
  • repeat the above for all the items in the VOCPointList
Step 5 Average calculation
  • Create a variable AverageVOCValue
  • Compute the average for the VOCValues list
  • Assign the AverageVOCValue variable to the computed average.
Step 6 Write the average value to
  • Get the value for the key "ID" from the AvgVOCPoint
  • Write the historized value for the AvgVOCPoint with the computed AverageVOCValue.
Step 7 Log Name
  • Assing the computed AverageVOCValue to name AvgVOCValue. (Optional step)
Step 8 If condition
  • If AverageVOCValue is greater than 1000 ppb
Step 7 Alerting
  • for AverageVOCValue greater than 1000 ppb
  • Generate an Alert with the following message.

VOC Value Issue

VOC Value beyond limit

And the following notification

VOC Value beyond limit



Example Use Case 2

Below is another sequence created for a sample use case.

The sequence is created to constantly monitor the current temperature values in Modbus zones in a building and compute the average current temperature for every minute.

The Table below talks about the steps and the blocks used in the sequence to achieve the use case.

Step Block Actions
Step 1 Sequence Block (Mandatory)
  • Sequence name -CalculatingAverageTempForExternalMODBUSDevices
  • Sequence run frequency- Every Minute
Step 2

Define Variable

  • Create a variable CurrentTempValues
  • Create an empty list
  • Assign the variable to the empty list.
Step 3

For Loop



  • Create a variable CurrentTempPoints and assign it to a list.
  • Query for individual zone current temperature points using modbus and air and sensor and temp and zone and not return and not discharge and not outside and not register, and add to the above list.

For each item in the CurrentTempPoints list:

  • Get the current value from the value for the key "ID"
  • Populate it in the CurrentTempValues list from the end
  • repeat the above for all the items in the CurrentTempPoints list.
Step 4 Average Calculation
  • Create a variable AverageCurrentTemp
  • Compute the average for the CurrentTempValues list
  • Assign the computed average to the variable AverageCurrentTemp.
Step 5 Write the average value to
  • Write the historized value for the 404fa1ff-e72d-4ea7-ac65-850952e88f8f, the AverageCurrentTemp (the site manager generated point) with the computed AverageCurrentTemp value.
Step 6 Log Name
  • Assing the computed AverageCurrentTemp to name AvgCurrentTemp. (Optional step)



Example Use Case 3

Below is another sequence created for a sample use case.

The sequence is created to constantly monitor and report the occupancy sensed in zones in the building for 30 Mins.

The Table below talks about the steps and the blocks used in the sequence to achieve the use case.

Step Block Actions
Step 1 Sequence Block (Mandatory)
  • Sequence name - OccupancySensingFromZonesForLast30Mins
  • Sequence run frequency- Every Minute
Step 2

Define Variable

  • Create a variable OccupancyValues
  • Create an empty list
  • Assign the variable to the empty list.
Step 4

For Loop

  • Create a variable Occupancy point List, and assign it to a list.
  • Query for occupancy points using occupancy and sensor and zone, and add to the above list.

For each item in the Occupancy point List:

  • Get the historized value from the value for the key "ID" for 30 minutes.
  • Create a variable test.
  • Set the historized value retrieved to the variable test (with more than a few key-value pairs per ID)
  • Retrieve the value from the Key Val alone, and assign it back to test.

If the length of test is equal to 0 (meaning the device is switched OFF no occupancy is detected and just a "-" is as value against the key Val)

  • Create a variable tempVal
  • Assing tempVal to 0.
  • Set tempVal from the end in the list OccupancyValues

If the length of the test is not equal to 0 (meaning the device is switched ON and occupancy is detected and  a "0/1" is as value against the key Val)

  • Compute the average of the variable test.
  • Set the computed average from the above step, from the end in the OccupancyValues list.
Step 5 Logging the Values
  • Create a name test.
  • Assign the OccupancyValues to the name testq.
  • Create a name test.
  • Assign the computed average of the OccupancyValues to the name test.
Step 6 Write Historized Value
  • Write the historized value for the ef40dae8-5c79-4ce0-86dd-c4c1c46ad11b (the site manager generated point), with the computed average for OccupancyValues.
Step 7 If condition to Switching OFF the lights
  • Create a variable AvgOfOccupancies = 0
  • Query for the relay point using relay and cmd and cur
  • Create a variable RelayPoint.
  • Assign the queried point to the variable RelayPoint.
  • Get the value for the key "ID" in from RelayPoint.
  • Write value "0" at level "8" to turn OFF the relay.



| Saved and Shared Custom Blocks

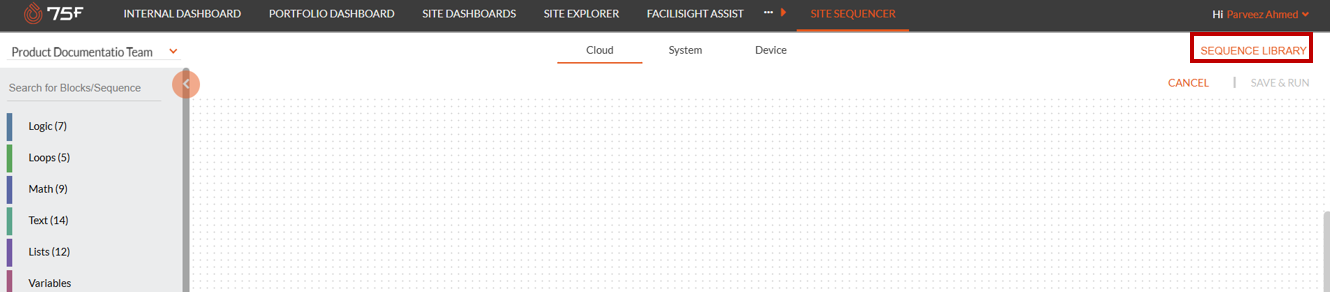

Just like the other aspects of the 75F system (Summary Tables, Custom Heatmap Filter), the sequencer also supports the concept of sharing a good sequence created by one user to another as a value ad.

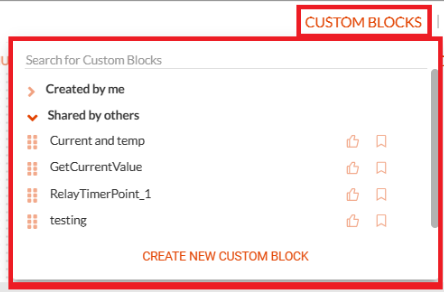

The same can be accessed from the Custom Block option, as below.

Users can access the functions/sequences created and shared by others, that can be reused.

  • Drag and drop the shared functions/sequences onto the canvas to be used in the sequence being built, as below.

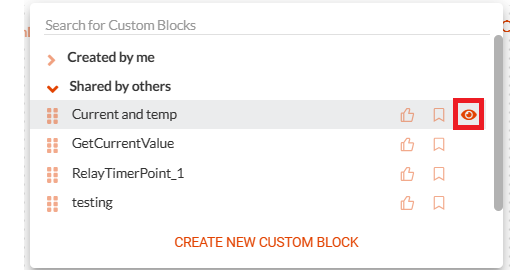

  • Click the eye icon next to the shared block or double-click the dropped custom block to visualize what is in the block.



Like in the other tools, the block shared by others can only be visualized and not edited.

To save functions/ sequences under a custom block to be used in other sequences, or to be shared with the other users as a value add, users need to create the functions/ sequences inside the Library Builder, as below.

Like in other tools the users can like and bookmark a shared block/function/sequence, and the ones with the highest number of likes and bookmarks are moved to the top of the list for people to locate them easily.



  • Build the required function /sequence inside the library builder as below.

  • Drag and drop the sequence block with why and what to clearly define the usage, from the custom primitives.

Note: The sequence block in the library builder is slightly different from the one in the sequence builder to serve the purpose.

  • Click Create New Sequence to confirm the function /sequence to the custom block list.

A success message pops up, as below.

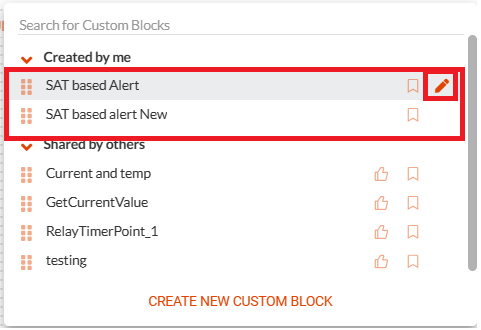

The added custom block can be visualized as below under the custom block option, and the same can be edited for further changes.

Just like in all the other tools, checks are in place to safeguard a sequence that has used a shared custom block.

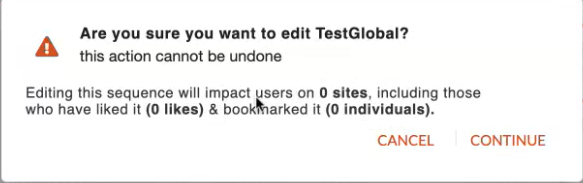

When the user tries to edit shared blocks/functions/sequences the following message pops up for the user to act.

Previous
Next

Comments

0 comments

Please sign in to leave a comment.

Was this article helpful?

1 out of 1 found this helpful
Powered by Zendesk
