| Overview
Active Chilled Beams (ACB) is a terminal-level equipment that uses the chilled water supply from the chiller and the air from an AHU to condition the space. Active Chilled Beam+ Dedicated Outside Air System (DOAS) is a terminal profile under the VAV system profile using HelioNode.
The HelioNode in CCU-connected mode/ the fail-safe mode provides the necessary controls to support the operation of the Active Chilled Beam equipment.
| How it Works
Cooling Operation
When the system is cooling, the box acts like a single duct VAV and supplies the airflow from the air handler to maintain room temperature.
Similar to other VAV terminal profiles, it can also provide occupancy-based control and damper controls based on, CO2 & VOC levels, and true CFM.
A condensation sensor is used to detect condensation in the pipings and drive the chilled water shut-off valve and the modulating valve to avoid overcooling and equipment pipe damage. Once condensation is detected the valves will be closed irrespective of the cooling loop output.
Additionally, a hysteresis tuner (Relay activation Hysteresis) controls the shut-off valve, on the activations side of the loop output.
And a modulating chiller water valve control based on the cooling loop output.
Heating Operation
The system or the AHU will not have any heating capability, the system will be either Off or Cool Only
When the desired temperature of the zone falls below the heating desired, there is no heating coil to turn ON hence the damper will stay at its minimum position, and the chilled water valve of the ACB will remain shut.

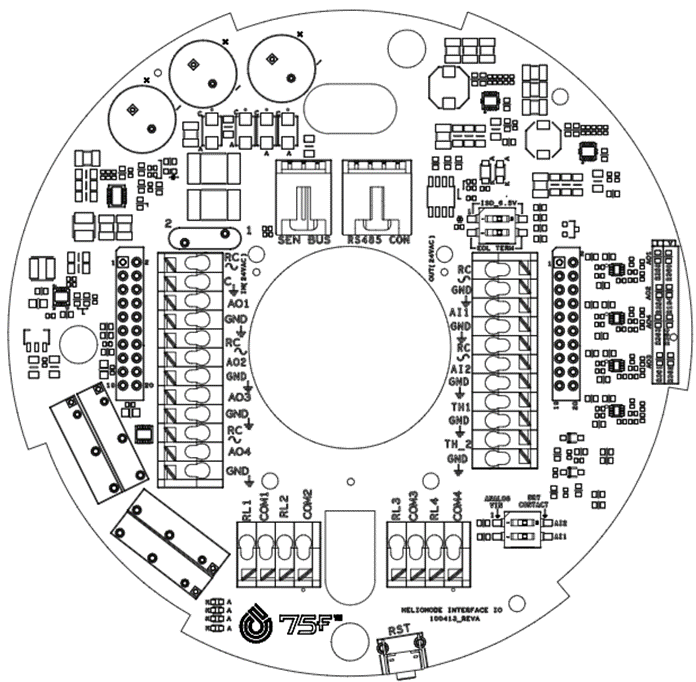

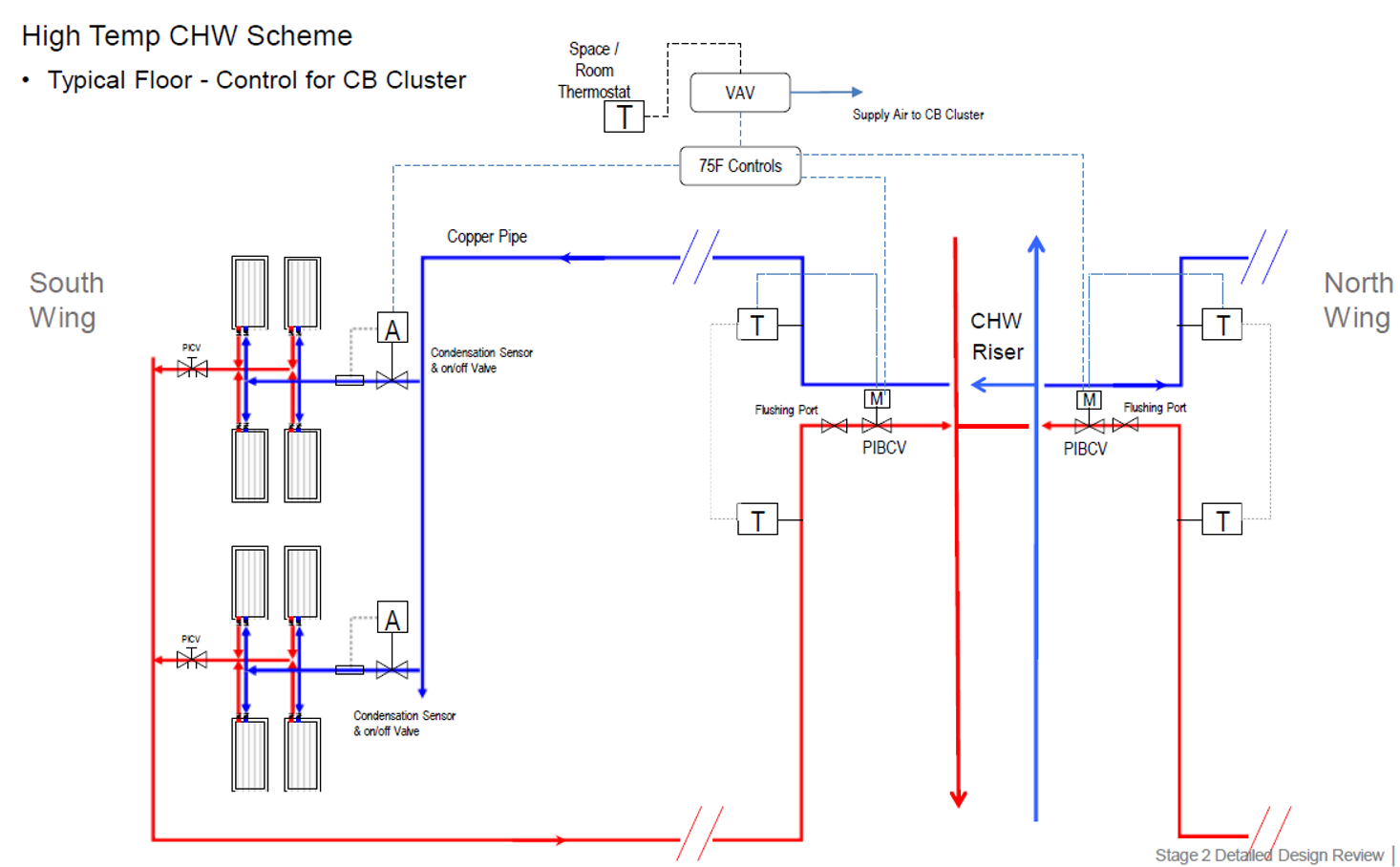

| Wiring & Schematics
- Analog-out1 connects to the modulating damper actuator
- Analog-out2 connects to the modulating water valve
- Relay-1 connects to the shutoff valve
- Thermistor-1 connects to discharge air temperature sensor to a chilled beam
- Thermistor-2 connects to condensation; Normally Open/Normally Closed Contacts. Normally Open: When no condensation then resistance will be infinite, when there is condensation, then contact will close reading 0 resistance.
- A Differential pressure sensor connects to the Sensor bus, or a Multi Sensor connects to the Sensor bus to provide CO2, IAQ, and occupancy sensing.

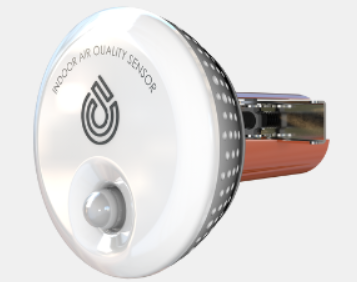

- Optionally a HyperSense can also connect to the RS485 port to provide CO2, IAQ, and occupancy sensing.
| Pairing

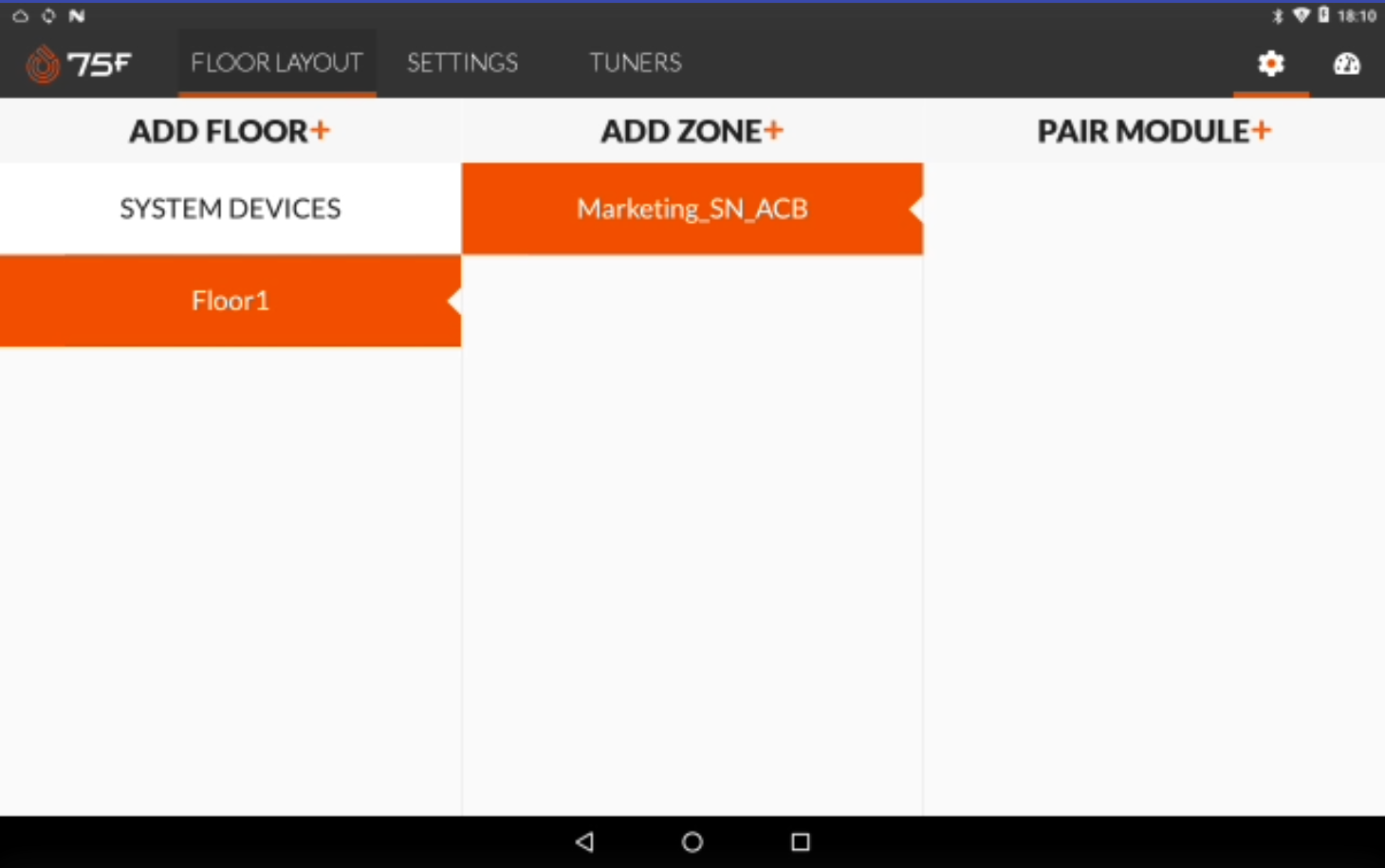

From the Floor layout screen,
- Click the Pair Module+ option.

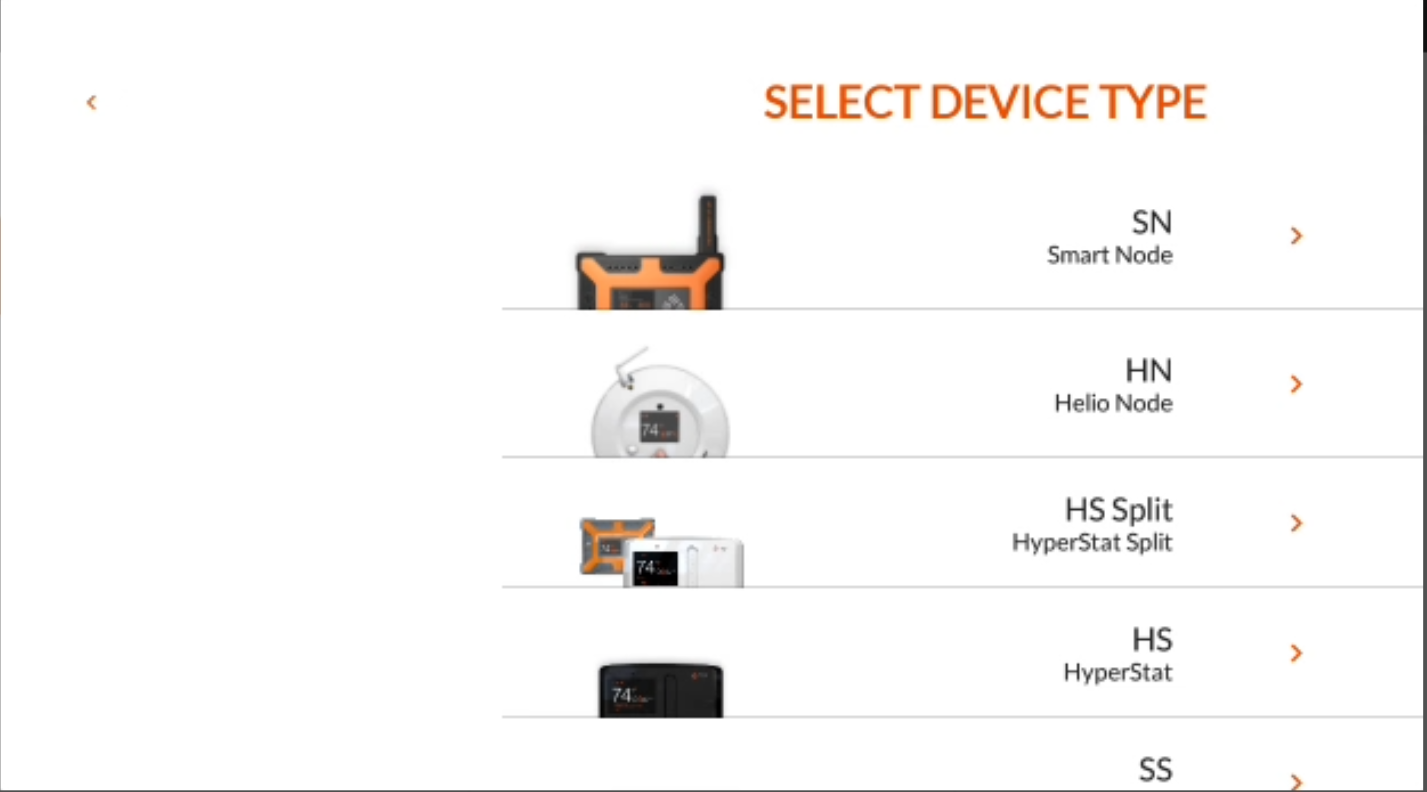

The select device type screen is displayed.

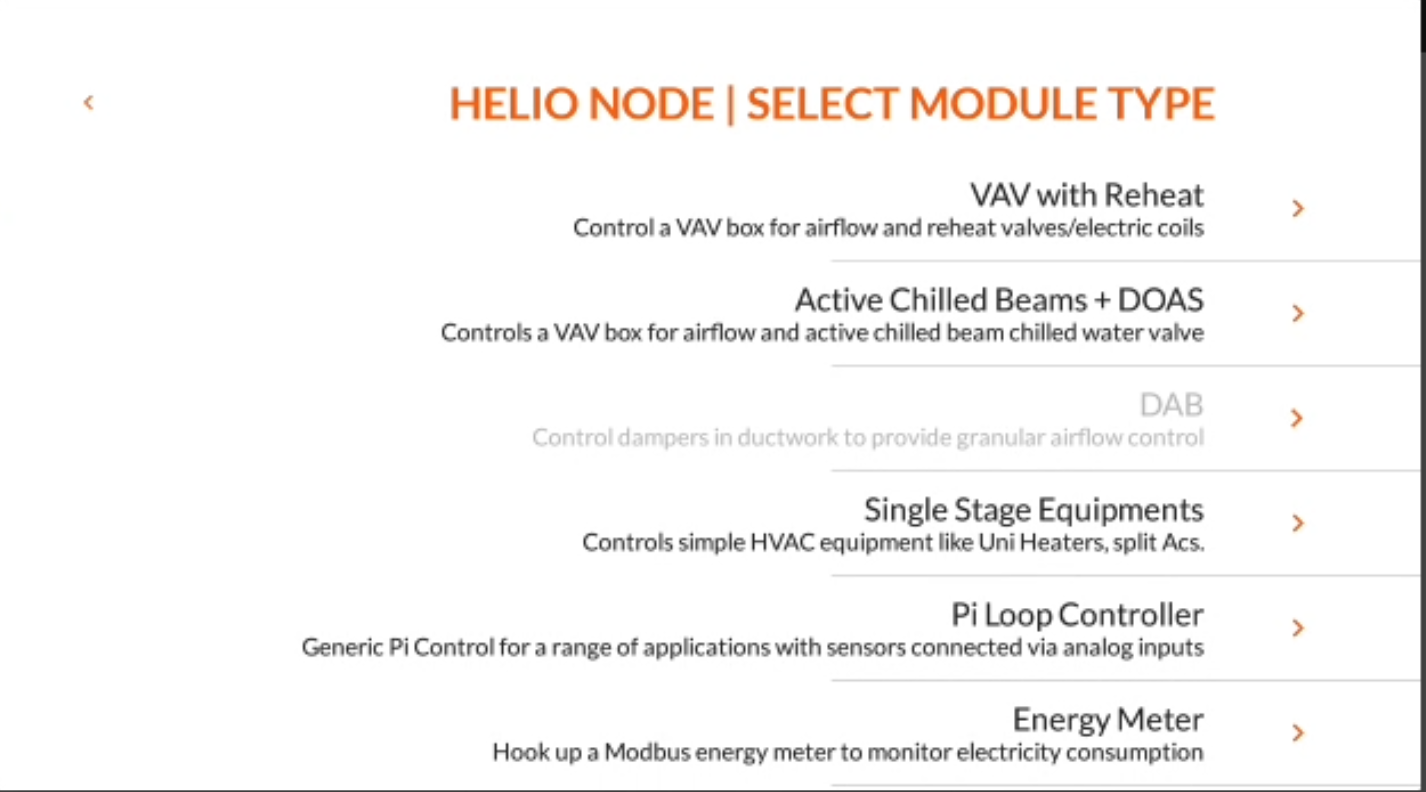

- Select HN HelioNode as the device option.
The select module type screen is displayed.
- Select Active Chilled Beam+ DOAS
The Pairing steps screen is displayed.
- Click Pair.

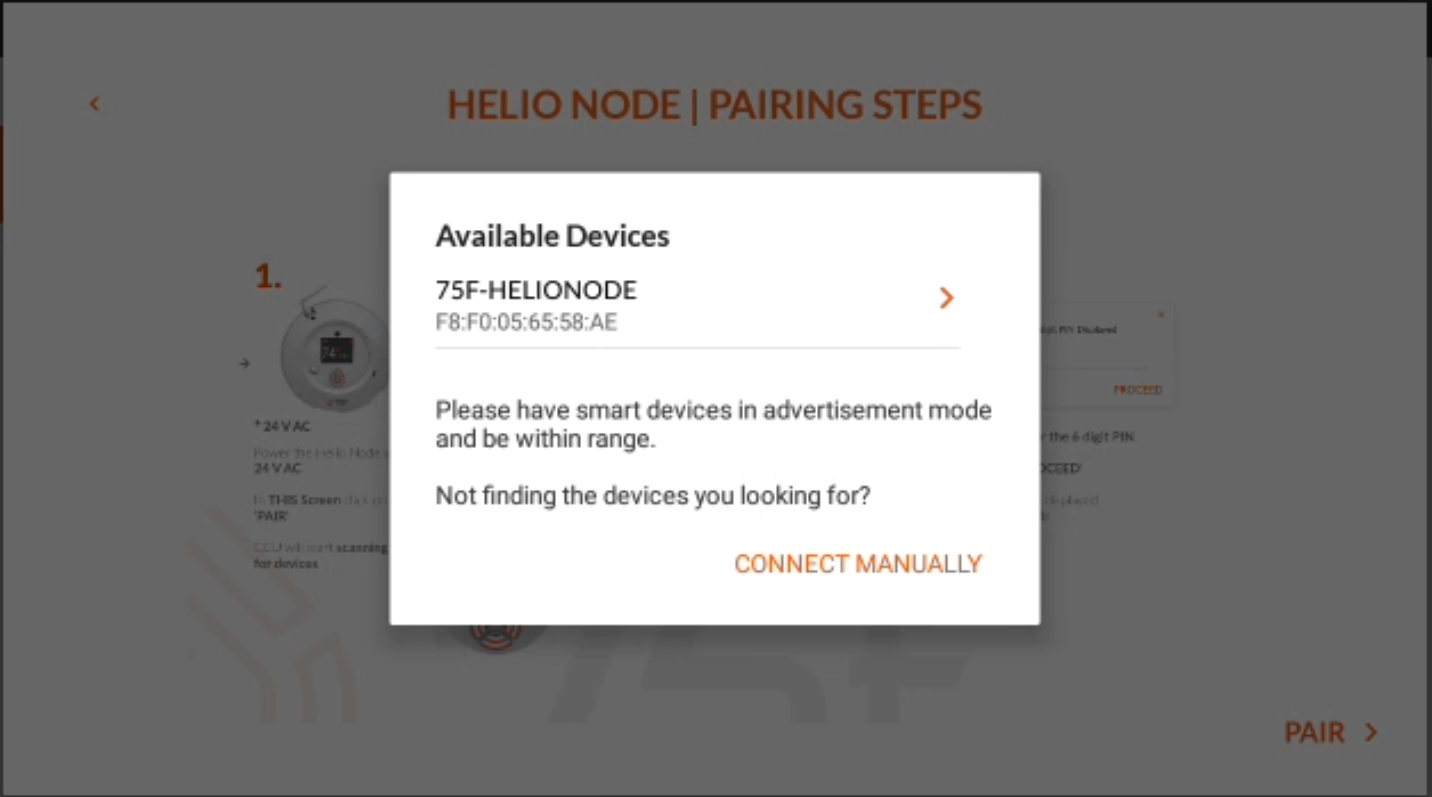

The broadcasting window is displayed.

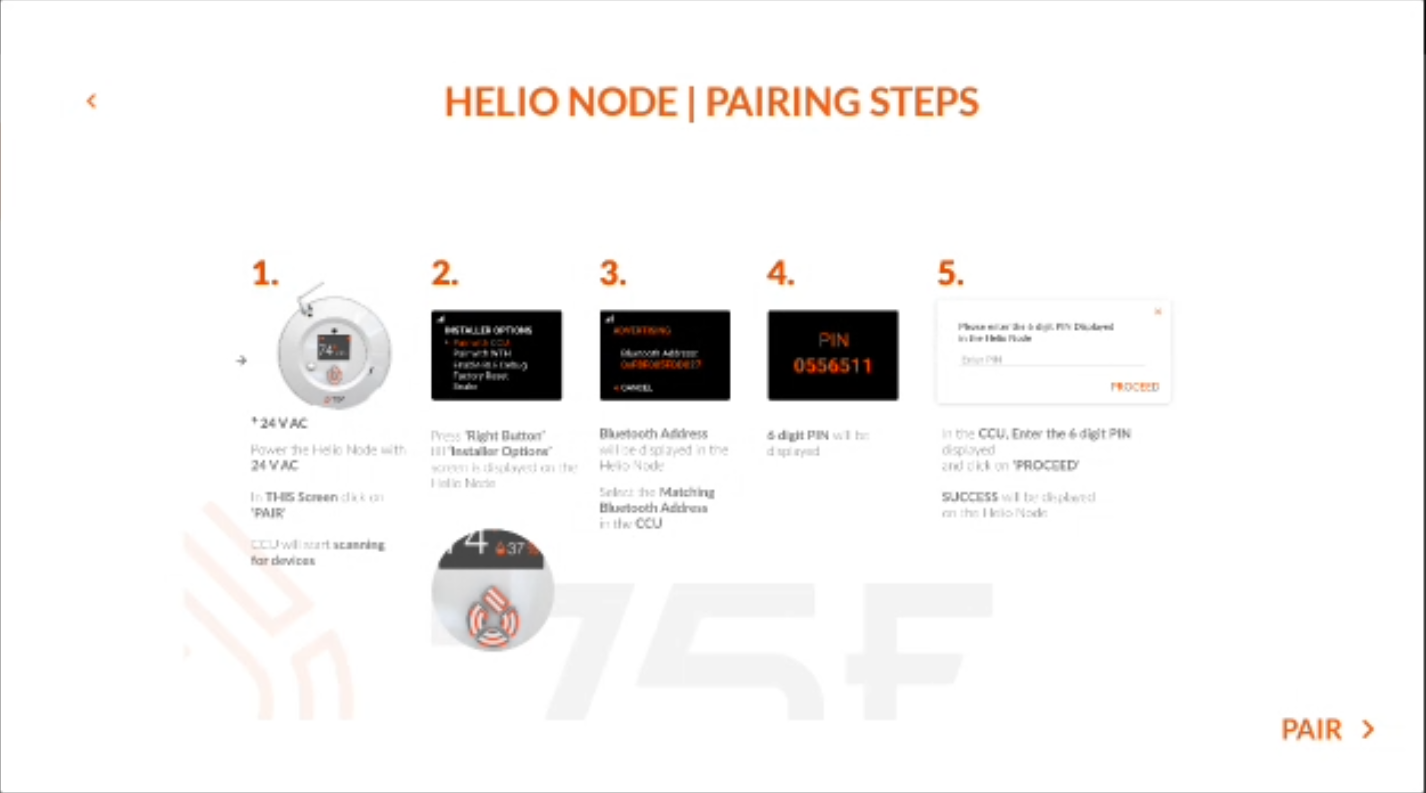

- Put the HeliNode in the pairing mode from the Installer options screen.
- Click the MAC ID of the HelioNode to start pairing / Click Connect Manually if the expected device MAC address is not displayed in the list. For more information on the Alternate or Manual pairing steps refer to Alternate/ Manual Pairing in HelionNode

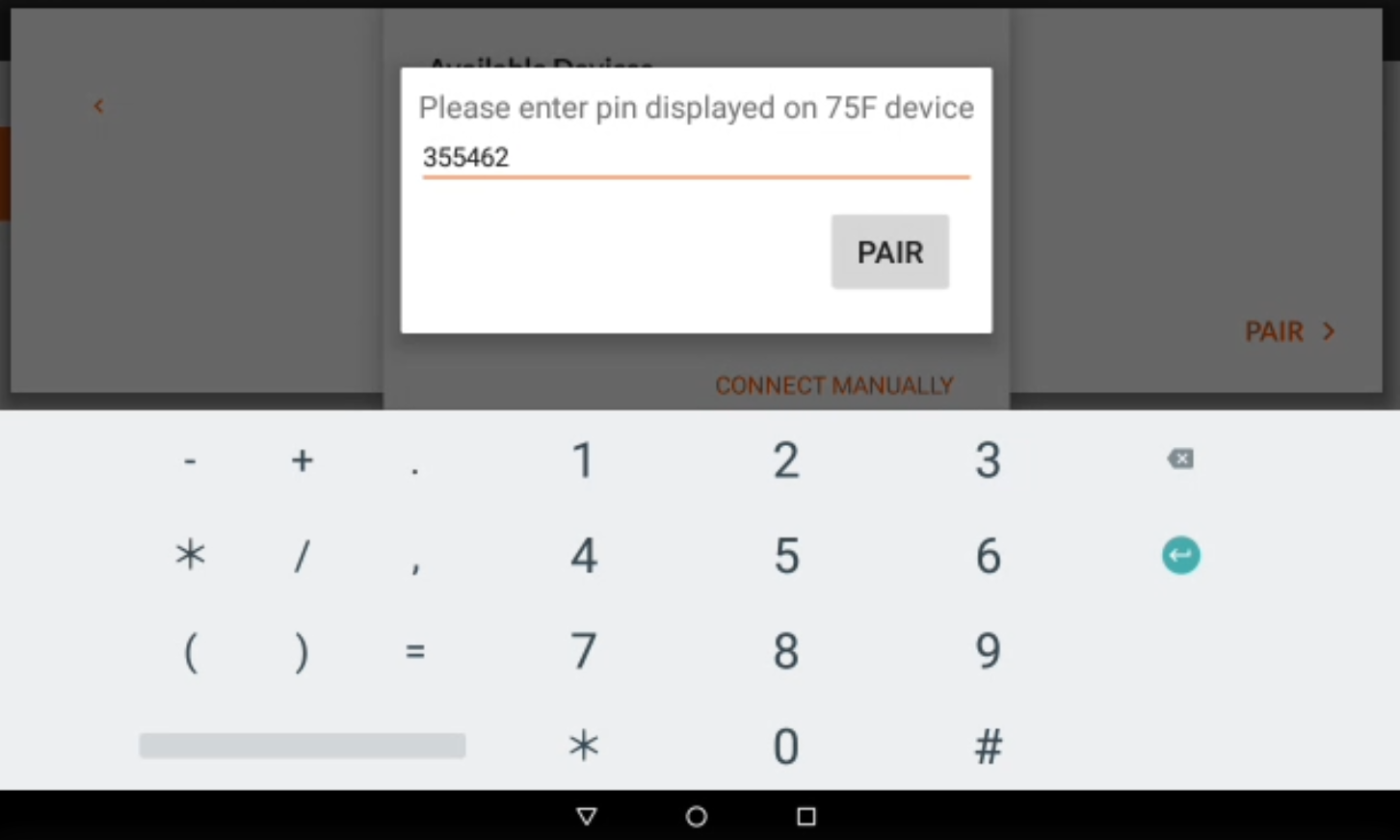

- Enter the PIN from the HelioNode.
- Click Pair to complete pairing.
The Active Chilled Beams + DOAS configuration screen is displayed.
| Configuration

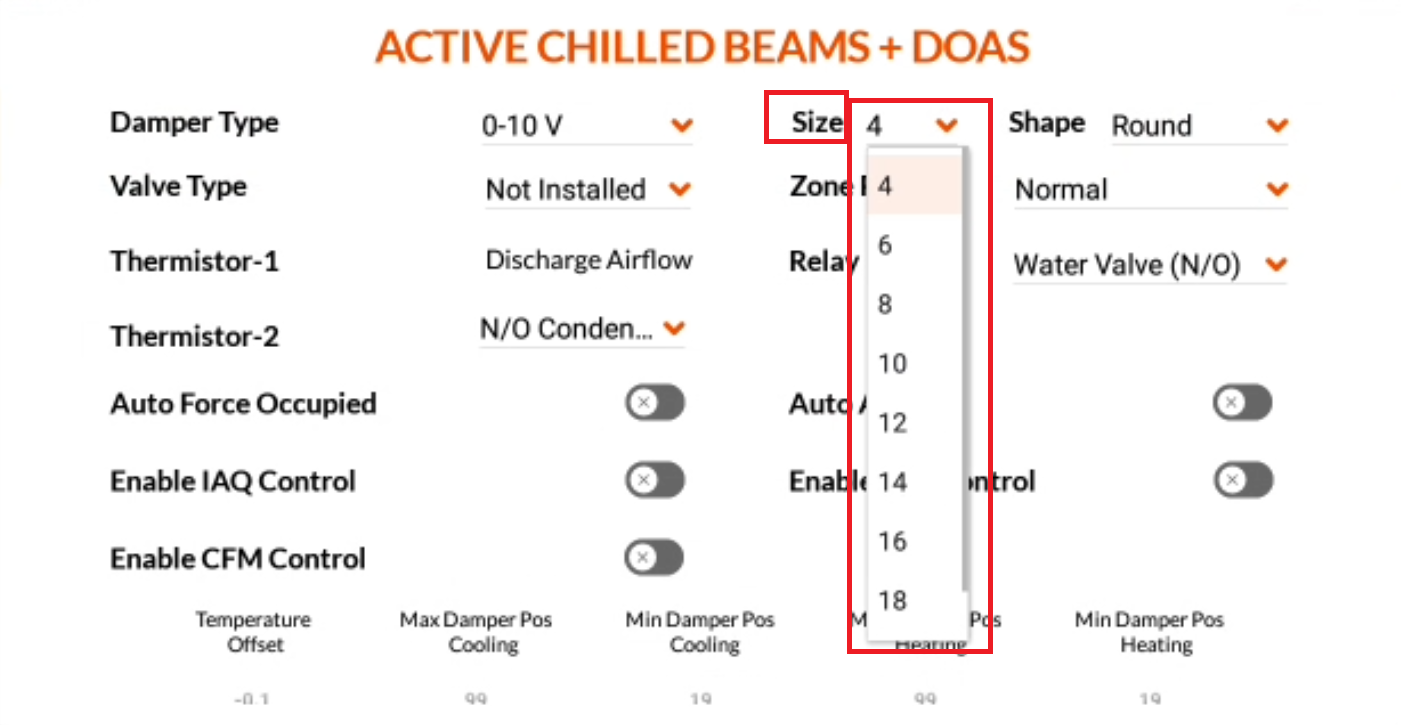

- Select the Damper Type from the drop-down list.
- Select the Damper Size from the drop-down list.

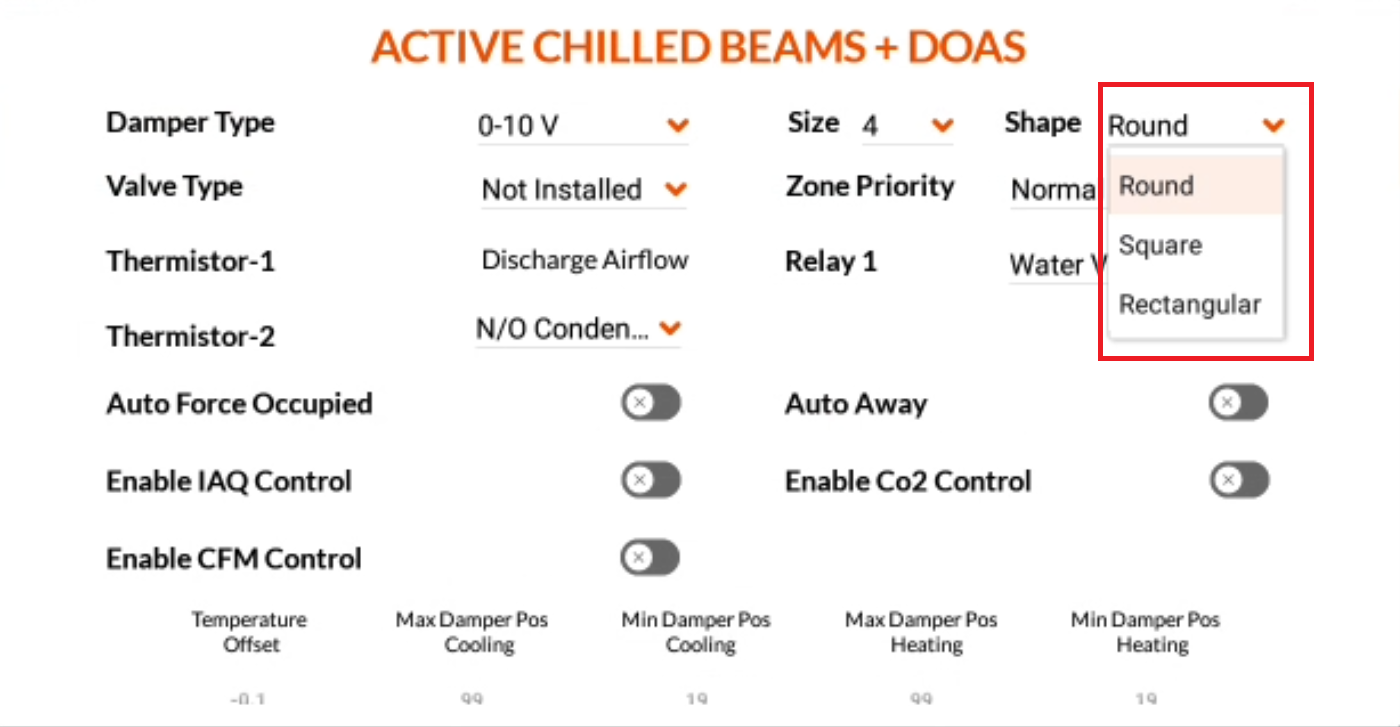

- Select the Damper Shape from the drop-down list.

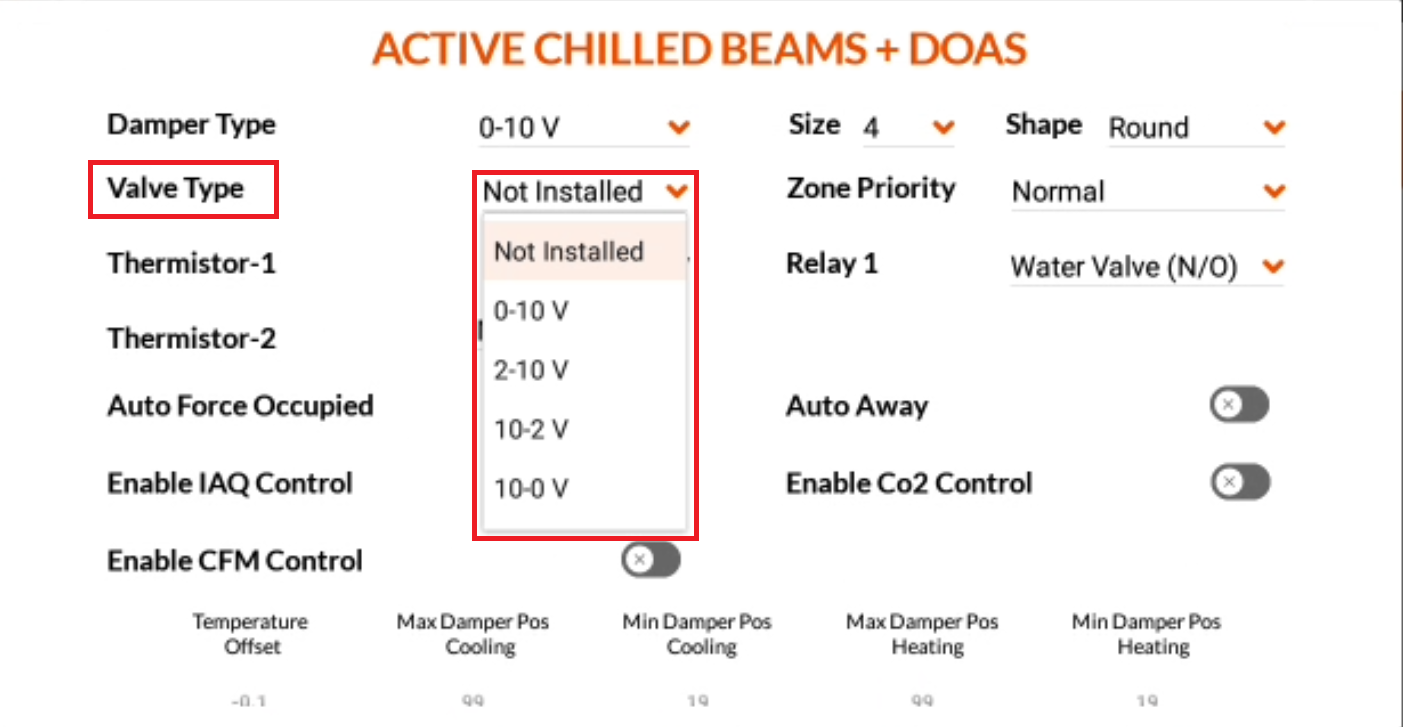

- Select the modulating Valve Type from the drop-down list.

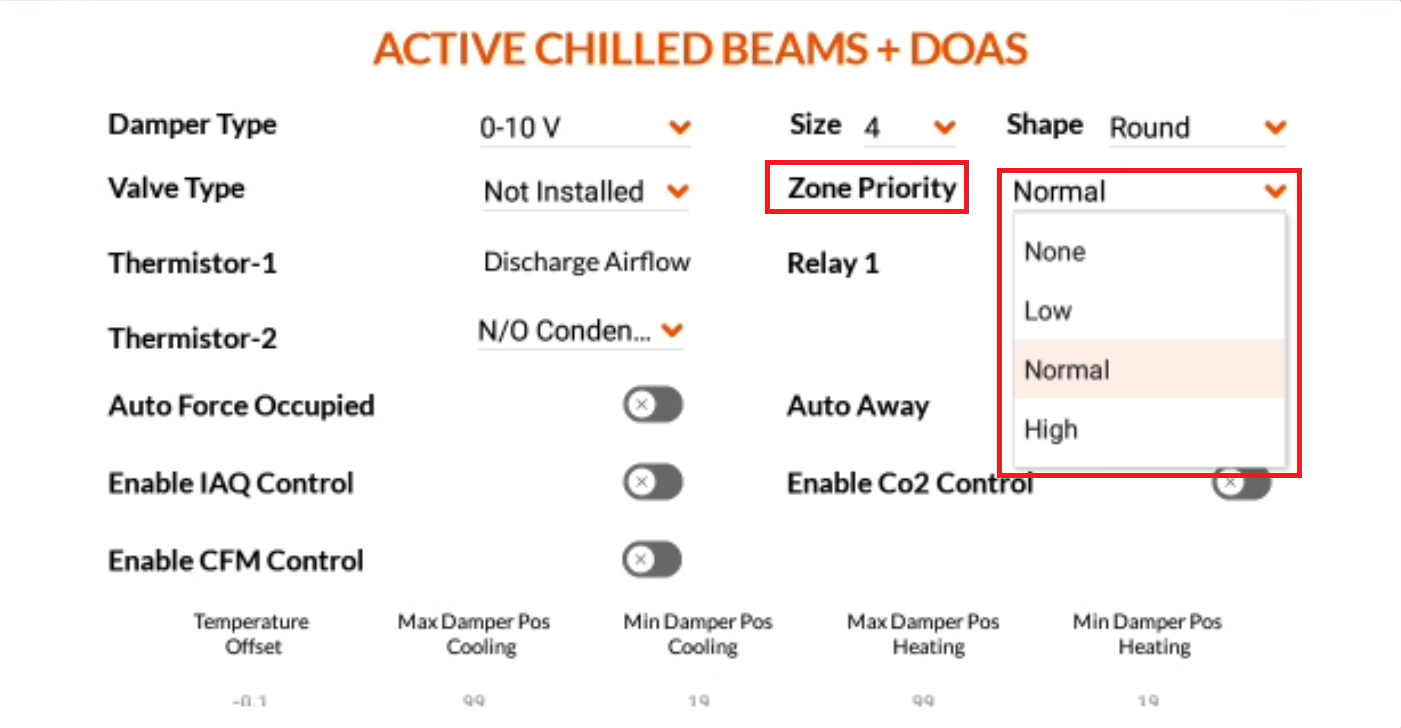

- Select the Zone Priority from the drop-down list.

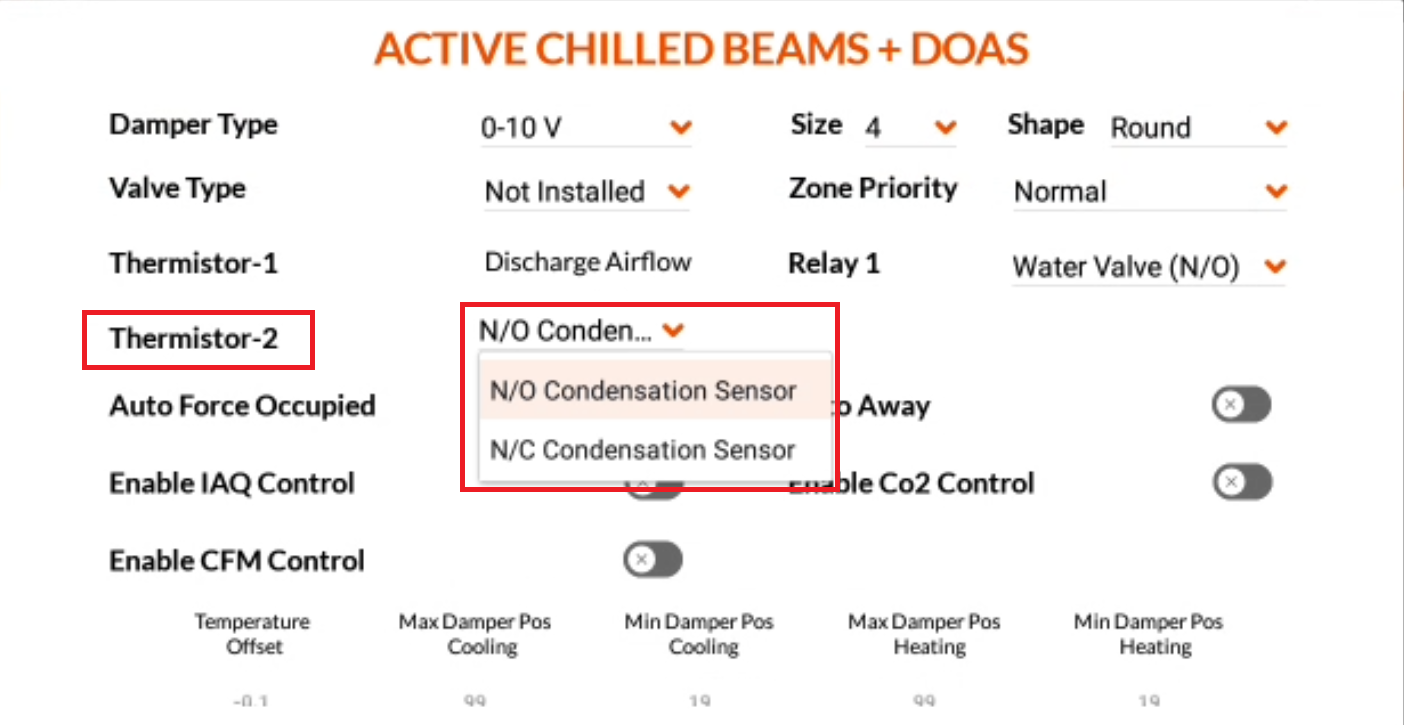

- Select the Thermistor-2 type from the drop-down list.

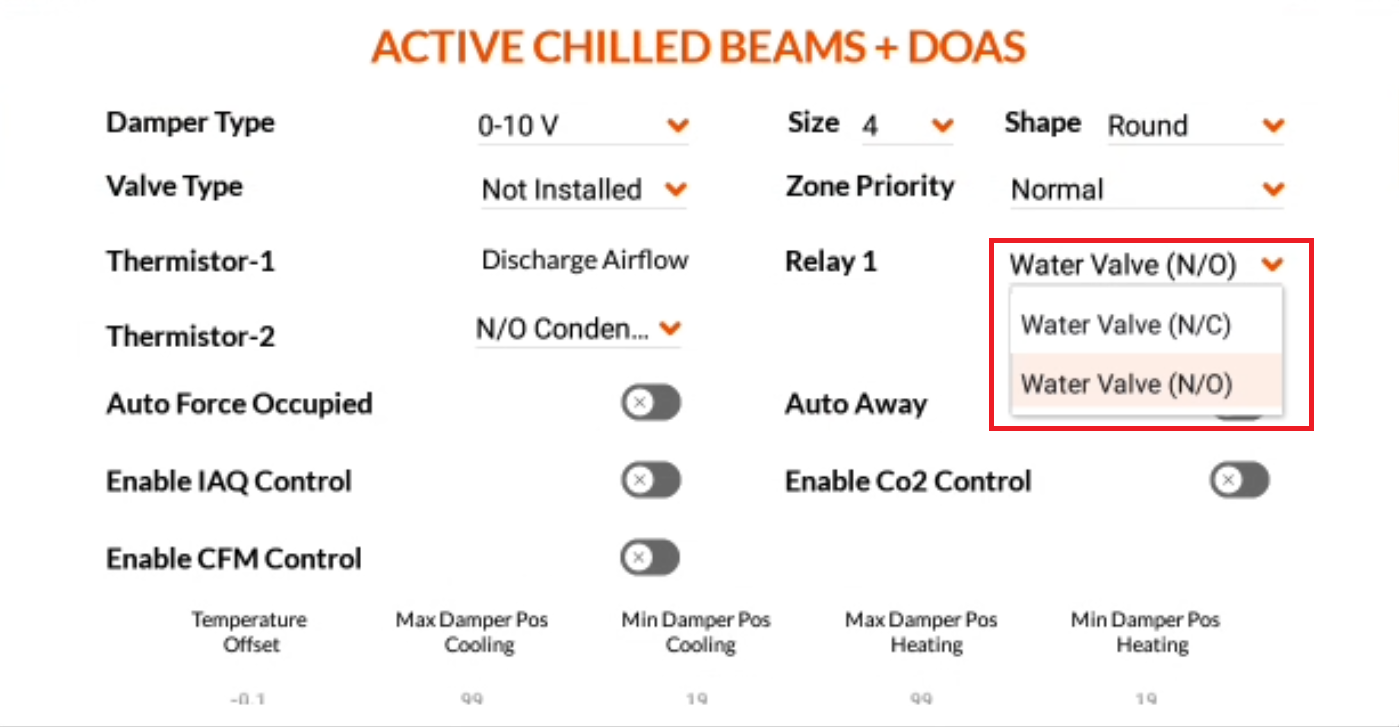

- Select the Relay 1 type from the drop-down list
| Configuration Parameters
The below table provides more information on the configuration parameters.
| Parameter | Description | Default value | Value in the drop-down list |
| Damper Type | To define the damper type used | 0-10V |
0-10V 2-10V 10-2V 10-0V SmartDamper 0-5V |
| Damper Size | To set the damper size used | 4 | 4 to 22 in increment of 2 |
| Damper Shape | To set the damper shape used | round |
round square rectangular |
| Valve Type | To define modulating chiller water valve type | not installed |
not installed 0-10V 2-10V 10-2V 10-0V |
| Zone Priority |
To set zone priority, that influences the request numbers to the system-level equipment (Yet to be implemented in the Algo, for now does not affect the cooling side of the operation) Note: These are only applicable for the DAB systems and VAV systems when it’s in heating. |
normal |
none low normal high |
| Thermistor 1 | To sense discharge airflow temperature | Discharge Airflow | NA |
| Thermistor 2 | To define the type of condensate sensor used. | N/O Condensation Sensor |
N/O Condensation Sensor N/C Condensation Sensor |
| K-Factor |
To define the K-factor for the PI loops Note: It is used only for the CFM PI loop |
2 |
1 to 3 in increments of 0.1 |
| Temperature Offset | To set a temperature offset | NA |
-10.0 to 10.0 in increments of 0.1 |
| Max Damper Pos Cooling | To set the maximum damper position during cooling operation | NA |
0 to 100 in increments of 1 |
| Min Damper Pos Cooling | To set the minimum damper position during cooling operation | NA |
0 to 100 in increments of 1 |
| Max Damper Pos Heating | To set the maximum damper position during heating operation | NA |
0 to 100 in increments of 1 |
| Min Damper Pos Heating | To set the minimum damper position during heating operation | NA |
0 to 100 in increments of 1 |
Additionally, the profile also provides occupancy-based control with the Auto forced Occupied and Auto Away options available as configurable options.

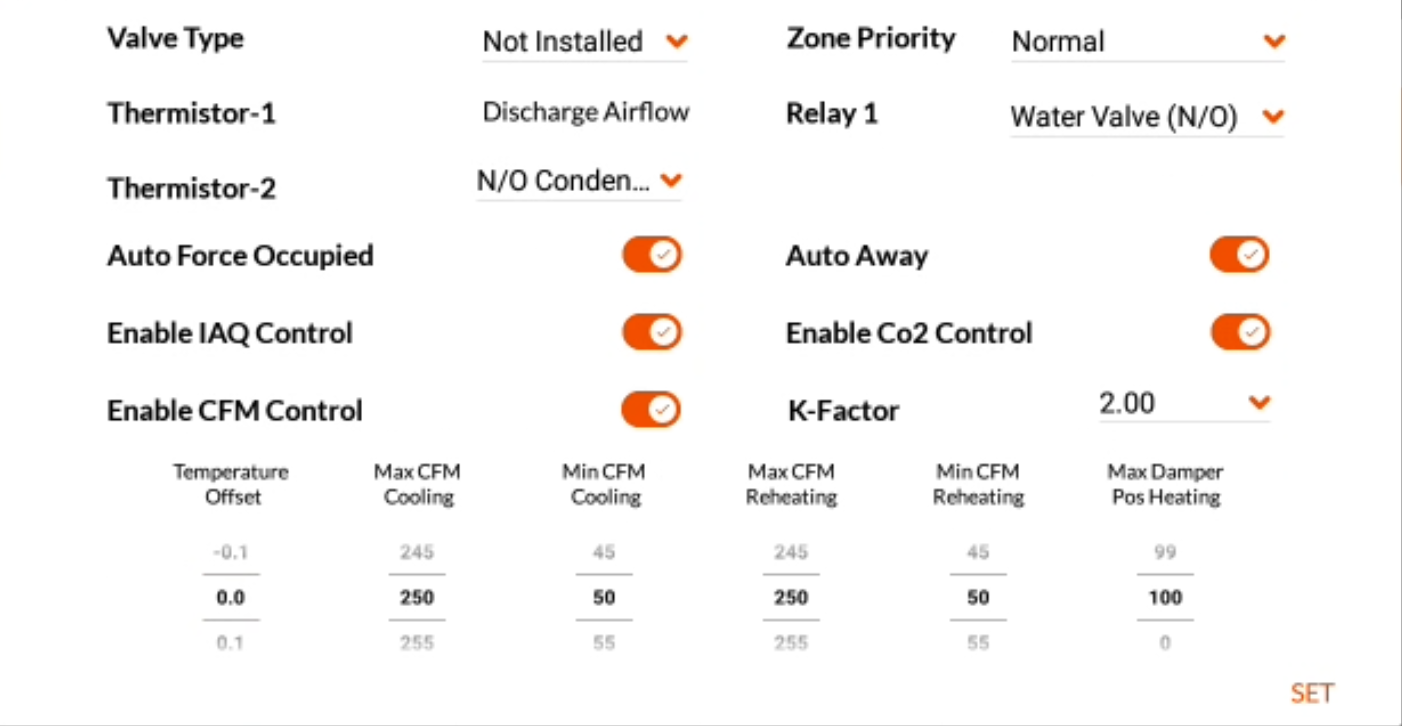

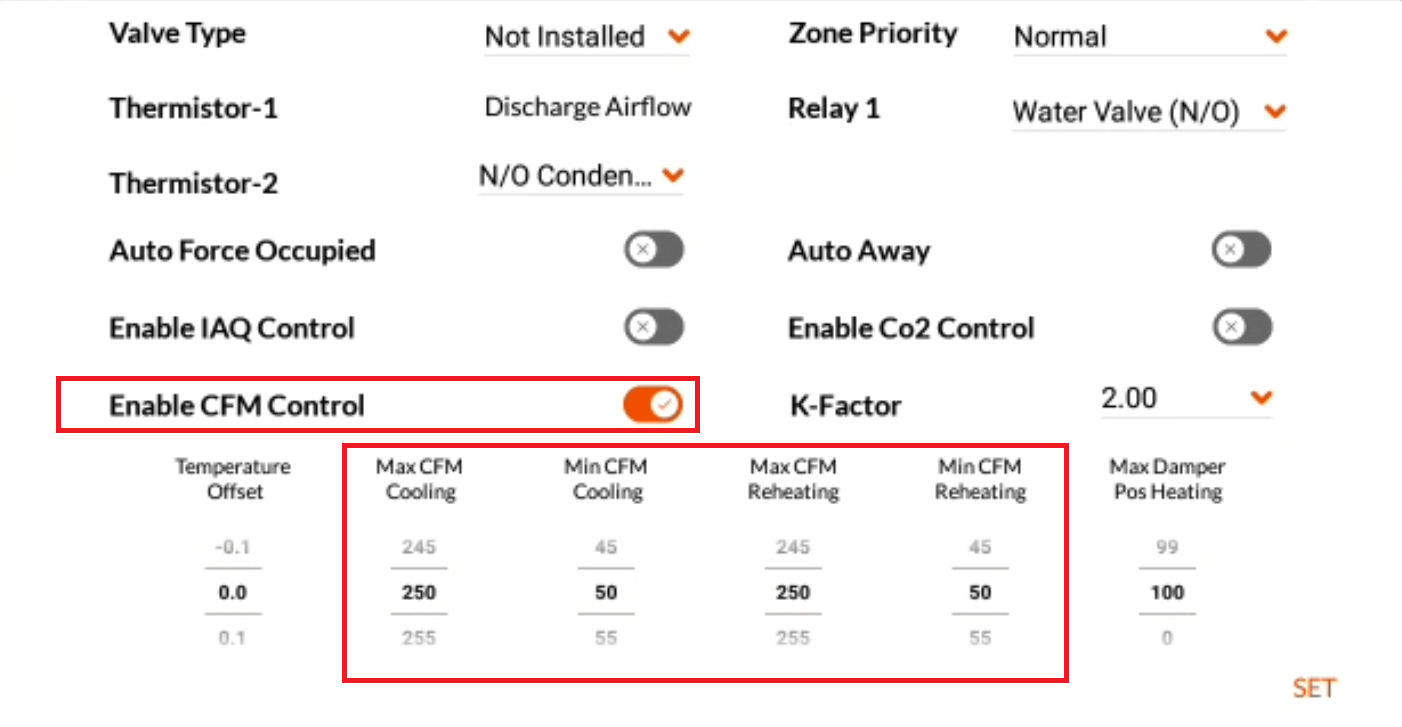

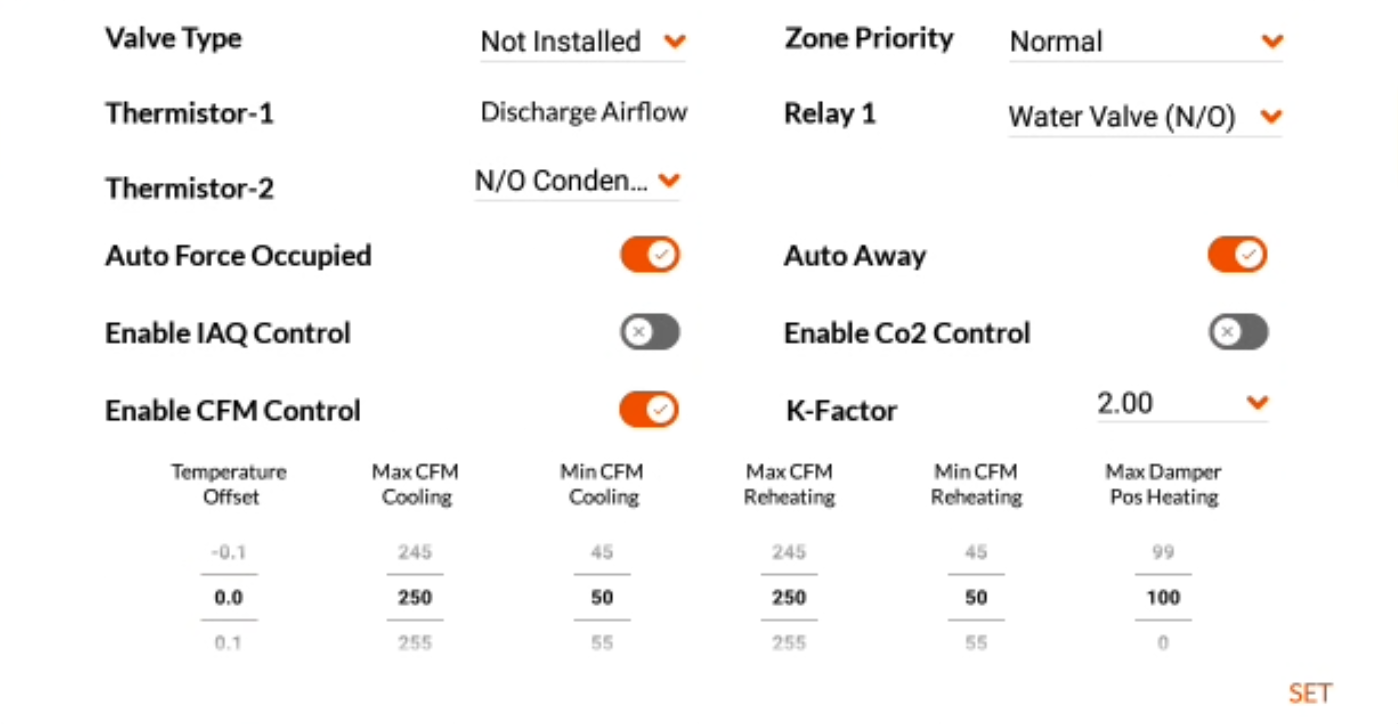

When CFM-based control is included in the profile additional parameters are made available, as below:
| Parameter | Description | Default value | Value in the drop-down list |
| Max CFM Cooling | To set the minimum CFM for a cooling operation | NA |
0 to 5000 in increments of 5cfm |
| Max CFM Cooling | To set the maximum CFM for a cooling operation | NA | 0 to 5000 in increments of 5cfm |
| Max CFM Heating | To set the maximum CFM for a heating operation | NA |
0 to 5000 in increments of 5cfm |
| Min CFM Heating | To set the minimum CFM for a heating operation | NA |
0 to 5000 in increments of 5cfm |

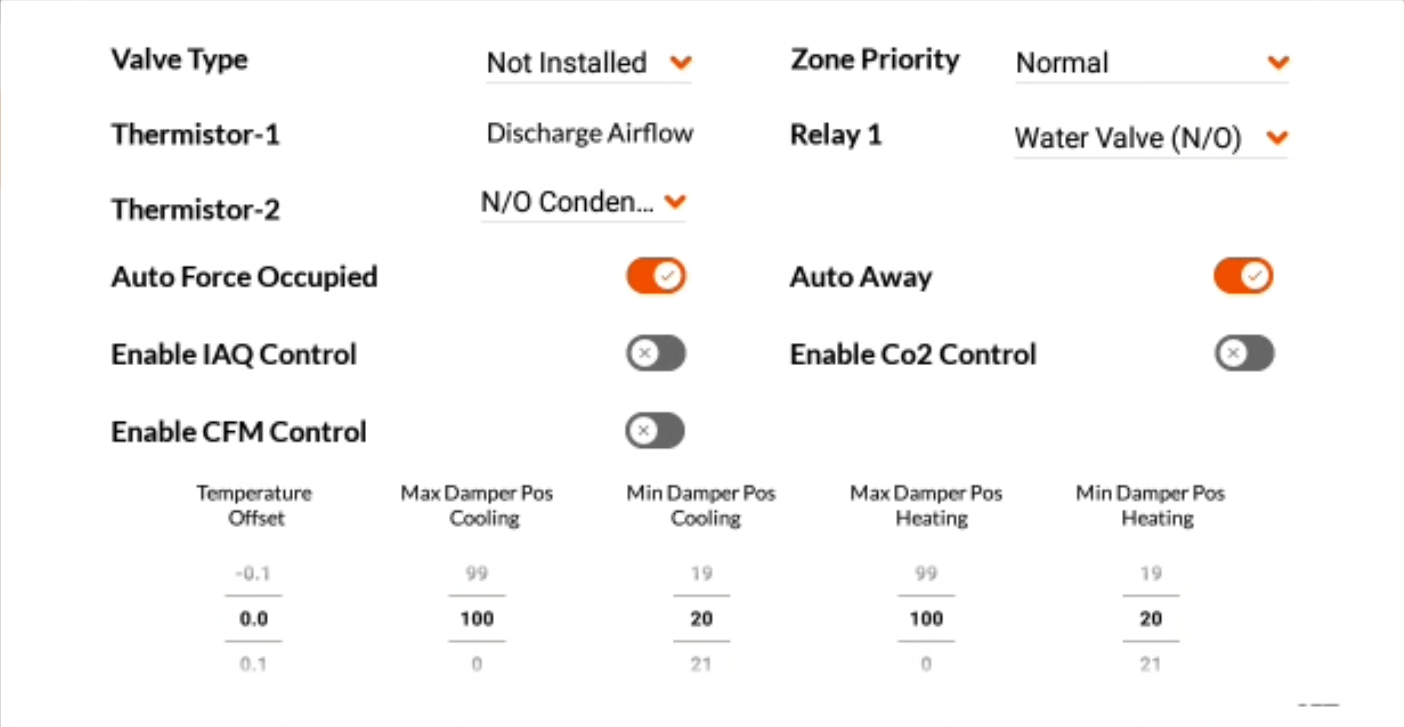

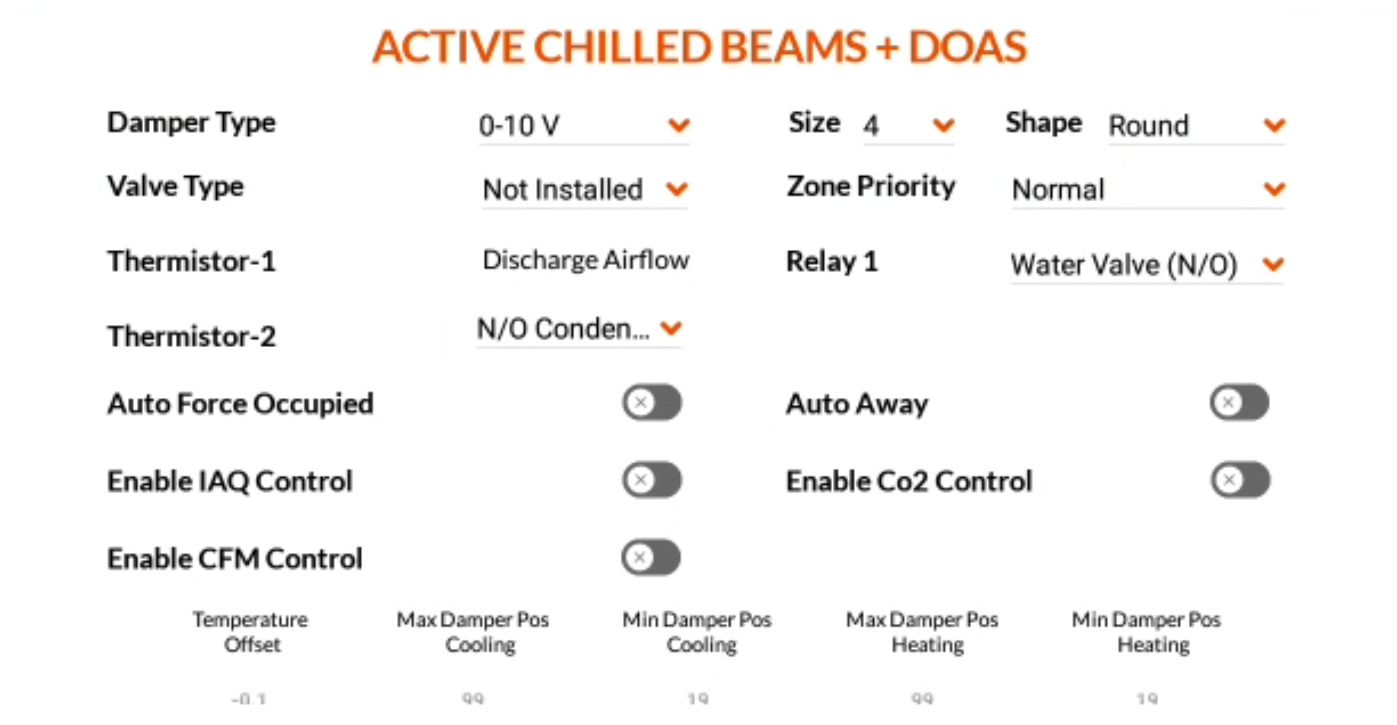

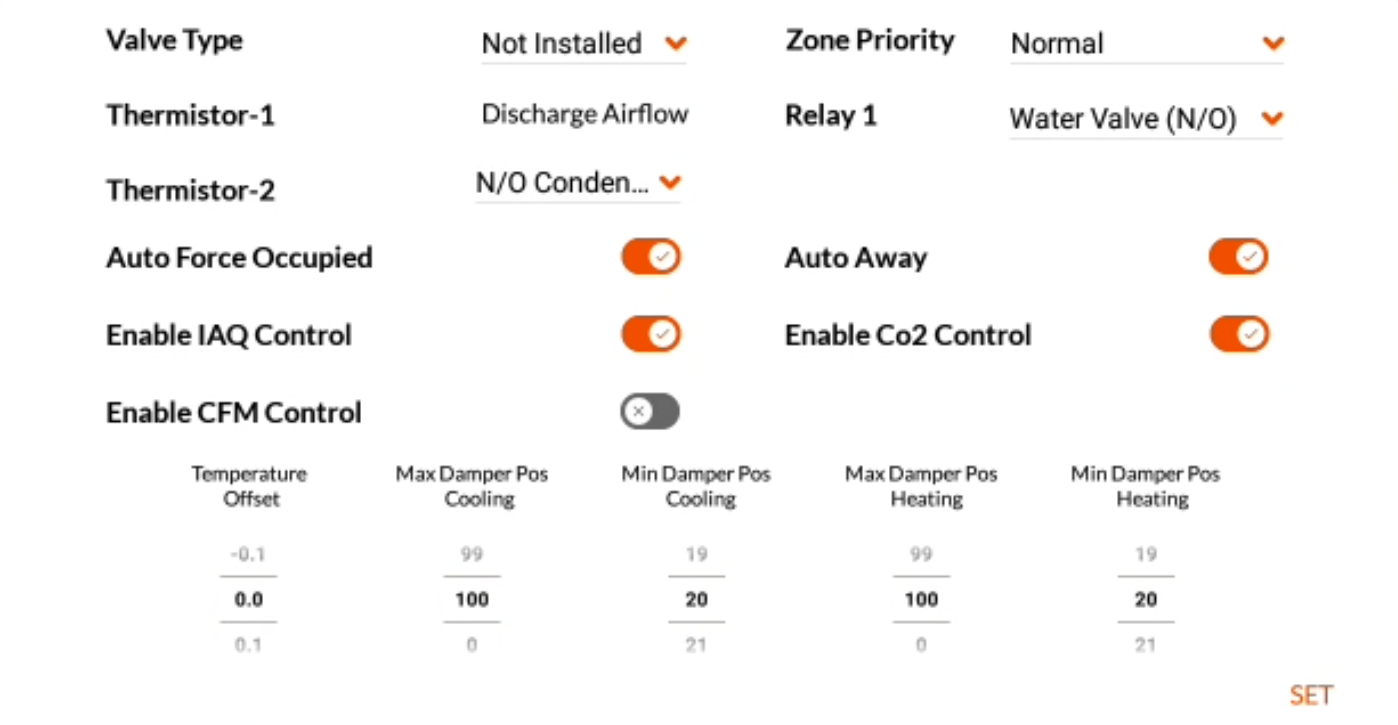

Configure the required parameters for the profile, as below:
- Click SET to confirm the configuration.
| Post Configuration in CCU

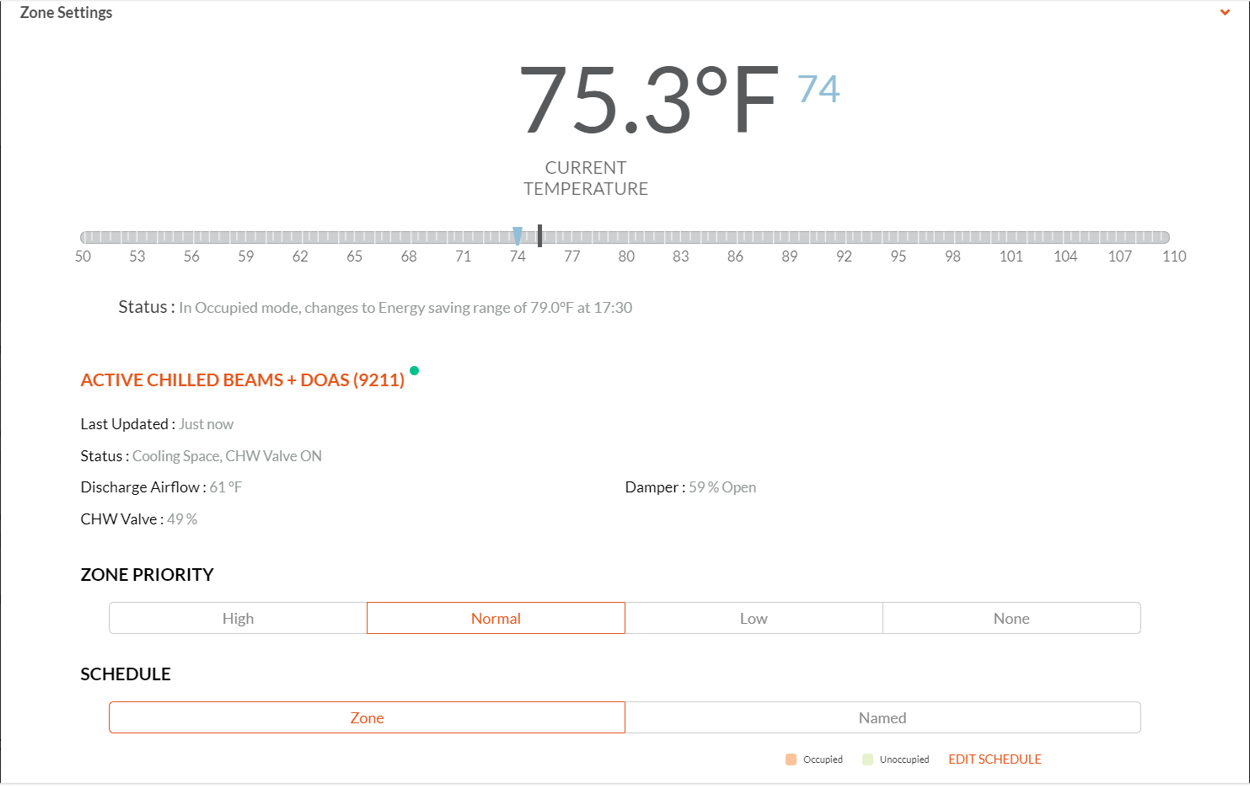

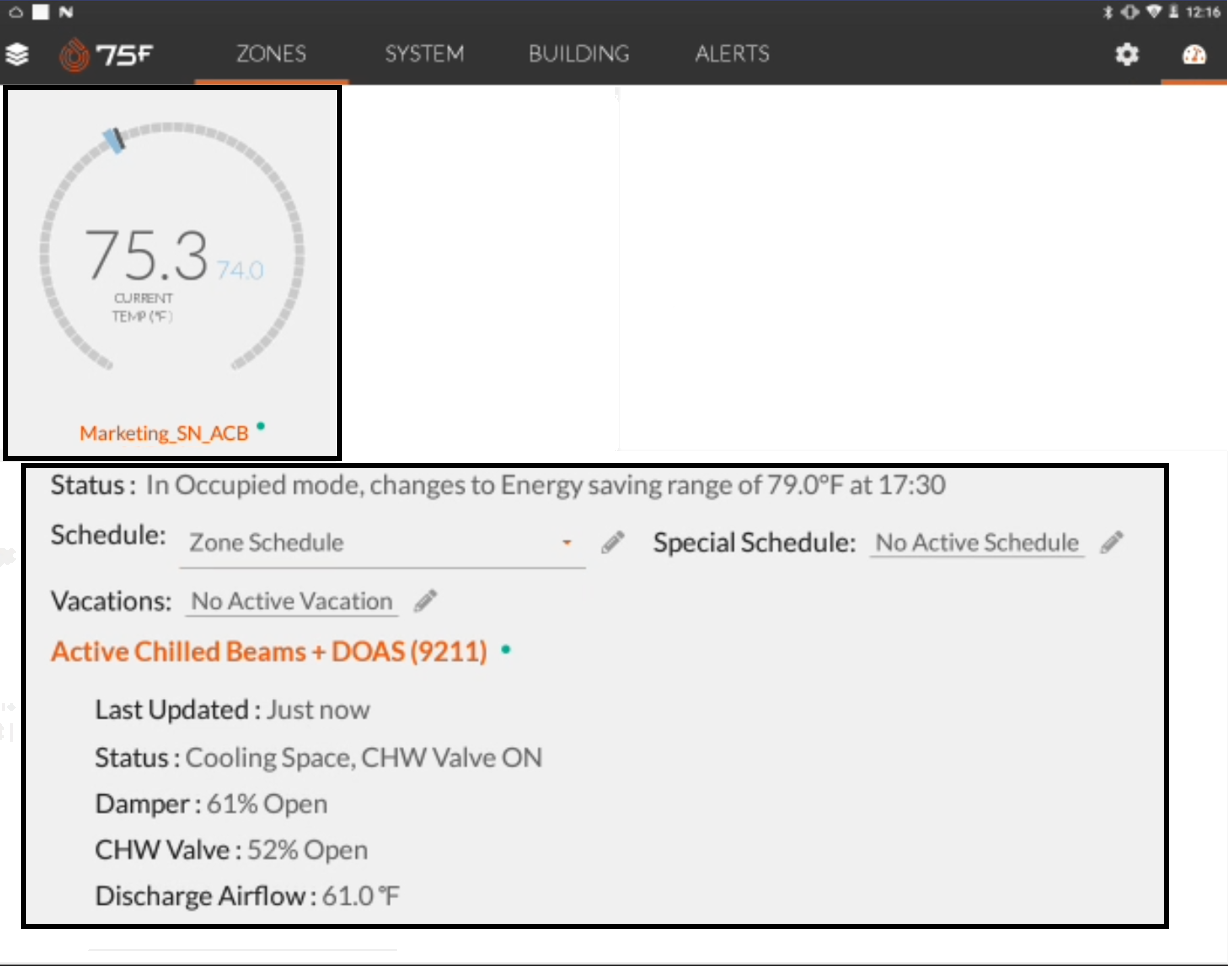

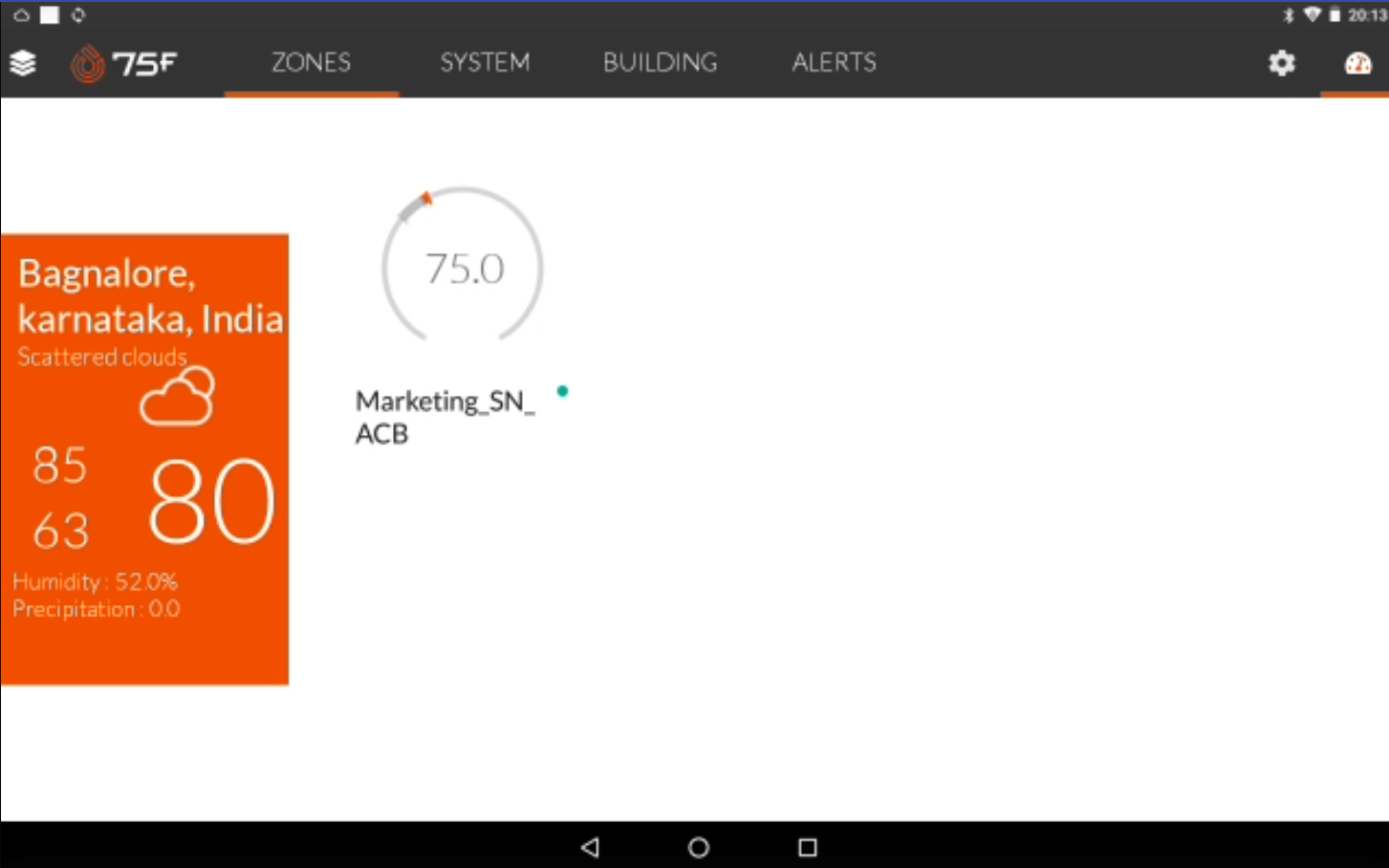

Once configured, the profile displays in the zones screen of the CCU as below:
| User Intents in CCU
User intents available in the CCU are as below:
The status message is based on the equipStatus point (DEADBAND, HEATING, COOLING, OR TEMPDEAD). If the zone is not dead, the same is determined using information in the following table:
| Equi Status | Conditions | System Mode |
| HEATING | if currentTemp < heatingDesiredTemp | not OFF |
| COOLING | if currentTemp > coolingDesiredTemp | not OFF |
| DEADBAND | if the currentTemp is in deadband | OFF |
Note: Only the cooling stages are configured at the system level, and hence the zones display only the cooling desired temperature. It is because the active chilled beams just provide cooling conditioning for the zone and do not have heating conditioning capability.

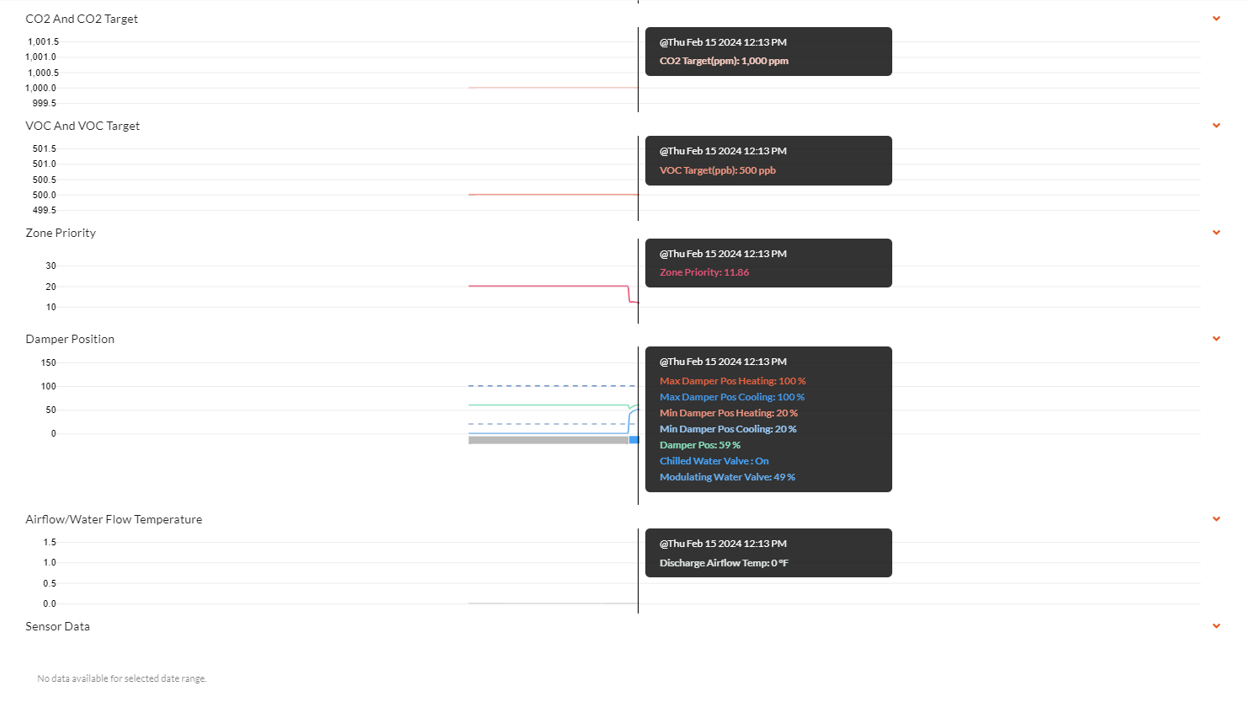

| Widgets in Portals

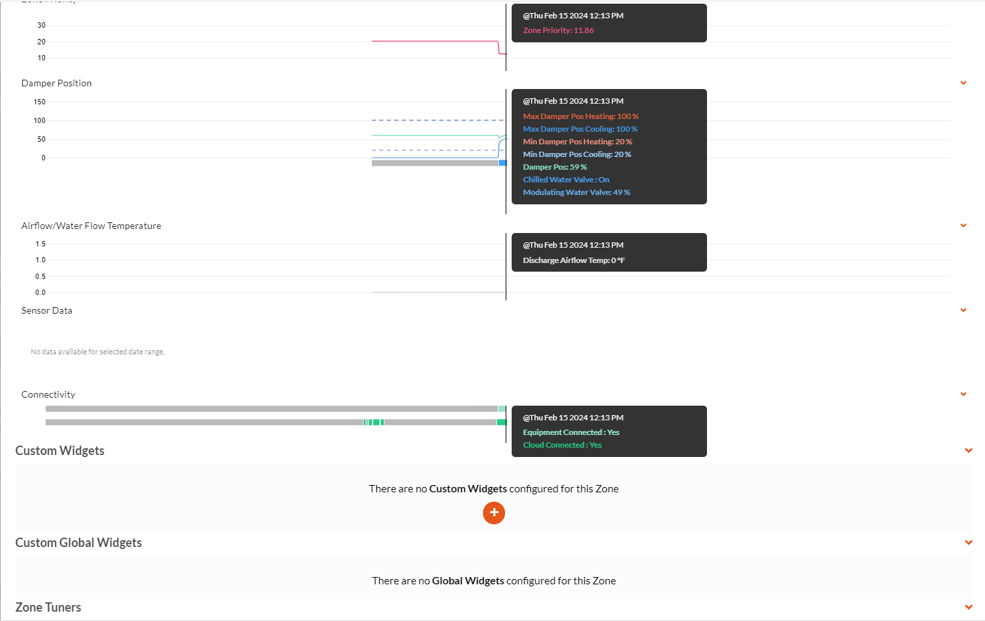

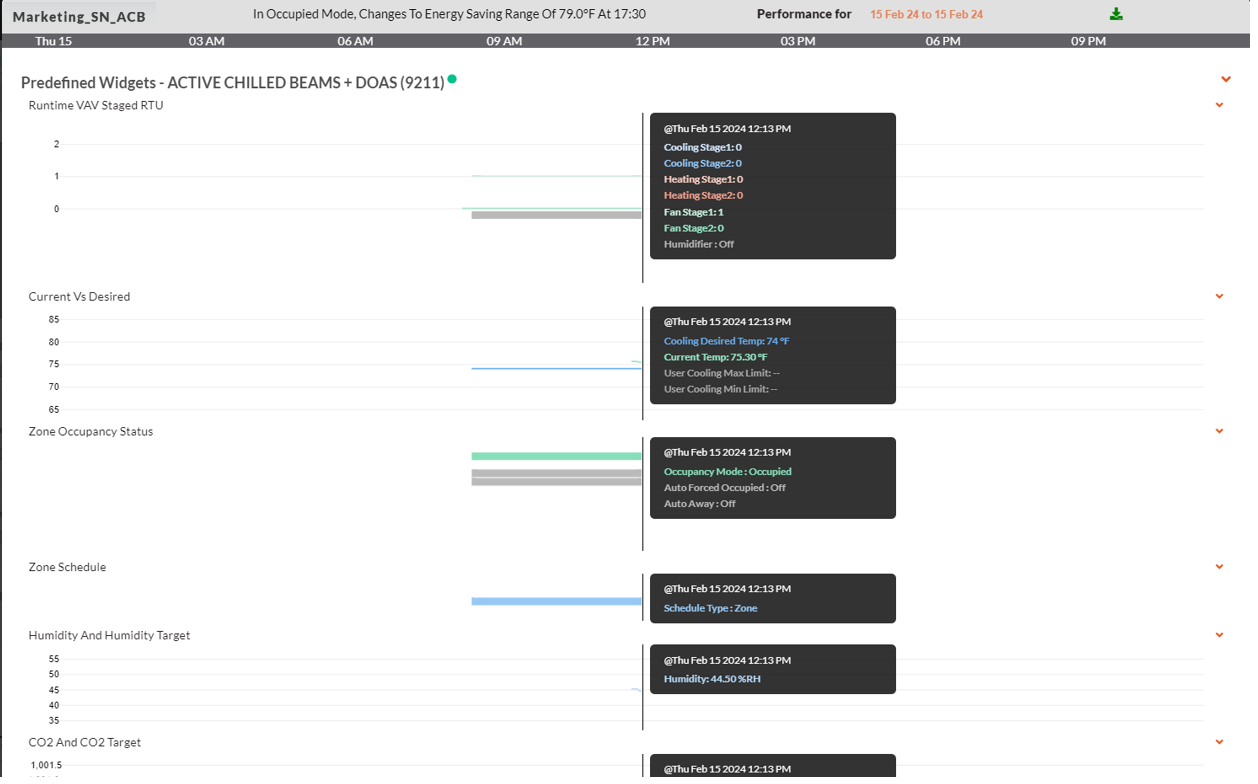

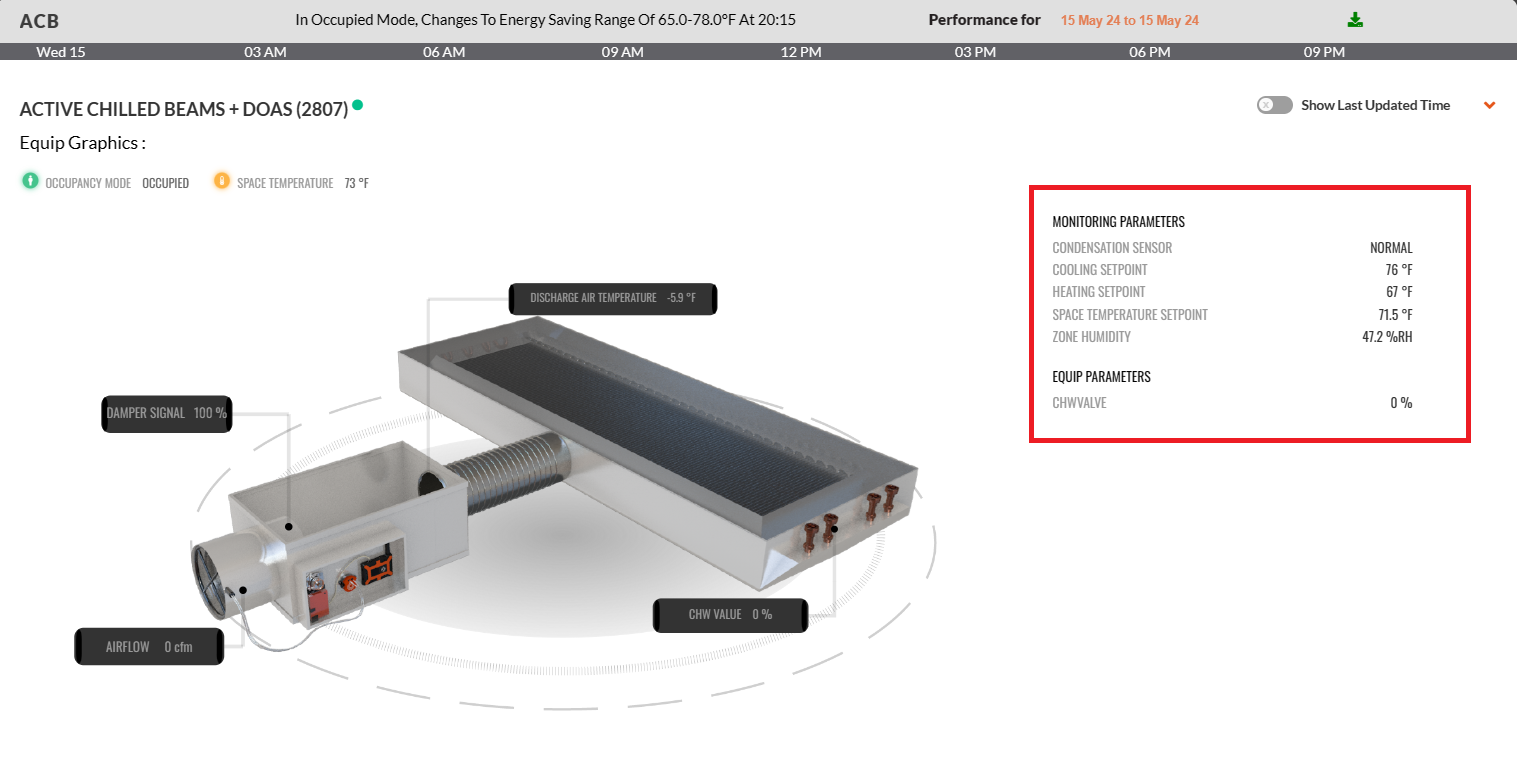

Once configured the profile displays the portal widgets screen as below:
.
Note: Only the cooling stages are configured at the system level, and hence the widgets display only the desired cooling temperature and the related parameters. It is because the active chilled beams just provide cooling conditioning for the zone and do not have heating conditioning capability.
| User Intents in Portals
User intents available in the Portals are as below:
Note: Only the cooling stages are configured at the system level, and hence the zone setting also displays only the desired cooling temperature. It is because the active chilled beams just provide cooling conditioning for the zone and do not have heating conditioning capability.
| Controls Trigger & Operations
When the Zone demands cooling and the system provides cooling.
| If No Condensate is detected | If Condensate is detected |
Example: Let us Assume the PI loop output signal is 80%, the same is translated to Damper Positions as
|
|
When the Zone demands Heating and the system provides Cooling.
| If No Condensate is detected | If Condensate is detected |
|
|
When the Zone demands Cooling and the system provides Heating.
The chilled water modulating and shut-off valve will be closed, and the damper position will be brought to a minimum, regardless of whether the condensate is detected.
Note: This is a negative case, where the dampers will be maintained at their minimum position by the zone algorithm. On the system side when the system is doing heating and all zones are kept at minimum damper position owing to the contradicting zone and system conditioning, normalization will open the dampers from minimum towards 100%.
| IAQ-Based & CO2 Damper Position
Based on additional parameters enabled for the profile, the damper position calculation, during cooling operation varies.
The Damper position is scaled from the Minimum to the Maximum position (Configured parameters), based on the resultant PI loop (Cooling), that uses the current and desired temperatures (Cooling/Heating).
Where the minimum position is altered based on the breach in CO2 or VOC levels. Below is an example of the same.
Example:
Let us Assume there is a CO2 breach in the system
- zoneCO2Threshold=800 ppm
- zoneCO2Target=1000 ppm
- Zone CO2 Breach Range = 200 ppm
- Zone Current CO2=900 ppm
- Actual Breach= 100 ppm
- CO2 loop output= 100/200*100= 50%
The Damper position calculations are as below:
In non-True CFM, the minimum damper position changes from:
- config minimum (20%) at 0% CO2 loop
- config maximum (100%) at 50% CO2 loop
That would work out to:
- 20% damper at 0% CO2 loop
- 40% damper at 12.5% CO2 loop
- 60% damper at 25% CO2 loop
- 80% damper at 37.5% CO2 loop
- 100% damper at 50% CO2 loop and above
The same applies to VOC breaches as well:
Example:
Let us Assume there is a VOC breach in the system
- zone VOC Threshold=400 ppb
- zone VOC Target=500ppb
- Zone VOC Breach Range = 100 ppb
- Zone Current VOC =450 ppb
- Actual Breach= 50 ppb
- VOC loop output = 50/100*100= 50%
The Damper position calculations are as below:
In non-True CFM, the minimum damper position changes from:
- config minimum (20%) at 0% VOC loop
- config maximum (100%) at 50% VOC loop
That would work out to:
- 20% damper at 0% VOC loop
- 40% damper at 12.5% VOC loop
- 60% damper at 25% VOC loop
- 80% damper at 37.5% VOC loop
- 100% damper at 50% VOC loop output and above
Note: When both CO2 and VOC are enabled for control, the highest loop percentage among both is considered for the minimum damper position, for the actual damper position calculation.
| CFM-Based Damper Position
When only the CFM is enabled, the system uses CFM setpoints and no damper positions anymore. Here we replace the minimum damper position with the minimum airflow setpoint.
The below table talks about how CFM-enabled control affects different scenarios in the profile operations.
| Operation | Calculation |
| Zone demands cooling & system is in Cooling |
On the cooling side the PI loop (Cooling Loop Output), which uses the current and desired temperatures (Cooling) is used to determine the Airflow setpoint. Let us Assume the PI loop output signal is 80%, the same is translated to Airflow Setpoint as The Loop output signal is scaled for configured Minimum and Maximum CFM to determine the Airflow setpoint. Example:
The resultant CFM Loop Output Signal, which uses the Airflow Setpoint and calculated actual CFM, as shown above. is directly mapped to the Analog Out 1. For more information on the Actual CFM calculation refer to True CFM (Cubic Feet Per Minute) VAV. |
| Zone in Deadband system in cooling |
The cfmTarget is the minReheatCfM and PILoop(cfmTarget, curCfm) determines the effective damper position. For more information on the Actual CFM calculation refer to True CFM (Cubic Feet Per Minute) VAV. |
| Zone demands heating & system is in Cooling |
The heatingLoop is less than 50% or dischargeTemp <= (roomTemp + reheatZonetoDATMinDifferential (default value 9 F )). The cfmTarget is the minReheatCfM and PILoop(cfmTarget, curCfm) determines the effective damper position. For more information on the Actual CFM calculation refer to True CFM (Cubic Feet Per Minute) VAV. Note: There might be cases with the ACB profile where the current temperature of the zone dips below the heating desired temperature and the heating loop output is more than 50% but as the discharge temperature is not hot enough because of no reheat present, the cfmTarget will be the minReheatCFM and PI loop will operate with the same. |
| Zone demands heating & System is in Heating |
The cfmTarget is the minReheatCfM and PILoop(cfmTarget, curCfm) determines the effective damper position. For more information on the Actual CFM calculation refer to True CFM (Cubic Feet Per Minute) VAV. |
Note: For a negative CFM loop the Damper position remains at the minimum.
| IAQ, CO2 & CFM Based Damper Position
When CO2 & IAQ controls are enabled alongside CFM controls minimum CFM set point is influenced as below.
Min CFM setpoint will be the highest of the following:
Configured min CFM setpoint with CO2 Control:
- Configured min CFM setpoint when CO2 is <= CO2Threshold
- Halfway between min and max configured CFM setpoints when co2 is 50ppm above threshold
- Configured max CFM setpoint when CO2 is 100ppm above the threshold
Configured min CFM setpoint with IAQ Control:
- Configured min CFM setpoint when VOC is <= vocThreshold
- Halfway between min and max configured CFM setpoints when VOC is 25ppm above threshold
- Configured max CFM setpoint when VOC is 50 ppb above threshold
In this configuration, the Damper Position calculation would have four calculation stages.
- The Breach percentage on the CO2& VOC breaches, as in the above section.
- The Breach Percentage translated to the new minimum cfm.
- The airflow set point calculation using the new minimum and maximum airflow cfm, and the temperature-based PI loop output.
- The CFM loop output calculation from the airflow set point and actual airflow, which is translated to the Damper position minimum and Maximum.
Below is an Example calculation for the same
Example:
The Breach percentage on the CO2 breach
Let us Assume there is a CO2 in the system
- zoneCO2Threshold=800 ppm
- zoneCO2Target=1000 ppm
- Zone CO2 Breach = 200 ppm
- Zone Current CO2=825 ppm
- Actual Breach= 25 ppm
- CO2 loop output = 25/200*100= 12.5%
The Breach percentage on the VOC breach
Let us Assume there is a VOC breach in the system
- zone VOC Threshold=400 ppb
- zone VOC Target=500ppb
- Zone VOC Breach Range = 100 ppb
- Zone Current VOC =475 ppb
- Actual Breach= 75 ppb
- Breach Percentage= 75/100*100= 75%
Note: When both CO2 and VOC are enabled for control, the highest breach percentage among both is considered for the minimum damper position, for the actual damper position calculation.
As per the above, let us consider the Breach Percentage from VOC = 75% for the new minimum cfm calculation
The Breach Percentage translated to the new minimum cfm.
- Min CFM(Cooling/Heating) =50 cfm
- Max CFM(Cooling/Heating) =250 cfm
- Airflow CFM Range = 200 cfm
- 75 % Breaches Translates to =75*200/100= 15000/100= 150 cfm
- The New minimum CFM= 50 (Min CFM(Cooling/Heating)) +150= 200 cfm
The airflow set point calculation
Let us Assume the PI loop output signal is 80%, the same is translated to Airflow Setpoint as
- New Min CFM(Cooling/Heating) =200 cfm
- Max CFM(Cooling/Heating) =250 cfm
- Airflow CFM Range = 50 cfm
- 80% loop output signal scaled for Airflow CFM Range (50) = 50*80/100= 4000/100= 40 cfm
- Actual Airflow Setpoint= 200 (Min CFM(Cooling/Heating)) + 40 = 240 cfm
The CFM loop output calculation from the airflow CFM set point and actual airflow CFM, which is translated to the Damper position minimum and maximum.
For more information on the Actual CFM calculation refer to True CFM (Cubic Feet Per Minute) VAV.
| N/O, N/C Relay Based Water Valve Operation
Based on the water valve type used in the field, the configuration can be set to a Normally Open (N/O) or Normally Open (N/C).
The following table provides the operation details based on the type of water valve selected.
| Selection | Operation |
| When a Normally Close (N/C) type water valve is selected |
In this type of selection: When the Loop output is above the relay activation hysteresis (Default 10%)
When the Loop output is below the relay activation hysteresis (Default 10%) "or" When condensation is detected in the condensation sensor:
|
| When a Normally Open (N/O) type water valve is selected |
The following steps occur in the algorithm to address the scenario: When the Loop output is above the relay activation hysteresis (Default 10%)
When the Loop output is below the relay activation hysteresis (Default 10%) "or" When condensation is detected in the condensation sensor:
|
| Fail Safe Mode
When the HelioNode loses the connection with the CCU, the device enters the failsafe mode where the required controls are still made available from the HelioNode itself.
The Occupancy, IAQ and VOC controls will not be available in Fail Safe, only CFM and all its tuners and configs will work as intended in Fail Safe.
Fail-Safe for N/O, N/C Valuve Operation
The HelioNode uses the calculated PI loop Output during the failsafe to decide the command for the relay port-based valve operation, based on the table below.
|
When a Normally Close (N/C) type water valve is selected
|
When the Loop output is above the relay activation hysteresis (Default 10%)
When the Loop output is below the relay activation hysteresis (Default 10%) "or" When condensation is detected in the condensation sensor:
|
| When a Normally Open (N/O) type water valve is selected |
When the Loop output is above the relay activation hysteresis (Default 10%)
When the Loop output is below the relay activation hysteresis (Default 10%) "or" When condensation is detected in the condensation sensor:
|
| Equip Graphics for HelioNode - Active Chilled Beams + DOAS
Equipment graphics is available for all the terminal profiles. It provides a graphical representation of system-level equipment and enables monitoring of key point parameters associated with terminal profiles.
The highlighted list of points is predefined for visualization alongside the graphic for the respective profile.
| Control System Object List
| Object Name | Type | Input/Output Type |
| Heating Desired Temp | User Intent | NA |
| Cooling Desired Temp | User Intent | NA |
| Current Temp | Input | OWI Sensor |
| Humidity | Input | OWI Sensor |
| Occupancy Mode |
Input |
OWI Sensor |
| Damper Actuator | Output | SmartNode/ Helionode Analog Out |
| Water Valve Actuator | Output | SmartNode/ Helionode Analog Out |
| Shutoff Valve | Output | SmartNode/ Helionode Relay |
| Zone Priority | Input | User Intent/ Configuration Setup |
| Damper Type | Input | User Intent/ Configuration Setup |
| Discharge Airflow Temperature | Input | SmartNode/ HelioNode Thermistor |
| Condensate Detection | Input | SmartNode/ HelioNode Thermistor |
| Minimum Damper Position Cooling | Input | User Intent/ Configuration Setup |
| Maximum Damper Position Cooling | Input | User Intent/ Configuration Setup |
| Minimum Damper Position Heating | Input | User Intent/ Configuration Setup |
| Maximum Damper Position Heating | Input | User Intent/ Configuration Setup |
| Minimum CFM Cooling | Input | User Intent/ Configuration Setup |
| Maximum CFM Cooling | Input | User Intent/ Configuration Setup |
| Minimum CFM Reheating | Input | User Intent/ Configuration Setup |
| Maximum CFM Reheating | Input | User Intent/ Configuration Setup |
| Maximum Damper Heating | Input | User Intent/ Configuration Setup |
| coolingPreconditioningRate | Tuner | 15 Mins |
| heatingPreconditioningRate | Tuner | 15 Mins |
Note: For a comprehensive list of tuners and their details refer to Tuners Complete List.
| Sequence of Operation
The sequence of operation is completely driven based on Occupancy mode, Space Current Temperature, the set Cooling and Heating Desired Temperatures, Supply Water temperature, and Space CO2 levels.
Let us understand the Sequence of operations based on the occupancy modes, and how the other factors contribute to the sequence of operations during different types of occupancy modes.
| Occupancy Modes
The occupancy mode (Occupied or Unoccupied) shall be determined through a user-adjustable, graphical, seven-day schedule with a holiday schedule, alongside the configurable autoaway and forced occupied options (external schedule influencers) for optimized controls and enhanced energy savings.
Based on the above aspects factoring into the occupancy the following can be the possible applicable occupancy modes:
- Pre- Conditioning
- Occupied
- Unoccupied
- Auto-Away
- Forced Occupied
| Sequence of Operation During Pre-Conditioning
Pre-conditioning is a state just before the building enters the scheduled occupancy. It starts at more like the unoccupied state, the desired temperatures drift to unoccupied setbacks.
The preconditioning uses an algorithm to start the conditioning before the building is scheduled for occupancy, from the heating side or cooling side, to bring the building to an optimum level ( within the occupied heating & cooling desired temperatures) exactly at the time of occupancy start.
A coolingPreconditioningRate and heatingPreconditiningRate tuners defaulted to 15 minutes, are used alongside the occupied heating/cooling desired temperature breach to determine when the pre-conditioning should start.
Example Calculation:`
When,
- The heating & cooling desired temperatures are 70F and 74F for the building,
- The current temperature is 76F (Average of zone temperatures),
- 8:00 AM is the time the building is scheduled to be occupied.
Then the preconditioning start time is calculated as follows:
Cooling Desired Temperature Breach= 76-74=2F
Preconditioning duration= coolingPreconditioningRate (mins) * Cooling Desired Temperature Breach
= 15*2
= 30 mins
The preconditioning starts 30 minutes before the building is scheduled to be occupied, which is = 7:30 AM.
The zones would operate as shown below to accommodate the preconditioning from the system equipment.
During Warm-up:
-
- If the space temperature is below the occupied heating temperature setpoint, the pre-conditioning shall initiate the morning warm-up via HeatingLoopOutput, as below:
| If System Equipment in Cooling Mode | If System Equipment in Heating Mode |
|
And if no Condensate is detected:
And if Condensate is detected:
|
The HeatingLoopOutput is mapped to the Damper position actuator and further to modulating reheat or reheat stages. |
-
- The CO2 and IAQ loops are disabled. (If configured for)
- The CFM loop is disabled. (If configured for)
During Pre-cooling:
-
- If the space temperature is below the occupied Cooling temperature setpoint, the pre-conditioning shall initiate the morning pre-cooling via CoolingLoopOutput, as below:
| If System Equipment in Cooling Mode | If System Equipment in Heating Mode |
|
And if no Condensate is detected:
And if Condensate is detected:
|
Note: This is a negative case, where the dampers will be maintained at their minimum position by the zone algorithm. On the system side when the system is doing heating and all zones are kept at minimum damper position owing to the contradicting zone and system conditioning, normalization will open the dampers from minimum towards 100%. |
-
- The CO2 and IAQ loops are disabled. (If configured for)
| Sequence of Operation During Occupied
At all occupied times: (based on a set schedule)
-
- The device maintains a space temperature within the Heating Desired Temperature and Cooling Desired Temperature Range.
During Deadband:
During deadband, the damper operation is influenced, based on the configuration of the profile, as follows.
| Configuration | Damper Operation |
| If only the zone temperature-based configuration is enabled. |
The damper shall be at its minimum position and the reheat valve will remain closed. The Damper minimum is decided based on the last known conditioning,
|
| If zone Temperature & CO2-based configuration is enabled. |
The Damper position is driven based on the Zone CO2 levels. For more information on the actual calculation refer to VAV Terminal Profile- Damper Position Calculation & Operation Note: It is possible and likely that temperature control will not be as good when IAQ controls override the damper position. This is indicated by the iaqOverridingDamper being set to true. |
| If zone Temperature & VOC-based configuration is enabled. |
The Damper position is driven based on the Zone VOC levels. For more information on the actual calculation refer to VAV Terminal Profile- Damper Position Calculation & Operation Note: It is possible and likely that temperature control will not be as good when IAQ controls override the damper position. This is indicated by the iaqOverridingDamper being set to true. |
| If zone Temperature & CFM-based configuration is enabled. | The Damper position is driven based on the min-max CFM set. For more information on the actual calculation refer to VAV Terminal Profile- Damper Position Calculation & Operation |
| If zone Temperature, IAQ (CO2 & VOC) & CFM-based configuration is enabled. | The Damper position is driven based on Temperature, IAQ, and CFM. For more information on the actual calculation refer to VAV Terminal Profile- Damper Position Calculation & Operation |
During Heating:
-
- When the space current temperature falls below the HeatingDesiredTemperature the HeatingLoopOutput is enabled as below as below
| If System Equipment in Cooling Mode | If System Equipment in Heating Mode |
|
And if no Condensate is detected:
And if Condensate is detected:
|
The HeatingLoopOutput is mapped to the Damper position actuator and further to modulating reheat or reheat stages. |
-
- When the space CO2 & IAQ levels are above the thresholds the CO2/ IAQ loop Outputs drive the damper actuator for damper position. for more information refer to VAV Terminal Profile- Damper Position Calculation & Operation
-
- The CFM loop is disabled. (If configured for)
During Cooling:
-
- When the space current temperature is above the Cooling Desired Temperature the CoolingLoopOutput is enabled, as below.
| If System Equipment in Cooling Mode | If System Equipment in Heating Mode |
|
And if no Condensate is detected:
And if Condensate is detected:
|
Note: This is a negative case, where the dampers will be maintained at their minimum position by the zone algorithm. On the system side when the system is doing heating and all zones are kept at minimum damper position owing to the contradicting zone and system conditioning, normalization will open the dampers from minimum towards 100%. |
-
- When the space CO2 & IAQ levels are above the thresholds the CO2/ IAQ loop Outputs drive the damper actuator for damper position. for more information refer to VAV Terminal Profile- Damper Position Calculation & Operation
| Sequence of Operation During Autoaway
-
- The range of Heating Desired Temperature and Cooling Desired Temperature drifts further away.
- The device maintains a space temperature within the newly set Heating Desired Temperature and Cooling Desired Temperature Range.
During Deadband:
-
- CoolingLoopOutput, HeatingLoopOutput, CFM LoopOutput, CO2, and IAQ Loop Output, are disabled.
During Heating:
-
- When the space current temperature falls below the heating autoaway setback temperature, the HeatingLoopOutput is enabled as below.
| If System Equipment in Cooling Mode | If System Equipment in Heating Mode |
|
And if no Condensate is detected:
And if Condensate is detected:
|
The HeatingLoopOutput is mapped to the Damper position actuator and further to modulating reheat or reheat stages. |
-
- The CO2 and IAQ loops are disabled. (If configured for)
- The CFM loop is disabled. (If configured for)
During Cooling:
-
- When the space current is above the cooling the CoolingLoopOutput is enabled, as below.
| If System Equipment in Cooling Mode | If System Equipment in Heating Mode |
|
And if no Condensate is detected:
And if Condensate is detected:
|
Note: This is a negative case, where the dampers will be maintained at their minimum position by the zone algorithm. On the system side when the system is doing heating and all zones are kept at minimum damper position owing to the contradicting zone and system conditioning, normalization will open the dampers from minimum towards 100%. |
-
- The CO2 and IAQ loops are disabled. (If configured for)
| Sequence of Operation During Unoccupied
-
- The range of Heating Desired Temperature and Cooling Desired Temperature drifts further away.
- The device maintains a space temperature within the newly set Heating Desired Temperature and Cooling Desired Temperature Range.
During Deadband:
-
- CoolingLoopOutput, HeatingLoopOutput, CFM LoopOutput, CO2, and IAQ Loop Output, are disabled.
During Heating:
-
- When the space's current temperature falls below the heating the HeatingLoopOutput is enabled as below.
| If System Equipment in Cooling Mode | If System Equipment in Heating Mode |
|
And if no Condensate is detected:
And if Condensate is detected:
|
The HeatingLoopOutput is mapped to the Damper position actuator and further to modulating reheat or reheat stages. |
-
- The CO2 and IAQ loops are disabled. (If configured for)
- The CFM loop is disabled. (If configured for)
During Cooling:
-
- When the space current temperature is above the cooling the CoolingLoopOutput is enabled, as below.
| If System Equipment in Cooling Mode | If System Equipment in Heating Mode |
|
And if no Condensate is detected:
And if Condensate is detected:
|
Note: This is a negative case, where the dampers will be maintained at their minimum position by the zone algorithm. On the system side when the system is doing heating and all zones are kept at minimum damper position owing to the contradicting zone and system conditioning, normalization will open the dampers from minimum towards 100%. |
-
- The CO2 and IAQ loops are disabled. (If configured for)
Note: The fan runs wherever the zone is occupied and when the reheat is enabled.
| Sequence of Operation During Forced Occupied
-
- The device maintains a space temperature within the Heating Desired Temperature and Cooling Desired Temperature Range.
During Deadband:
During deadband, the damper operation is influenced, based on the configuration of the profile, as follows.
| Configuration | Damper Operation |
| If only the zone temperature-based configuration is enabled. |
The damper shall be at its minimum position and the reheat valve will remain closed. The Dmaper minimum is decided based on the last known conditioning,
|
| If zone Temperature & CO2-based configuration is enabled. |
The Damper position is driven based on the Zone CO2 levels. For more information on the actual calculation refer to VAV Terminal Profile- Damper Position Calculation & Operation Note: It is possible and likely that temperature control will not be as good when IAQ controls override the damper position. This is indicated by the iaqOverridingDamper being set to true. |
| If zone Temperature & VOC-based configuration is enabled. |
The Damper position is driven based on the Zone VOC levels. For more information on the actual calculation refer to VAV Terminal Profile- Damper Position Calculation & Operation Note: It is possible and likely that temperature control will not be as good when IAQ controls override the damper position. This is indicated by the iaqOverridingDamper being set to true. |
| If zone Temperature & CFM-based configuration is enabled. | The Damper position is driven based on the min-max CFM set. For more information on the actual calculation refer to VAV Terminal Profile- Damper Position Calculation & Operation |
| If zone Temperature, IAQ (CO2 & VOC) & CFM-based configuration is enabled. | The Damper position is driven based on Temperature, IAQ, and CFM. For more information on the actual calculation refer to VAV Terminal Profile- Damper Position Calculation & Operation |
During Heating:
-
- When the space current temperature falls below the Heating Desired Temperature the HeatingLoopOutput is enabled as below.
| If System Equipment in Cooling Mode | If System Equipment in Heating Mode |
|
And if no Condensate is detected:
And if Condensate is detected:
|
The HeatingLoopOutput is mapped to the Damper position actuator and further to modulating reheat or reheat stages. |
-
- The CO2 and IAQ loops are disabled. (If configured for)
- The CFM loop is disabled. (If configured for)
During Cooling:
-
- When the space current temperature is above the Cooling Desired Temperature the CoolingLoopOutput is enabled as below:
| If System Equipment in Cooling Mode | If System Equipment in Heating Mode |
|
And if no Condensate is detected:
And if Condensate is detected:
|
Note: This is a negative case, where the dampers will be maintained at their minimum position by the zone algorithm. On the system side when the system is doing heating and all zones are kept at minimum damper position owing to the contradicting zone and system conditioning, normalization will open the dampers from minimum towards 100%. |
-
- The CO2 and IAQ loops are disabled. (If configured for)
| Sequence of Operation During Emergency Conditioning
When zone limits are violated, and the recorded temperature is within the zone limit plus leeway the conditioning will happen in the direction of zone load.
| Sequence of Operation During ZOne Temp Dead
And, When the zone temperature breaches the zone limits, beyond the leeway limits all the following loops are disabled:
-
- CoolingLoopOutput
- HeatingLoopOutput
- CO2 & IAQ LoopOutput
- CFM LoopOutput
| N/O, N/C Relay Based Water Valve Operation
Based on the water valve type used in the field, the configuration can be set to a Normally Open (N/O) or Normally Open (N/C).
The following table provides the operation details based on the type of water valve selected.
| Selection | Operation |
| When a Normally Close (N/C) type water valve is selected |
In this type of selection: When the Loop output is above the relay activation hysteresis (Default 10%)
When the Loop output is below the relay activation hysteresis (Default 10%) "or" When condensation is detected in the condensation sensor:
|
| When a Normally Open (N/O) type water valve is selected |
The following steps occur in the algorithm to address the scenario: When the Loop output is above the relay activation hysteresis (Default 10%)
When the Loop output is below the relay activation hysteresis (Default 10%) "or" When condensation is detected in the condensation sensor:
|
| Control Mode Summary
|
Modes & Operation |
Pre-Conditioning | Occupied | AutoAway | Unoccupied | Forced Occupied |
| Auto |
HeatingLoopOutput CoolingLoopOutput CFMLoopOutput |
HeatingLoopOutput CoolingLoopOutput CFMLoopOutput CO2LoopOutput IAQLoopOutput |
HeatingLoopOutput CoolingLoopOutput
|
HeatingLoopOutput CoolingLoopOutput
|
HeatingLoopOutput CoolingLoopOutput |
| Heat Only |
HeatingLoopOutput |
HeatingLoopOutput CO2LoopOutput IAQLoopOutput |
HeatingLoopOutput |
HeatingLoopOutput |
HeatingLoopOutput CO2LoopOutput IAQLoopOutput |
| Cool Only |
CoolingLoopOutput CFMLoopOutout |
CoolingLoopOutput CFMLoopOutput CO2LoopOutput IAQLoopOutput |
CoolingLoopOutput |
CoolingLoopOutput |
CoolingLoopOutput CO2LoopOutput IAQLoopOutput |
| Off |
All Loops Deactivated |
||||
| Feature Availability Version
- The fail-safe support for the HelioNode-based Active Chilled Beam control is available from the HelioNode version 6.21 and above.
- Support for Normally Open Type Valves in Algorithm correction/Settings Message Updates in connected and failsafe mode, is available from HelioNode version 6.26 and above.
Comments
0 comments
Please sign in to leave a comment.
