HyperStat Monitoring Profile

2 Minute Read

| Overview

The Monitoring Profile is a profile that comes with the HyperStat, that is used to monitor parameters in a zone. This provides enhanced visibility of the zone and helps in determining the factors associated with it.

| How it Works.

With its 8 onboard sensors, and advanced capability of the thermostat, humidistat, and IAQ sensing station,  HyperStat provides a wide range of parameters monitoring capability.

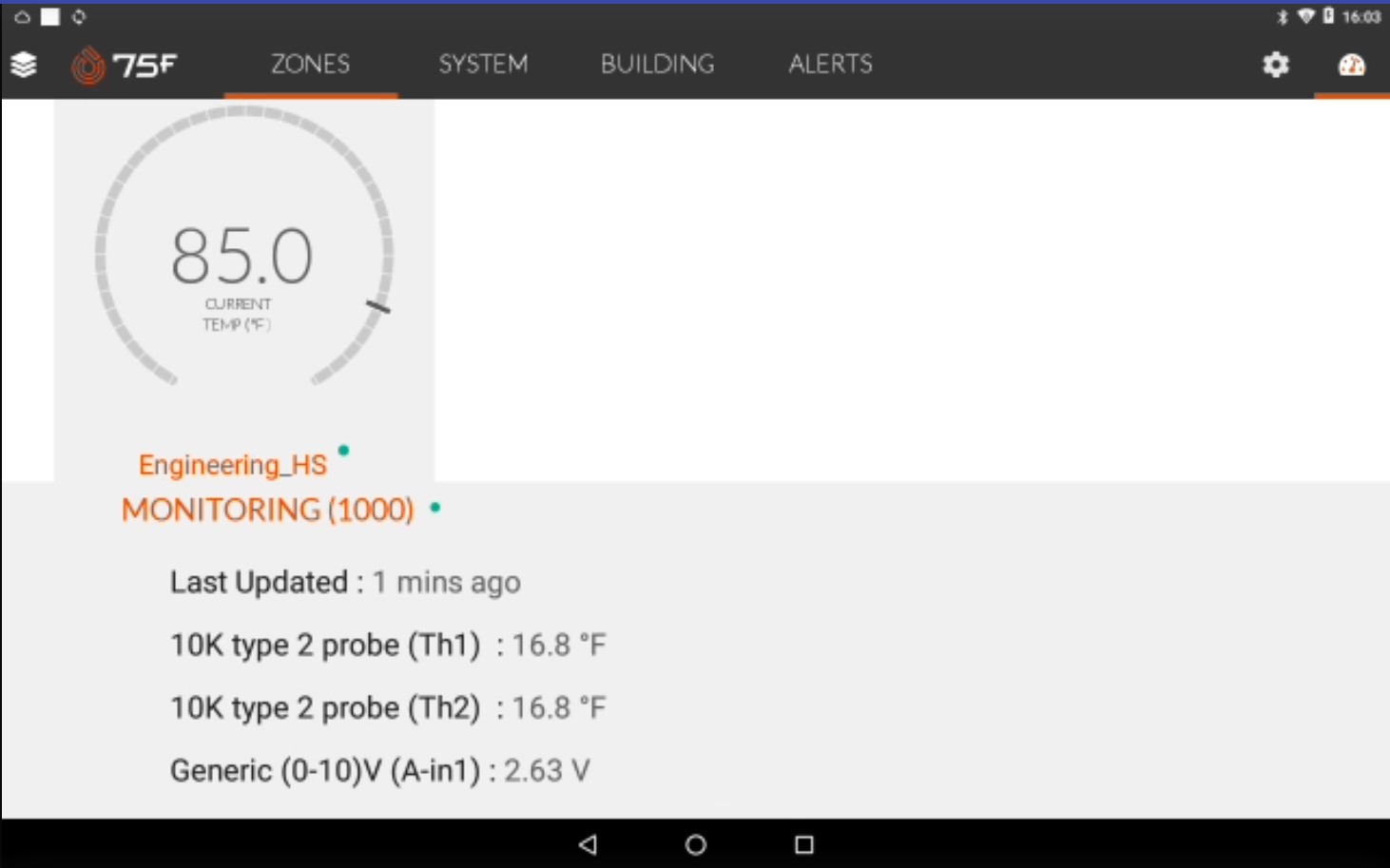

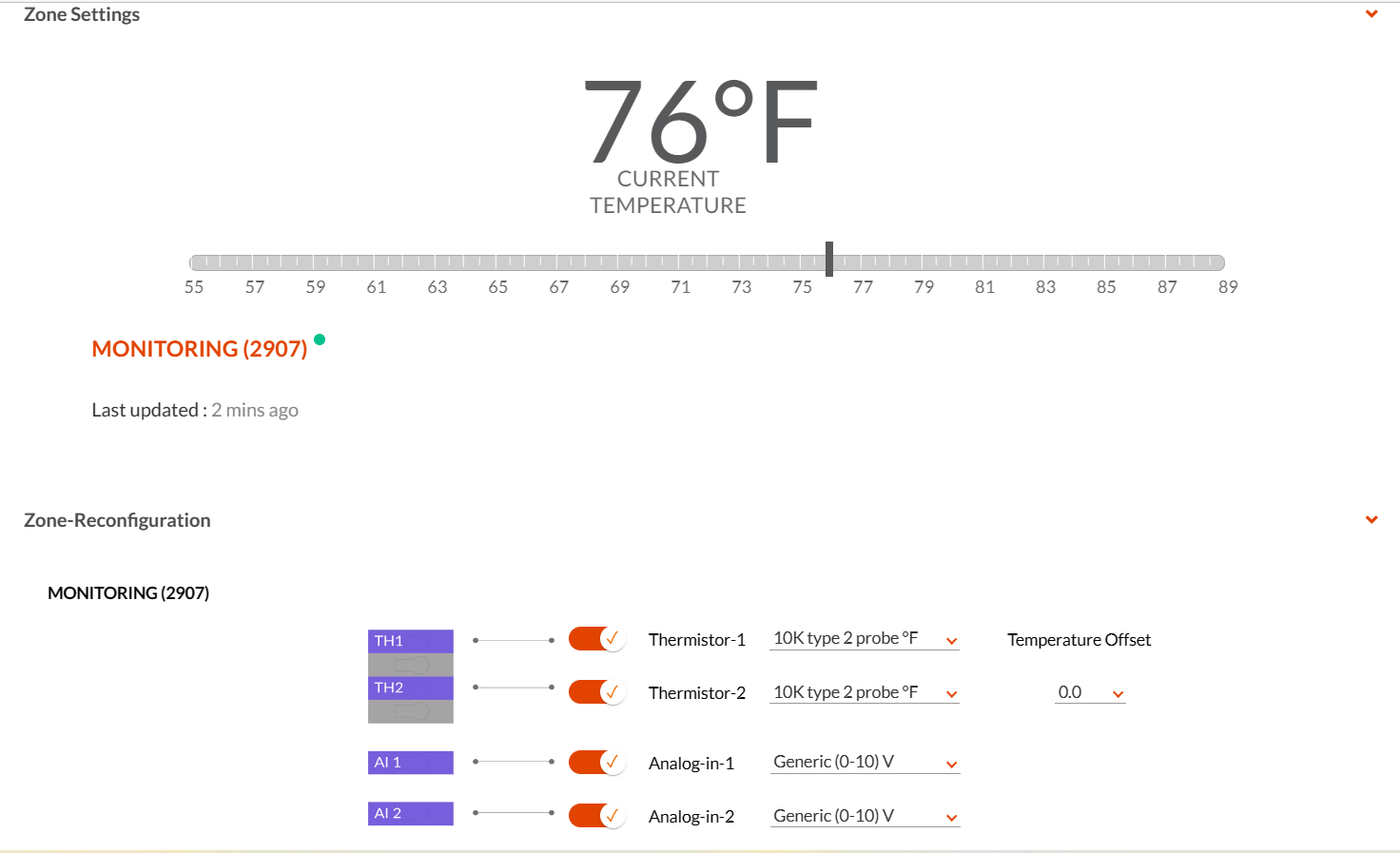

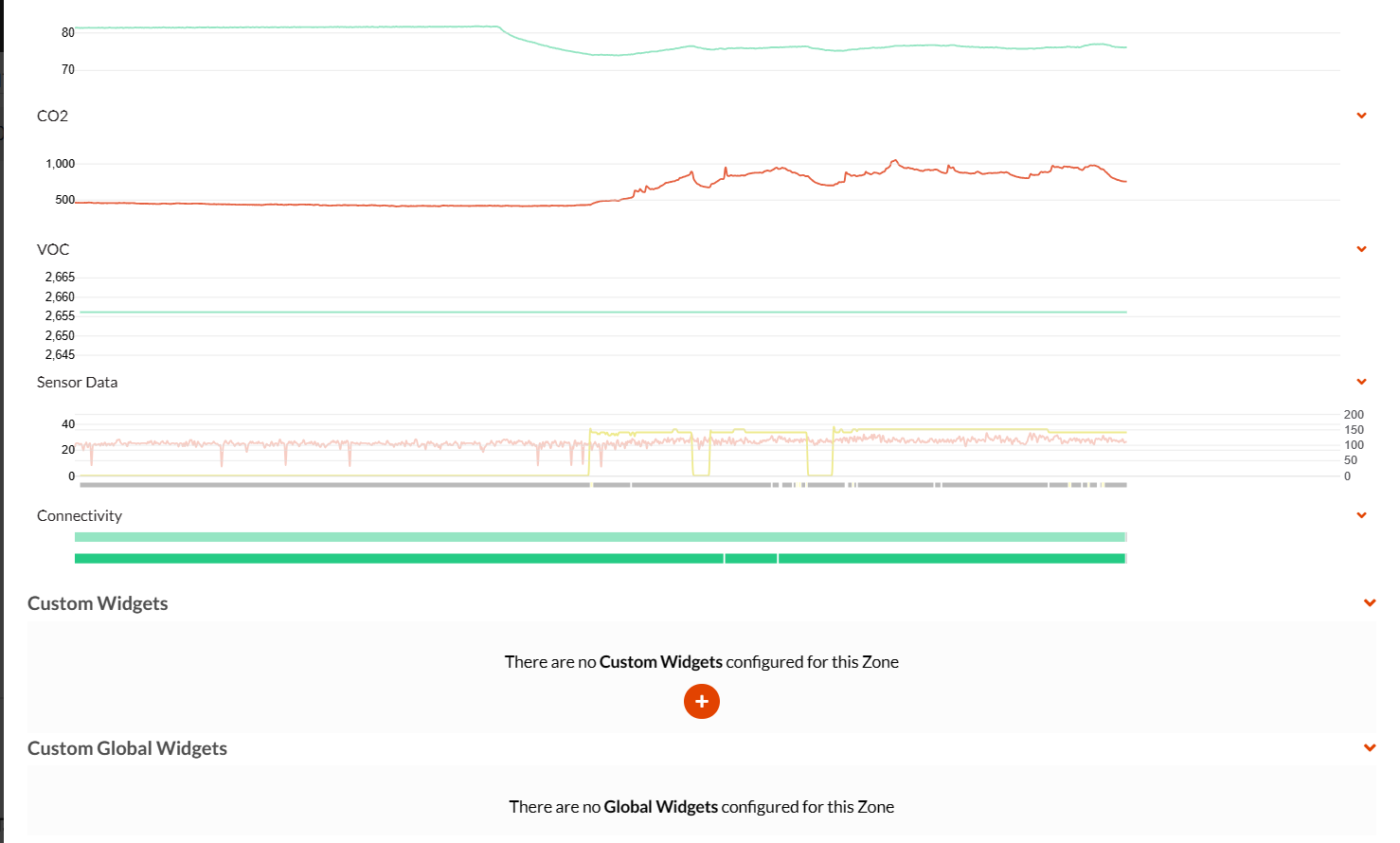

Once configured, the monitored parameter shows up in zone settings screens across portals, apps, and CCU.

A zone can be paired with just one module of the monitoring profile.

There is no concept of building limit breach, zone priority and influencing the system level equipment. It does not affect any central air handling HVAC equipment connected to the CCU.

You can configure the following inputs that can be monitored.

Temperature
Humidity
Co2 - CO2 widget
VOC - CO2 widget

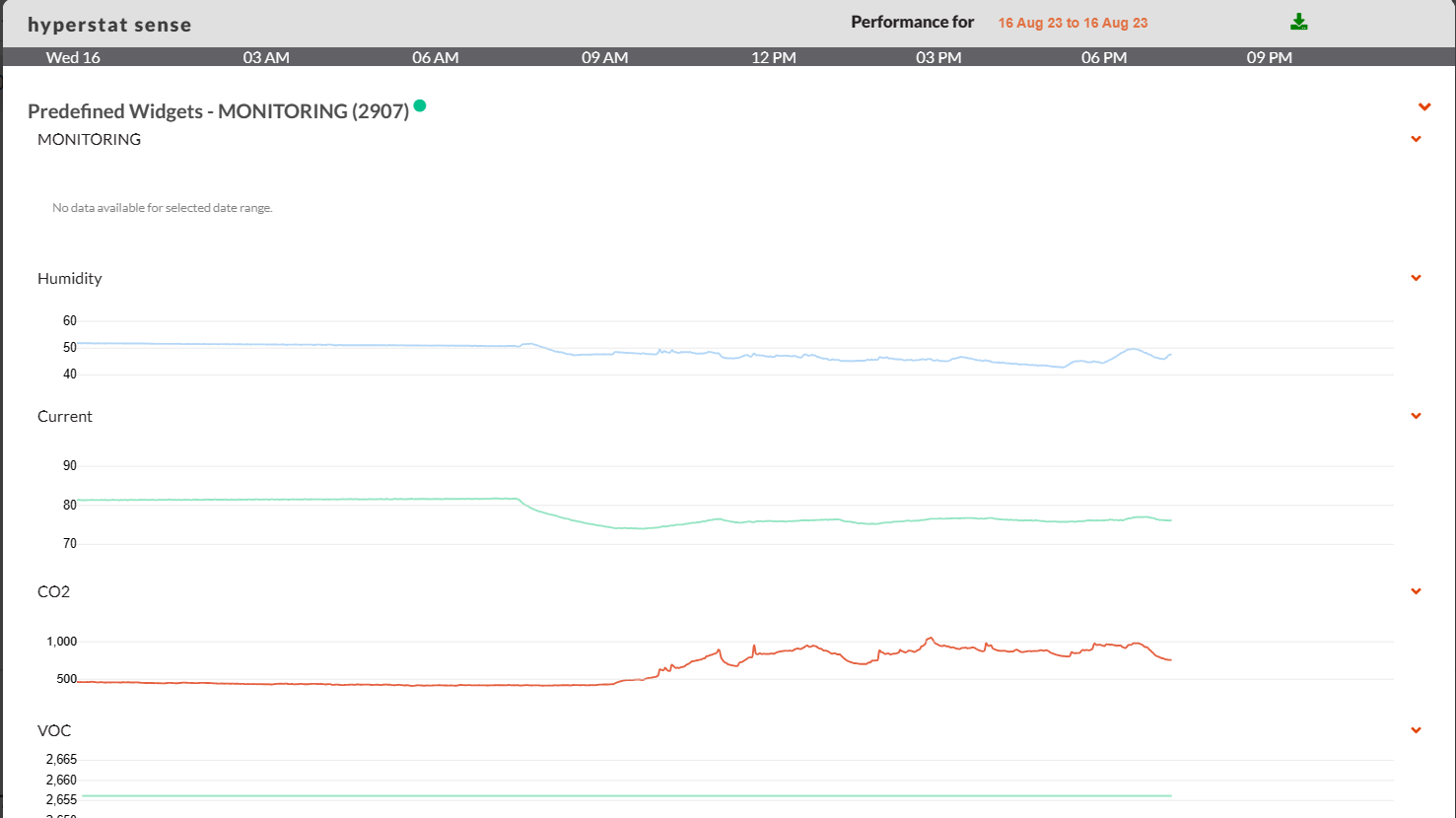

Onboard Sensors - Sound, PM2.5, and Light - Sensor’s widget
Thermistor 1 - Thermistor widget
Thermistor 2
Analog-in-1 -Analog Widget
Analog-in-2

| Configuration

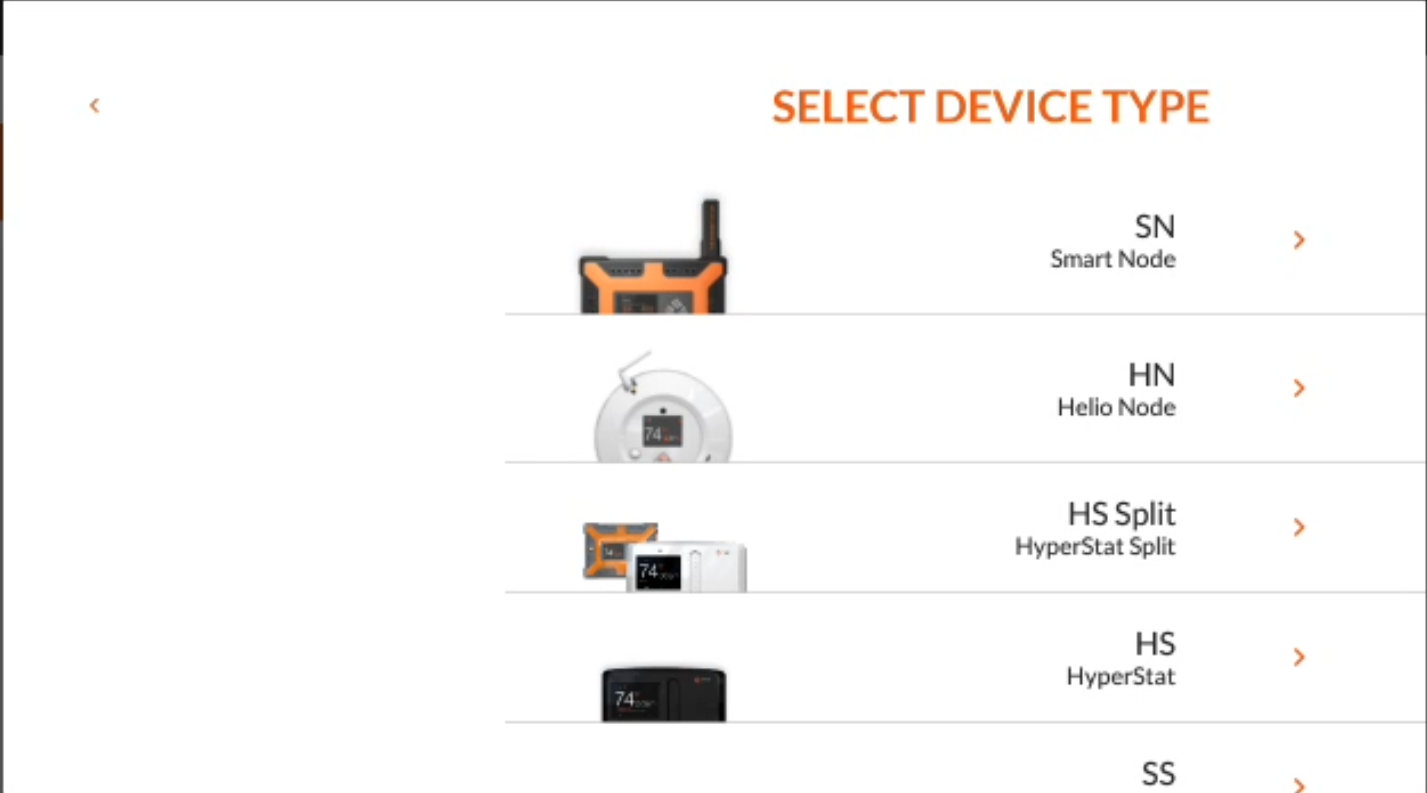

Select the HyperStat option from the device screen

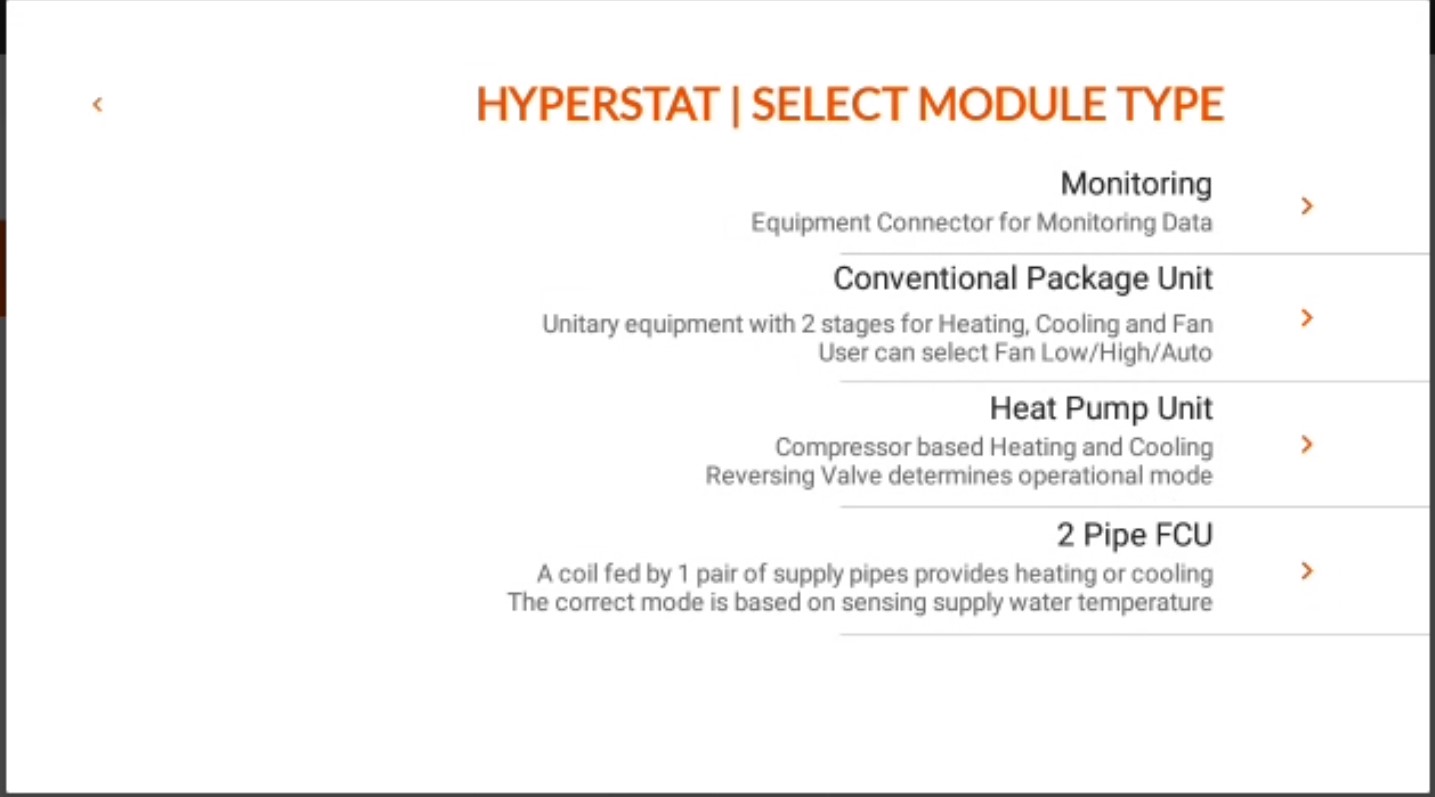

Click Monitoring from the HyperStat module selection screen.

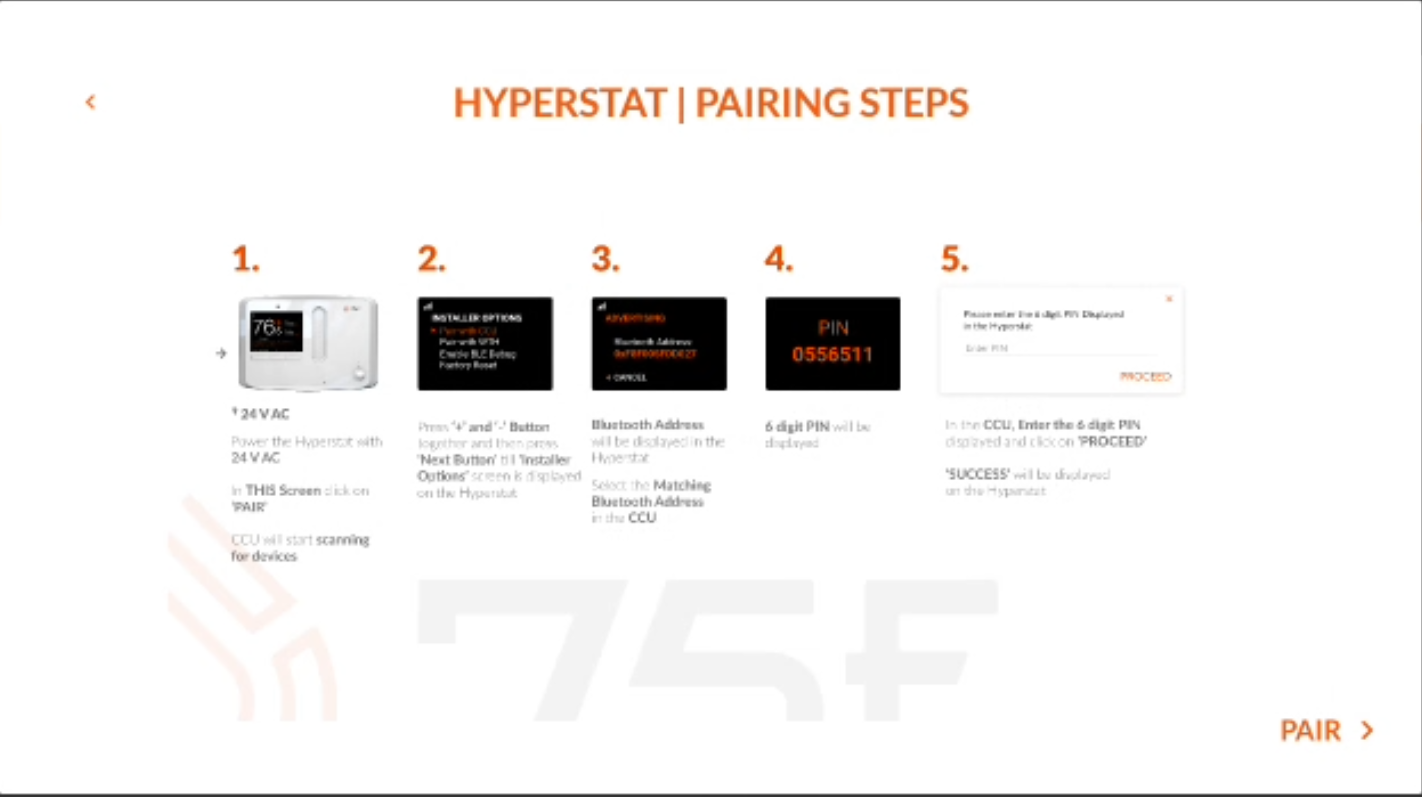

The pairing options are displayed on the screen which provide the steps to successfully pair the device.

Put the device in the Pairing mode.

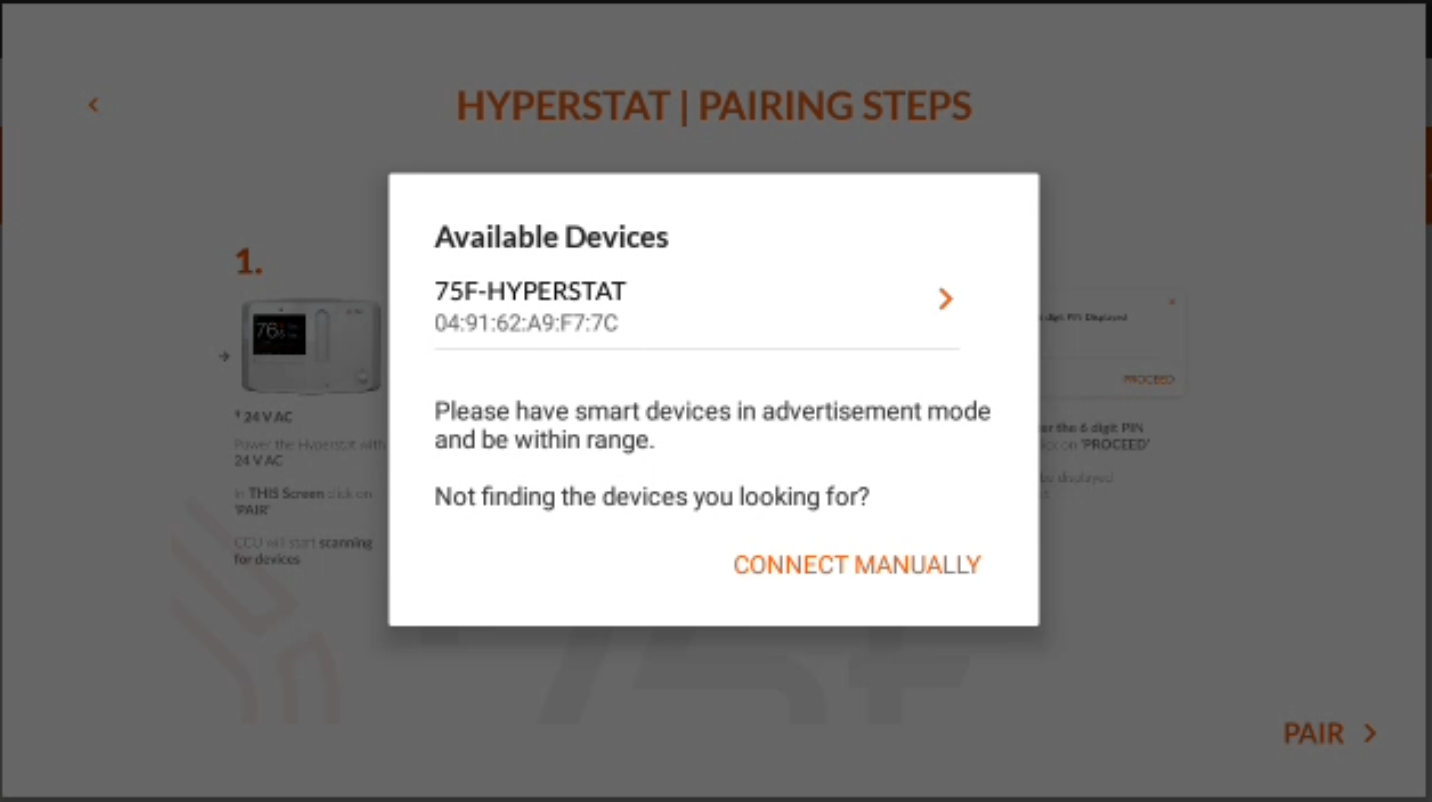

Select the device MAC address from the broadcasting window, or click connect manually to manually pair the device. For steps to manually pair refer to Alternate/Manual Pairing for HyperStat

Enter the PIN displayed on the device.

Click Pair to start pairing the device.

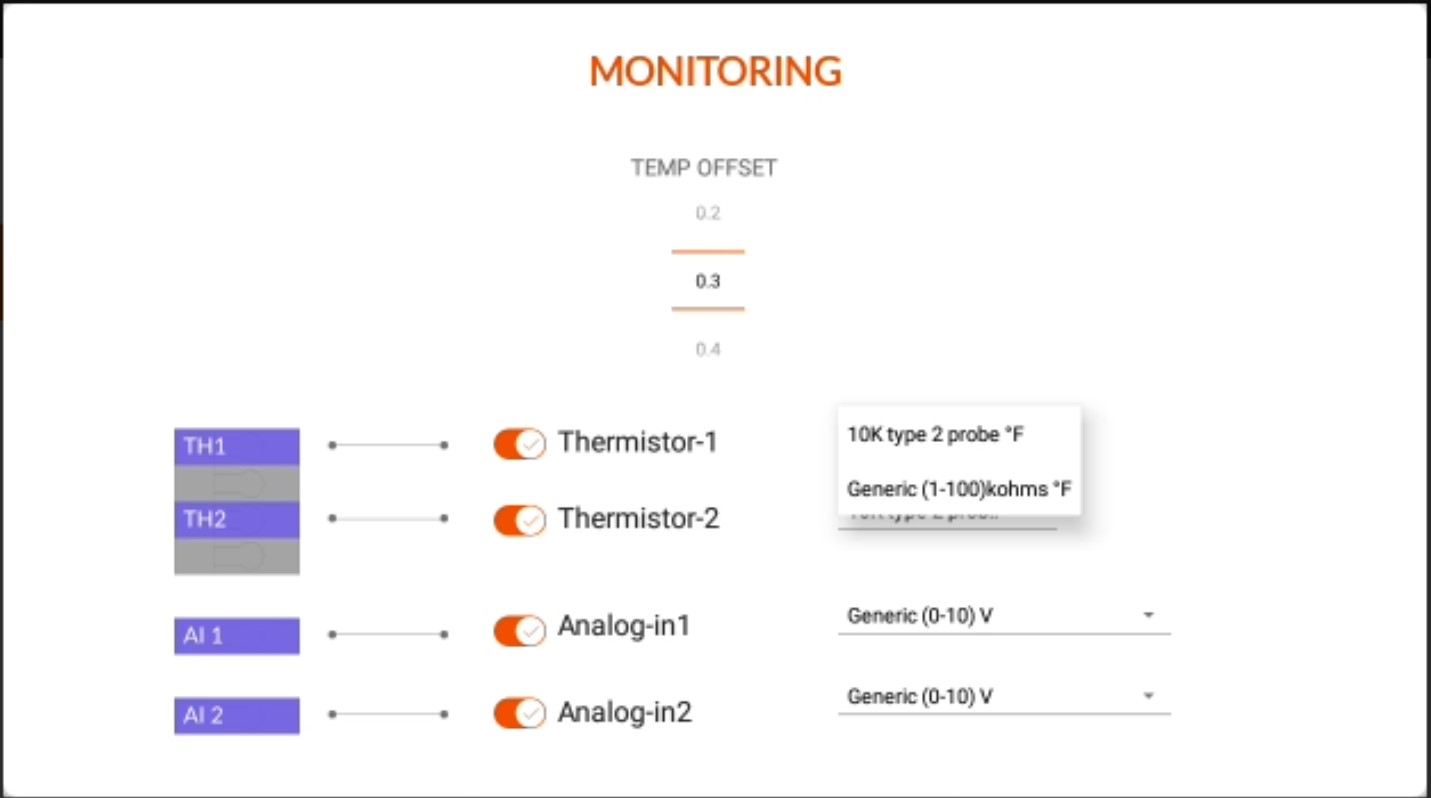

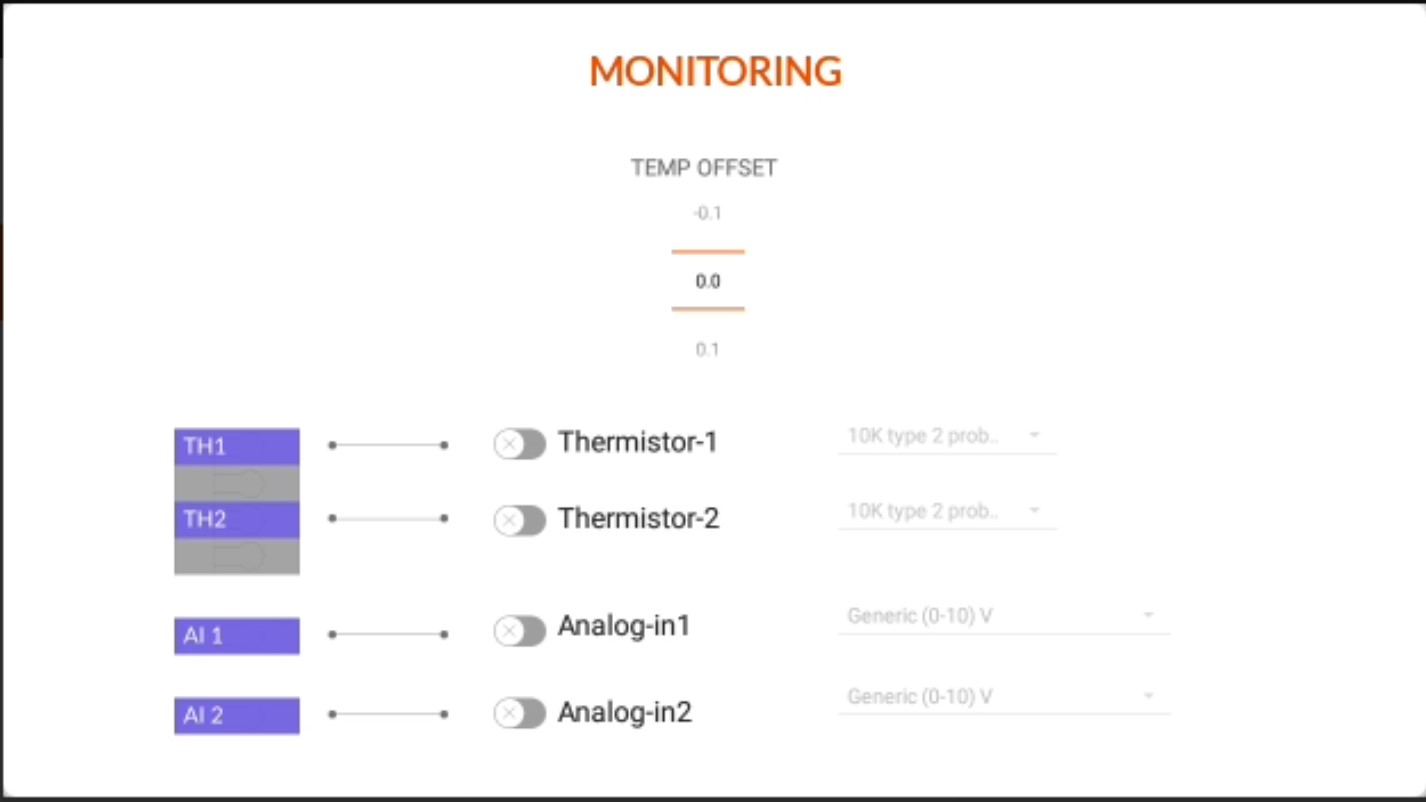

You can see the configuration screen for the Monitoring profile has Thermistor 1 and 2, and Analog-in 1 and 2 that can be enabled or disabled.

| Configuration Parameters

Parameter	Purpose	Default Value	Values in the drop-down list
temperatureOffset	To set the offset temperature	0 (°F)	Range from -10 to + 10 in .1 increments.
TH1	To monitored inputs	10K Type 2 probe.	Generic 1-100Kohms
TH2	To monitor inputs	10K Type 2 probe.	Generic 1-100Kohms
Analog- in1	To define the inputs to monitor	Generic 0-10V	0-2 inches. Pressure Sensor 0-0.25 inches Differential Pressure Sensor Airflow Sensor Humidity, CO2(0-2000 ppm) CO(0-100) ppm NO2(0-5) ppm Current TX (0-10Amps) Current TX (0-20Amps) Current TX (0-50Amps) ION Meter 0-1 Million ions/cc
Analog- in1	To define the inputs to monitor	Generic 0-10V	0-2 inches. Pressure Sensor 0-0.25 inches Differential Pressure Sensor Airflow Sensor Humidity, CO2(0-2000 ppm) CO(0-100 ppm) NO2(0-5 ppm) Current TX (0-10Amps) Current TX (0-20Amps) Current TX (0-50Amps) ION Meter 0-1 Million ions/cc
