The MyStat Startup UI guides the user through the initial device setup and operational mode selection during device power ON or reboot. During startup, the user can select one of four operational modes: Pair with CCU, Standalone, BACnet MSTP, or Test Mode. Based on the selected mode, the device either performs CCU pairing, configures standalone operation, initializes BACnet MSTP communication settings, or enters output testing mode for validation purposes. After successful configuration in Pair with CCU, Standalone, and BACnet MSTP modes, the device automatically restarts and transitions to the Home screen for normal runtime operation.

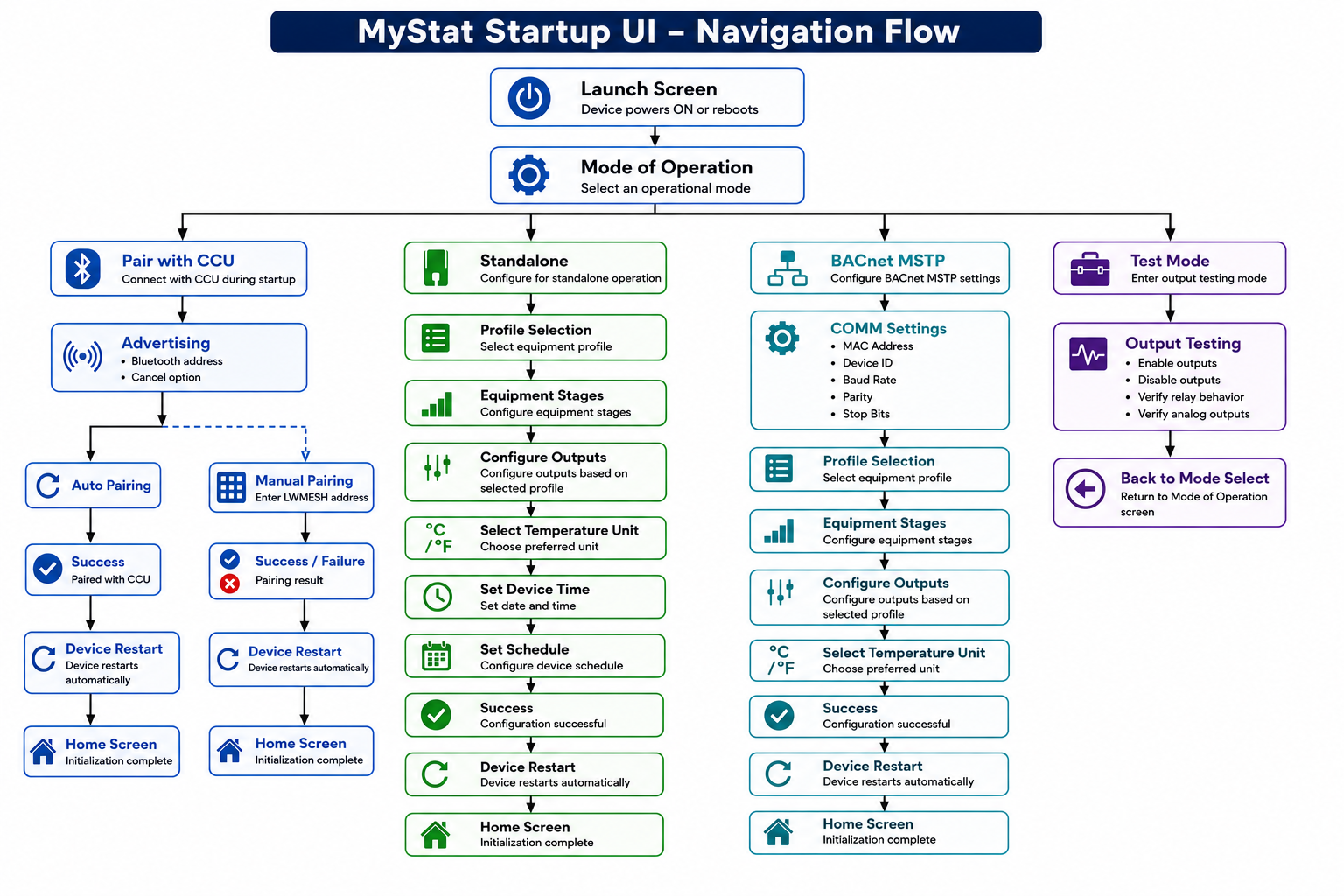

| Startup navigation Flow

Image 1.png

| Launch Screen

When the device powers ON or reboots, the Launch Screen is displayed.

Image 2.png

After startup initialization completes, the device automatically transitions to the Mode of Operation screen.

| Mode of Operation

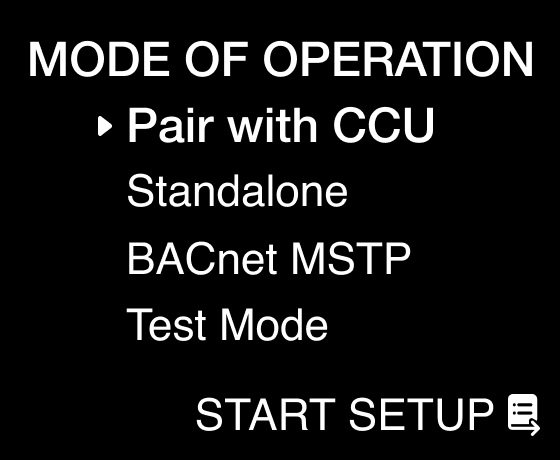

The Mode of Operation screen allows the user to select the required operating mode.

Image 3.png

Available modes:

  • Pair with CCU
  • Standalone
  • BACnet MSTP
  • Test Mode

Use the UP or DOWN arrow to select the required mode.

Press START SETUP using the Menu button to begin the selected setup workflow.

| Pair with CCU

The Pair with CCU workflow is used to connect the device with the CCU during startup.

Image 4.png

Select Pair with CCU from the Mode of Operation screen by using the UP or DOWN arrow and press START SETUP using the Menu button to begin the pairing process.

| Advertising

After starting the Pair with CCU workflow, the device enters Advertising mode.

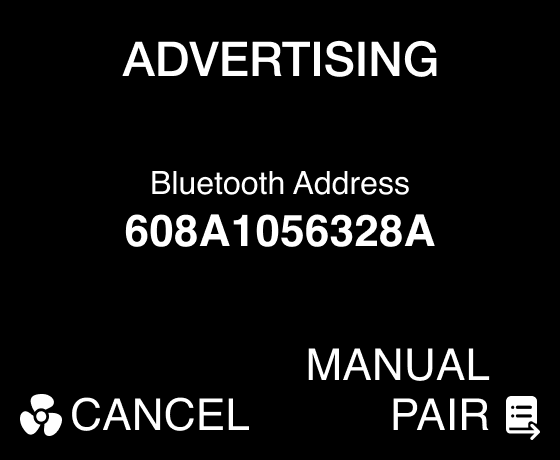

The Advertising screen displays:

  • Bluetooth address
  • CANCEL option

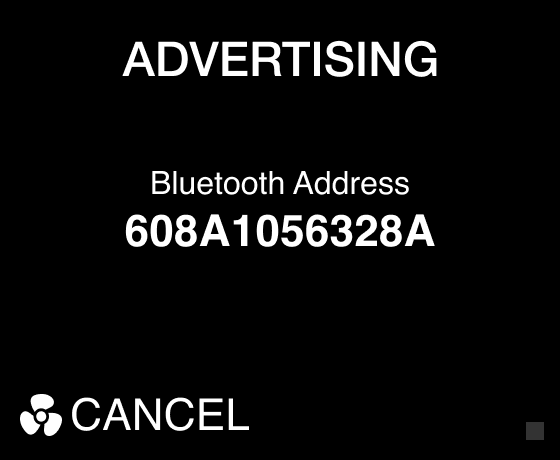

Image 5.png

During this state, the device waits for automatic CCU pairing.

If pairing is successful, the Paired with CCU screen is displayed.

Image 6.png

| Manual Pairing

If no pairing activity occurs for approximately 15 seconds during Advertising mode, the MANUAL PAIR option appears on the screen.

Image 7.png

Select MANUAL PAIR using the Menu button to manually enter the LWMESH address for pairing.

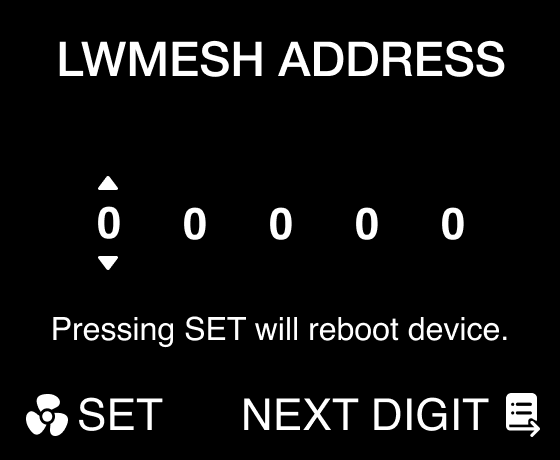

The address can be entered digit-by-digit using:

  • SET
  • NEXT DIGIT

Image 8.png

After confirming the address, the device starts the manual pairing process.

If pairing is successful, the Paired with CCU screen is displayed.

Image 9.png

If pairing fails or CANCEL option is selected by pressing the Fan icon, the Unable to pair with CCU screen is displayed.

Image 10.png

| Restart and Home Screen

After successful pairing, the device automatically restarts and the startup sequence runs again.

Once initialization completes, the device transitions to the Home screen.

Image 11.png

| Standalone Mode

The Standalone workflow allows the device to operate independently without CCU or BACnet connectivity.

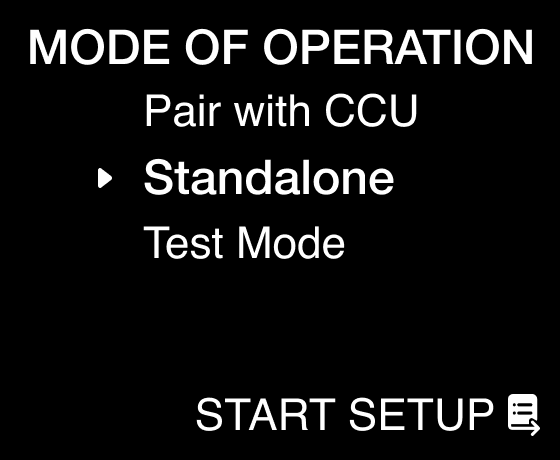

Select Standalone from the Mode of Operation screen by using the UP or DOWN arrow and press START SETUP using the Menu button to begin the standalone setup process.

Image 12.png

| Profile Selection

The Profile Selection screen allows the user to select the required equipment type.

Available profiles:

  • Package Unit
  • Heat Pump
  • 2 Pipe FCU
  • 4 Pipe FCU

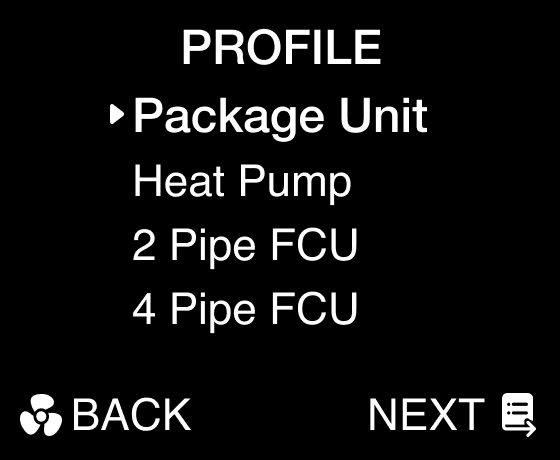

Image 13.png

Use the UP or DOWN arrow to select the required profile and press NEXT using the Menu button to continue.

Image 14.png

The selected profile determines the available configuration options during setup.

| Equipment Stages

The Equipment Stages screen allows the user to configure the required cooling and heating stages.

Available configurations include:

  • Cooling stages
  • Heating stages

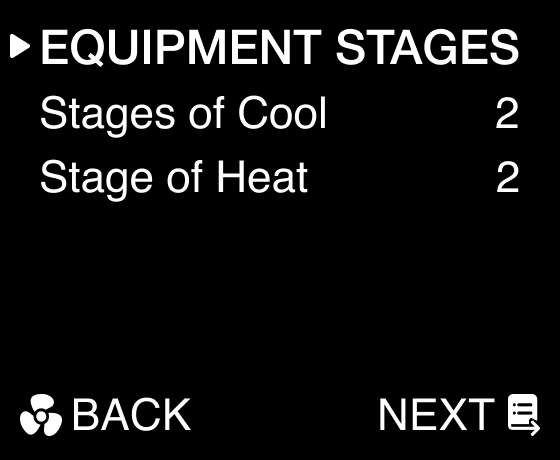

Image 15.png

Use the UP or DOWN arrow to select the configurations and press Menu button to SELECT the configuration.

Image 16.png

Use the UP or DOWN arrow to modify the stage values and press Menu button to DESELECT.

Image 17.png

Press NEXT using the Menu button to continue.

Image 18.png

| Configure Outputs

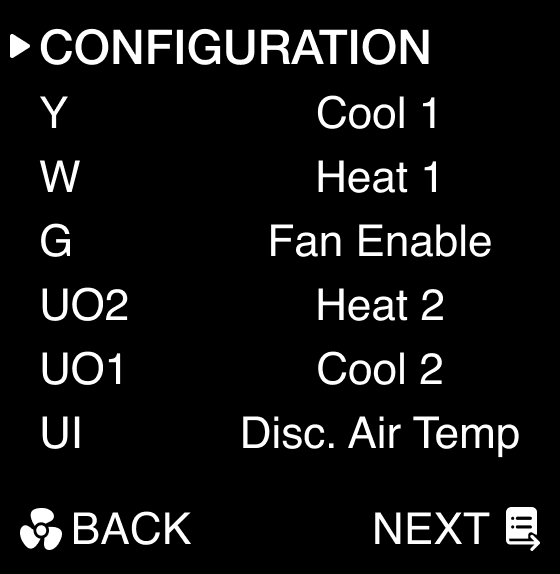

The Configure Outputs screens allow the user to configure and map the required outputs for the selected equipment profile.

Image 19.png

Available output configurations include:

  • Cooling
  • Heating
  • Fan
  • Additional outputs

Use the UP or DOWN arrow to select the required output and press the Menu button to SELECT the configuration.

Image 20.png

Use the UP or DOWN arrow to modify the output configuration and press the Menu button to DESELECT the configuration.

Image 21.png

Press NEXT using the Menu button to continue.

Image 22.png

| Select Temperature Unit

The Select Temperature Unit screen allows the user to configure the preferred temperature unit for device operation and display.

Image 23.png

Available options include:

  • Celsius (°C)
  • Fahrenheit (°F)

Use the UP or DOWN arrow to select the required temperature unit and press NEXT using the Menu button to continue.

Image 24.png

| Set Device Time

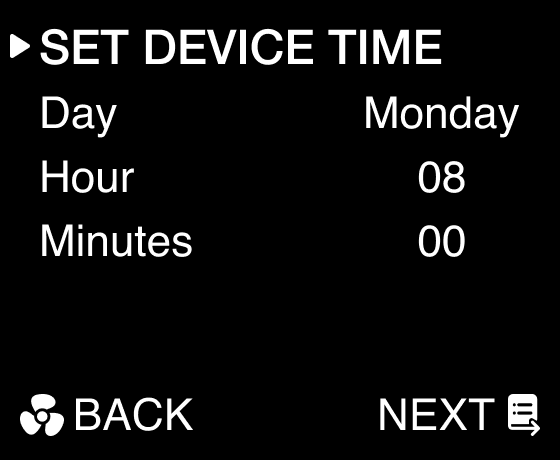

The Set Device Time screen allows the user to configure the device time for schedule operation.

Available configurations include:

  • Day
  • Hour
  • Minutes

Image 25.png

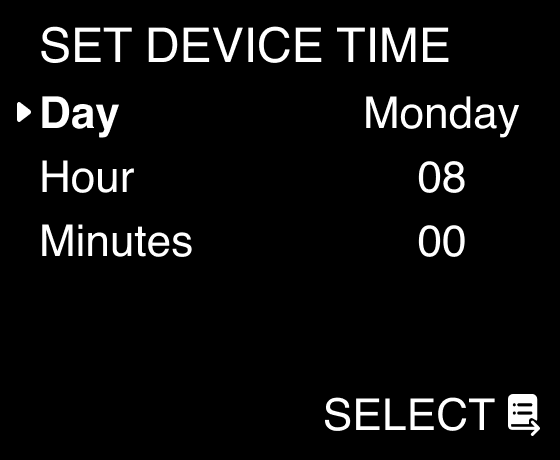

Use the UP or DOWN arrow to select the required field and press the Menu button to SELECT the configuration.

Image 26.png

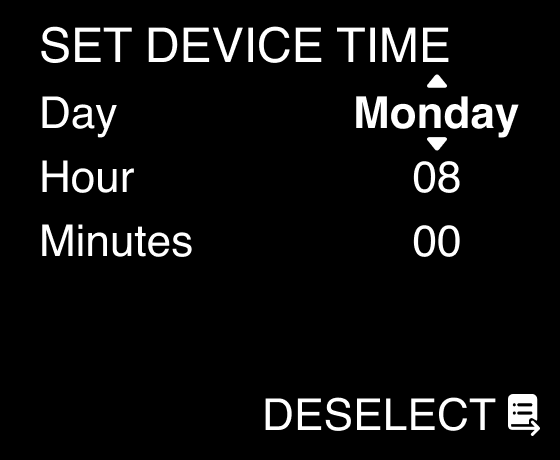

 Use the UP or DOWN arrow to modify the selected value and press the Menu button to DESELECT the configuration.

Image 27.png

Press NEXT using the Menu button to continue.

Image 28.png

| Set Schedule

The Set Schedule screens allow the user to configure the required weekday and weekend schedules.

Available schedule configurations include:

  • Weekday events
  • Weekend events

Image 29.png

Use the UP or DOWN arrow to select the required schedule type and press the Menu button to SELECT the configuration.

Image 30.png

The selected schedule screen displays the available events. Up to 4 events can be configured for each schedule type. Events can be enabled, disabled, or modified individually.

Use the UP or DOWN arrow to select the required event and press the Menu button to SELECT the event configuration.

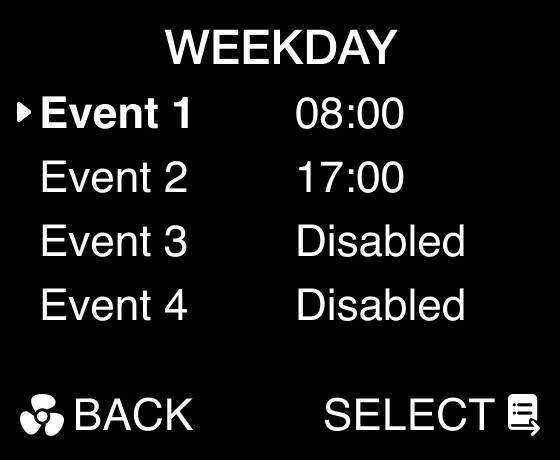

Image 31.png

Each schedule event includes:

  • Status
  • Start Time
  • Cool Temp
  • Heat Temp
  • Mode
  • Occupancy

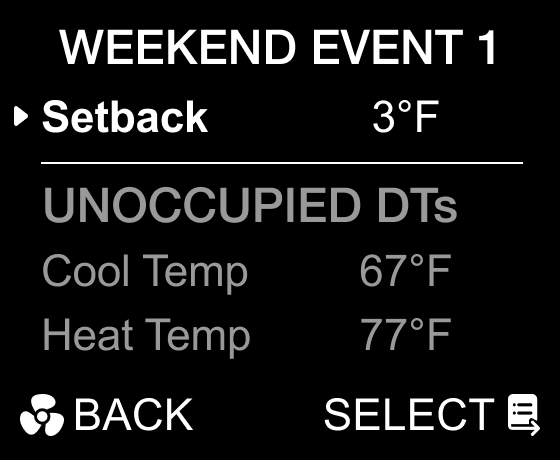

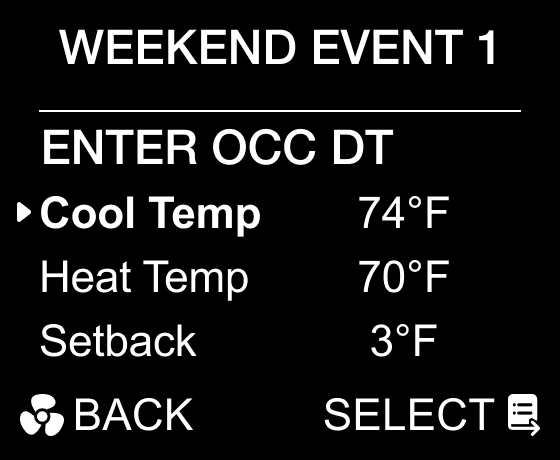

Use the UP or DOWN arrow to select the required configuration and press the Menu button to SELECT the field.

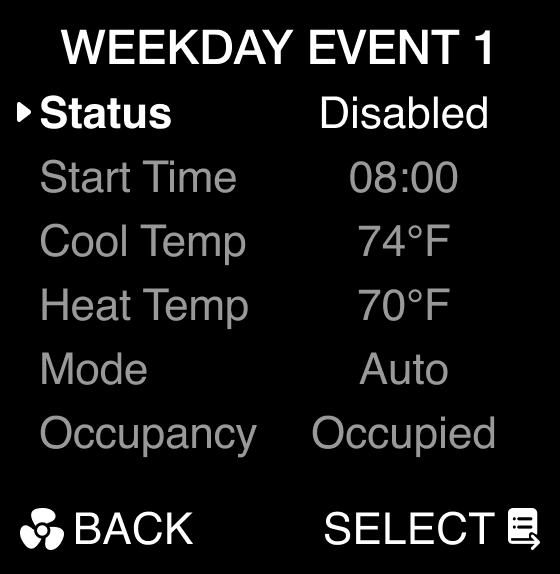

Image 32.png

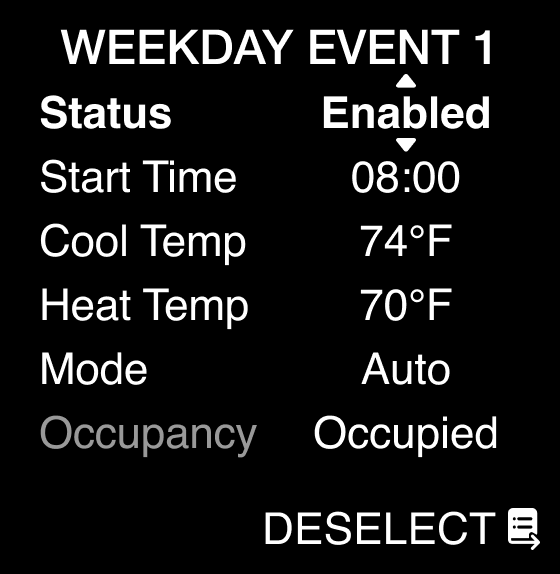

Use the UP or DOWN arrow to modify the selected value and press the Menu button to DESELECT the field.

Image 33.png

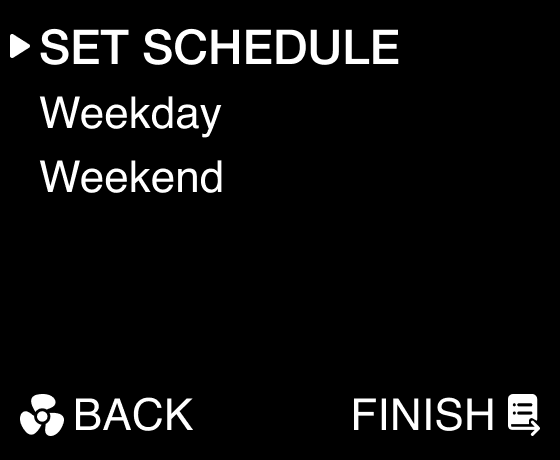

 Navigate BACK to the SET SCHEDULE screen.

After completing the required schedule configurations, press FINISH using the Menu button to continue.

Image 34.png

| Restart and Home Screen

After setup completion, the Success screen is displayed.

Image 35.png

he device then automatically restarts and applies the previously configured standalone settings.

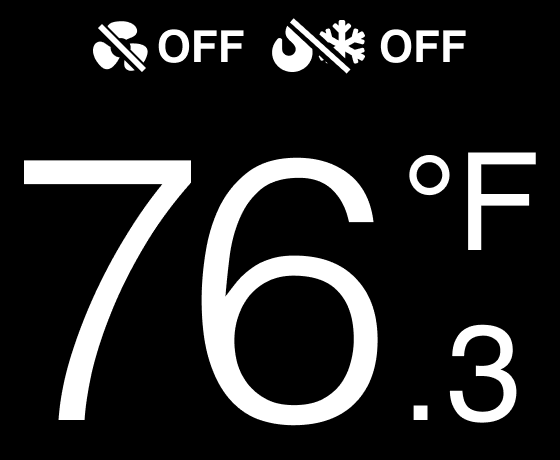

Once initialization completes, the device transitions directly to the Home screen for normal standalone runtime operation.

Image 36.png

| BACnet MSTP Mode

The BACnet MSTP workflow allows the device to operate within a BACnet MS/TP network.

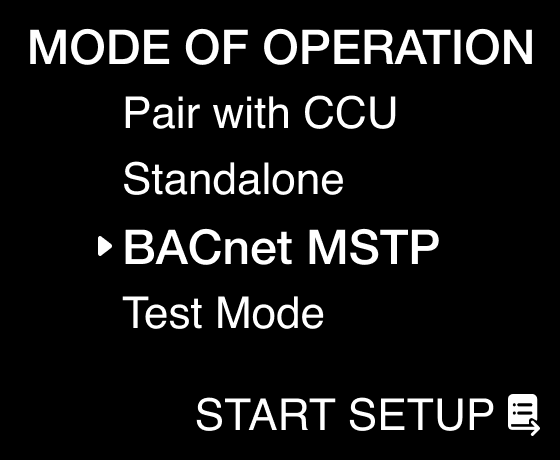

Select BACnet MSTP from the Mode of Operation screen by using the UP or DOWN arrow and press START SETUP using the Menu button to begin the BACnet setup process.

Image 37.png

| COM Settings

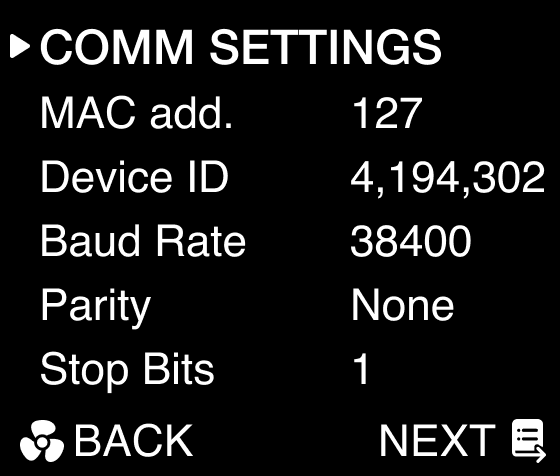

The COM Settings screens allow the user to configure the required BACnet communication parameters.

Image 37.1.png

Available configurations include:

  • MAC Address
  • Device ID
  • Baud Rate
  • Parity
  • Stop Bits

Use the UP or DOWN arrow to select the required field and press the Menu button to SELECT the configuration.

Use the UP or DOWN arrow to modify the selected value and press the Menu button to DESELECT the configuration.

Press NEXT using the Menu button to continue.

| Profile Selection

The Profile Selection screen allows the user to select the required equipment type.

Available profiles:

  • Package Unit
  • Heat Pump
  • 2 Pipe FCU
  • 4 Pipe FCU
Image 38.png

Use the UP or DOWN arrow to select the required profile and press NEXT using the Menu button to continue.

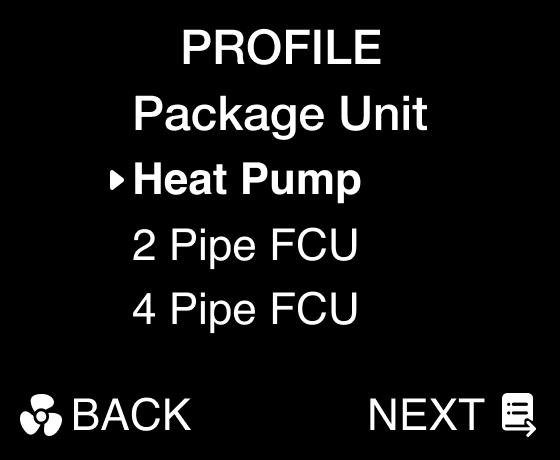

Image 39.png

The selected profile determines the available configuration options during setup.

| Equipment Stages

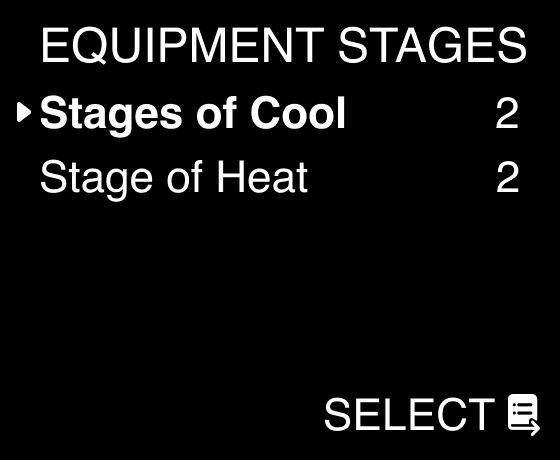

The Equipment Stages screen allows the user to configure the required equipment stages based on the selected equipment profile.

Image 40.png

The available stage configurations depend on the selected profile:

  • Package Unit → Cooling stages and Heating stages
  • Heat Pump → Compressor stages
  • 2 Pipe FCU → No equipment stage configuration
  • 4 Pipe FCU → No equipment stage configuration

Use the UP or DOWN arrow to select the configurations and press the Menu button to SELECT the configuration.

Image 41.png

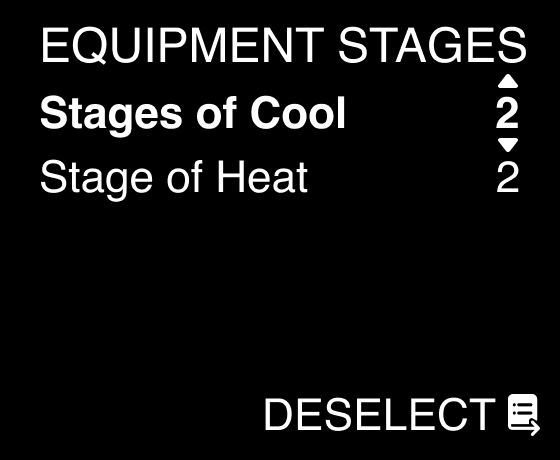

Use the UP or DOWN arrow to modify the stage values and press the Menu button to DESELECT the configuration.

Image 42.png

Press NEXT using the Menu button to continue.

Image 43.png

| Configure Outputs

The Configure Outputs screens allow the user to configure and map the required outputs for the selected equipment profile.

Image 44.png

Available output configurations include:

  • Cooling
  • Heating
  • Fan
  • Additional outputs

Use the UP or DOWN arrow to select the required output and press the Menu button to SELECT the configuration.

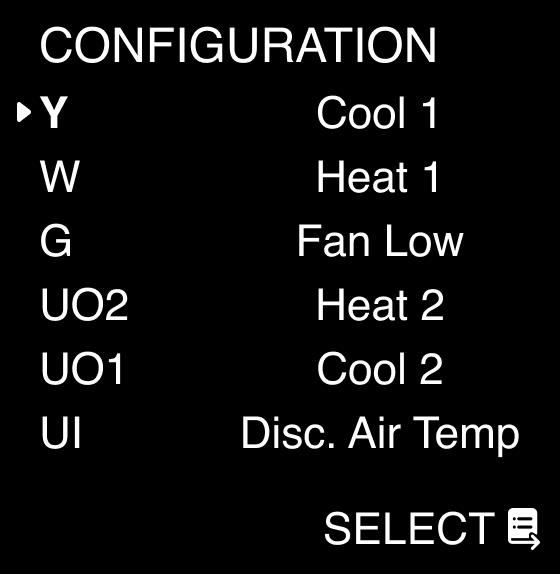

Image 45.png

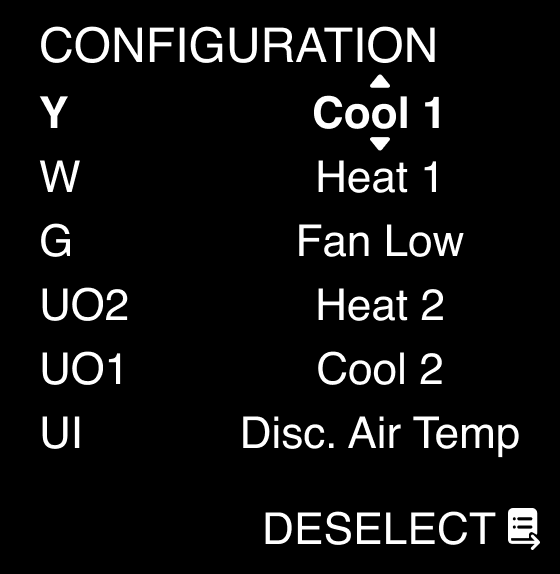

Use the UP or DOWN arrow to modify the output configuration and press the Menu button to DESELECT the configuration.

Image 46.png

Press NEXT using the Menu button to continue.

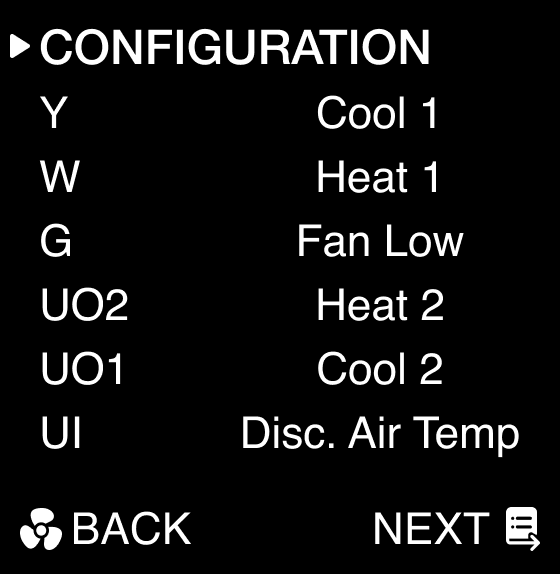

Image 47.png

| Select Temperature Unit

The Select Temperature Unit screen allows the user to configure the preferred temperature unit for device operation and display.

Image 48.png

Available options include:

  • Celsius (°C)
  • Fahrenheit (°F)

Use the UP or DOWN arrow to select the required temperature unit and press NEXT using the Menu button to continue.

Image 49.png

| Restart and Home Screen

After setup completion, the Success screen is displayed.

Image 50.png

The device then automatically restarts and applies the previously configured BACnet communication and device settings.

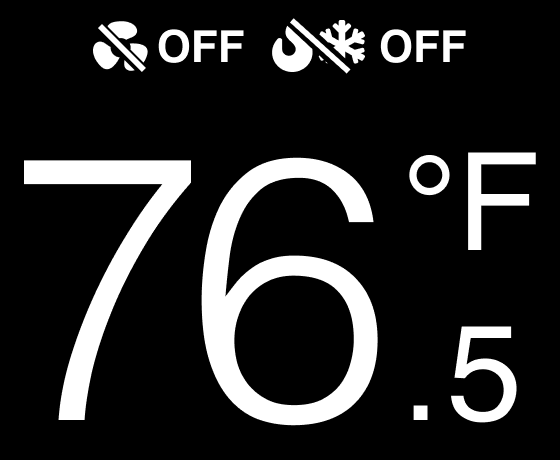

Once initialization completes, the device transitions directly to the Home screen for normal BACnet runtime operation.

Image 51.png

| Test Mode

The Test Mode workflow allows direct output testing from the device UI.

Select Test Mode from the Mode of Operation screen by using the UP or DOWN arrow and press START SETUP using the Menu button to begin output testing.

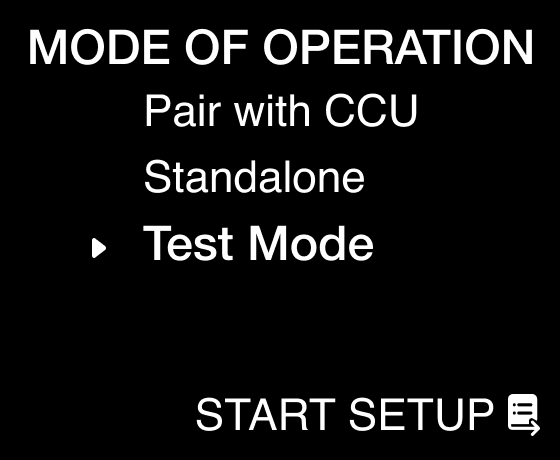

Image 52.png

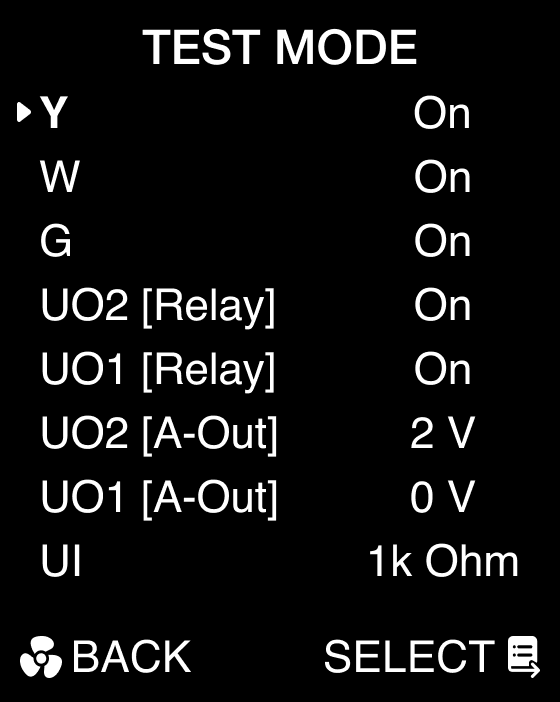

The Test Mode screen displays available outputs and their current operational state.

Available outputs include:

  •
  •
  •
  • UO1 [Relay]
  • UO2 [Relay]
  • UO1 [A-Out]
  • UO2 [A-Out]
  • UI

Use the UP or DOWN arrow to select the required output and press the Menu button to SELECT the output.

Image 53.png

Press the Menu button to DESELECT the selected output.

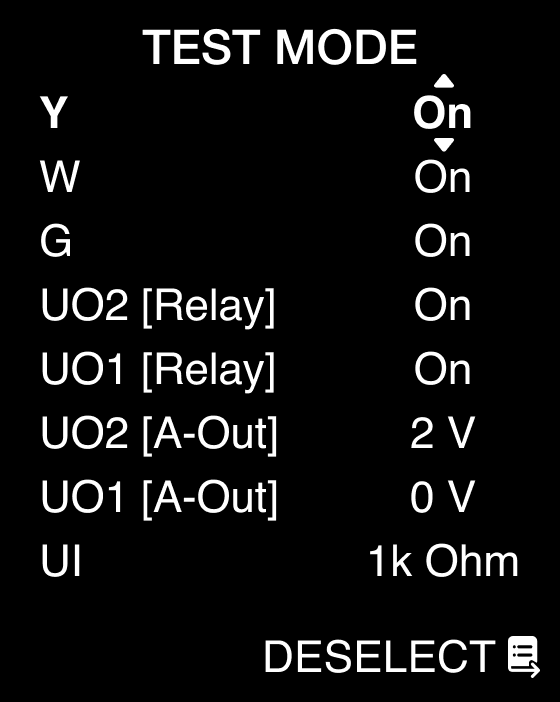

Image 54.png

The user can:

  • Enable outputs
  • Disable outputs
  • Verify relay behavior
  • Verify analog output values

When testing is completed, navigate BACK to return to the Mode of Operation screen.

Test Mode does not automatically restart the device or enter the Home screen.

Image 55.png
