MyStat Startup UI

Rahul Saikia
  • Updated

browse

The MyStat Startup UI guides the user through the initial device setup and operational mode selection during device power ON or reboot. During startup, the user can select one of three operational modes: Pair with CCU, Standalone, or Test Mode. Based on the selected mode, the device either performs CCU pairing, configures standalone operation, or enters output testing mode for validation purposes. After successful configuration in both Pair with CCU and Standalone modes, the device automatically restarts and transitions to the Home screen for normal runtime operation.

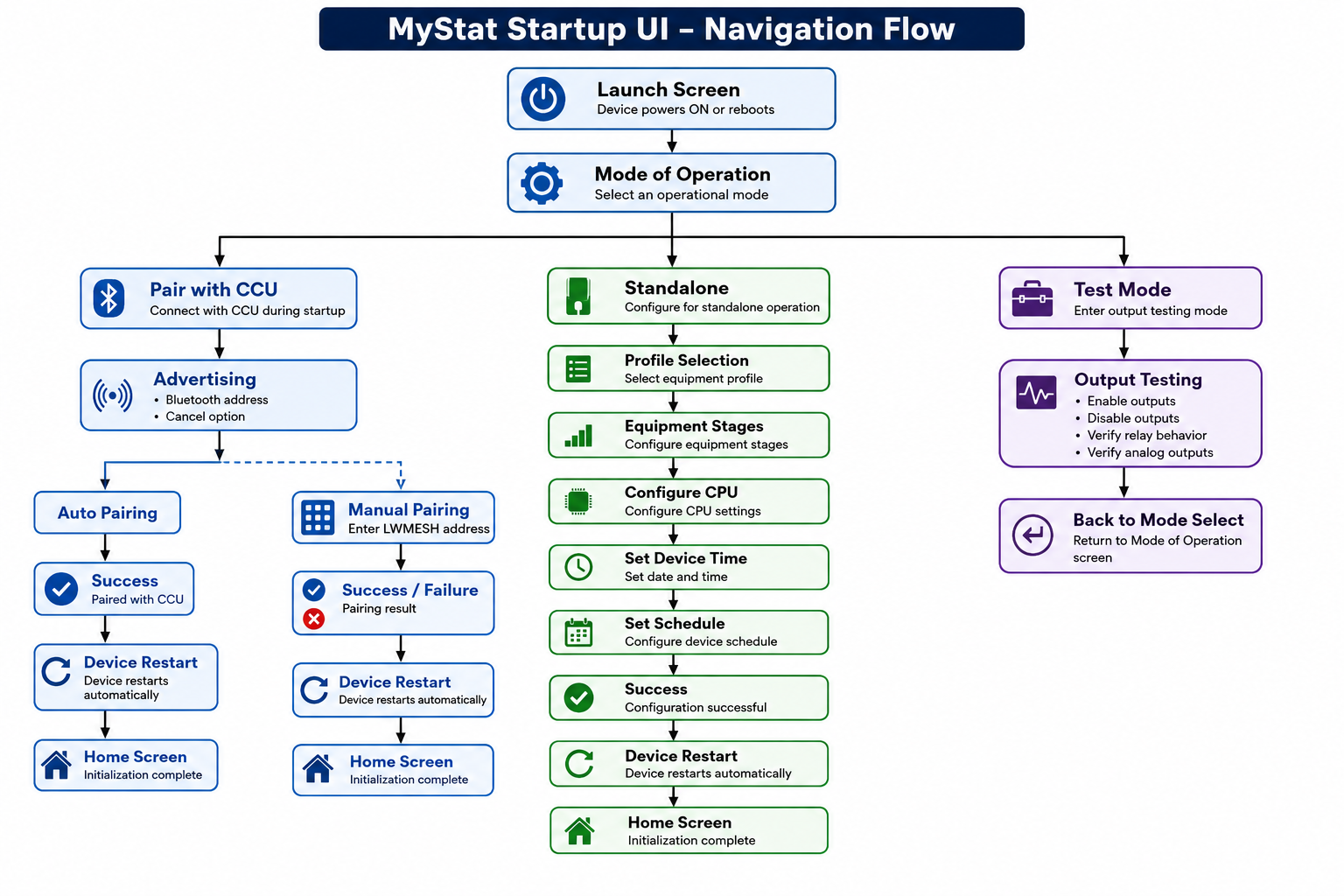

| Startup Navigation Flow

Image 1.png

| Launch Screen

When the device powers ON or reboots, the Launch Screen is displayed.

Image 2.png

After startup initialization completes, the device automatically transitions to the Mode of Operation screen.

| Mode of Operation

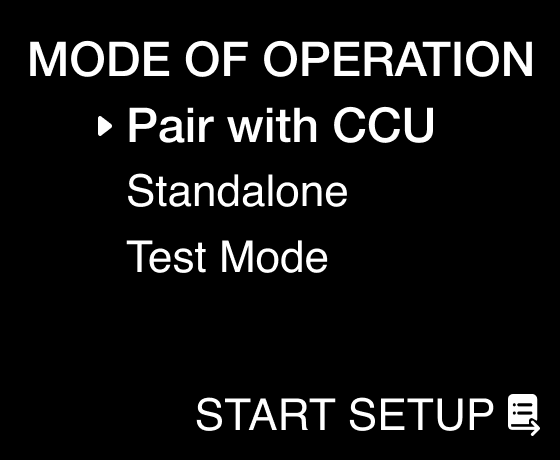

The Mode of Operation screen allows the user to select the required operating mode.

Available modes:

  • Pair with CCU

  • Standalone

  • Test Mode

Image 3.png

Use the UP or DOWN arrow to select the required mode.

Press START SETUP using the Menu button to begin the selected setup workflow.

| Pair with CCU

The Pair with CCU workflow is used to connect the device with the CCU during startup.

Image 4.png

Select Pair with CCU from the Mode of Operation screen by using the UP or DOWN arrow and press START SETUP using the Menu button to begin the pairing process.

| Advertising

After starting the Pair with CCU workflow, the device enters Advertising mode.

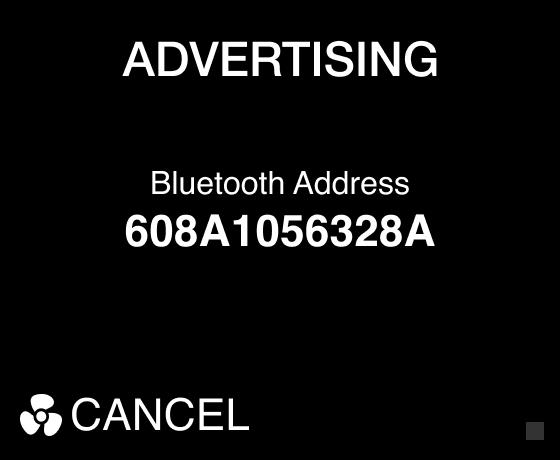

The Advertising screen displays:

  • Bluetooth address
  • CANCEL option

Image 5.png

During this state, the device waits for automatic CCU pairing.

If pairing is successful, the Paired with CCU screen is displayed.

Image 6.png

| Manual Pairing

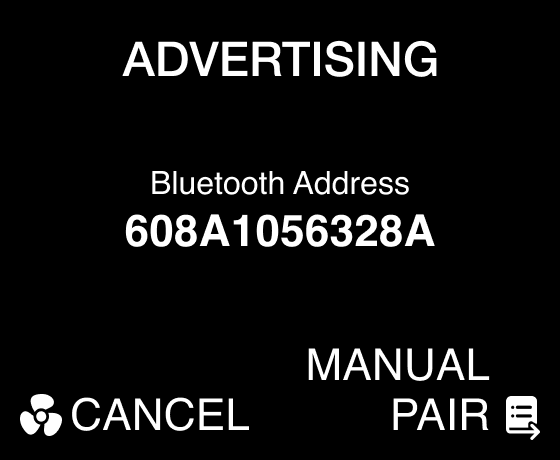

If no pairing activity occurs for approximately 15 seconds during Advertising mode, the MANUAL PAIR option appears on the screen.

Image 7.png

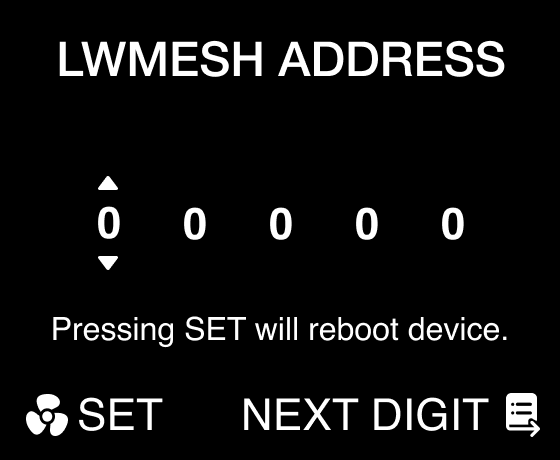

Select MANUAL PAIR using the Menu button to manually enter the LWMESH address for pairing.

The address can be entered digit-by-digit using:

  • SET
  • NEXT DIGIT

Image 8.png

After confirming the address, the device starts the manual pairing process.

If pairing is successful, the Paired with CCU screen is displayed.

Image 9.png

If pairing fails or CANCEL option is selected by pressing the Fan icon, the Unable to pair with CCU screen is displayed.

Image 10.png

| Restart and Home Screen

After successful pairing, the device automatically restarts and the startup sequence runs again.

Image 11.png

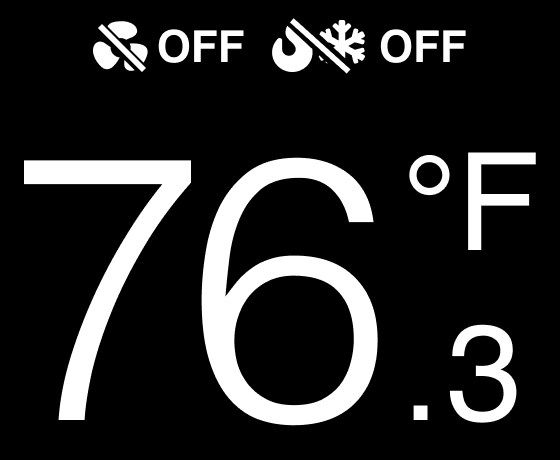

Once initialization completes, the device transitions to the Home screen.

Image 12.png

| Standalone Mode

The Standalone workflow allows the device to operate independently without CCU pairing.

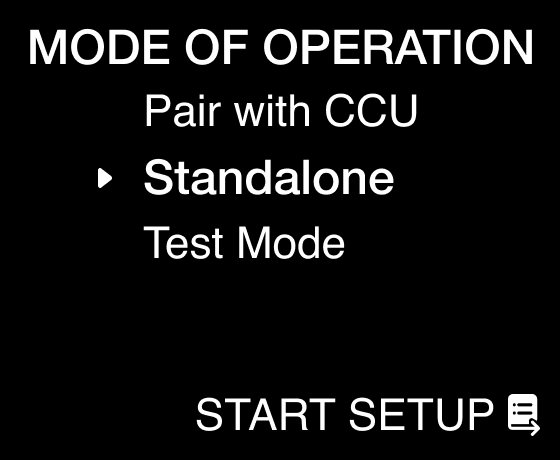

Select Standalone from the Mode of Operation screen by using the UP or DOWN arrow and press START SETUP using the Menu button to begin the standalone setup process.

Image 13.png

| Profile Selection

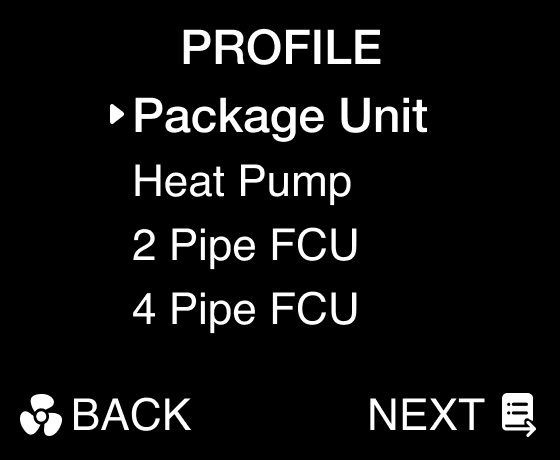

The Profile Selection screen allows the user to select the required equipment type.

Available profiles:

  • Package Unit
  • Heat Pump
  • 2 Pipe FCU
  • 4 Pipe FCU

Image 14.png

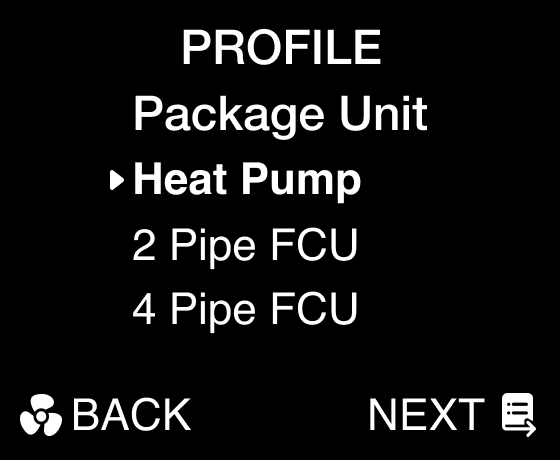

Use the UP or DOWN arrow to select the required profile and press NEXT using the Menu button to continue.

Image 15.png

The selected profile determines the available configuration options during setup.

| Equipment Stages

The Equipment Stages screen allows the user to configure the required equipment stages based on the selected equipment profile.

Image 16.png

The available stage configurations depend on the selected profile:

  • Package Unit → Cooling stages and Heating stages
  • Heat Pump → Compressor stages
  • 2 Pipe FCU → No equipment stage configuration
  • 4 Pipe FCU → No equipment stage configuration

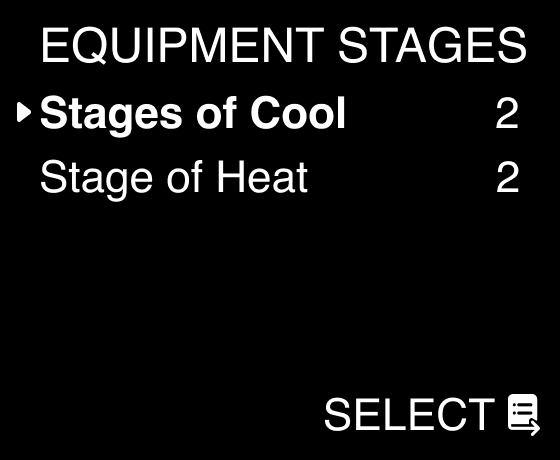

Use the UP or DOWN arrow to select the configurations and press the Menu button to SELECT the configuration.

Image 17.png

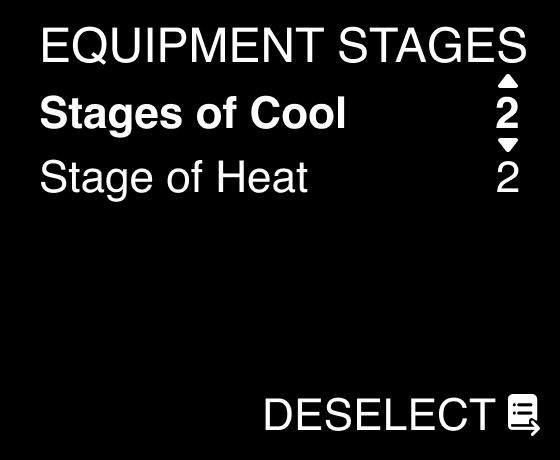

Use the UP or DOWN arrow to modify the stage values and press the Menu button to DESELECT the configuration.

Image 18.png

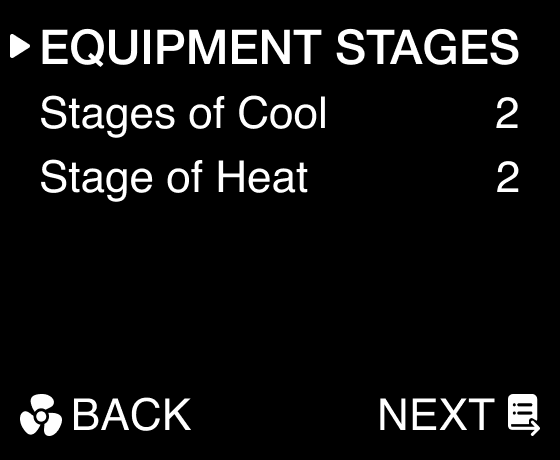

 Press NEXT using the Menu button to continue.

Image 19.png

| Configure Outputs

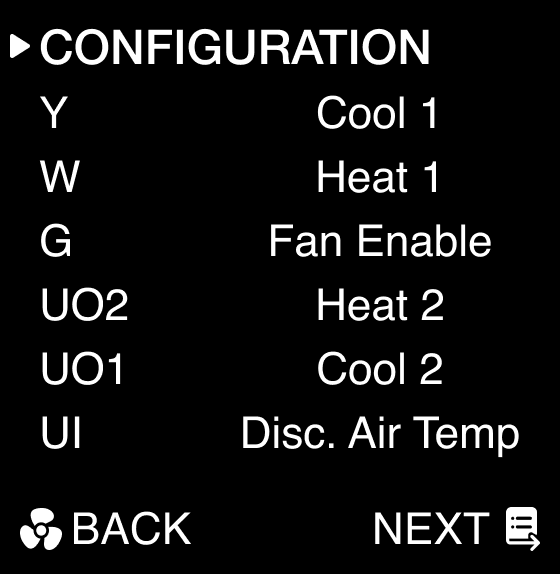

The Configure Outputs screens allow the user to configure and map the required outputs for the selected equipment profile.

Image 20.png

Available output configurations include:

  • Cooling
  • Heating
  • Fan
  • Additional outputs

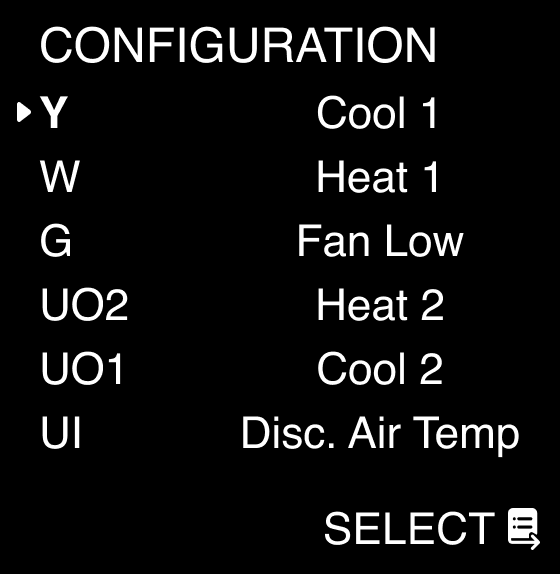

Use the UP or DOWN arrow to select the required output and press the Menu button to SELECT the configuration.

Image 21.png

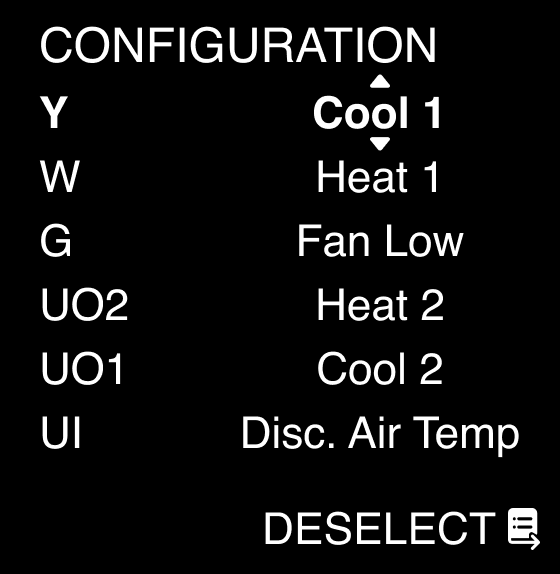

Use the UP or DOWN arrow to modify the output configuration and press the Menu button to DESELECT the configuration.

Image 22.png

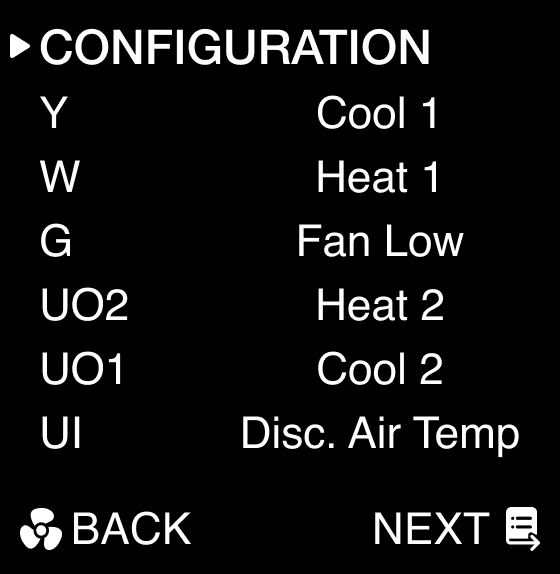

Press NEXT using the Menu button to continue.

Image 23.png

| Set Device Time

The Set Device Time screen allows the user to configure the device time for schedule operation.

Available configurations include:

  • Day
  • Hour
  • Minutes

Image 24.png

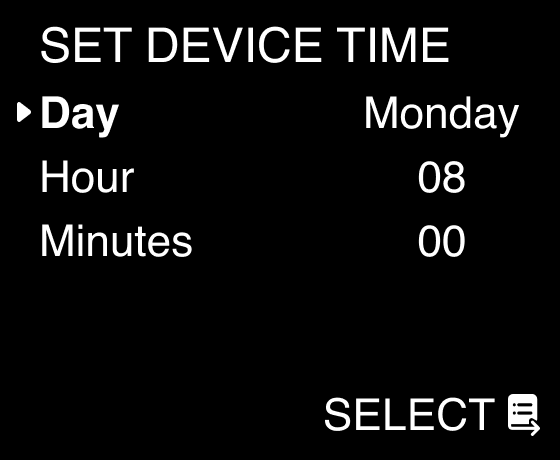

Use the UP or DOWN arrow to select the required field and press the Menu button to SELECT the configuration.

Image 25.png

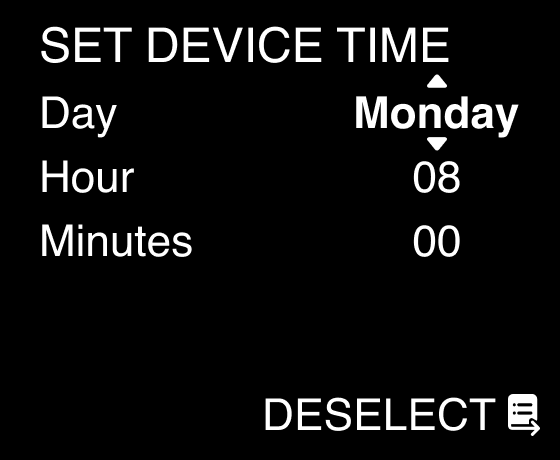

Use the UP or DOWN arrow to modify the selected value and press the Menu button to DESELECT the configuration.

Image 26.png

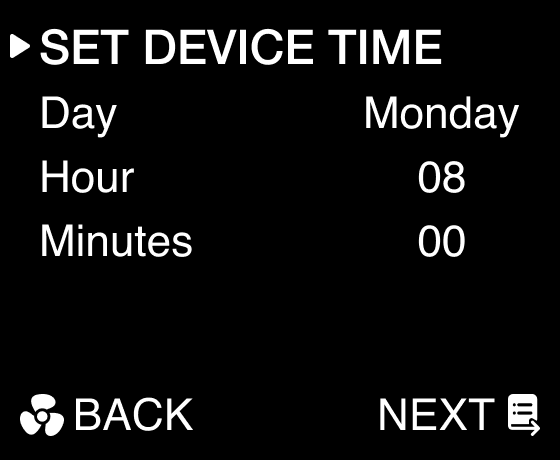

 Press NEXT using the Menu button to continue.

Image 27.png

| Set Schedule

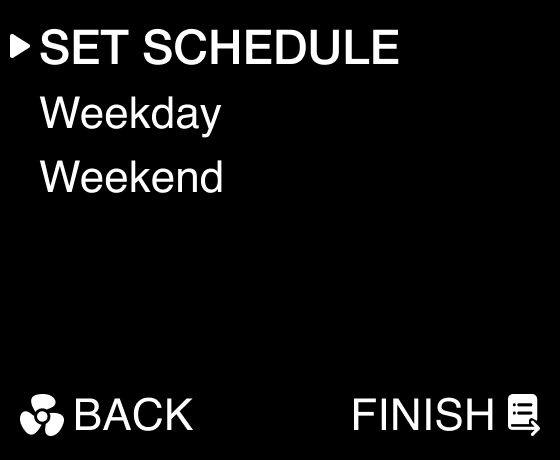

The Set Schedule screens allow the user to configure the required weekday and weekend schedules.

Available schedule configurations include:

  • Weekday events
  • Weekend events

Image 28.png

Use the UP or DOWN arrow to select the required schedule type and press the Menu button to SELECT the configuration.

Image 29.png

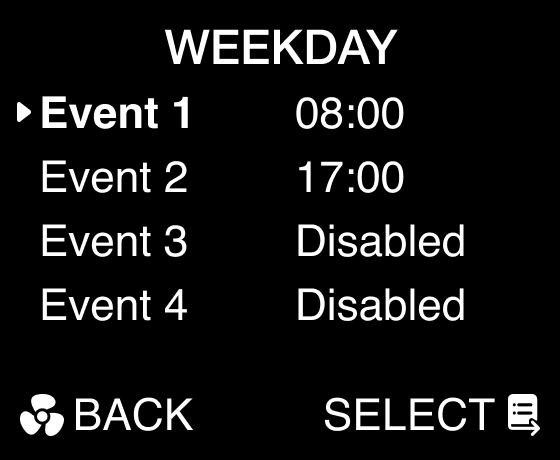

The selected schedule screen displays the available events. Up to 4 events can be configured for each schedule type. Events can be enabled, disabled, or modified individually.

Use the UP or DOWN arrow to select the required event and press the Menu button to SELECT the event configuration.

Image 30.png

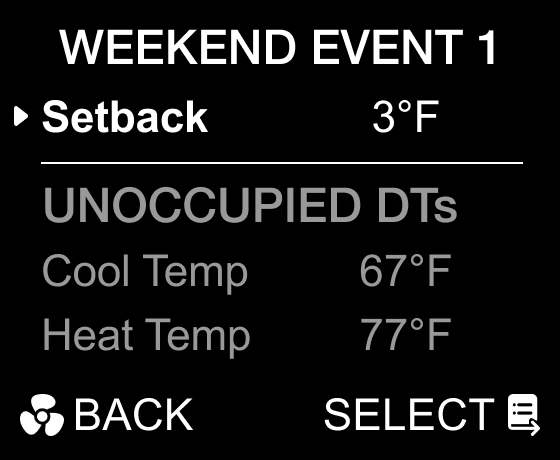

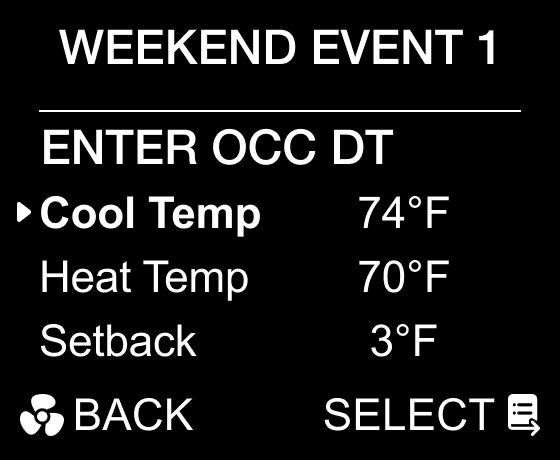

Each schedule event includes:

  • Status
  • Start Time
  • Cool Temp
  • Heat Temp
  • Mode
  • Occupancy

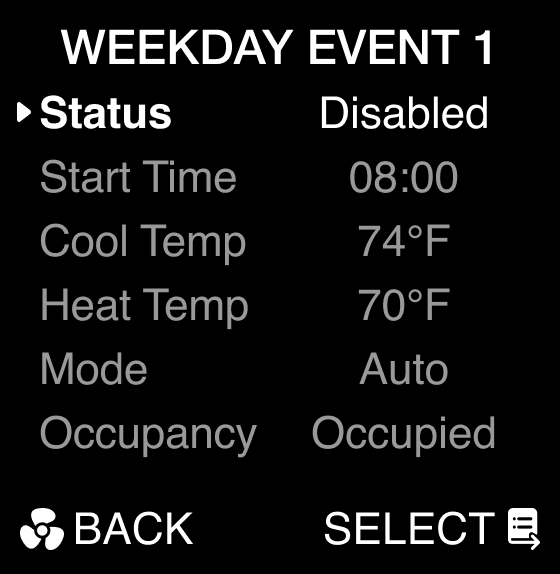

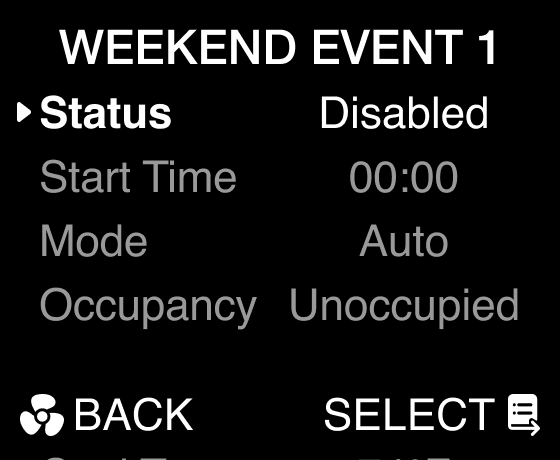

Use the UP or DOWN arrow to select the required configuration and press the Menu button to SELECT the field.

Image 31.png

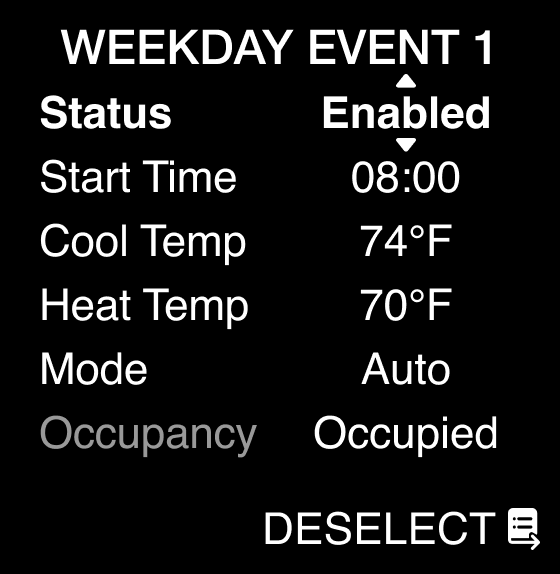

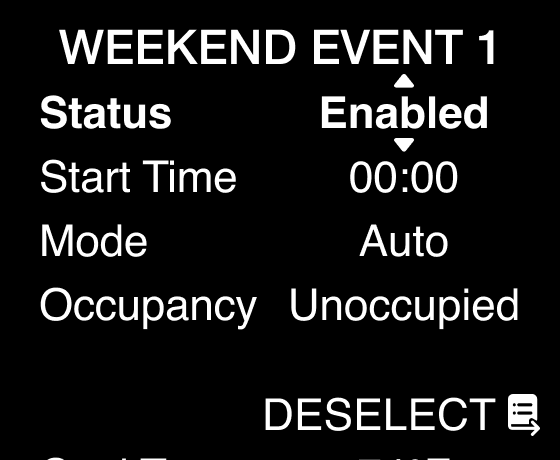

Use the UP or DOWN arrow to modify the selected value and press the Menu button to DESELECT the field.

Image 32.png

Navigate BACK to the SET SCHEDULE screen.

After completing the required schedule configurations, press FINISH using the Menu button to continue.

Image 33.png

| Restart and Home Screen

After setup completion, the Success screen is displayed.

Image 34.png

The device then automatically restarts and the startup sequence runs again.

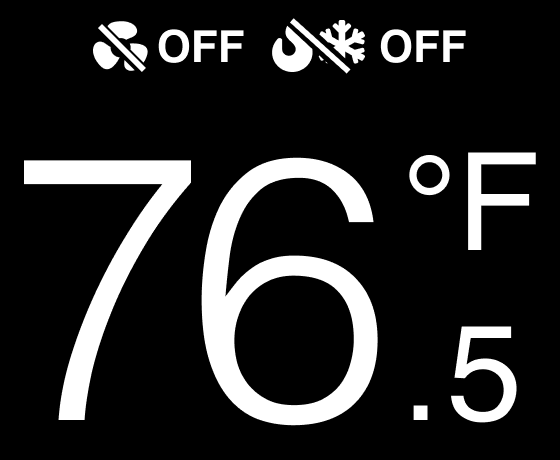

Once initialization completes, the device transitions to the Home screen.



Image 35.png

| Test Mode

The Test Mode workflow allows direct output testing from the device UI.

Select Test Mode from the Mode of Operation screen by using the UP or DOWN arrow and press START SETUP using the Menu button to begin output testing.

Image 36.png

The Test Mode screen displays available outputs and their current operational state.

Available outputs include:

  • Y
  • W
  • G
  • UO1 [Relay]
  • UO2 [Relay]
  • UO1 [A-Out]
  • UO2 [A-Out]
  • UI

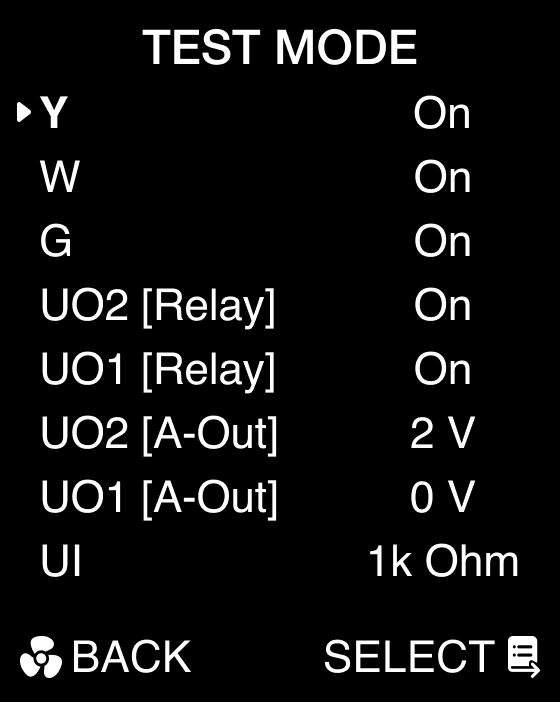

Use the UP or DOWN arrow to select the required output and press the Menu button to SELECT the output.

Image 37.png

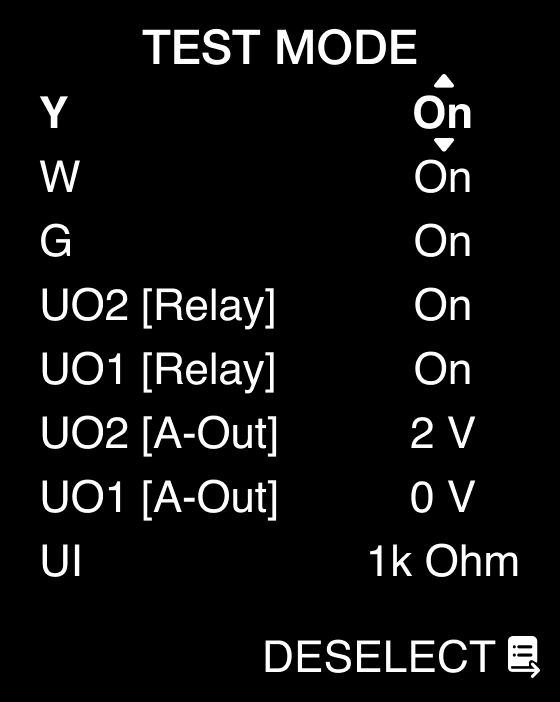

Press the Menu button to DESELECT the selected output.

Image 38.png

The user can:

  • Enable outputs
  • Disable outputs
  • Verify relay behavior
  • Verify analog output values

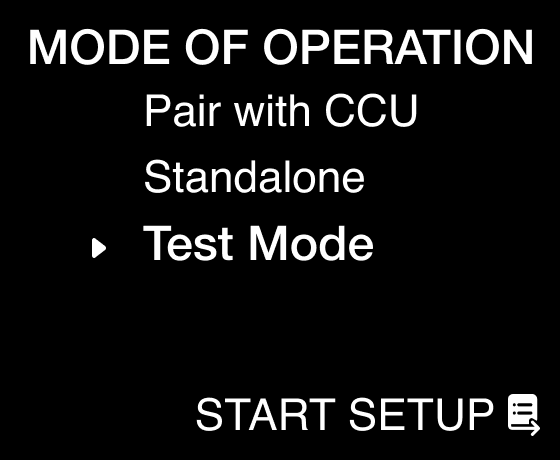

When testing is completed, navigate BACK to return to the Mode of Operation screen.

Test Mode does not automatically restart the device or enter the Home screen.

Image 39.png
