| Introduction

At 75F, different tools are made on the website to solve specific user issues. For instance, a Summary Table for clearer views and control of equipment data, and Custom Widgets to create charts for monitoring equipment data within a specific time. Each tool uses its own design, which makes it hard for users to work smoothly. Tasks such as building, viewing, choosing, updating, and sharing their work aren't consistent.

To curb this, a Common Framework is introduced across tools to maintain a consistent design pattern and workflow so as to improve and increase user engagement. This would also help users engage in a standardized sharing mechanism and contribute more frequently to the system.

The common framework provides the users with a consistent builder, sharing mechanism, like, bookmark, adding description, and custom arrangement capability across the following toolsets:

  • Summary table
  • Heatmap Filters
  • Custom Parameters
  • Analytics
  • Site Sequencer

| Features

The Common framework includes the following features:

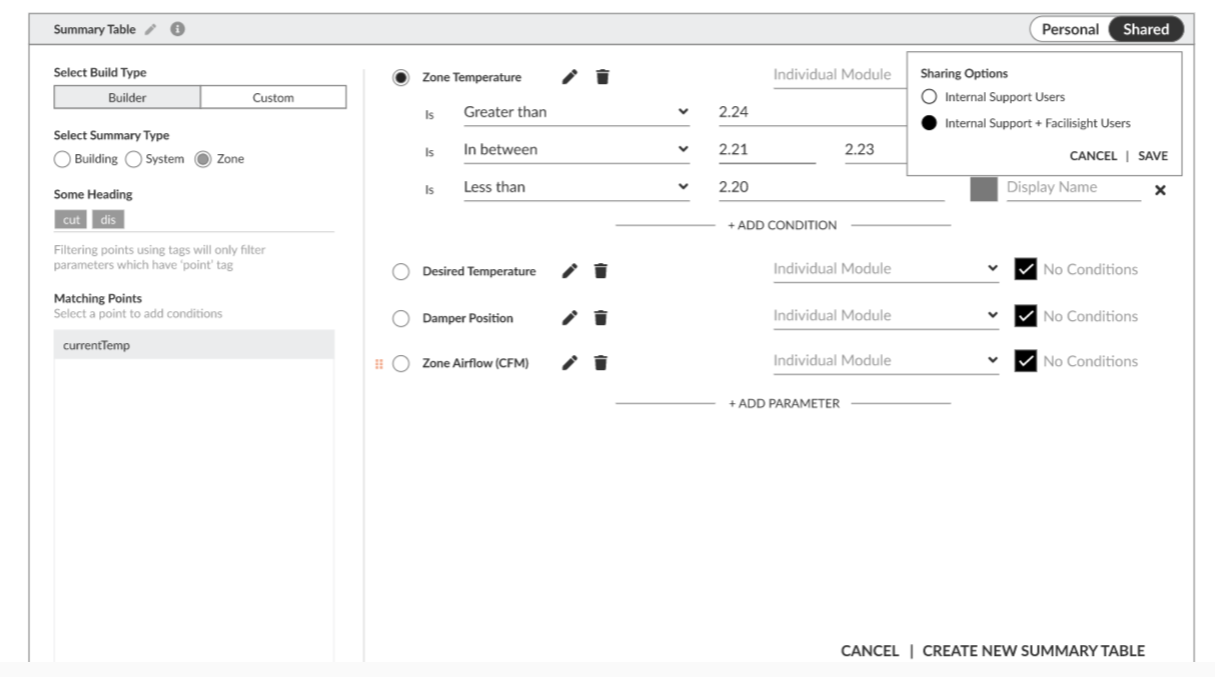

1. Consistent Sharing Framework: Users will have the capability to share their work across all the common tools under the framework.

GetImage (1).png

The user will have the option to share the work with internal support users only or share it across both the Internal Support Portal and Facilisight users.

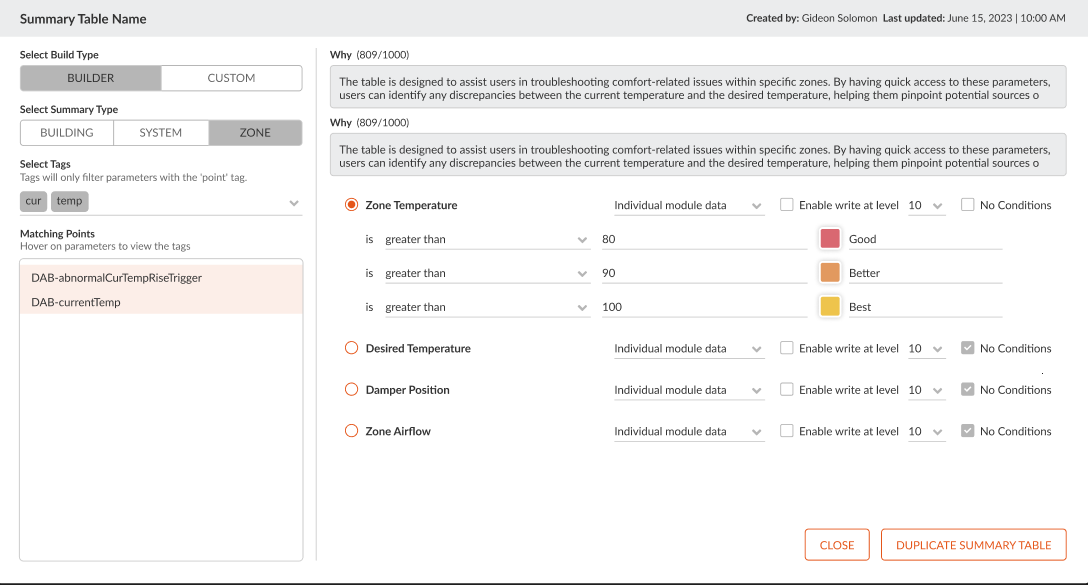

2. Consistent Builder: The user will have the capability to use a consistent builder to create items, from selecting build type to selecting scope type and option to query from builder or custom, so that the complete flow of information is consistent.

GetImage (2).png

3. Add and View Description: The creator can add descriptions that are typically expected to be used in the why and what framework. This would help other users to understand what and why of the creation which would further help in selecting the work in view once the work has been shared. There is a limit of 4000 characters for the why and what framework.

Why and What.png

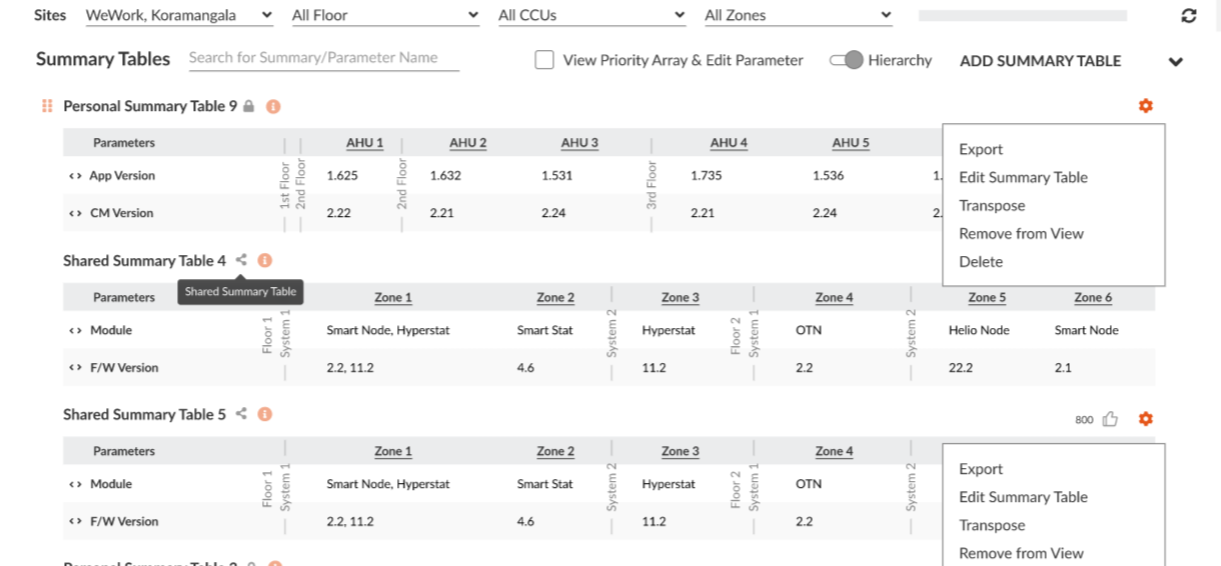

4. Customized View and Arrangement: Users will have the flexibility to arrange the view to cater to the dynamic requirements of the site which will help users to create customized views based on the site preference.

GetImage (3).png

5. Like and Bookmark Capability: Users will have the capability to like the work which are shared by others and bookmark the items for their own personal preference.

Screenshot 2023-12-05 145838p0.png

| Common Pool Dropdown Component

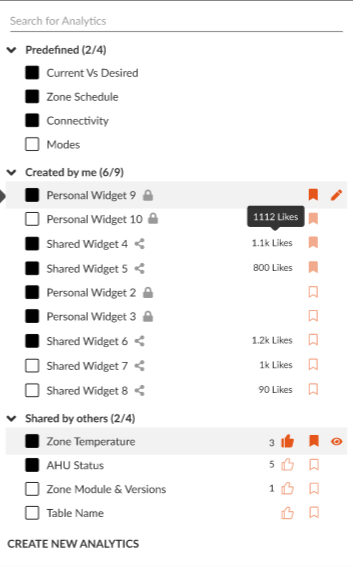

The common pool dropdown component is a primary component of the framework where the user will have options to visualize, like, share, bookmark, view count, and description of all the items shared by other users. It is a novel way of bringing in all the information under a common viewing platform. The common pool component is divided into three parts:

Component Particulars

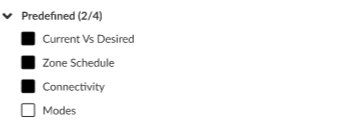

Predefined


  • Option for the user to view all the system generated items.
  • Option to select and unselect the predefined items for their view. Users will be able to see the total predefined items selected.
  • Option to hide "Predefined" items as per requirement.
  • Common search option for all predefined items.
  • Option to like and bookmark all predefined items.
  • Common search is provided on the top and text-based search for "Created by me" items.

Note: Predefined view is only available for filters

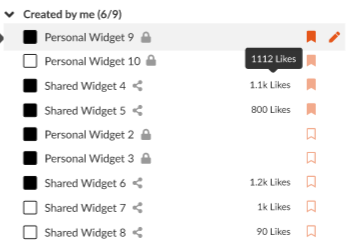

Created by Me

Screenshot 2023-12-05 151015g.png

  • Section contains both personal and shared items creator by the user.
  • User can add to their view by simply selecting from the drop-down list.
  • Option to select and unselect the items for user view. Users will be able to see the count of total items selected.
  • Option to hide "Created by me" items.
  • Common search is provided on the top and text-based search for "Created by me" items.

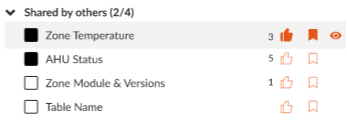

Shared by Others

Screenshot 2023-12-05 1511341d.png

  • Section contains shared items created by other users.
  • Users can add to their view by simply selecting from the drop-down list.
  • Option to select and unselect the items for user view. Users will be able to see the count of total items selected.
  • Option to hide "Shared by others" items.
  • Common search is provided on the top and text-based search for "Shared by Others" items.

Note: Sharing is only applicable for system integrators and L2 users.
