Wireless Multi Sensor - Installation & Initial Setup

| Introduction

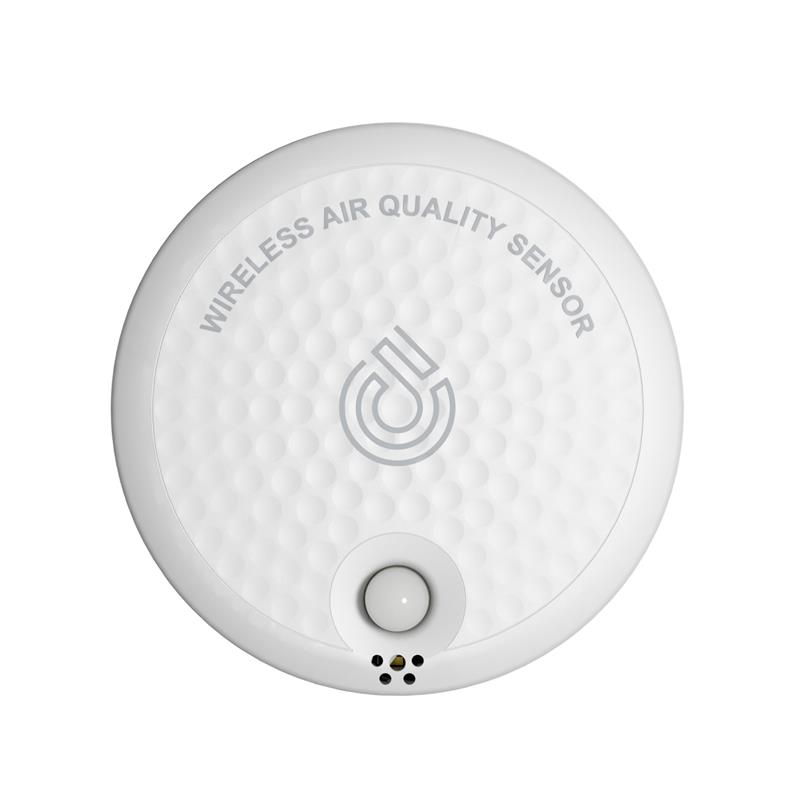

The Wireless Multi Sensor revolutionizes the installation process by eliminating the need for expensive, plenum-rated cabling and significantly reducing installation labor. Traditional wired wall-mounted sensors often require wire runs of up to 100 feet, making them costly and complex to install. The Wireless Multi-Sensor addresses this challenge head-on.

This sensor is designed to meet modern needs beyond just monitoring temperature and humidity. It also detects occupancy, ensuring comfort where it’s needed most, while optimizing power savings through its diverse range of sensor inputs. With a battery life exceeding five years, it is built to last in large spaces without the need for constant maintenance.

Efficient, reliable, and easy to install, the Wireless Multi Sensor is the ideal solution for modern, expansive spaces. Its advanced features ensure it meets the demands of large areas without frequent maintenance, making it a practical and cost-effective choice for any setting.

| Installation

| Pairing

| Mounting

• Mount the Wireless Multi Sensor onto the mounting plate by docking it onto the hook on the Mounting plate.

• Use the socket head screw provided in box to lock Wireless Multi Sensor with Mounting Plate.
• Use the Locking screw to keep the multisensor installation intact from any sort of disturbances.
