| Reconfiguring Profiles

Profiles are configured from the CCU but can be reconfigured for minor modifications in configuration settings and values from the internal portal.

| System Profile Reconfiguration

It is reconfiguring a profile from the CCU widget screen in the Internal portal.

To reconfigure a system profile:

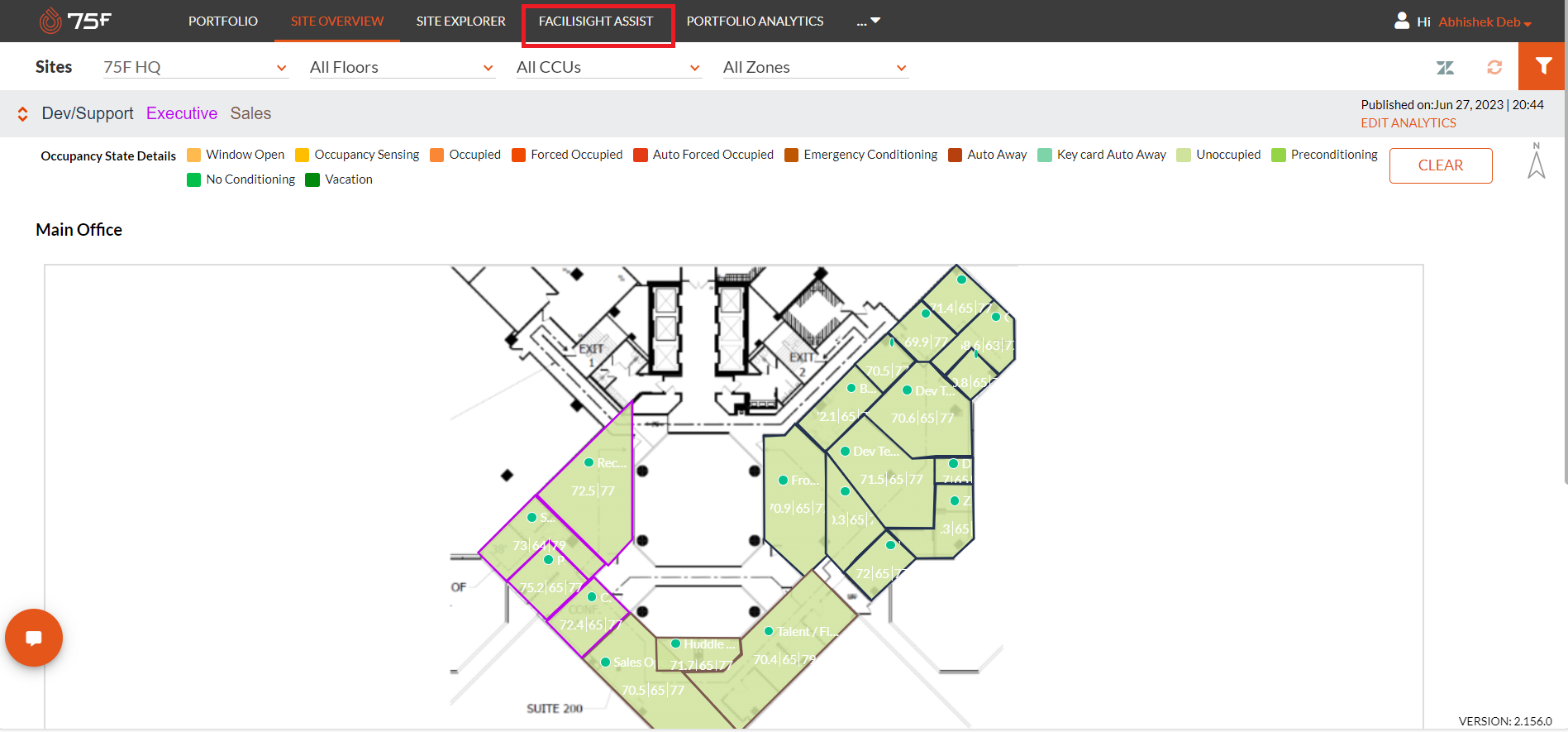

From the internal portal heatmap screen for the site.


  • Click the CCU for which you wish to reconfigure the profile parameters.

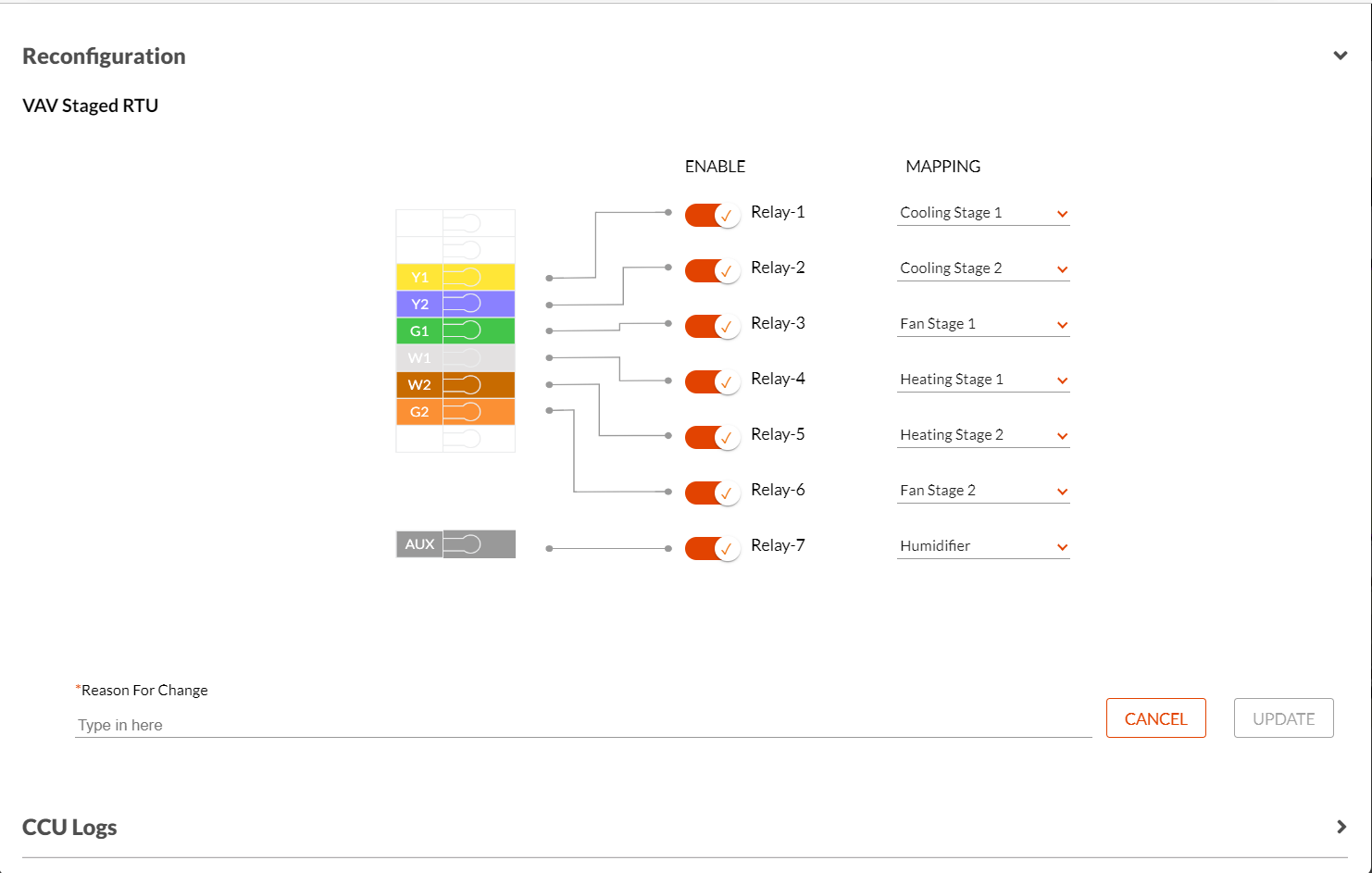

  • Scroll down further in the system-level visualization screen to locate the reconfiguration section and expand the Reconfiguration section as shown.

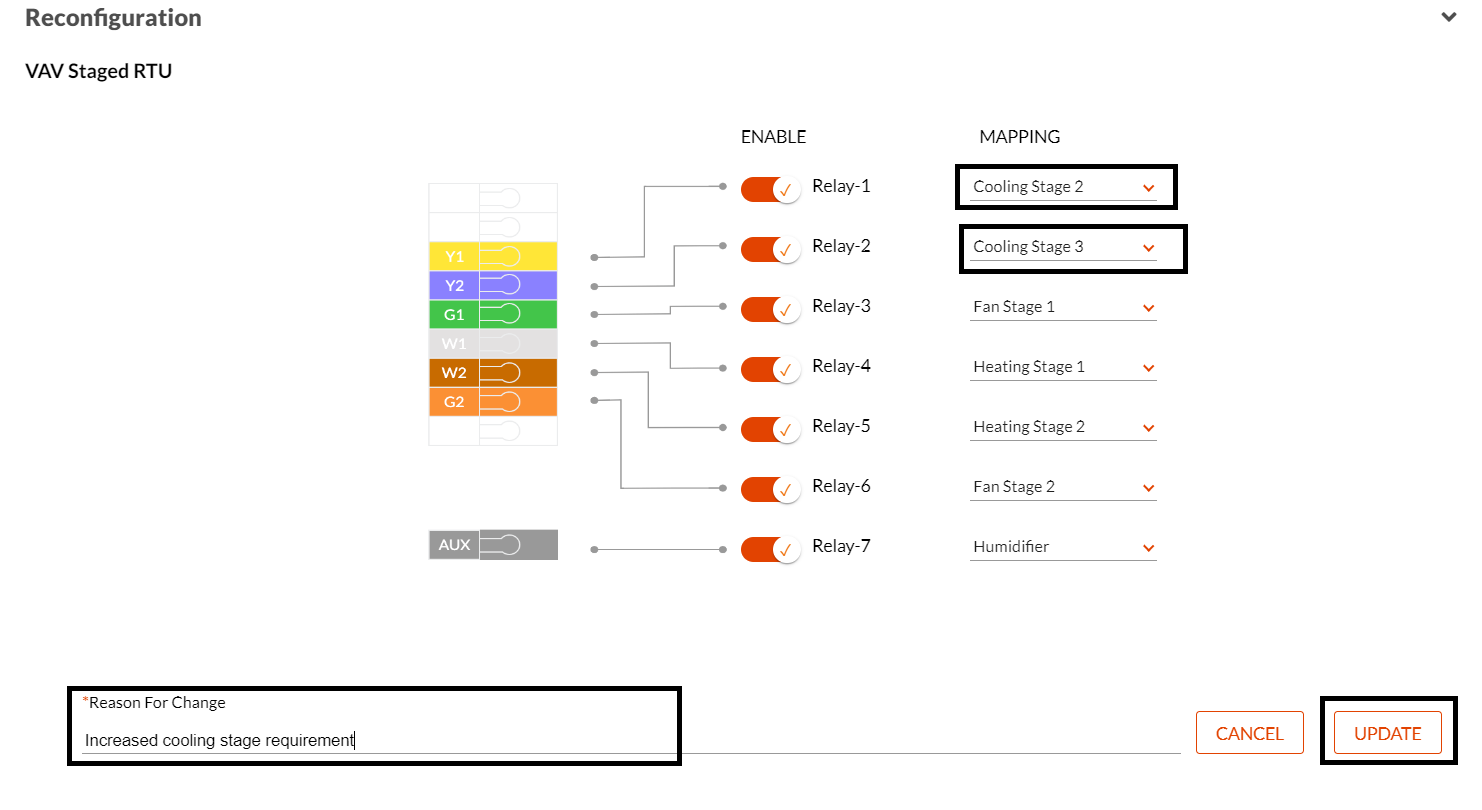

  • Make the necessary edits.
  • Enter the reason for the change.


  • click Update.

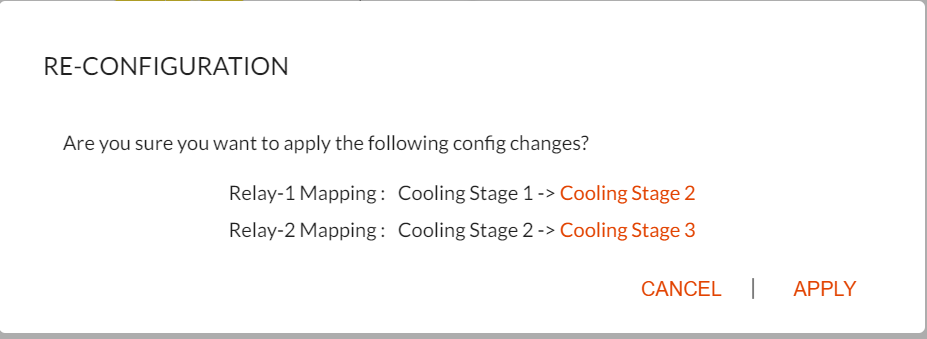

A confirmation window is displayed.


     7. Click Apply to confirm the changes.

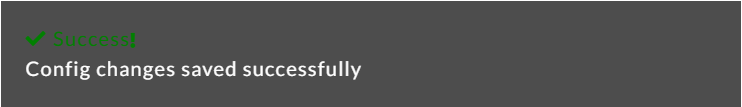

A message that the configuration changes are saved successfully appears.


| Terminal Profile Reconfiguration

It is reconfiguring a profile from the zone widget screen in the Internal portal

To reconfigure a terminal profile:

From the internal portal heatmap screen for the site.


  • Click the Zone for which you wish to reconfigure the profile parameters.

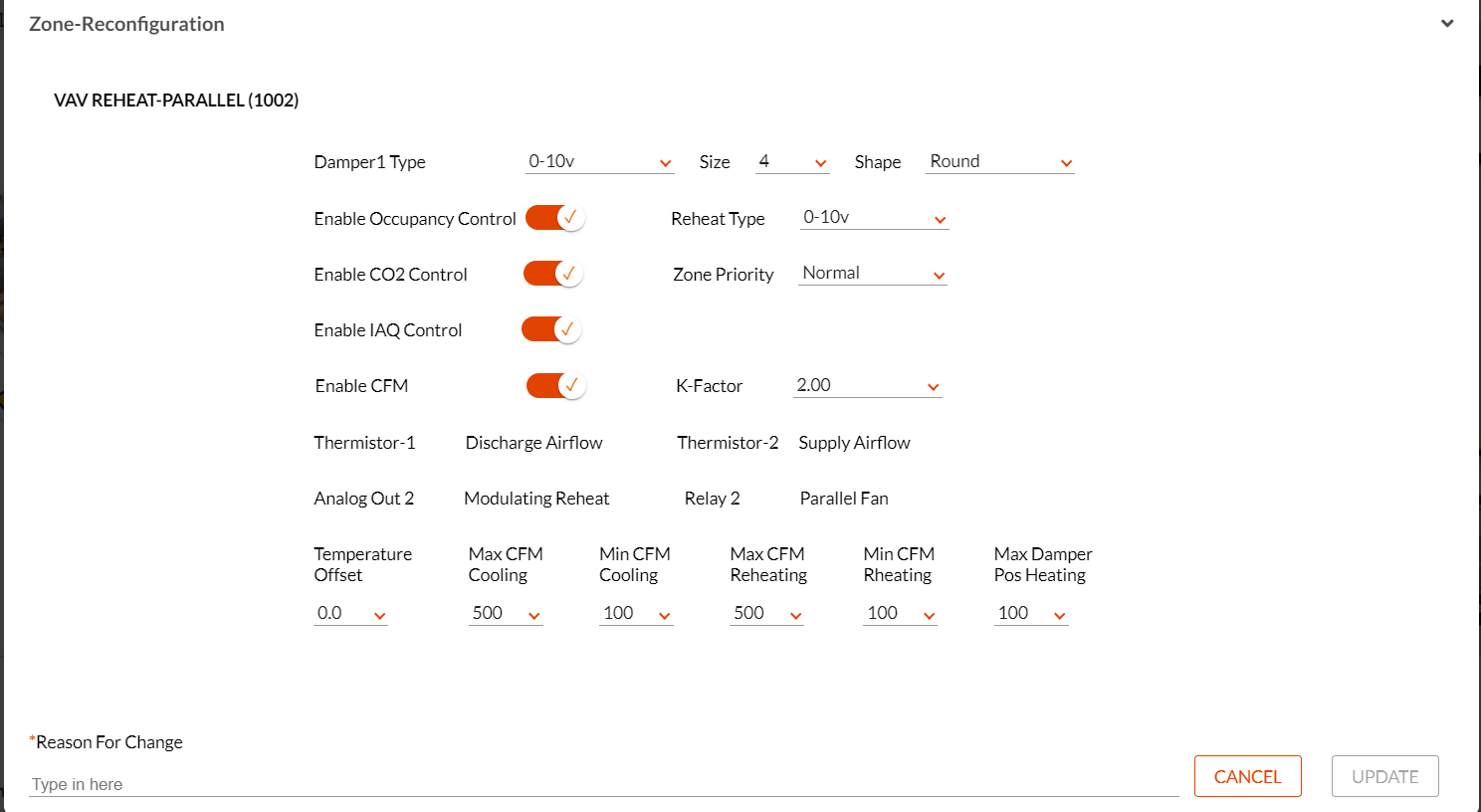

  • Scroll down further in the zone-level visualization screen to locate the reconfiguration section and expand the Reconfiguration section as shown.

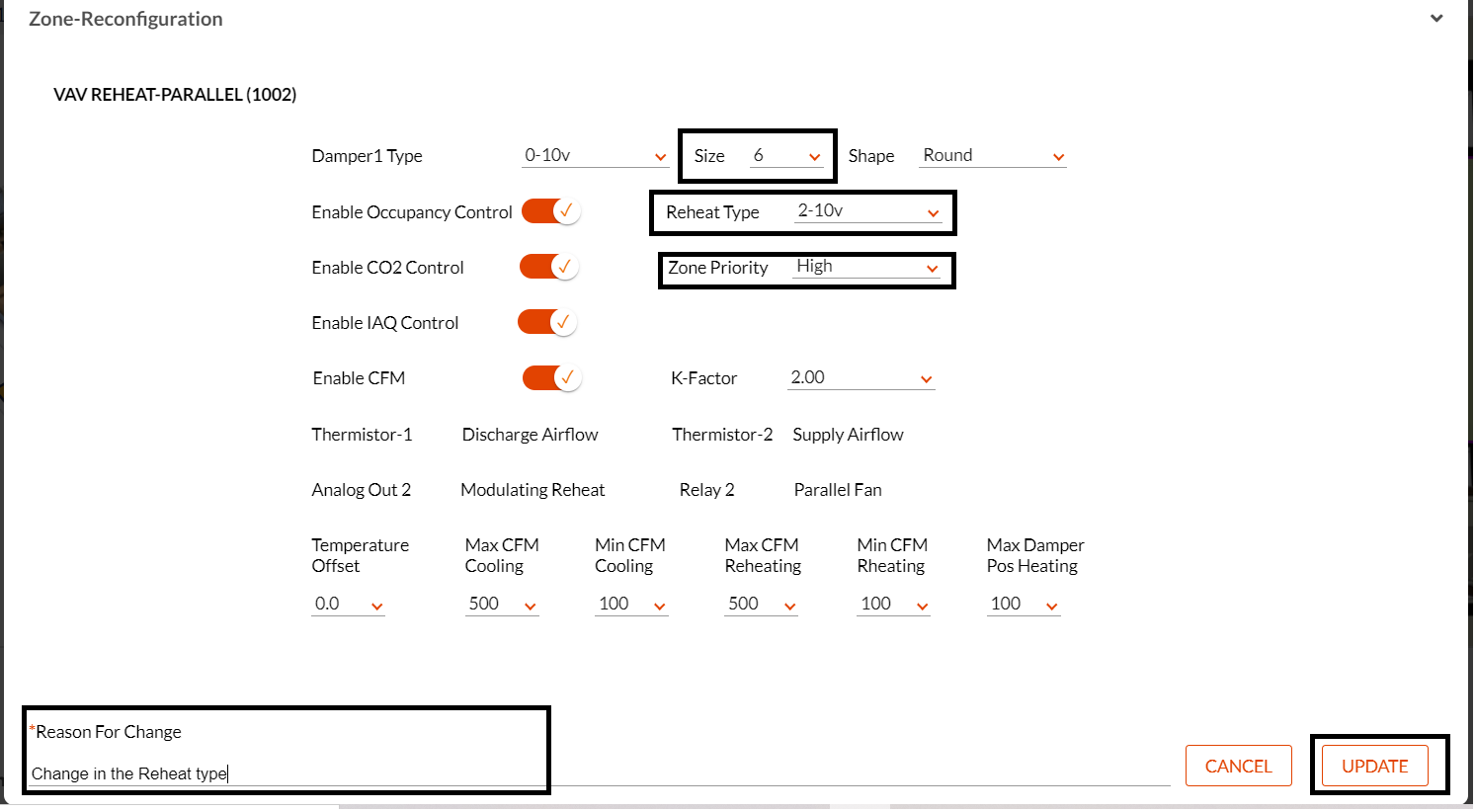

  • Make the necessary edits.
  • Type the reason for the change.


  •  click Update.

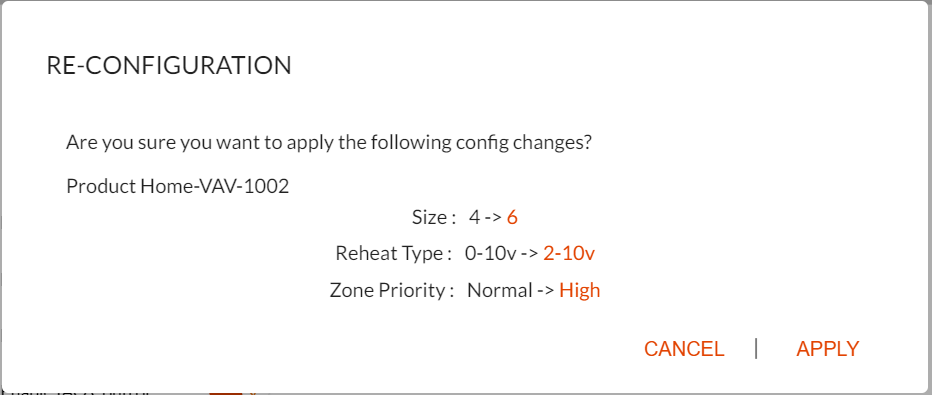

A confirmation window appears.


    7. Click Apply to confirm the changes.

A message that the configuration changes are saved successfully appears.
