Zone Filters

9 Minute Read

| Overview

The Zone Filters & Zone Appearance enhancement introduces predefined filters and configurable zone tile appearance settings to simplify floor-plan visualization across Portal and Mobile applications.

The feature provides two predefined filters—Temperature Light and RSSI—along with user-configurable Zone Appearance settings for tile opacity and Zone Name visibility.

The enhancement is designed to improve information readability without changing the underlying zone data, temperature-band logic, or existing custom-filter behavior.

| Accessing Custom Heatmap Filters

To access the Custom Heatmap filter option from the Facilisight portal:

• Log into the Facilisight portal.
• Select the building in scope

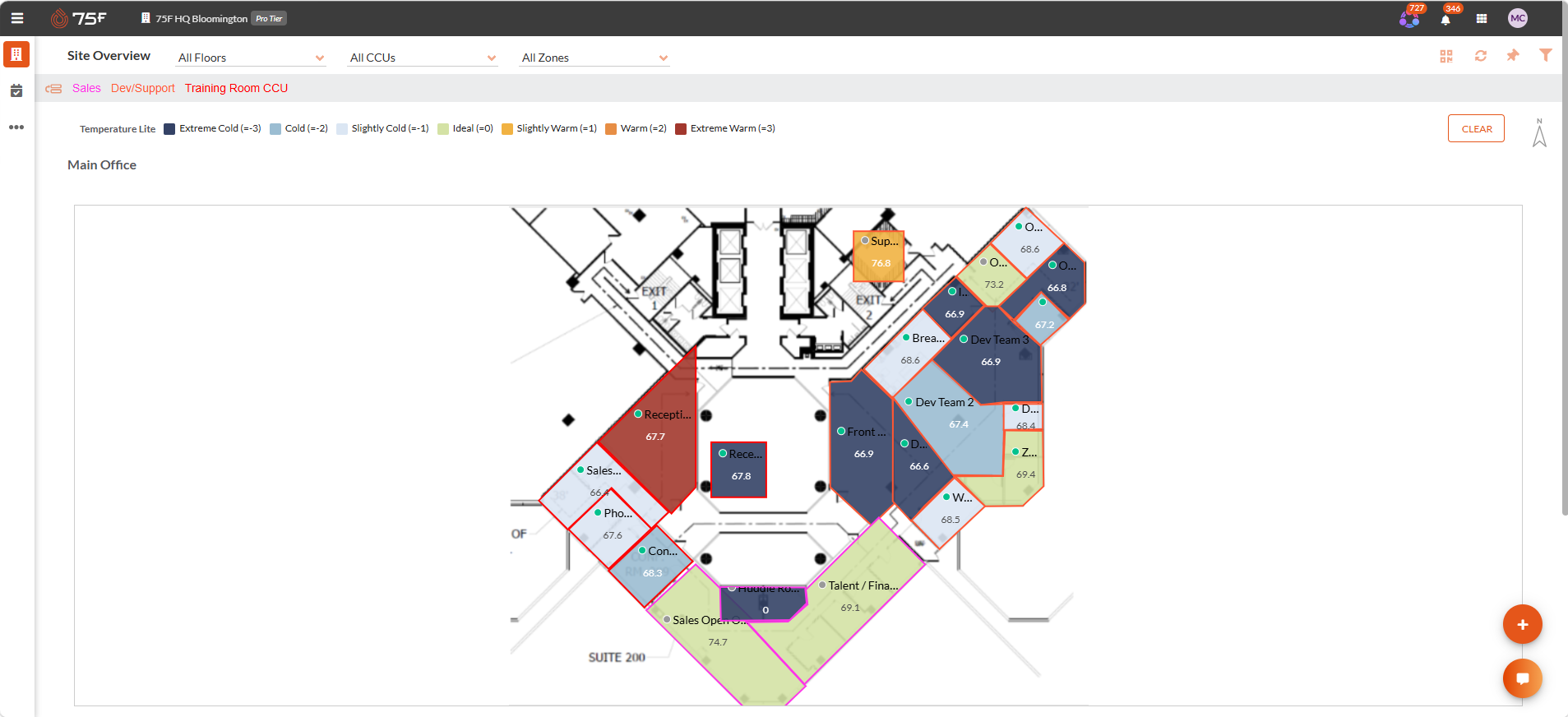

The following heatmap page will display:

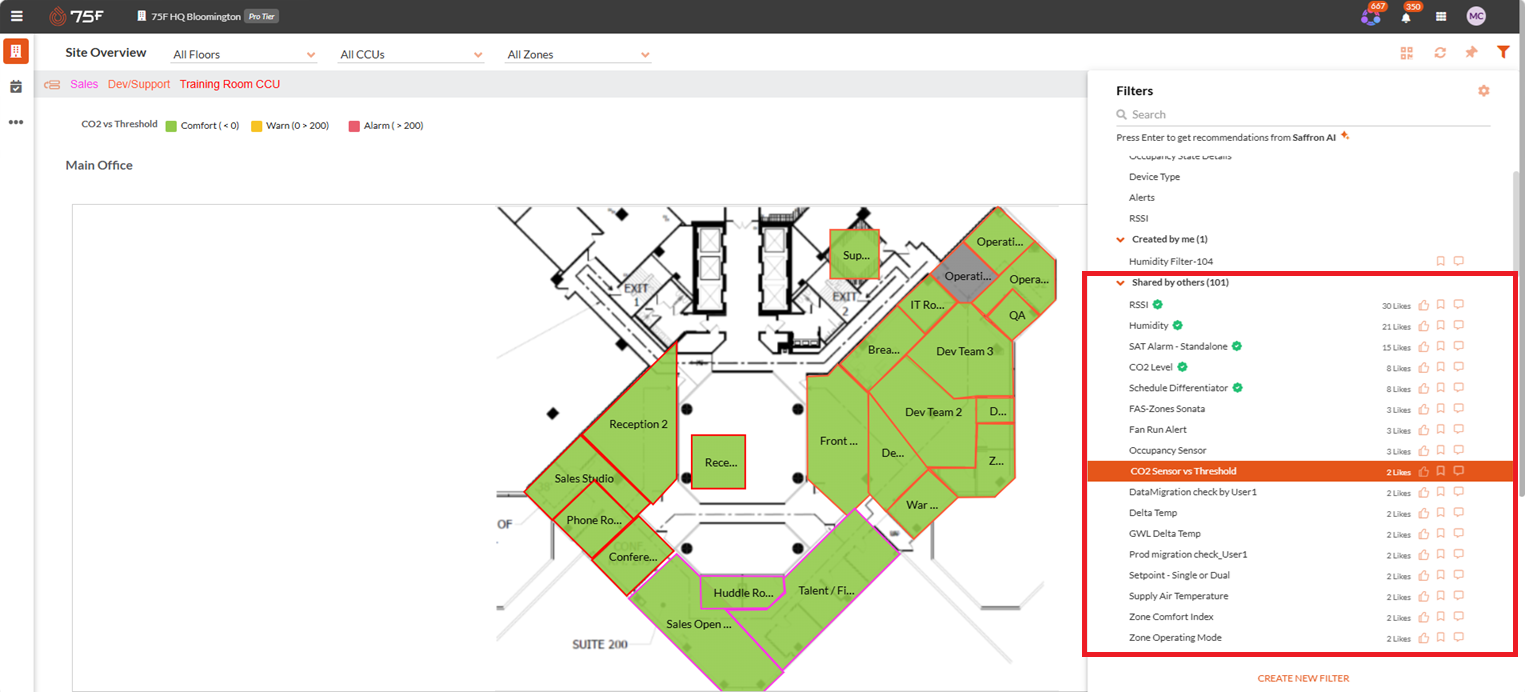

• Click the filter icon at the right hand top corner.

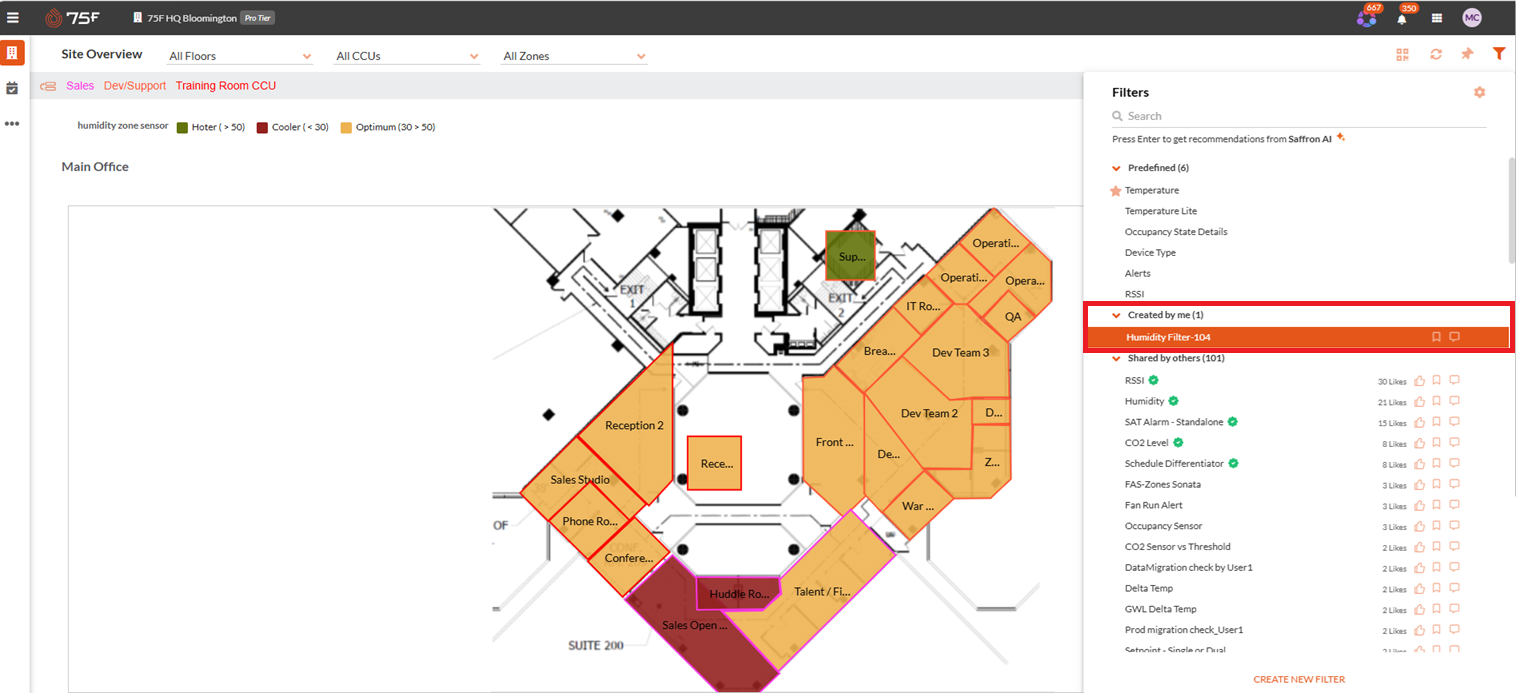

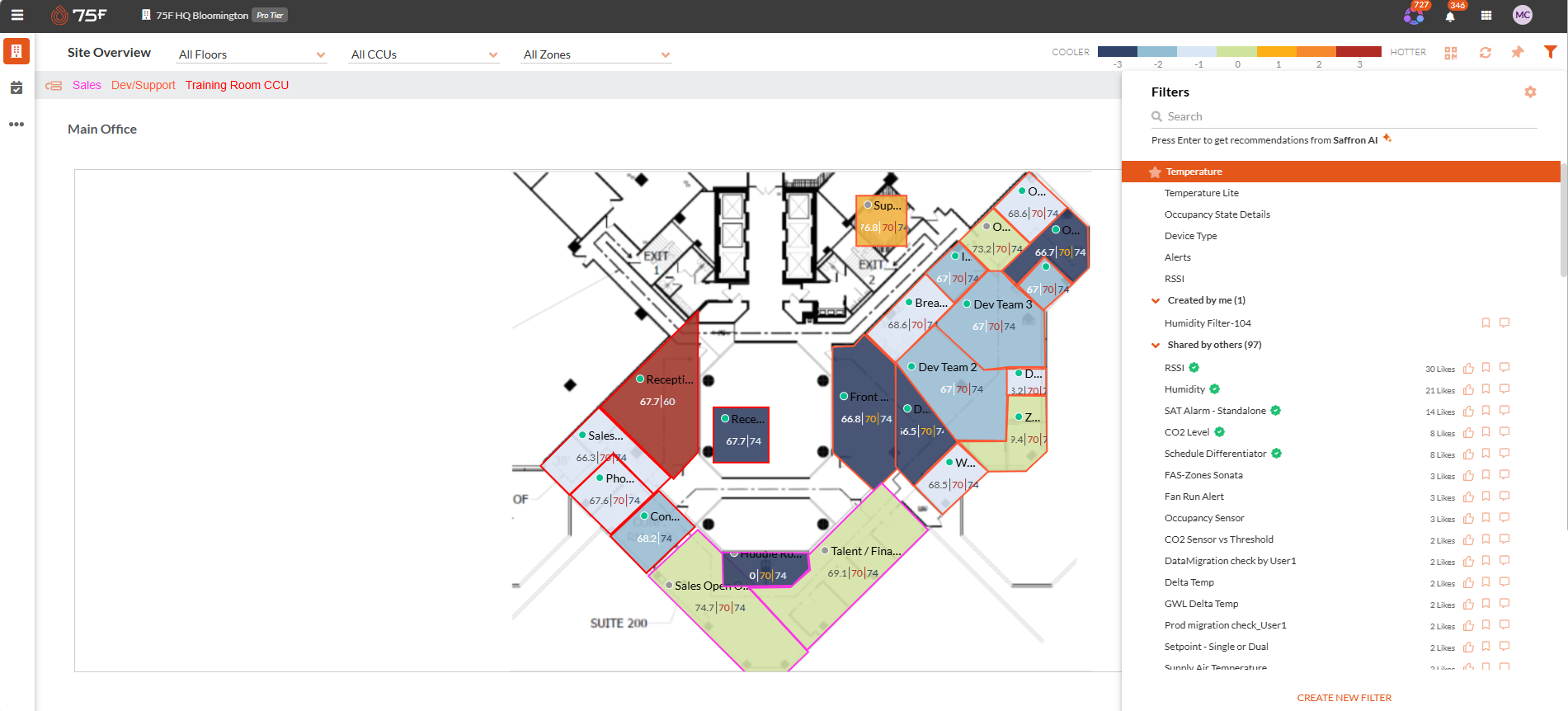

The following filter window will appear:

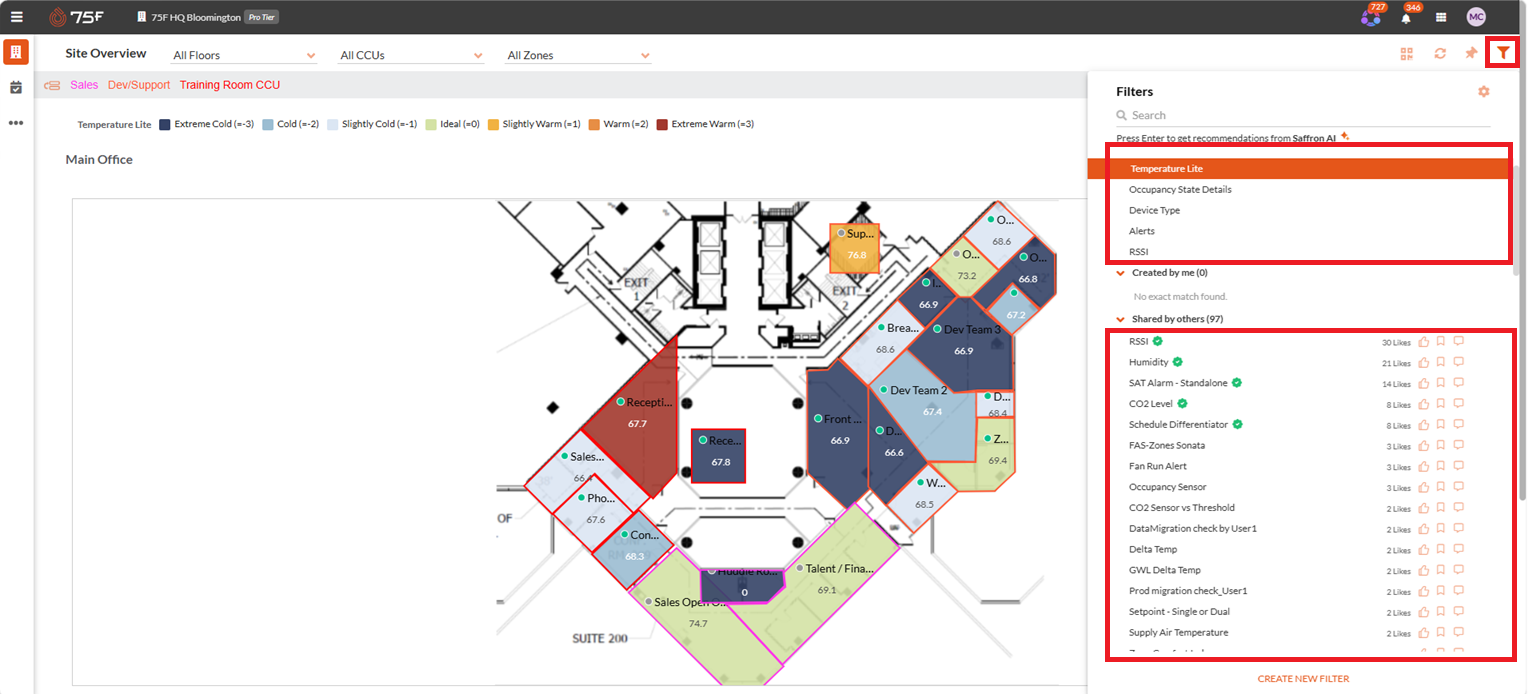

The filters are categorized into two sections

• Predefined Filters

• Created By Me filters

• Shared by others



| Predefined Filters

Temperature Lite

The default filter for any site is the Temperature Lite.

When Temperature Lite is selected, the zone tile displays:

• Zone Name
• Current Temperature

The following information is not displayed:

• Equipment status
• Desired temperature
• Online/offline status
• Other secondary zone attributes

Temperature: The Temperature Filter Continue to:

• Determine the zone's current temperature.
• Map the temperature to the existing temperature range/band.
• Apply the corresponding zone color.

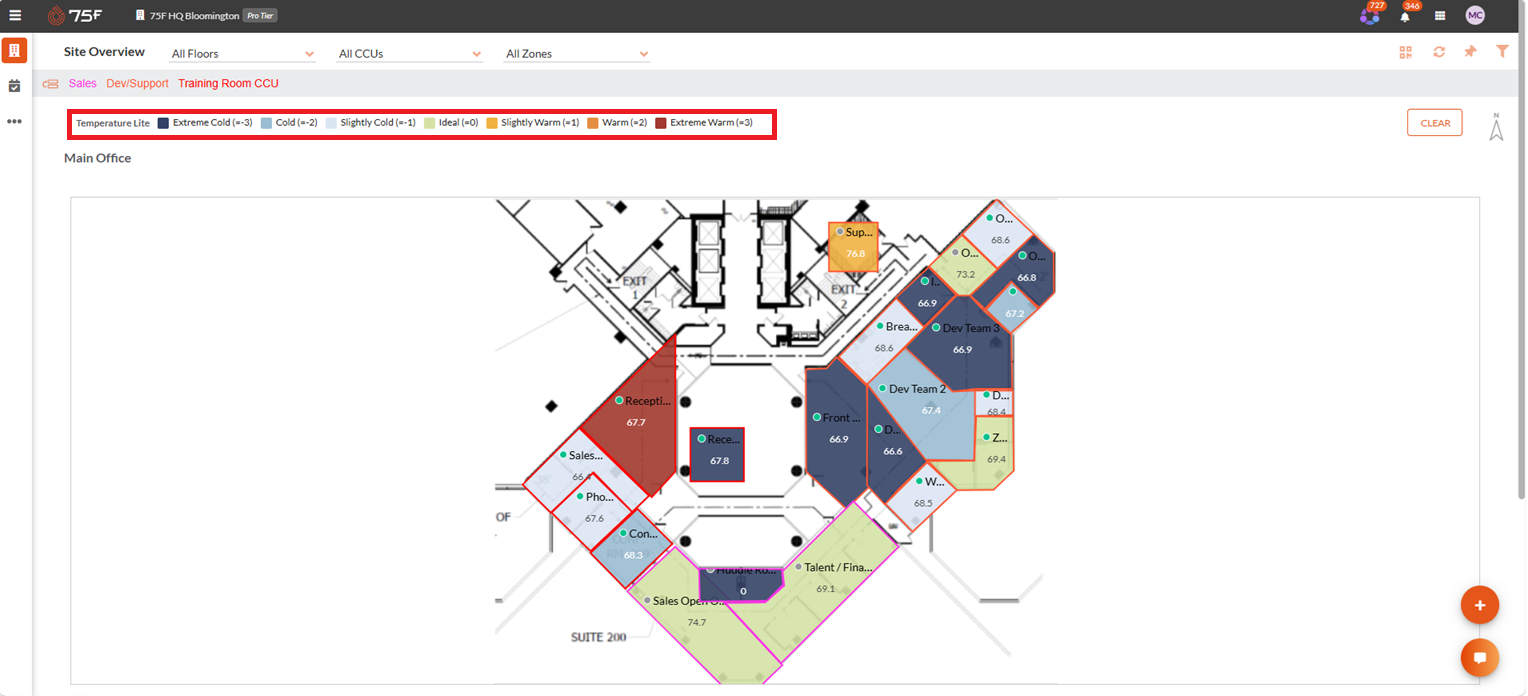

• Display the existing filter legend with the corresponding colour indicators.

Note: The Temperature Lite changes the amount of information displayed, not the underlying temperature calculation or colour-band logic.

| Created by Me Filters

This section lists the filters created by the logged-in user.

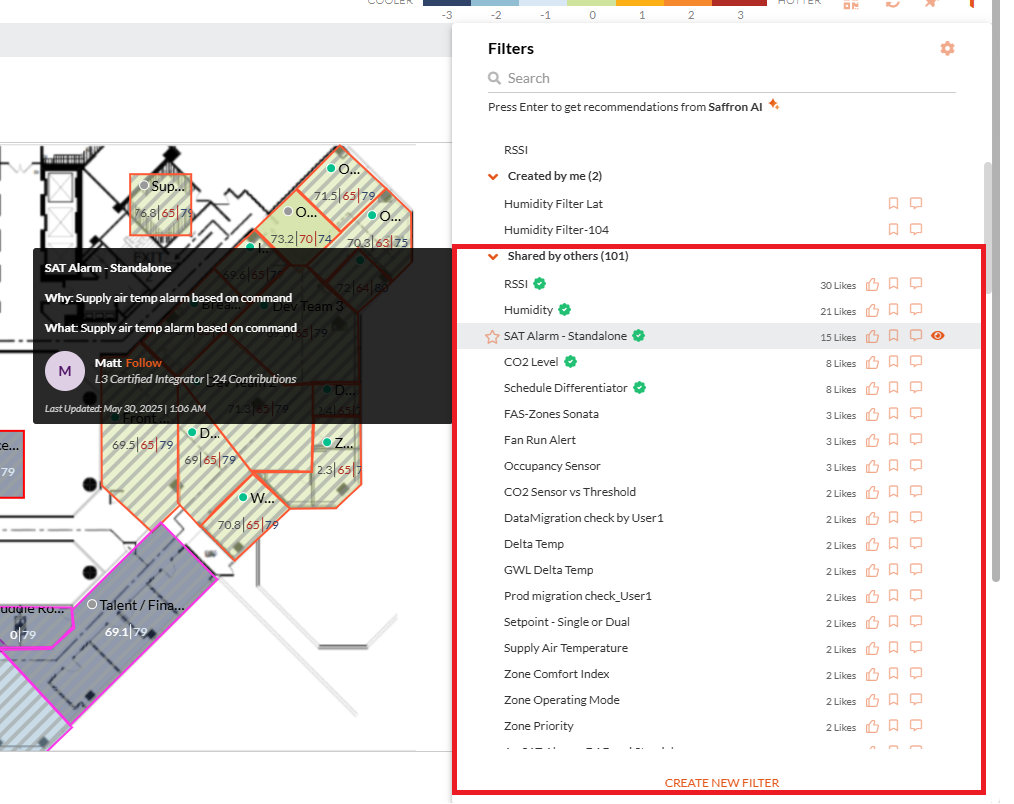

| Shared by Others Filters

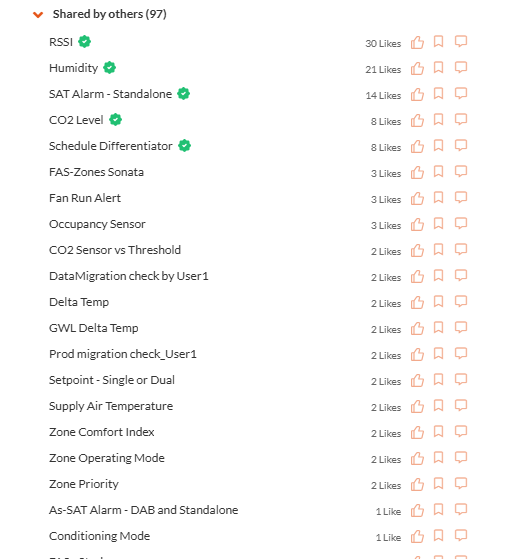

This section lists the filters created by other users and used by the community.

| Applying Filter for the Zones

• Click any already created filter under any of the sections to view it in the heatmap screen.

`

| Creating a Custom Heatmap Filter

To create a new custom heatmap filter:

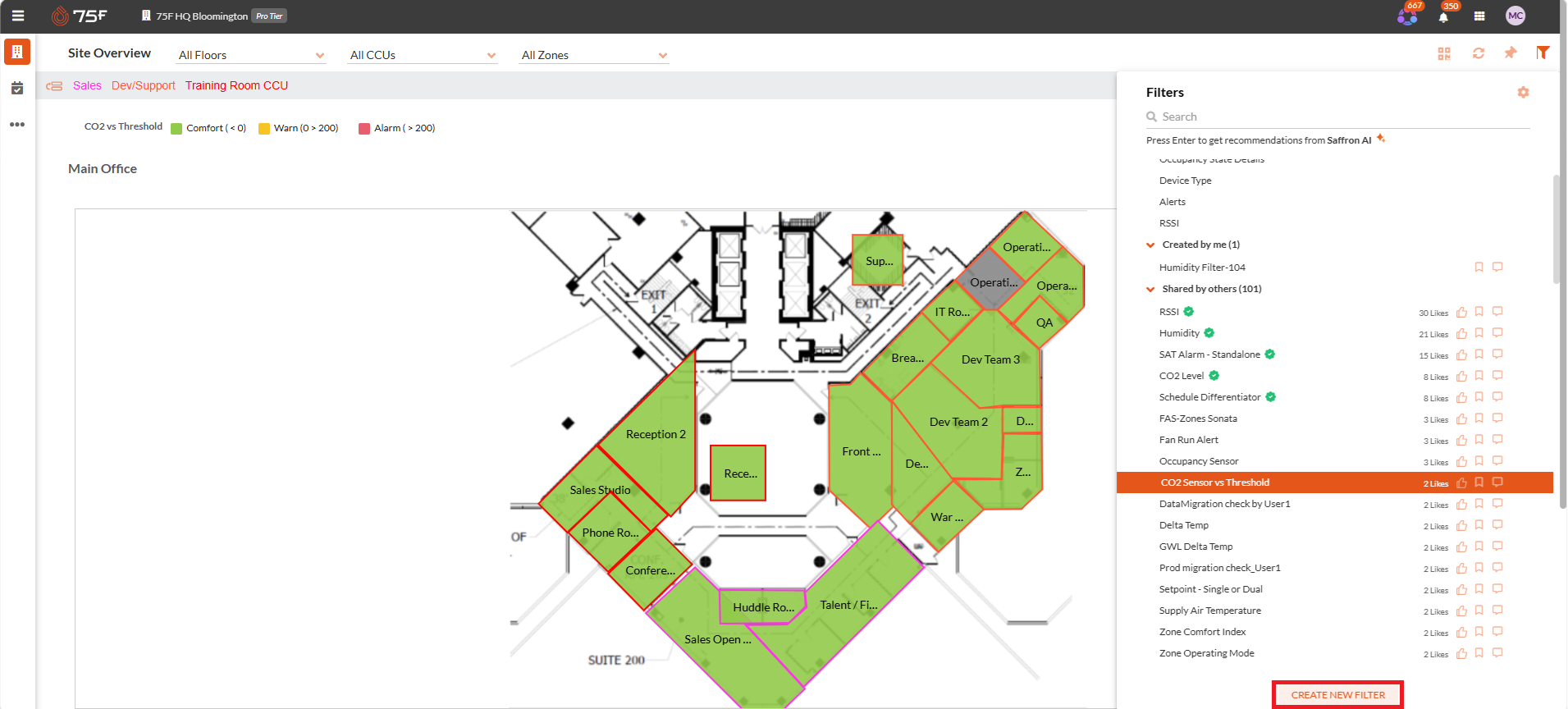

• Click Create New Filter.

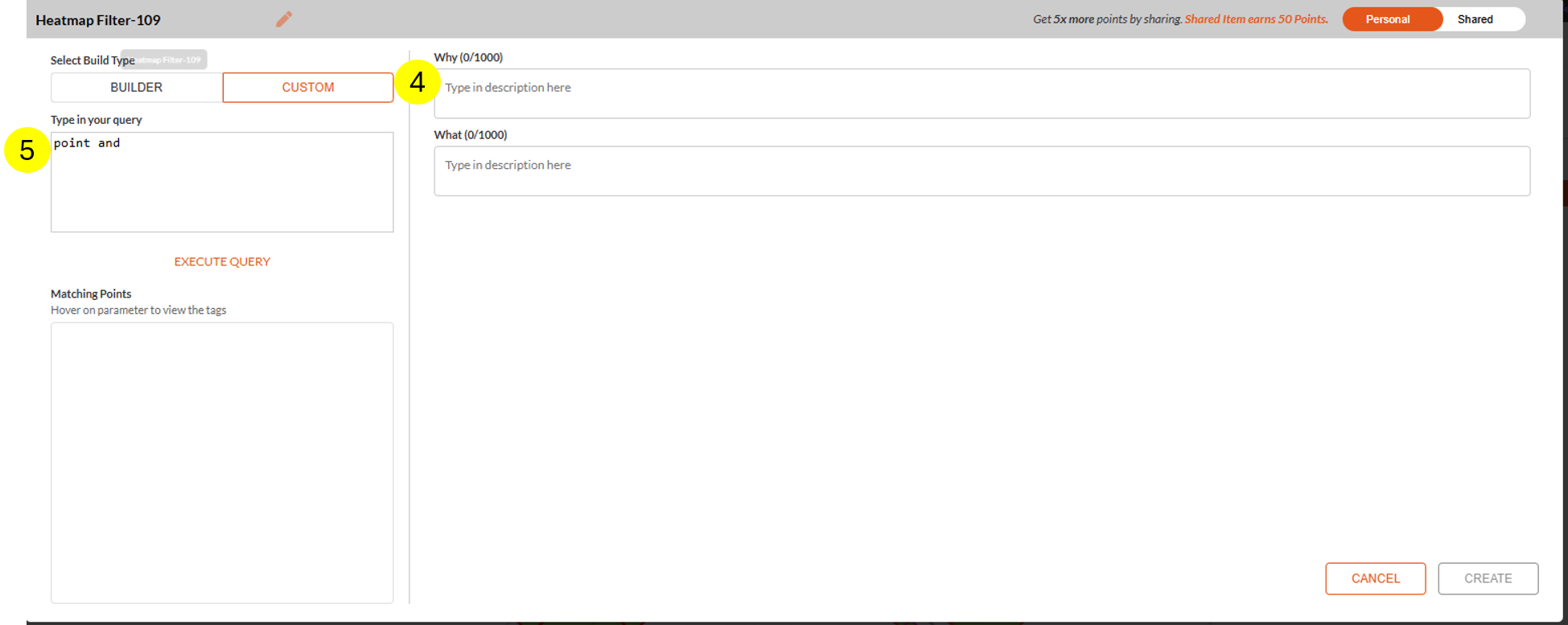

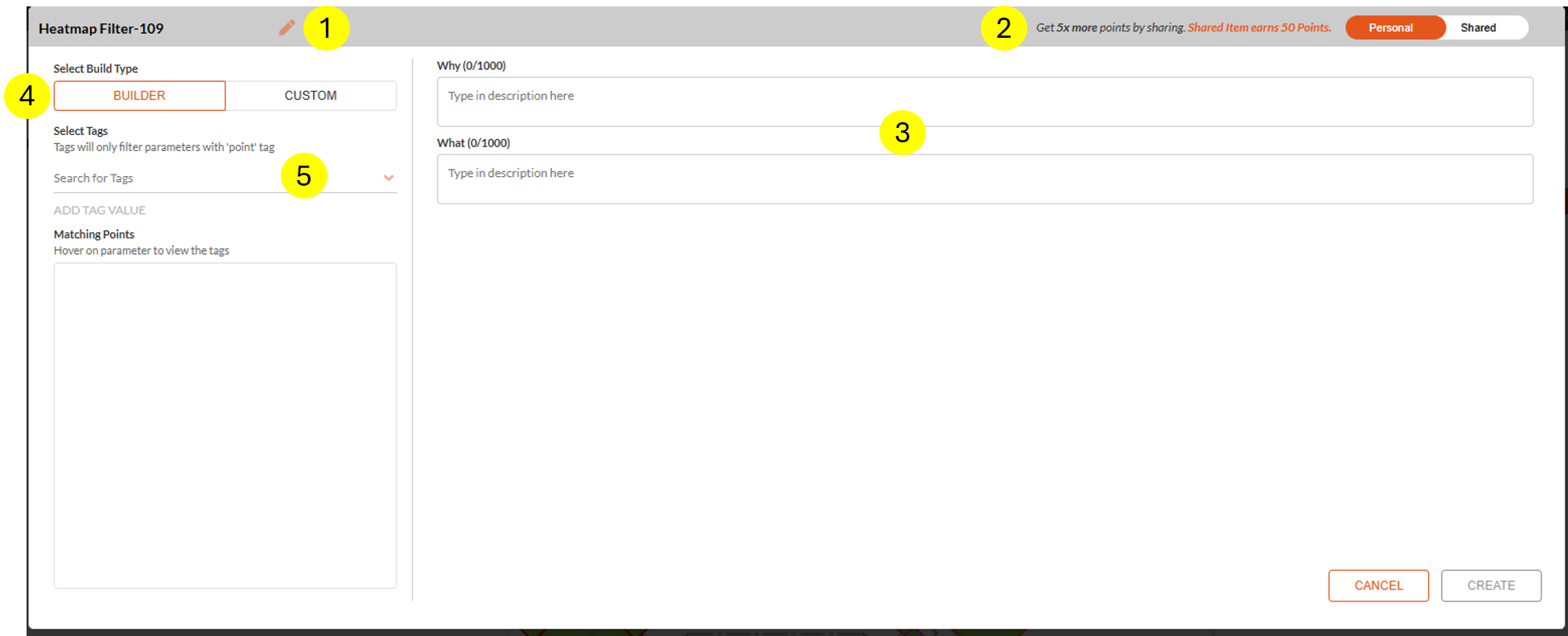

The Create New Filter window displays.

The following table explains the options available in the filter window:

• Select and enter the required details as for the filter being created using the above table.

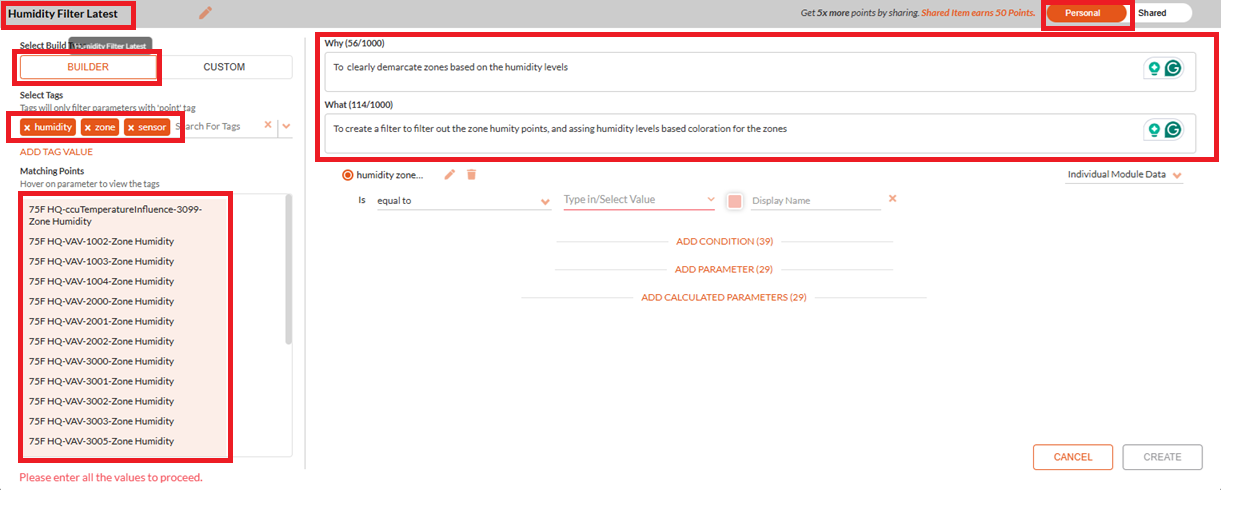

• Apply your desired tag to filter the points.

The point(s) applicable for the entered tag are displayed, auto selected.

The options available to define the conditions for the point will display:

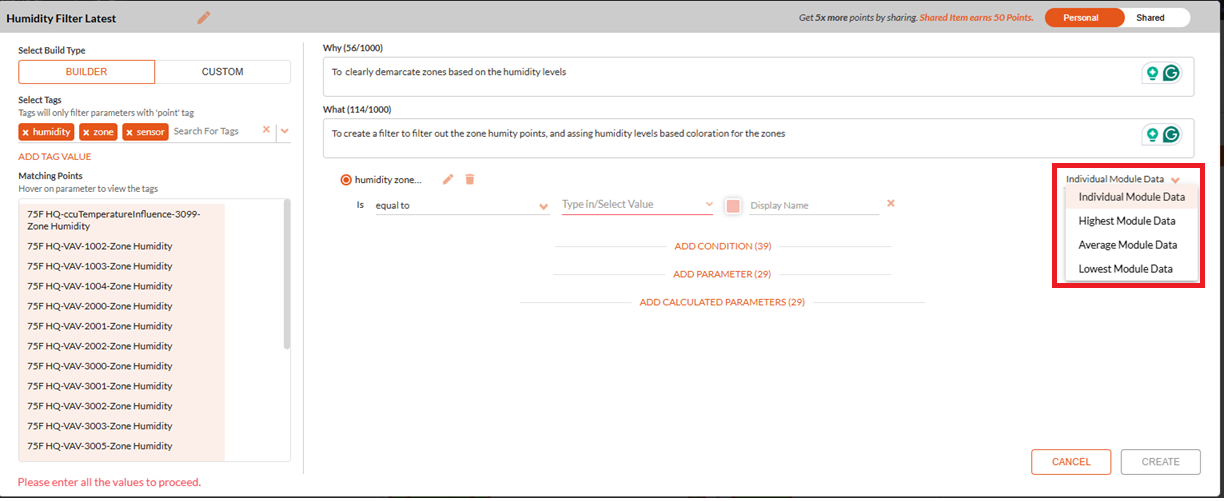

• Use the drop-down to select the type of data aggregation that needs to be considered for the filter, in a multimodule zone scenario.

This option applies to the multimodule zone.

You can use this option to select a data aggregation method to apply the conditions set, and display the corresponding condition in the zone.

You can select from the options below:

Individual Module Data - To apply the filter condition for individual module data in a zone.

Highest Module Data - To apply the filter condition for the highest module data in a zone.

Average Module Data -To apply the filter condition for the average of all module data.

Lowest Module Data - To apply the filter condition for the lowest module data.

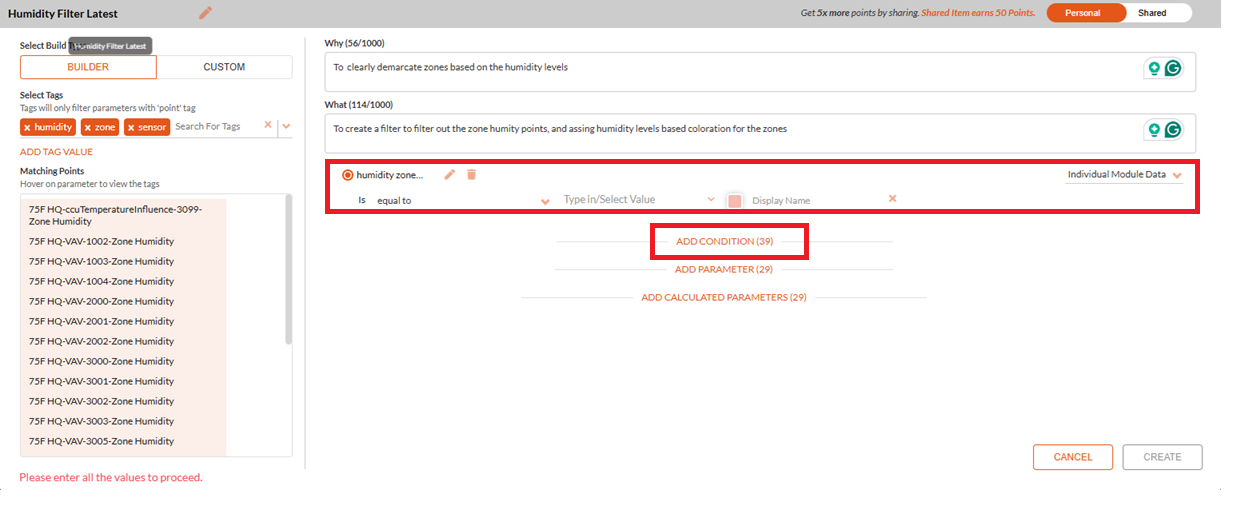

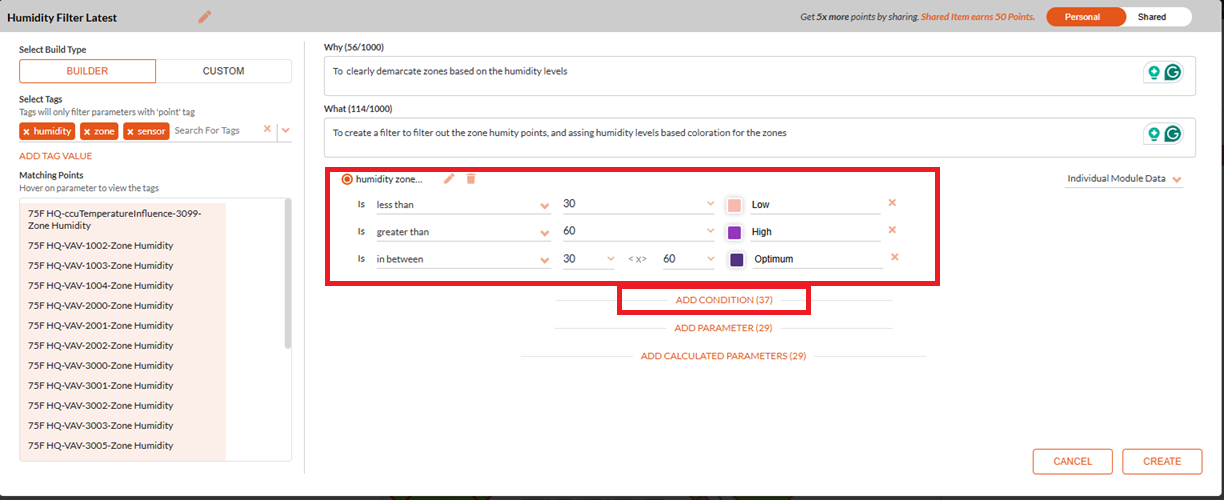

• Add conditions.
• Specify the value, colour and name for the conditions
• Click Add Conditions to add more conditions.

Note: You can add up to 40 conditions maximum.

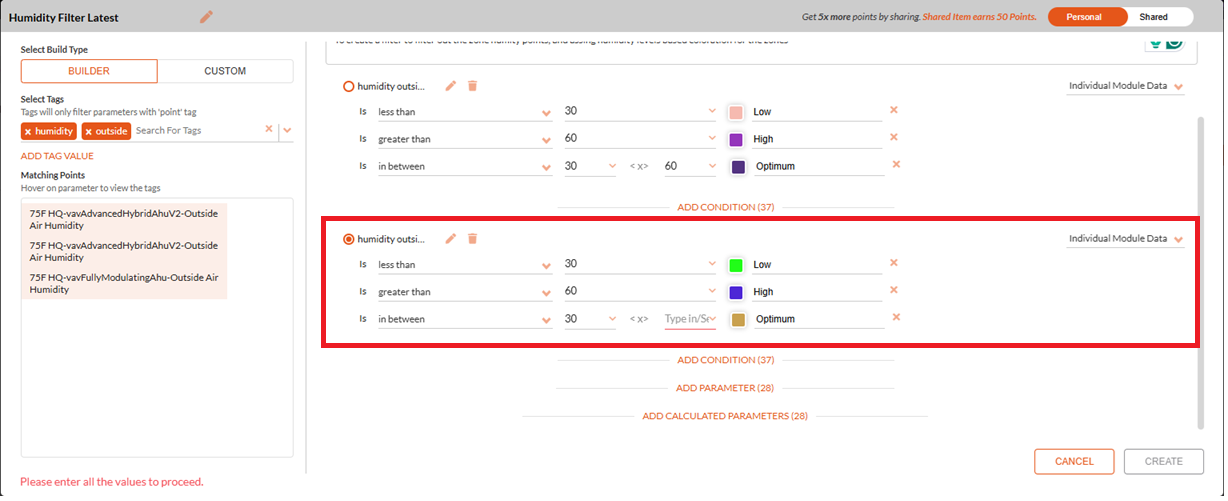

• Click Add Parameter to add additional parameters to the filter; have the zones display the colouration based on more than one parameter.

• Add conditions for the newly added parameter.

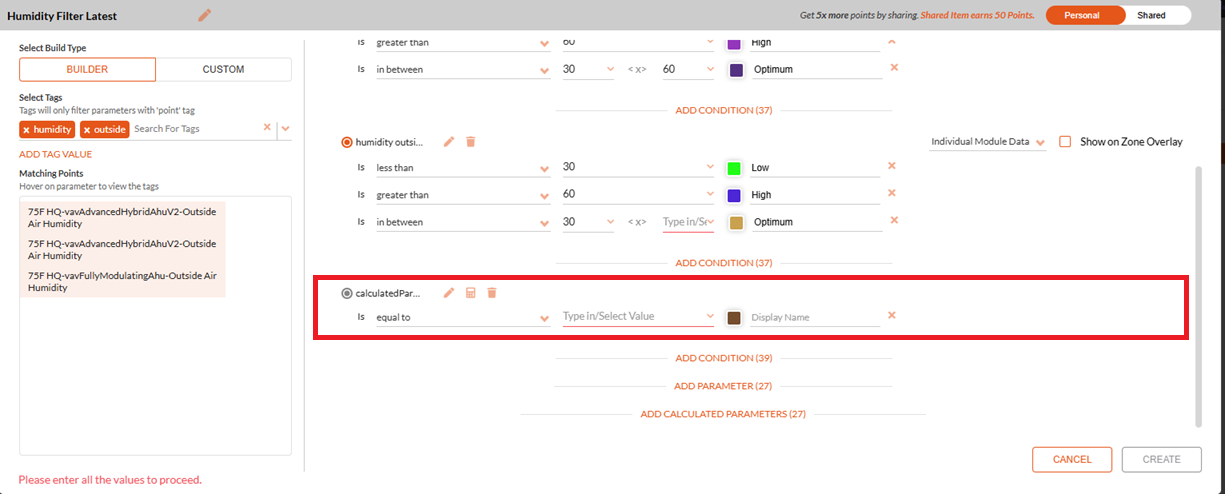

• Click Add Calculated Parameters to add a calculated parameter for the final condition to be applied to the zones.

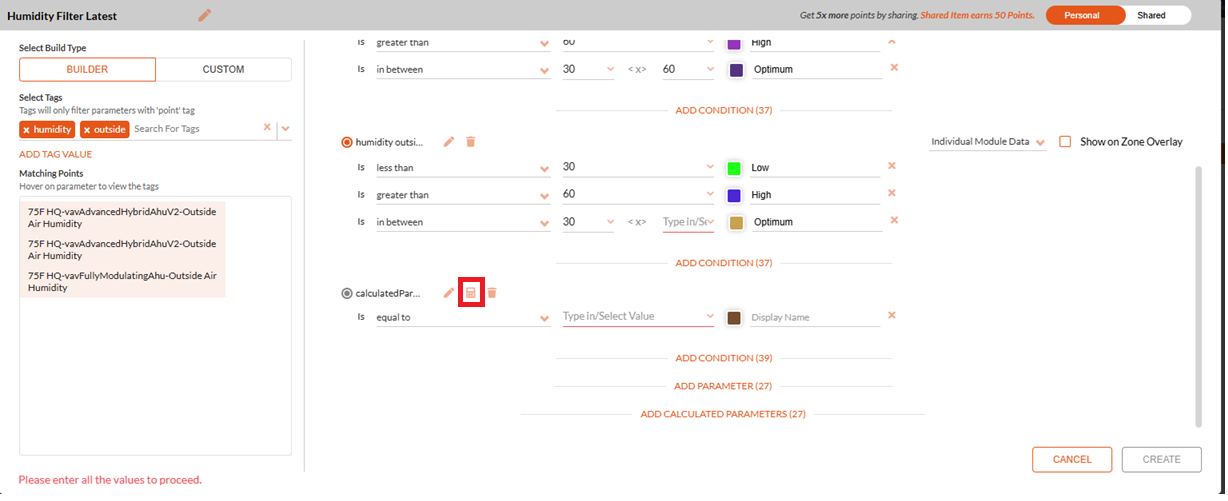

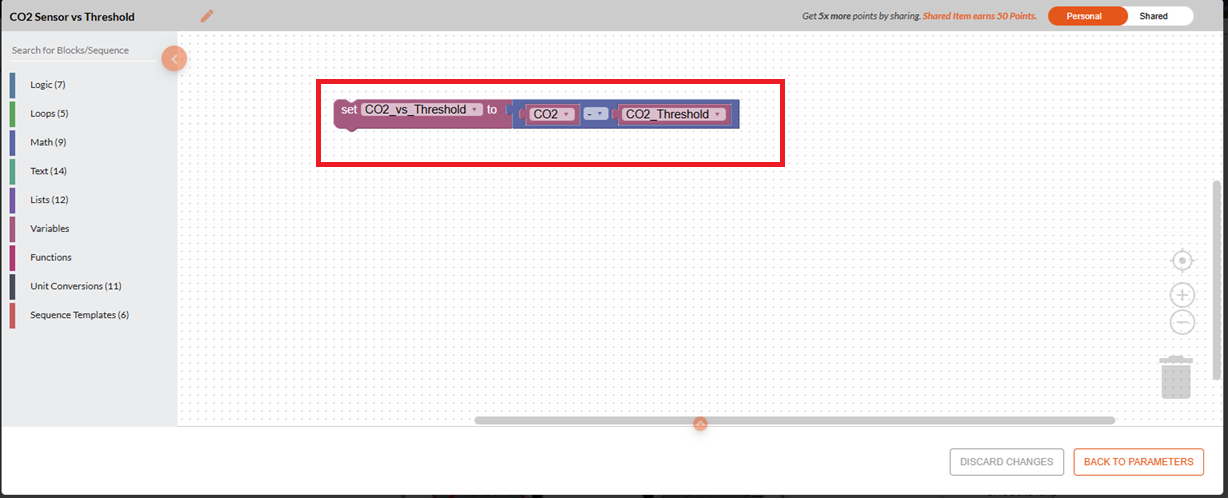

• Click the calculator icon to access blockly to achieve the desired calculations for the calculated parameters.

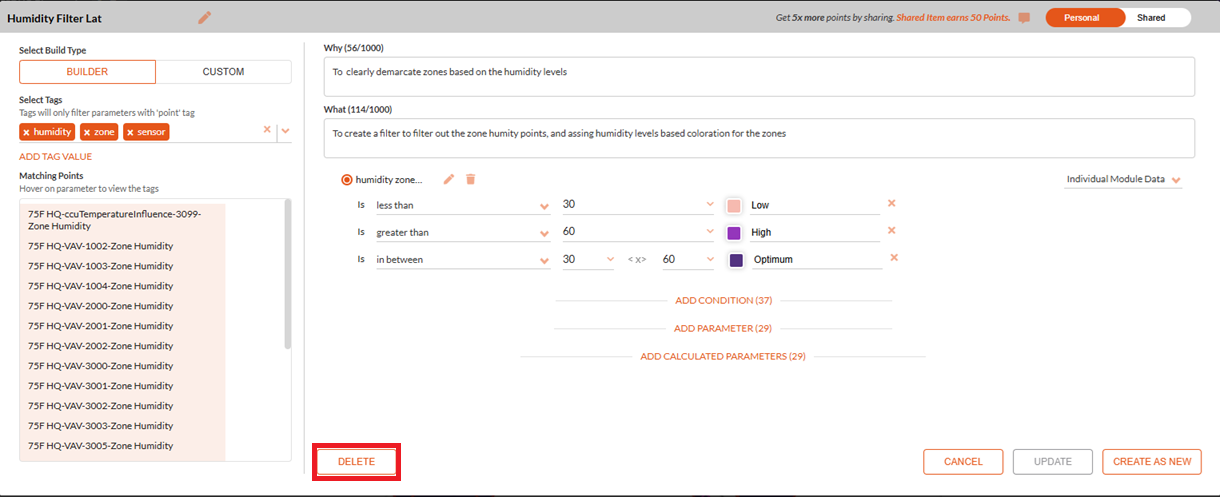

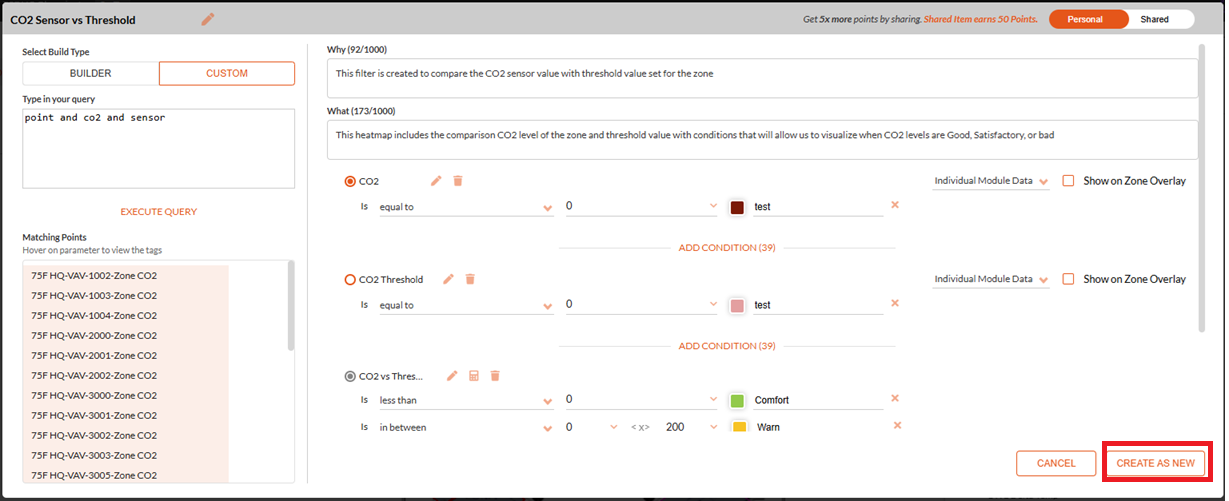

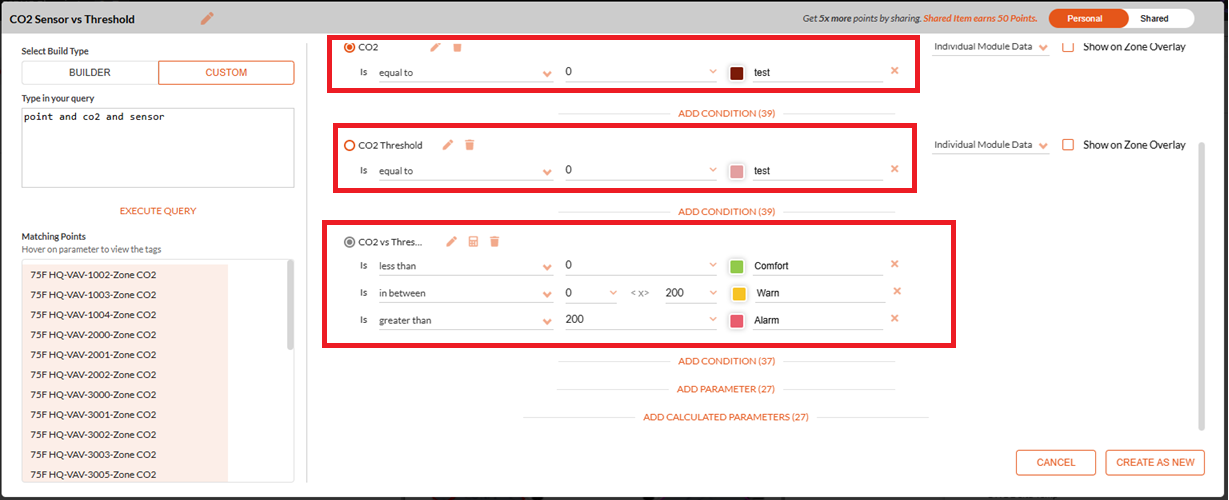

• Add required calculations and conditions for the calculated parameter as shown in the example below.

Once the required parameters, conditions, and calculated parameters are added and finalized.

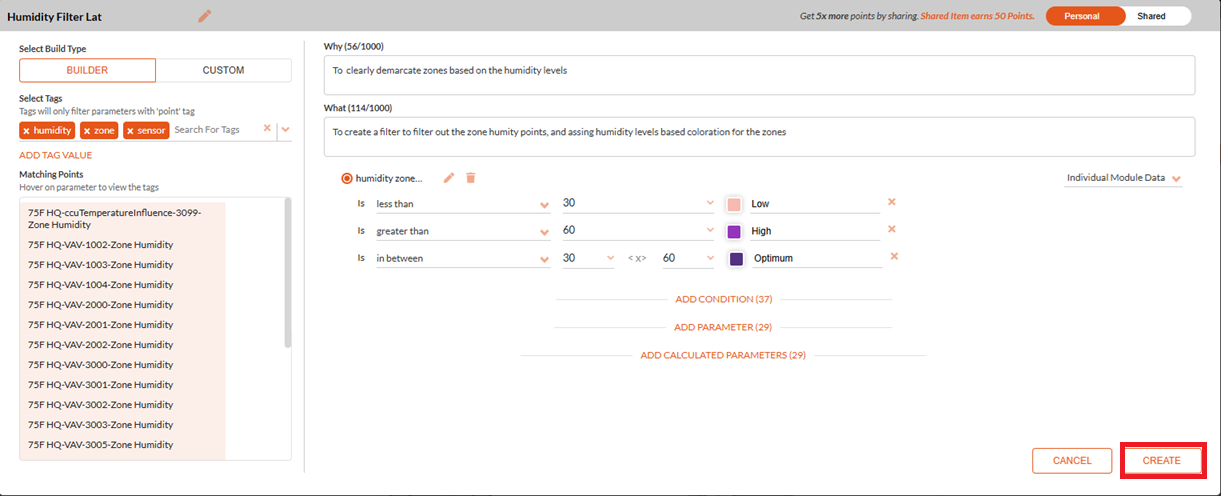

• Click Save to confirm the filter creation.

Alternatively, users can duplicate a shared filter, rename it and make any alterations required, and create it as a new filter.

The created filter is available in the list as shown below.

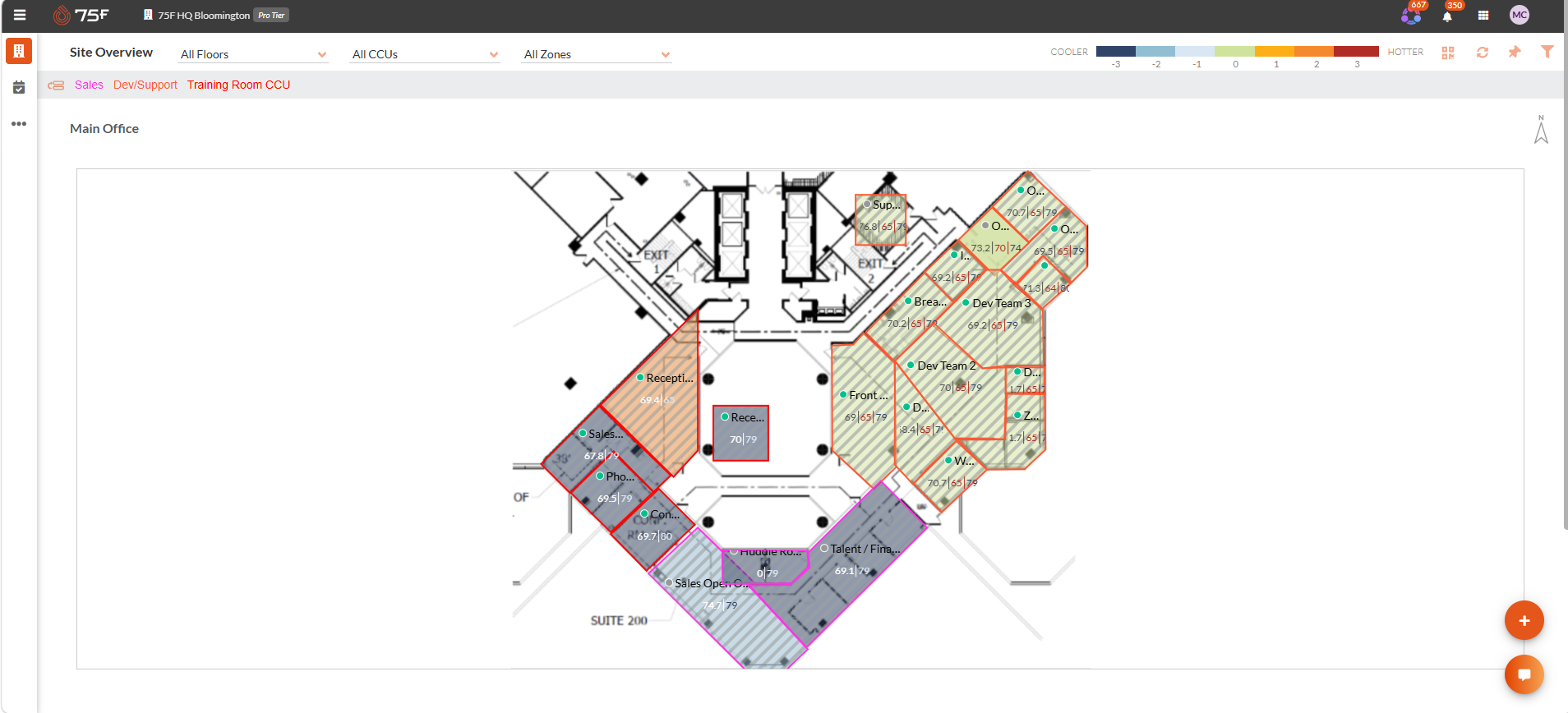

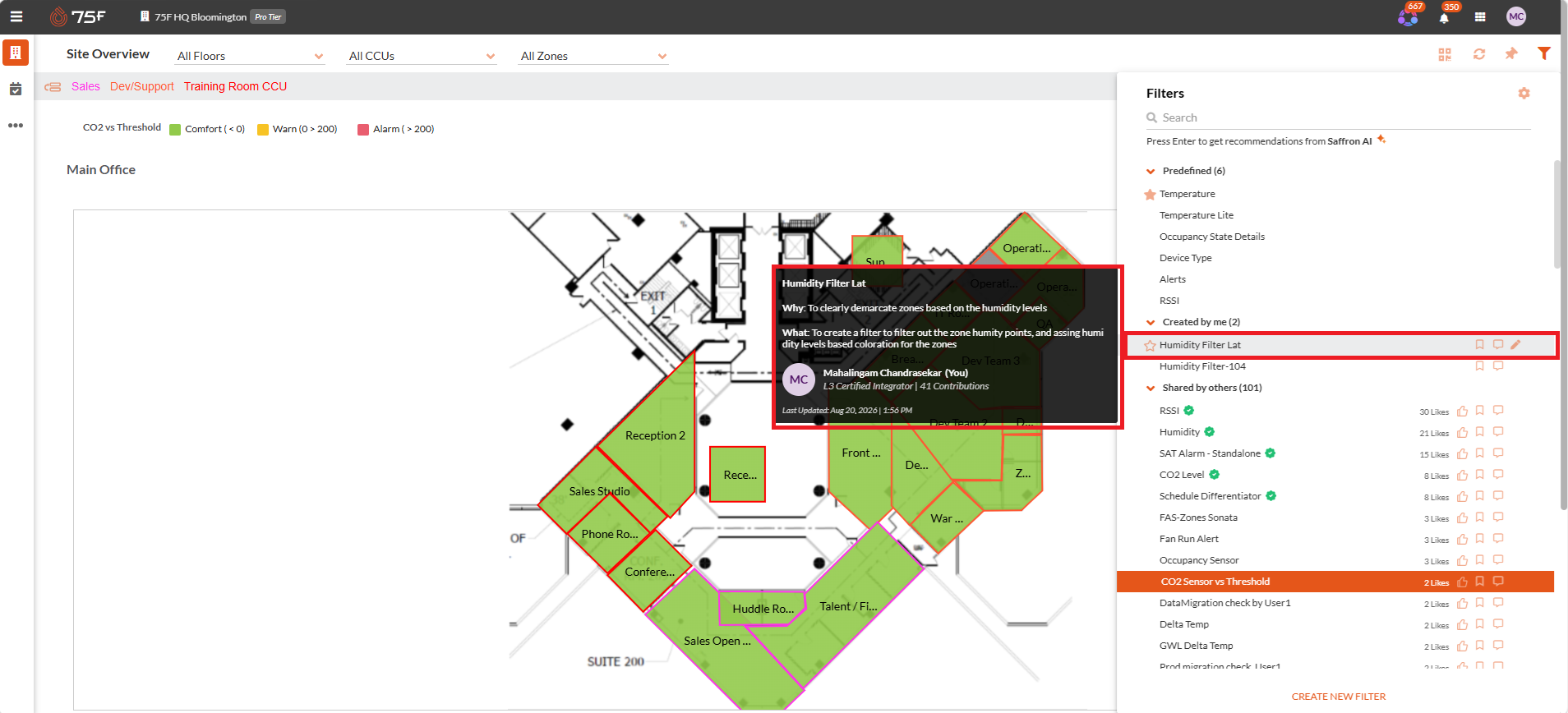

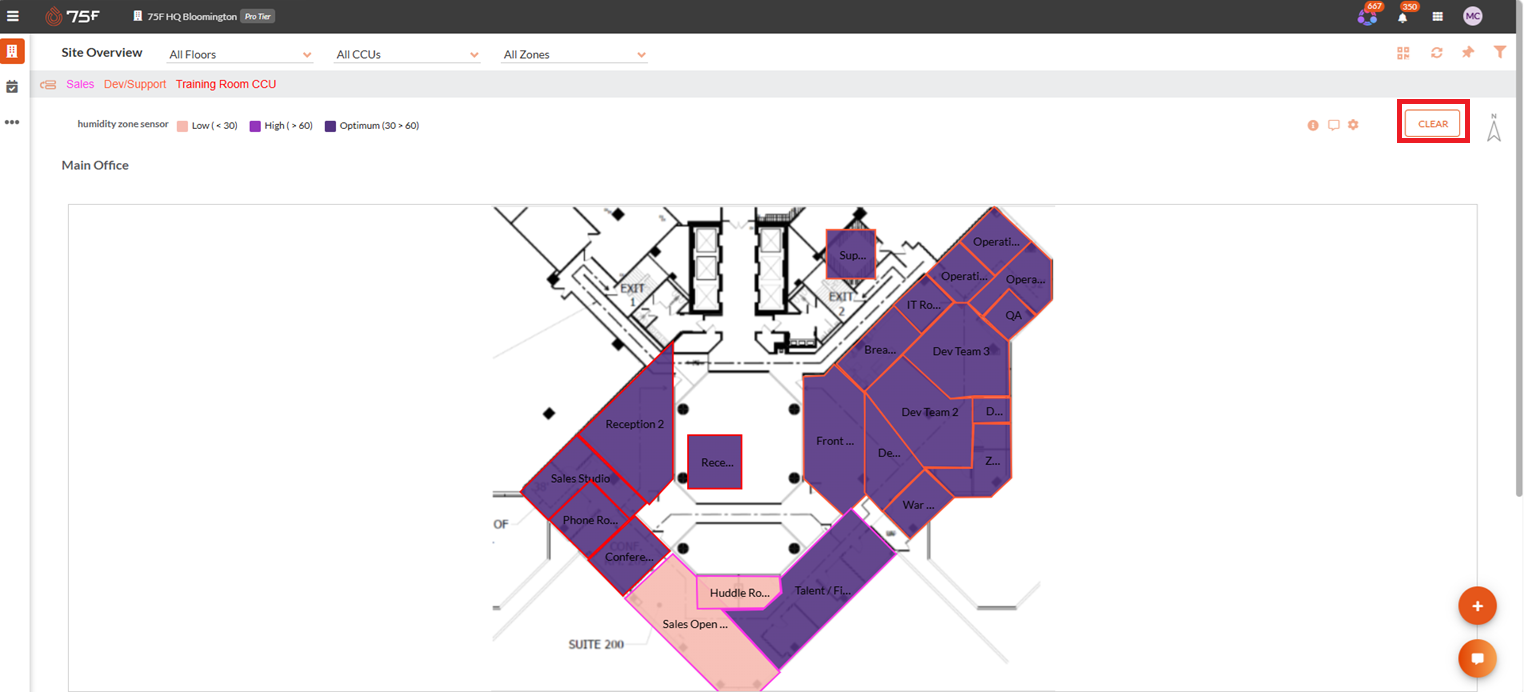

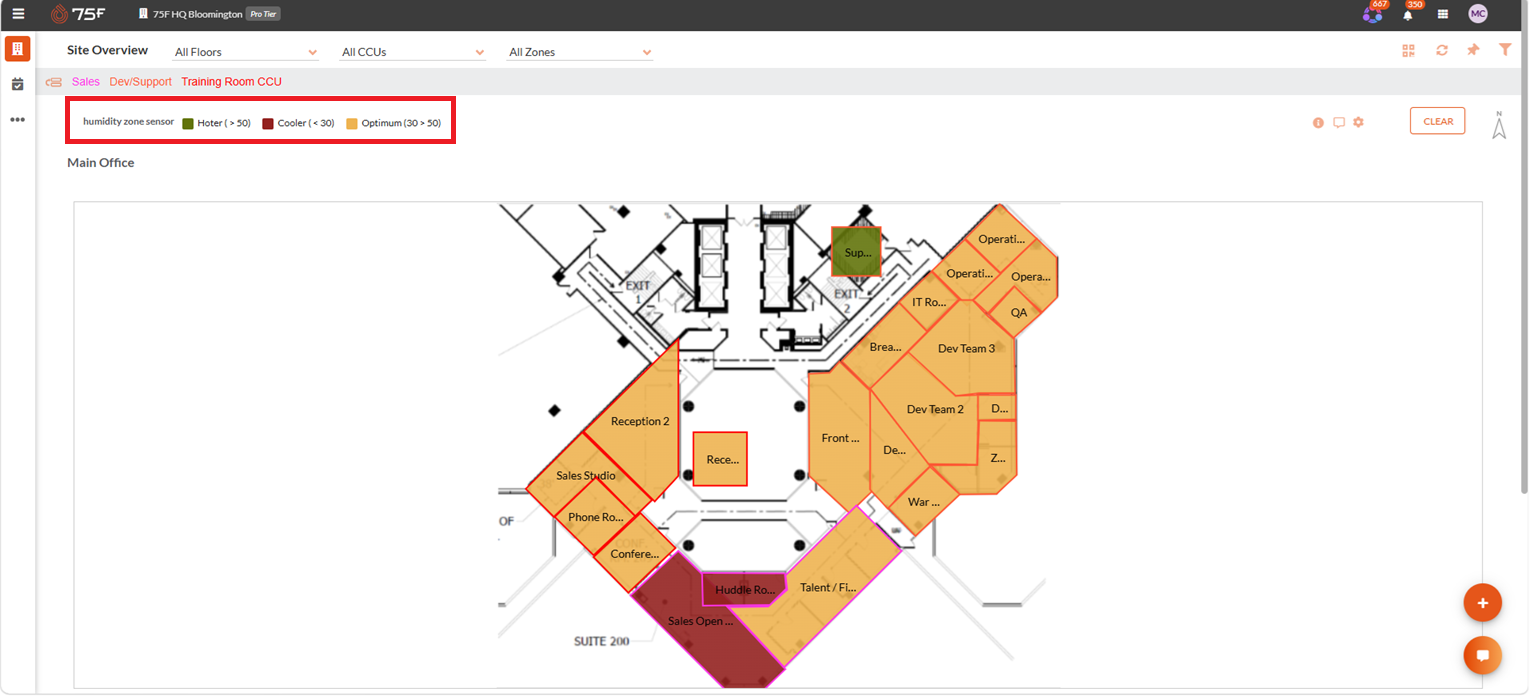

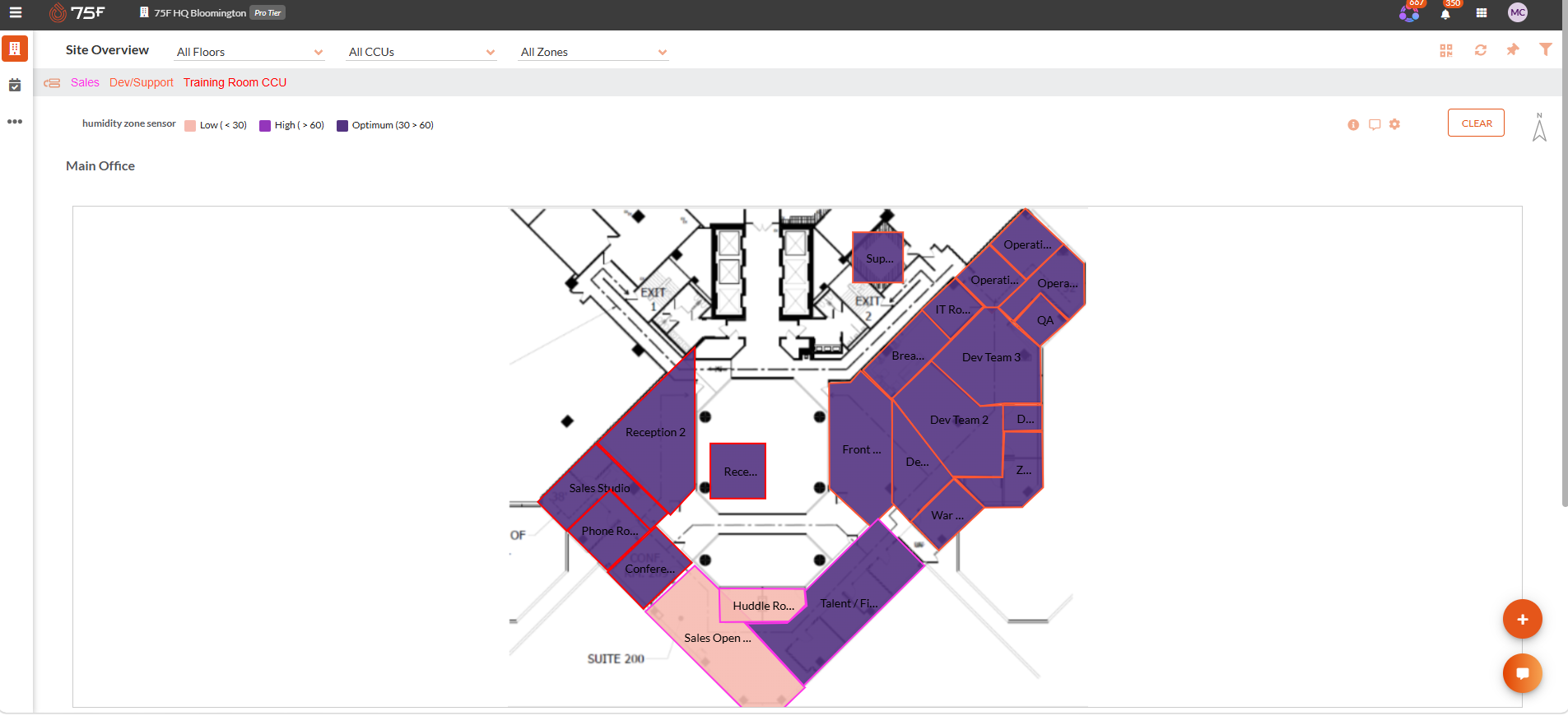

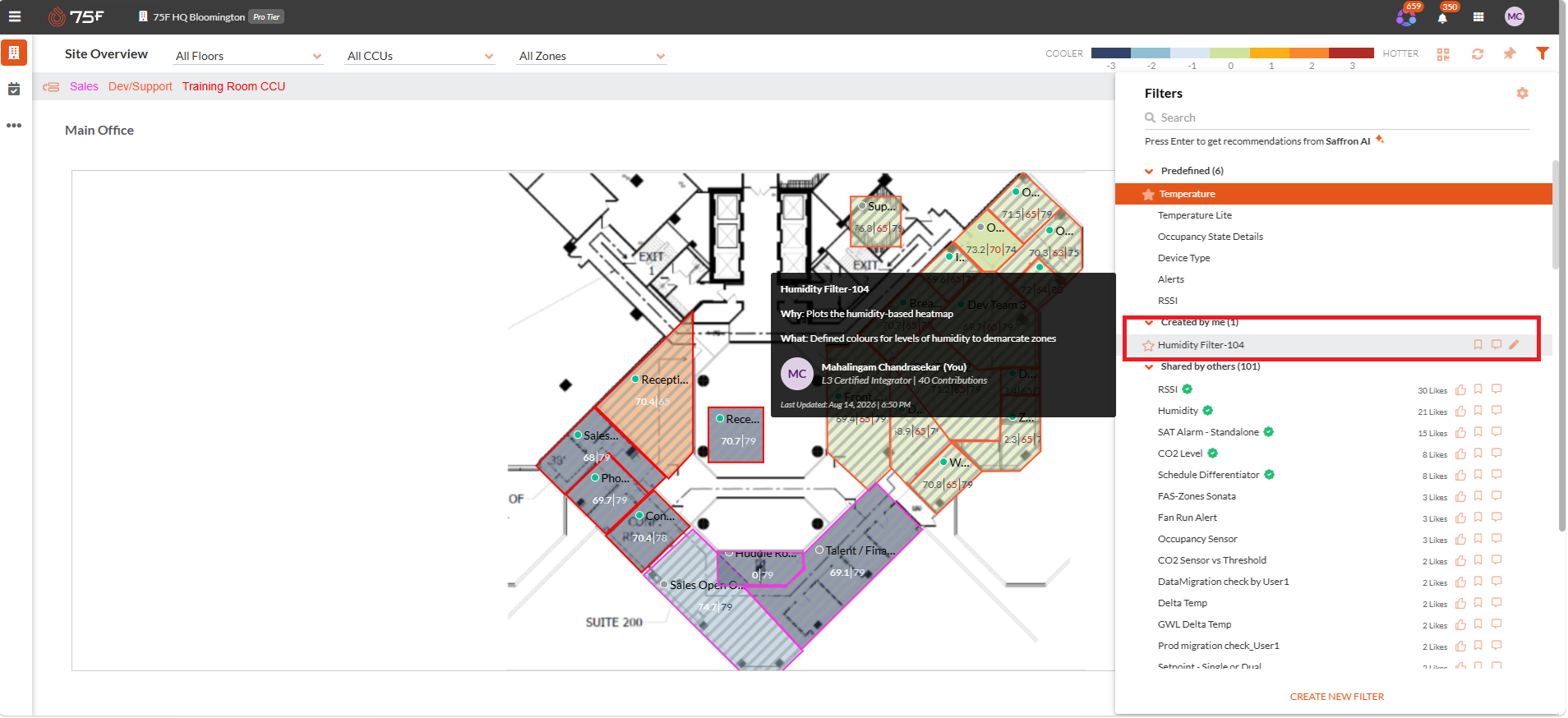

Once the filter is applied, the zone appearance will be as shown below.

• Click Clear the applied filter to revert to the default heatmap view.

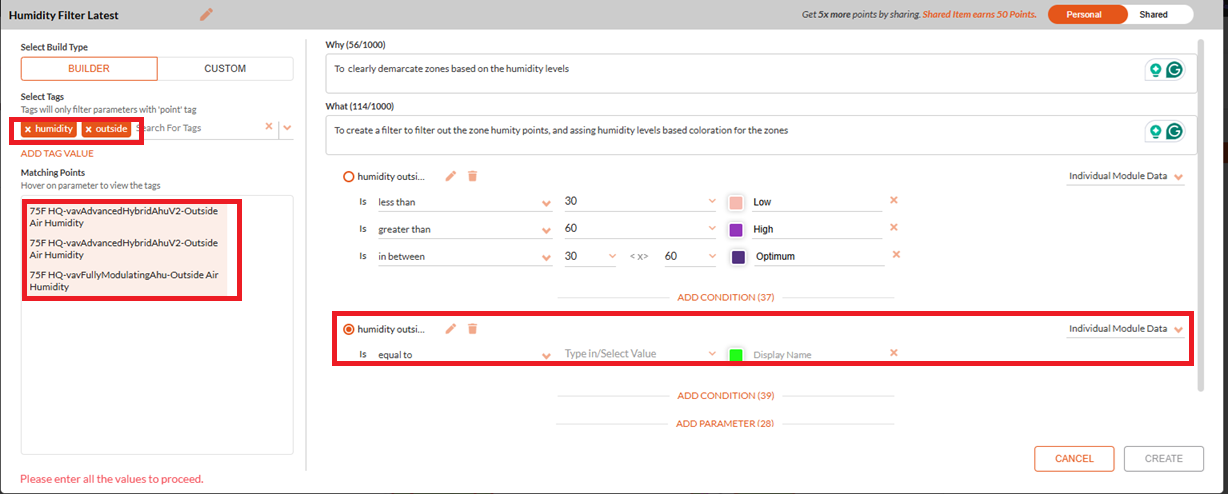

The filter created here is a humidity filter that monitors humidity values in a zone and populates the heatmap zones with corresponding colours based on the set condition.

Similarly, you can utilize the custom heatmap filter to monitor any points in the building with a value.

| Editing & Deleting a Custom Heatmap Filter

Note: The user can only view and duplicate (not edit) a shared filter created and shared by other users, as shown below.

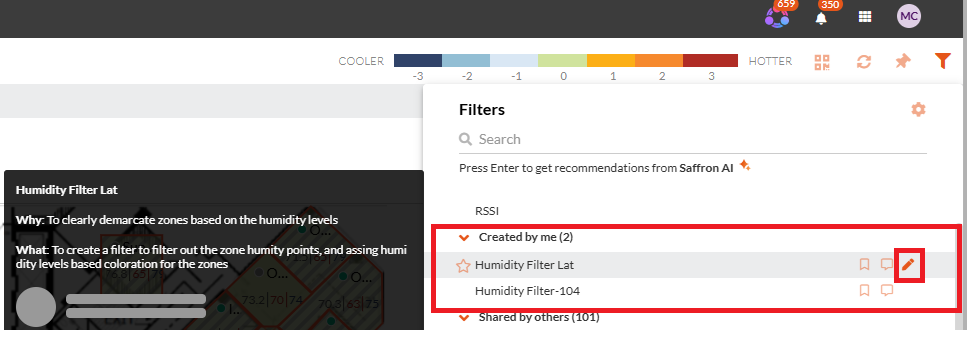

• Click the Edit icon next to a personal filter to edit.

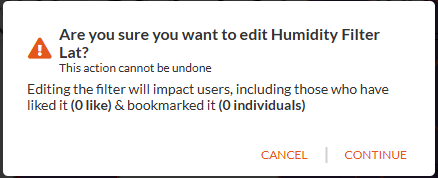

A criteria check is in place to check for any users affected by a filter edit, as shown below.

• Click Continue to edit.
• Click Delete within the edit screen to delete a filter.

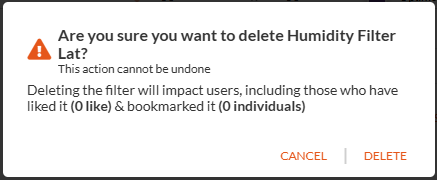

Once again a criteria check is in place to check for any users affected by the deletion of the filter, as shown below.

• Click Delete to confirm.

The deleted filter in removed from the list, as shown below.

|Accessing Custom Filters from the Facilisight Mobile App

You cannot create or edit any custom heatmap filters in the Facilisight mobile app, but you can use a custom heatmap filter created and shared to view in the heatmap section of the Facilisight mobile app.

To access and use the custom filters:

• Log into the Facilisight mobile app.

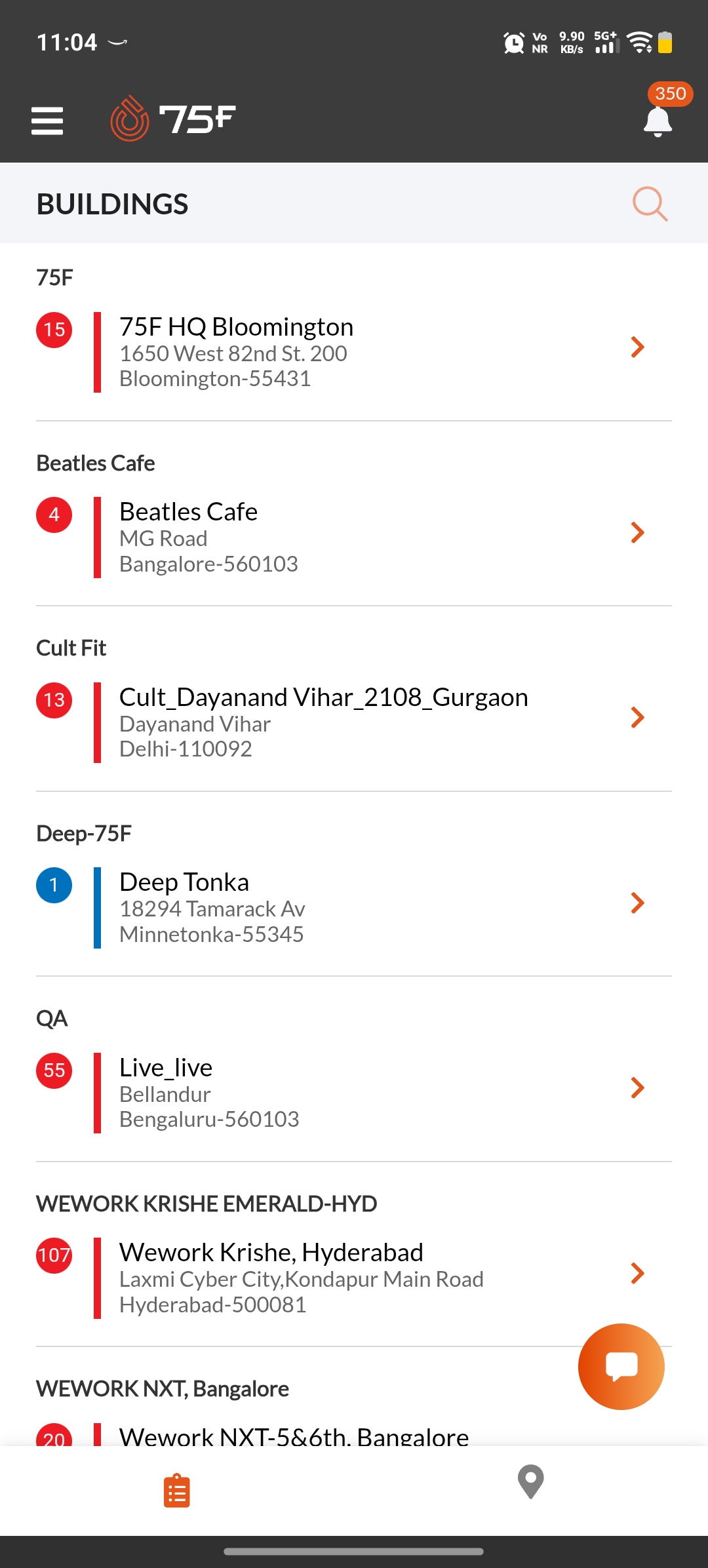

• Select a building as the scope.

(From the heatmap page)

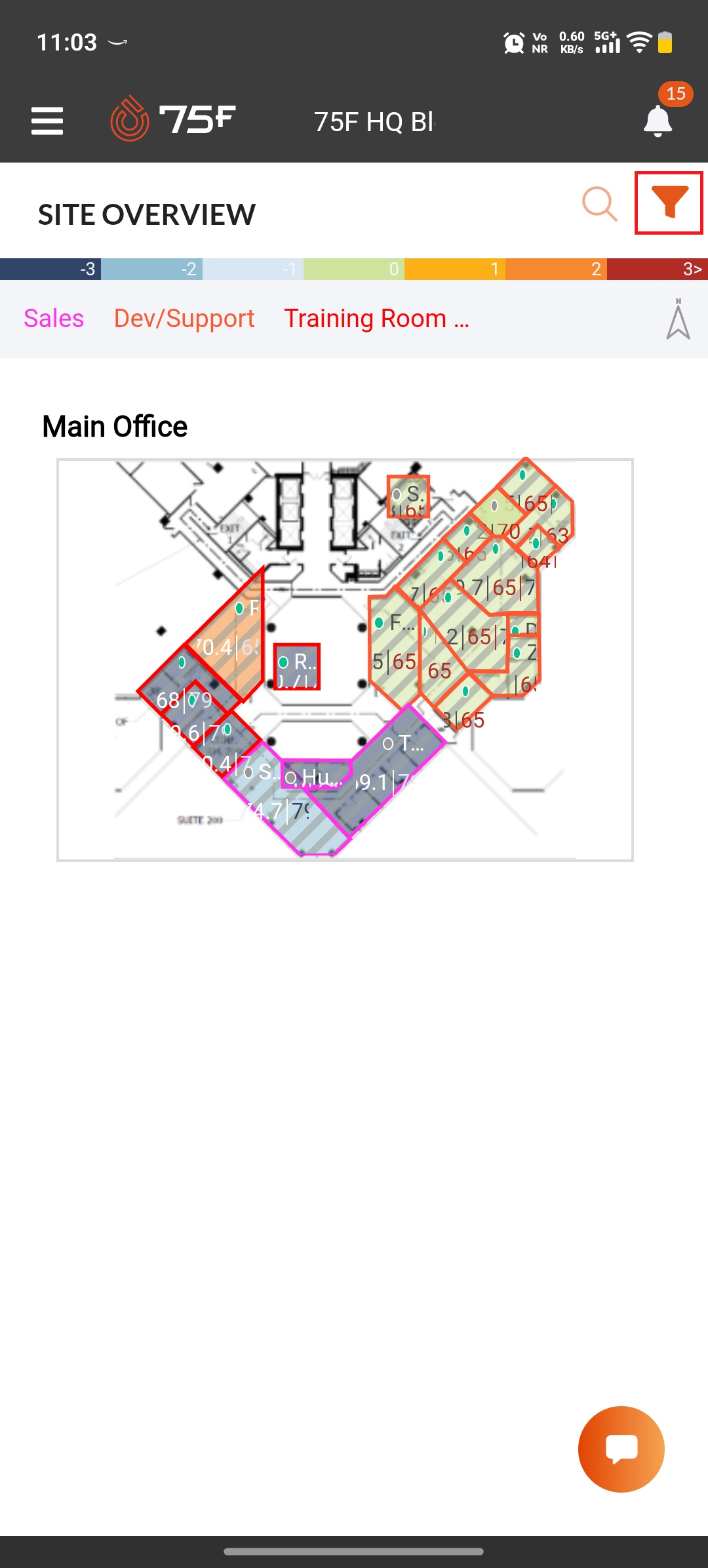

• Click the icon on the top right corner.

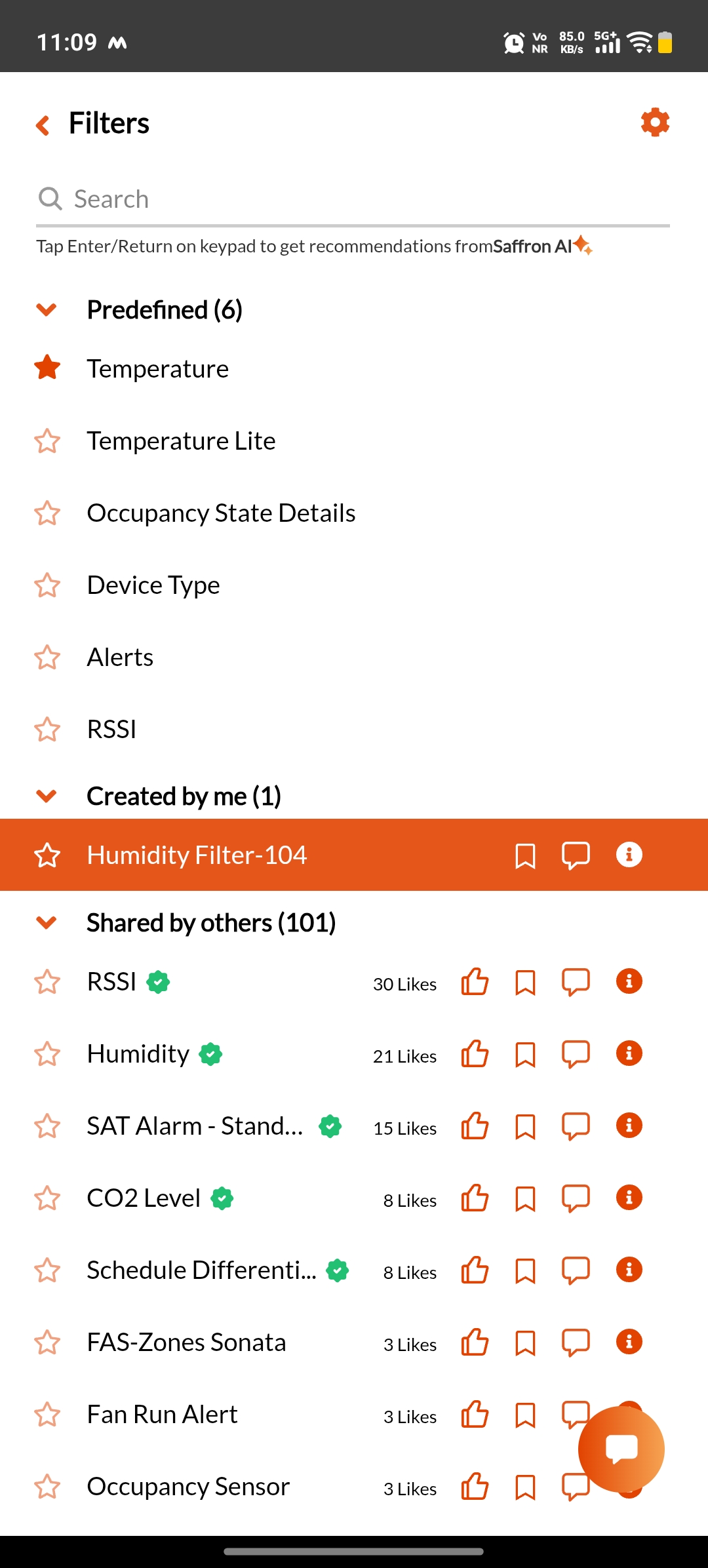

• Select a filter from the list available.

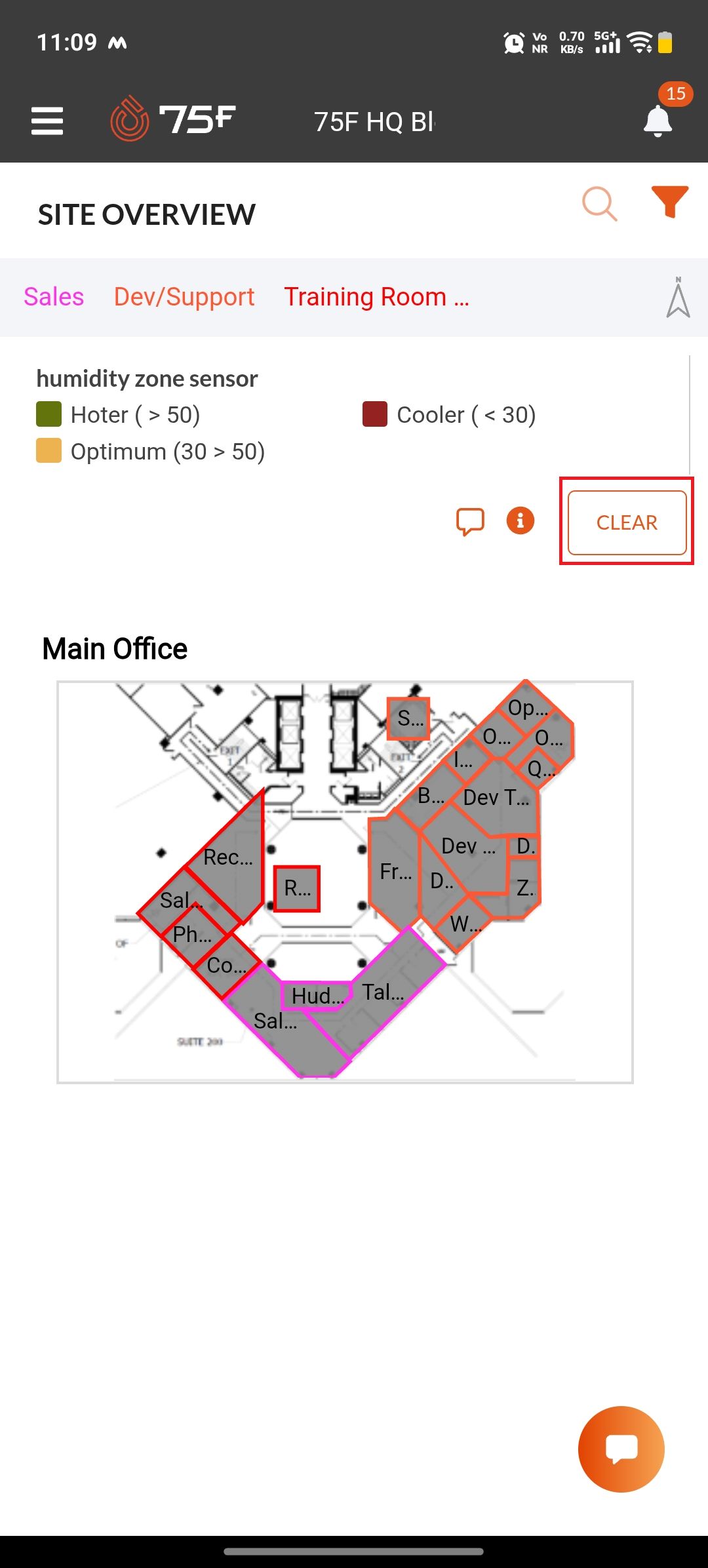

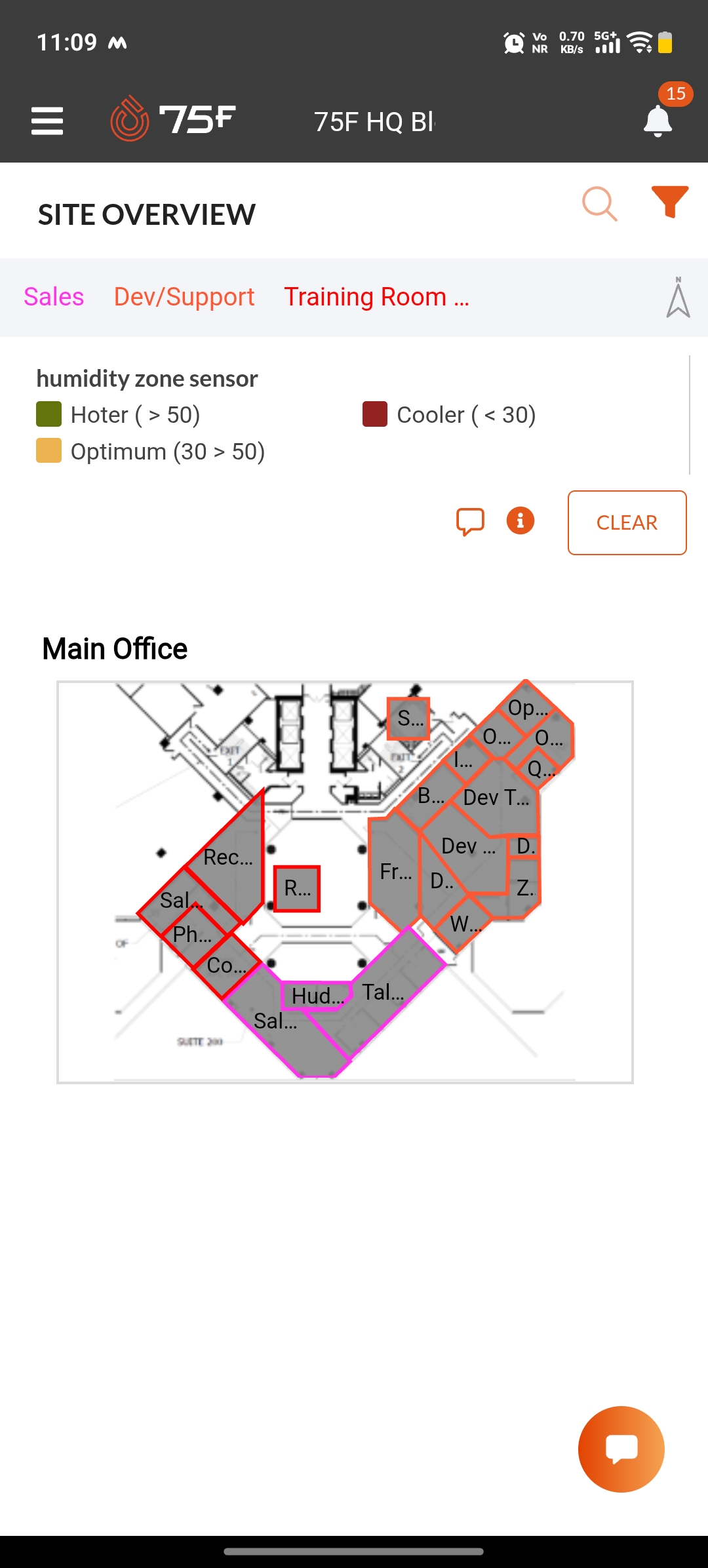

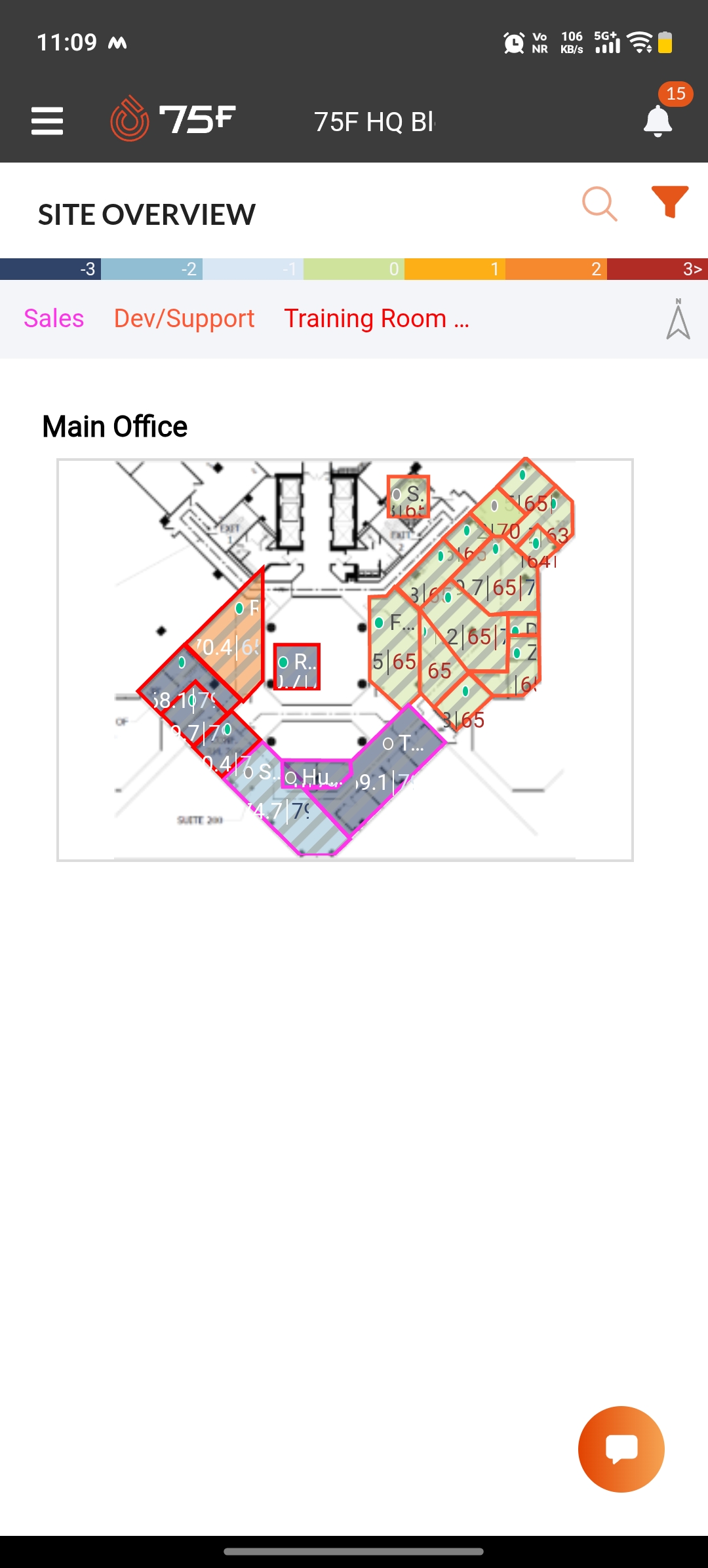

The selected filter is applied to the heatmap page.

• Click Clear to remove the filter.

The applied filter is cleared as shown below.
