Site Quote Tool- Quote Creation

| Overview

The Site Quote Tool is designed to replace the current manual site-quote creation process.

| Existing challenges

The current quote creation workflow is manual and causes:

Delays in generating site quotes
Human errors during quote creation
Limited visibility into ownership
No clear audit trail of who created, reviewed, modified, or approved a quote

| Objective of the new feature

The Coding Tool introduces a structured, workflow-driven system that provides:

Standardized quote creation
Role-based ownership
Controlled review and approval
State-driven lifecycle tracking
Better traceability from initial request to final commissioning approval

Quote Creation

Used by field-facing or operational users to create and manage quotes.

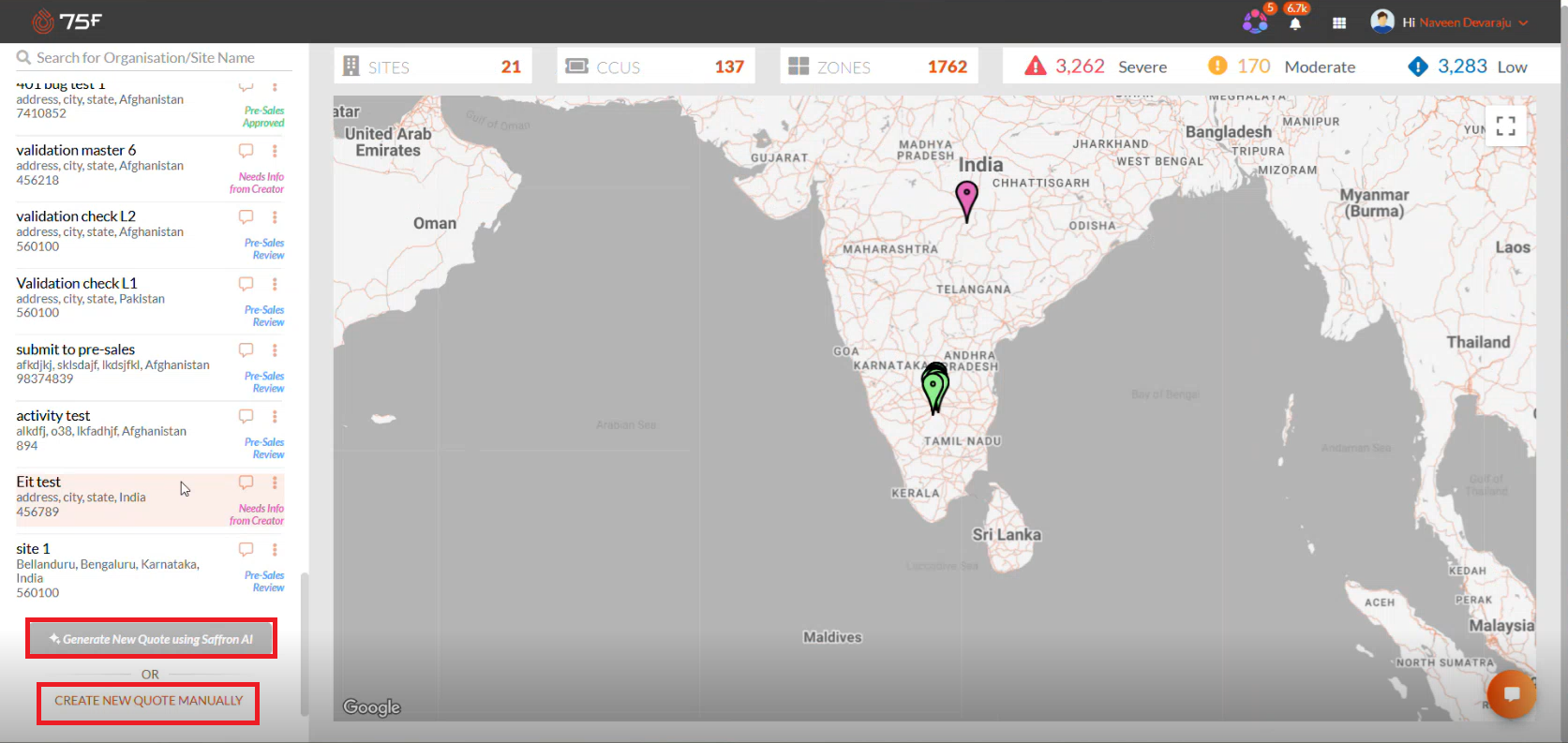

The user can choose either to create a quote manually or take the help of the AI for the quote creation.

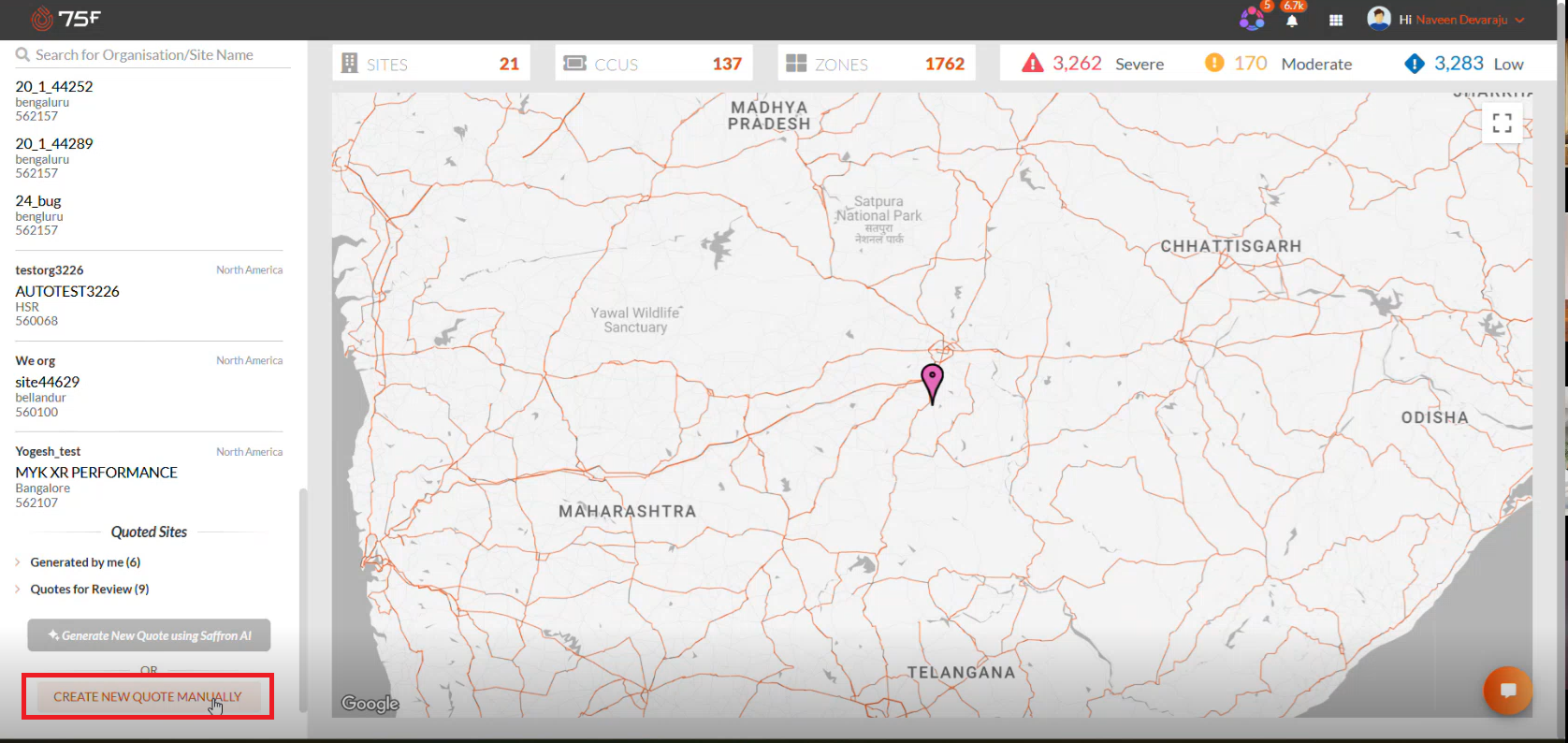

During the manual creation process,

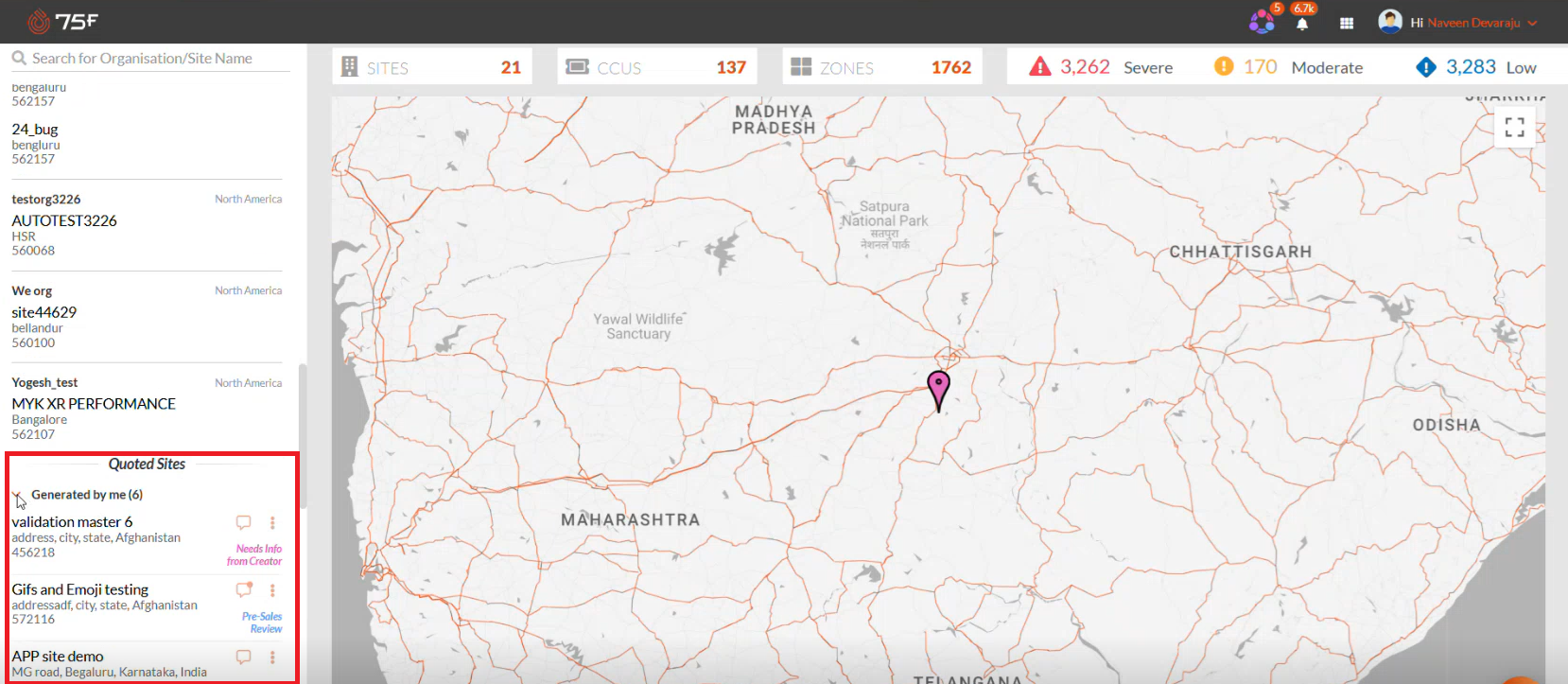

Users can select from the already created quotes to use for the new sites.

Or create a new quote for the site from scratch.

In a fresh quote creation process,

Users can:

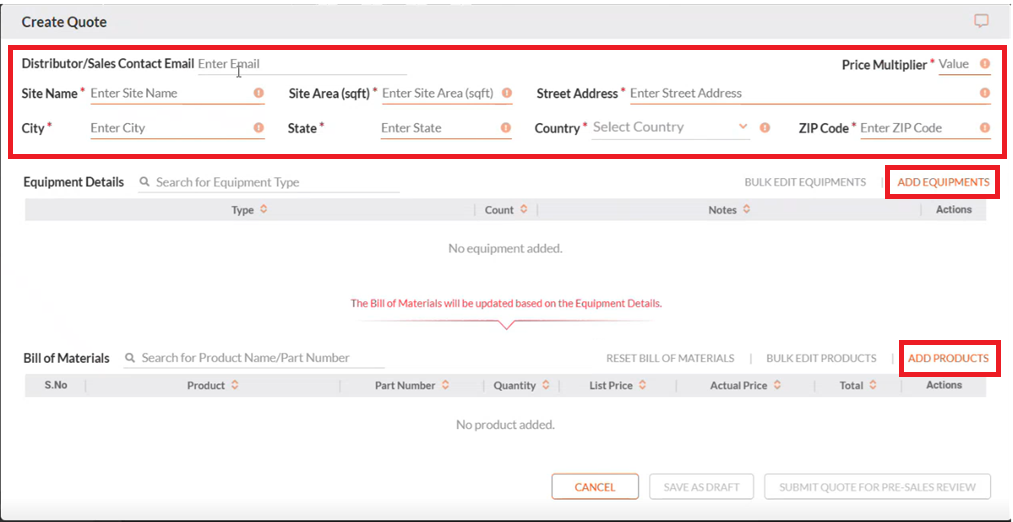

Enter the Sales or distributor details.

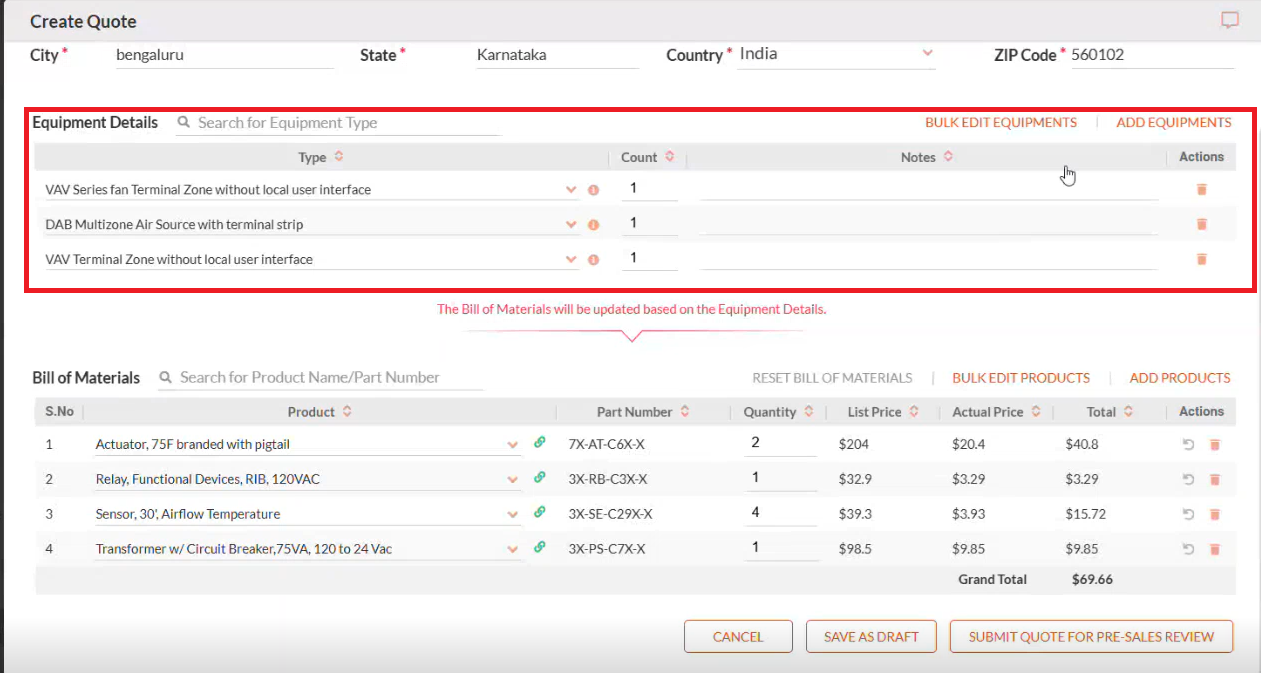

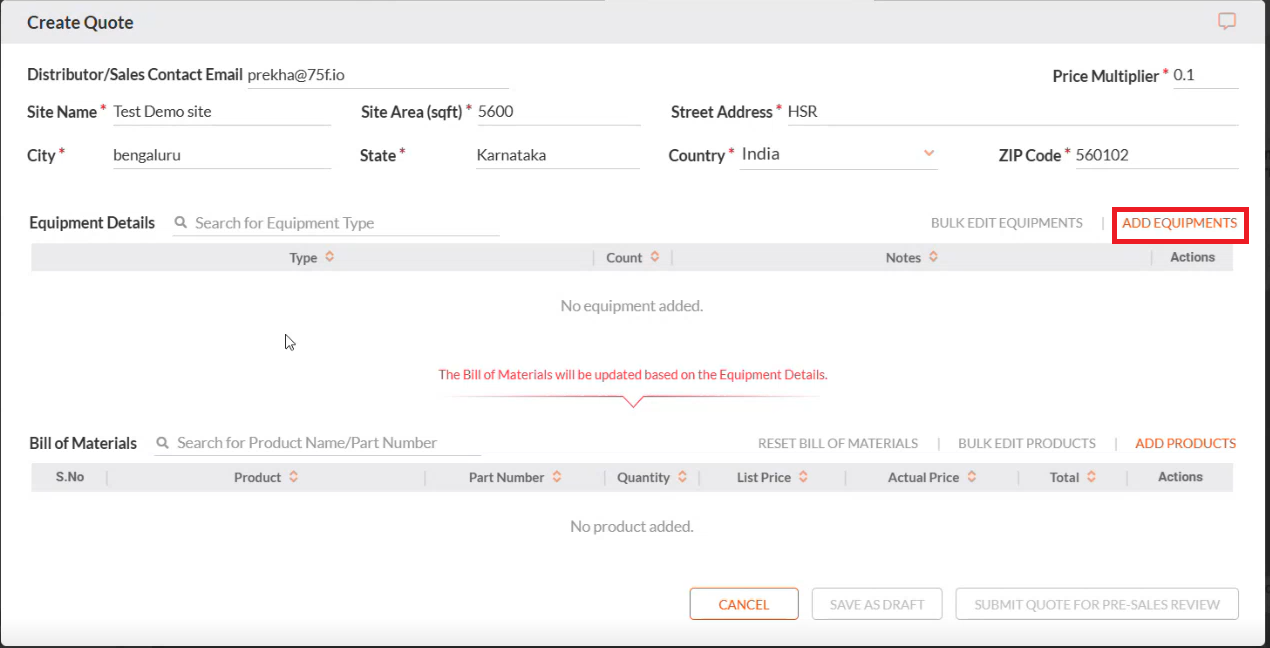

Select and add equipments

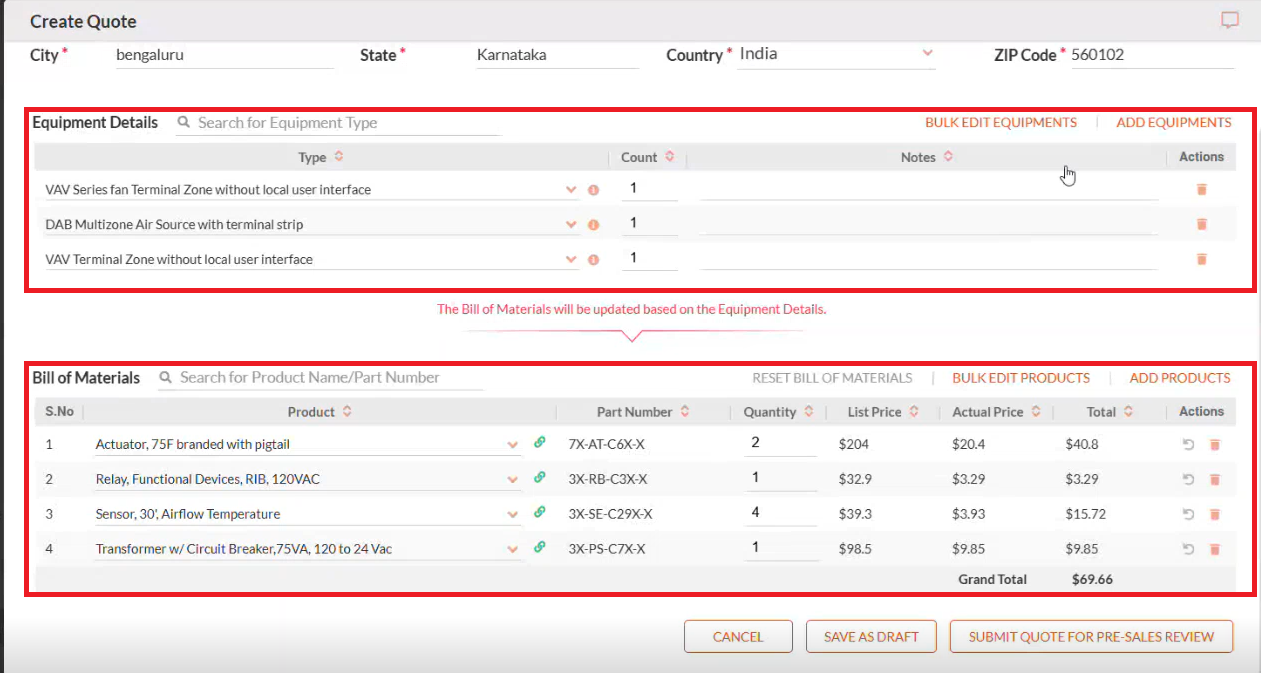

With the added equipment, the associated bill of materials is auto-generated

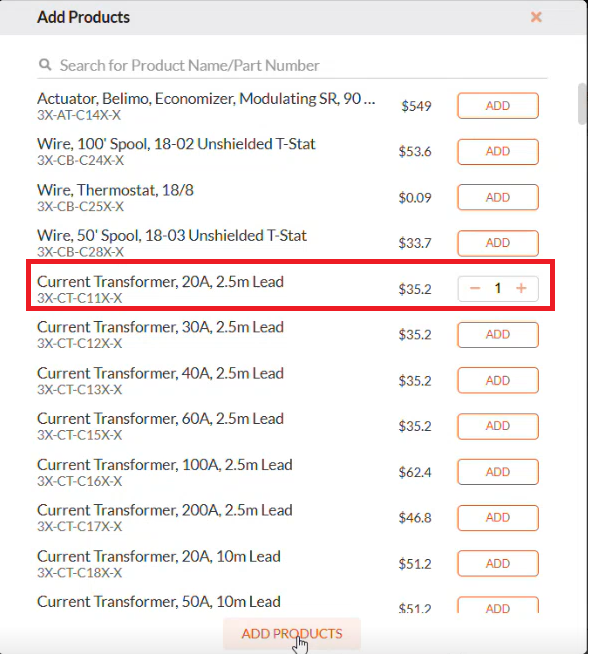

Users can add the required BOM items or delete non-applicable ones.

Note: The products for the corresponding environment are displayed in the product list.

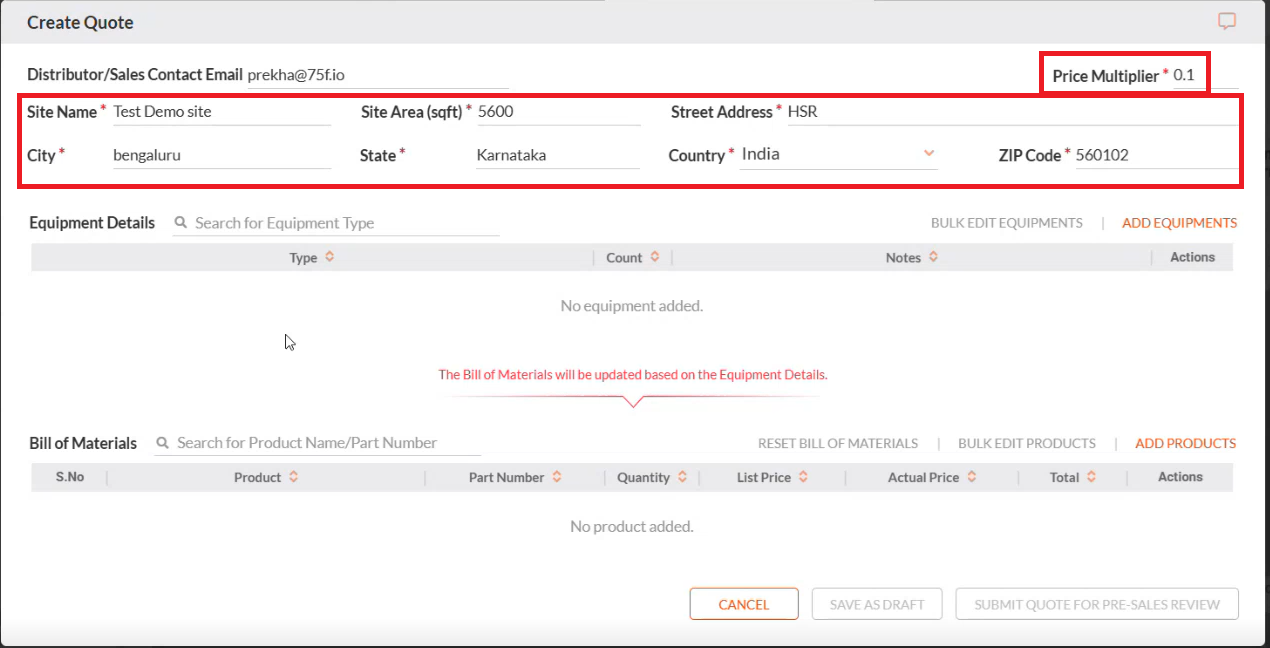

Note: Price multiplier is the discount applied to the actual price; for example, a price multiplier of 0.8 equates to a 20% discount.

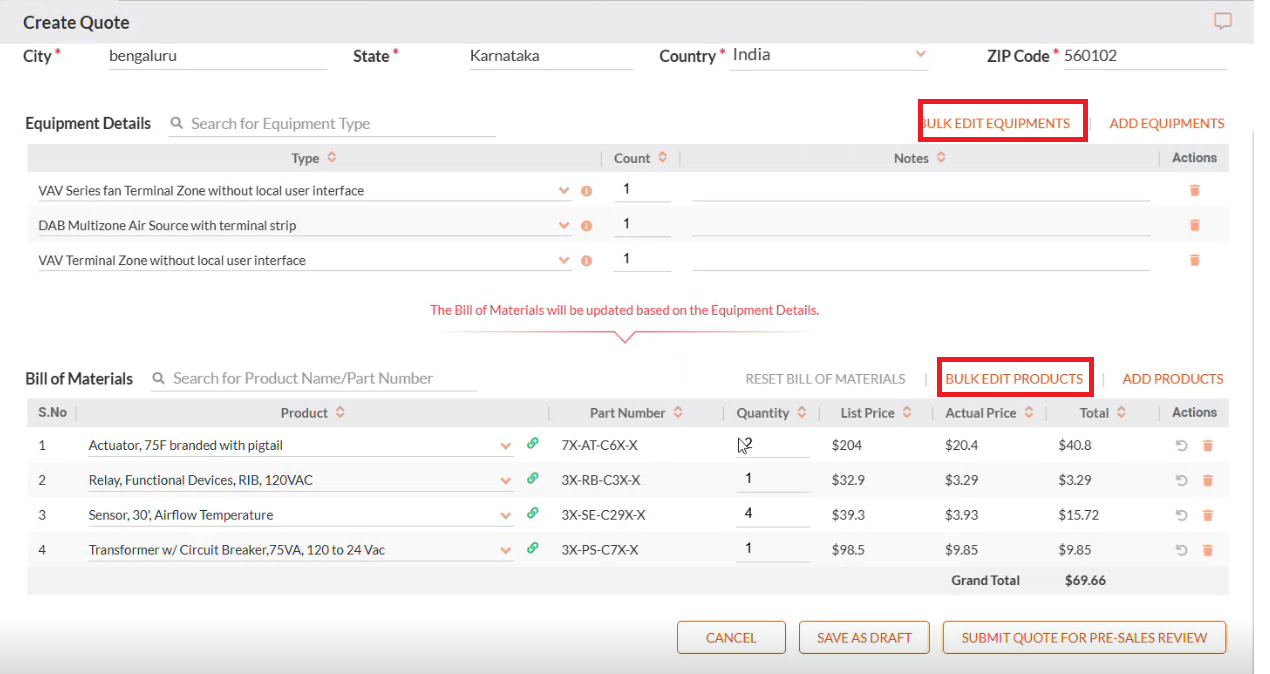

Users can bulk edit the equipment and the BOM items.

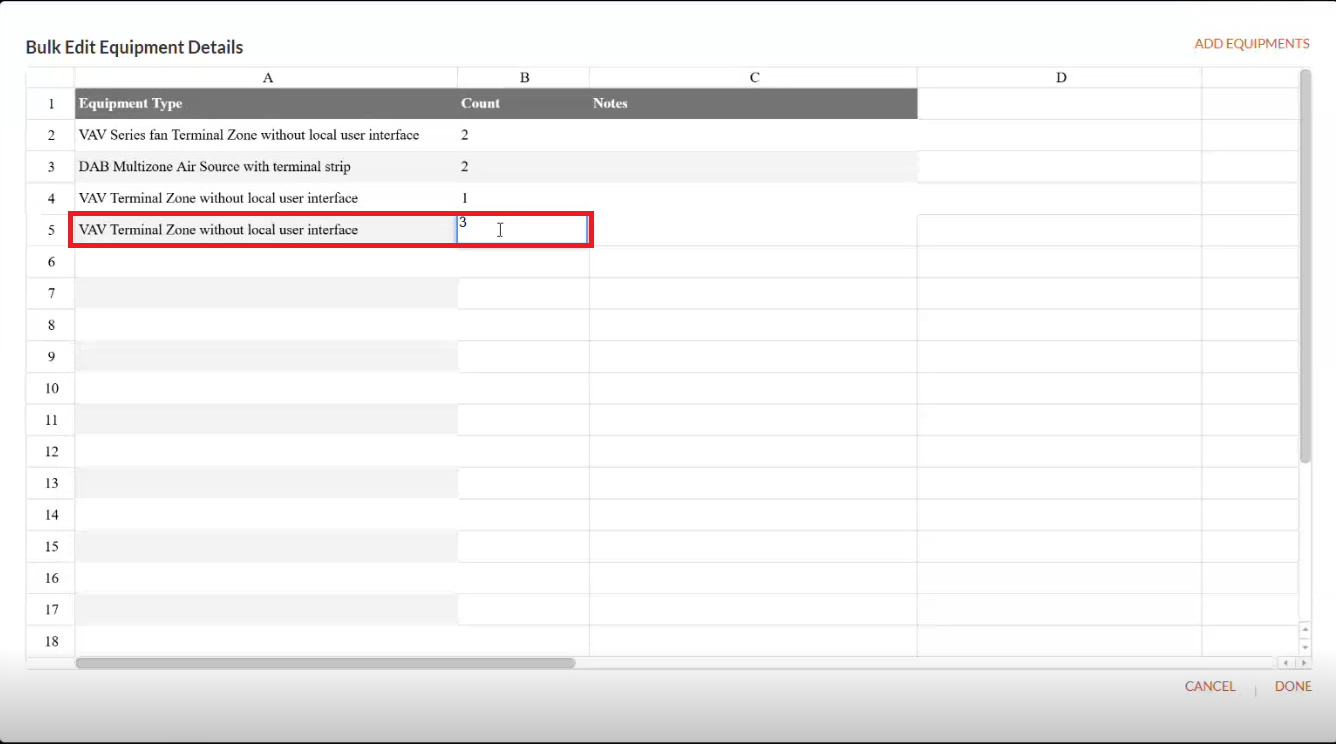

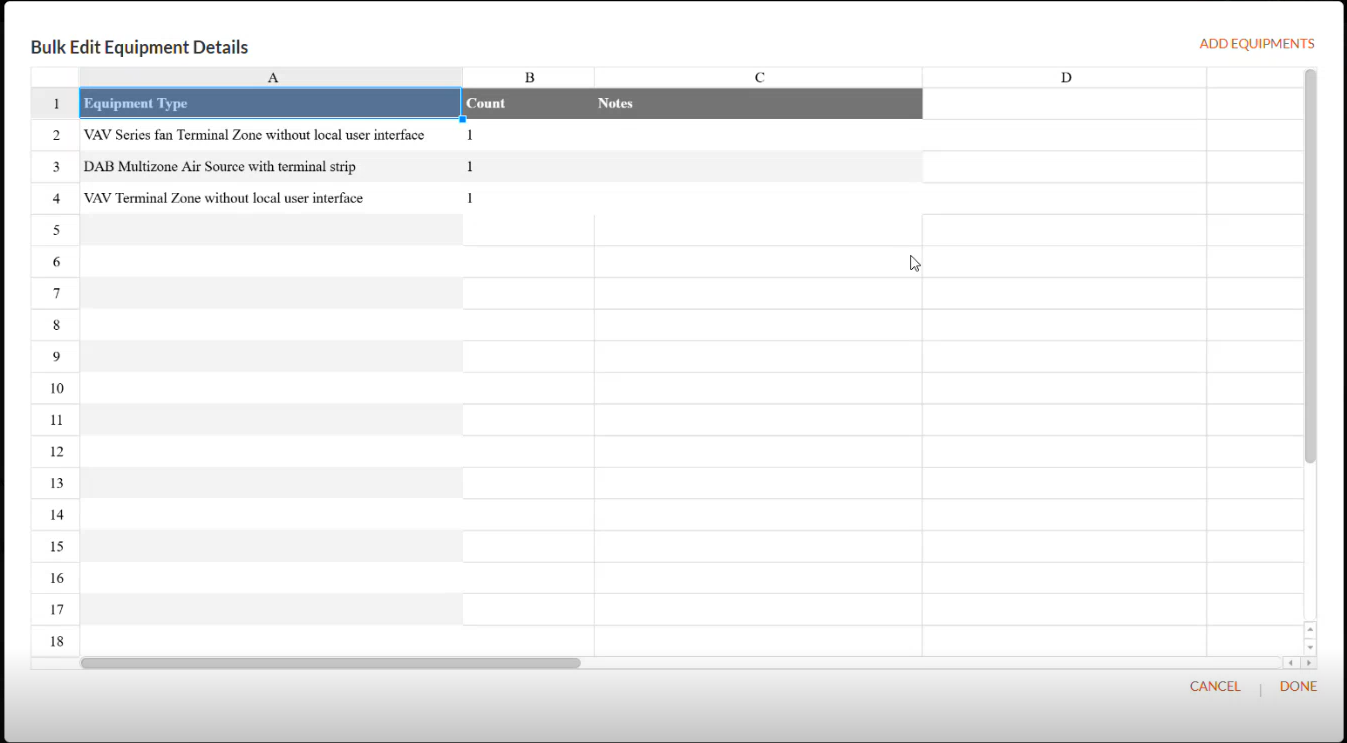

From the Excel interface, as shown below.

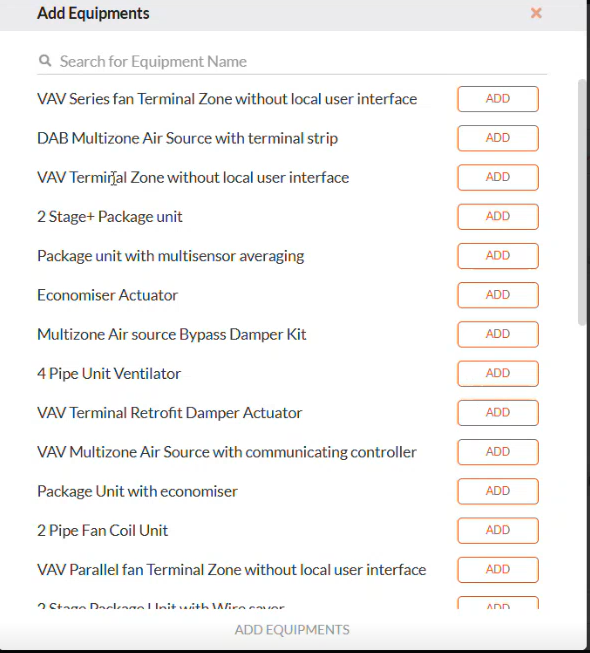

Or from the Add equipment window, as shown below.

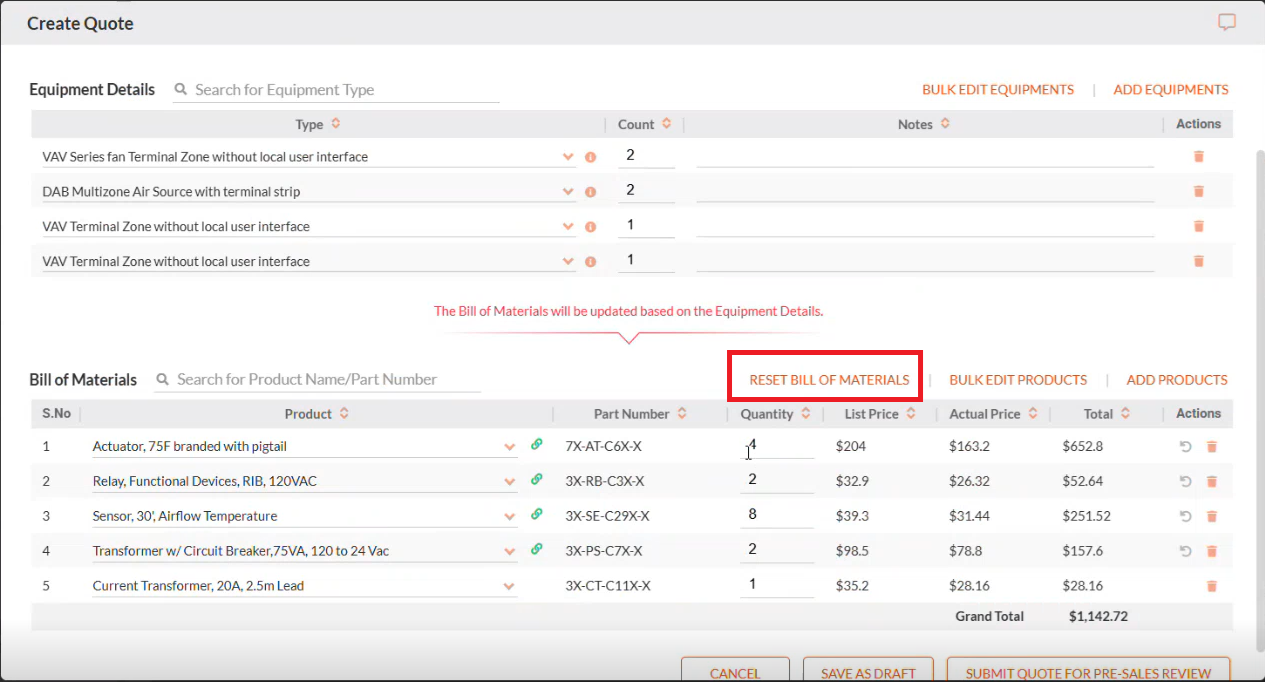

Users can use the Reset option to revert to the original list item, during the addition or deletion of BOM items.

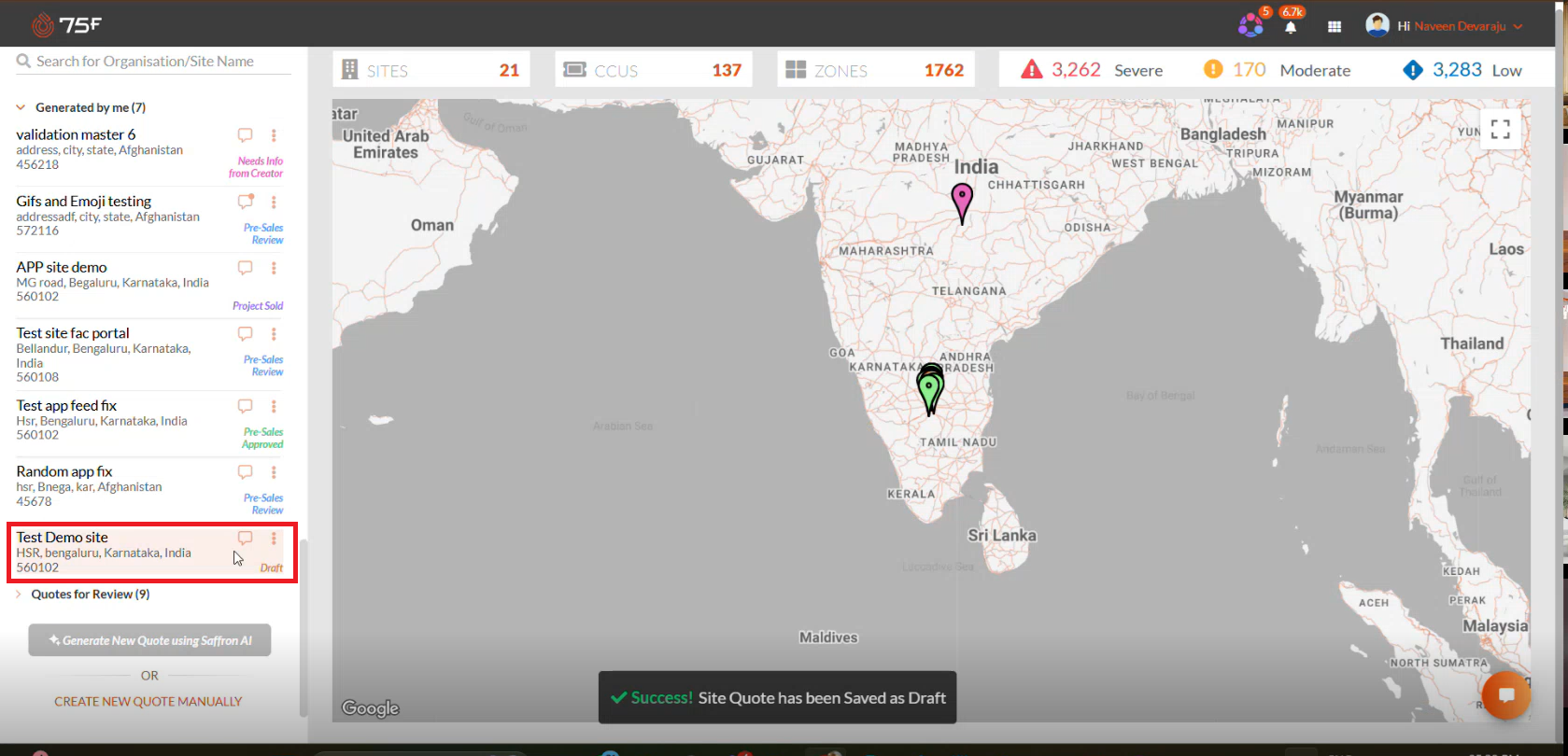

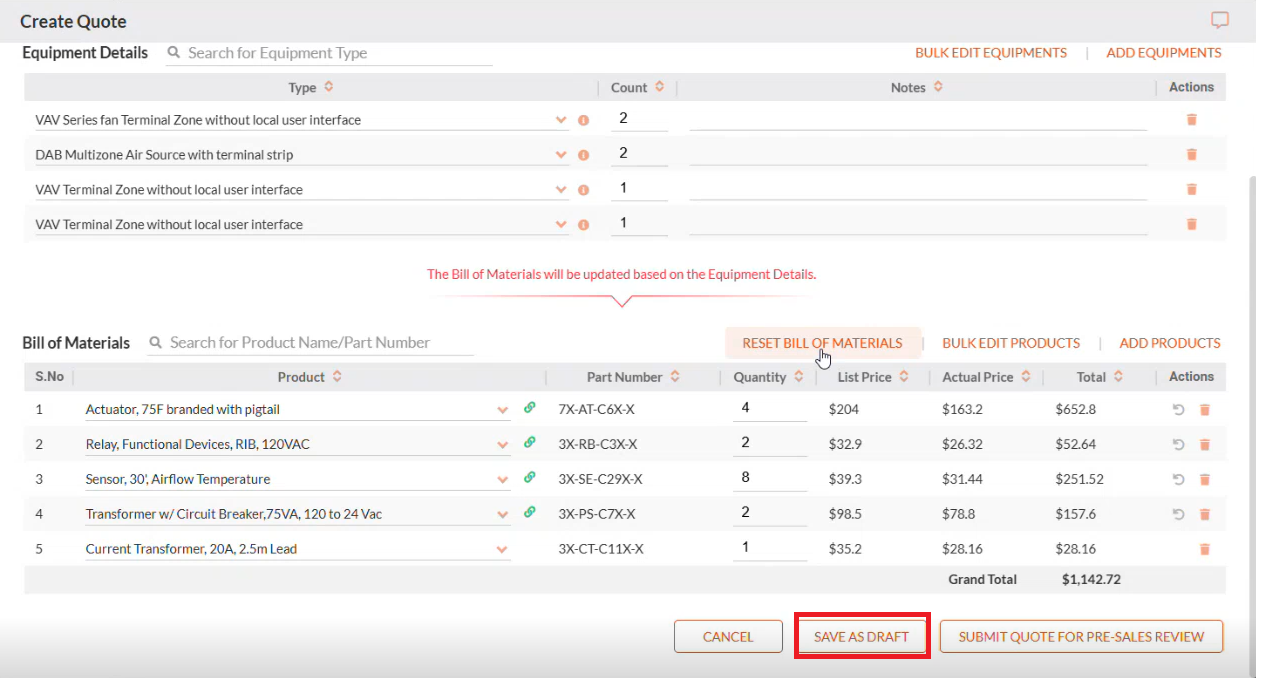

Save work in progress

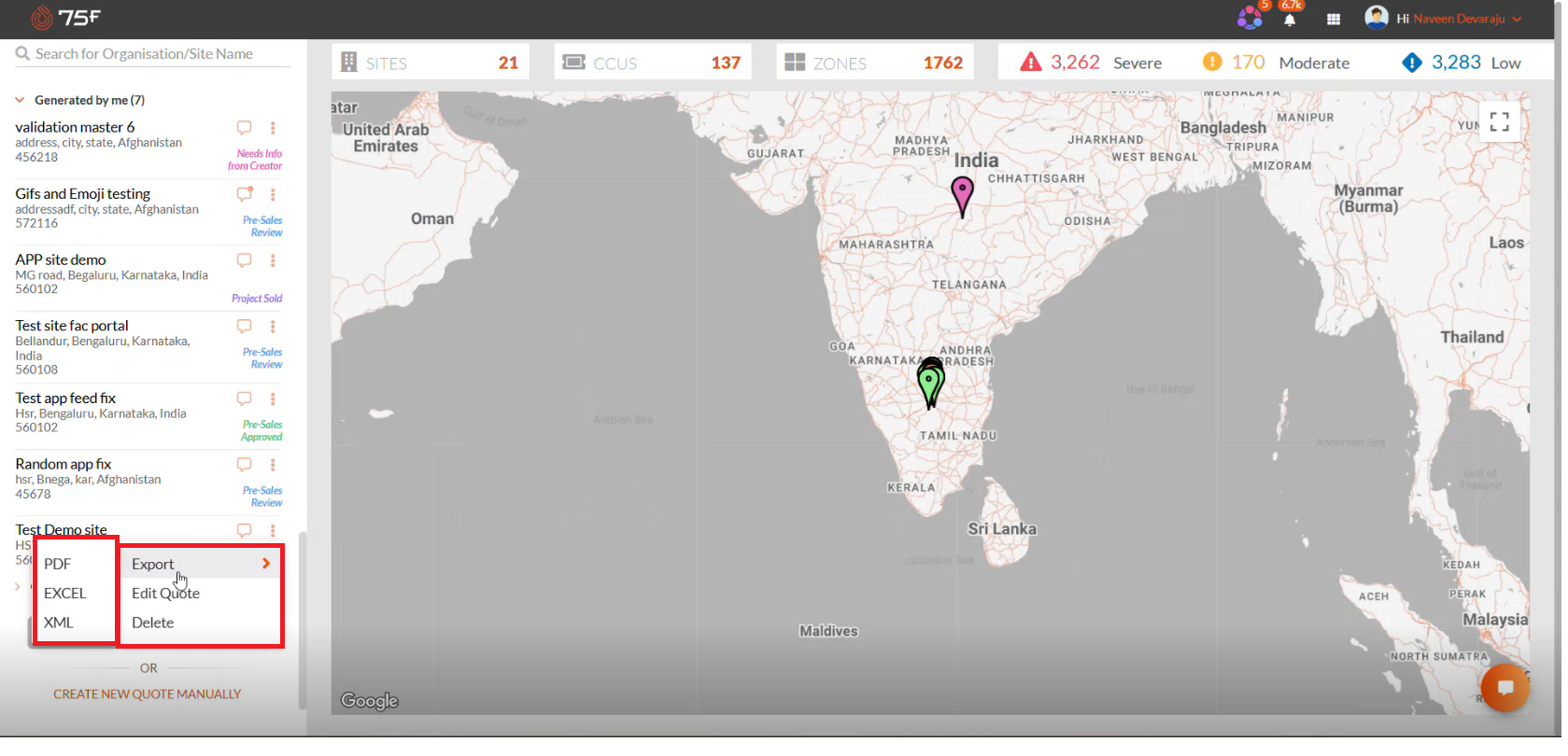

Users can edit, delete or export the draft in different formats using the options provided.

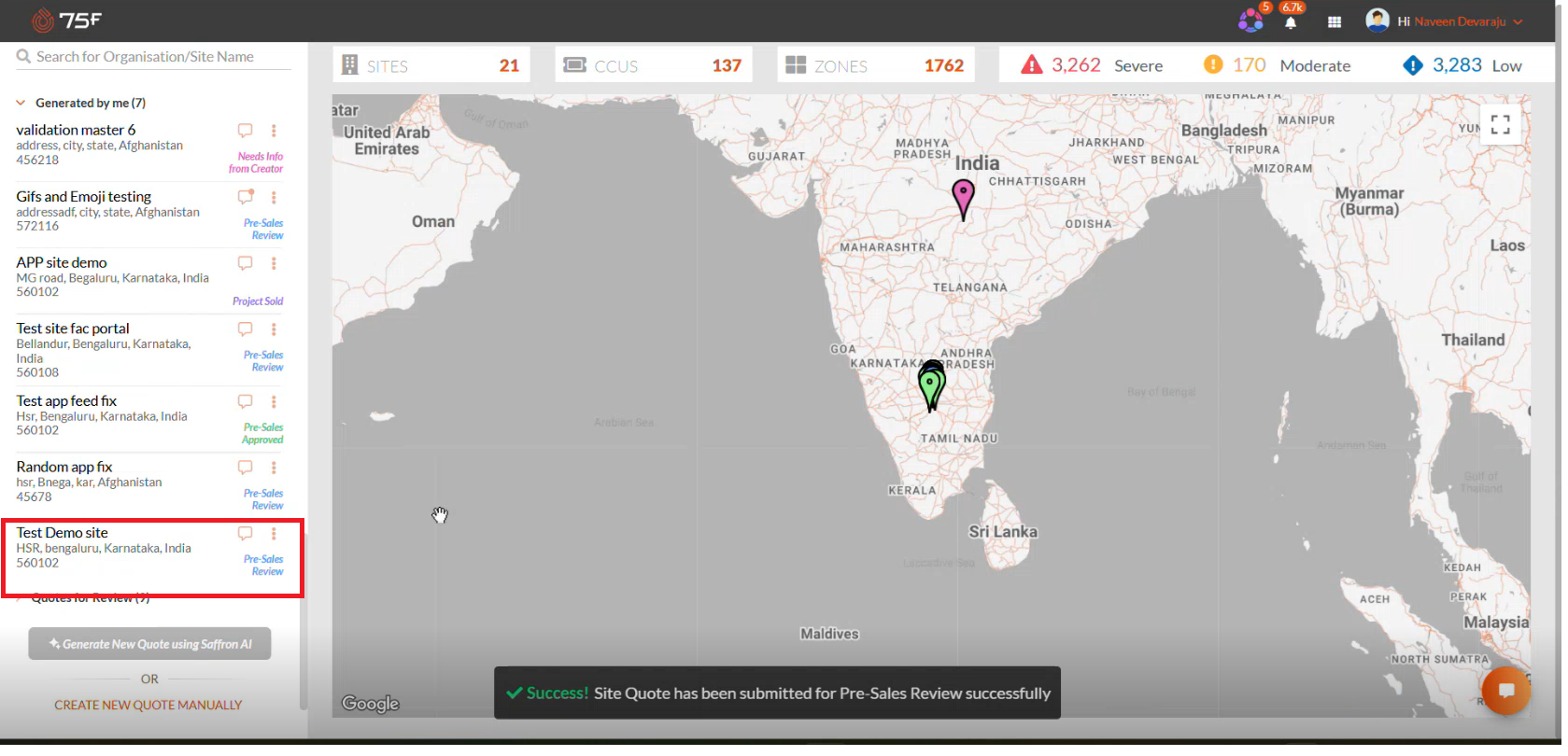

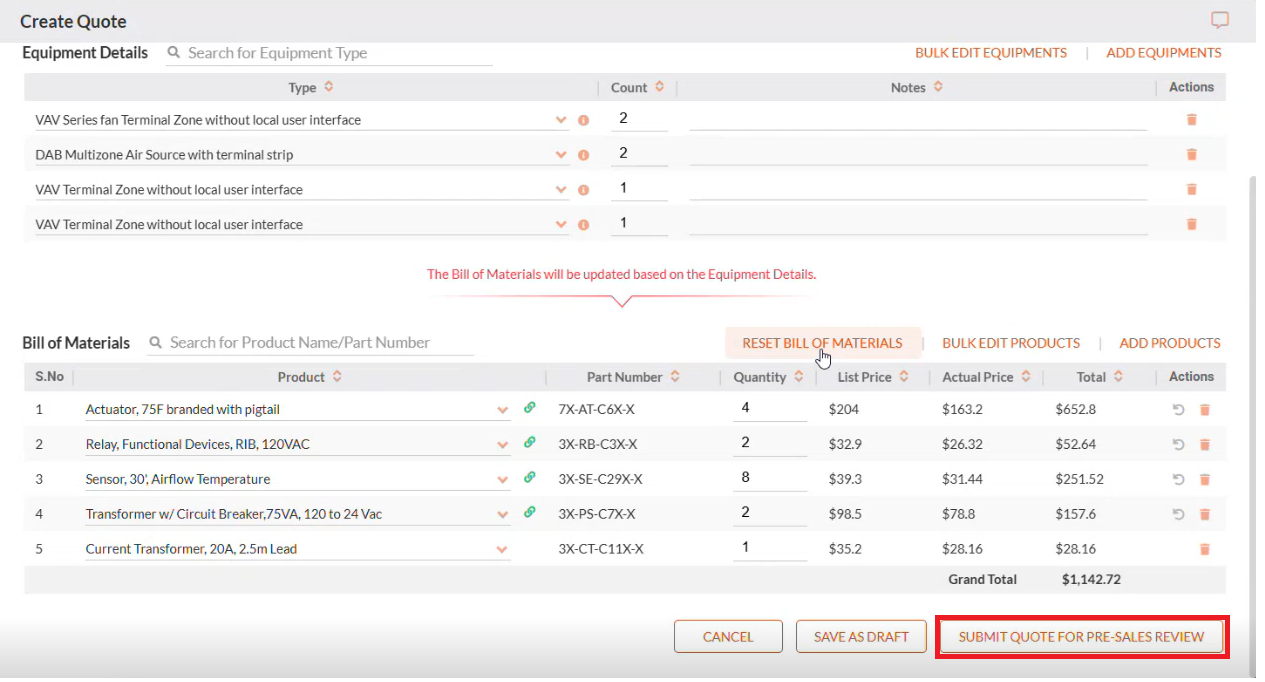

Submit a quote for the review

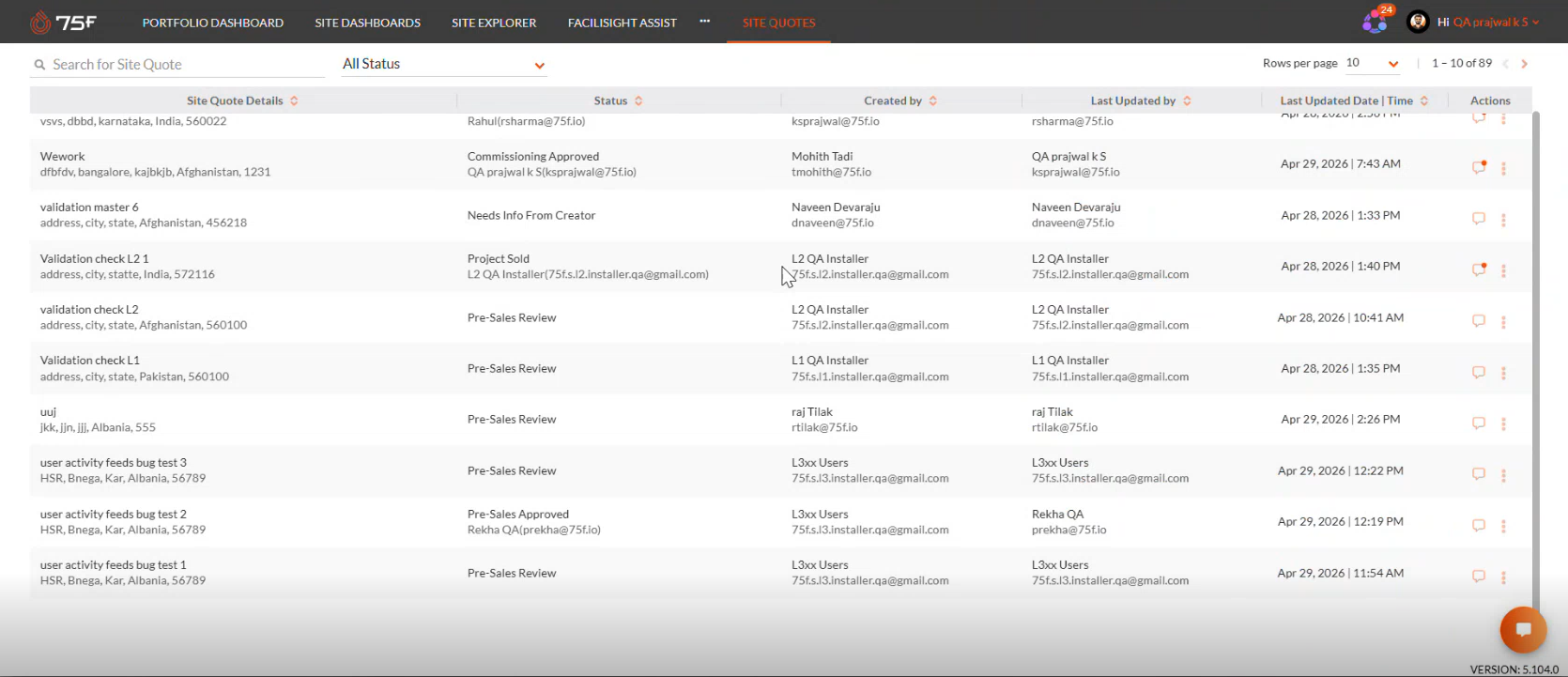

| Workflow Lifecycle

The feature uses a state-driven workflow model.

State	Trigger/ Stage	Characteristics/ Meaning
Draft	Initial state.	quote is being created Creator can freely edit: equipment BOM selection associated product information
Pre-Sales Review	Triggered when the creator submits the draft.	quote enters reviewer queue Pre-sales reviewer validates business correctness
Need Info	Used when submitted data is incomplete or requires clarification.	Sent back to the creator Creator can edit and resubmit This creates an iterative feedback loop.
Pre-Sales Approved	Indicates successful completion of initial review.	The quote is accepted from a pre-sales standpoint Ready for downstream project progression
Project Sold	Triggered after the project progresses commercially.	quote becomes eligible for commissioning validation
Commissioning Review / Final Validation	Internal commissioning users validate quote readiness.	Final approval Request additional info (returns to Need Info state)

| Floor, Location & Notes

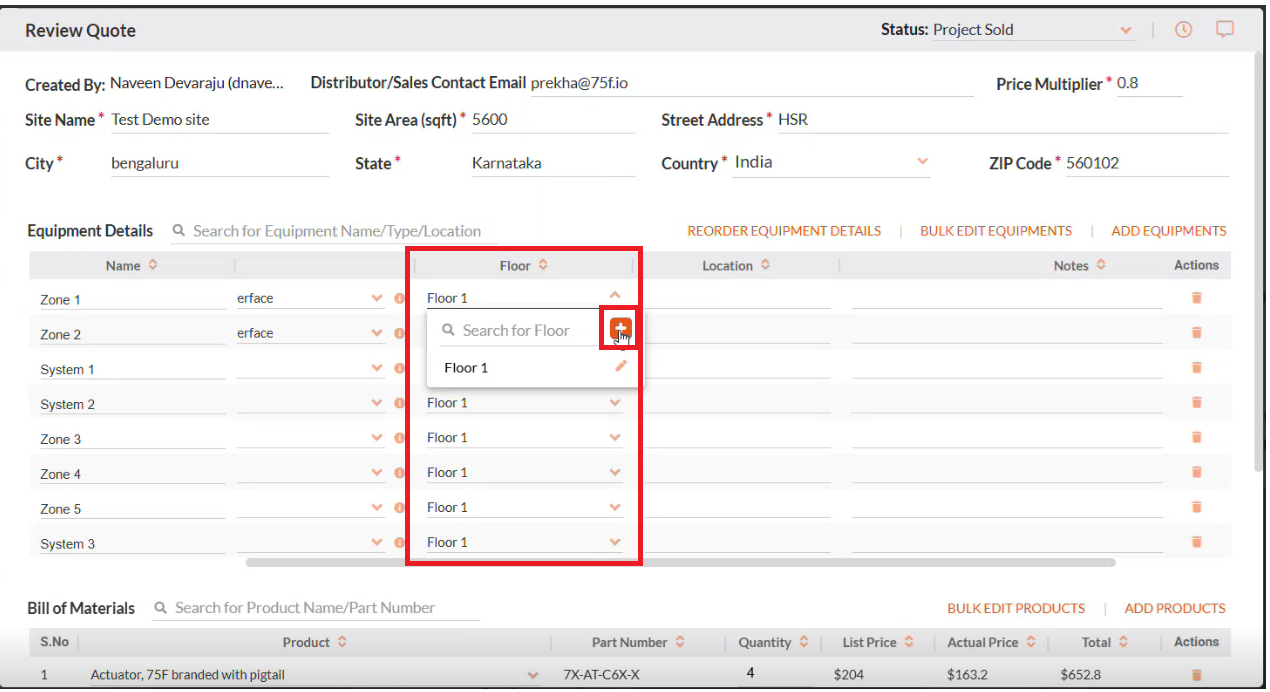

Users can add floor names for the equipment as shown below.

Note: The default floor name is floor 1.

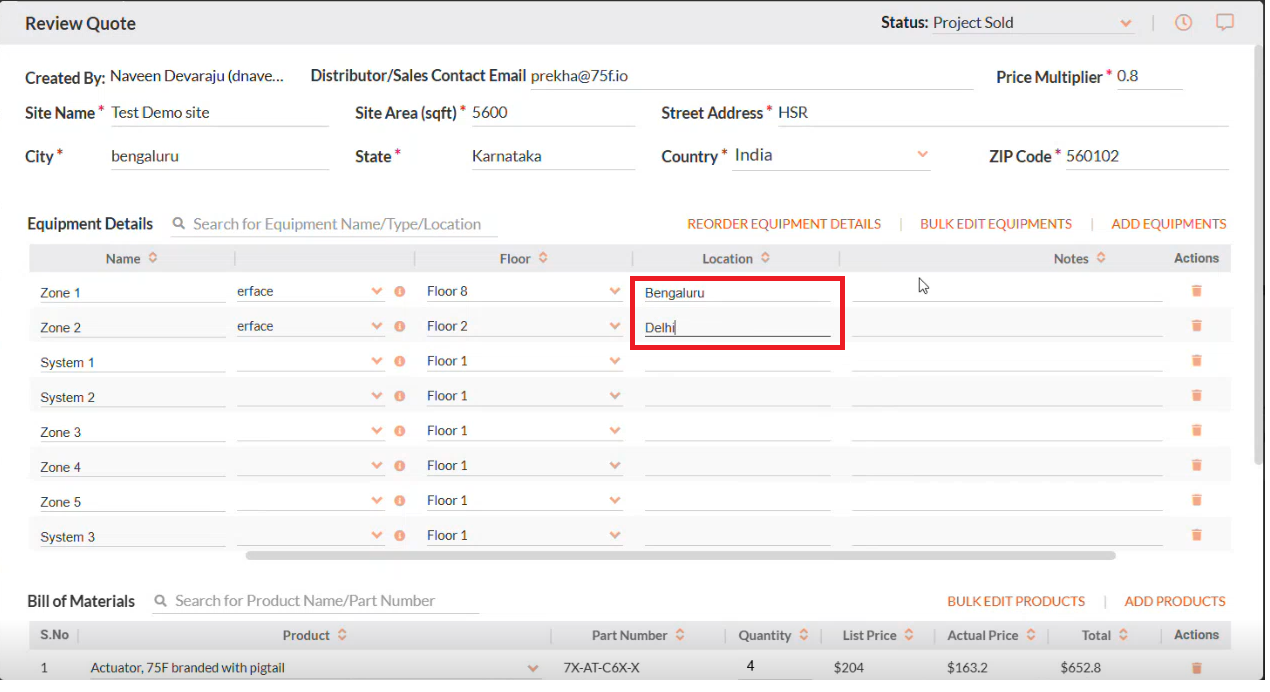

Users can add location details for the equipment, as shown below.

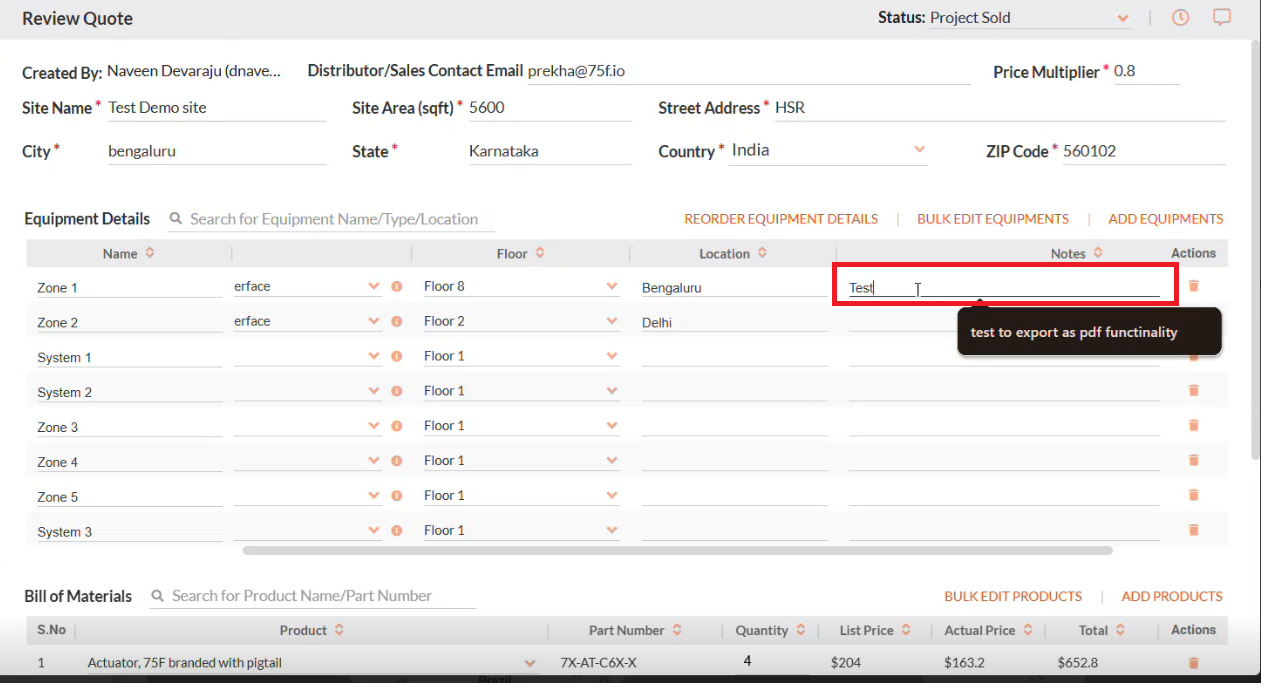

And note for the equipment, as shown below.

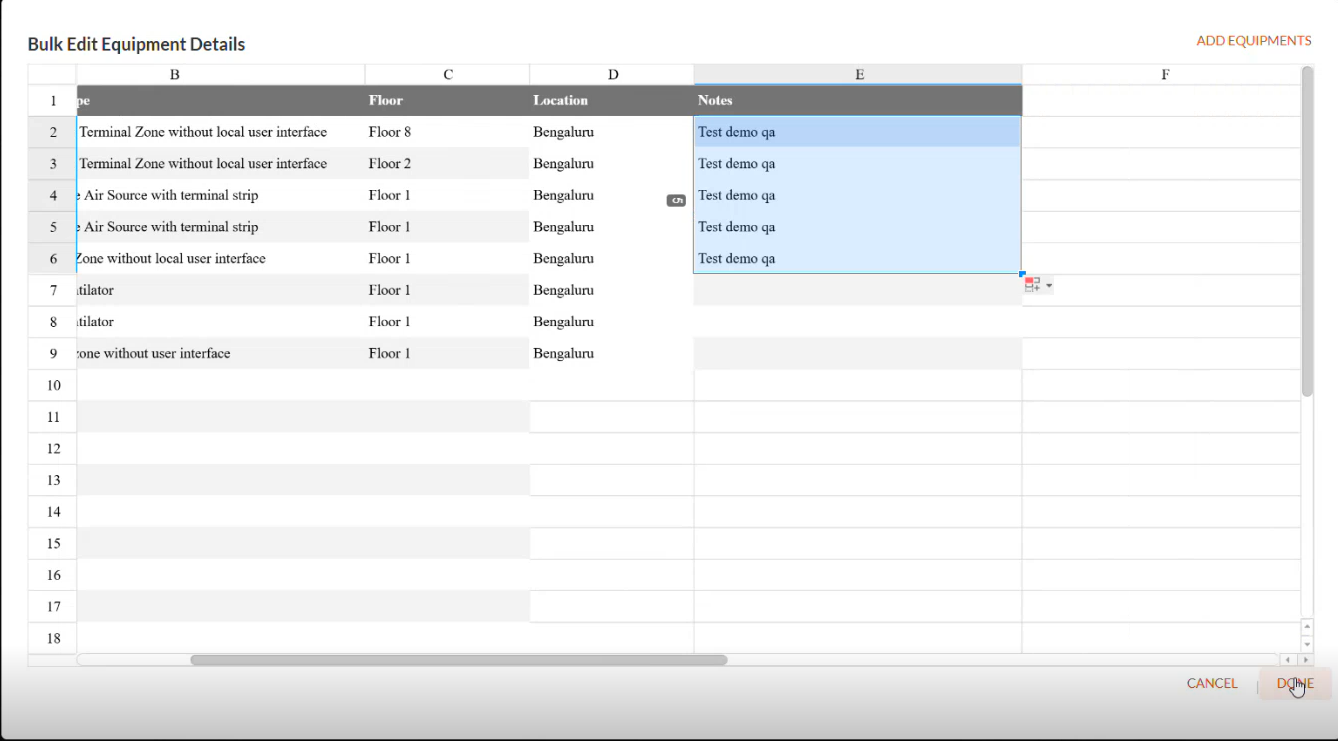

The same can be achieved using the bulk edit option as well.

| Comments

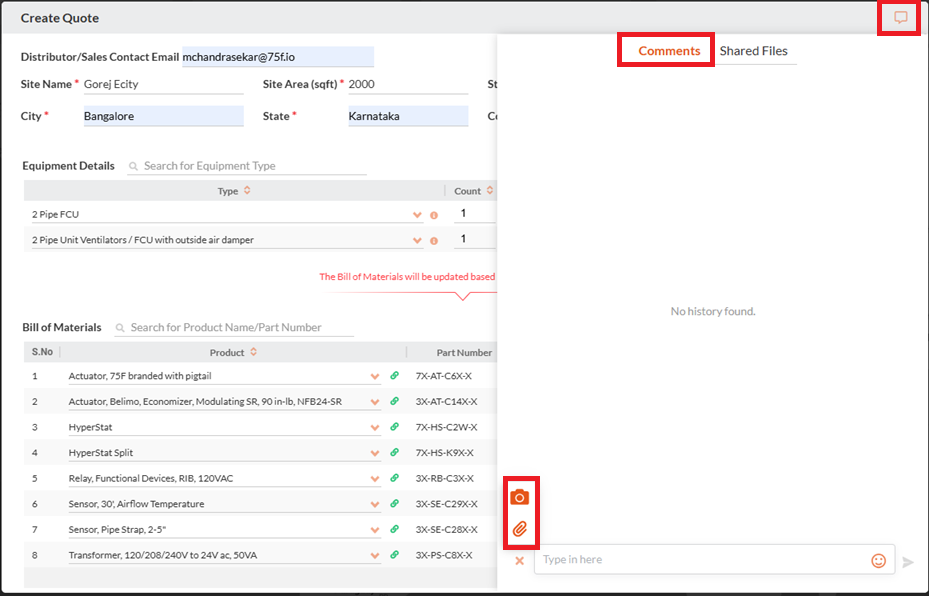

The Comments Attachment Enhancement extends the existing attachment workflow in the Comments panel by allowing users to capture and upload media directly from their device camera, in addition to uploading files from local storage.

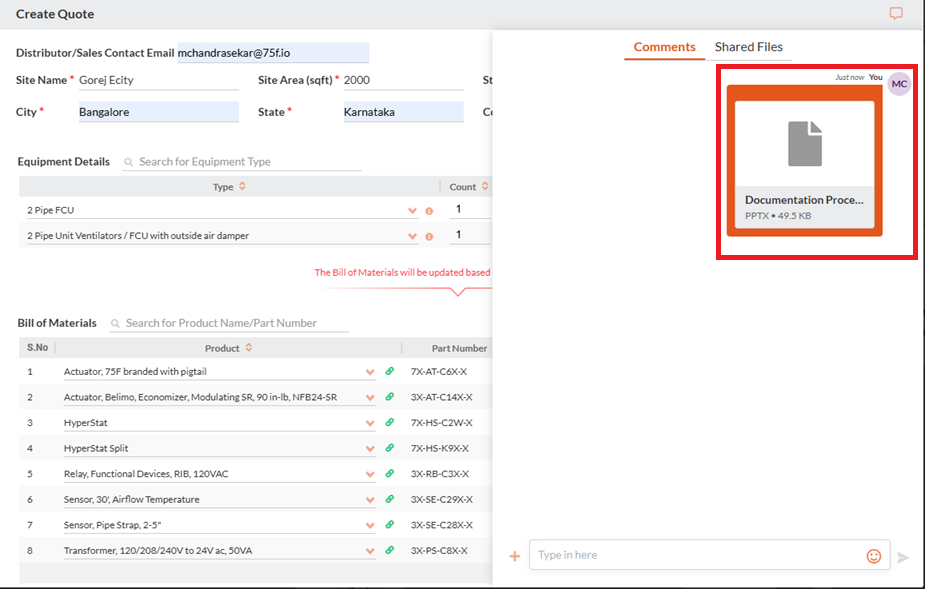

With this enhancement, users can quickly attach site photos, equipment images, videos, or supporting documents without leaving the application, improving field productivity and reducing the steps required to share contextual information.

Note: Attachments with multiple pages are also supported, including PDF, Word, and Text file formats.

| Quote Status Log

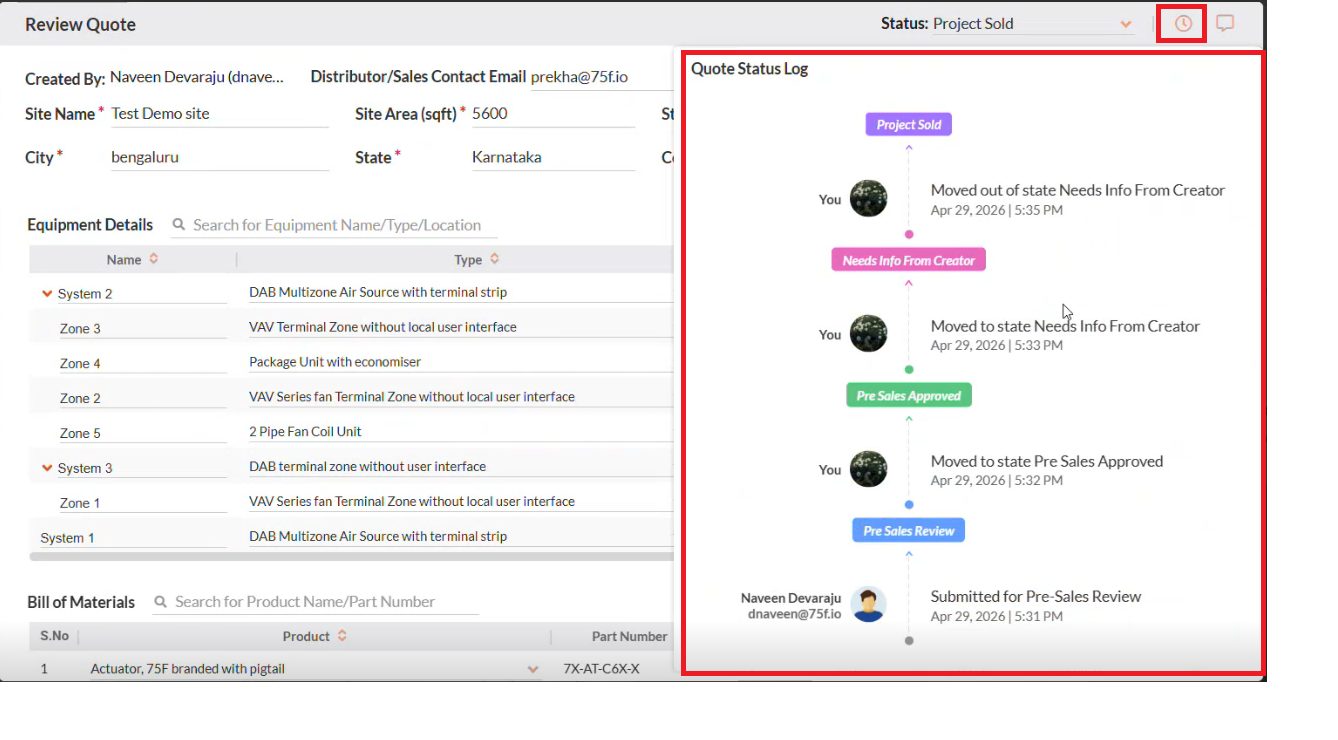

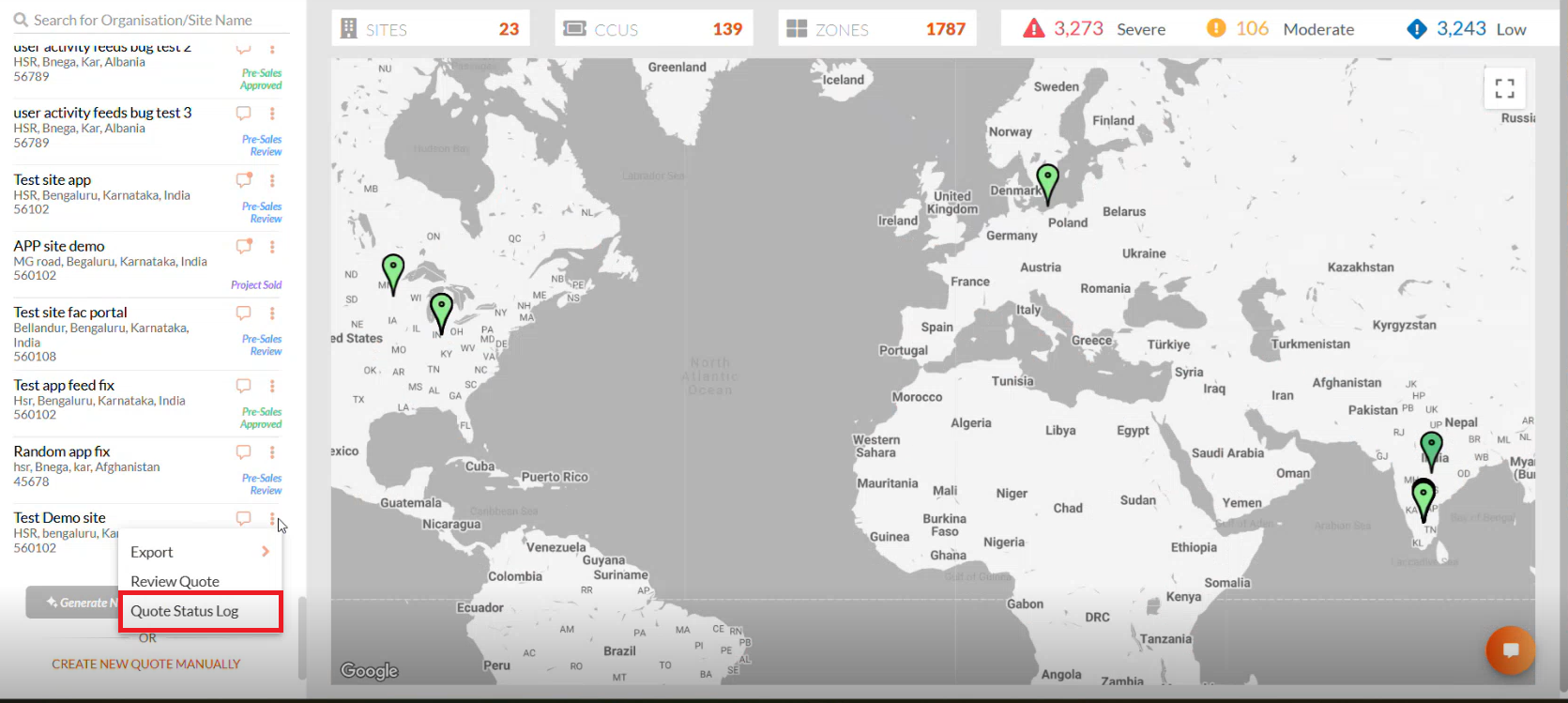

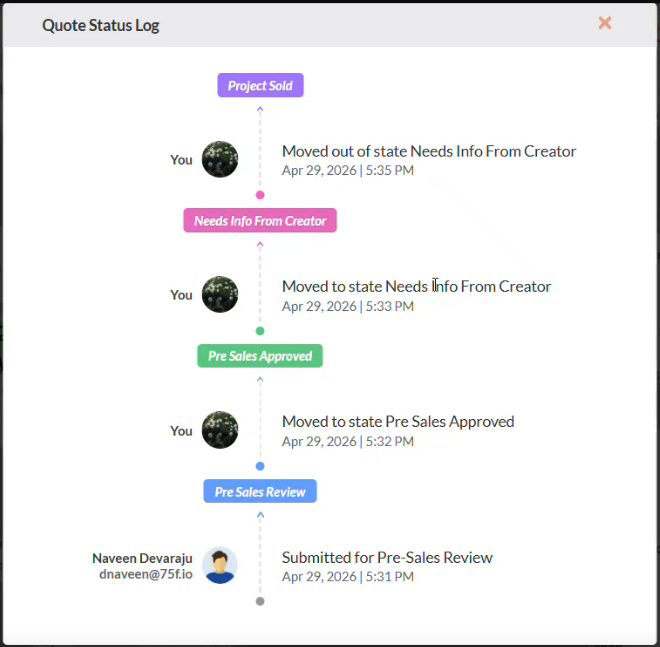

For a submitted quote, the users can check the quote status using the quote status log option, as shown below.

The same can also be viewed from the Review quote screen as shown below.

| Configurable Exception Product Handling in Bill of Materials (BOM)

This enhancement introduces special handling for configurable exception products within the Bill of Materials (BOM) workflow. Unlike standard BOM products, exception products follow predefined business rules for selection, quantity calculation, editability, reset behaviour, and bulk update operations.

The objective of this feature is to support labor and service-based products whose quantities are derived from overall hardware value rather than being manually maintained by users.

The list of exception products is environment-specific and managed through backend configuration, allowing future additions or modifications without requiring application code changes.

For more information, refer to Configurable Exception Product Handling in Bill of Materials (BOM)

| Exported Quote

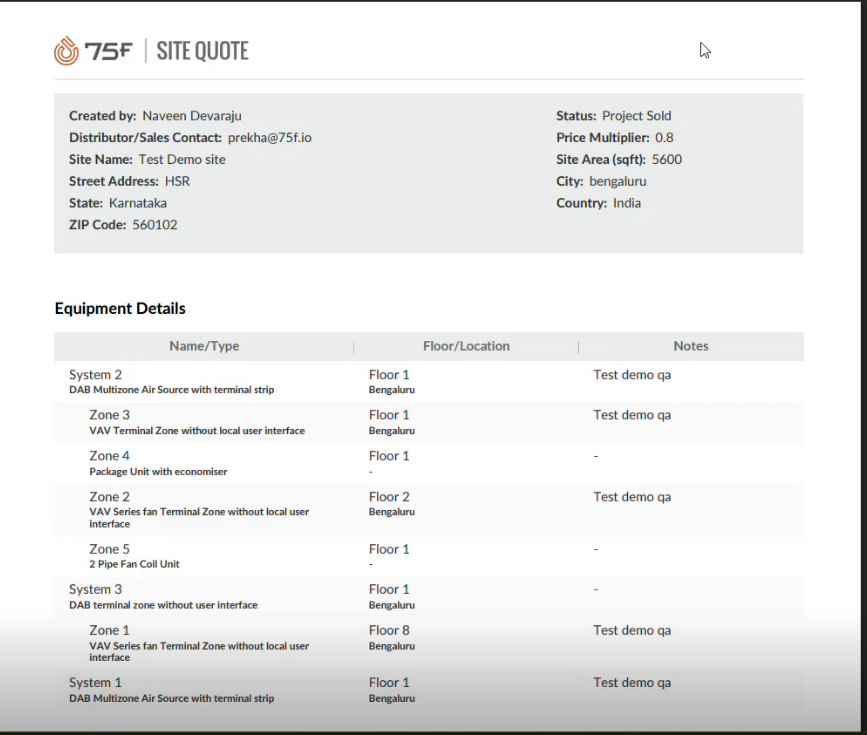

An exported quote in PDF would look as shown below.
