| Overview

The CCU Remote access feature enables users to access the CCU remotely through the Internal portal. This feature lets the user change system/zone configurations to make reliable changes with reduced points of failure and to view the updated configurations. It also helps the user to view remote diagnostics to access them in case of CCU crashes or failures, and remotely view CCU logs for further troubleshooting.

| Accessing CCU Remote Access Provision

The provision to access the CCU remotely is made available in the following places in the internal portal

  • CCU Widget Screen
  • Facilisight Assist

Note: The CCU can be remotely accessed only by the Internal Support users and the certified Installer L2 & L3.

| Prerequisites

The following prerequisites should be met for a CCU, to be remotely accessed from the internal portal.

  • HomeApp vx.x.x and above
  • Remote Access App version_x.x.xx. and above.

| Accessing From CCU Widget Screen

From the Internal portal,

Screenshot 2024-07-15 133319.png

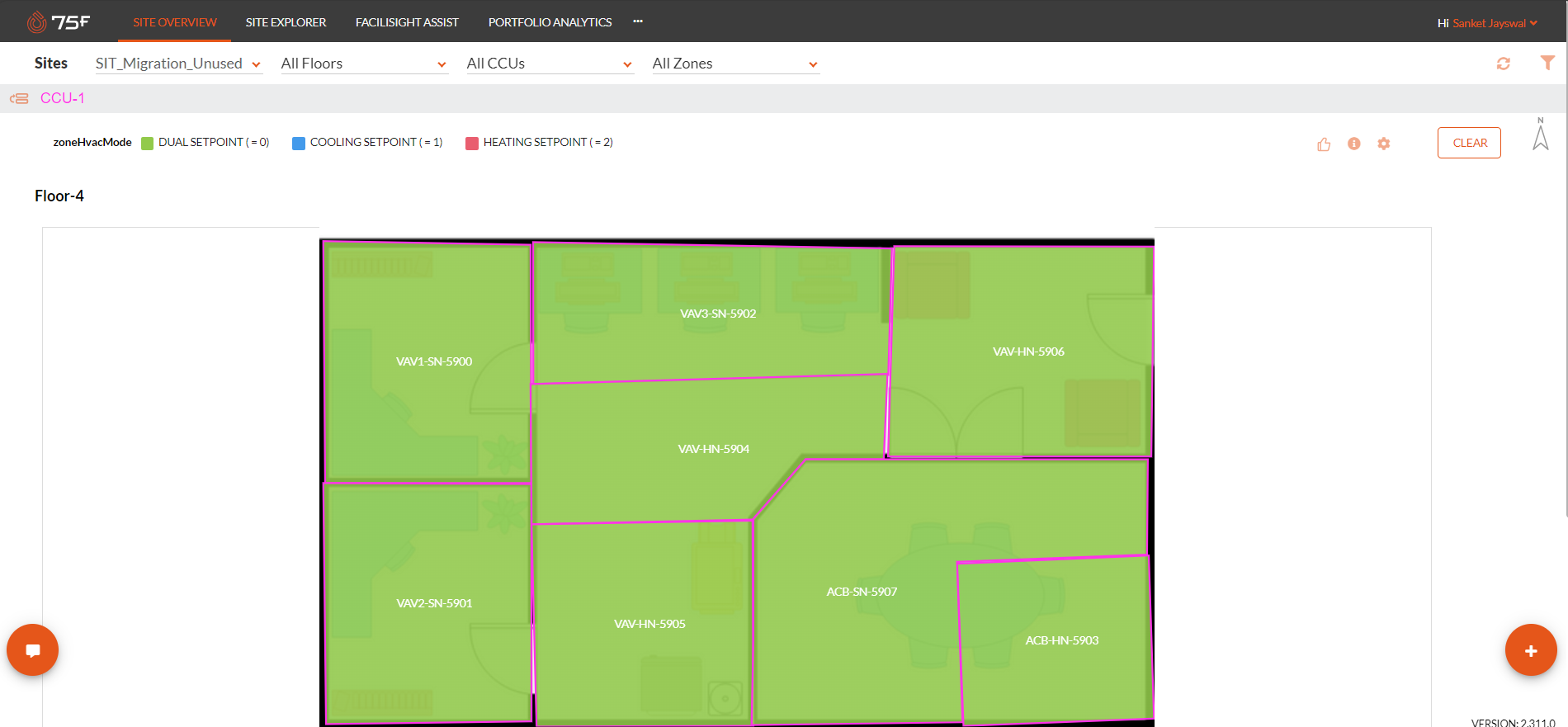

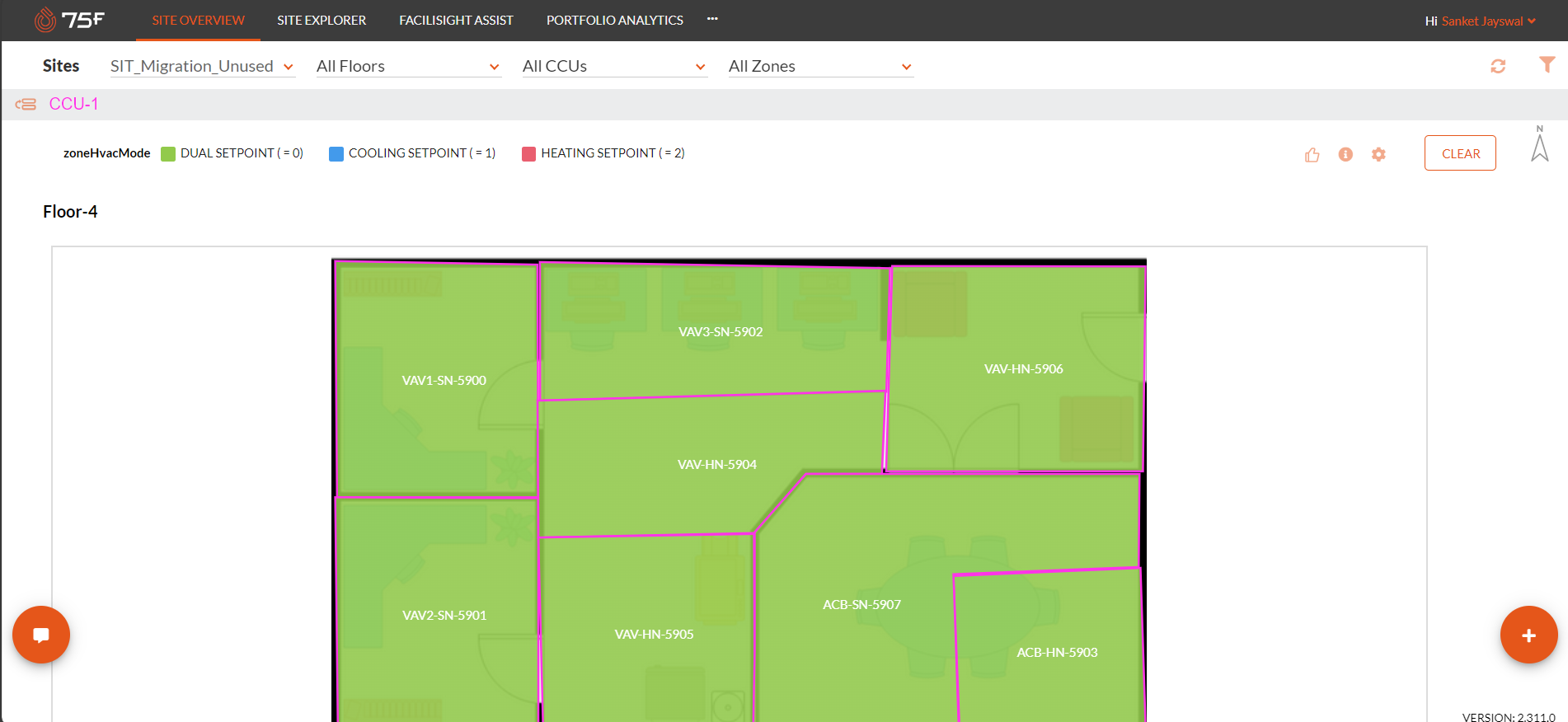

  • Select the CCU to be remotely accessed.

Screenshot 2024-07-15 142654.png

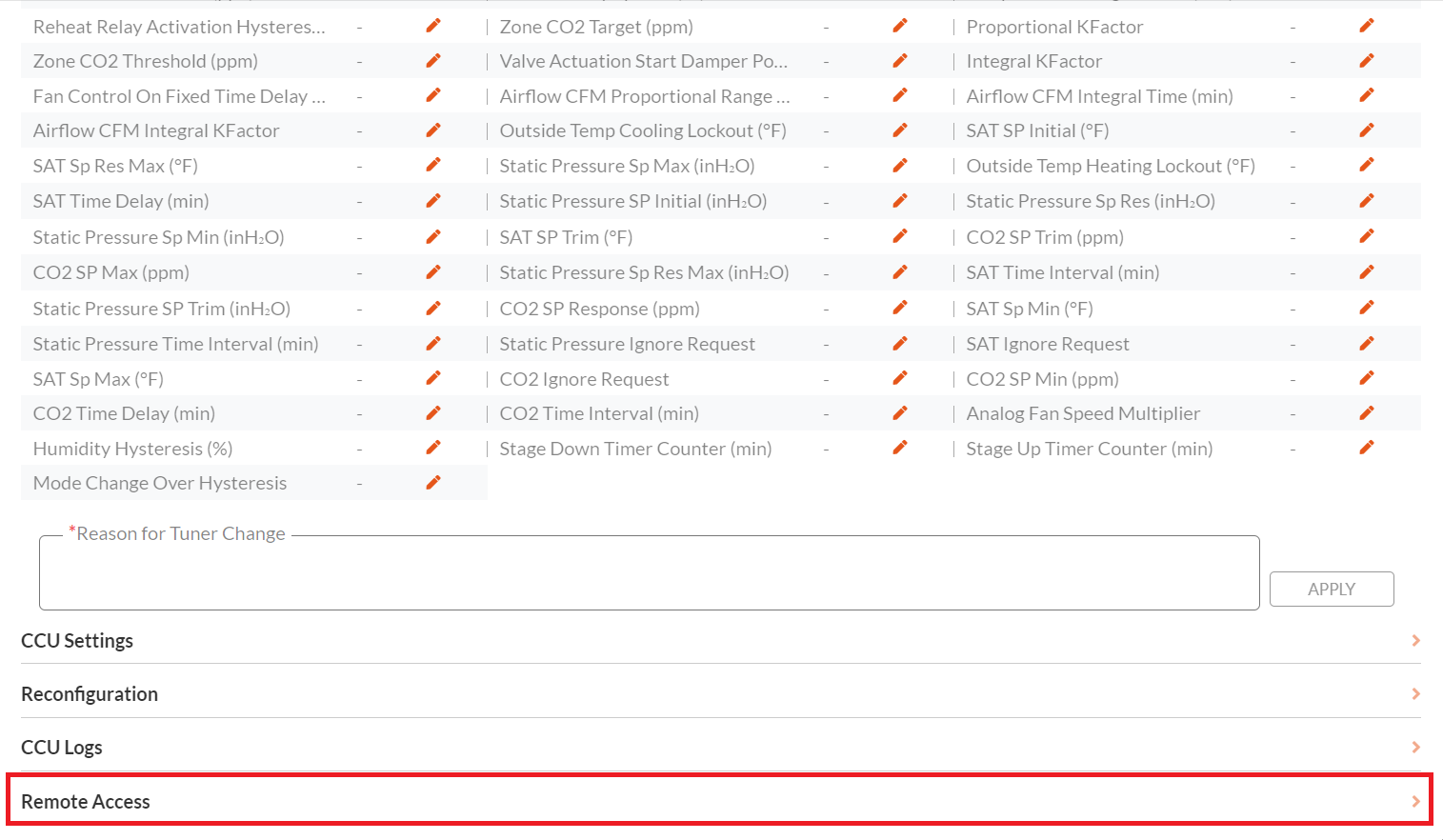

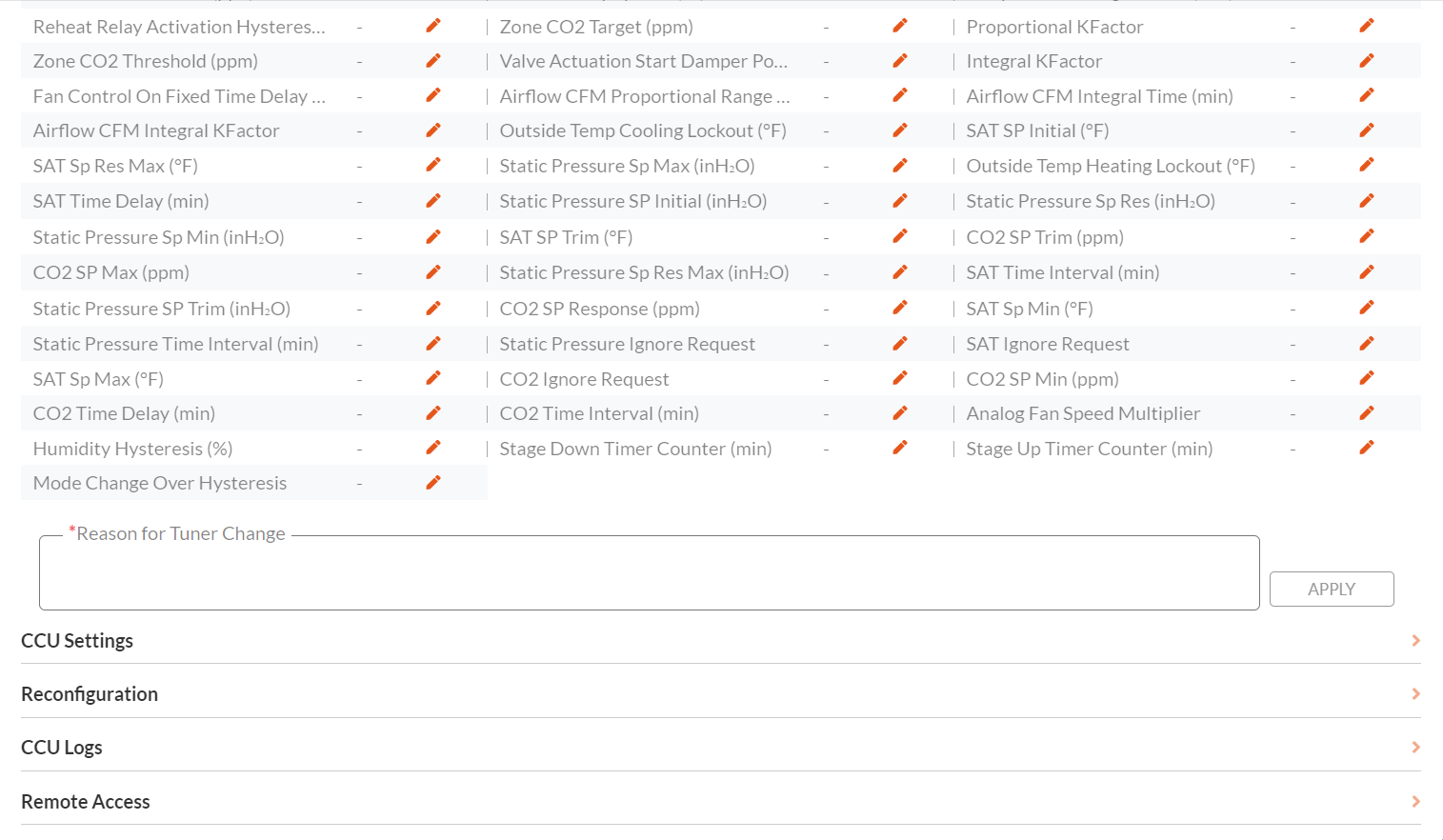

  • Click the Remote Access accordion

Screenshot 2024-07-15 142654.png

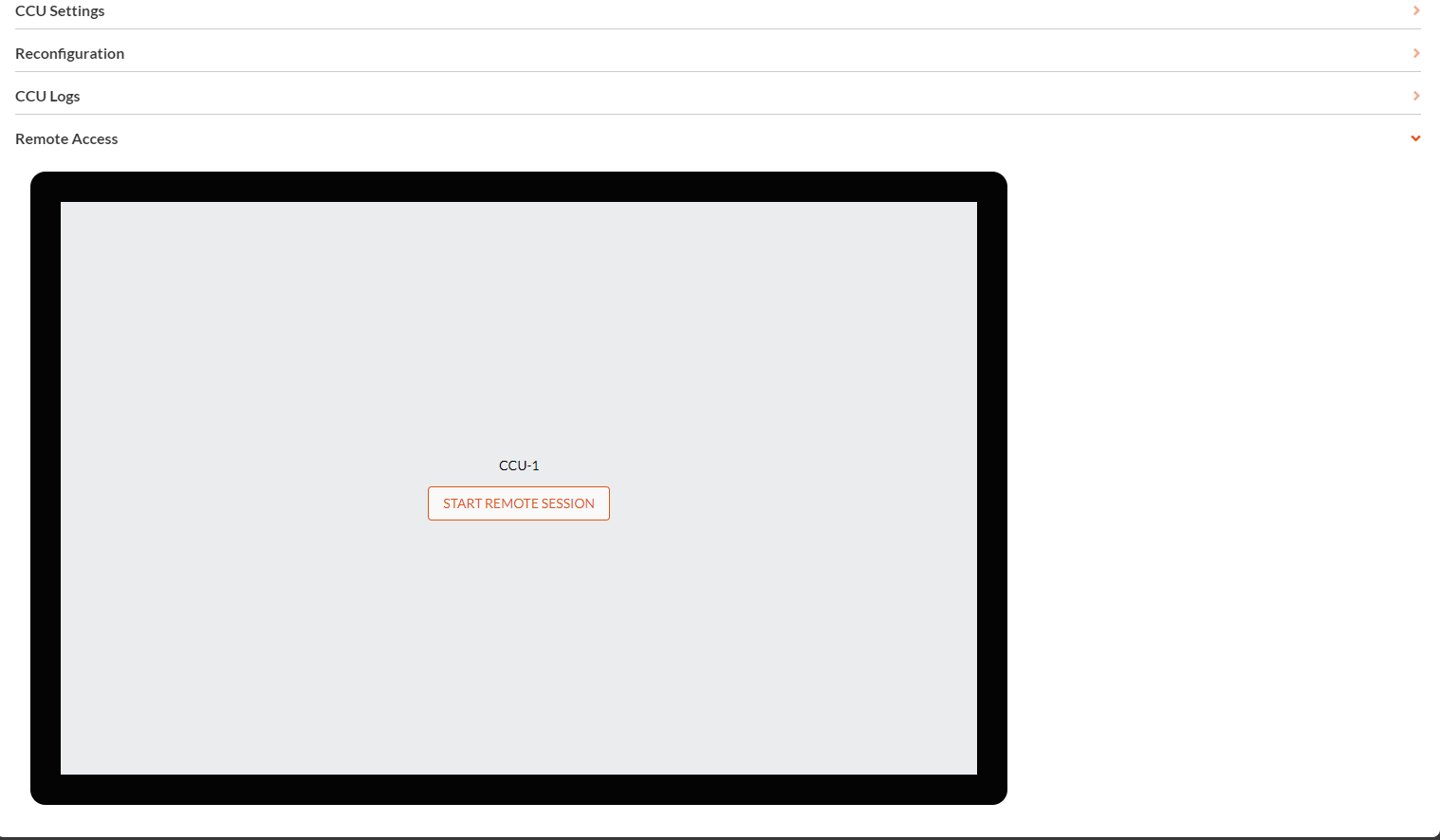

The Remote Access screen is displayed.

Screenshot 2024-07-15 143958.png

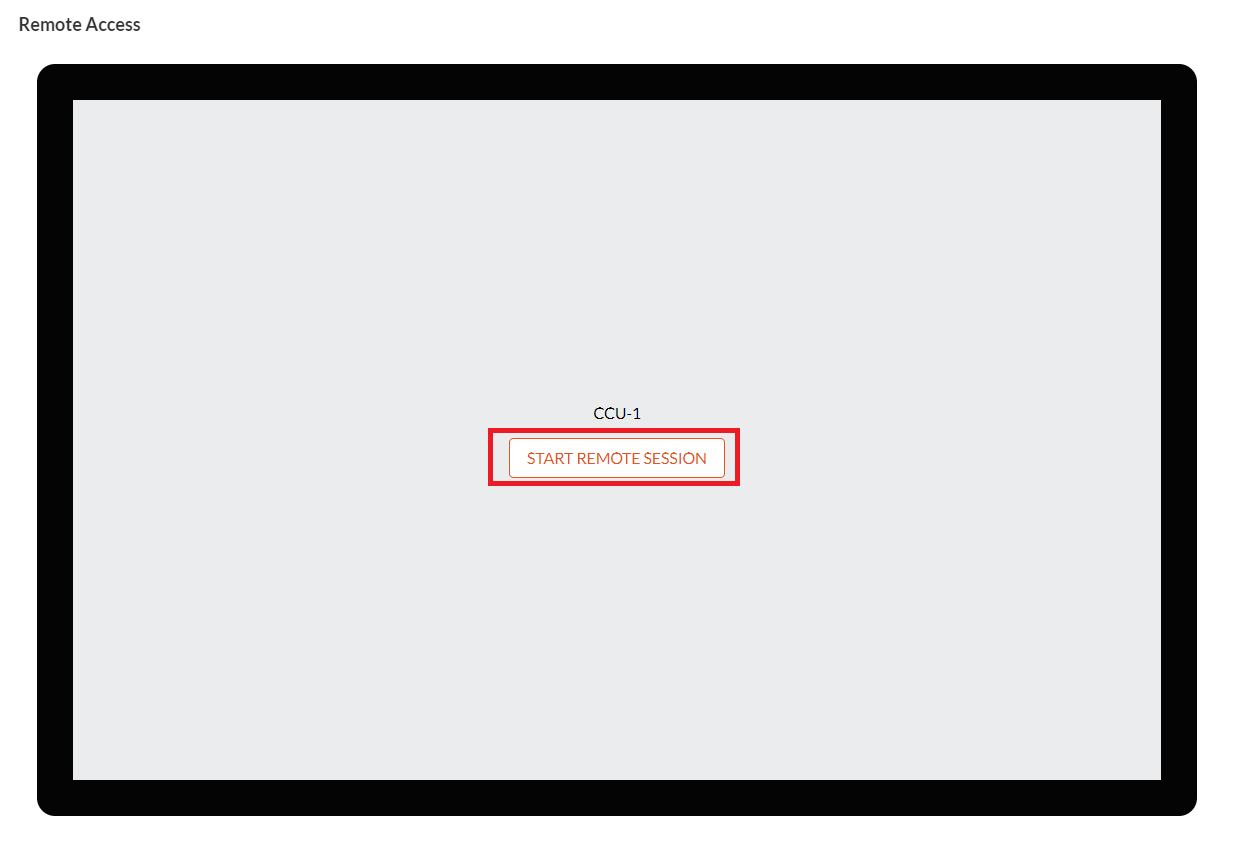

  • Click Start Remote session to begin access

Screenshot 2024-07-15 150035.png

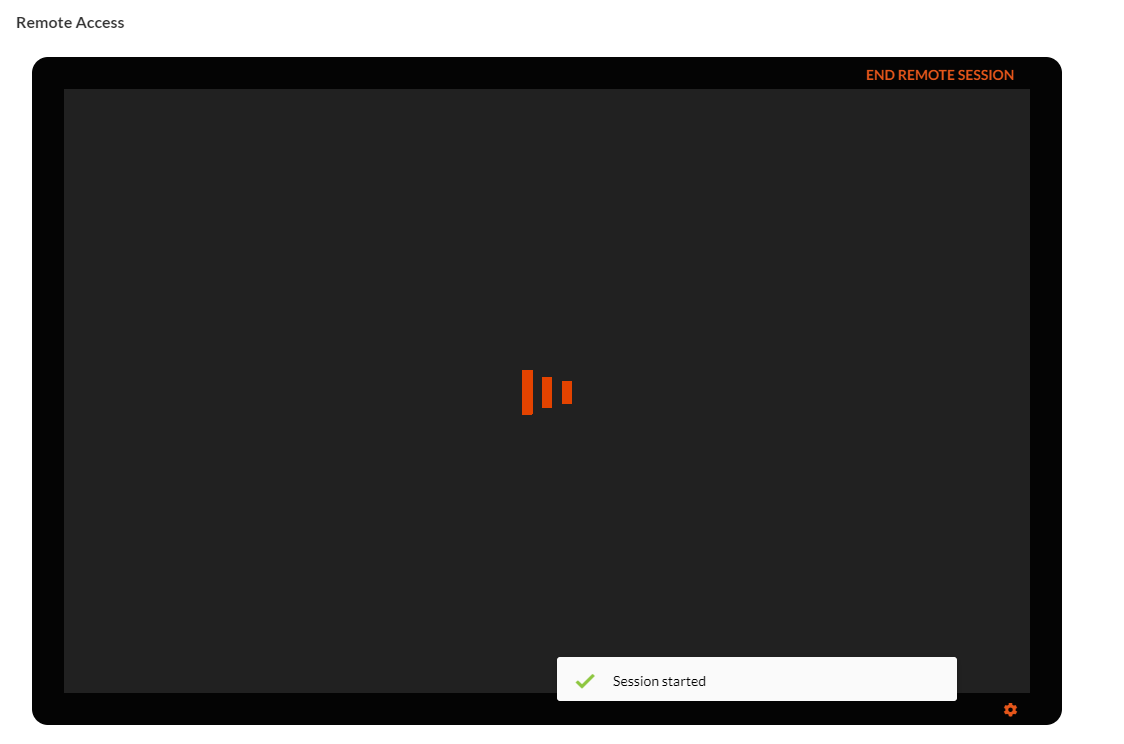

A pop-up message is displayed.

Screenshot 2024-07-15 145002.png

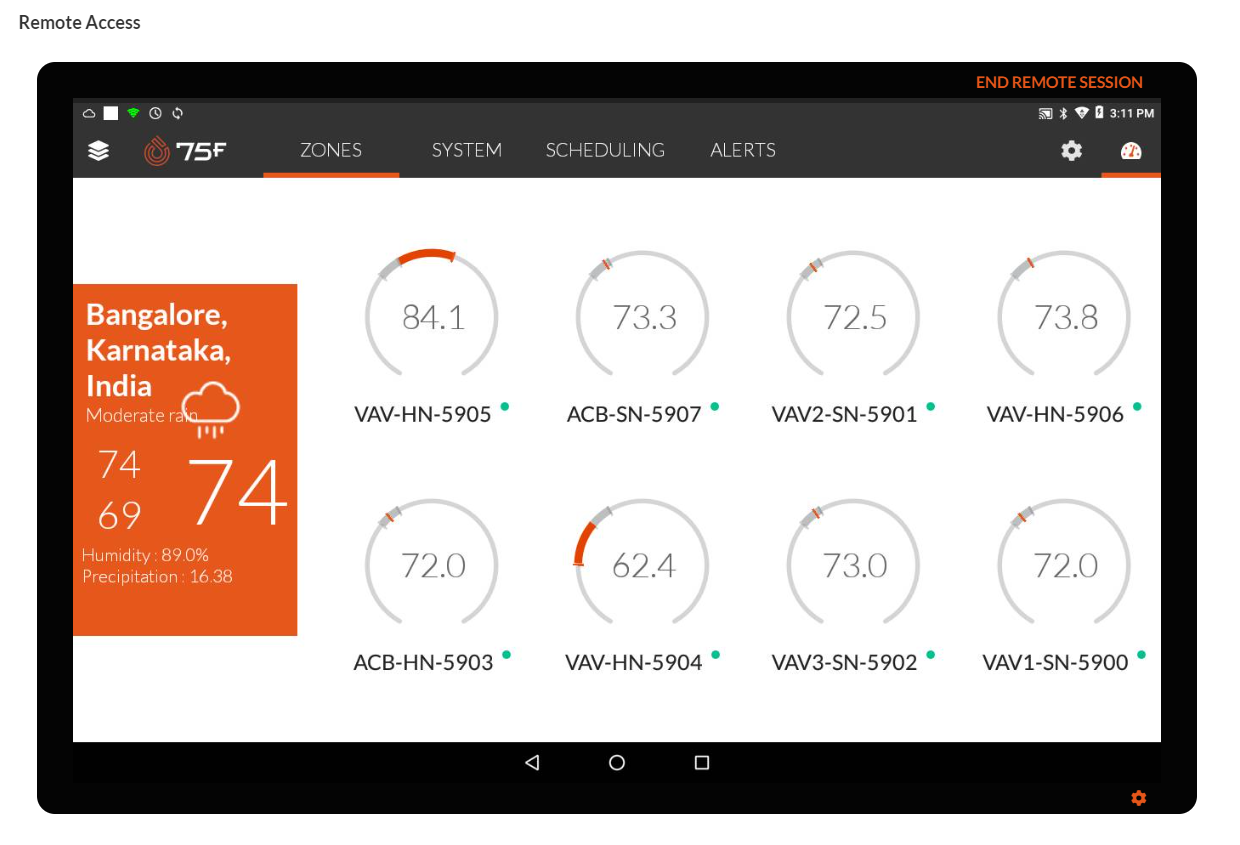

The CCU screen is displayed.

Screenshot 2024-07-15 151203.png

The CCU is now accessible,

  • Change the configurations and settings as required.
  • Click the settings icon on the bottom right corner to open the settings menu

Screenshot 2024-07-15 151203.png

The settings options are displayed.

Options x 2.png

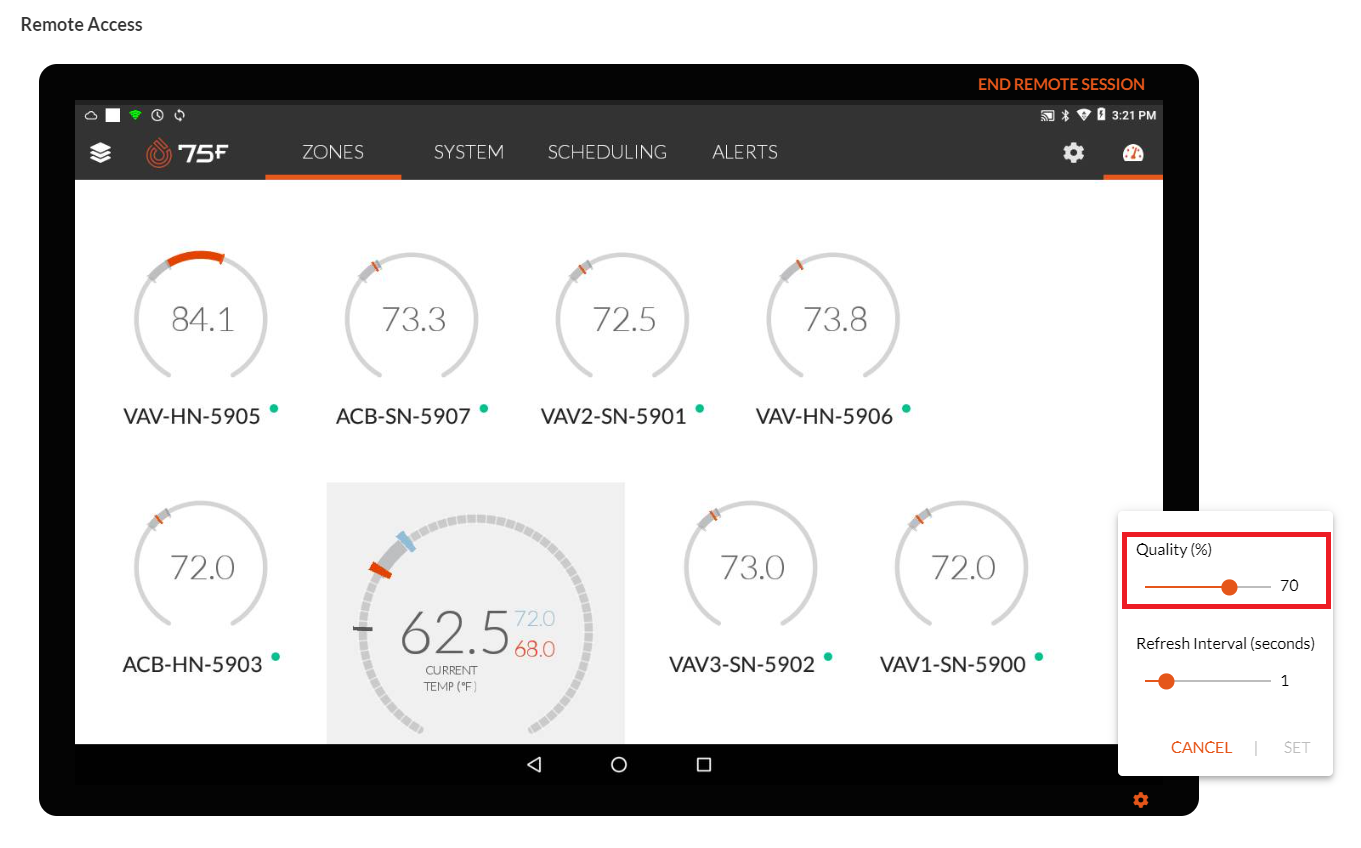

  • Select the slider to increase or decrease the quality percentage


  • Select the slider to increase or decrease the refresh interval in seconds.

refresh interval seconds.png

  • Click End Remote Session in the upper right corner to end the session.

end session.png

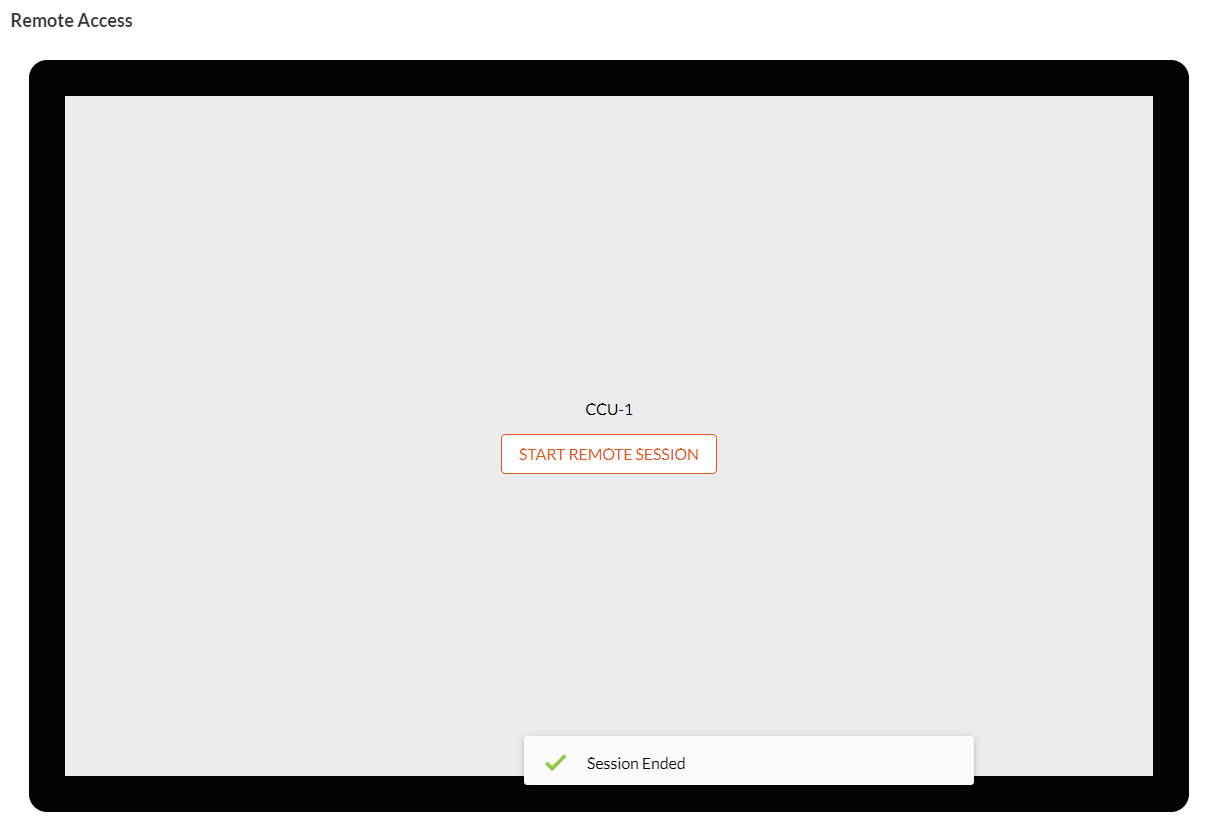

A session-ended message is displayed.

Screenshot 2024-07-15 173437.png

| Accessing From Facilisight Assist

Remote access to multiple CCU's within a building is available on the Facilisight Assist page under the Remote Access tab.

From the Internal Portal,

Screenshot 2024-07-15 174301.png

  • Select the Facilisight Assist.

Screenshot 2024-07-15 175300.png

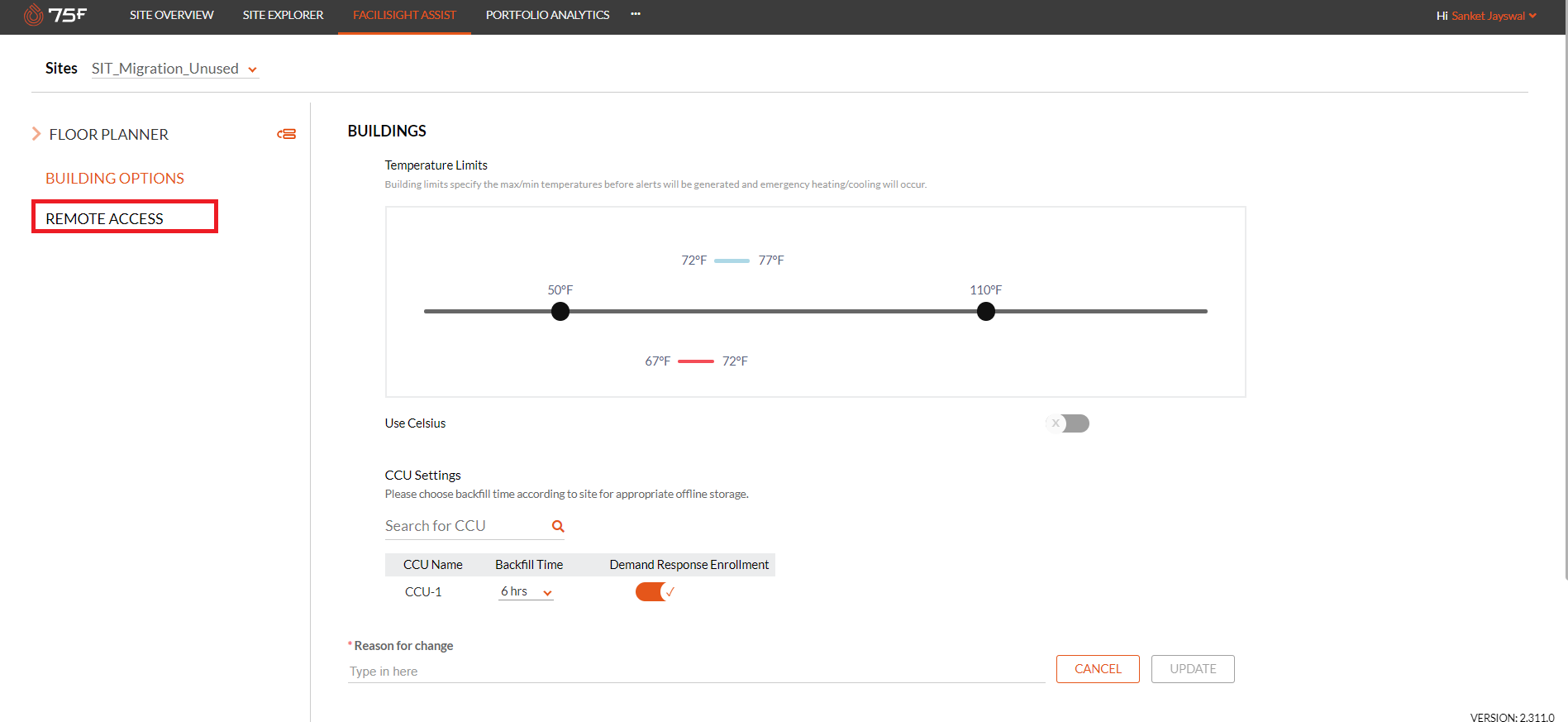

  • Select the Remote Access tab

Screenshot 2024-07-15 175546.png

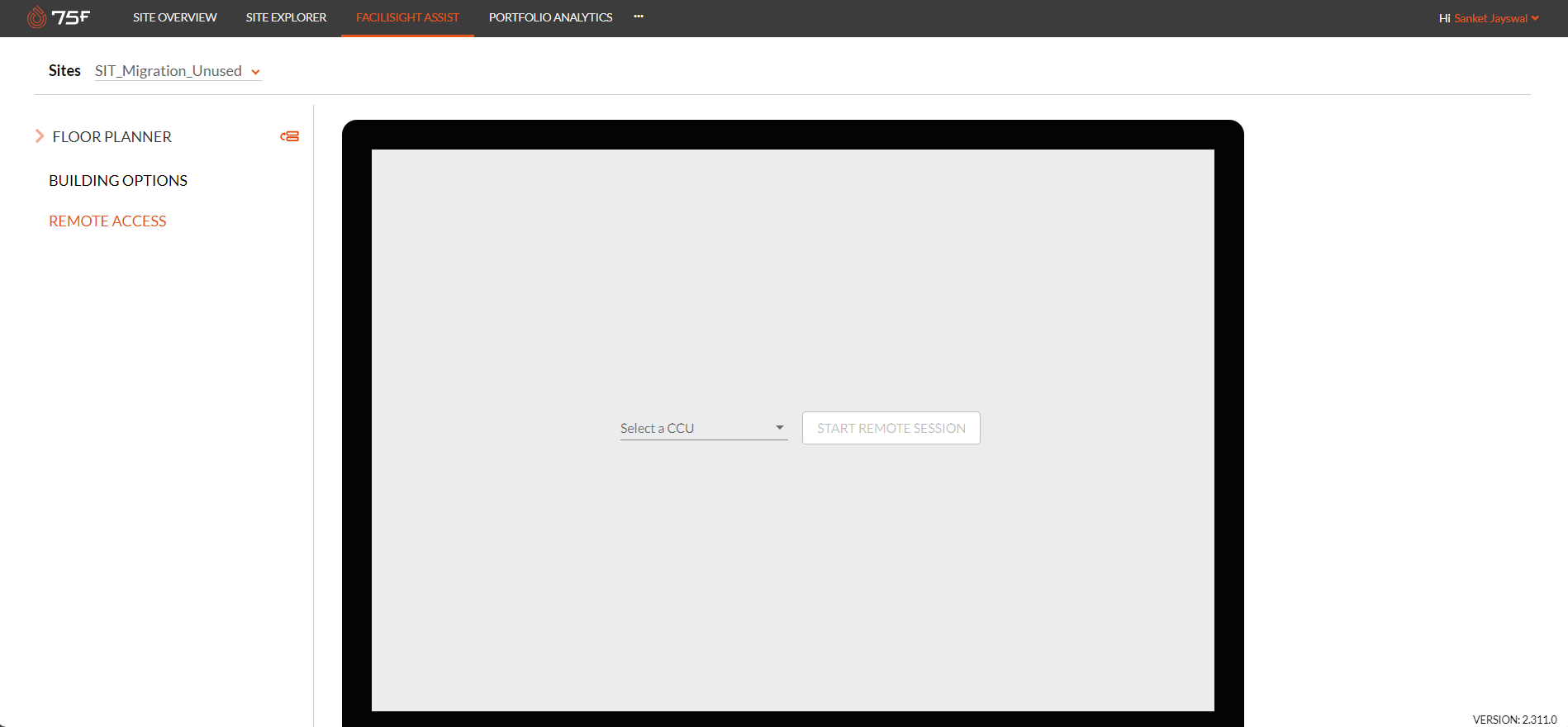

The Remote access screen is displayed.

Screenshot 2024-07-15 180713.png

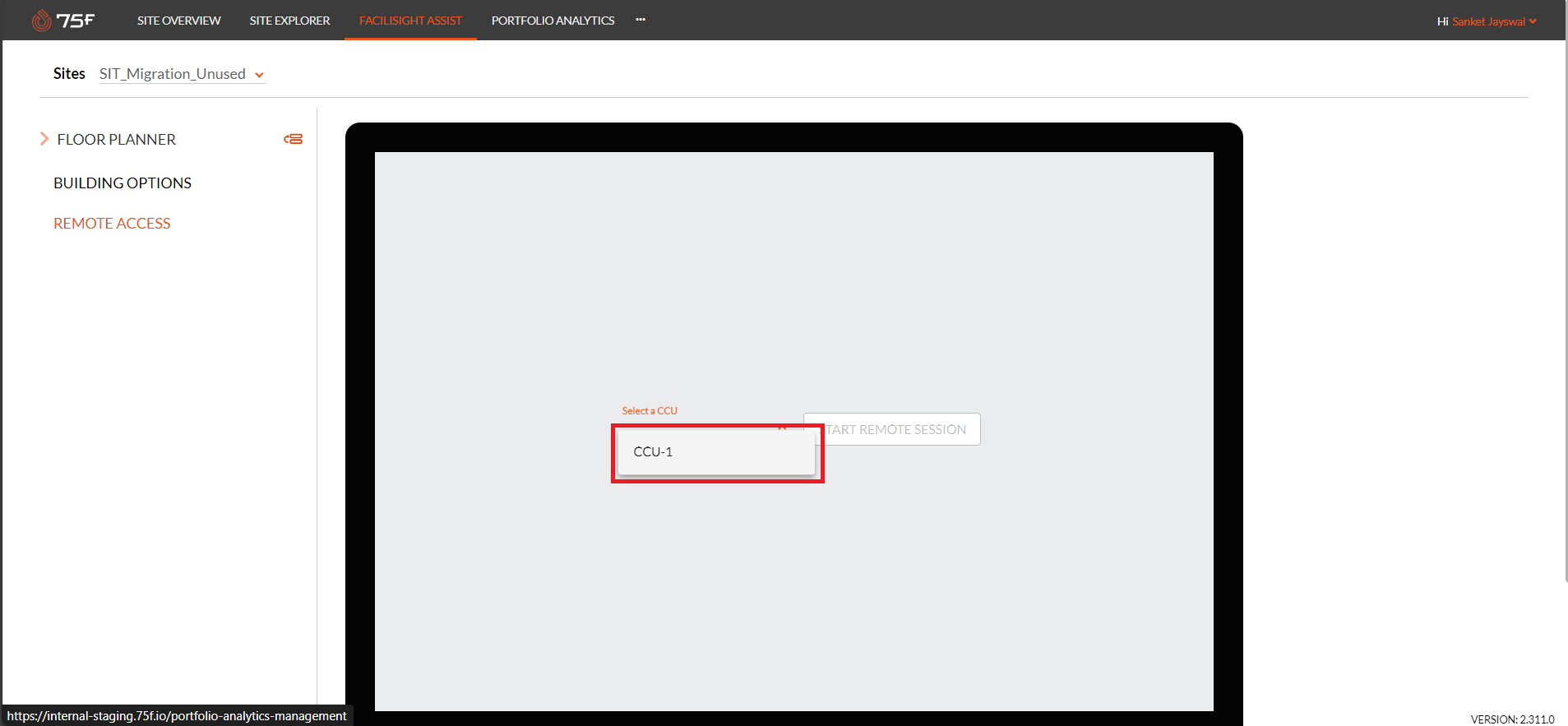

  • Select the CCU to be accessed remotely

Screenshot 2024-07-15 181031.png

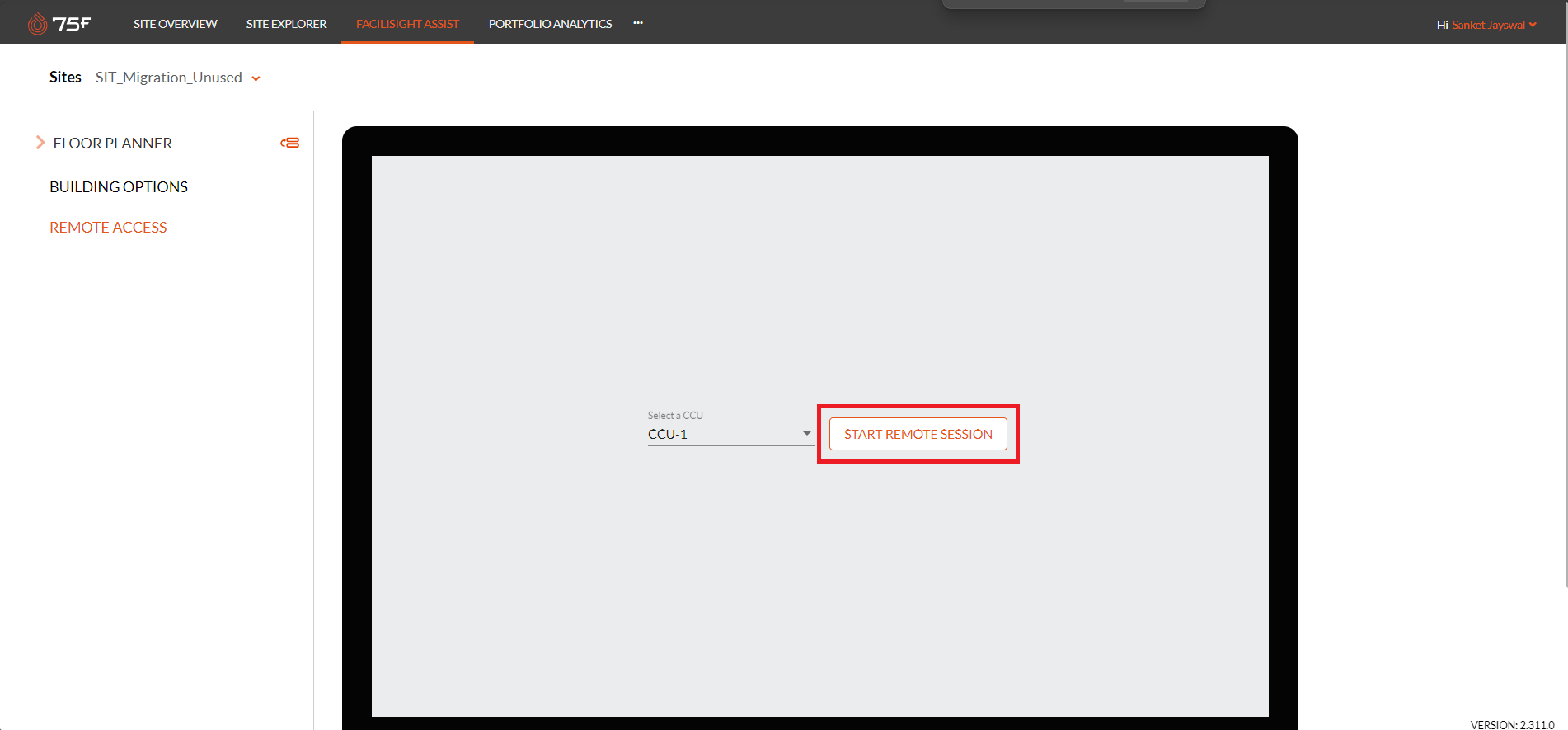

  • Click start remote session

Screenshot 2024-07-15 181350.png

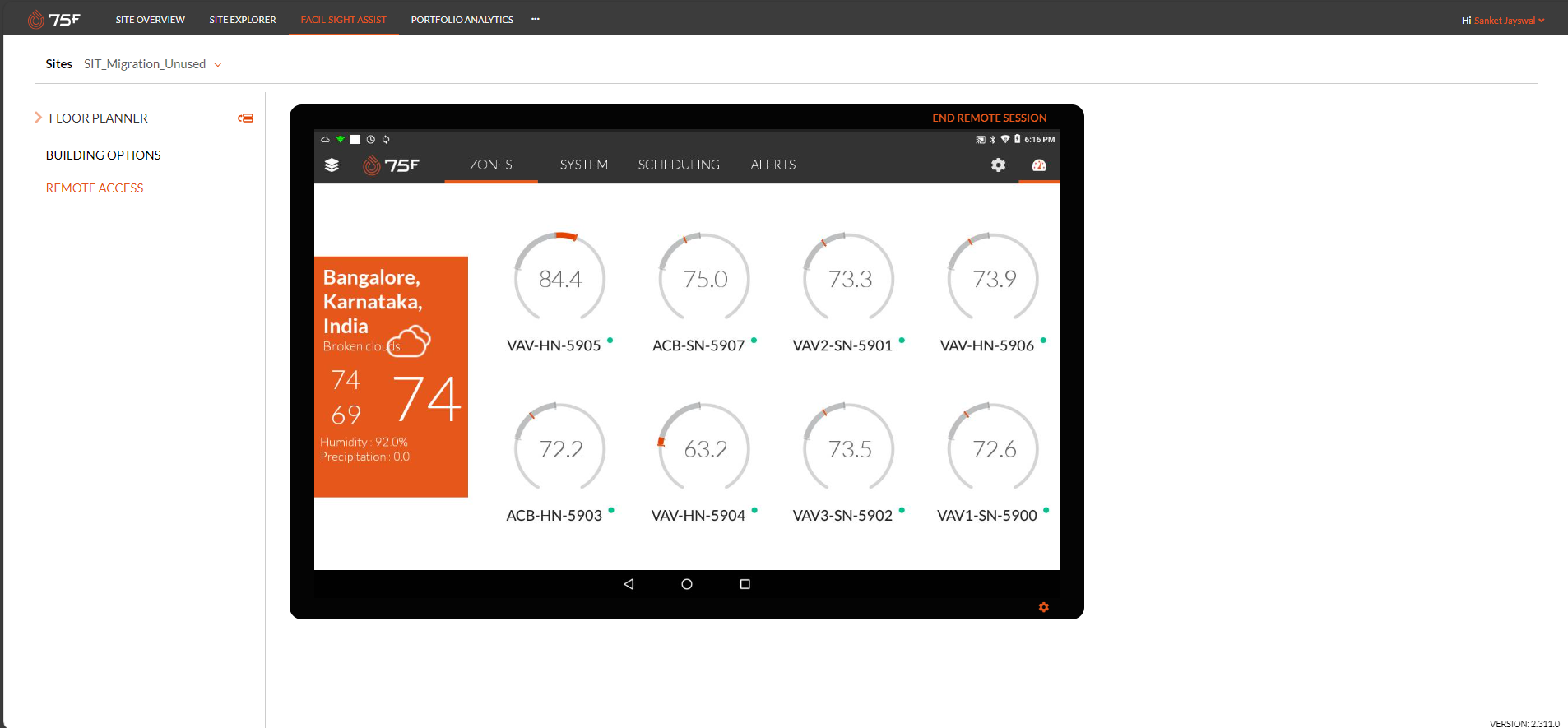

The CCU screen is displayed. The other operations remain similar to the CCU widget screen.

Screenshot 2024-07-15 181717.png

| Impact in Audit Trail

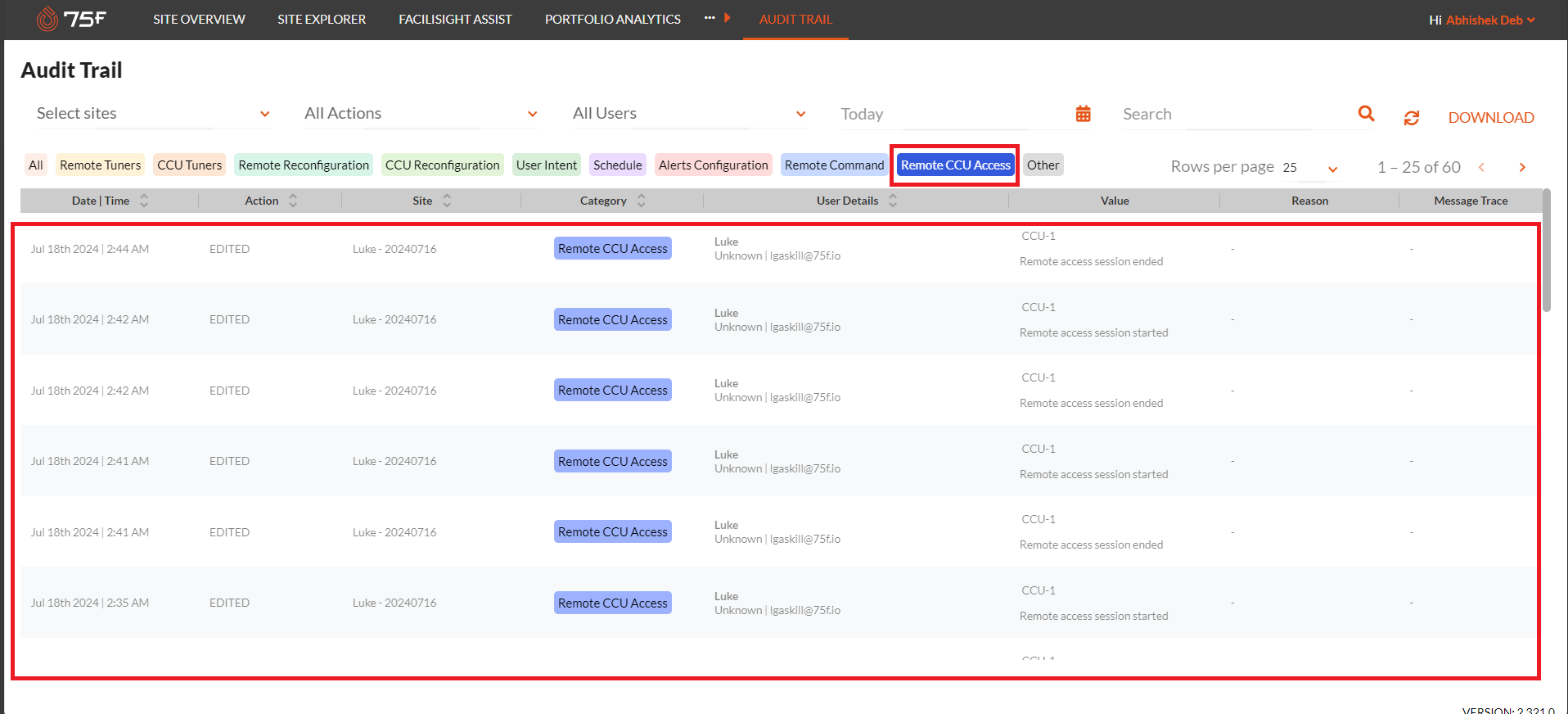

A new category "CCU Remote Access" is introduced under Audit trail which captures the timestamp and credentials for the CCU accessed under a site.

  • Select the "Remote CCU Access category


The corresponding audit trail is displayed.


| Important Note

To address the issue where the remote app takes precedence and blocks other OTA commands until manually closed, follow these steps:

  • Upgrade the CCU to the release build
  • Upgrade the Home app to the latest release build
  • Finally upgrade the Remote app

Note: Make sure to allow sufficient time between each upgrade to ensure the apps are properly updated in the CCU.

| Timeout

If the remote access session is inactive for more than 15 minutes the session will be timed out.
