| Overview

Now you can create custom sequences from the sequencer and push them to CCU for consumption.

With this implementation, you can add custom sequences to CCU that complement the existing operation.

The custom sequences can be cloud alerts or rules that can influence the equipment's behavior.

They can control algorithms that can be downloaded on CCU and operated locally on CCU so that in the event of a cloud connection loss, these sequences can operate continuously without a dependency on the cloud.

| Sequences for the CCU

As part of the adoption, an additional module Sequencer for the System is introduced within the Site sequencer.

| Accessing Sequencer for System

To access the sequencer for the device.

  • Click Site Sequencer from the menu icon in the internal portal.

The site sequencer screen displays

  • Select any site where you want to build the sequences.

The Sequence creation workspace options and canvas display.

  • Click the System option to access the sequence-building workspace options and canvas for the device.

The sequencer on device opens with a default sequence in the canvas.

| Creating Sequences for System

The sequence creation happens just like the sequences for the cloud, for more information

  • Create a new page for the new sequence.
  • Rename the page as required.

The workspace saves successfully.

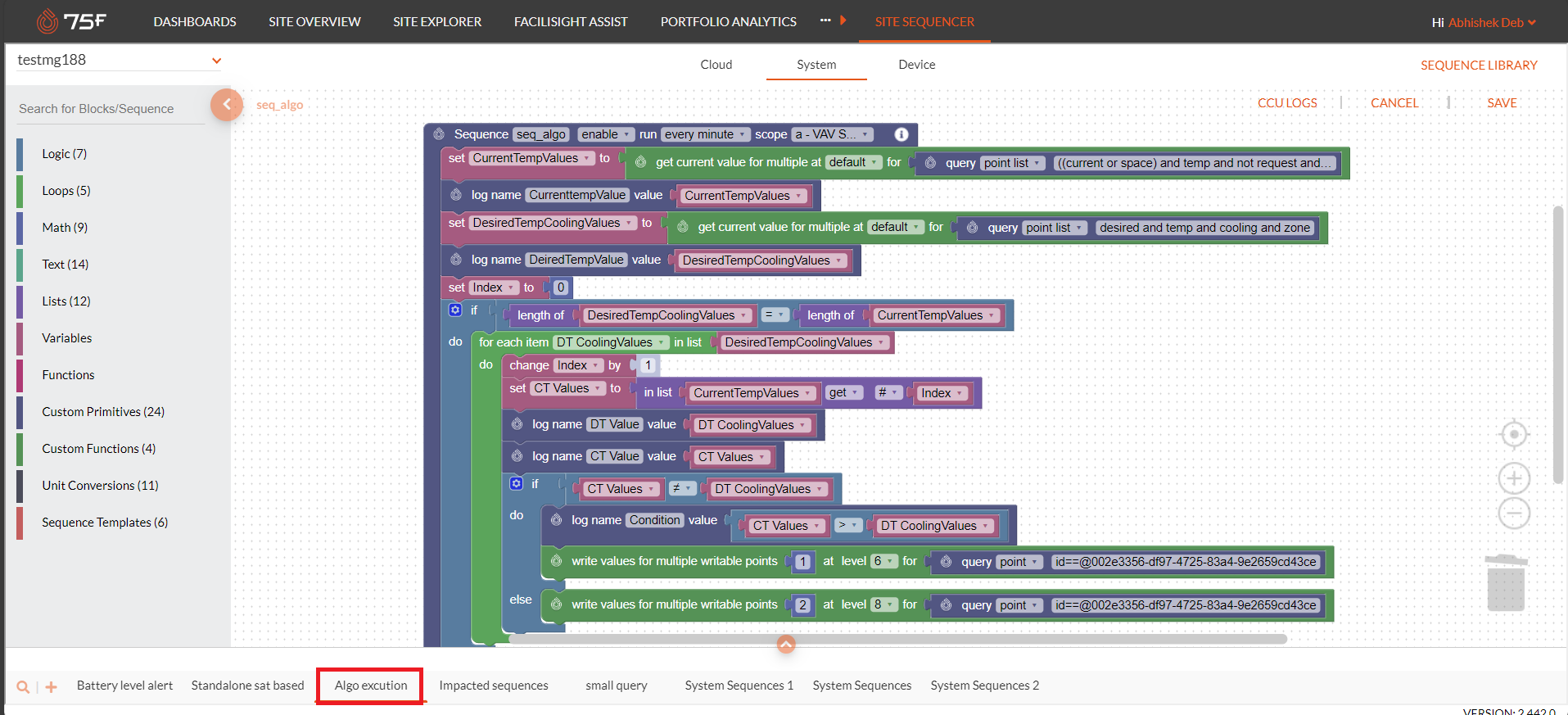

Screenshot 2024-11-05 134203-181.png

  • Right-click on the newly created canvas
  • Click delete all 45 blocks to clear the canvas

Screenshot 2024-11-05 134147-11.png

  • Drag and drop the blocks onto the canvas and build the required sequence.

Similar to the sequence holding block in the sequencer for the cloud, the sequencer for the device has a two mandatory sequence holding block, as shown below.

  • One to Run the sequence continuously for every second.
  • Other to Run the sequence On Startup

All of the other blocks used for a sequence building need to be within these mandatory blocks.

| Generic Blockly Blocks

Similar to the sequencer for the device, the sequencer for system also comes with the generic blocks to support sequence building.

For more information on the Generic block refer to Site Sequencer

For more information on Sequences on Edge device refer to Sequences on Edge

| Example Sequence 1

The sequence is created to read the battery percentage, battery severity and level and display it on the device screen.

Step Block Actions
Step 1 Sequence Block (Mandatory)
  • To apply running the sequence on startup.
Step 2

If Logic Block

  • If Battery and level = 100
  • Use the Get Current Value for to get the current value of the input field
  • Set alert title as Battery Level Fatal
  • Use the Message and Notification predefined block to display the message





| Example Sequence 2



The sequence is created for one of the most frequently used chiller sequences for lead, lag pumps in a unit. According to this sequence, the lead and lag pumps switchover (Lead becomes Lag, Lag becomes Lead) from time to time based on certain conditions.

The Table below talks about the steps and the blocks used in the sequence to achieve the use case.

First Part of the Sequence:

Step Block Actions
Step 1 Sequence Block (Mandatory)
  • To apply running the sequence on startup.
Step 2

String to Print

    • To define a name for the sequence
Step 3 Configure Custom Modbus Register

To configure a custom Modbus register with

  • Register Type Holding
  • Register Address 5
Step 4 Configure Custom Modbus Register

To configure a custom Modbus register with

  • Register Type Holding
  • Register Address 6
Step 5 Configure Custom Modbus Register

To configure a custom Modbus register with

  • Register Type Holding
  • Register Address 7
Step 6 Configure Home Screen Input 0

To Configure a parameter on the home page:

    • With a field named Pressure Loop
    • Input Unit %
    • Input Value 0
Step 7 Configure Home Screen Input 1

To Configure a parameter on the home page:

    • With a field named Counter
    • Input Unit NA
    • Input Value 0
Step 8 Configure Home Screen Input 2

To Configure a parameter on the home page:

    • With a field named Voltage
    • Input Unit NA
    • Input Value 0
Step 9 Configure Home Screen Input 3

To Configure a parameter on the home page:

    • With a field named Reversal
    • Input Unit NA
    • Input Value 0
Step 10 Configure Home Screen Input 4

To Configure a parameter on the home page:

    • With a field named Lead
    • Input Unit NA
    • Input Value 0
Step 11 Configure Home Screen Input 5

To Configure a parameter on the home page:

    • With a field named Lag
    • Input Unit NA
    • Input Value 0
Step 12 Configure Home Screen Input 6

To Configure a parameter on the home page:

    • With a field named Fah
    • Input Unit NA
    • Input Value 0
Step 13 Configure Home Screen Input 7

To Configure a parameter on the home page:

    • With a field named Cel
    • Input Unit NA
    • Input Value 0
Step 14 Set Support Counter function
    • Create a variable Support Counter
    • Assing a value "0" to the Variable Support Counter
Step 15 Set Lead function
    • Create a variable Lead
    • Use a Relay Output Number predefined block
    • Set the Relay Output Number to 2
    • Assing the Value from the Relay Output 2 to variable Lead.
Step 16 Set Lag function
    • Create a variable Lag
    • Use a Relay Output Number predefined block
    • Set the Relay Output Number to 3
    • Assing the Value from the Relay Output 3 to variable Lag.
Step 17 Set Reversal function
    • Create a variable Reversal
    • Assing a value "0" to the Variable Reversal.
