Dashboard on CCU

| Overview

Support for Equipment Graphics on the CCU through Dashboard tab is now made available. Users can now add, replace, and remove graphics for real-time HVAC monitoring, with offline visualization support. Enhanced UI enables easy configuration, preview, and management of graphics across multiple CCUs.

Let us now look at the steps required to set up an equipment graphics in the CCU via the Dashboard screen.

| Configuring Equip Graphics for CCU

To configure an equip Graphics for the CCU under the Dashboard screen,

• Access the Building option from the Facilisight Assist.

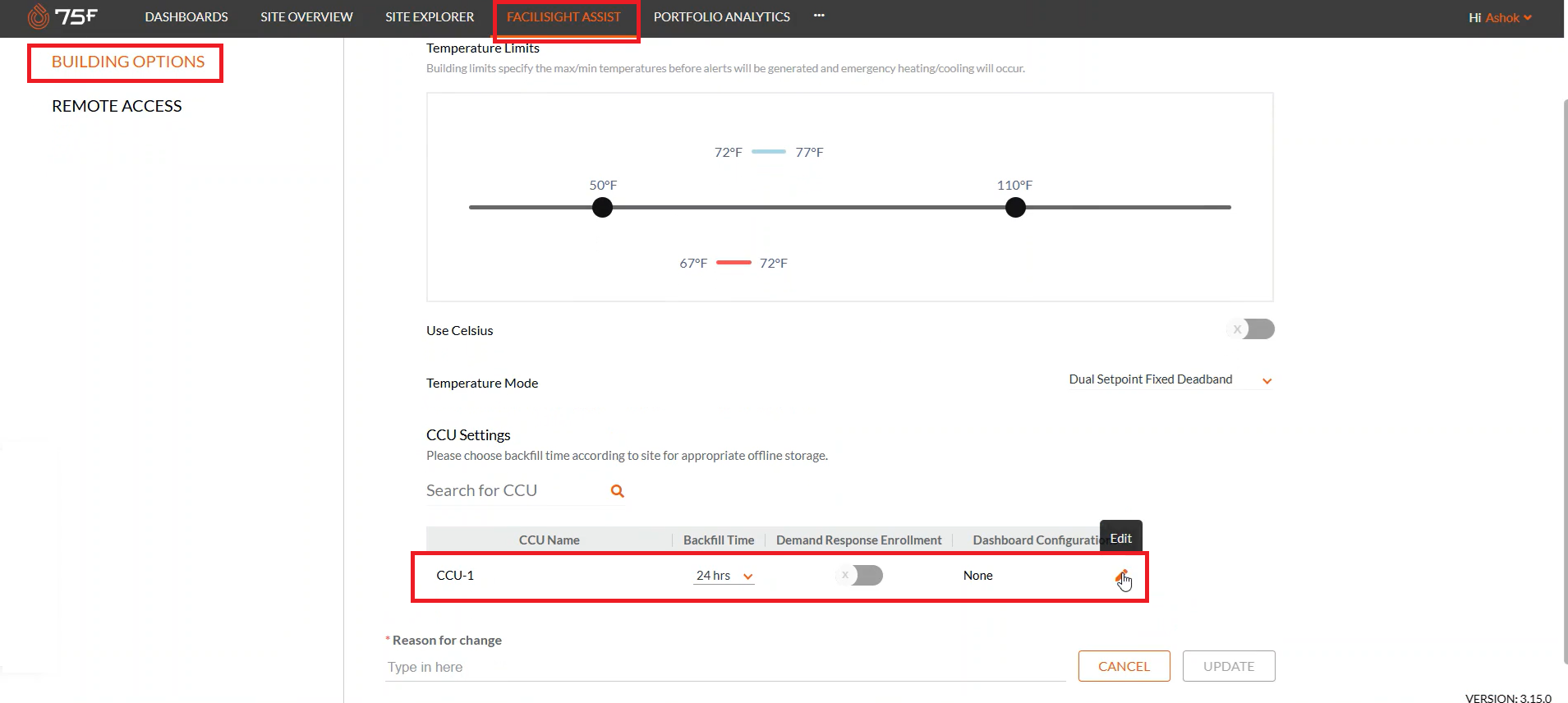

• Click the edit icon next to the CCU, under the CCU setting section.

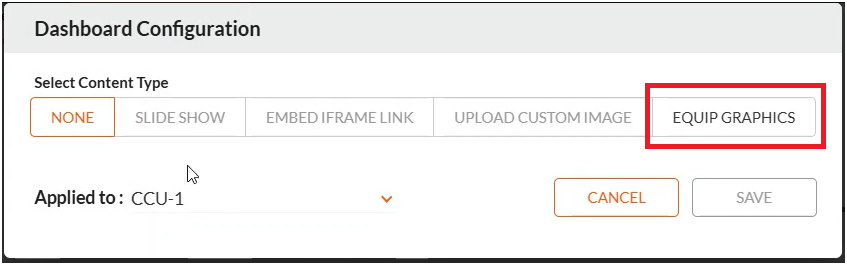

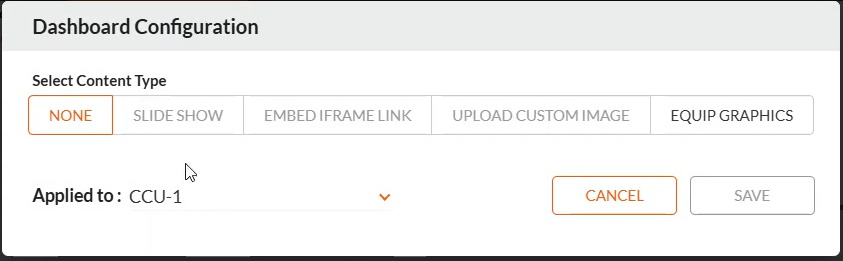

The Dashboard configuration window is displayed as below.

• Click the Equip Graphics option from the available options.

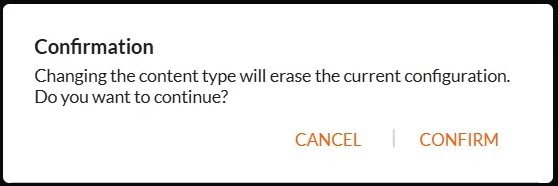

A confirmation window is displayed, to confirm the content type change specified, as below.

• Click Confirm to proceed.

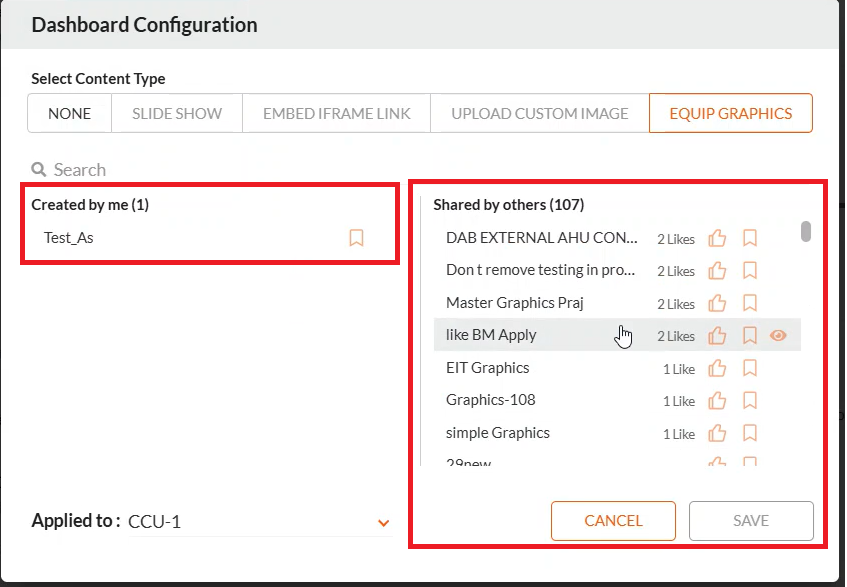

The Dashboard configuration window expands with the options to select the custom euip graphics, from those created by the same user or shared by others.

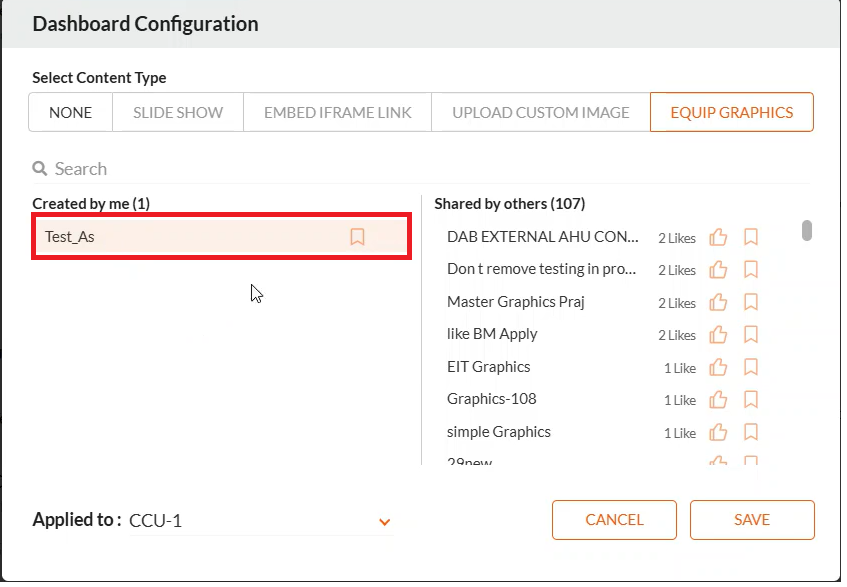

• Select the required custom graphics for the display in the CCU.

The preview graphics window is displayed to confirm the graphics configuration.

• Preview and close the window.

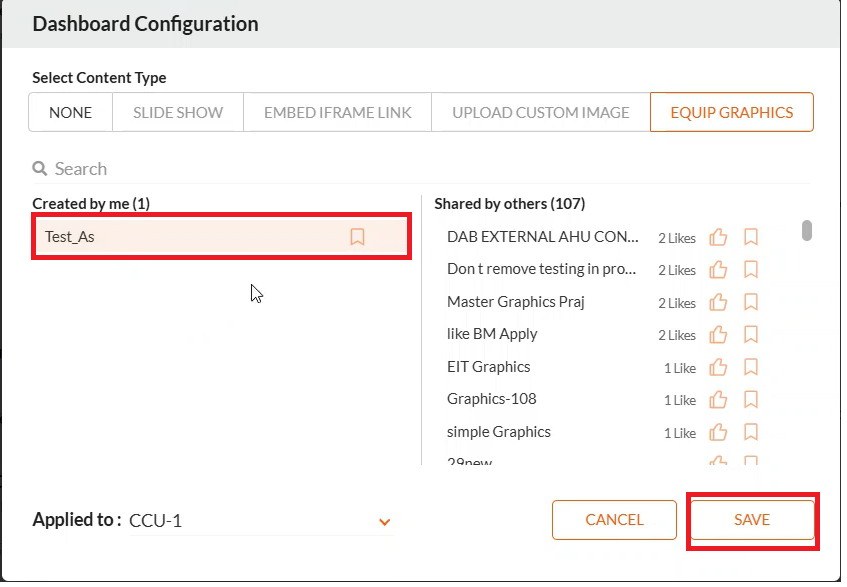

• Click Save to confirm.

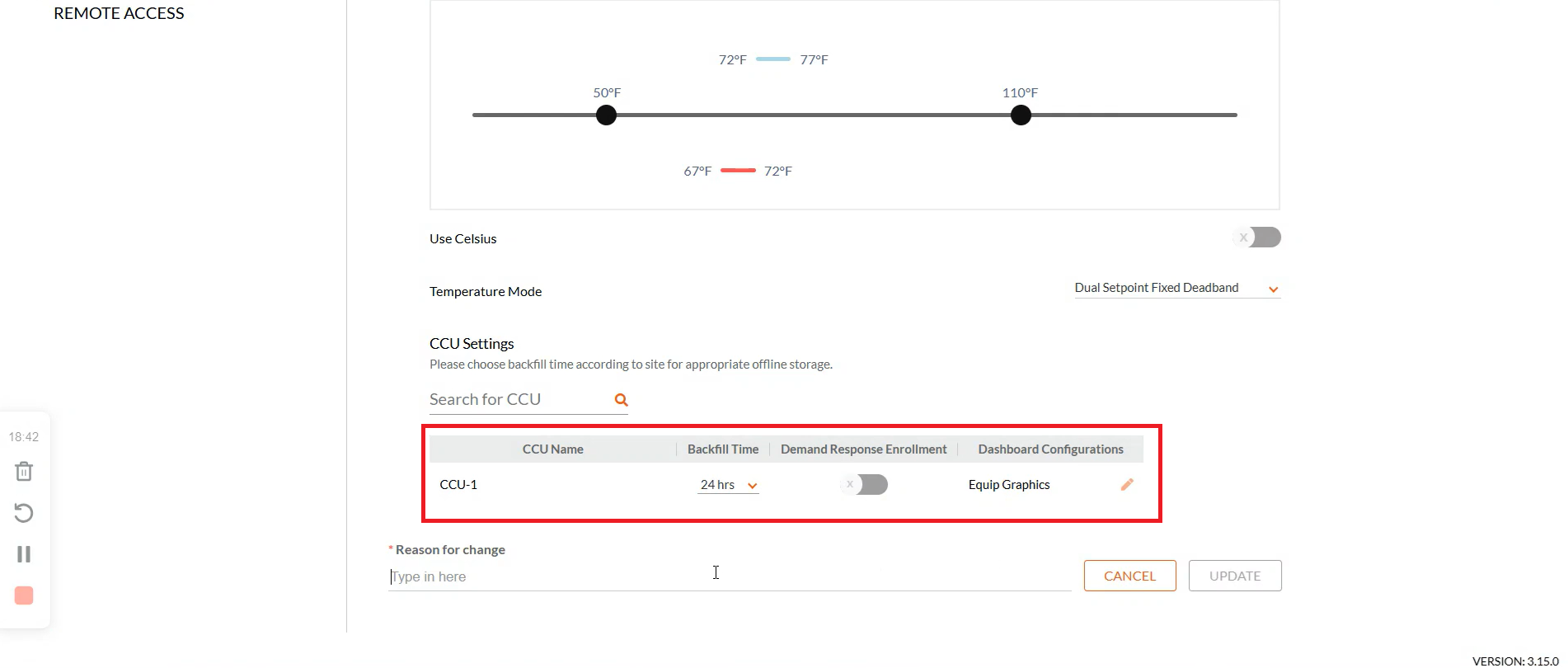

The equipment graphics for the CCU via the CCU Dashboard screen is configured as below.

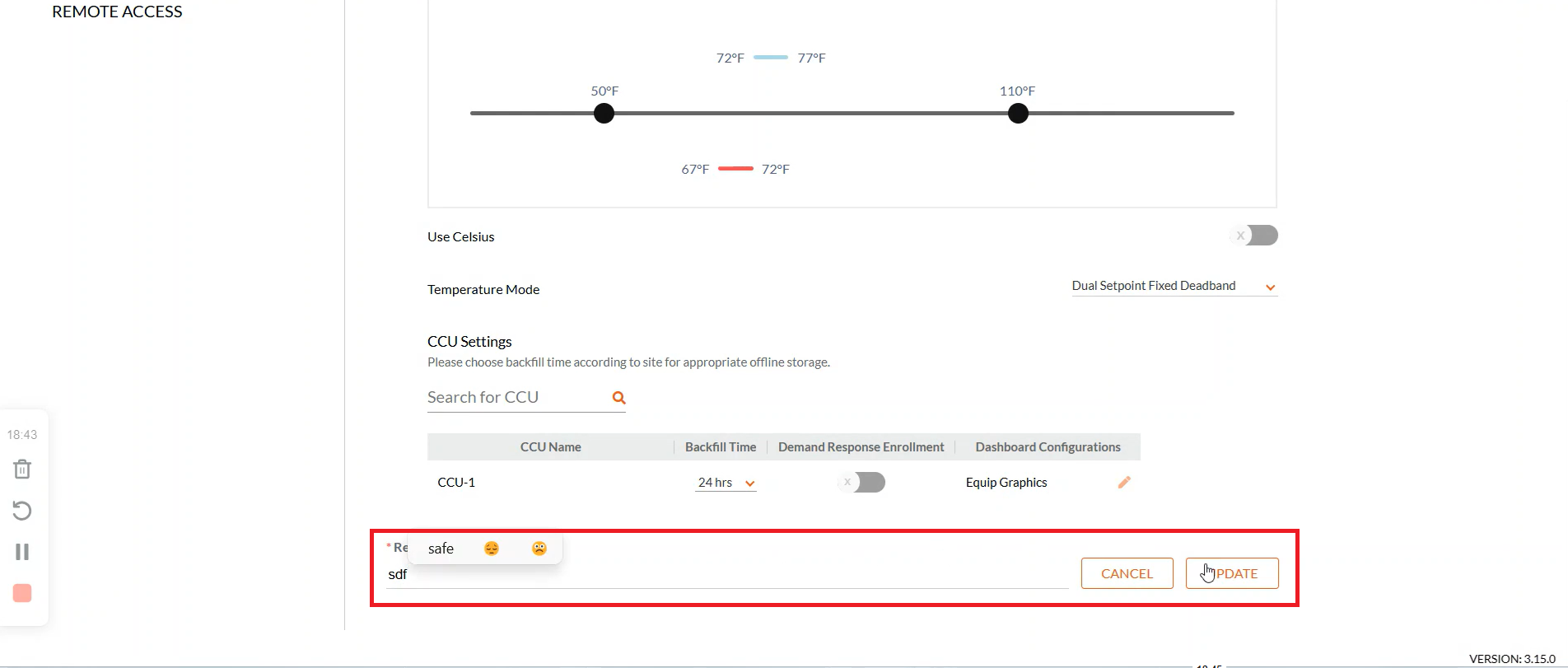

• Specify the reason and click update to complete the process

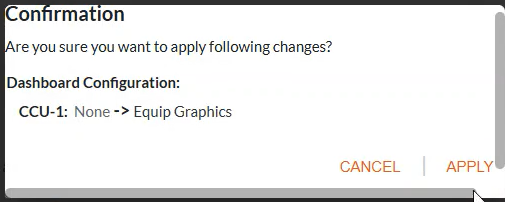

A final confirmation window to apply the equipment graphics to the CCU is displayed.

• Click Apply

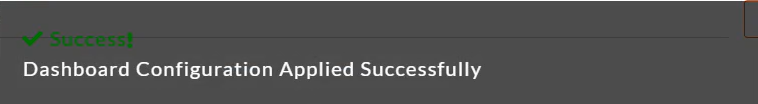

The application's successful window displays, as below.

| Configured Equip Graphics in CCU Dashboard

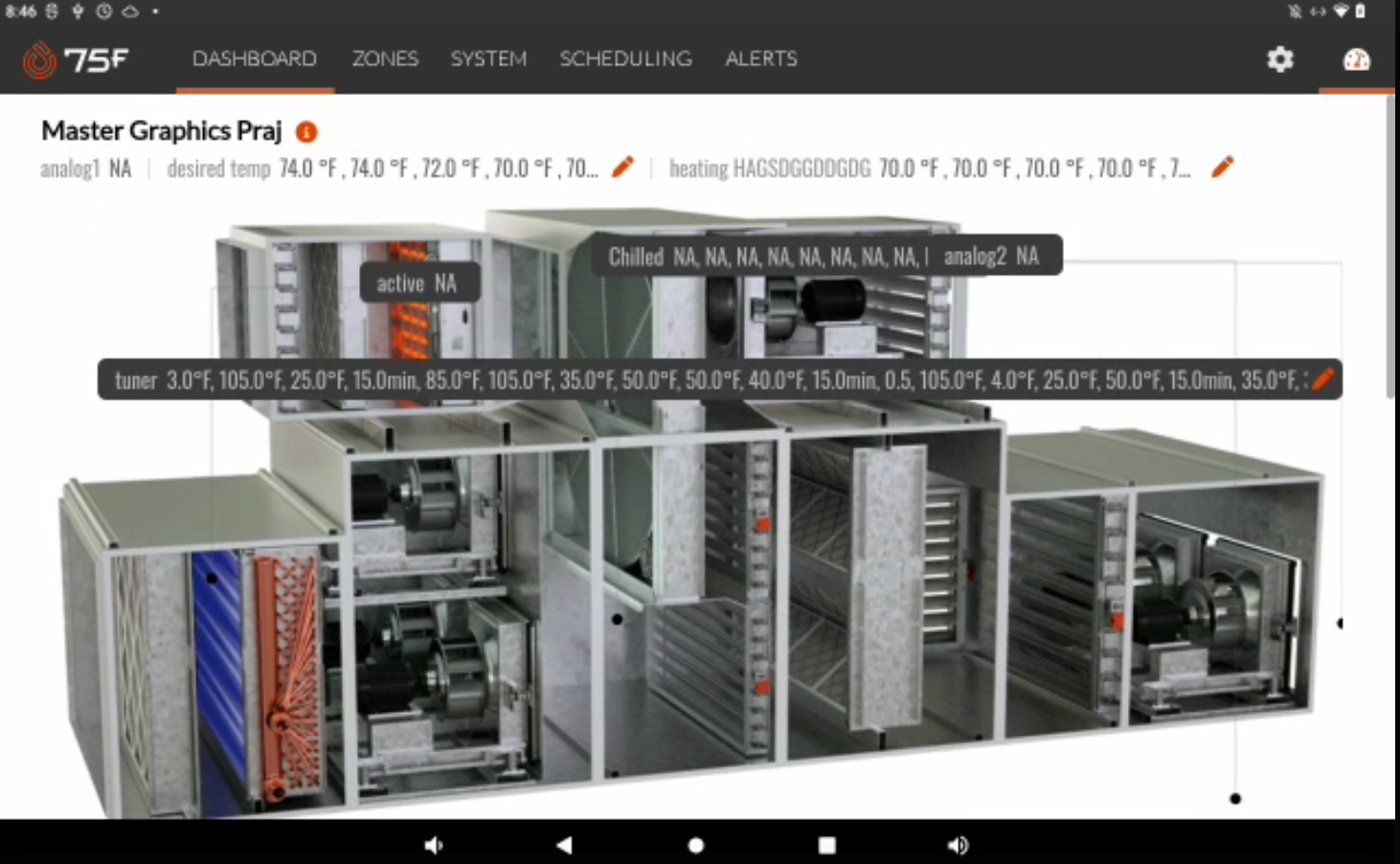

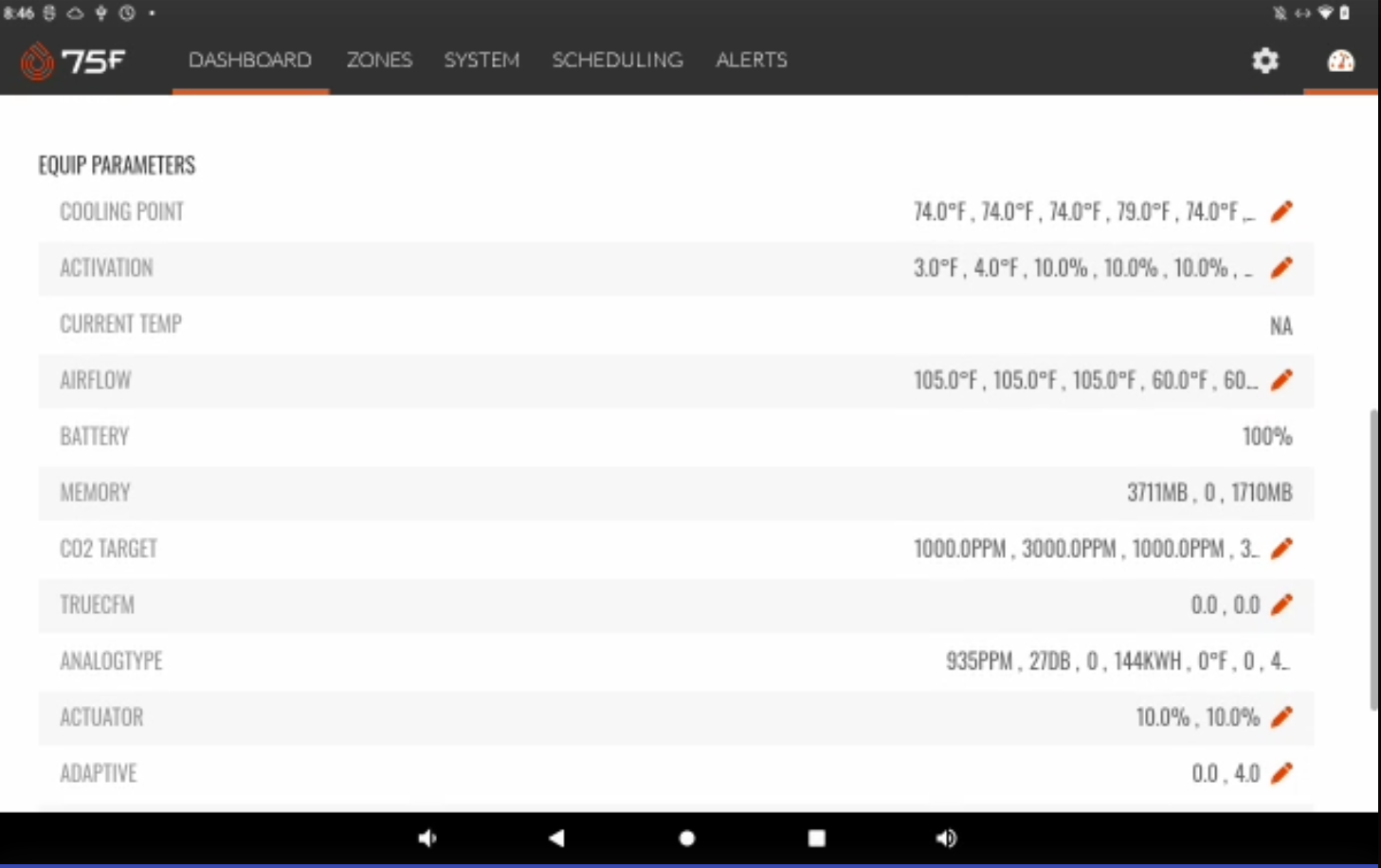

The configured equipment graphic is displayed below on the CCU dashboard screen.
