Overview

In 75F® system the registration of a second CCU to an already existing site is done by a code based registration, wherein a "Building Passcode" is generated from CCU and the Internal portal and the same is entered during the registration process.

This activity extracts all the information related to the site that are required for registering the new CCU to the site.

Procedure

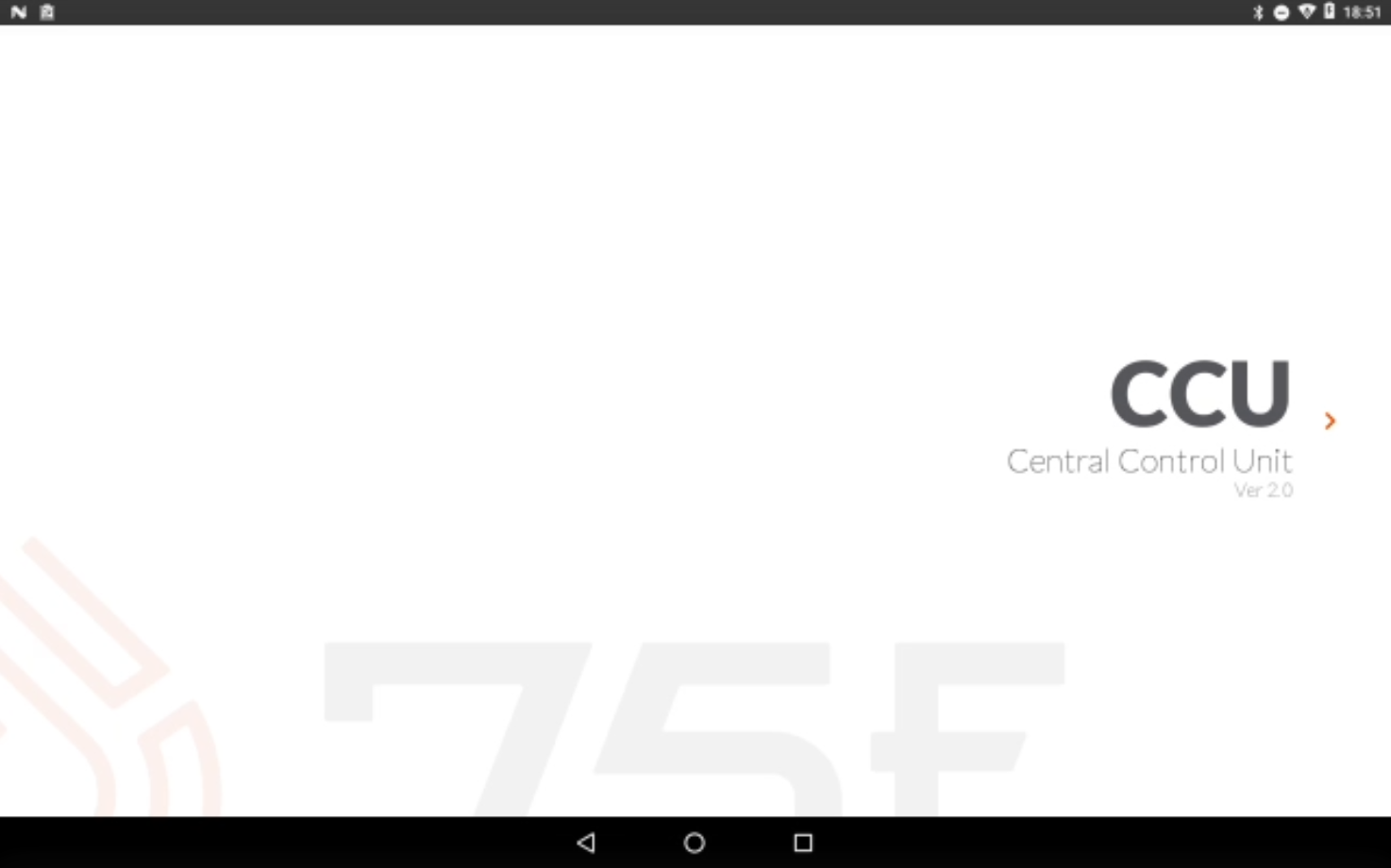

From the New CCU home screen.

  • Click CCU

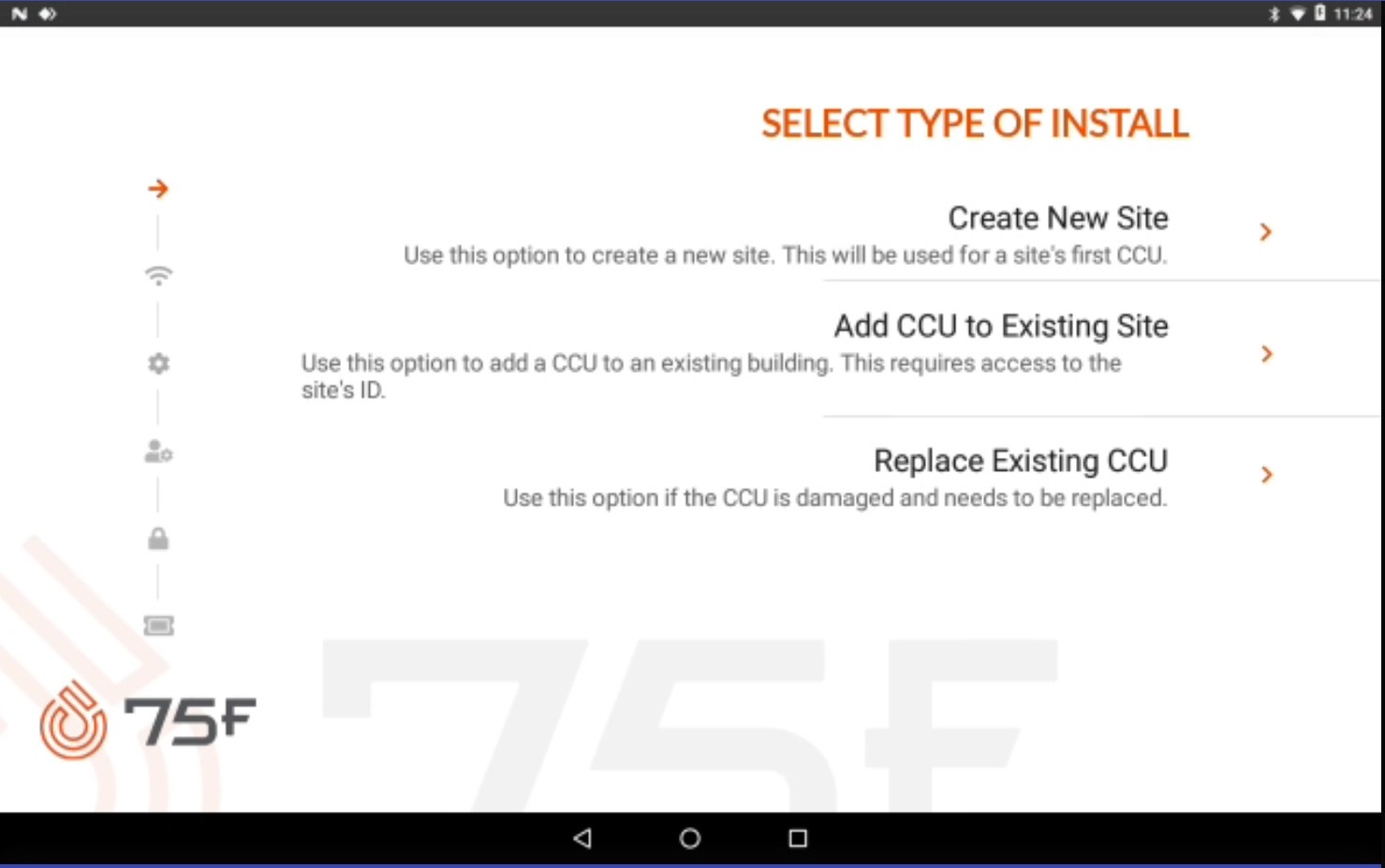

The select install type screen is displayed.

  • Click Add CCU to the Exiting Site option.

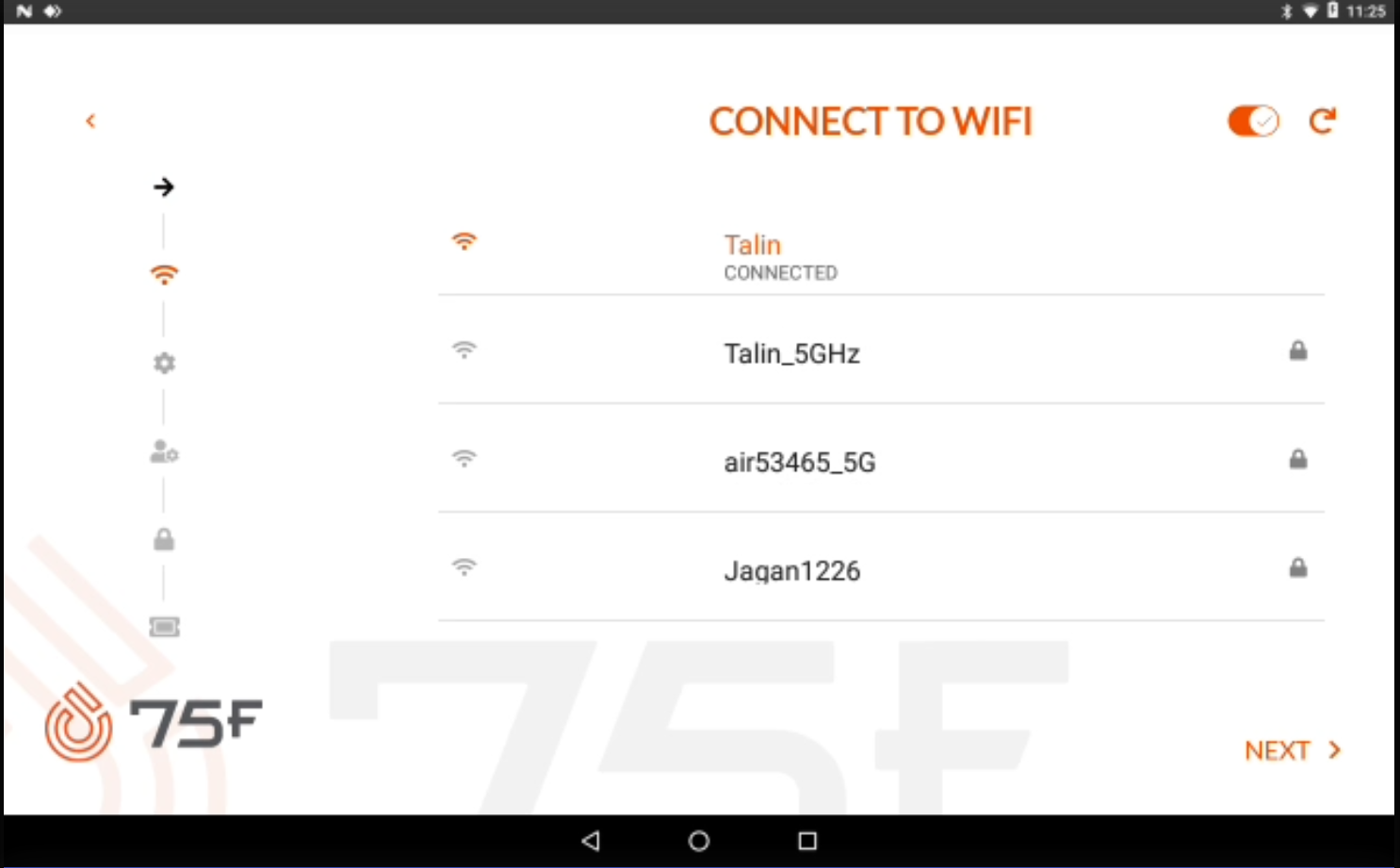

The Connect to Wifi screen is displayed.

  • Click Next.

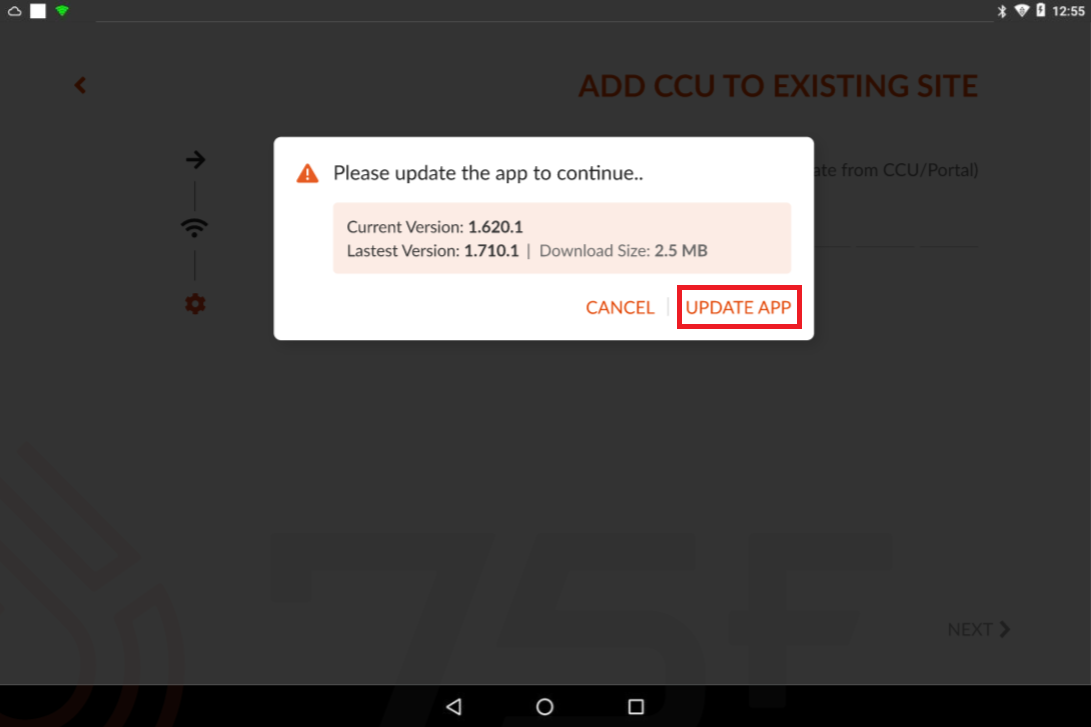

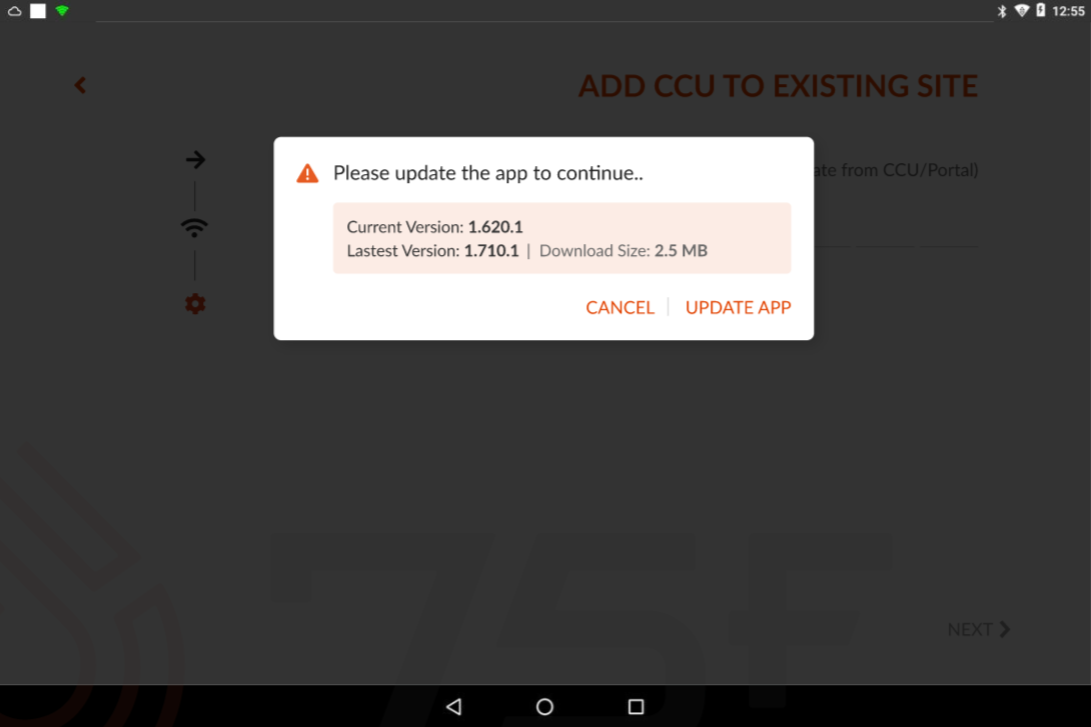

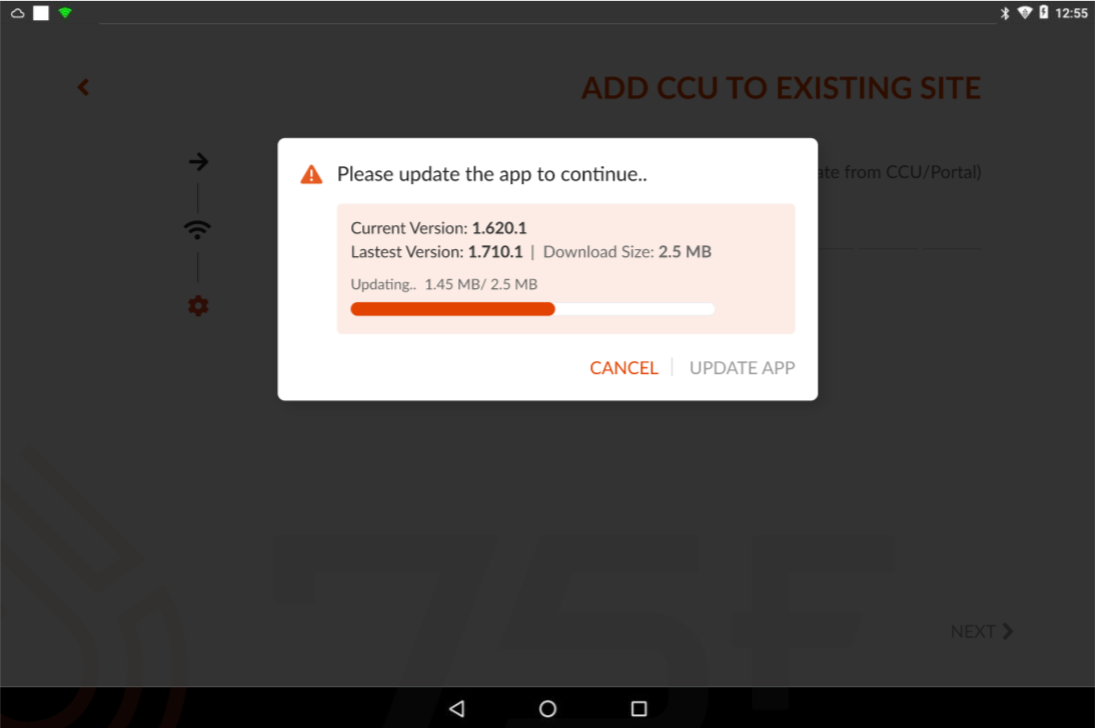

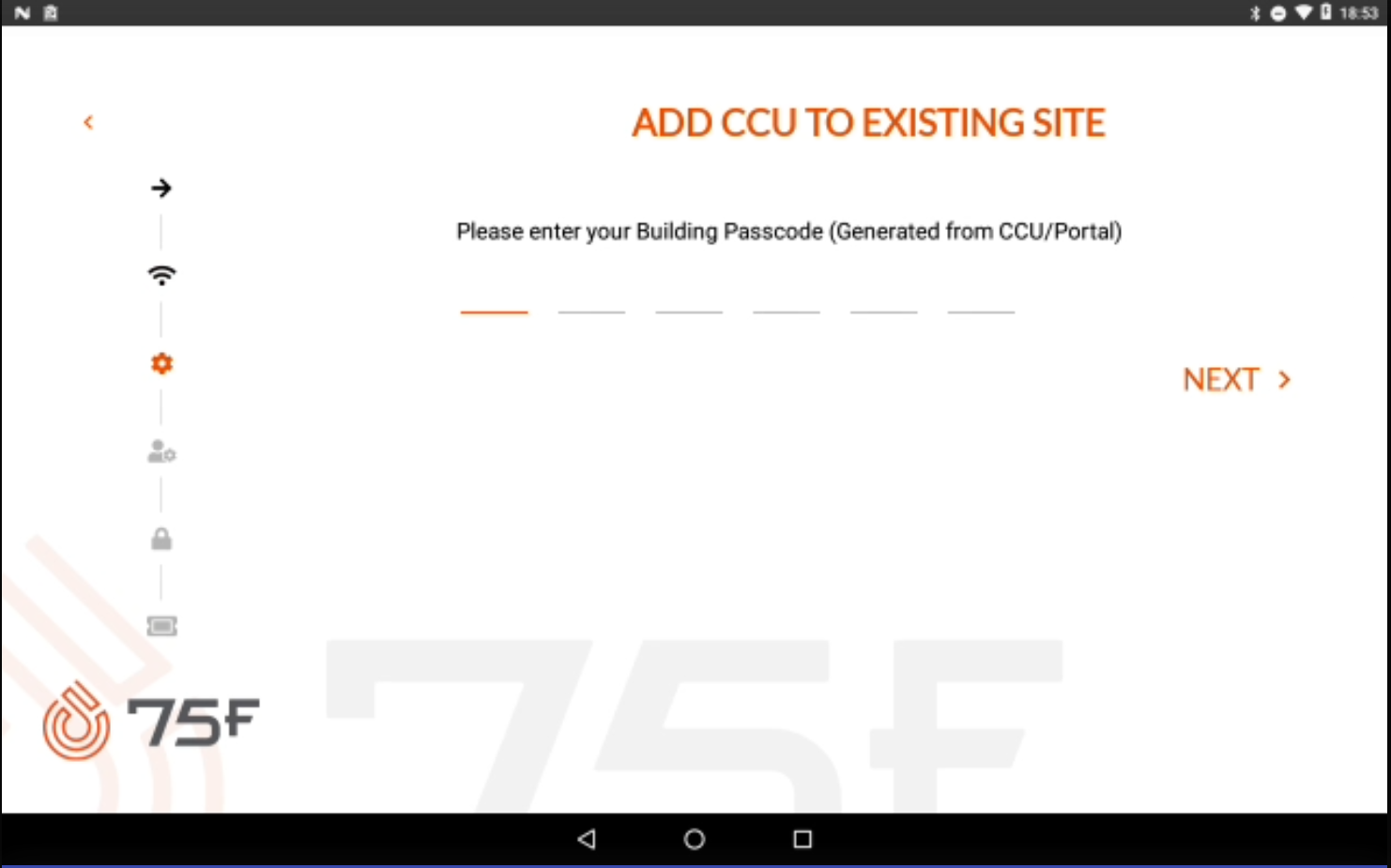

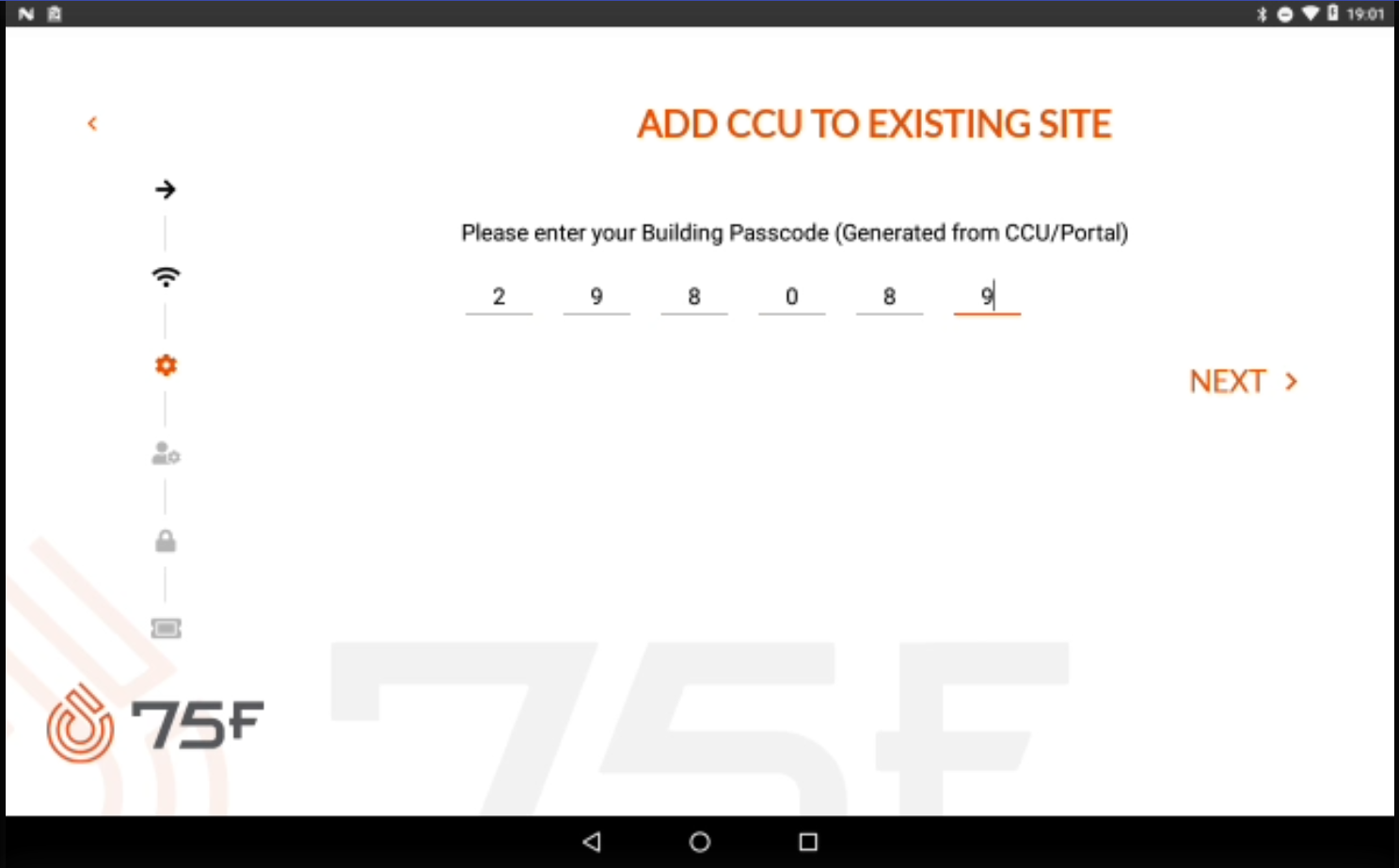

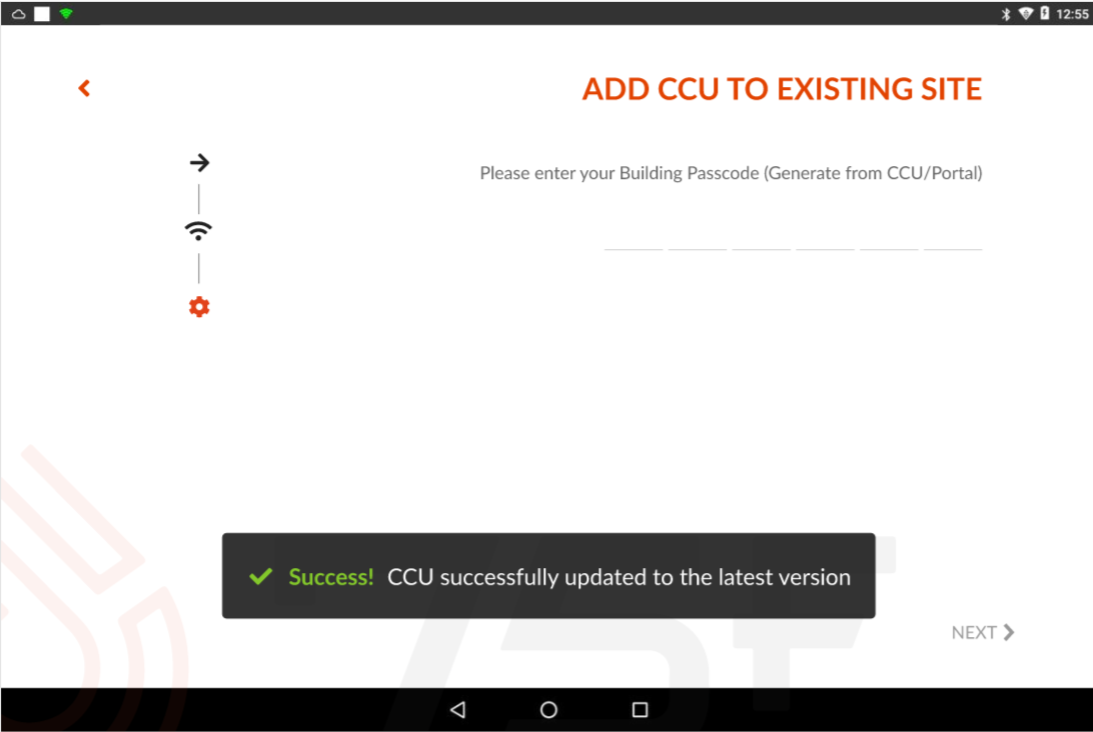

The Add CCU to Existing Site screen is displayed, with the instruction to enter the Building Passcode, and about from where the same can be generated from.

Note: The "Building Passcode" can be generated from the CCU and the Internal Portal.


Generating Building Passcode from Exiting CCU

From the CCU Zones page.


  • Click the settings mceclip3.png icon.

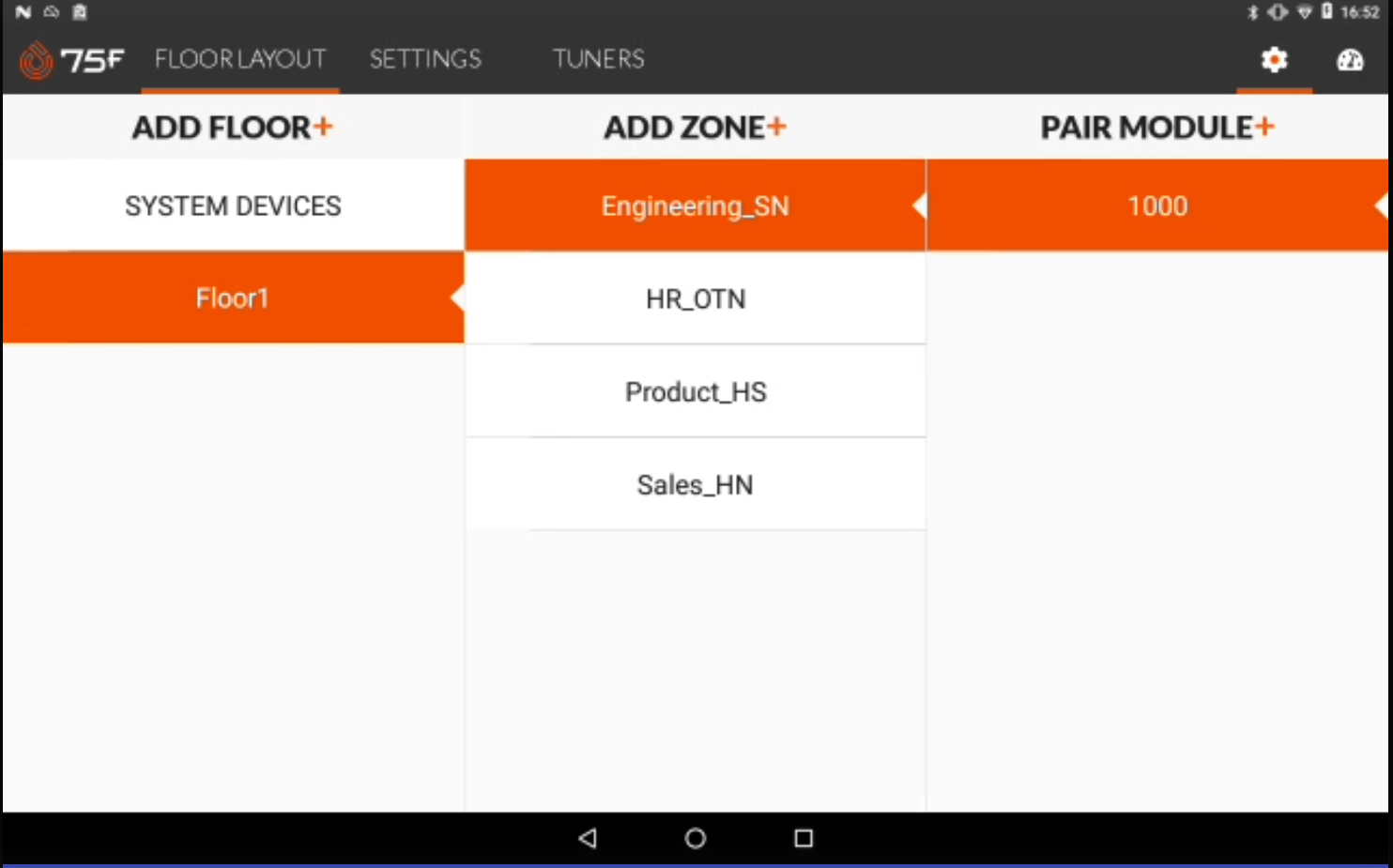

The Floor layout screen is displayed.


  • Click Settings option.

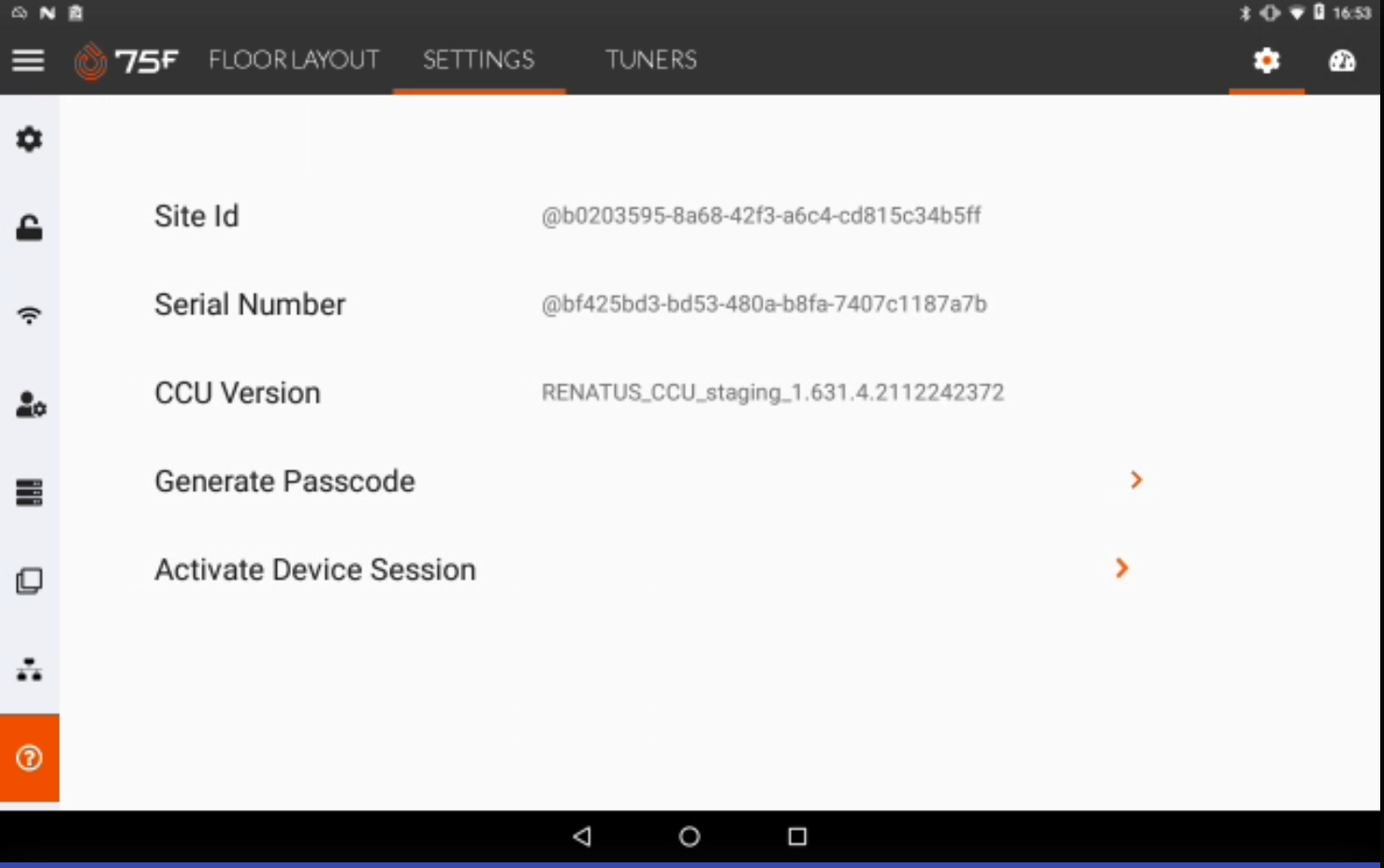

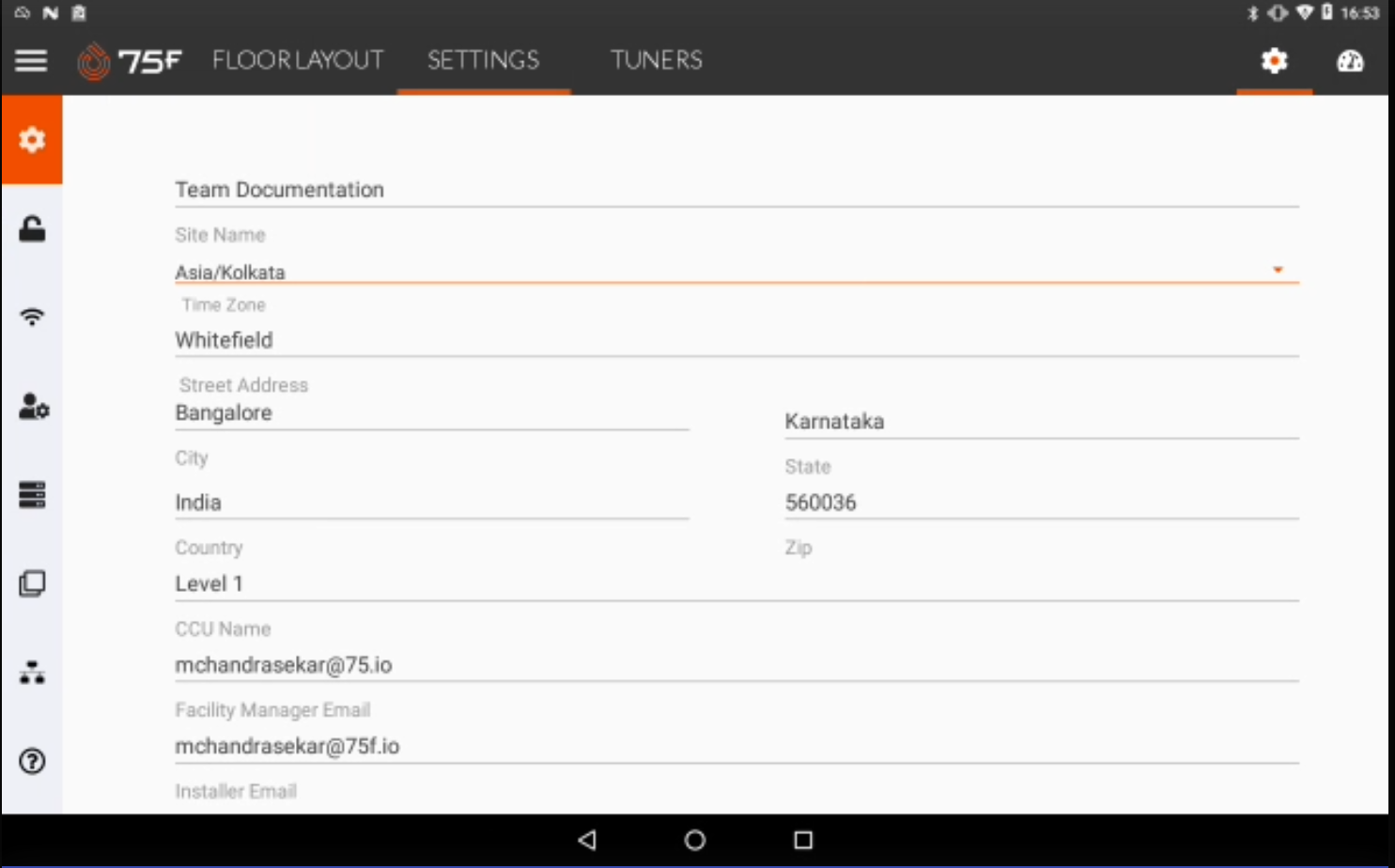

The CCU details screen is displayed, with the site and other details.


Click the question mark mceclip6.png icon.

The screen for generating the building pass code in displayed


  • Click the arrow mceclip10.png icon next to Generate Passcode.

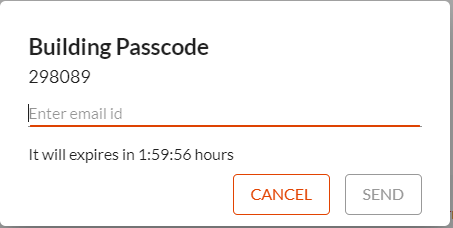

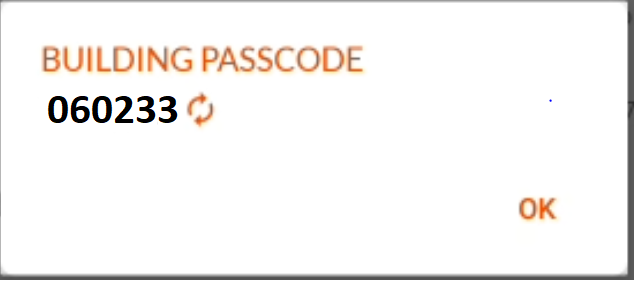

The Building Passcode generation window is displayed.


The table below explains the fields in the screen.

Field  Description
Passcode You can see the generated passcode.
Refresh

You can use this option to get a fresh passcode.


Email ID

You can enter a email ID where you can email the Passcode to

Validity

You can see the validity detail of the Passcode generated.

You can enter the passcode into the Add CCU to Existing Site  screen as below or get the passcode to the email.


  • Enter the email ID to get the passcode over email, and click OK


Email sent message is displayed.

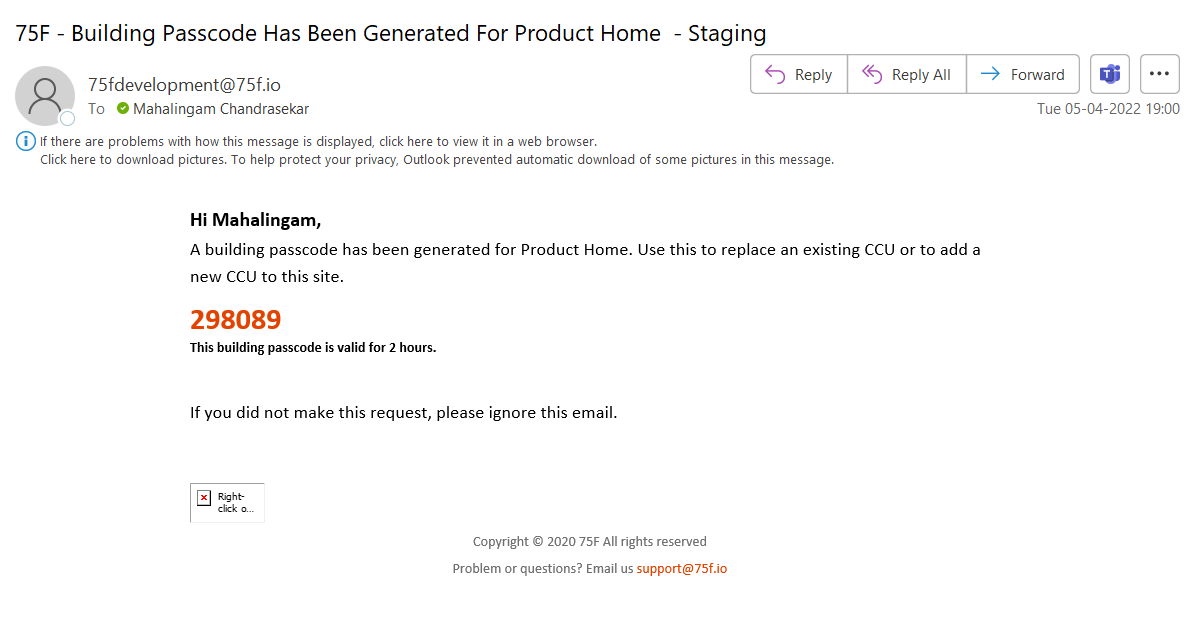

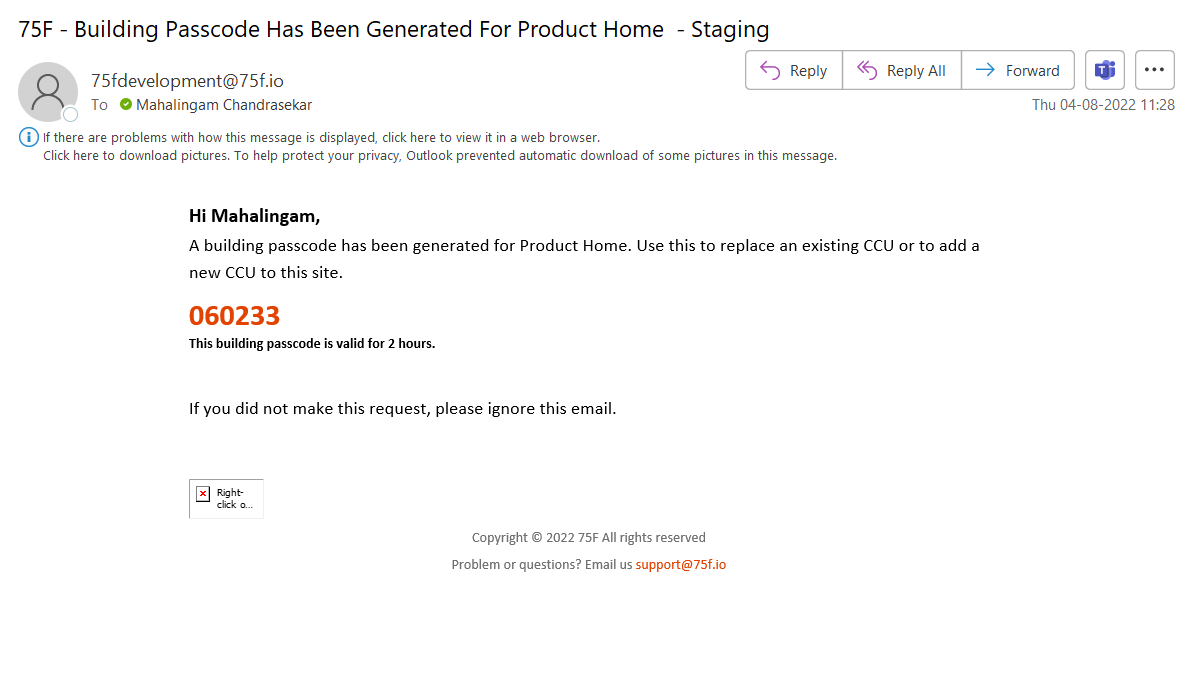

You receive the passcode email as below.


Visualizing the Generated Passcode from Internal Portal for the Site

From the Internal portal home page.

  • Click the Menu mceclip20.png icon.
  • Select Buildings.

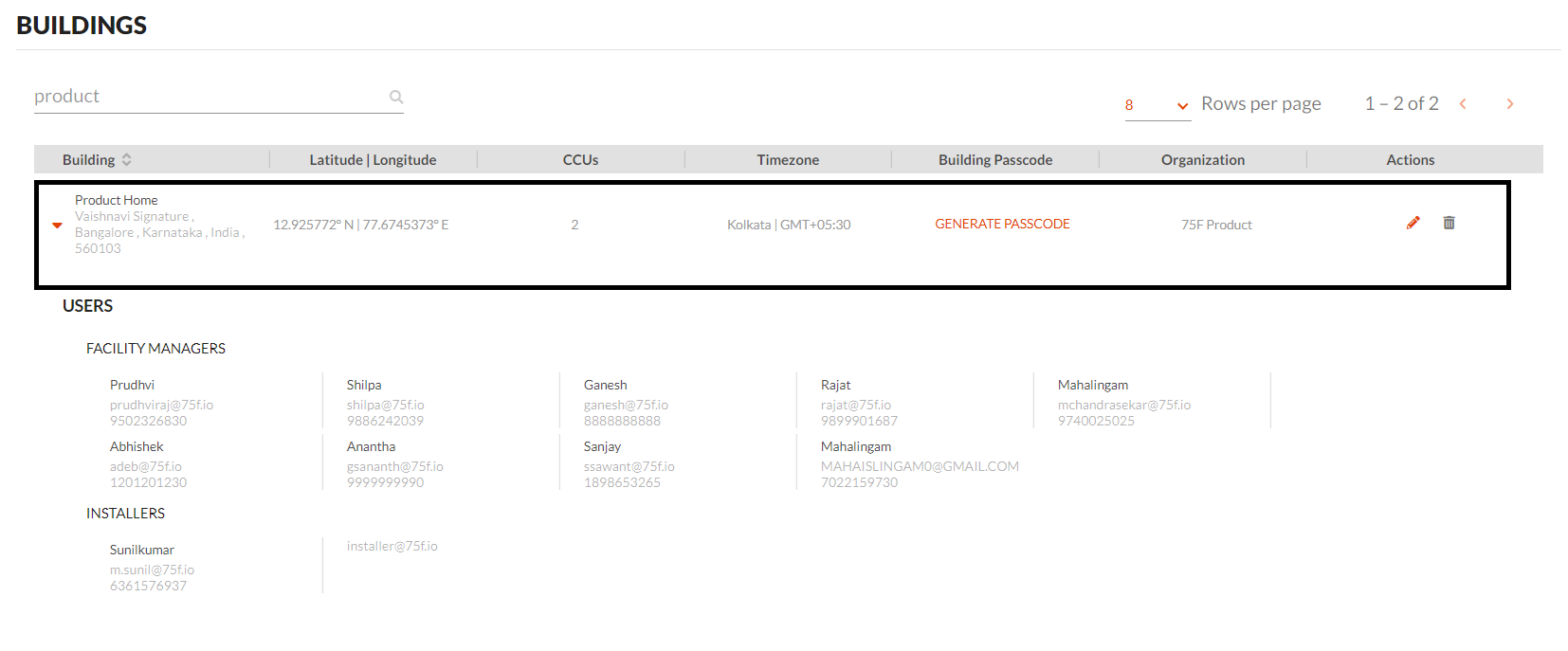

The Buildings screen is displayed with the list of building available.

  • Locate the building or the site for which CCU needs to be replaced.
  • Click the building to view the building level details.

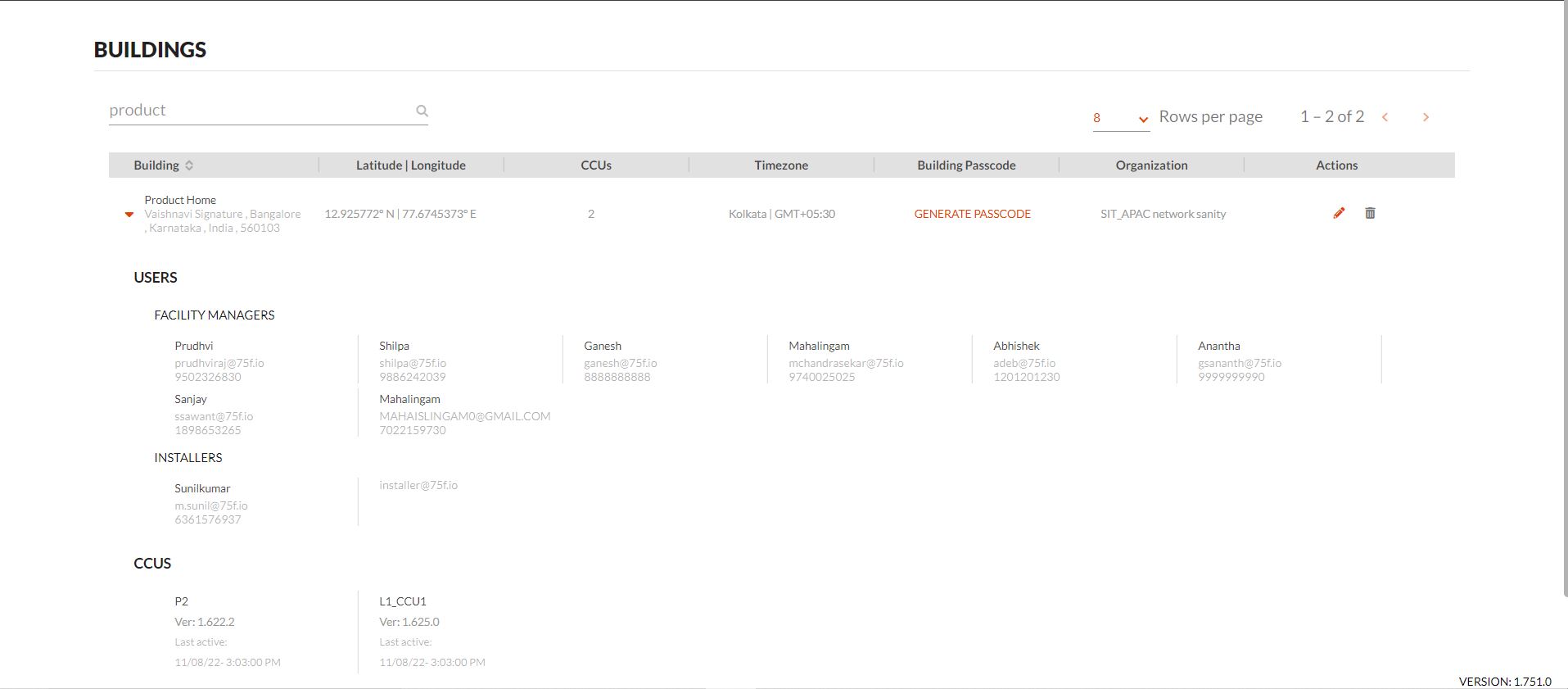

The Passcode generated via the CCU is displayed for reference under the building.

As done in CCU.

You can copy or note the passcode to enter into the Replace Existing CCU screen as below. You also have a refresh icon mceclip11.pngwhich is an option to refresh the generated pass code to new one.


Generating Passcode from Internal Portal for the Site

If the building passcode is not generated from the CCU, the same can be generated from the Internal portal.

From the buildings screen in the internal portal.

  • Locate the building or the site for which CCU needs to be replaced.
  • Click the building to view the building level details.


  • Click the Generate Passcode option under the building details.

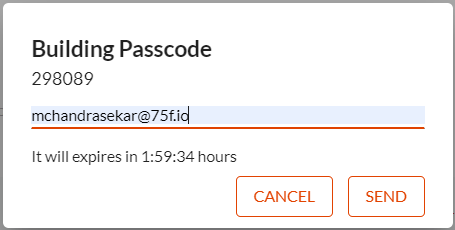

Building passcode generation window pops up.


As done in CCU.

You can copy or note the passcode to enter into the Add CCU to Existing Site screen as below. You also have a refresh icon mceclip11.pngwhich is an option to refresh the generated pass code to new one.


Or you can get the passcode to the email as below.

  • Enter the email ID
  • Click Send.

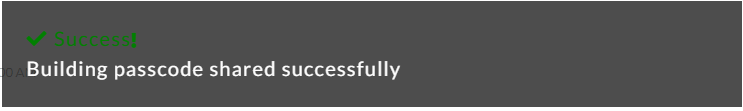

The Building passcode shared successfully message in displayed.


You receive the passcode email as below.




Adding CCU to a Existing Site the Existing CCU

  • Enter the generated building passcode generated into the Replace Existing CCU screen.
  • Click Next to validate the passcode.

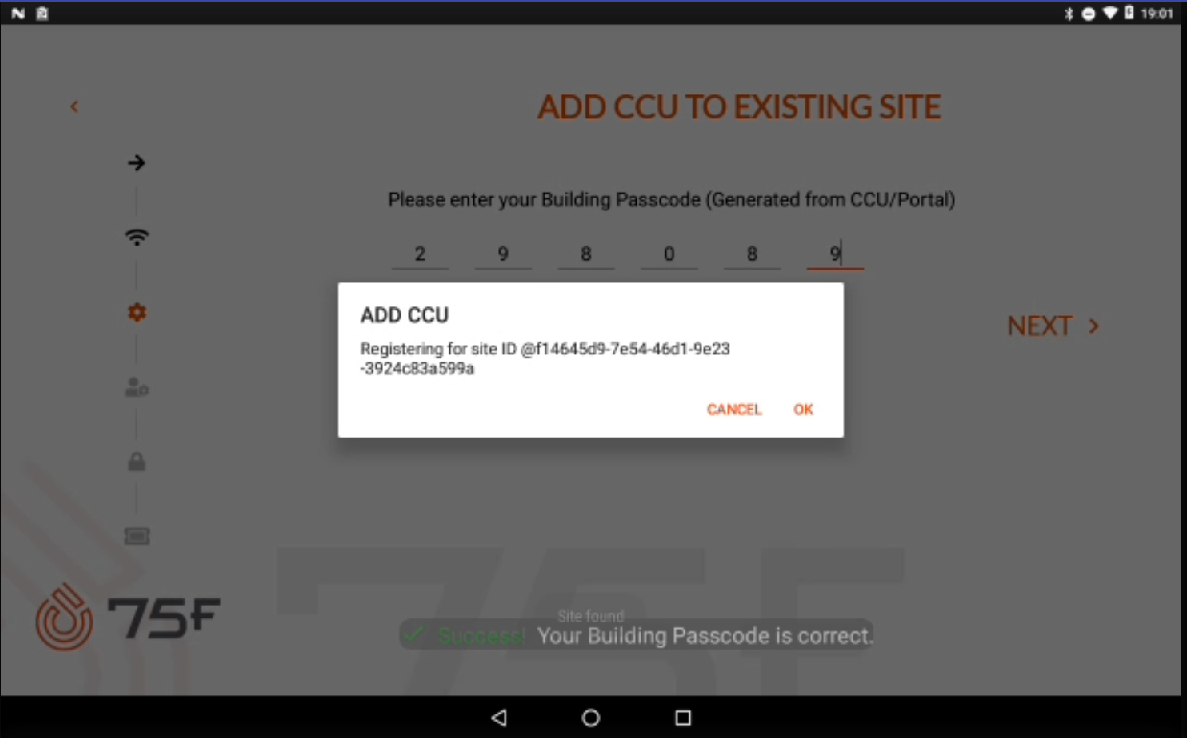

The Building pass code is verified, and the CCU  registered successfully under the site message is displayed.

  • Click OK

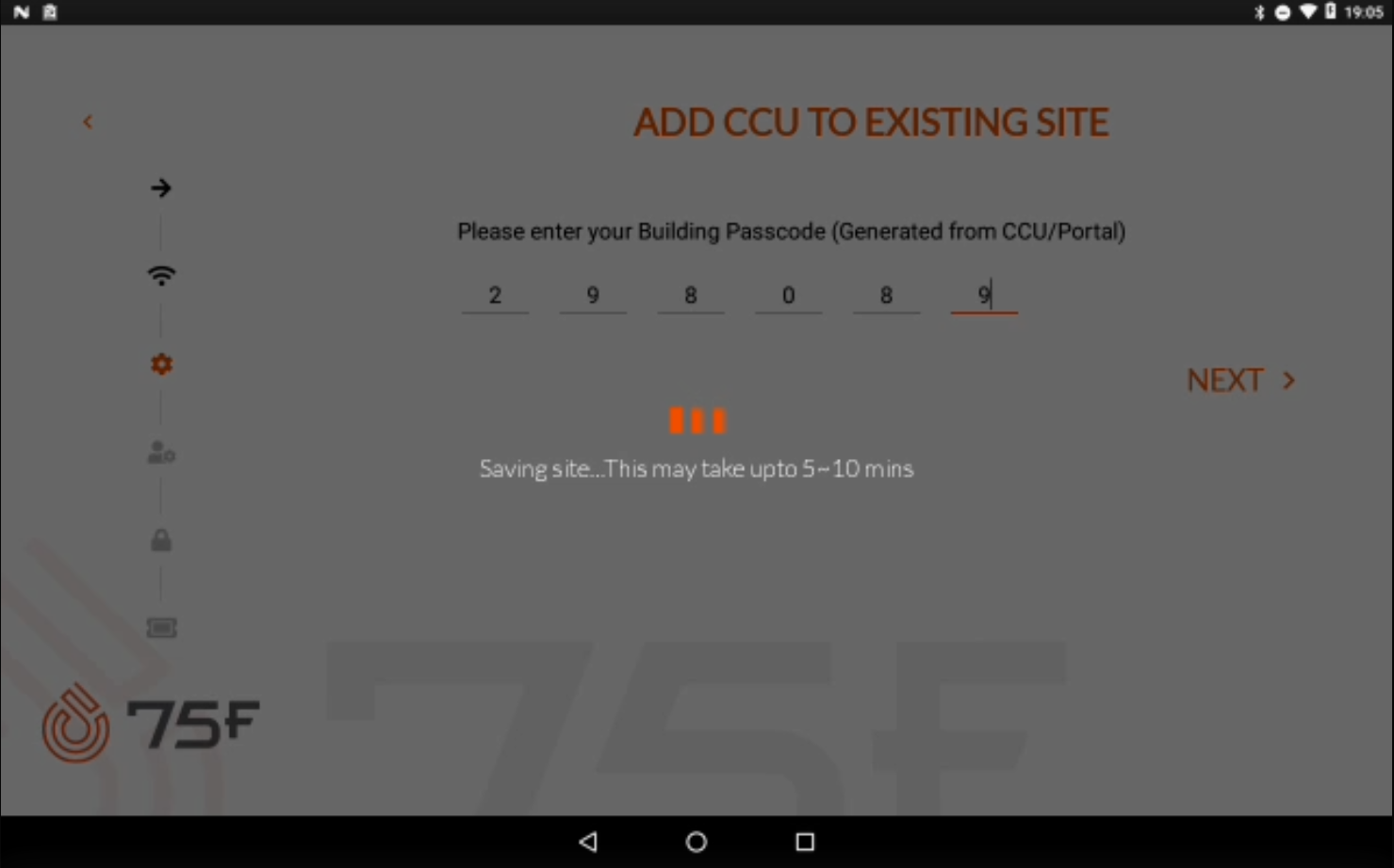

The saving site screen is displayed.

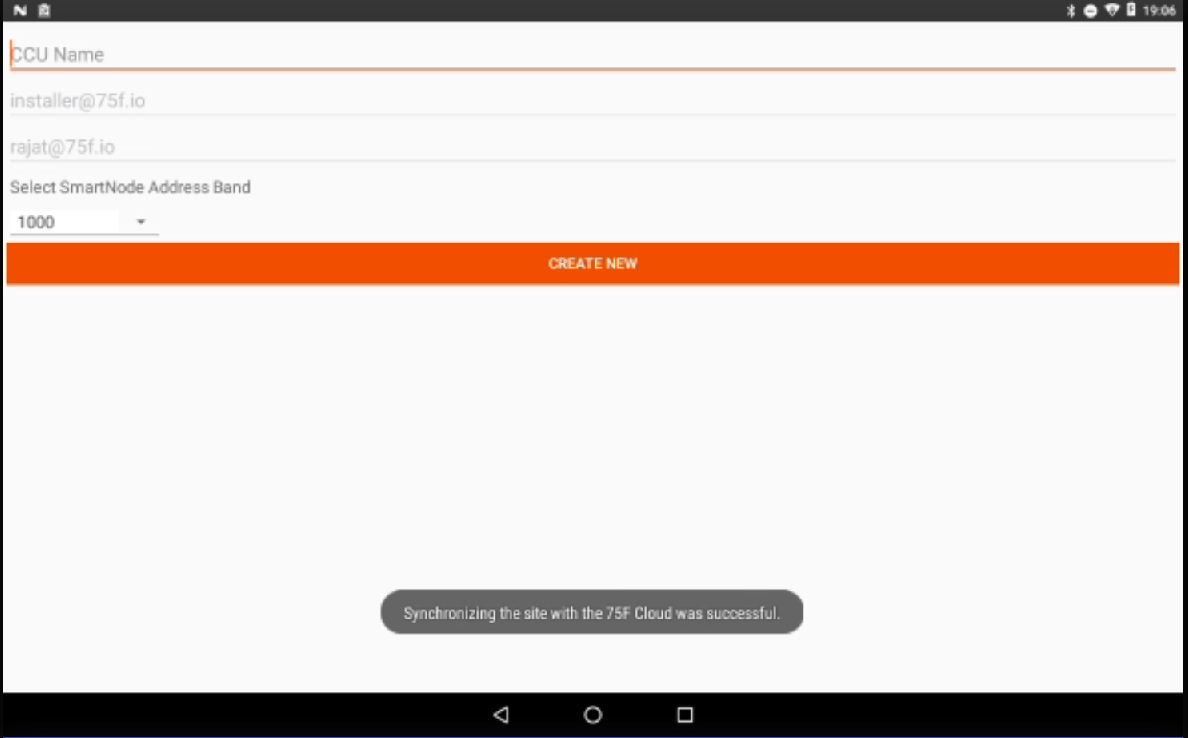

Followed by the Site Synchronizing successful message and the screen to specify the CCU details.

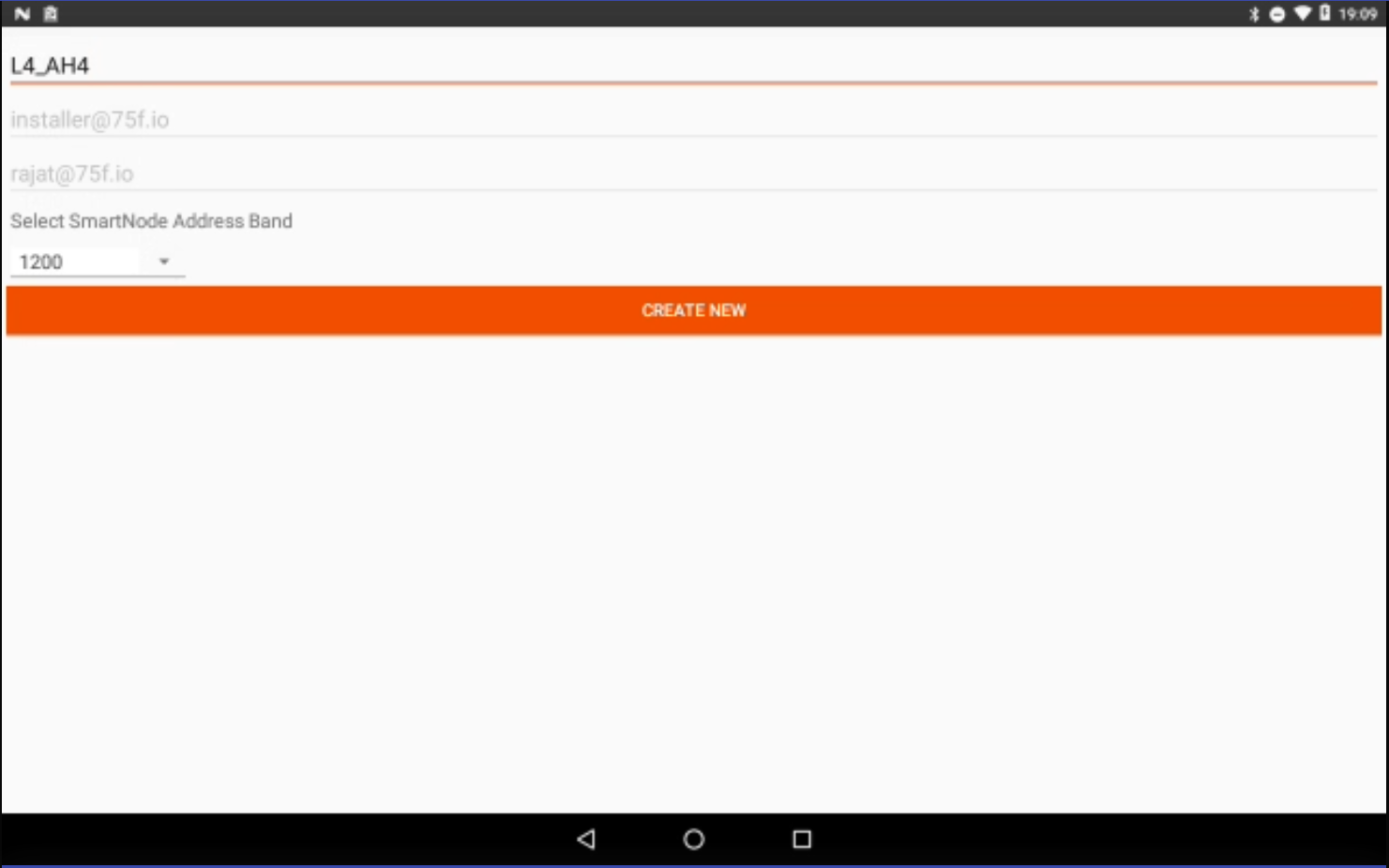

Fill in the CCU name and the pairing address band details.

  • Click Create New.

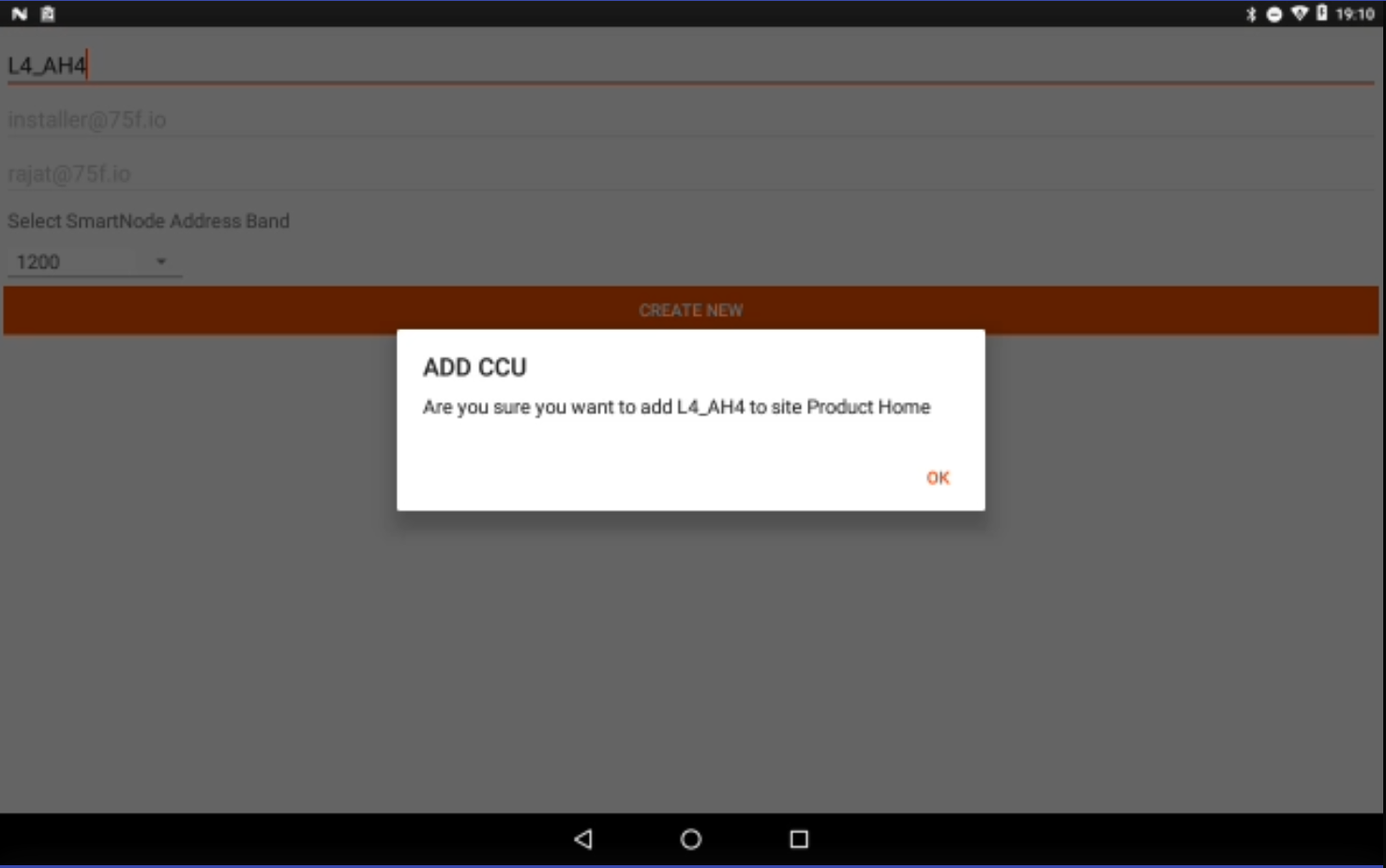

The confirmation window to confirm  the addition of the CCU is displayed.

  • Click OK

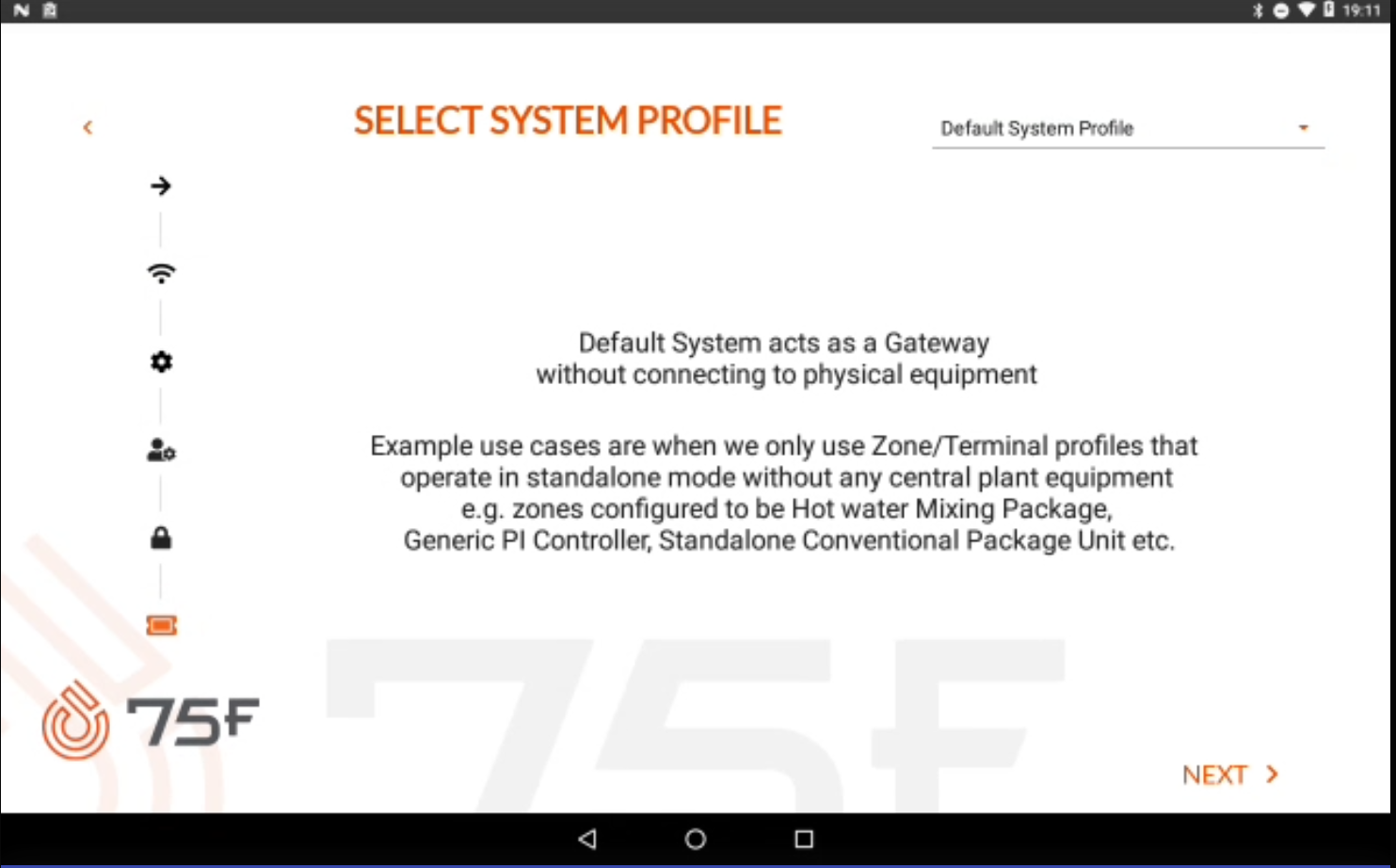

The Select the system profile screen is displayed.


For more information on the continued registration of the CCU refer to the article Registration of a CCU.
