| Overview

The Site explorer in the Facilisight portal is a place where all the information requirements related to a particular site, can be queried and viewed using tags. It is in here where the facility manager can view all the points and equips for the site assigned.

Site Explorer is a verification tool required for the product to help understand building level data created when a CCU is installed. It allows for filtering based on tags/devices allowing for exploration of the site points as well as advanced troubleshooting. This tool allows easy point ID query and also allows ease of use of viewing all the tags that have been created by the CCU at a point of time that shows the current system state.

It comprises of two important components:

  • The Entities which is a logical breakdown of the building or a site,
  • Tags that make the entities, which are used to store and view the information in the software system of 75F®(Internal, Facilisight and Apps)

Using a Site Explorer the user can:

  • View all the Id's that is associated with the Haystack hierarchy of data for a particular building along with their tags
  • Verify that all related points are created accurately for the equips inside a Building once deployment is done.
  • Check current value of many points at a glance and also their historical recorded data, for one hour.

| Accessing and Using Site Explorer

To access and use the site explorer.

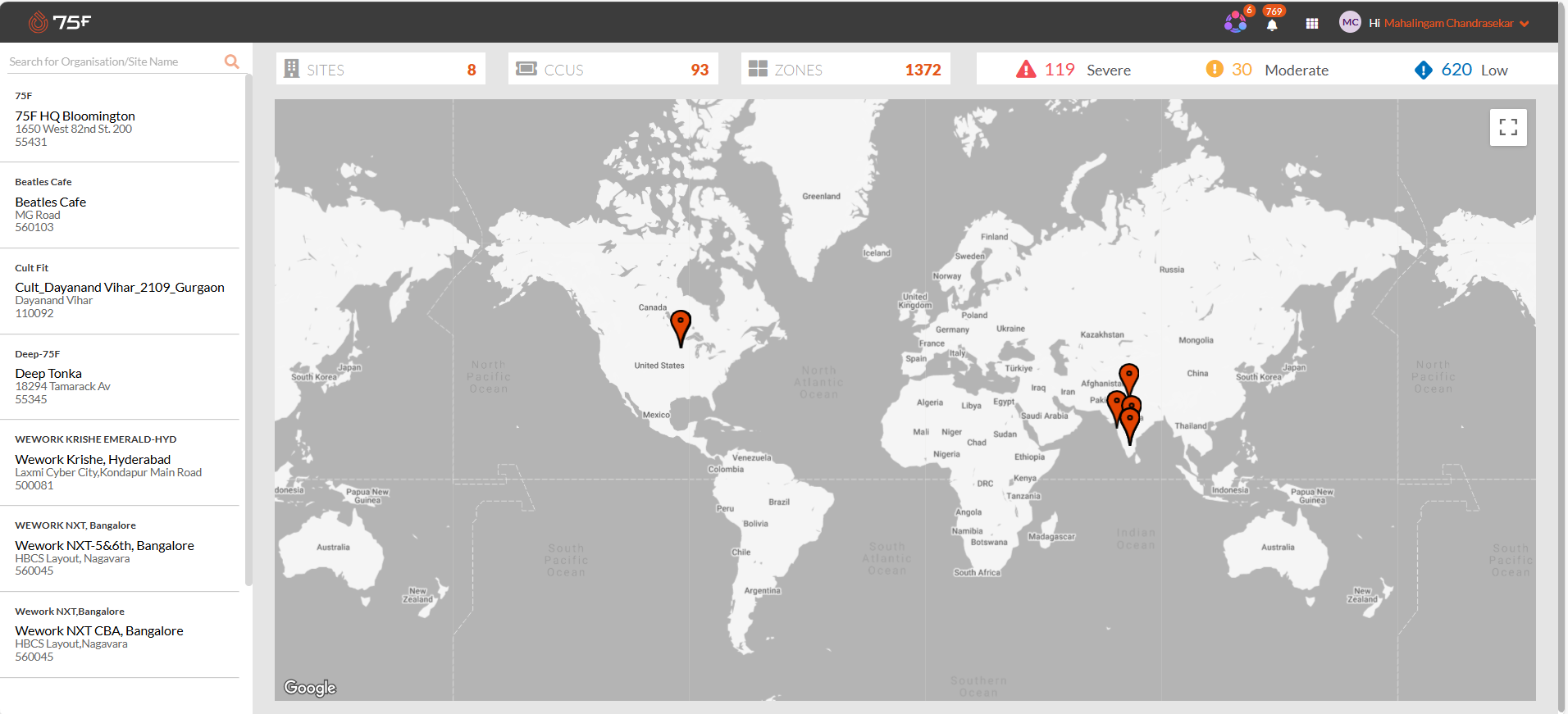

  • Log into Facilisight Portal.

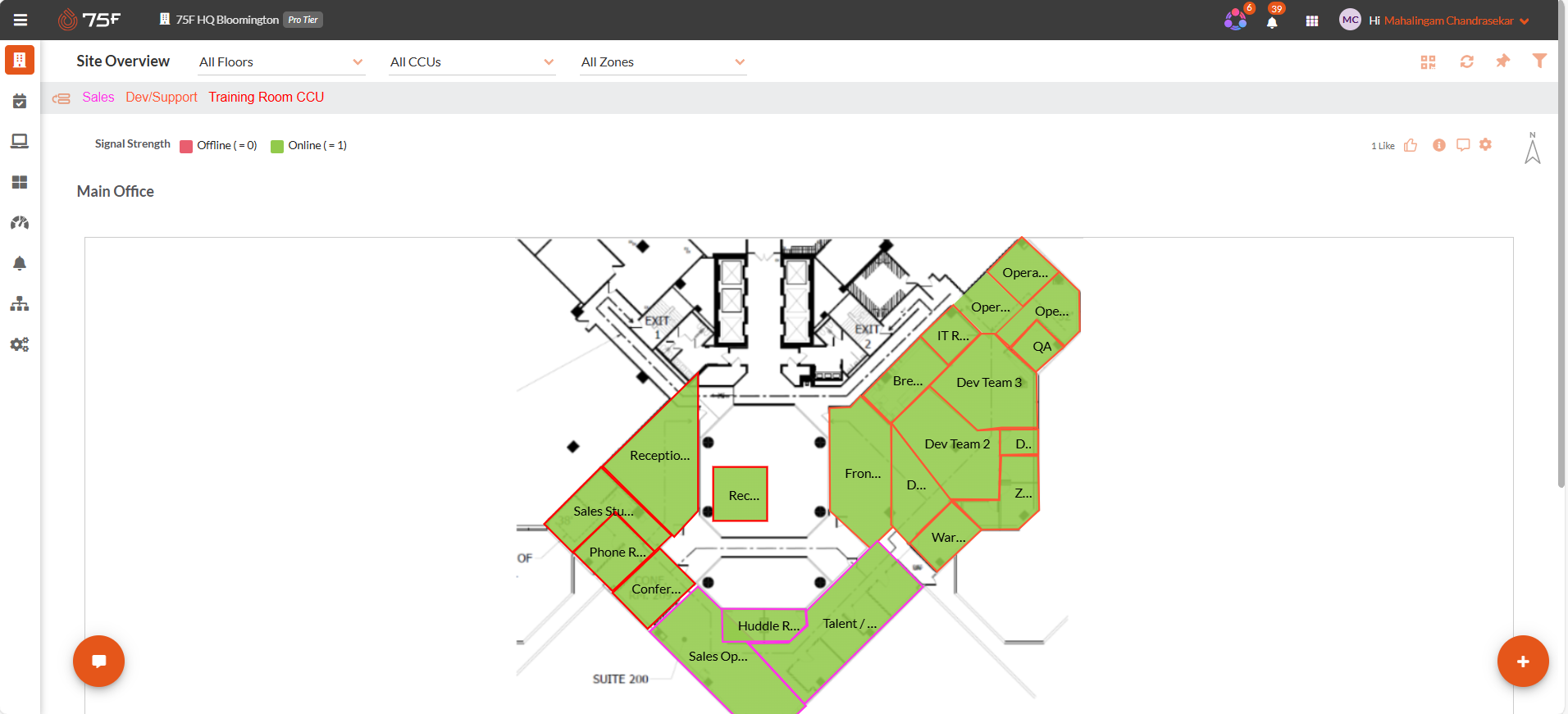

  • Select the site.

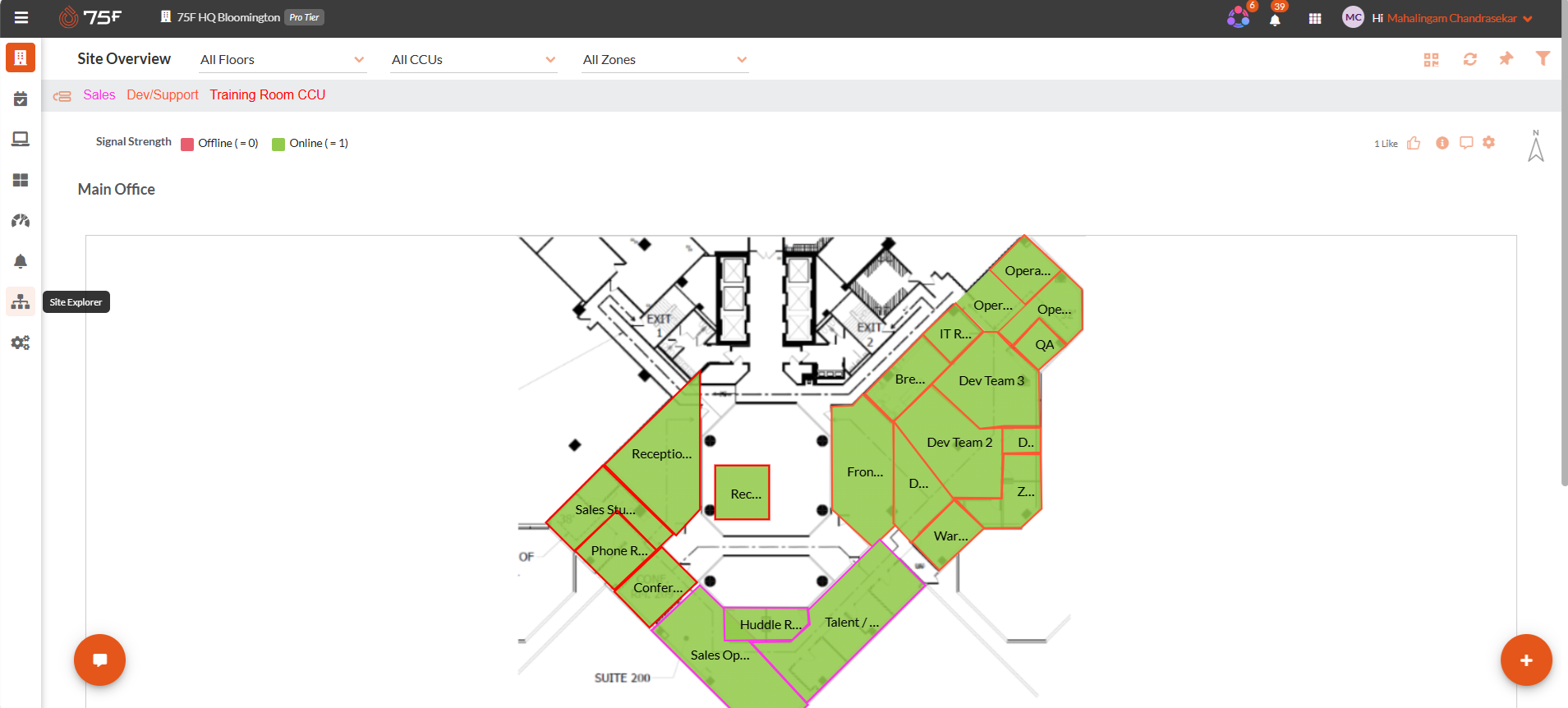

  • Click Site Explorer option.

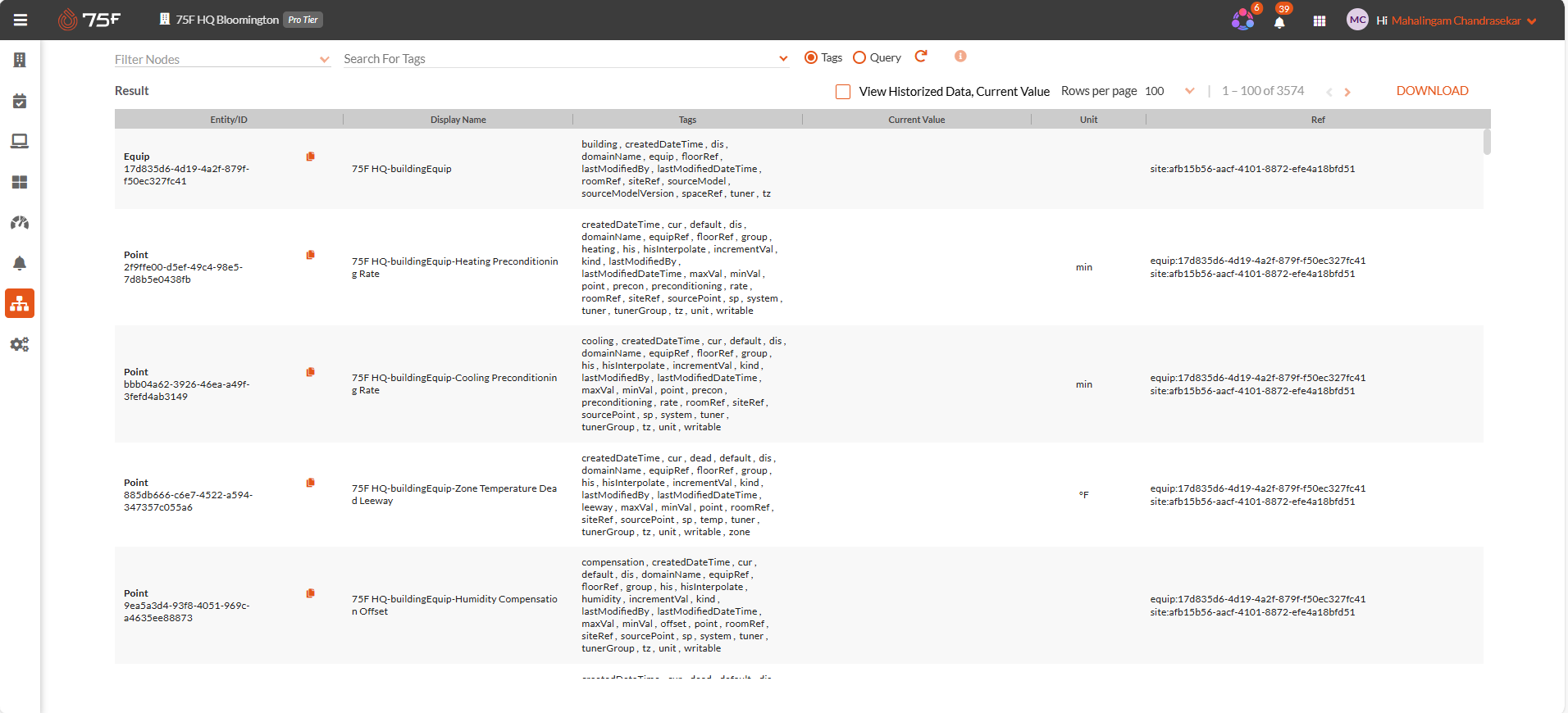

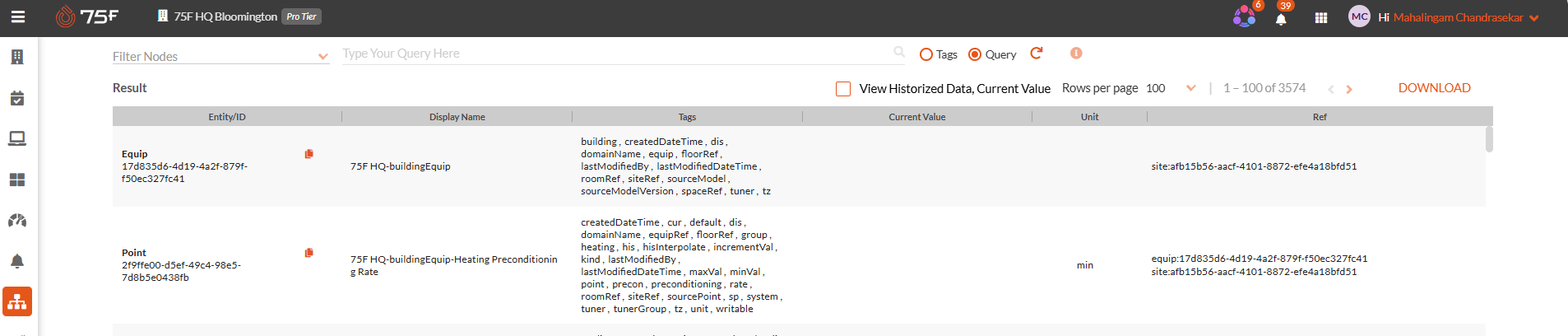

The site table viewer screen is displayed with the information for the selected site.


The following table explains the various fields displayed on the page:

Field Description
Select Tags

You can use this option to add tags and filter the results based on the combination of the tags added.


Note: The results are filtered to 9 after using the combination of tags zone, current & temperature

Filter Nodes

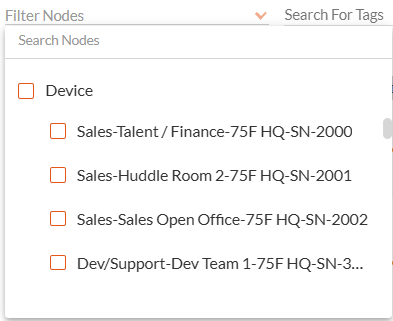

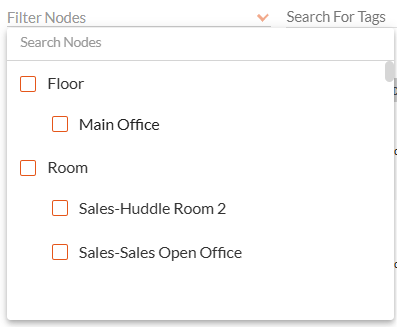

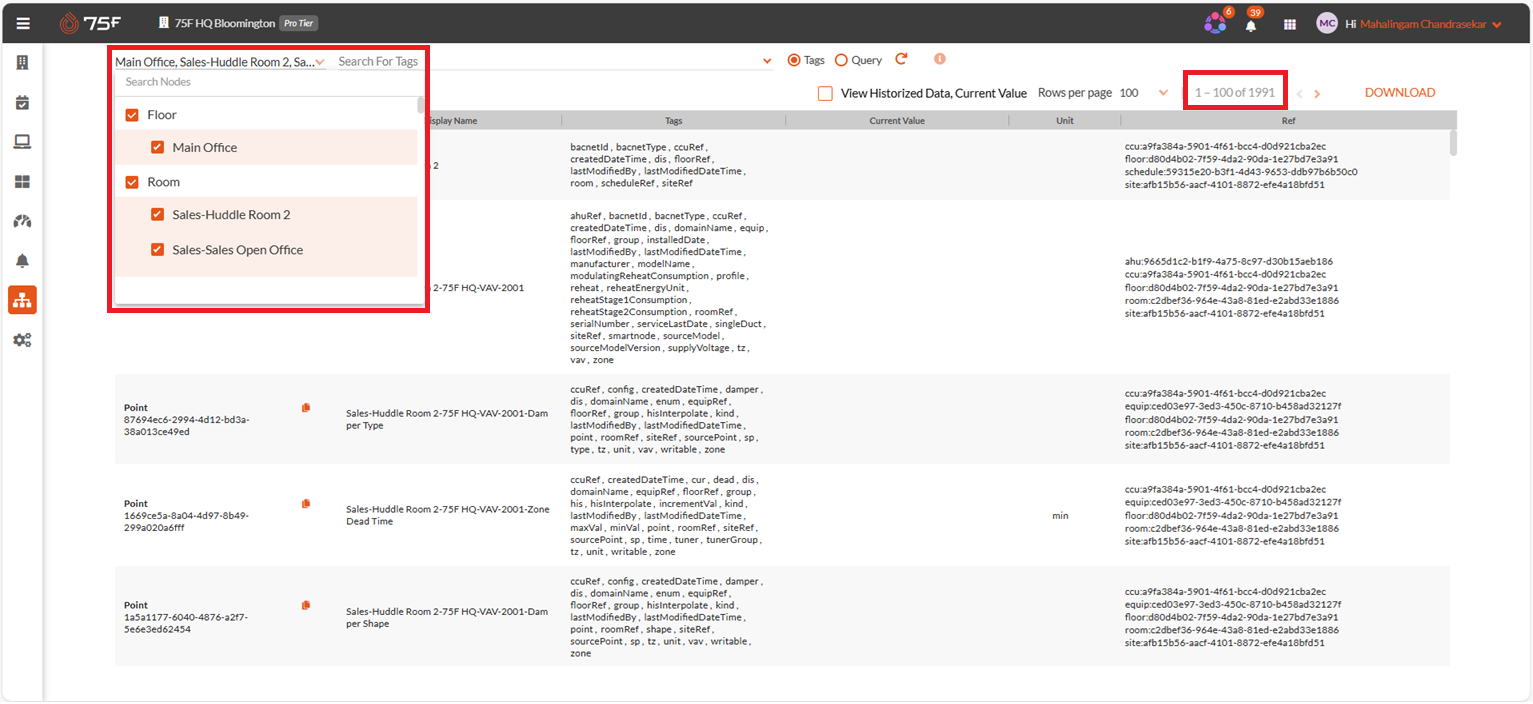

You can use this option search for and select a floor, room or a device, to filter the points for a particular floor, room or a device as below.

filternode_1.png    filter_node_2.png    filter_node_3.png

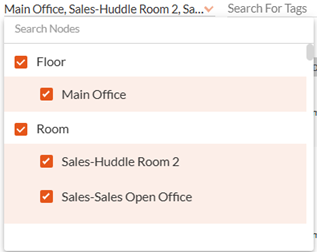

Based on the selection made as shown above the results in the number of points are reduced as show below.


Tag/Query

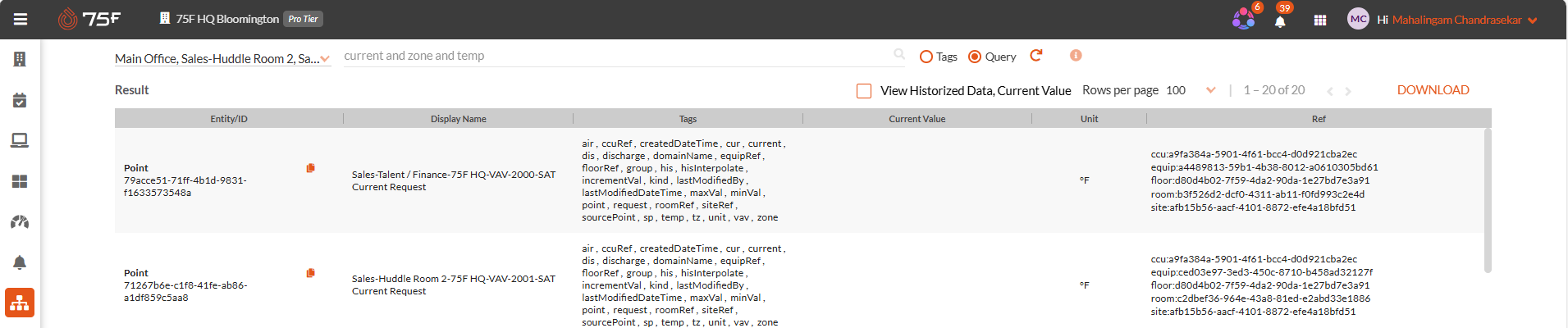

You can use this option to toggle between, search and select the tags from the list, or type the tag names as a query to filter out the results as below.


Tags:


Query:


Note: The search search_icon.png icon is to be clicked after entering to query string to filter results.

Reset

You can use this option to remove all the filter criterion used.


Note: The filter criterion are removed once the reset option is clicked.


Information

You can hover over this option to get a glimpse of what actions can be carried out in the screen.

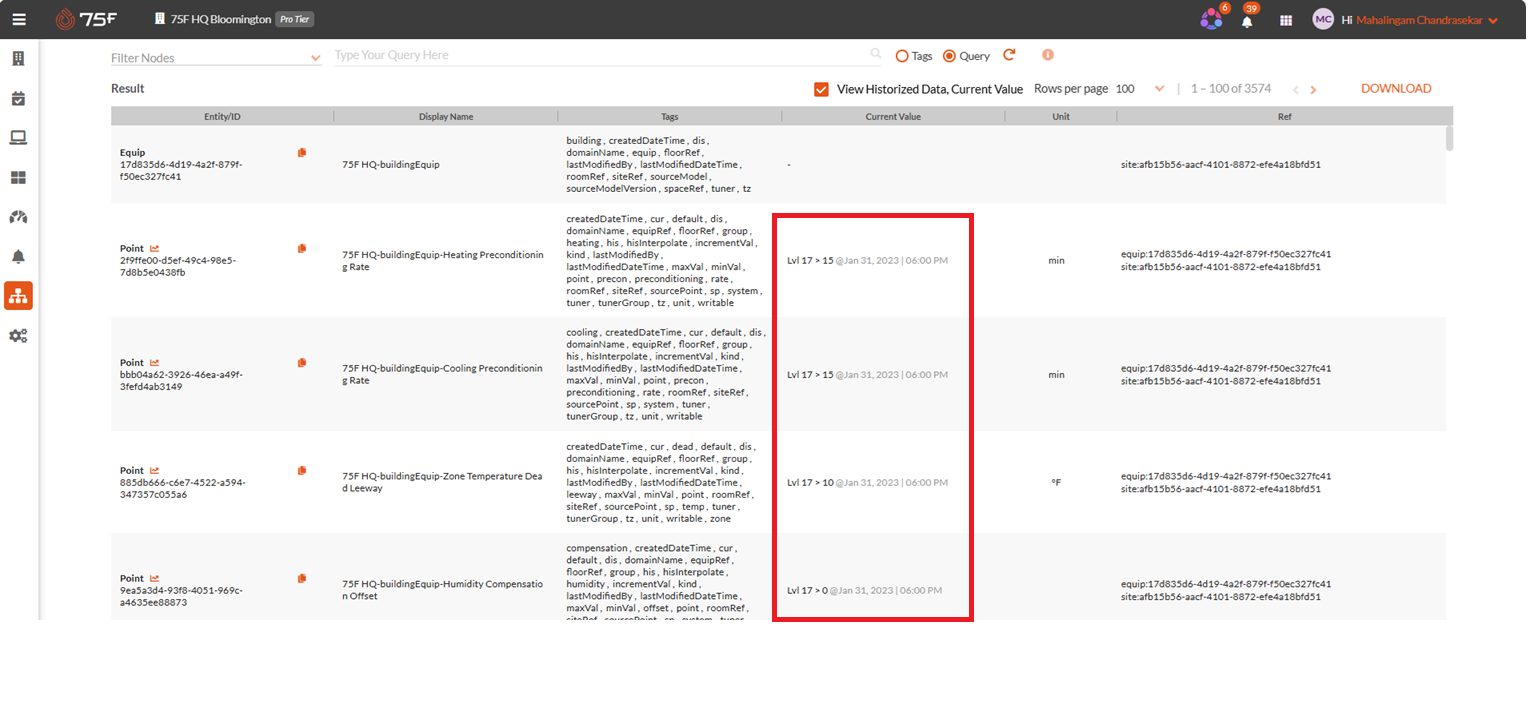

View Historized data & Current Value

You can select this check box to view the historical recorded data and the current value data for the entities.


Items per page

You can use this option to view more results per page.


Note: You can view up to a 1000 rows or results per page.

Next and Previous list

You can use this option to navigate to the next and the previous screens, when only 100 rows per page is displayed.


Download

You can use this option to download the results in a .xls format for your reference.

Note: Using the download option after filtering using tags or nodes will download only the applicable result rows.



| Accessing Results Displayed

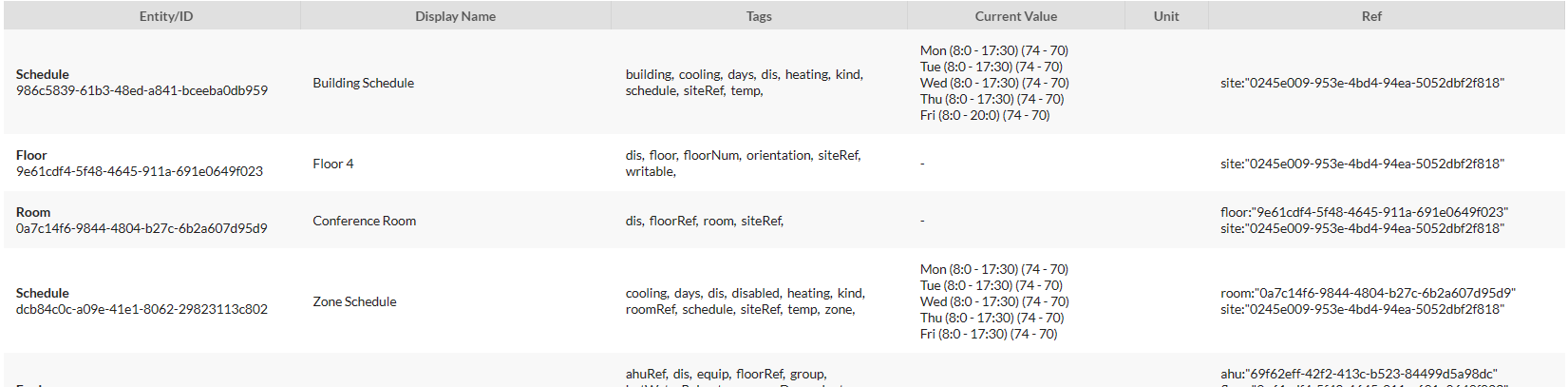

The result section is in a tabular format, with number of rows and columns.


The following table explains the various fields displayed on the page:

Field Description
Entity /ID You can view the entity description and the entity ID, which can be used in the Query Assist tool to extract the JSON related to the entity( a format in which the data is stored for the particular entity.
Display Name You can view the name displayed for the entity in the software system in widgets or visualizations.
Tags You can view the list of tags that make an entity
Current Value You can view the current/ Historical value under this section, when the View Historical data & Current Value check box is selected.
Unit You can view the unit applicable for the entity value under this section.
Ref You can view the parent reference the entity would be referencing in the site in the system.



| Filtering Using Tags

Tags are the metadata for any entity, they form the base for the data stored in 75F® system (Internal, Facilisight and Apps). Every entity has a unique set of tags to identify it uniquely, If more than one entity has the same set of tags, it is probably referencing a different parent in the system.

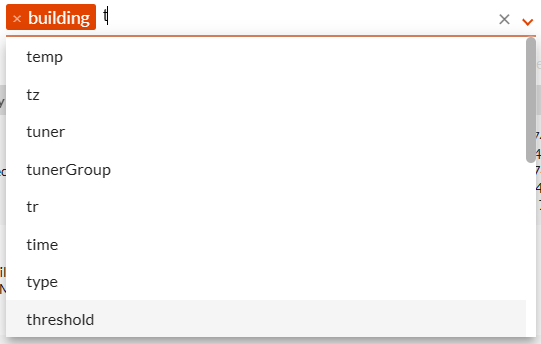

The site table viewer provides the user with an auto search option while searching tags as shown below, reducing the hassle for the user trying to remember the right tag with the right kind of spelling.

Note: When tried searching for the tags starting with "t" the tool provides a list of tag starting with "t" to select from.

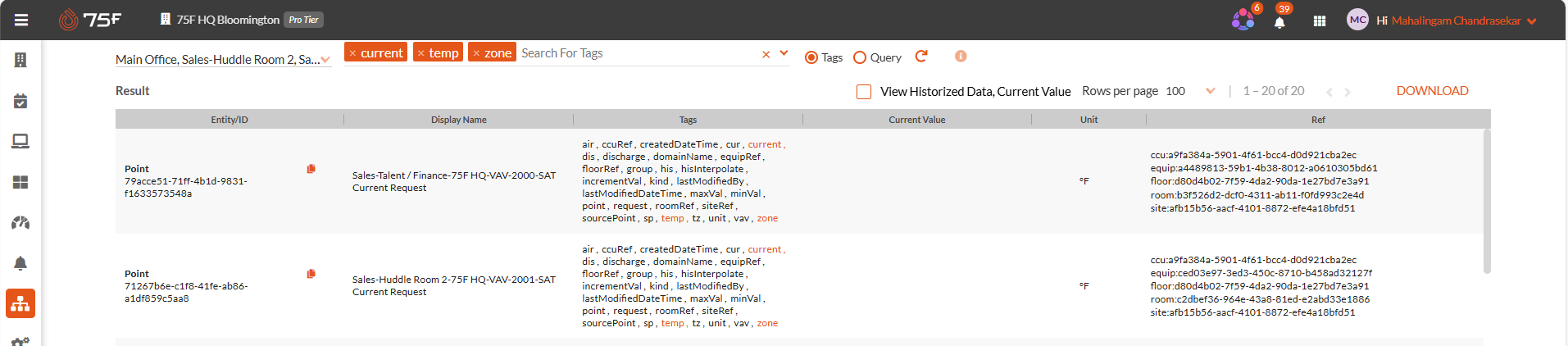

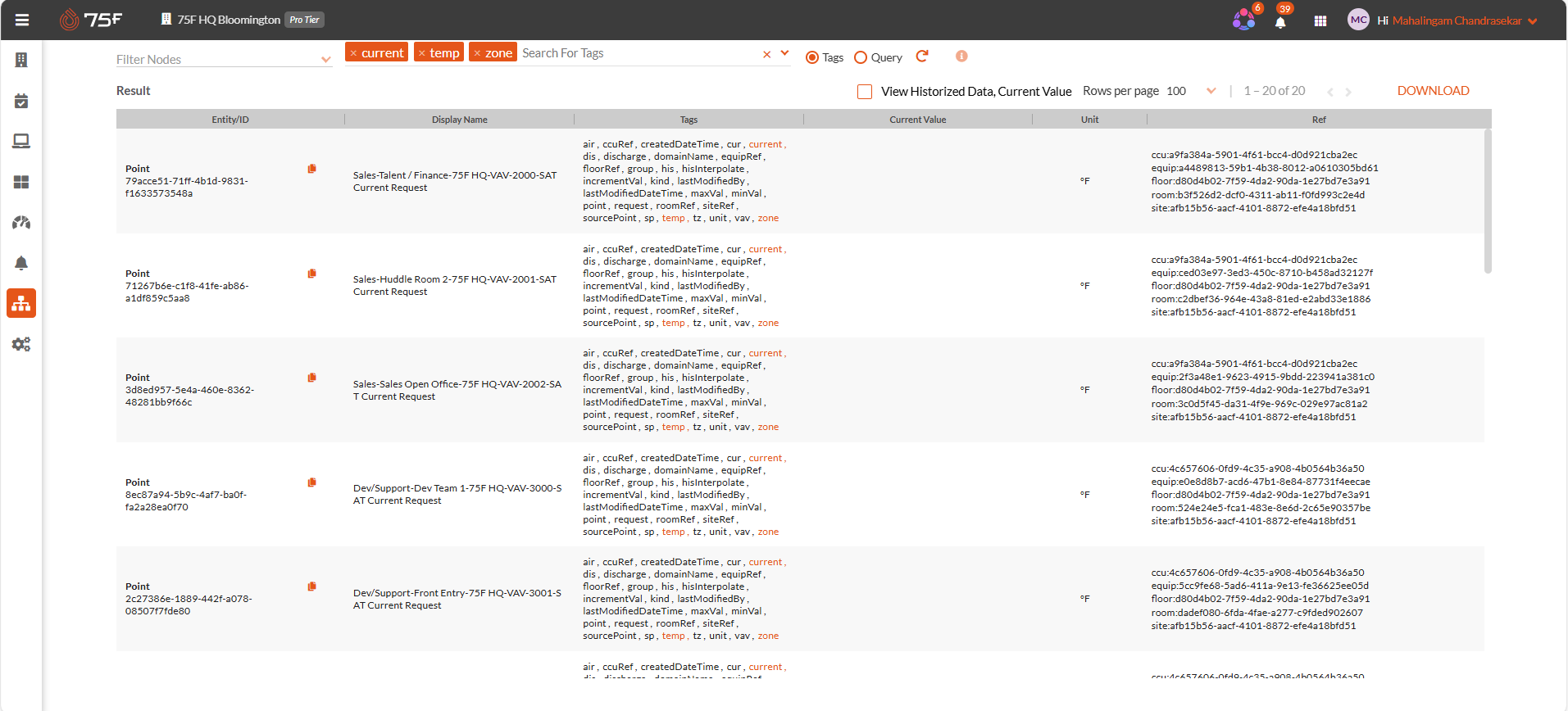

When searched using tags it not only filters the results for the tag,  it also highlights the tags used in the filter in the tags list for an entity as below.

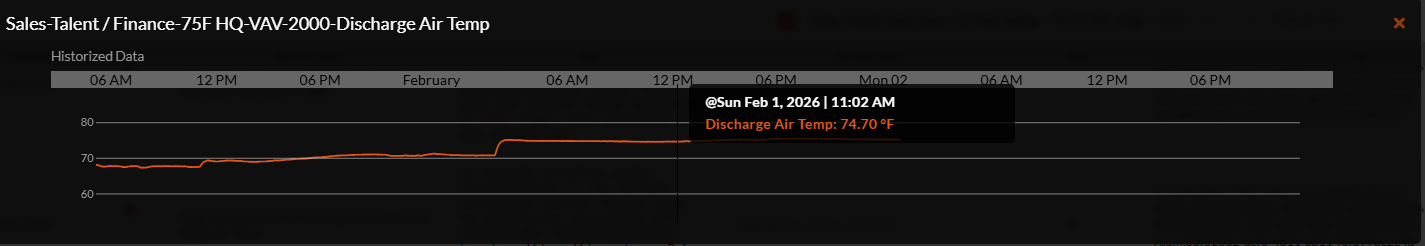

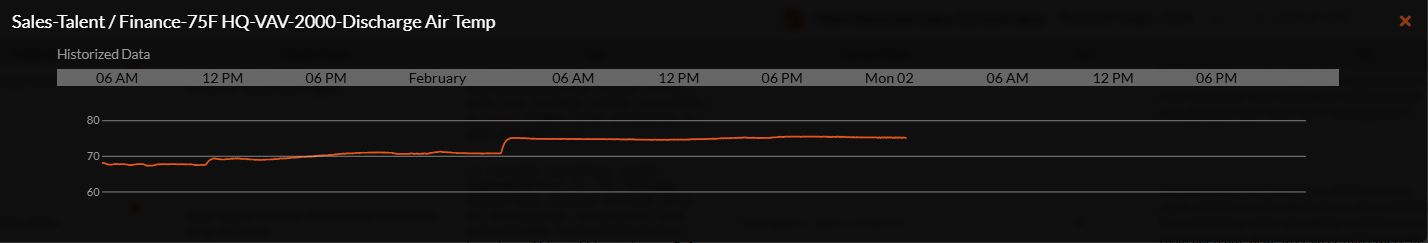

| Viewing Historized Data

From the points list for a particular site.

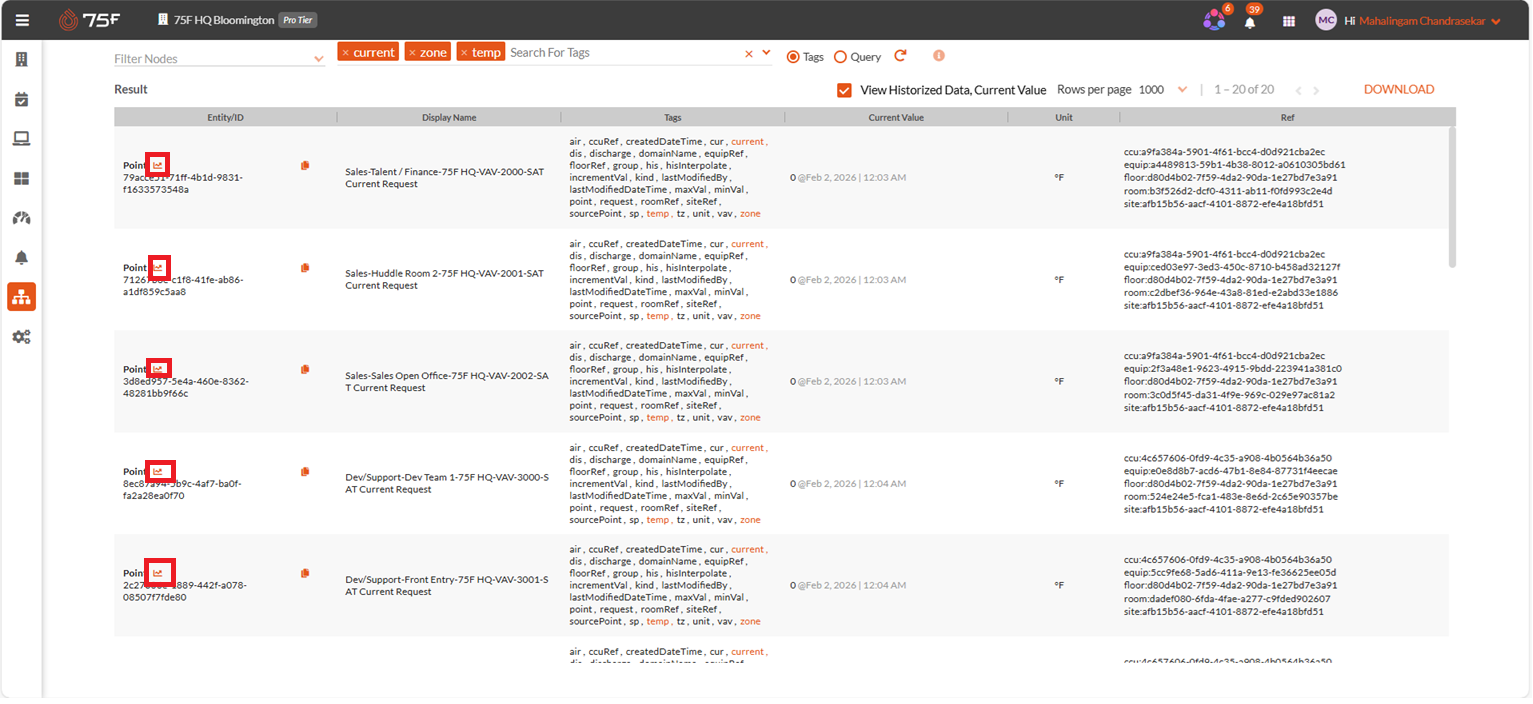

A historized icon historized_icon.jpg for a point indicates, the presence of  historized values for that point.

  • Hover over the historized historized_icon.jpgicon to visualize the data as below.


  • Click the historized historized_icon.jpgicon to visualize the data as below.
