Cloud Connectivity for Heartbeat

2 Minute Read

| Introduction

With the introduction of the feature heartbeat in the 75F® system, the user can view the zone or equipment status, whether the zone/equipment is actively communicating with the CCU or not. It is indicated alongside the zone names in the portals and the CCU as a circular dot and as the last updated information in the zone settings section in the zone level widget screen, a green circular dot next to the zone names in CCU and portals indicates the equipment actively communicating with the CCU and a grey circular dot indicating the equipment is not actively communicating. For more information refer to Heartbeat Indication for Equipment In CCU, Apps, and Portals

Whereas the 75F system user had no means to remotely know from the portals and app, if the CCU is connected to the wi-fi or not, and actively communicating with the cloud or not, at any given point of time. This paved the way for the use of feature heartbeat for the CCU, and the introduction of a predefined widget in all system level and module level profiles to visualize the Cloud, CM, and Equipment connectivity statuses, and the last updated information made available at the system screen in the CCU.

| Connectivity Status

• Login to the Internal or Facilisight portal
• Select the site in scope.
• Click on any CCU to access the system-level widget screen.

| System Level

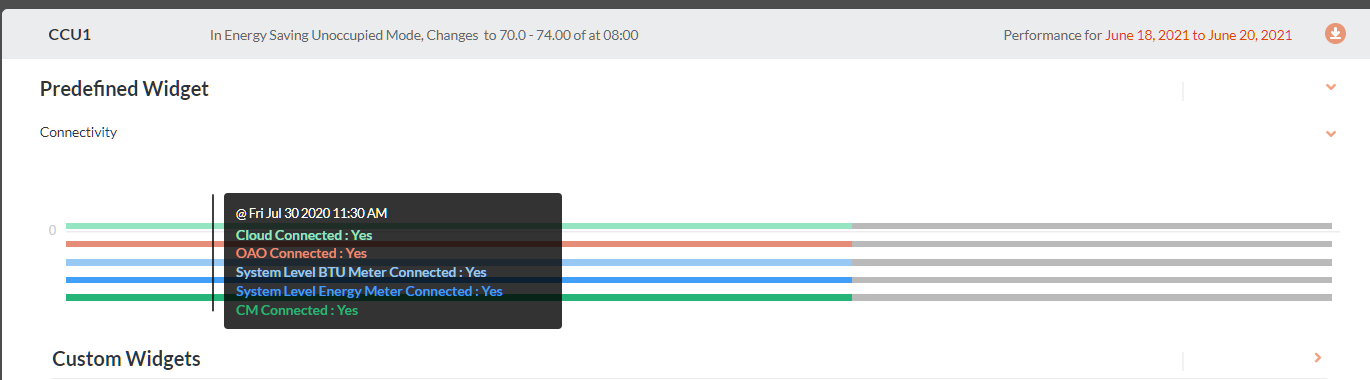

Under the predefined system-level widgets, you can see the connectivity widget below.

On hover over the trending data in the widget, displays the Cloud connected and CM board connected statuses as above. the green color is used for plotting the trending connected information and the grey color is used for plotting the trending not connected information, similar to the heartbeat information as the circular dot.

The connectivity status is applicable for all system-level profiles which include the BTU Meter, Energy Meter, and OAO.

When a BTU Meter/ Energy meter or an OAO is configured as a system-level profile, its connectivity statuses are also visualized in the connectivity widget, as shown above, A different color is used for plotting the trending information for these system-level profiles.

| Zone Level

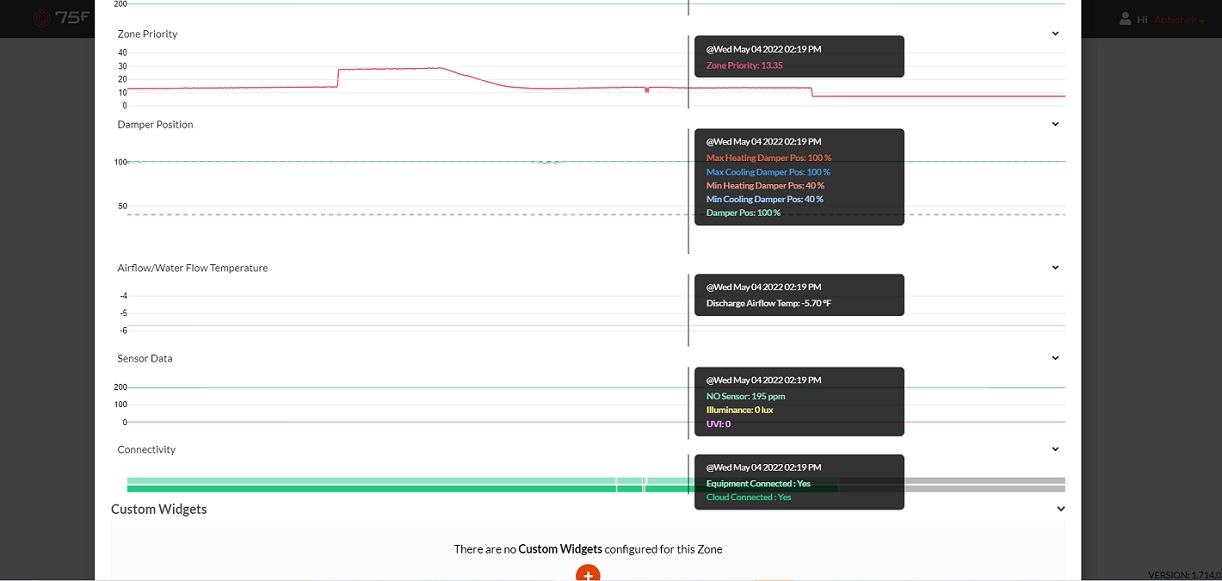

Under the predefined zone level widgets, you can see the connectivity widget below.

On hover over the trending data in the widget, displays the Cloud connected and Equipment connected statuses as above. The green color is used for plotting the trending connected information and the grey color is used for plotting the trending not connected information, similar to the heartbeat information as the circular dot.

| Last Updated Information in CCU

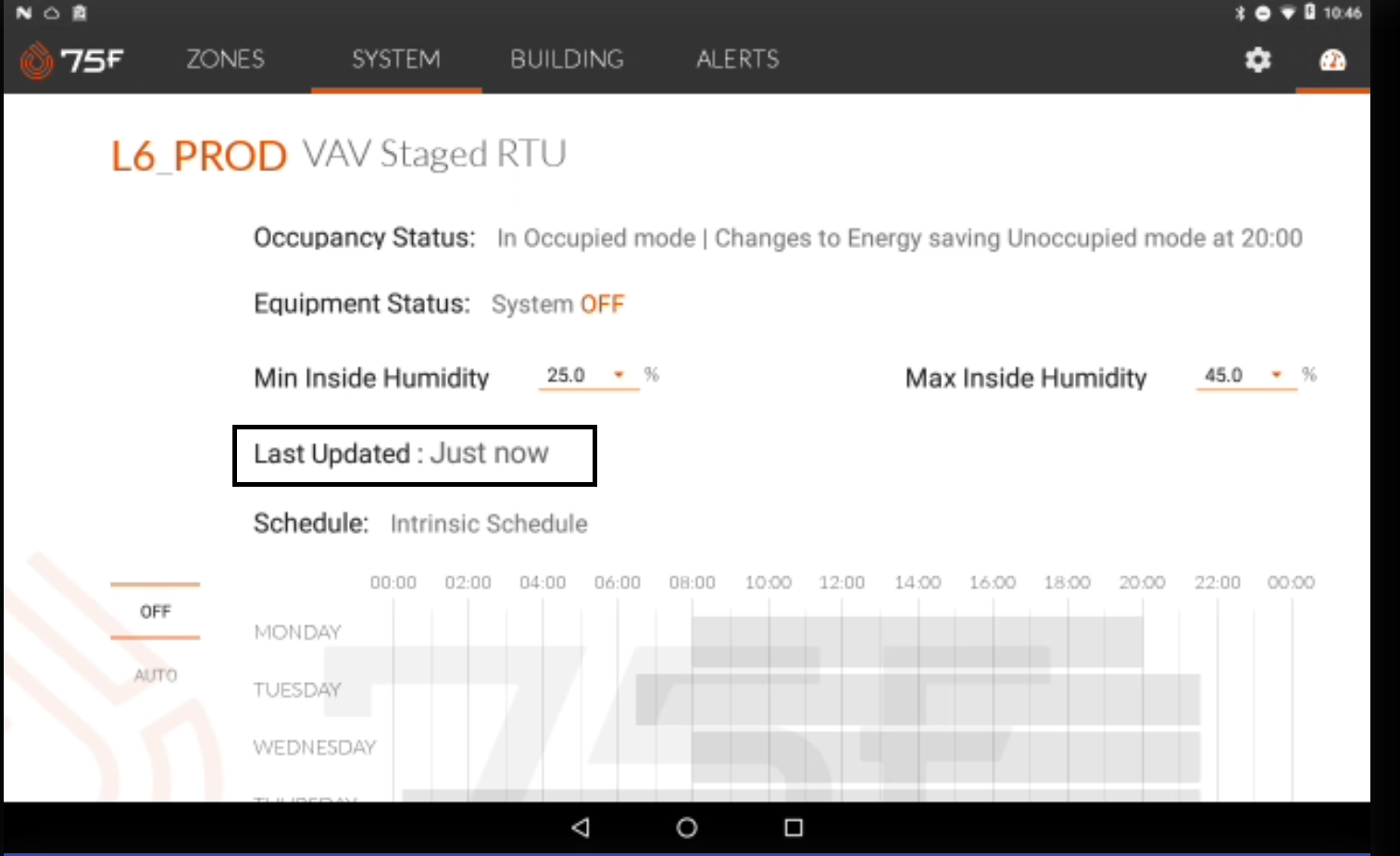

The last updated information which is a result of the feature addition of heartbeat in the CCU is visible on the system screen as below.
