Setting Vacation from CCU

1 Minute Read

| Overview

Vacation Schedule is similar to building schedule, but unlike a building schedule its just a schedule day or a date range schedule, it tells the system that the building is on a vacation, and the Building HVAC needs that is required is not the same as in a building schedule, and the system can operate in a setback or unoccupied mode, where usually the desired temperatures are much relaxed than the scheduled duration or setpoint mode.

| Accessing Vacation Schedule

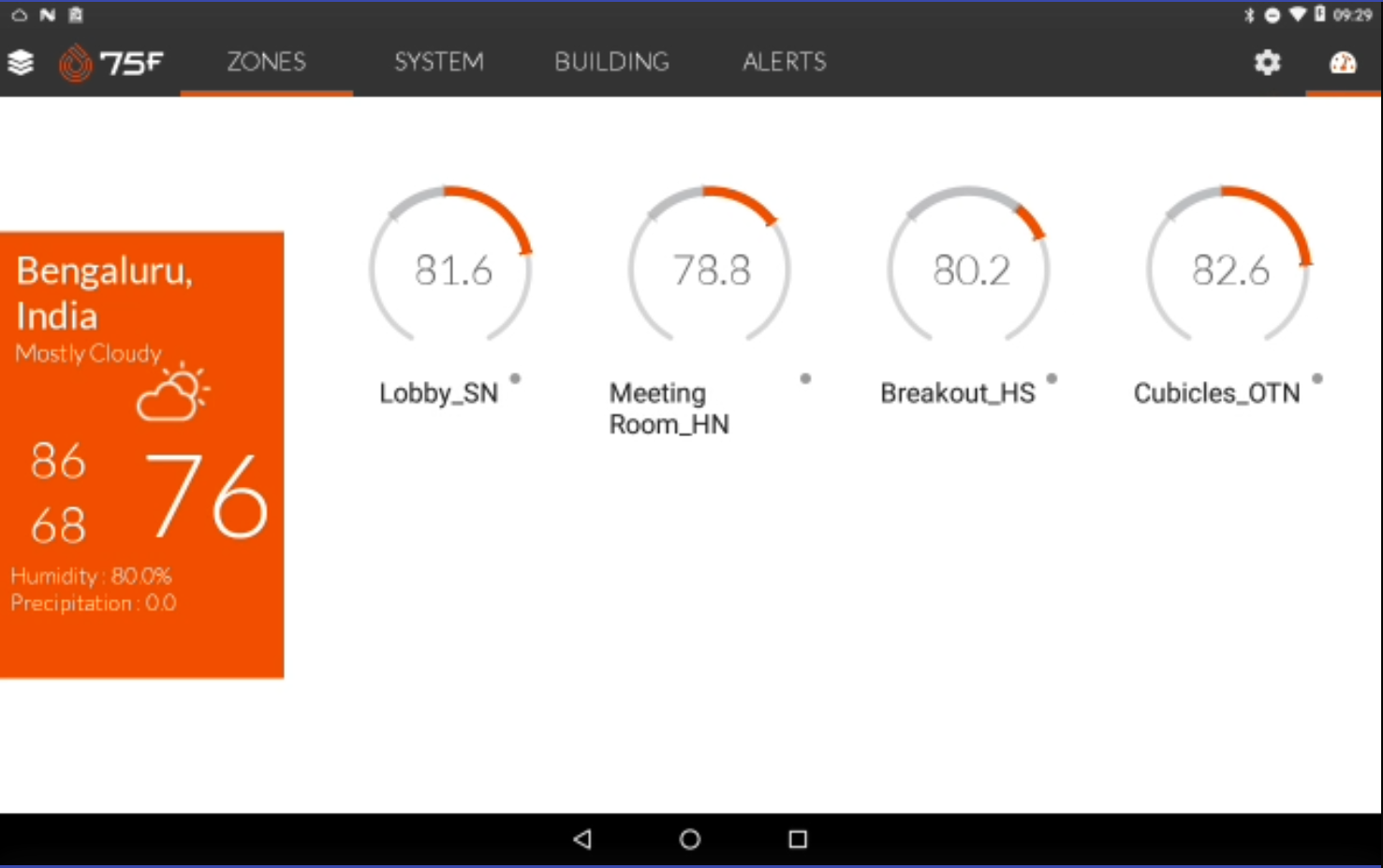

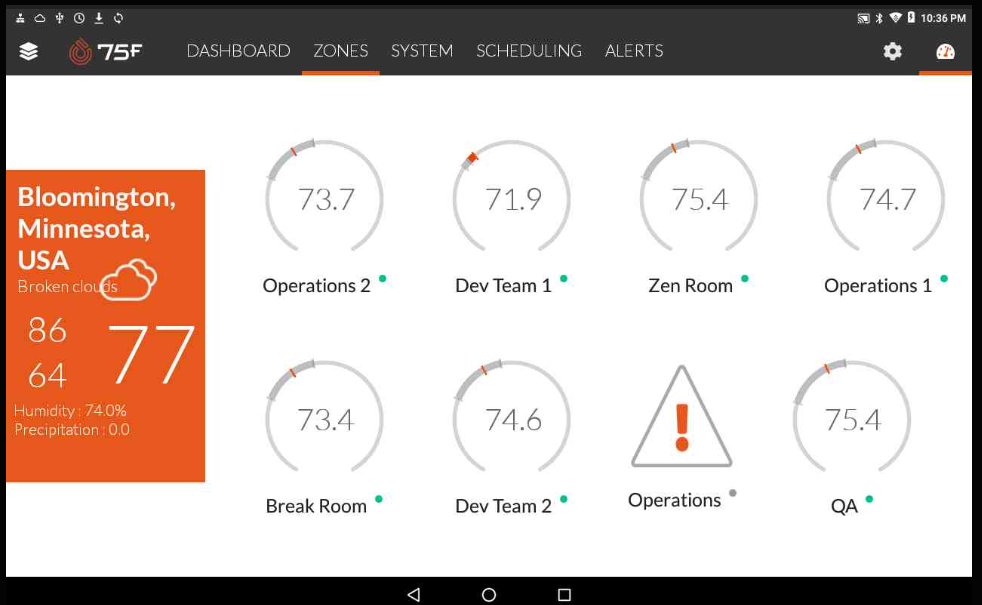

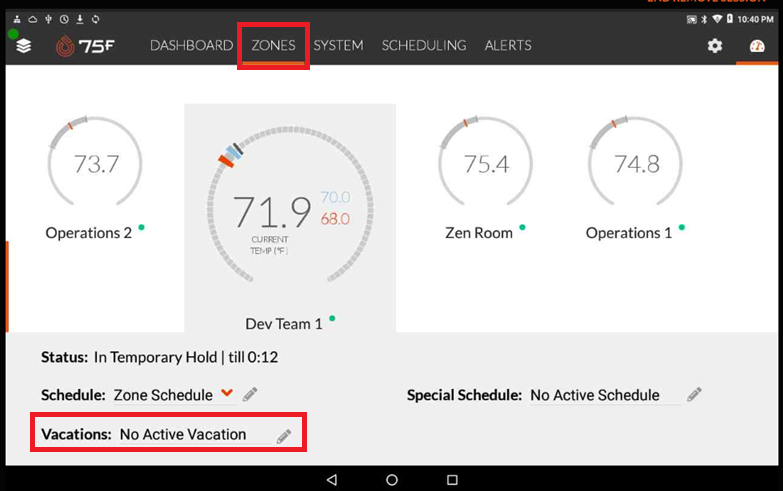

From CCU Zones page.

• Click Building

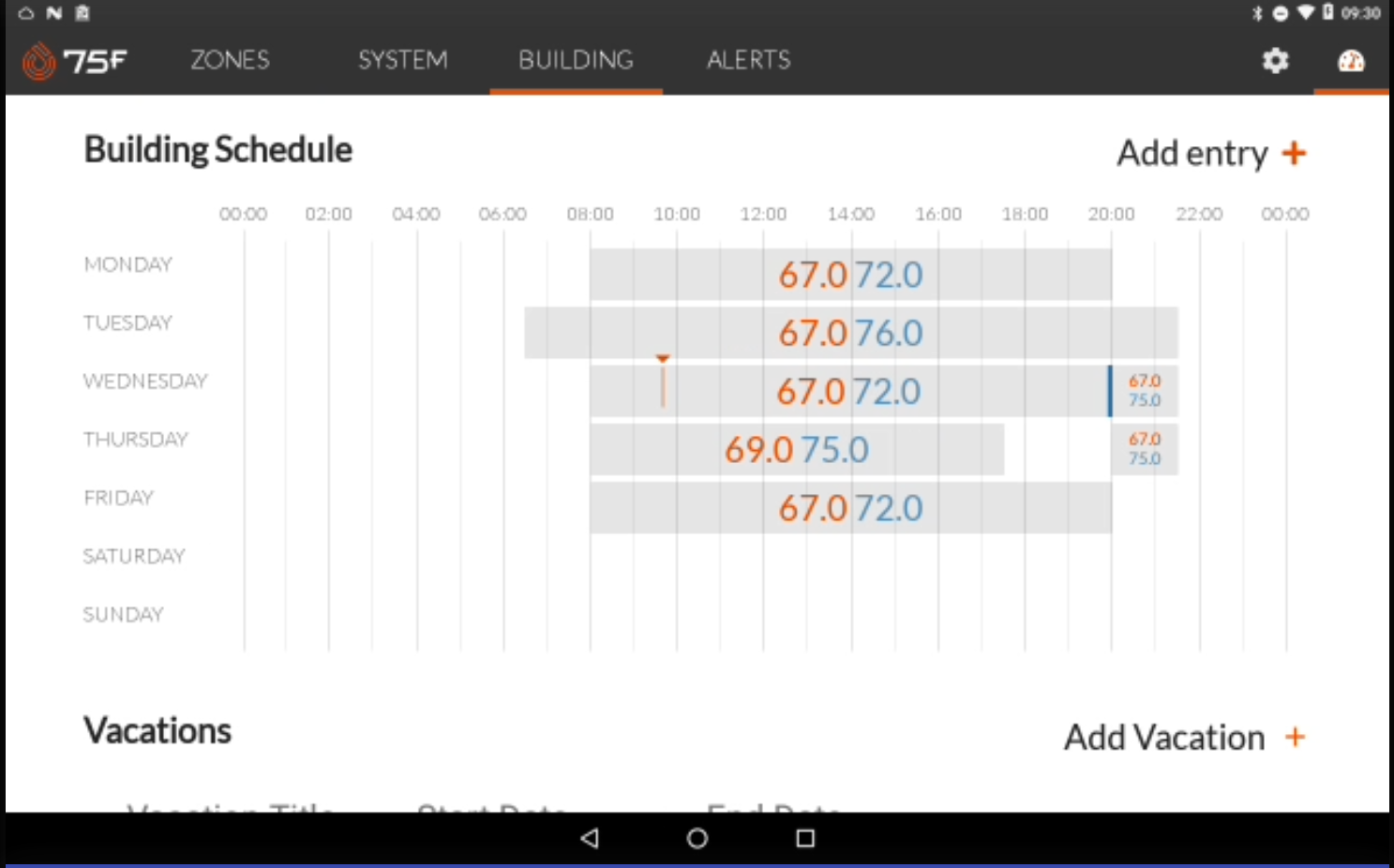

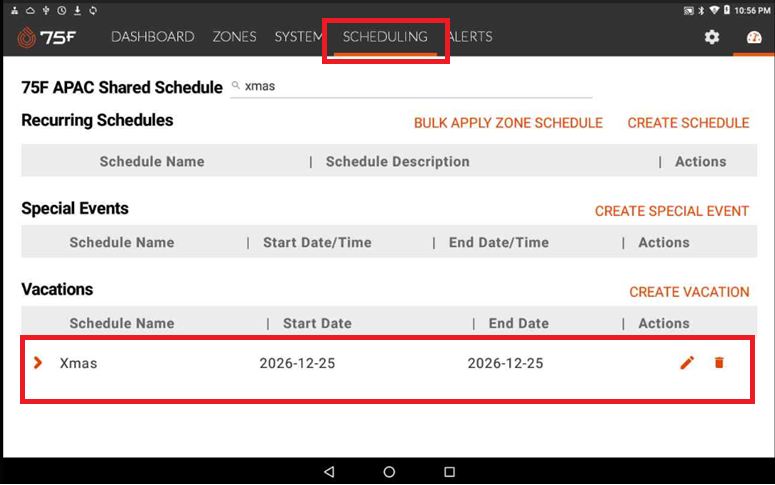

The Building schedule screen is displayed with the vacation schedule section.

| Setting Vacation Schedule

To set a new entry for Vacation Schedule

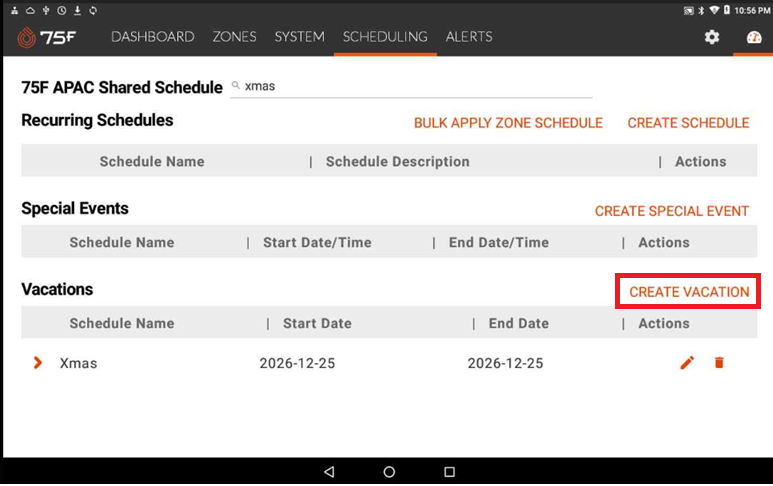

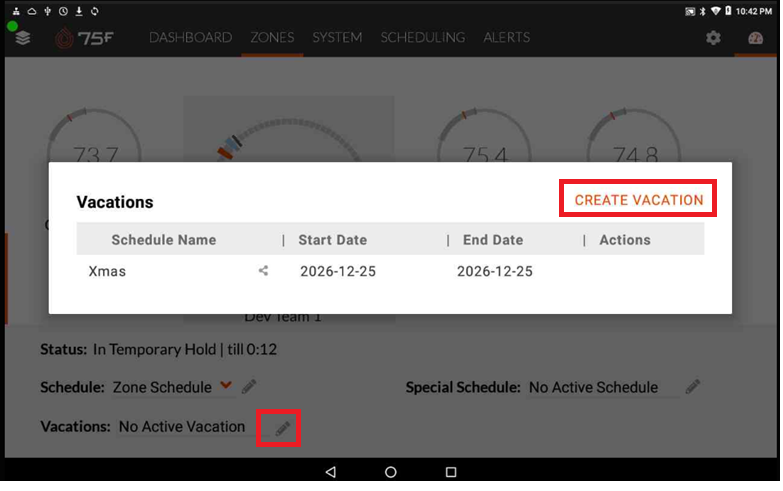

• Click Add Entry+ next to vacations.

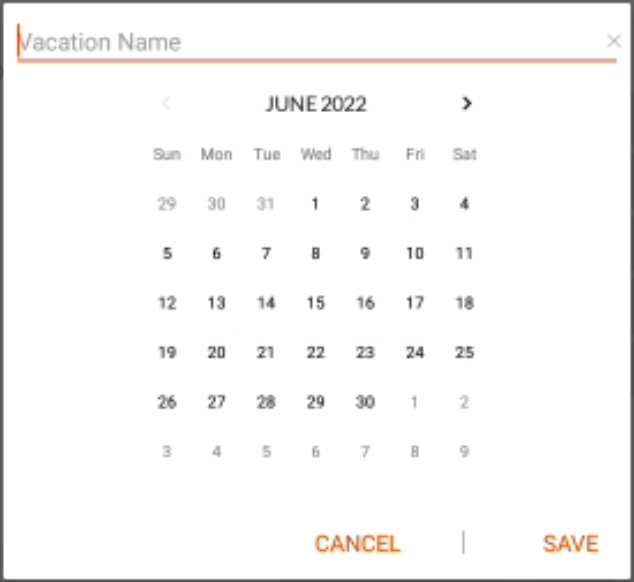

The add vacation window is displayed.

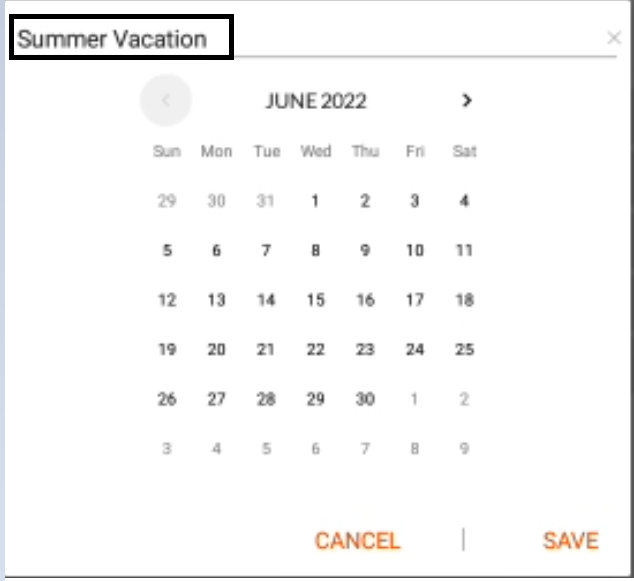

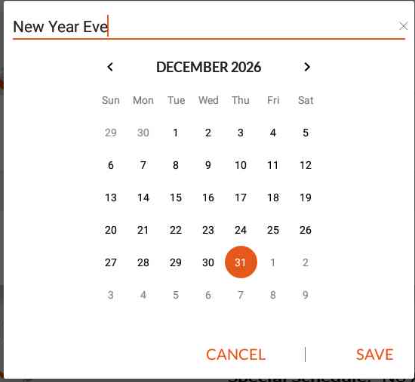

• Enter a name of the vacation.

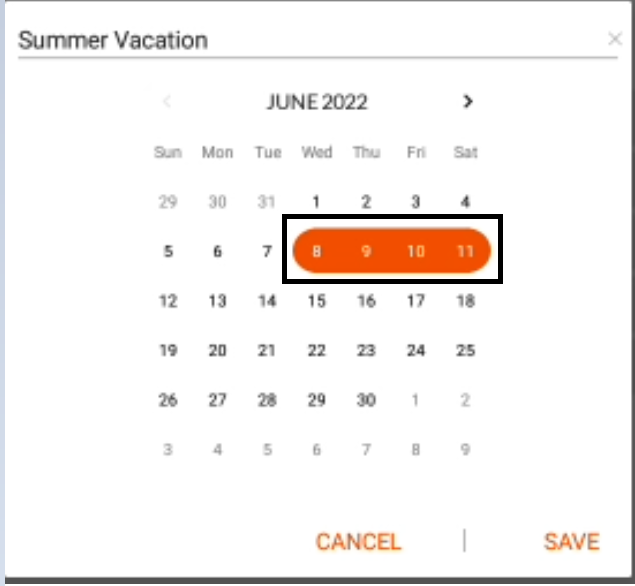

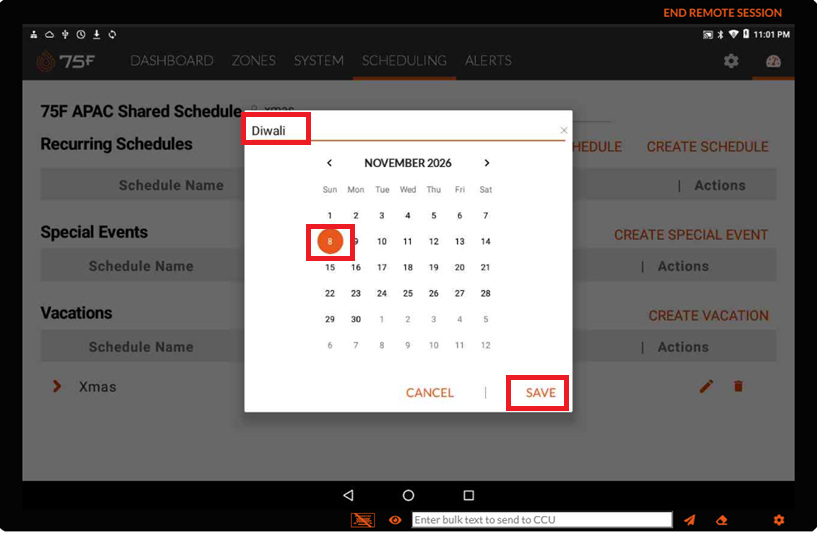

• Select a date or a date range you wish to set the vacation for.

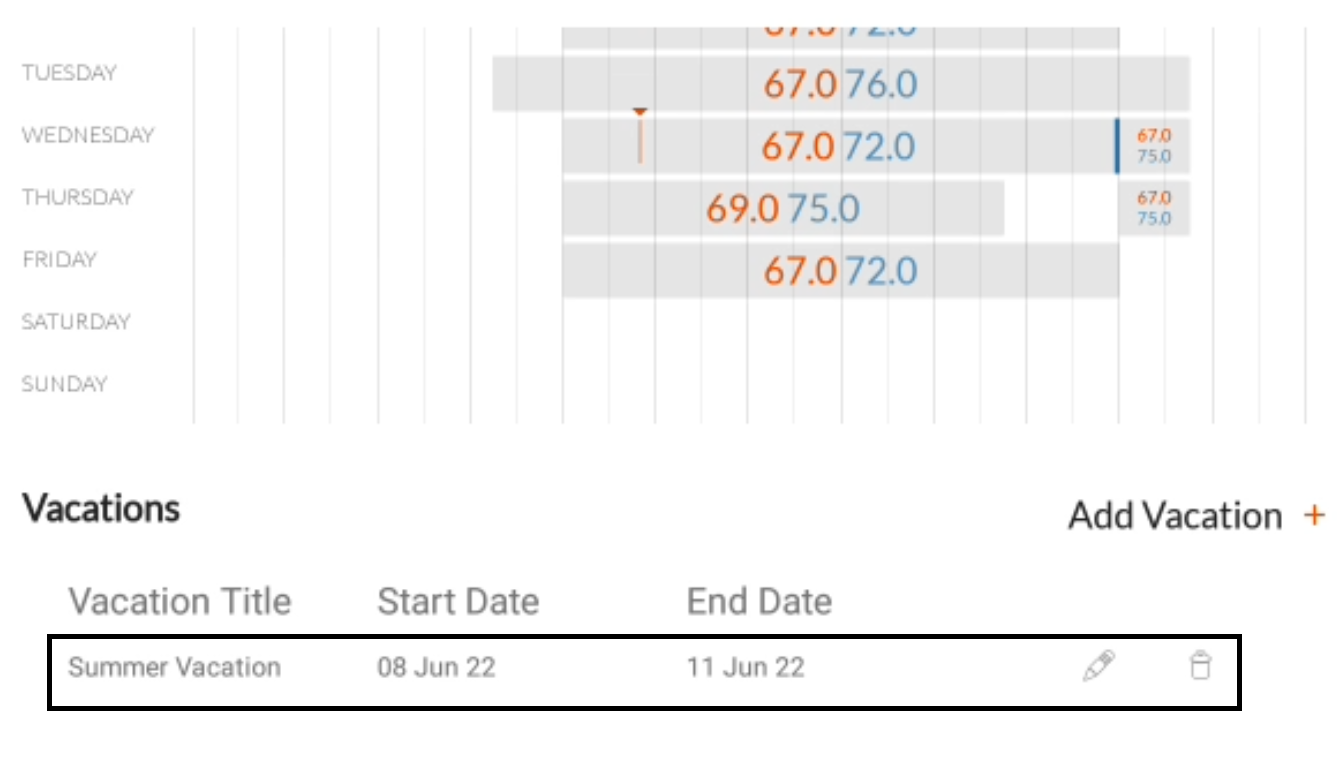

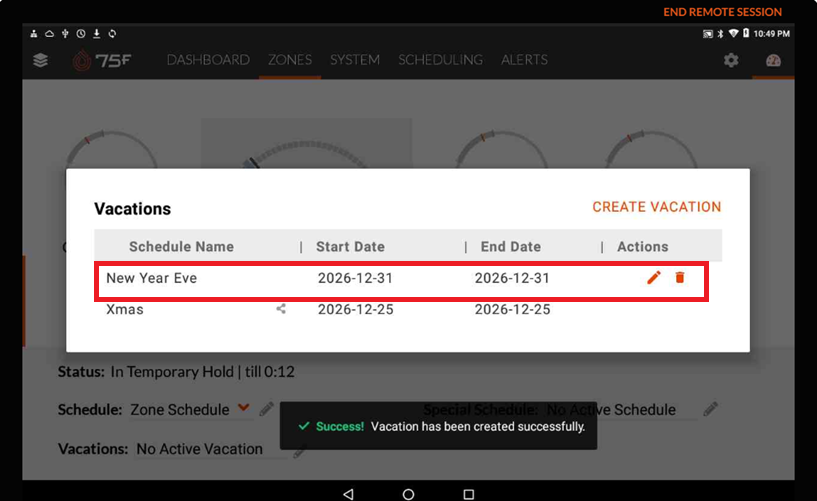

• Click Save to confirm and create the vacation schedule for the building.

Note: You can also edit an Building vacation to new vacation, by simply clicking, modifying the date or date range.

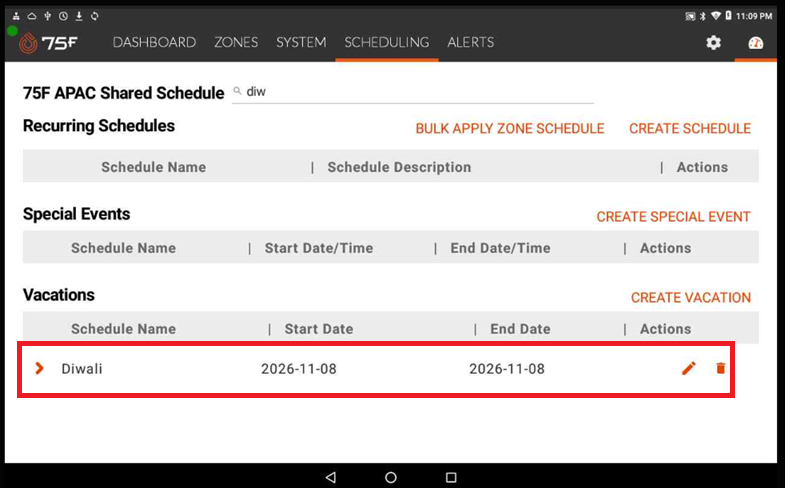

Once a Building Vacation is added in the CCU the same gets cascaded to the other CCU's and the portals.
