HyperStat Capabilities

3 Minute Read

| Overview

HyperStat the enhanced version of the SmartStat is a signature product of the 75F, which comes with 8 onboard sensors making it unique in the building management space. It is conceived as the world's smartest commercial thermostat. With 8 onboard sensors, it is an all-in-one thermostat, humidistat, and IAQ sensing station.

Owing to its vision towards platform play and interoperability, the 75F has added more features to HyperStat on top of the onboard sensing and control capabilities, making it robust and a desired commercial thermostat.

Listed below are a few of the key capabilities of the HyperStat:

| Sensing Capabilities

With its 8 onboard sensors, it can conveniently sense and supply the following parameter values.

• Temperature values
• Humidity Values
• CO2 levels
• Volatile Organic Compound levels
• Occupancy Detection
• Light Intensity Level
• Sound Intensity Levels
• PM2.5(Particulate Matter) levels
• PM10(Particulate Matter) levels

| Operating Capabilities

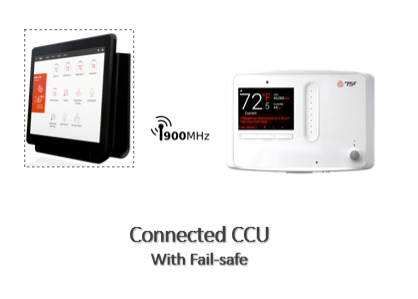

The HyperStat can not only operate in a 75F BMS connected mode, where it is paired to the CCU, but it can also operate in other networks and as a standalone device following are the three modes in which a HyperStat can operate.

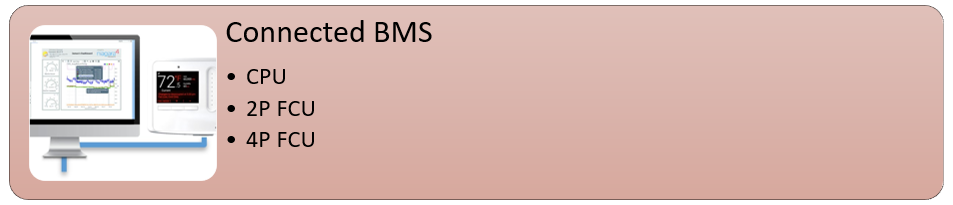

• HyperStat in 75F BMS connected mode, for more information refer HyperStat Conventional Package Unit (CPU)

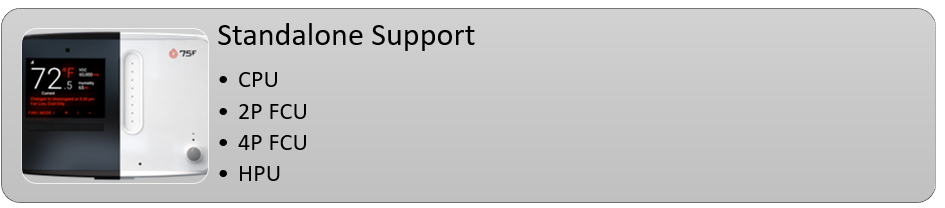

• HyperStat as a Standalone device, where just HyperStat can be used to control room level and building level equipment. For more information refer to HyperStat Standalone Conventional Package Unit (CPU), HyperStat Standalone HPU (Heat Pump Unit), HyperStat Standalone 4 Pipe Fan Coil Unit (4PFCU), Hypertstat Standalone 2 Pipe Fan Coil Unit (2PFCU)

• HyperStat as Modbus Client, where HyperStat can operate as a client to a Modbus master in a Modbus network. For more information refer to HyperStat as Modbus Client
• HyperStat as a BACnet server, where HyperStat can operate as a client in a BACnet server framework. For more information refer to HyperStat as a BACnet Server

| Other Capabilities

Different Temperature Modes:  HyperStat can work in different temperature modes as follows:

• Single Deadband/ Setpoint Temperature mode, where a single temperature value is used, and HyperStat monitors the room conditions and controls the equipment to maintain the room temperature to the set value.
• Dual Fixed Deadband/ Setpoint Temperature mode, where two temperature values are used and HyperStat monitors the room conditions and controls the equipment to maintain the room temperature within the set value, when one of the temperature values is changed the other value also changes to maintain the set deadband.
• Dual Variable Deadband/ Setpoint Temperature mode, where two temperature values are used and HyperStat monitors the room conditions and controls the equipment to maintain the room temperature within the set value, when one of the temperature values is changed the other value does not change, there can be a variation which is the deadband.

For more information refer to HyperStat Temperature Mode Setting

HyperStat Usage Globalization: To support customers across different geographies, HyperStat can switch the display temperature values and units in Fahrenheit and Celsius. For more information refer to HyperStat Usage Globalization
