Creating, Applying and Editing Special Schedules

| Overview

A Special Schedule is a schedule that allows a Facility manager to introduce a schedule that is outside of a Building Occupancy. For example, a Facility manager would want to schedule the building on a Saturday for a small duration for which he would want the building's HVAC equipment to run. It further provides the flexibility to create a schedule that overrides a vacation that is created based on a holiday calendar for a year at any specific date which is an active nonholiday for the building.

A schedule like this on a Saturday or on any public holiday that is outside of the actual building schedule has been made possible with the Introduction of a Special Schedule.

The special schedule is a schedule that once added will bypass the zone schedule, named schedule, or any vacation for that zone for that specific time duration, acting as a kind of master schedule. This is quite similar to vacation which can override any schedule but in a reversible way.

| Creating a Special Schedule

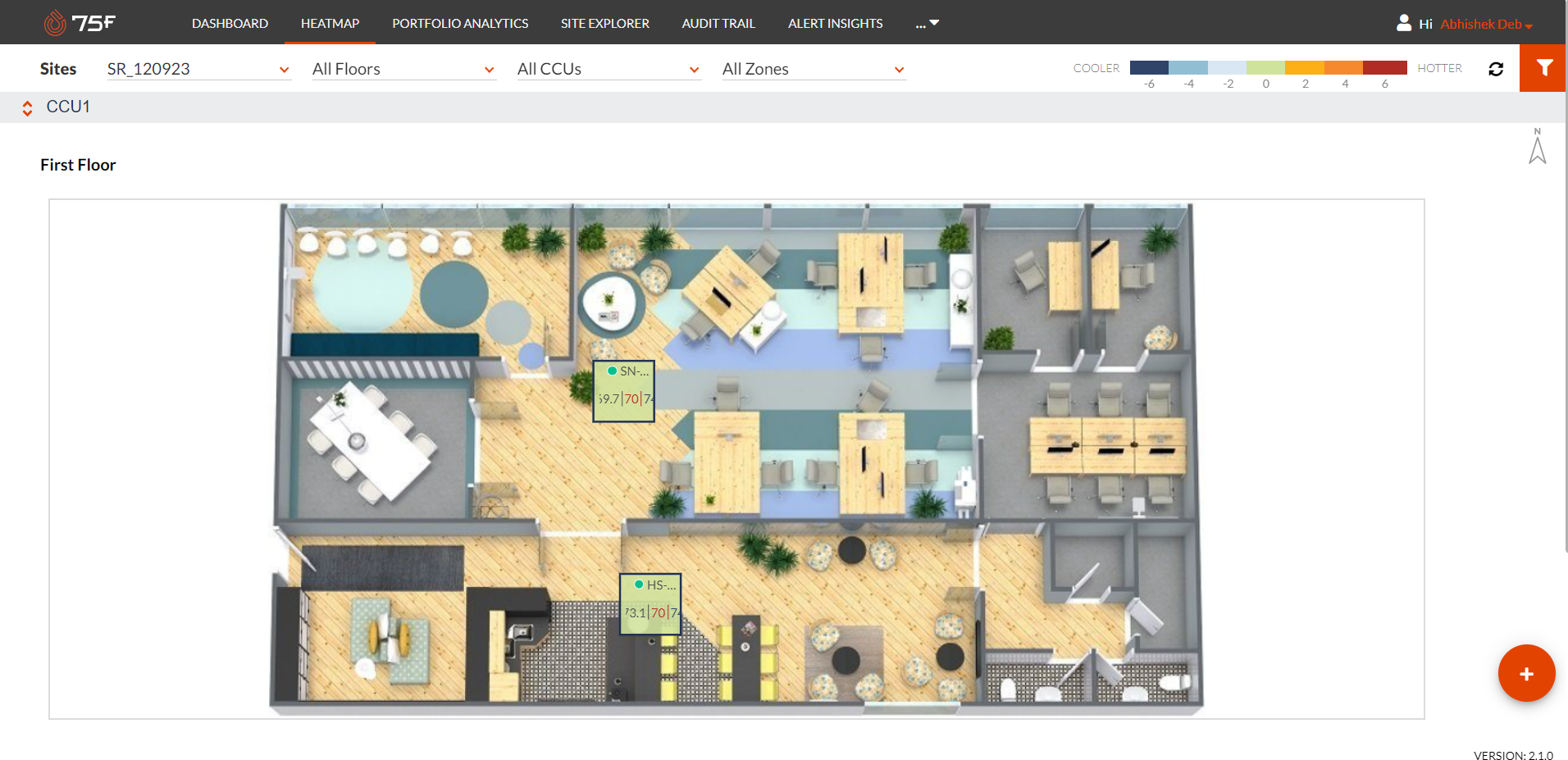

From the Portals heatmap screen.

• Access the Zones to which you would like to add the special schedule.

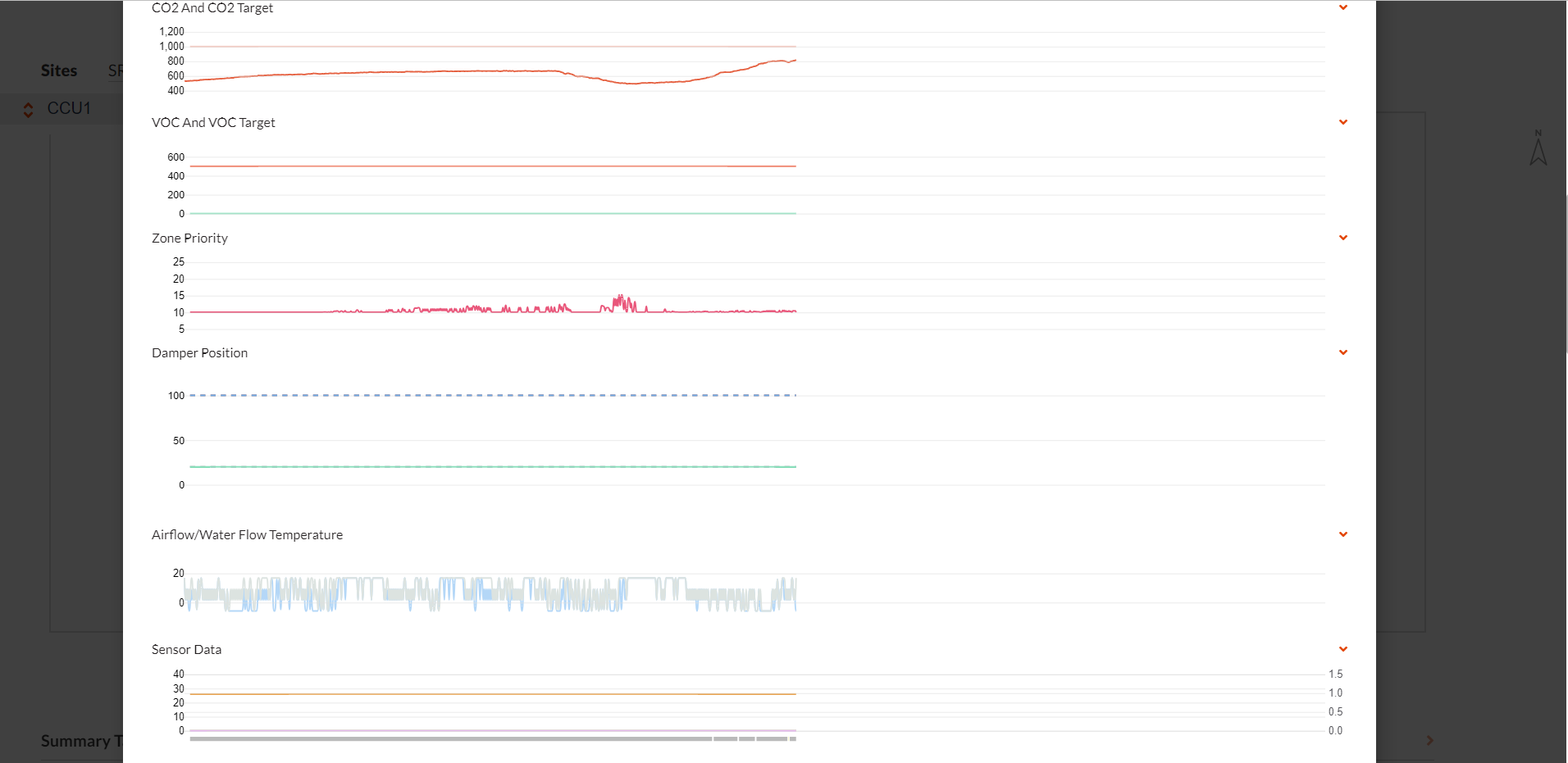

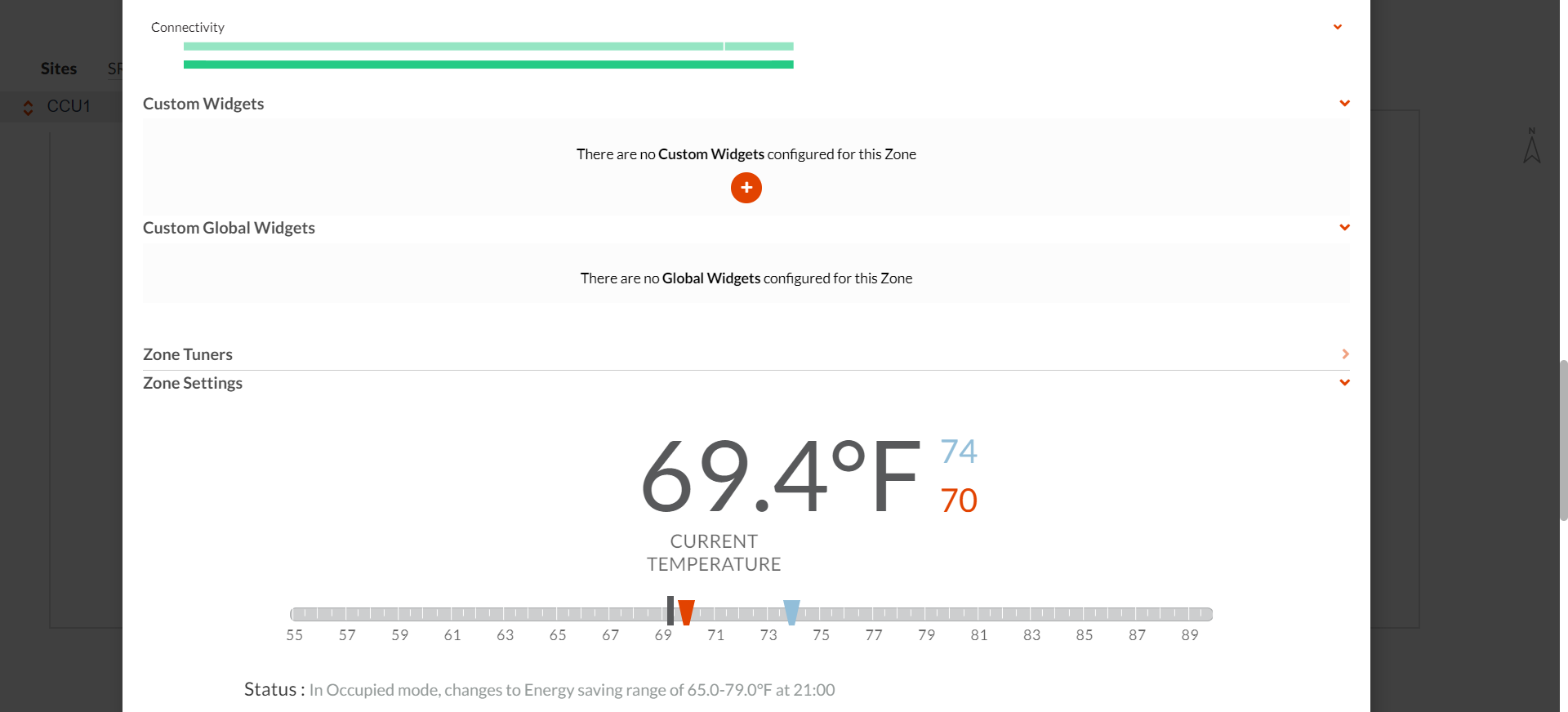

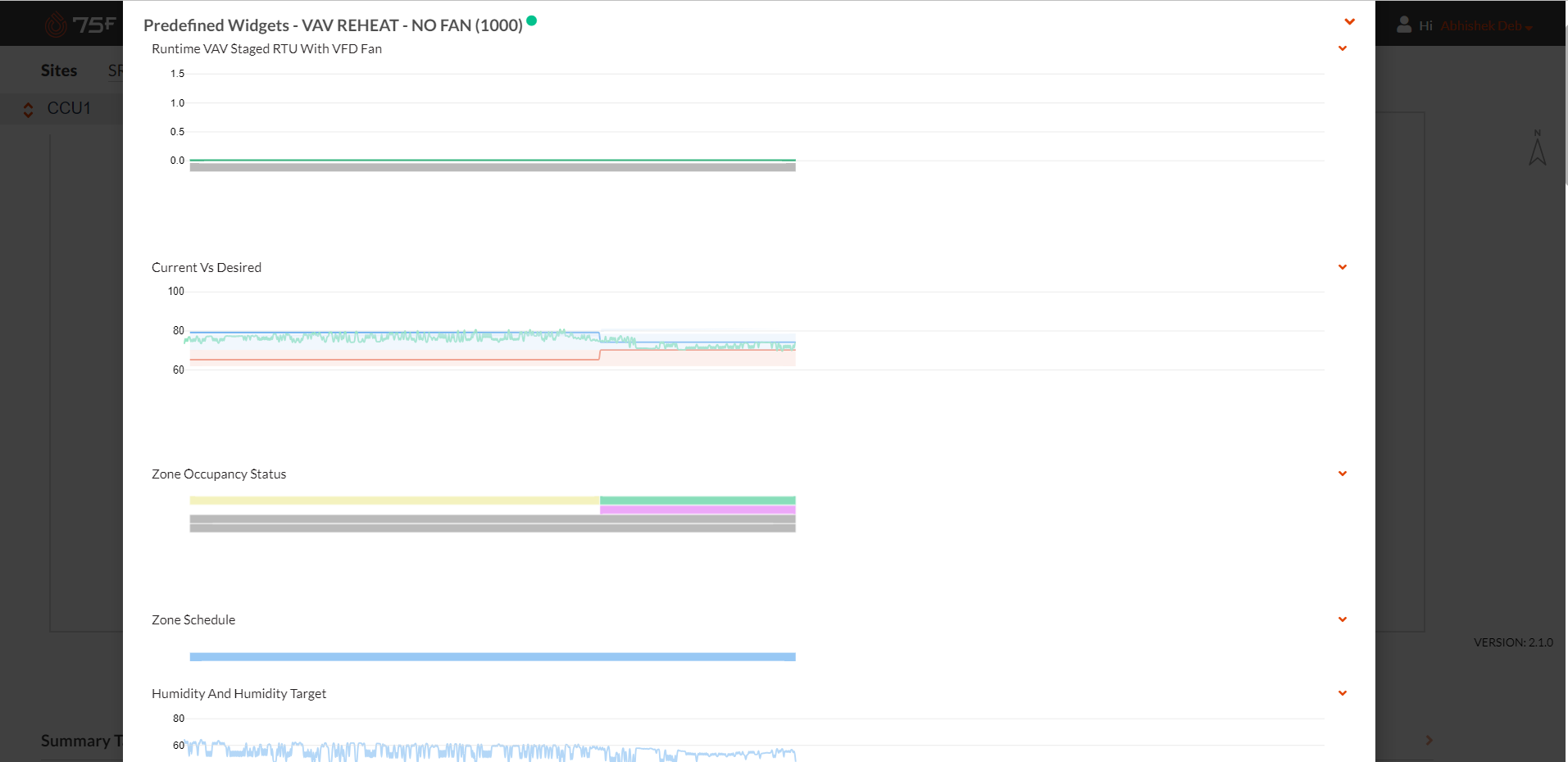

• Click the zone to access the widgets screen.

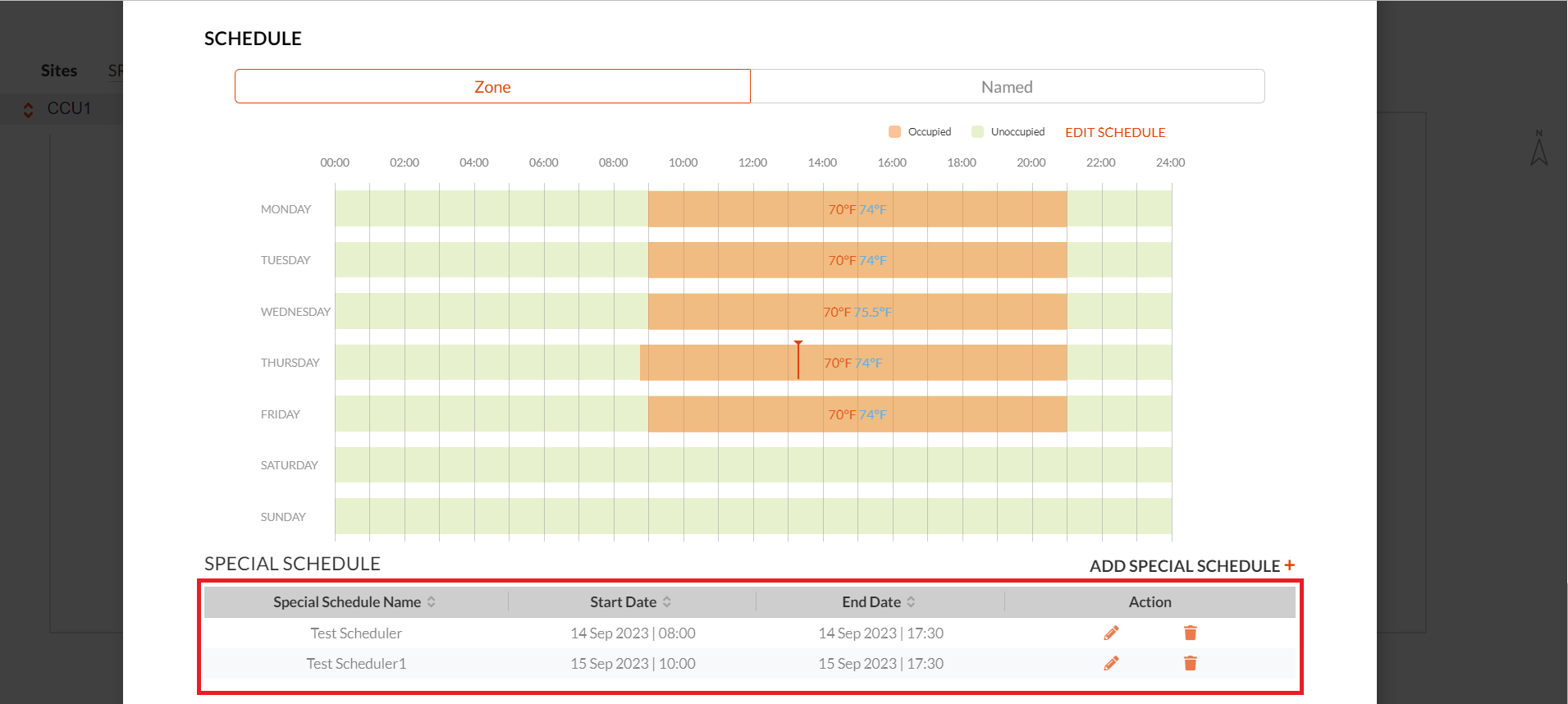

• Scroll to locate the special schedule section.

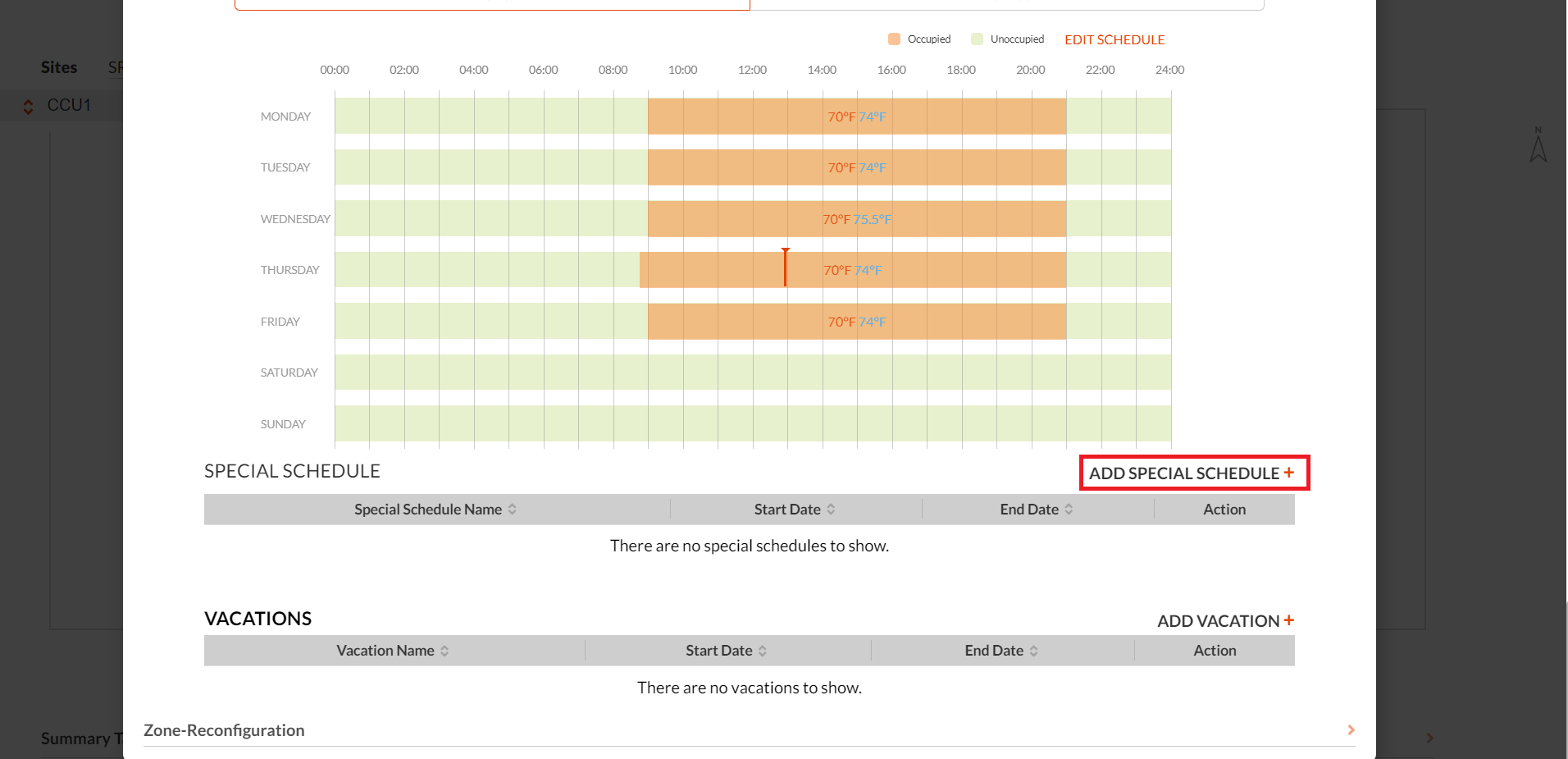

• Click Add Special Schedule+

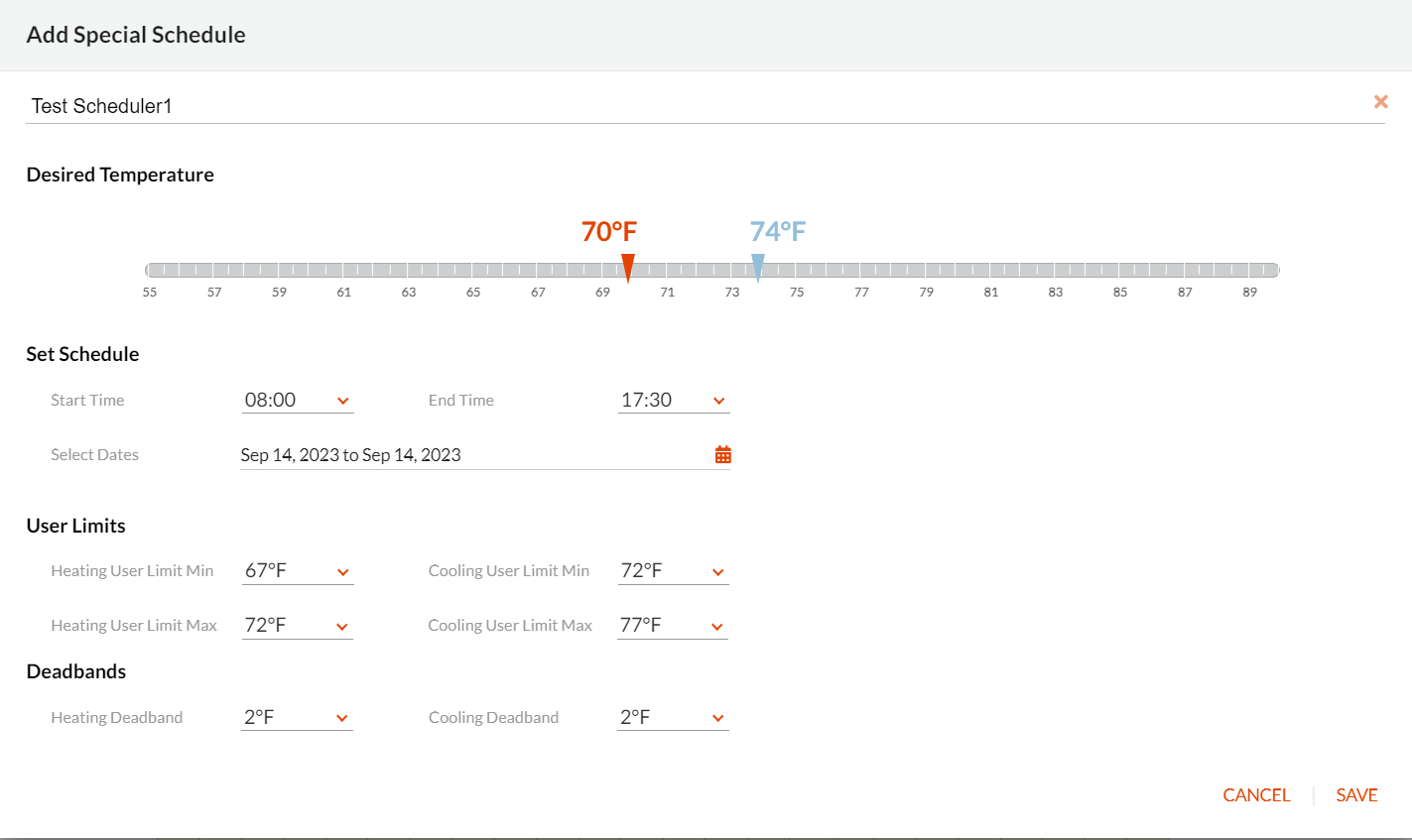

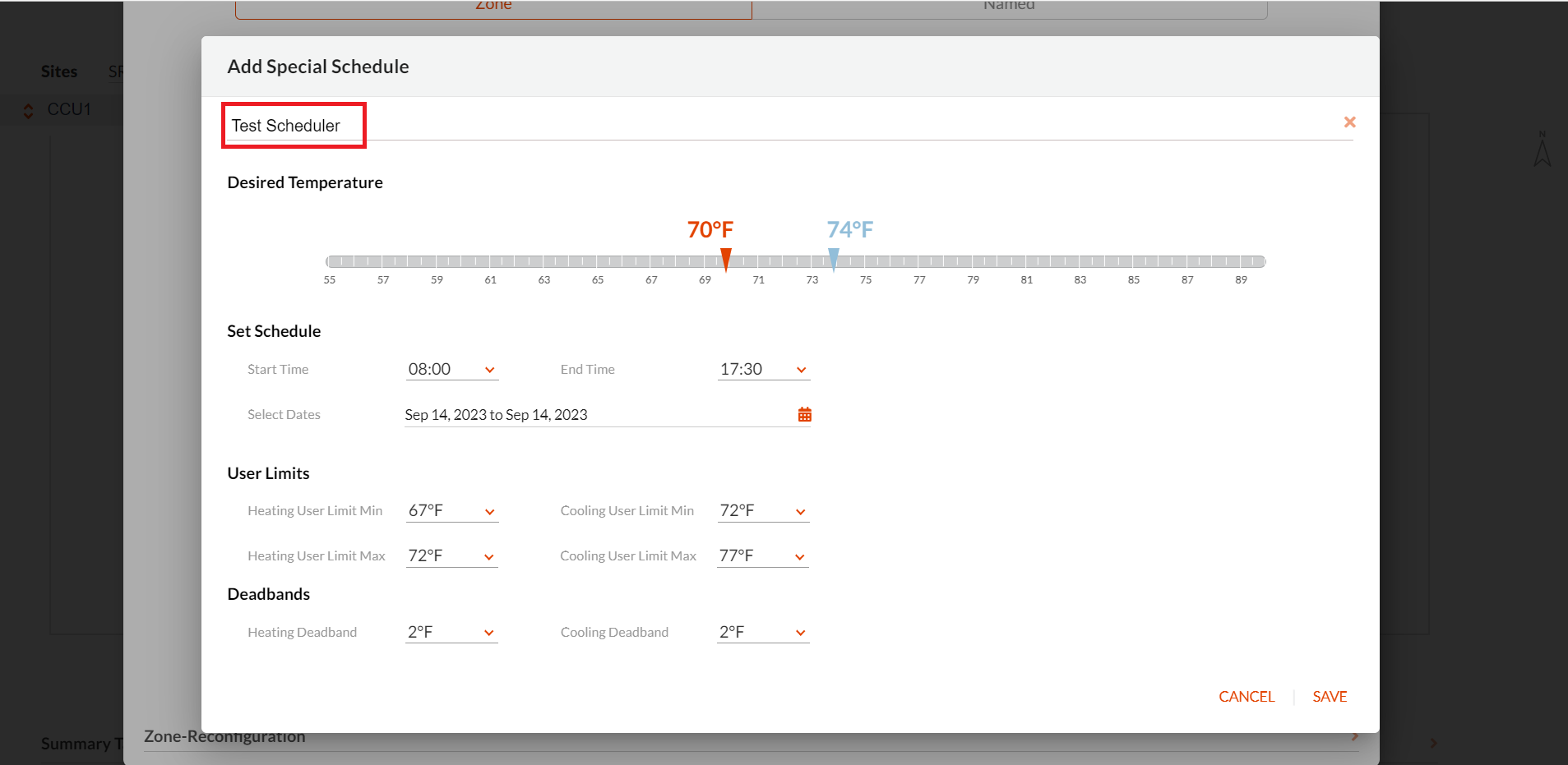

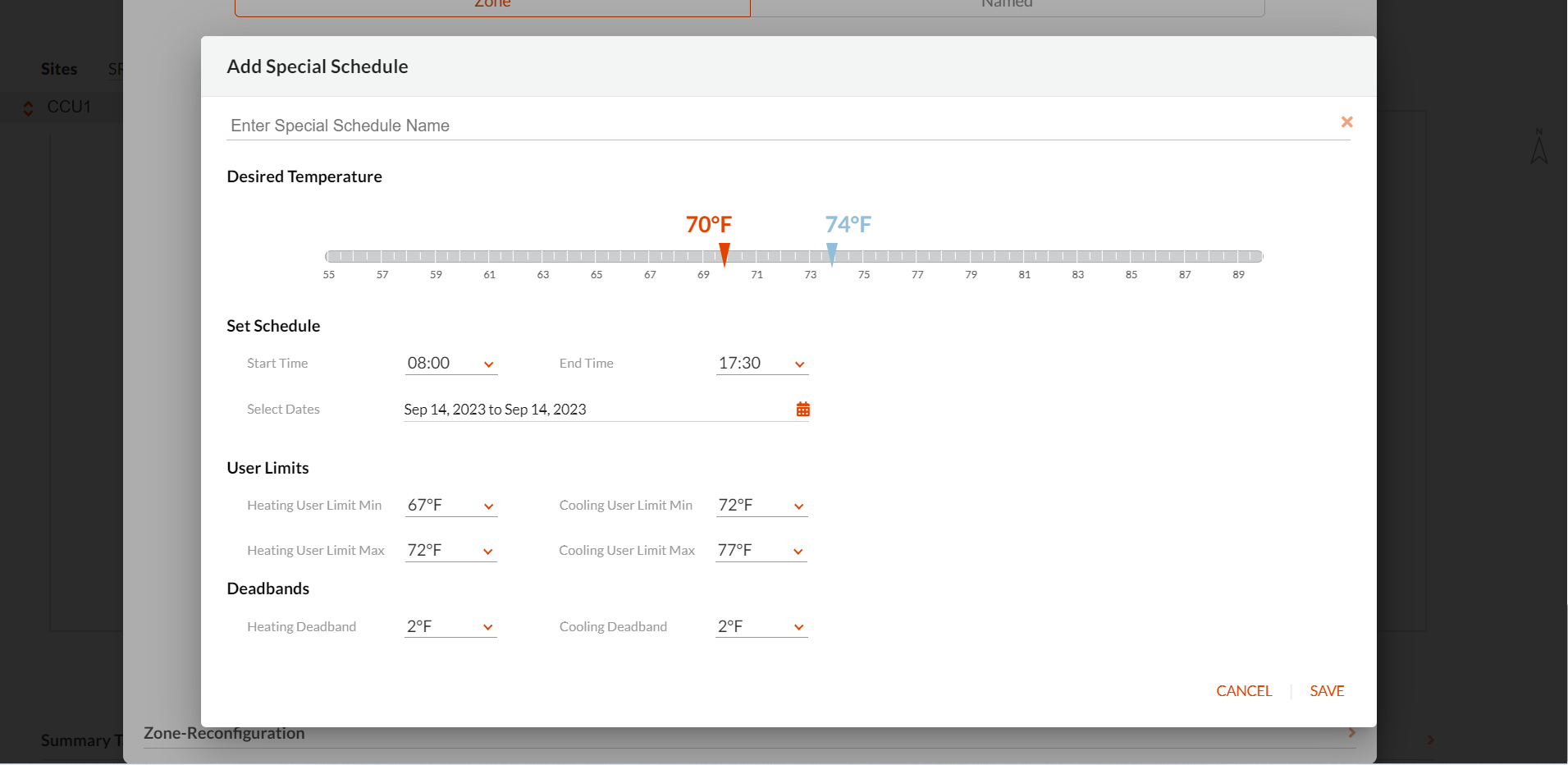

• The Special Schedule screen is displayed.

• Enter a name for the special schedule.

• Use the slider and set the desired temperatures.

Note: The scheduler interactivity is similar to named schedule and follows the same actions to add edit or delete occupied or unoccupied slots. For more information on Named schedule, refer to Creating, Applying and Editing Named Schedules.

• Use the start time and end time drop downs to select the duration of the schedule. (Default values are 8.00 a.m. and 5.00 p.m respectively)
• Use the calendar icon in the applies to field to select a date.
• Select the minimum cooling user limit and minimum heating user limit. (default heating values are 67F and 72F and cooling values are 72F and 77F respectively)
• Select the maximum heating user limit and maximum cooling user limit from the dropdown.
• Select the heating deadband and cooling deadband for the schedule from the dropdown. (default values are 2F and 2F respectively)

• Click Save to confirm.

The special schedule at the zone level is added and the same will be applied to the zone of the building.

Note: Similar user limits exist for zone special schedules and building special schedules.

| Special Schedule at Building Level

From the Facilisight portal,

• Click the Scheduling  icon to access the building schedules.

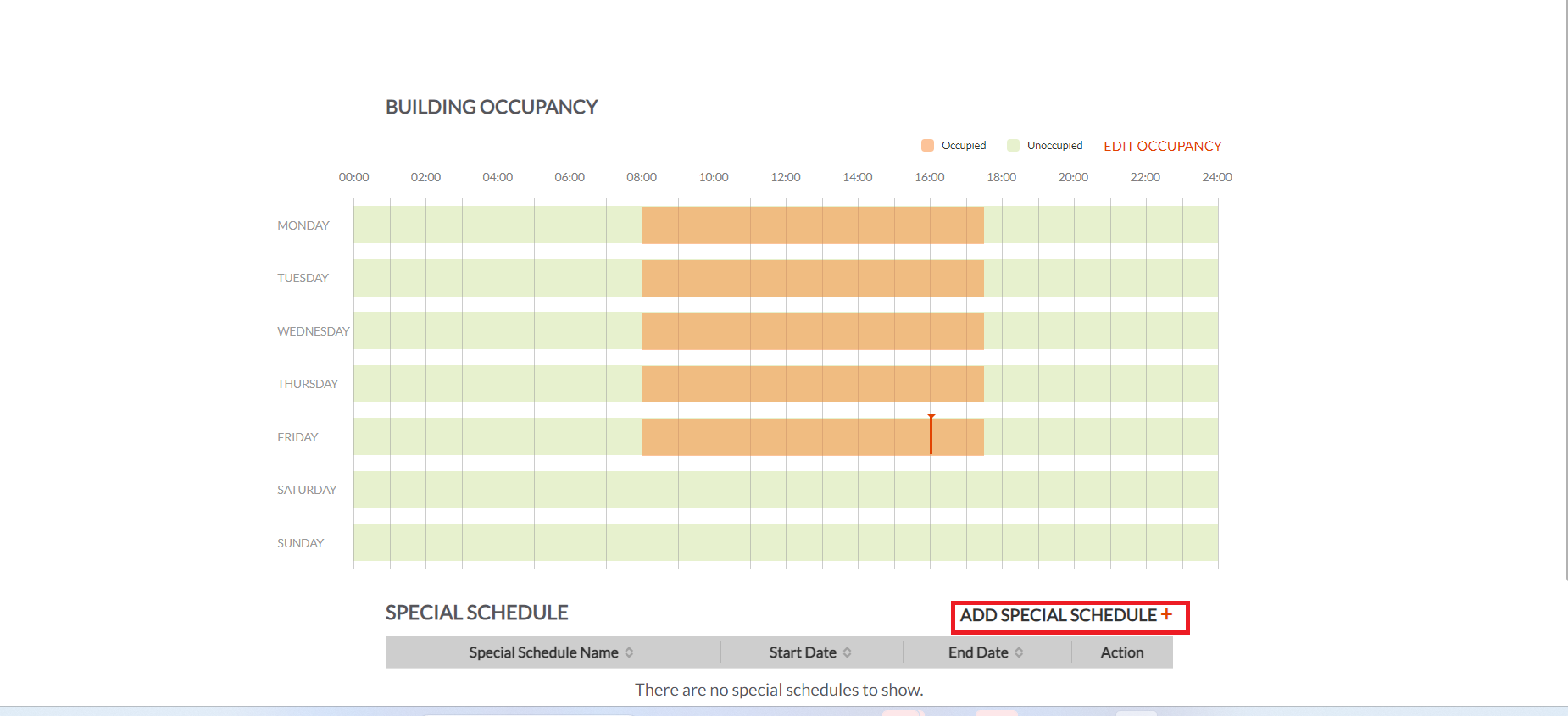

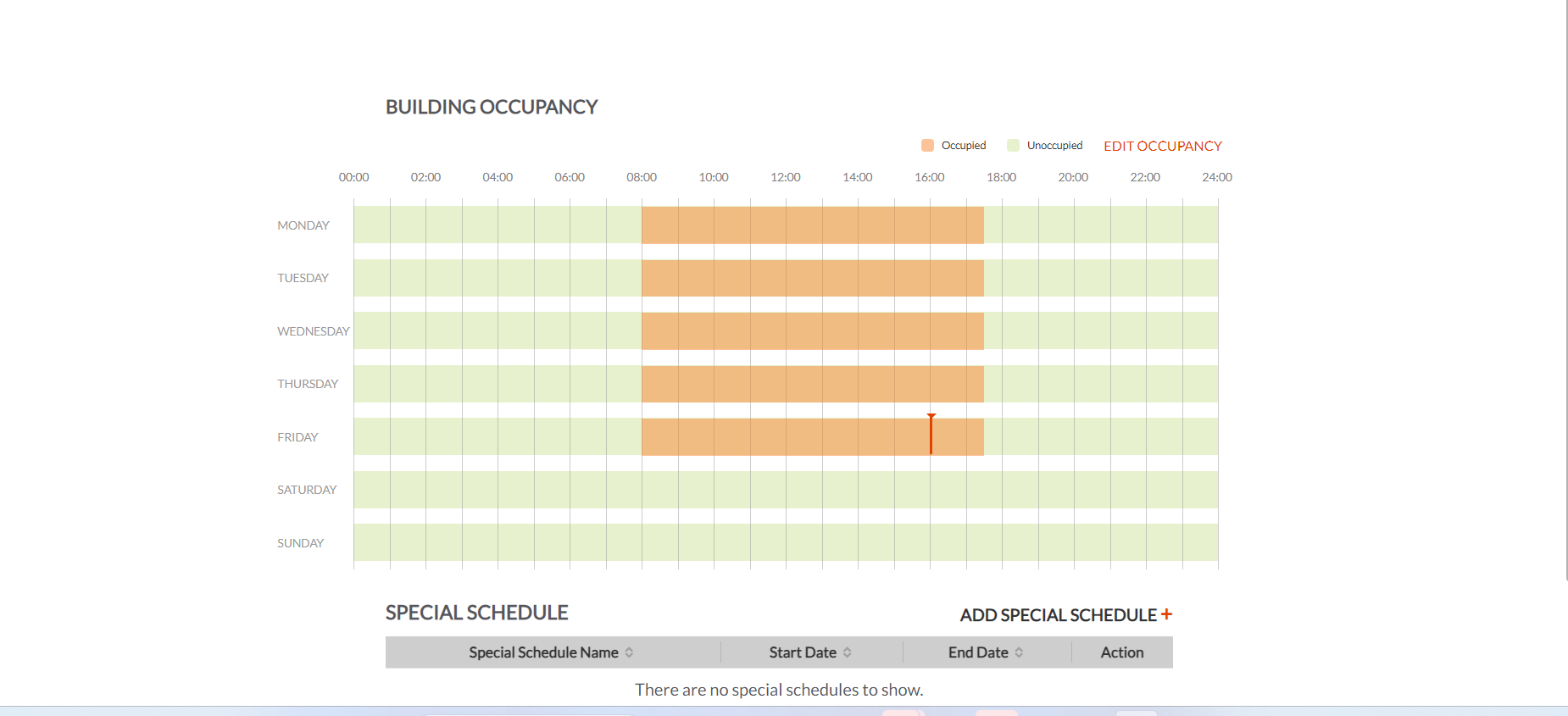

The Building Occupancy screen is displayed.

• Select the Add Special Schedule+ option

The rest of the actions are similar to creating a special schedule at a zone level.

| Editing a Special Schedule

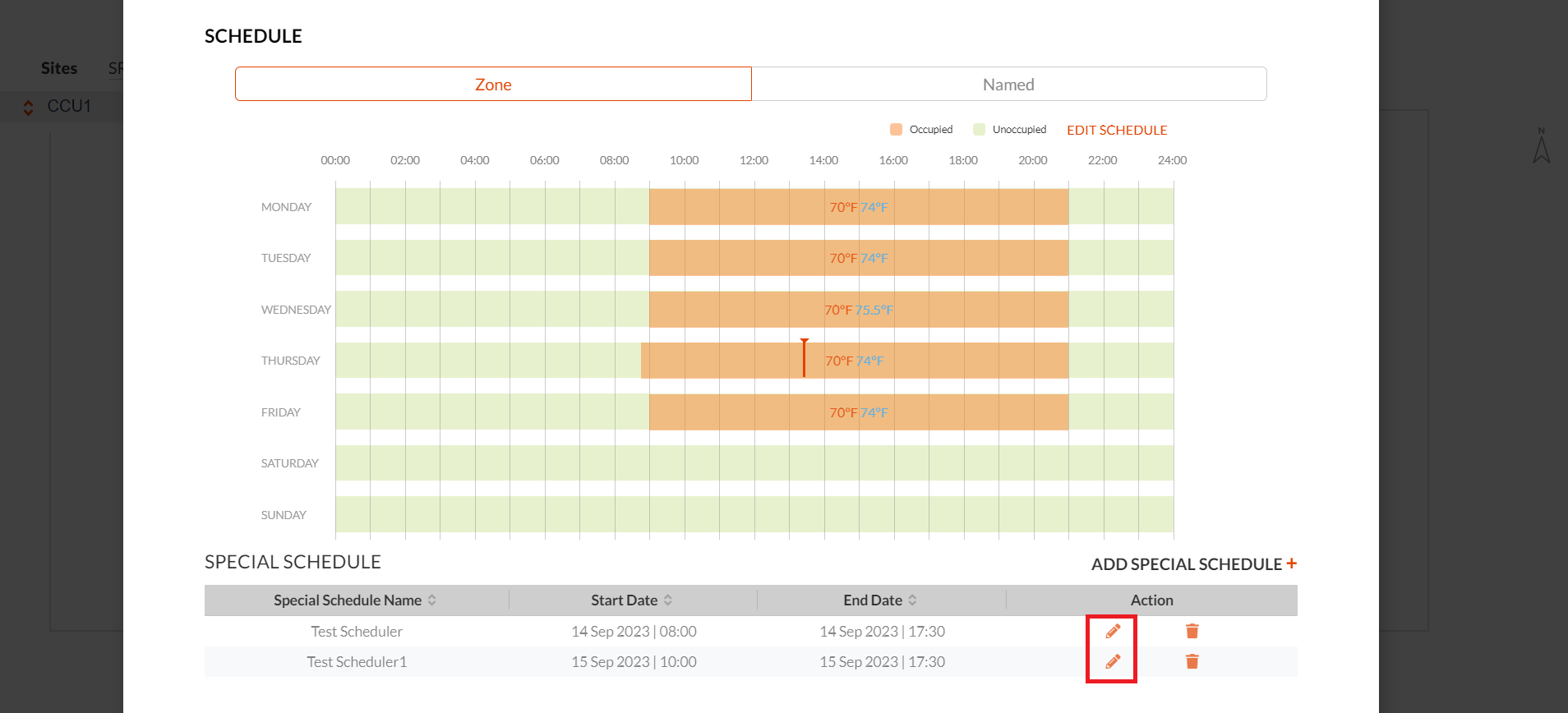

• Click to Edit a Special Schedule from the list.

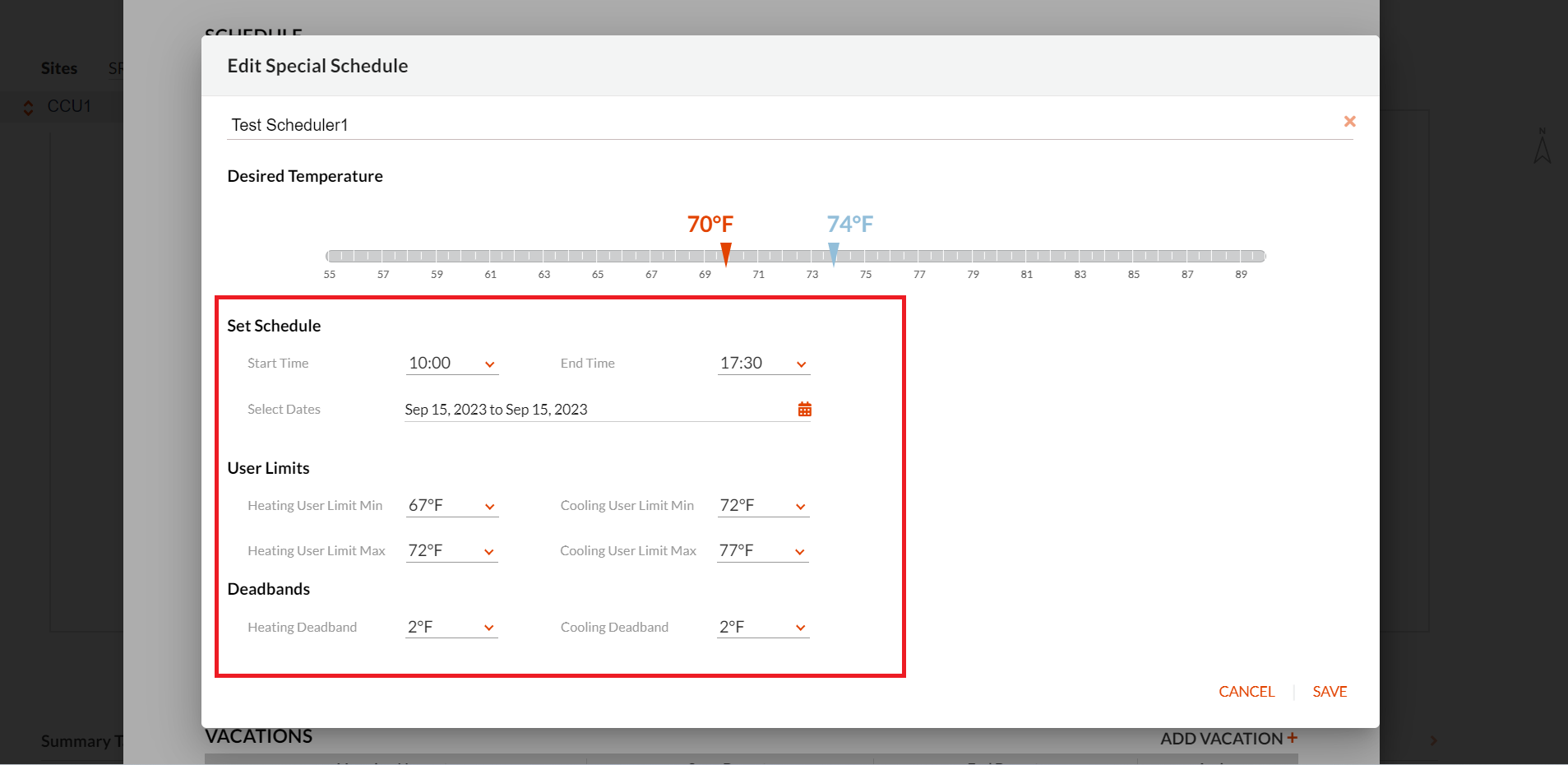

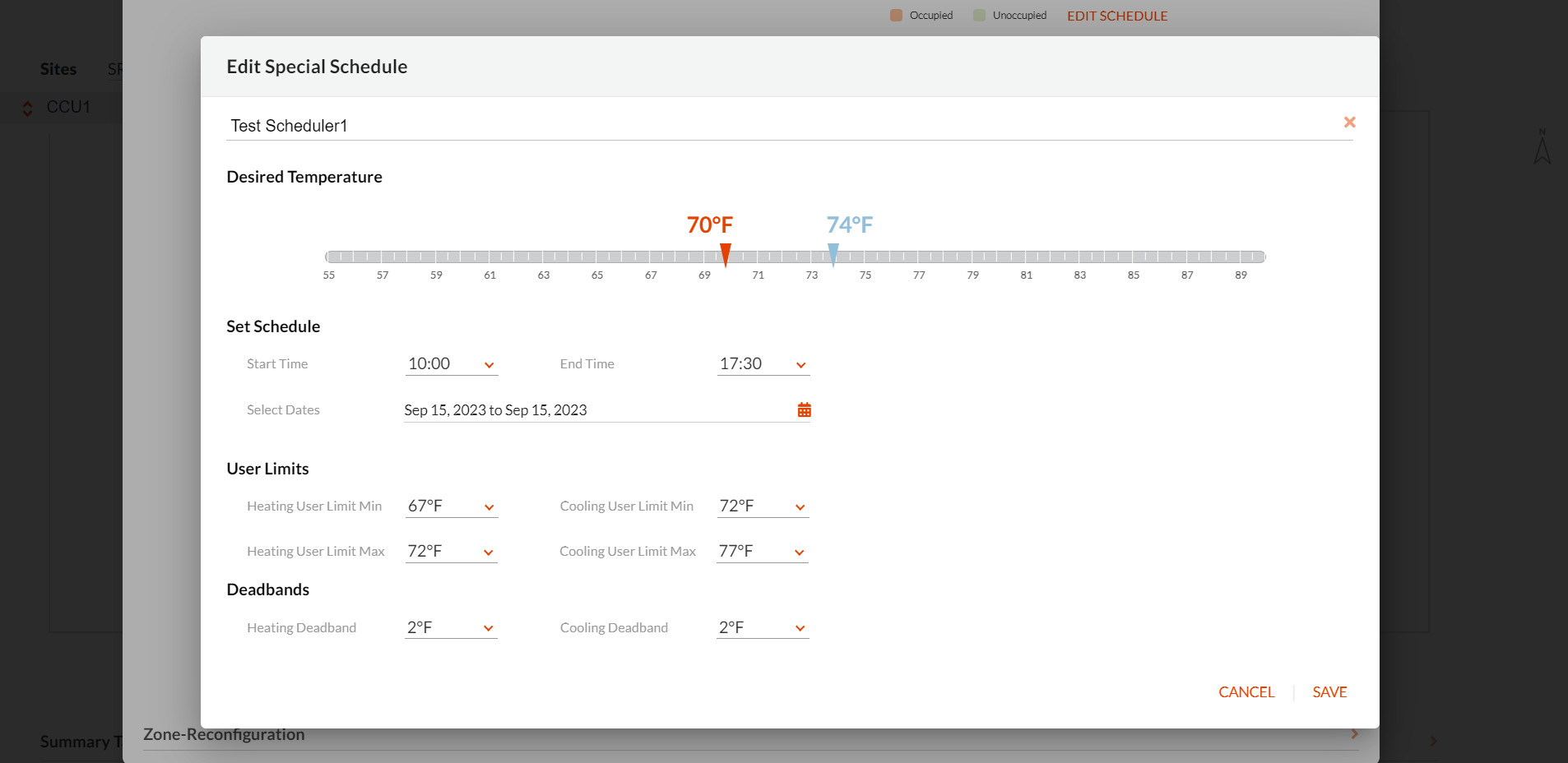

• The Edit Special Schedule Screen is displayed.

• Make the required changes in the parameters and Click Save, post editing the schedule.

| Deleting a Special Schedule

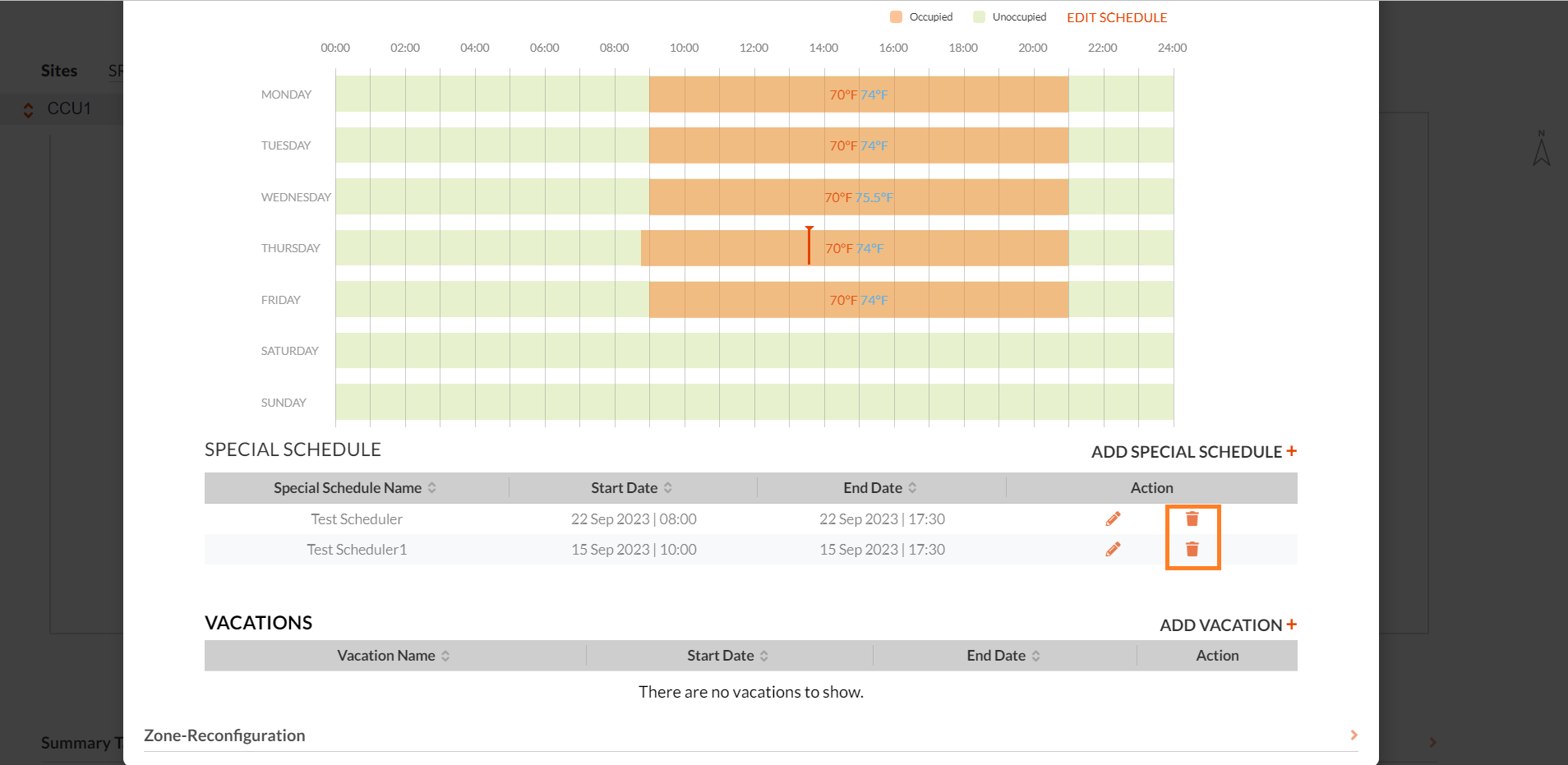

A Special Schedule can be deleted by clicking the icon from the schedule list.

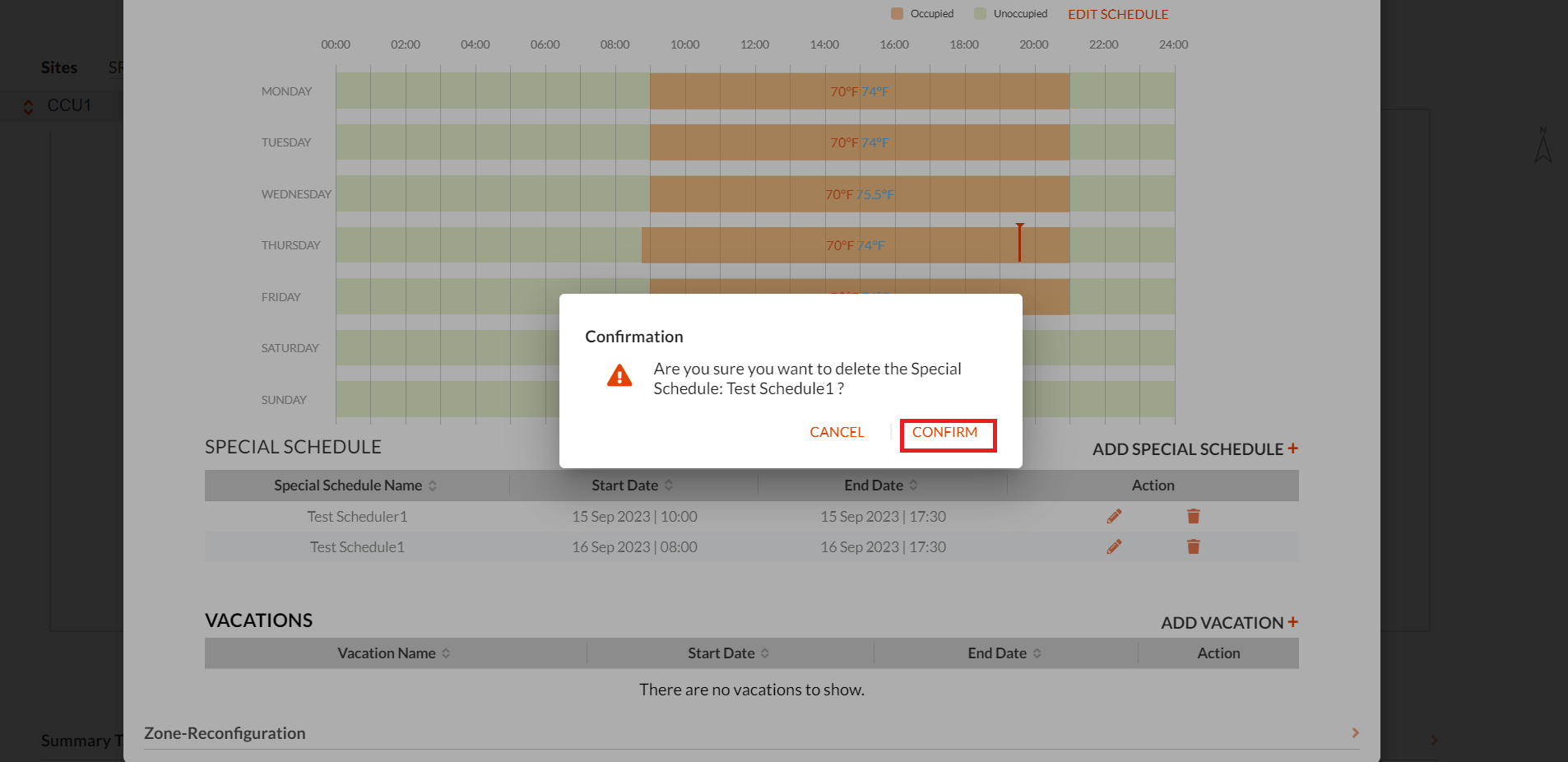

• Click Confirm to delete the special schedule or cancel to go back to the previous screen.

| Non-Zero Deadband

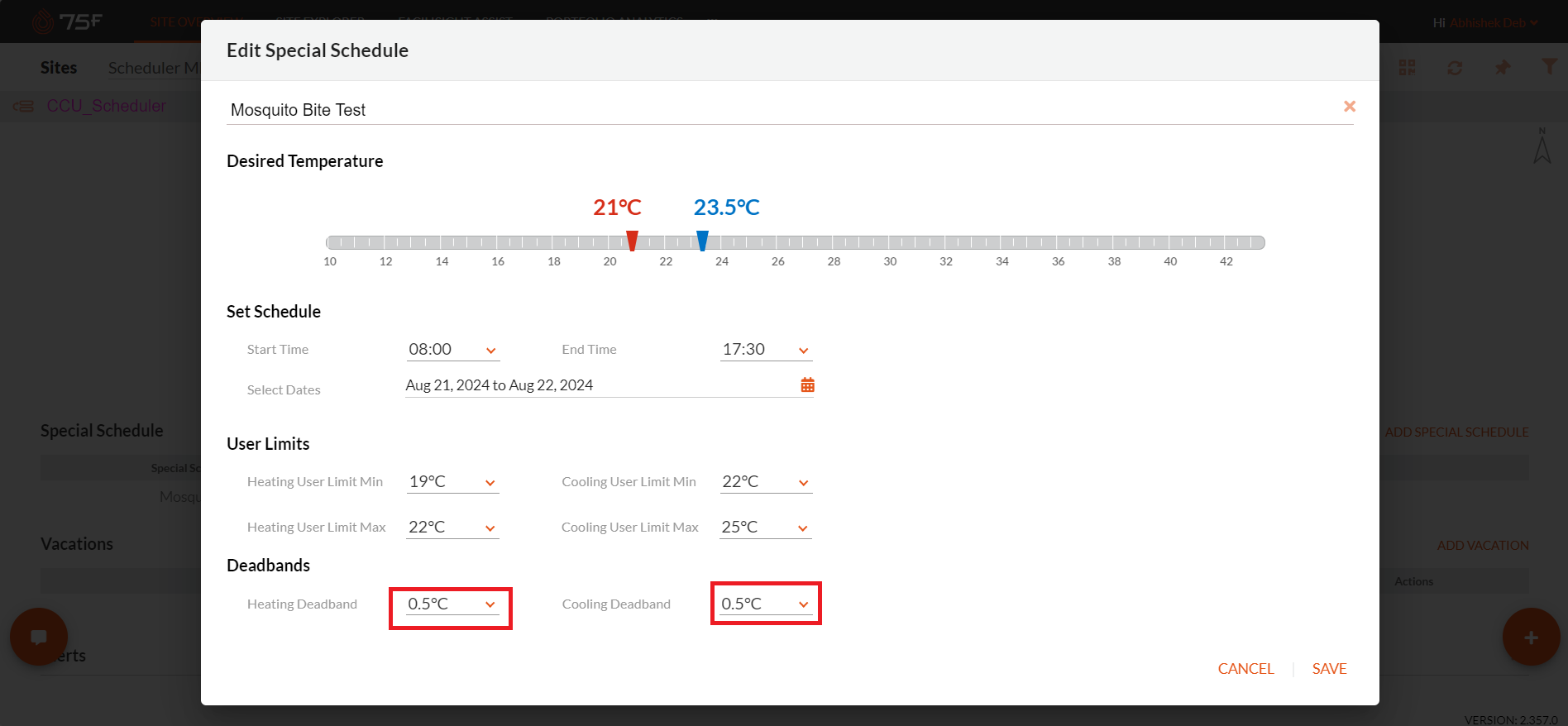

This feature ensures that the heating and cooling deadband can be set to a minimum of 0.5°F, preventing a zero deadband scenario and ensuring compliance with Guideline 36. By implementing this, the heating and cooling desired temperatures will never be equal, even if set to their minimum values and there will always be a difference of 1F between the heating and cooling deadband.

| Validations

For more information on Special schedule validations refer to Scheduler Validations.

| Calculation for Setback Temperatures based on Special Schedule

Let us consider a scenario where in a building that follows a default Monday-to-Friday schedule with desired heating and cooling temperatures set to 70°F and 74°F respectively, the schedule typically ends at 8 PM on Friday. After this time period, the building enters an unoccupied state, where the setback temperatures are adjusted to 65°F for heating and 79°F for cooling.

However, if a Facility Manager assigns a special schedule for Sunday from 11 AM to 4 PM, the unoccupied setback temperatures during this period are set to 63°F for heating and 77°F for cooling. Once the special Sunday schedule ends, the system will revert to the original unoccupied setback temperatures of 65°F and 79°F respectively.
