Temperature Modes, Dual Setpoint Fixed Deadband & Variable Deadband- Facilisight Mobile App

| Overview

Temperature Modes introduces configurable temperature interaction modes across the CCU, portals, occupant applications, and supported devices. These modes define how heating and cooling desired temperatures are presented to users and how they respond to user adjustments.

The objective is to:

• Improve user comfort control experience

• Reduce user confusion in managing dual setpoints

• Maintain system stability and configure deadbands

• Provide flexible UI representations depending on device or application context

It introduces building-level temperature control modes and zone/device-level temperature interaction modes.

| Accessing Temperature Mode Setting

The temperature mode setting from the facilisight app can be achieved, as shown below.

From the zones pages

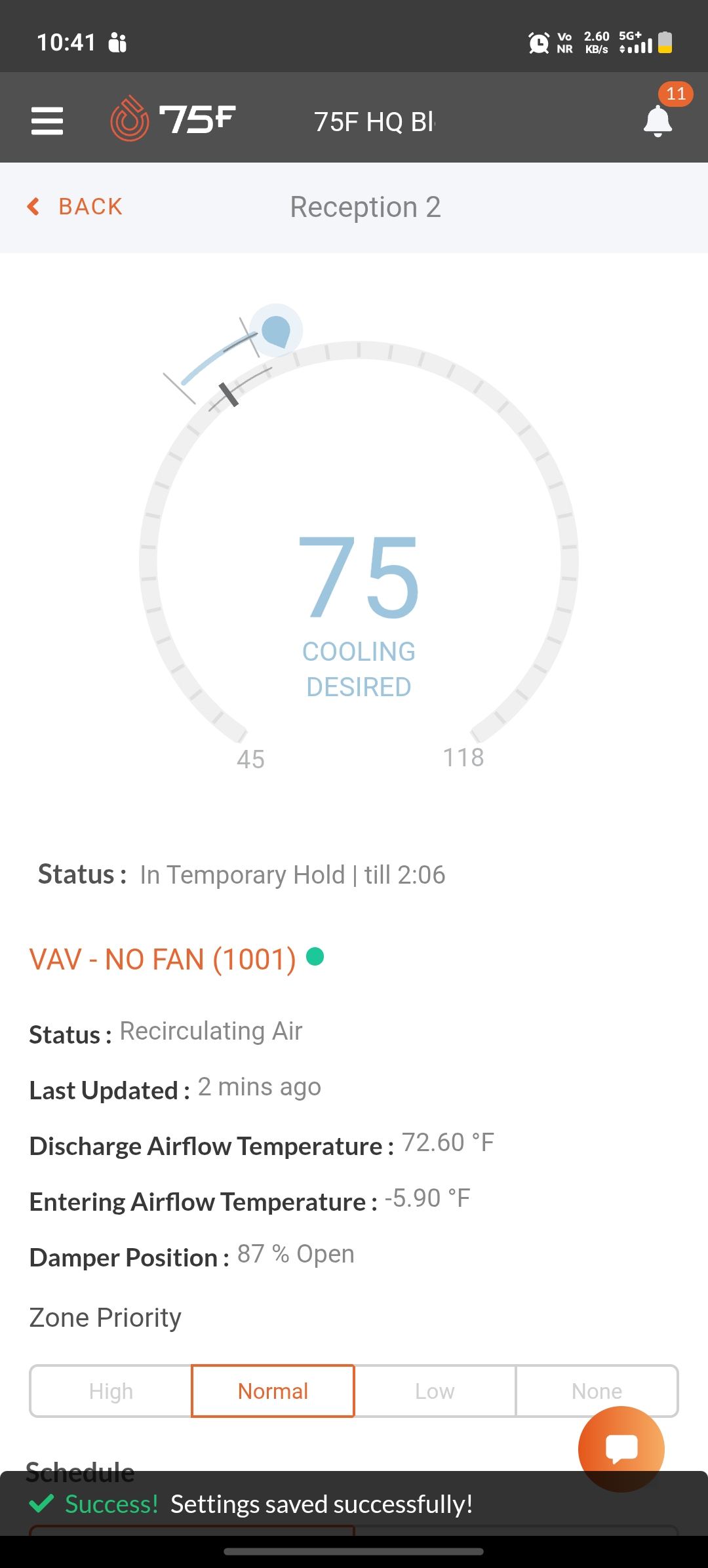

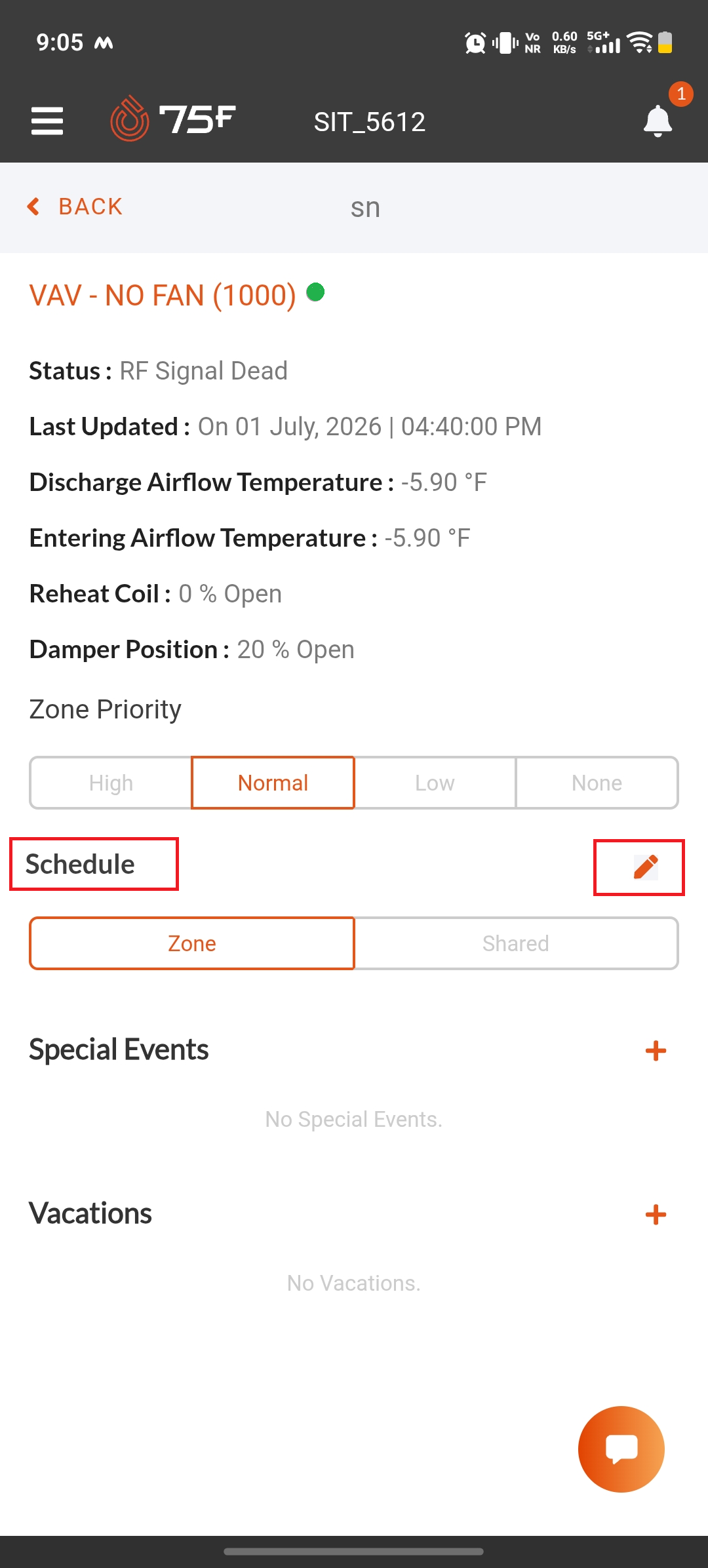

• Click the Edit schedules icon.

• Click the Edit schedules icon again in the schedule setting screen.

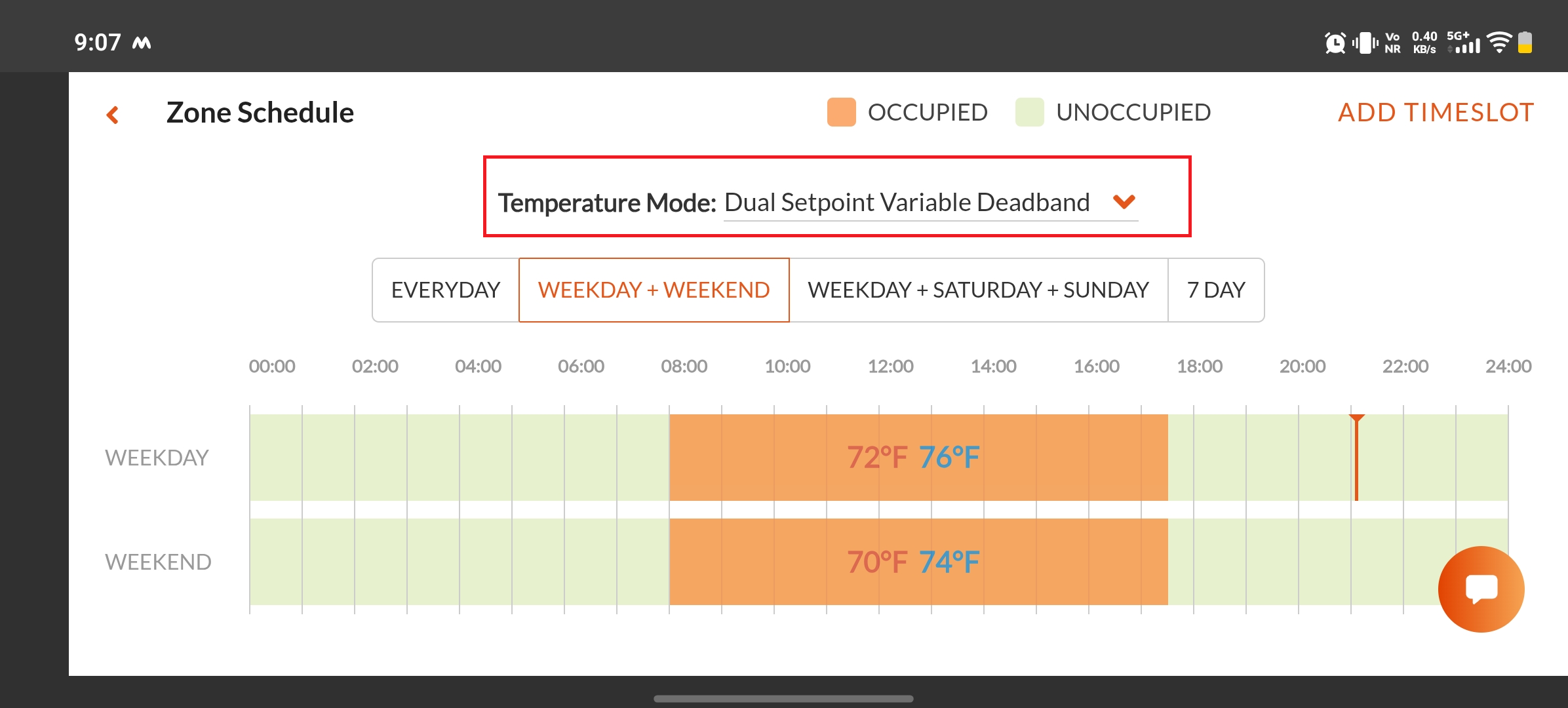

The Schedule and Temperature mode setting screen displays.

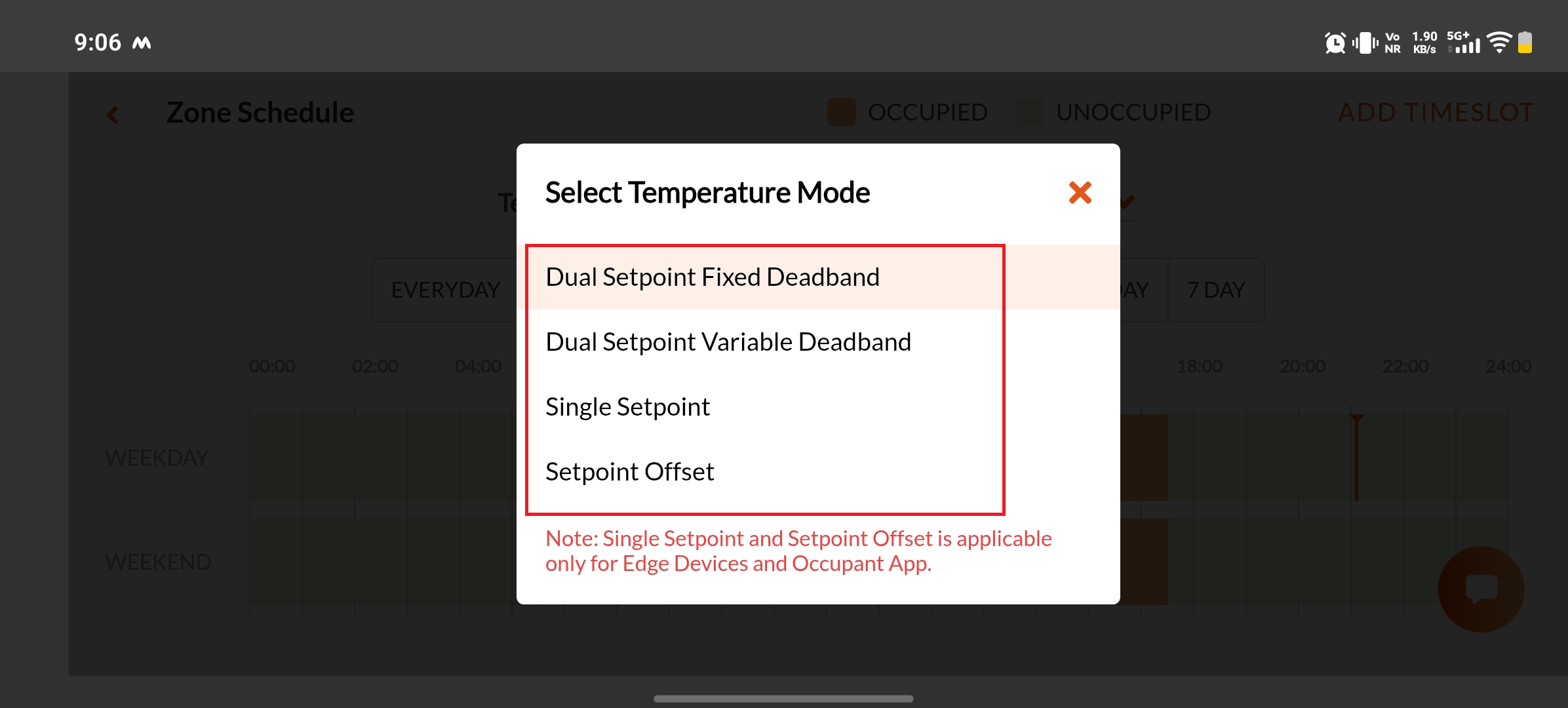

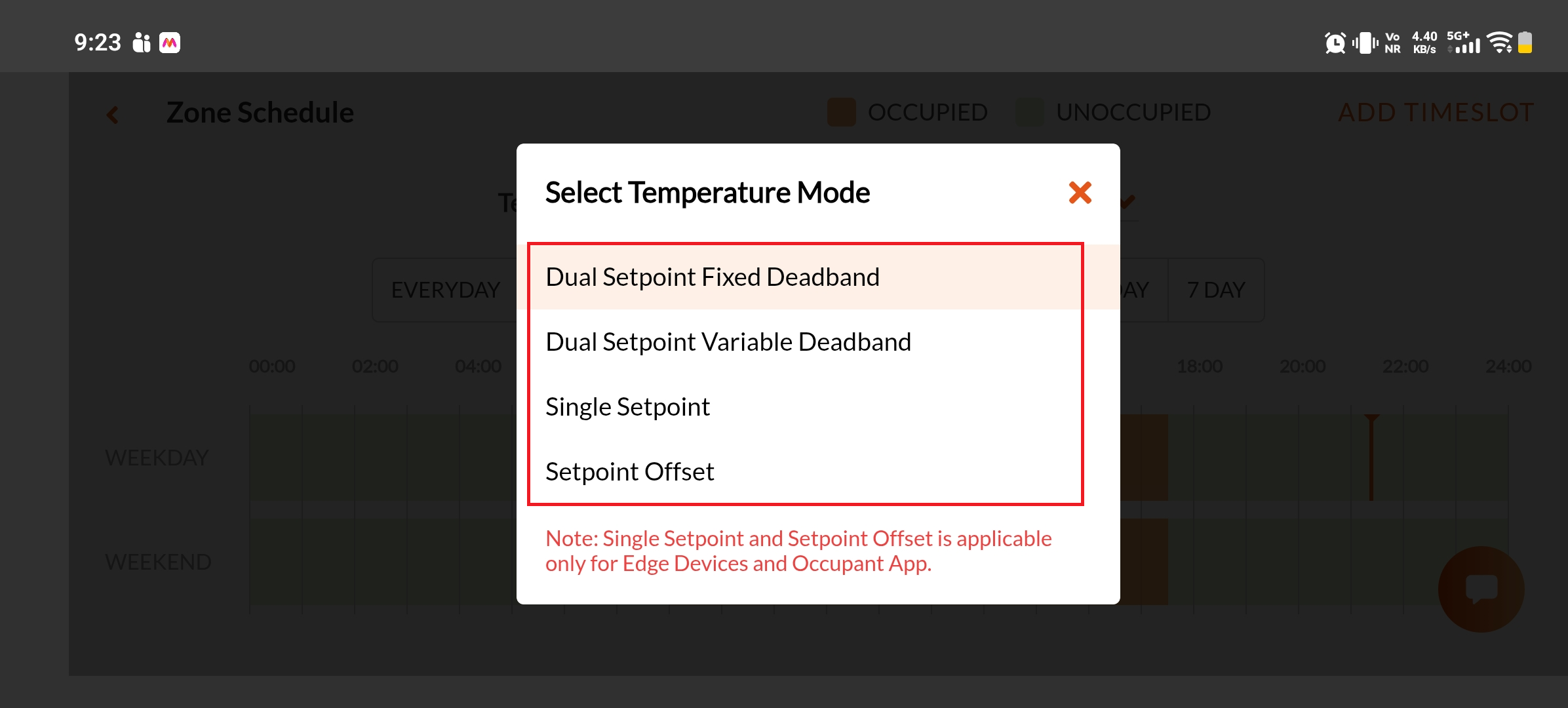

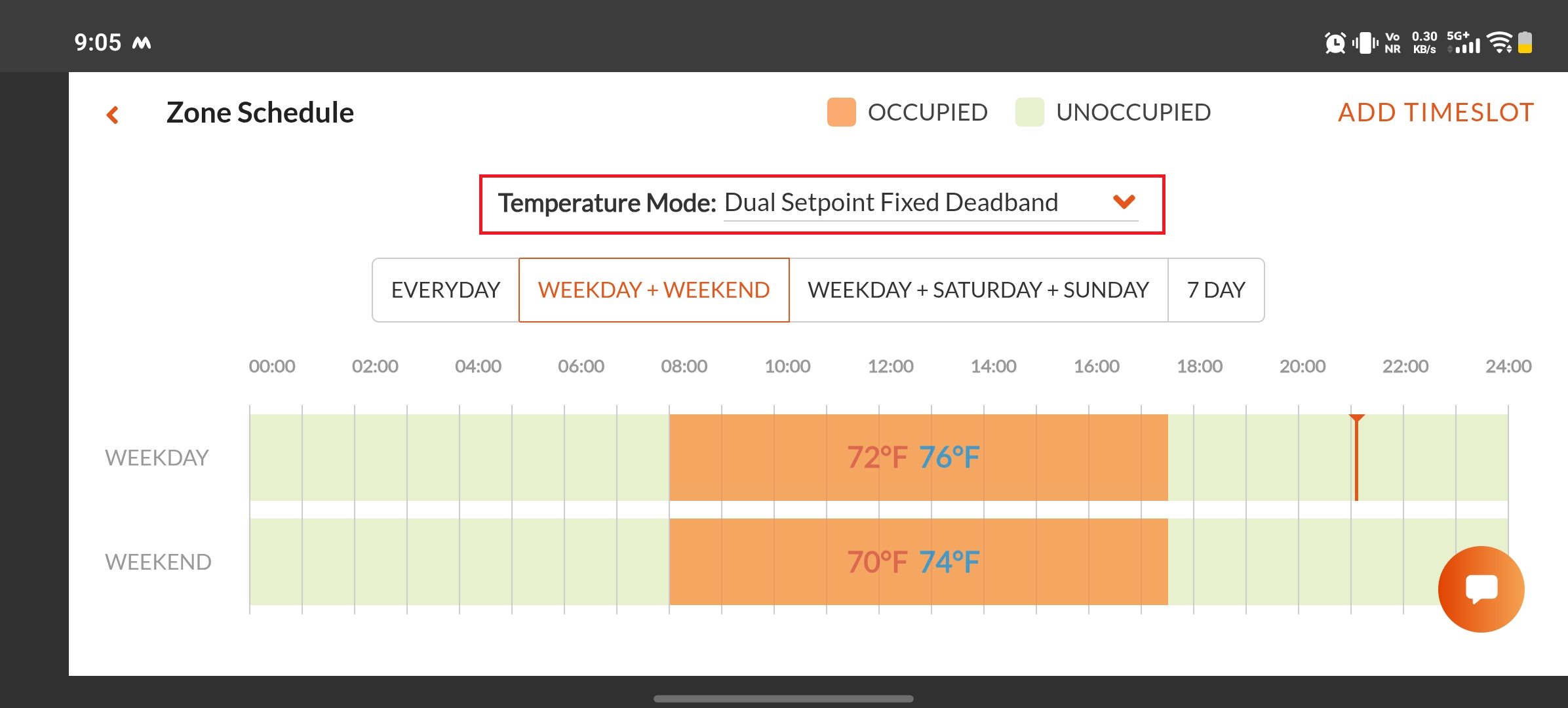

• Click the drop-down to access the temperature modes.

| Goals

The Temperature modes enable the following capabilities:

1. Support Dual Setpoint with Fixed Deadband control mode.

2. Retain existing Dual Setpoint with Variable Deadband behaviour.

3. Provide simplified single-setpoint interaction for occupants.

4. Provide Setpoint Offset interaction for relative comfort control.

5. Ensure all modes respect configured limits, deadbands, and HVAC control logic.

| Impact

The following devices and applications are impacted

Devices

• Occupant Mobile App

• MyStat

• MySense

• HyperStat Split

• MyStat Split

• TFCU

• SmartNode V2

Backend / Platform Components

• CCU

• Facilisight Portal

• Facilisight Assist

• Firmware (SmartNode V2, MyStat)

| Zone / Device-Level Temperature Modes

Temperature modes are configured only at the zone level.

Configured per device or zone.

Options:

Default:
Follows Dual Setpoint with Variable Deadband.

| Dual Setpoint Mode

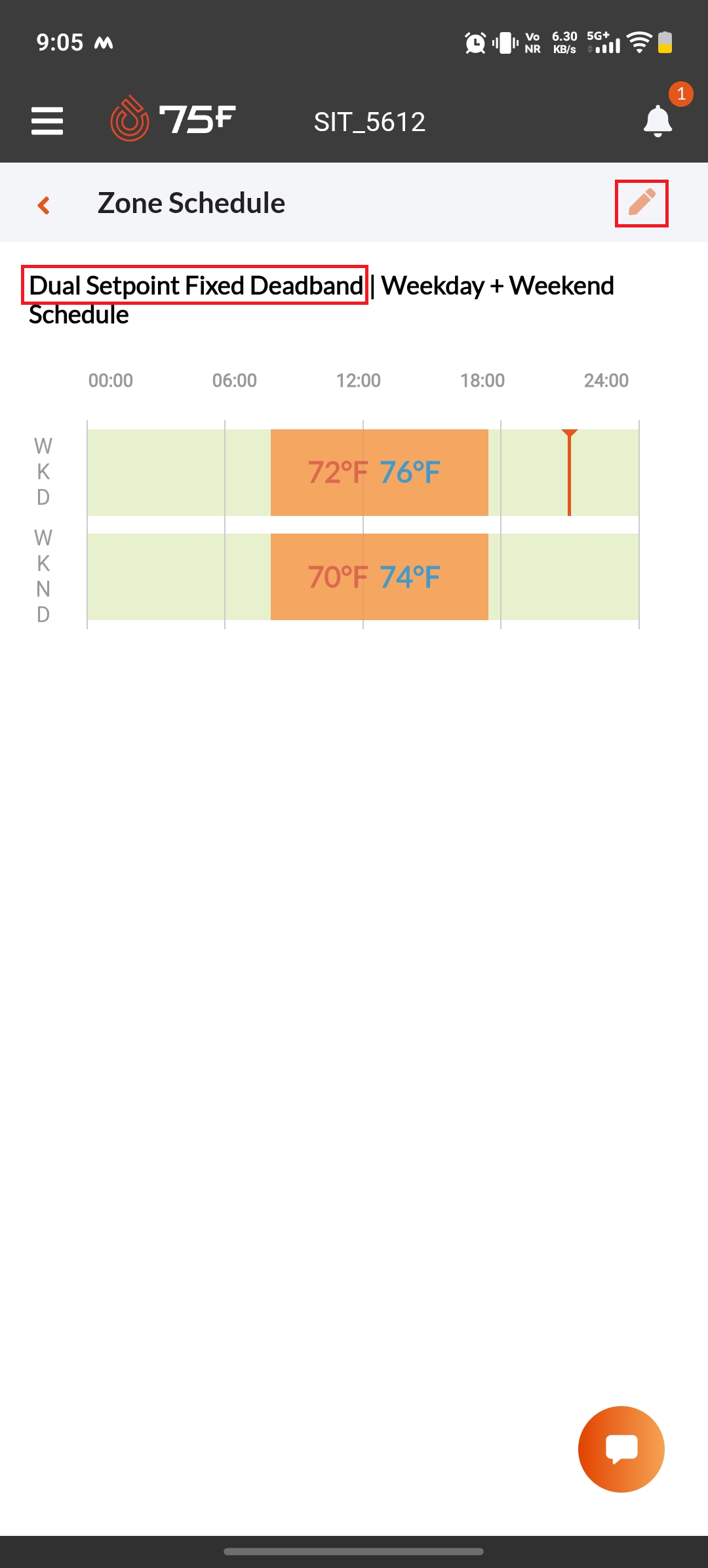

Dual Setpoint with Fixed Deadband

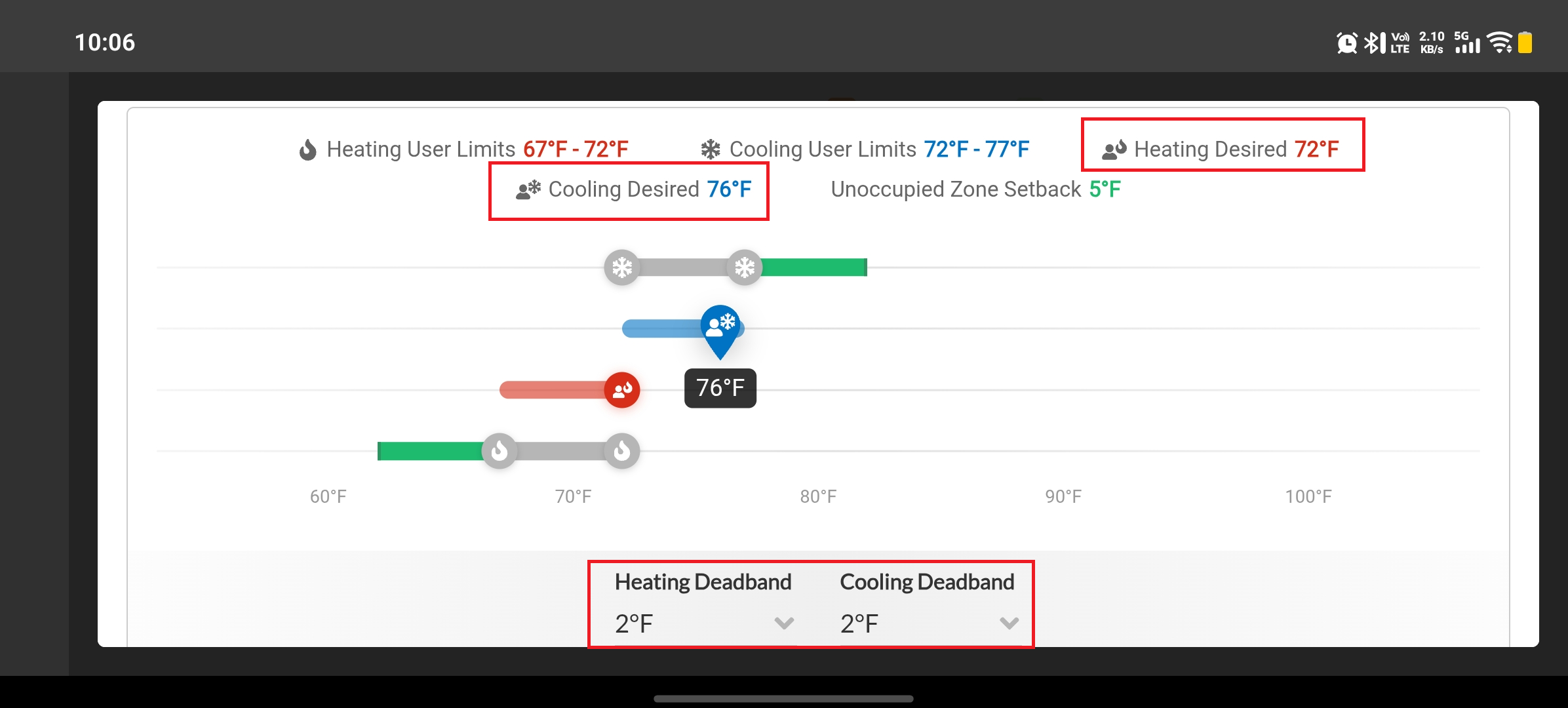

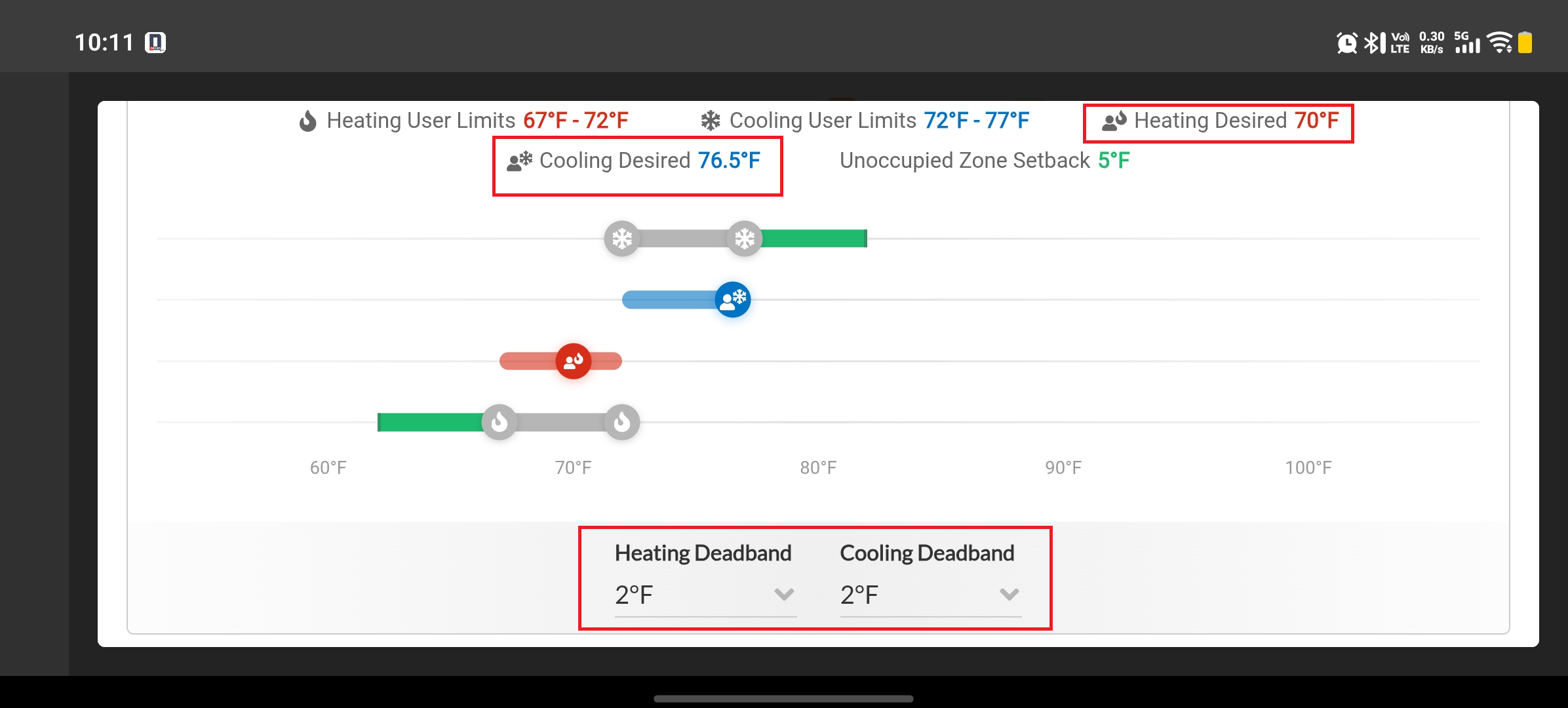

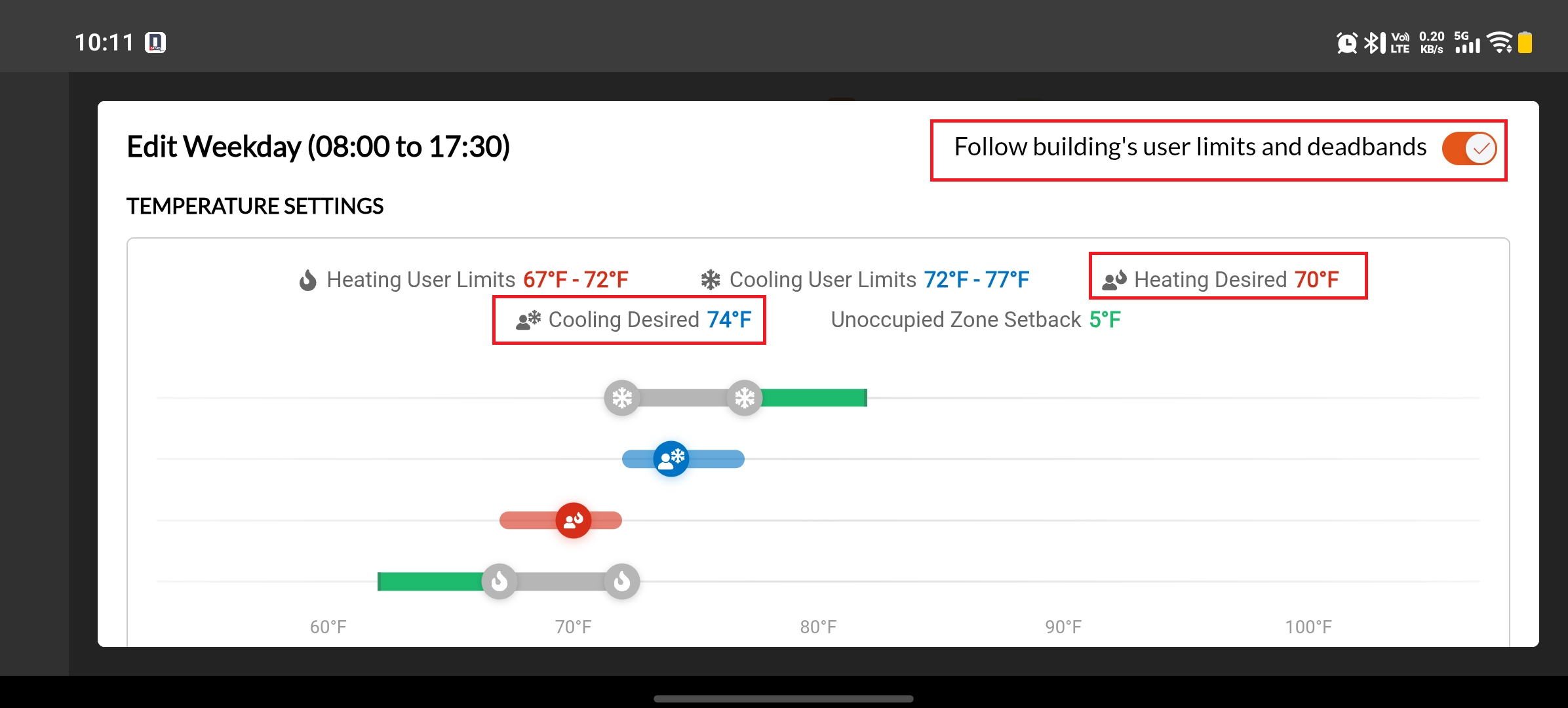

In this mode, Heating Desired Temperature (HDT) and Cooling Desired Temperature (CDT) are linked.

Adjusting one setpoint automatically adjusts the other while preserving the configured deadband.

Example:

Example Interaction

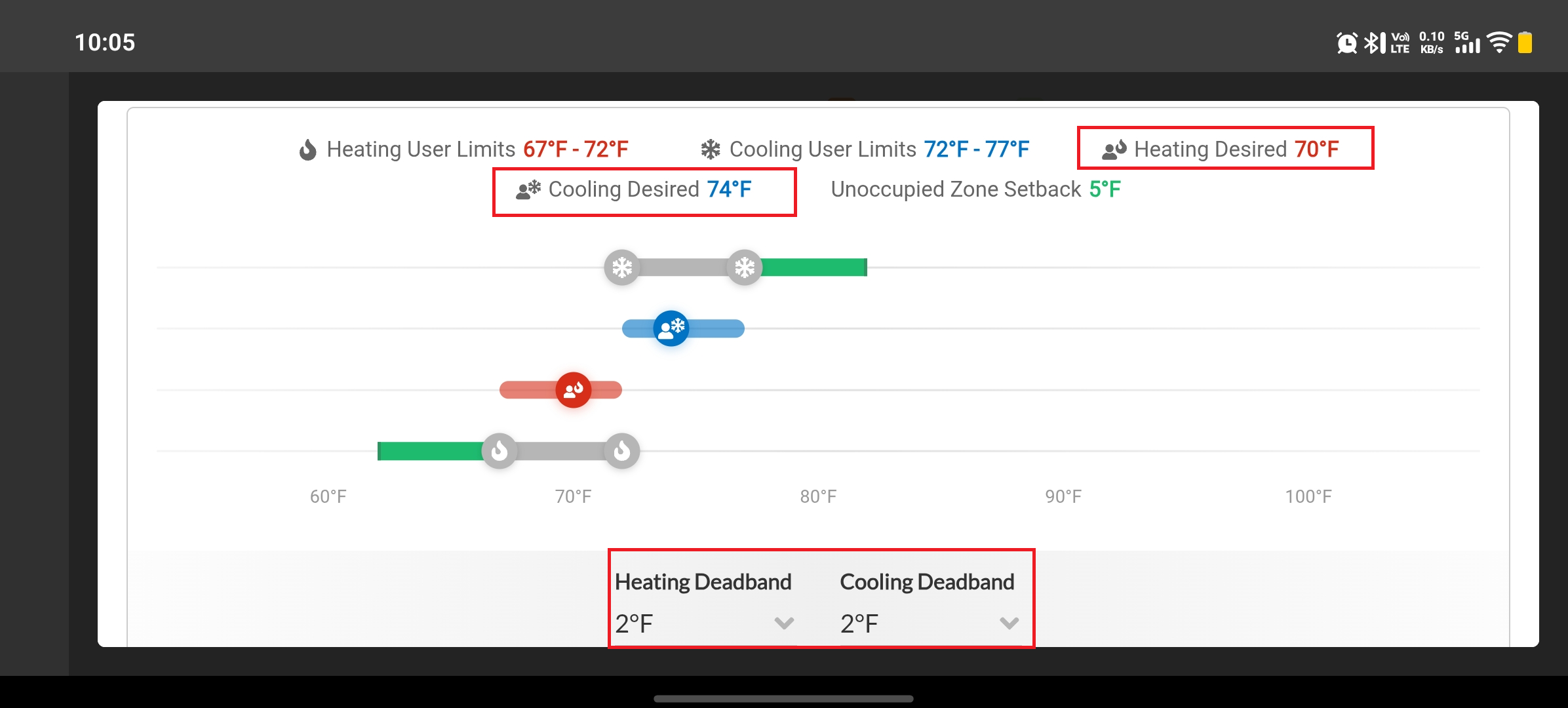

Initial state:

HDT = 70°F
CDT = 74°F
Deadband = 4°F

User increases CDT to 76°F

Result:

HDT = 72°F
CDT = 76°F
Deadband = 4°F

Both setpoints move simultaneously.

| UI Behaviour

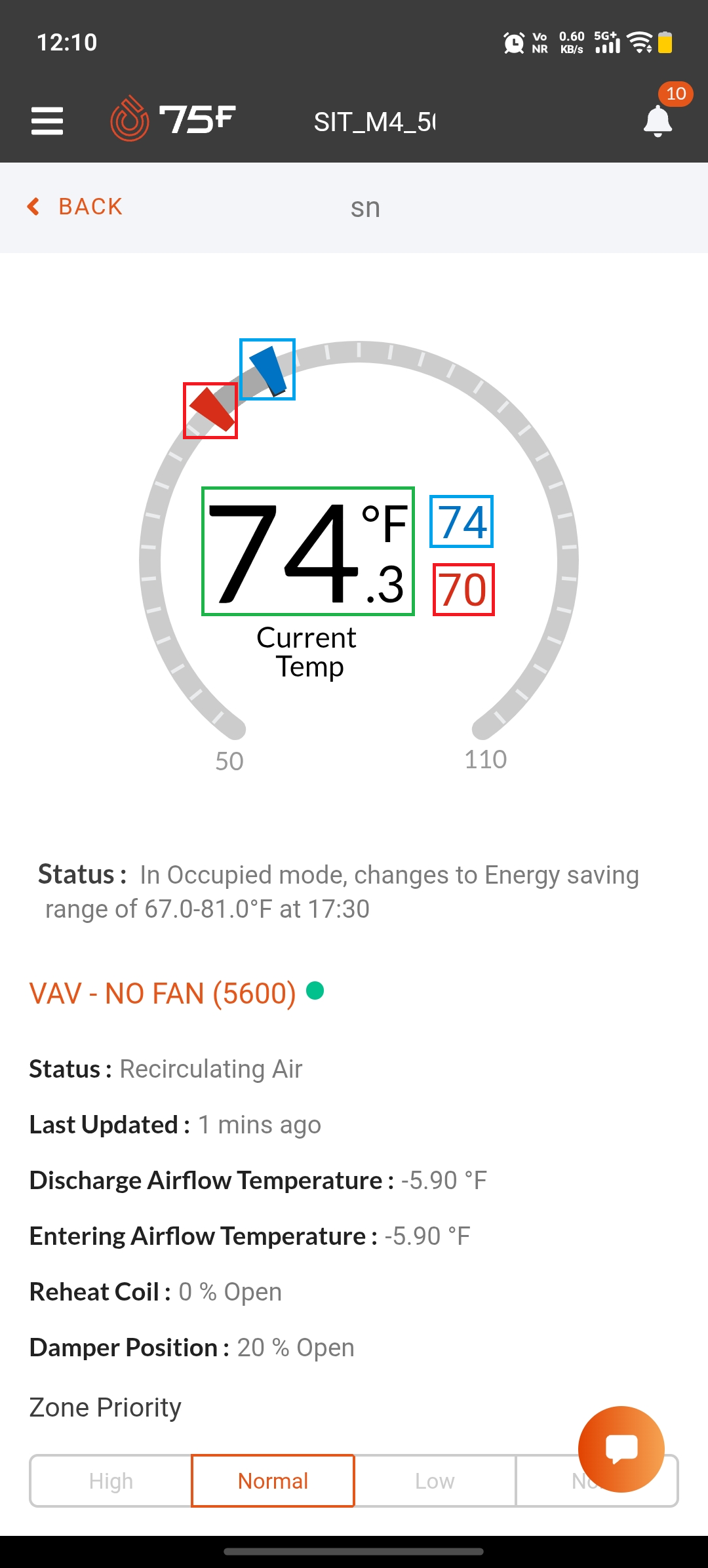

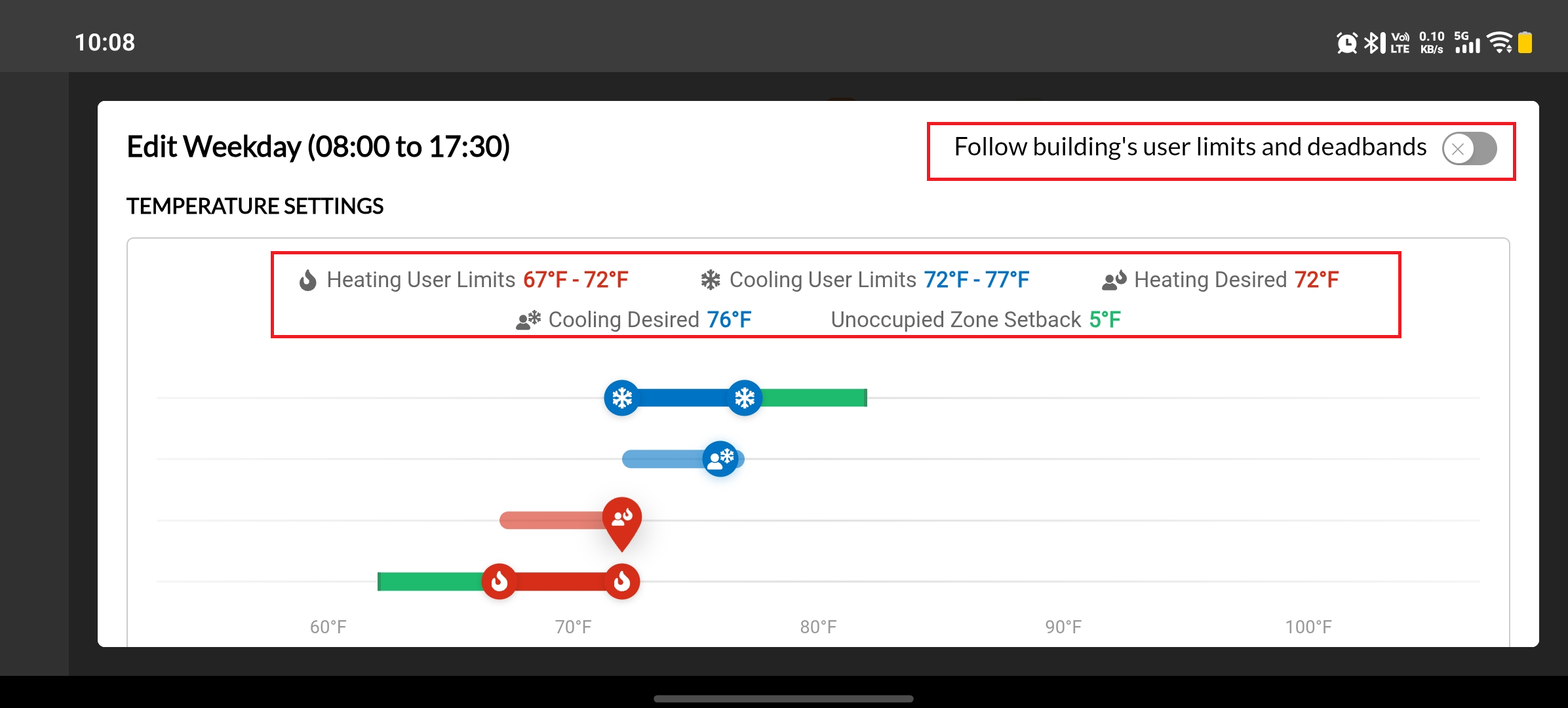

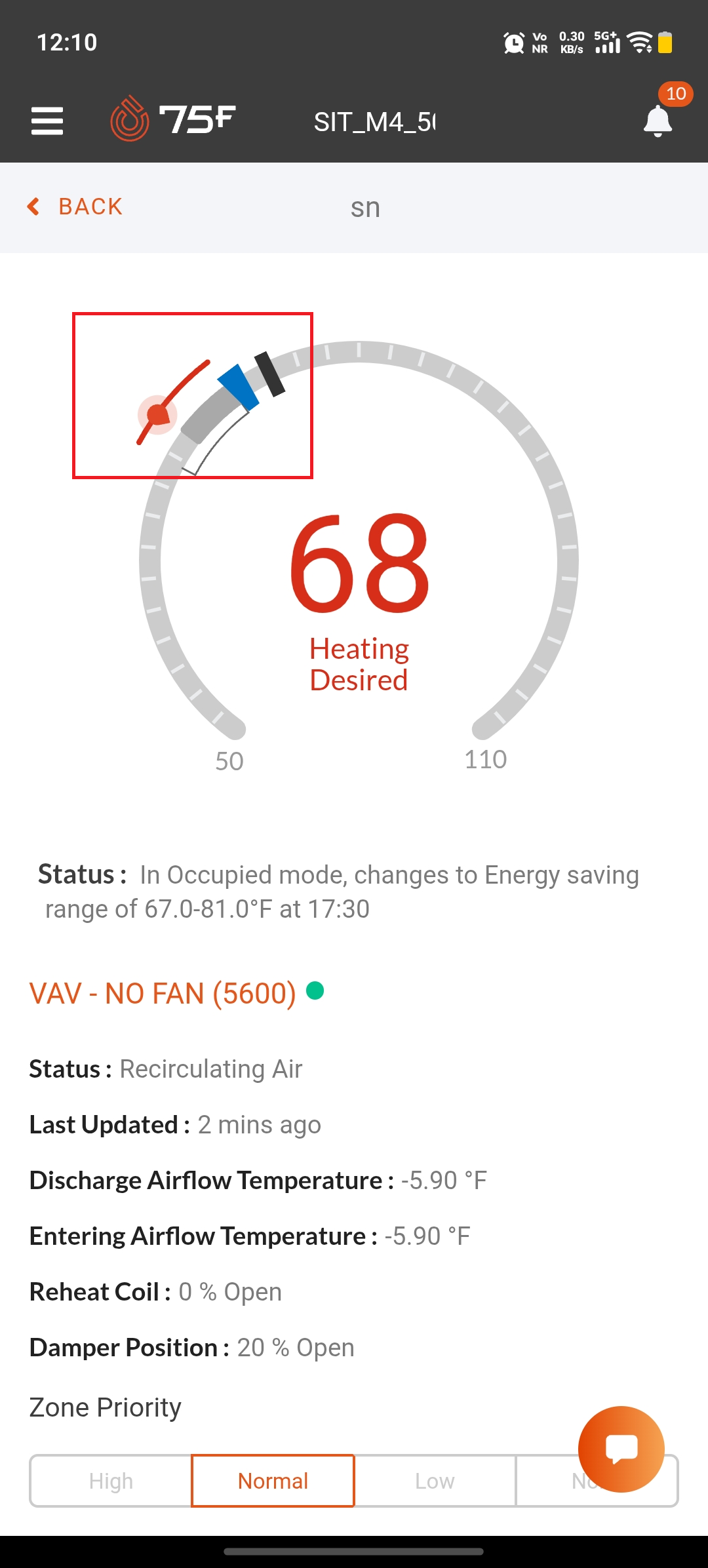

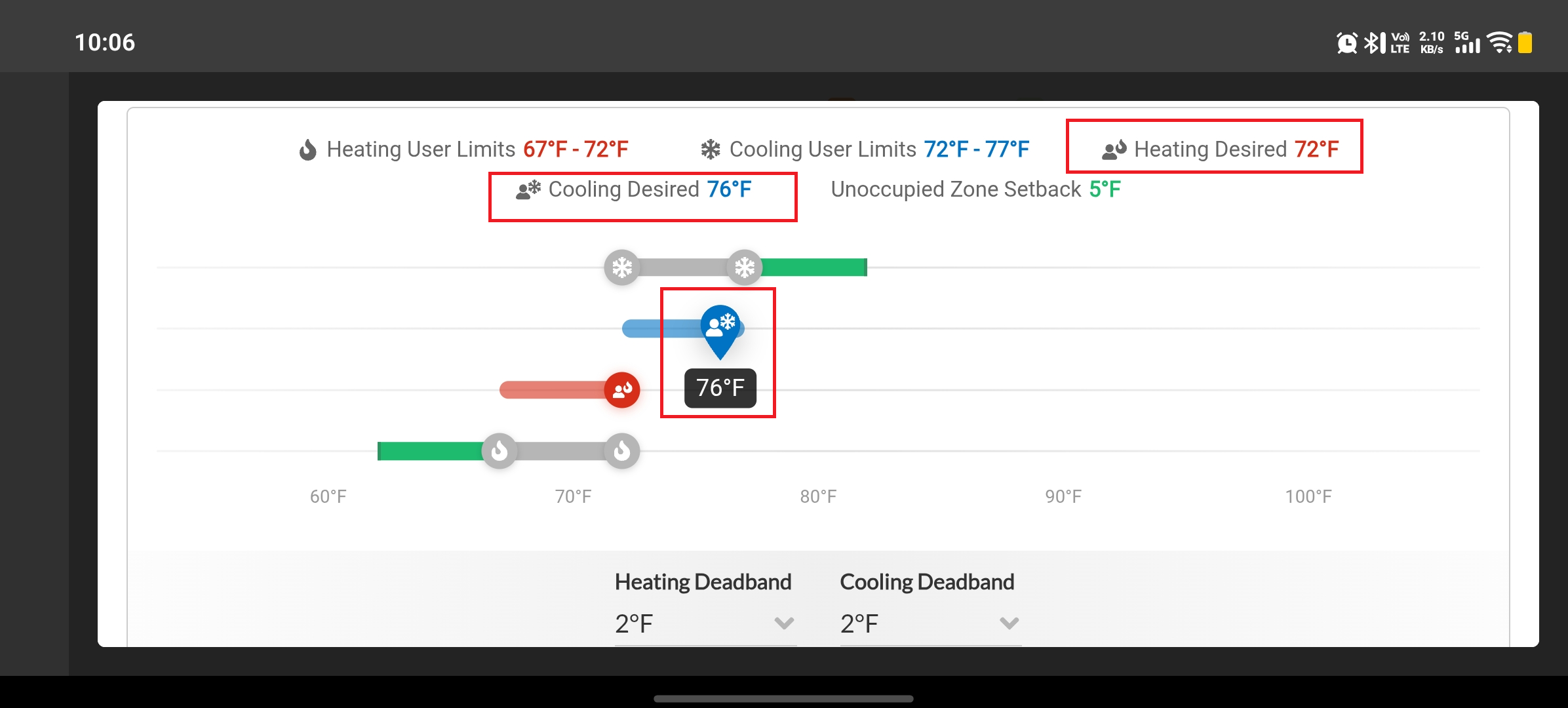

Temperature arc/slider displays:

• Current zone temperature

• HDT marker (red)

• CDT marker (blue)

• User intent limits

Thin lines represent:

• Maximum cooling limit

• Minimum heating limit

| Limit Enforcement

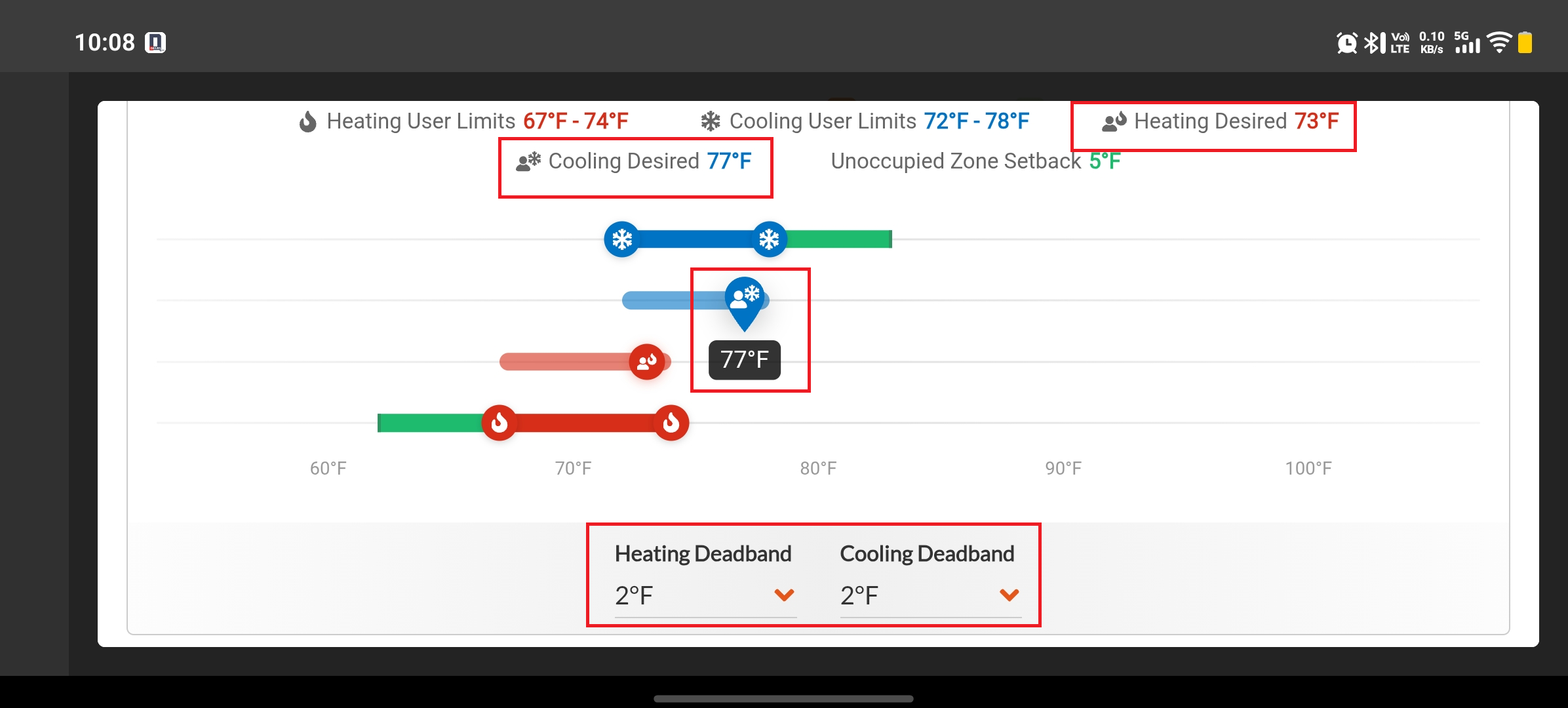

Movement is allowed only if both setpoints remain within limits.

Example:

If CDT movement causes HDT to exceed heat max:

Movement is blocked.

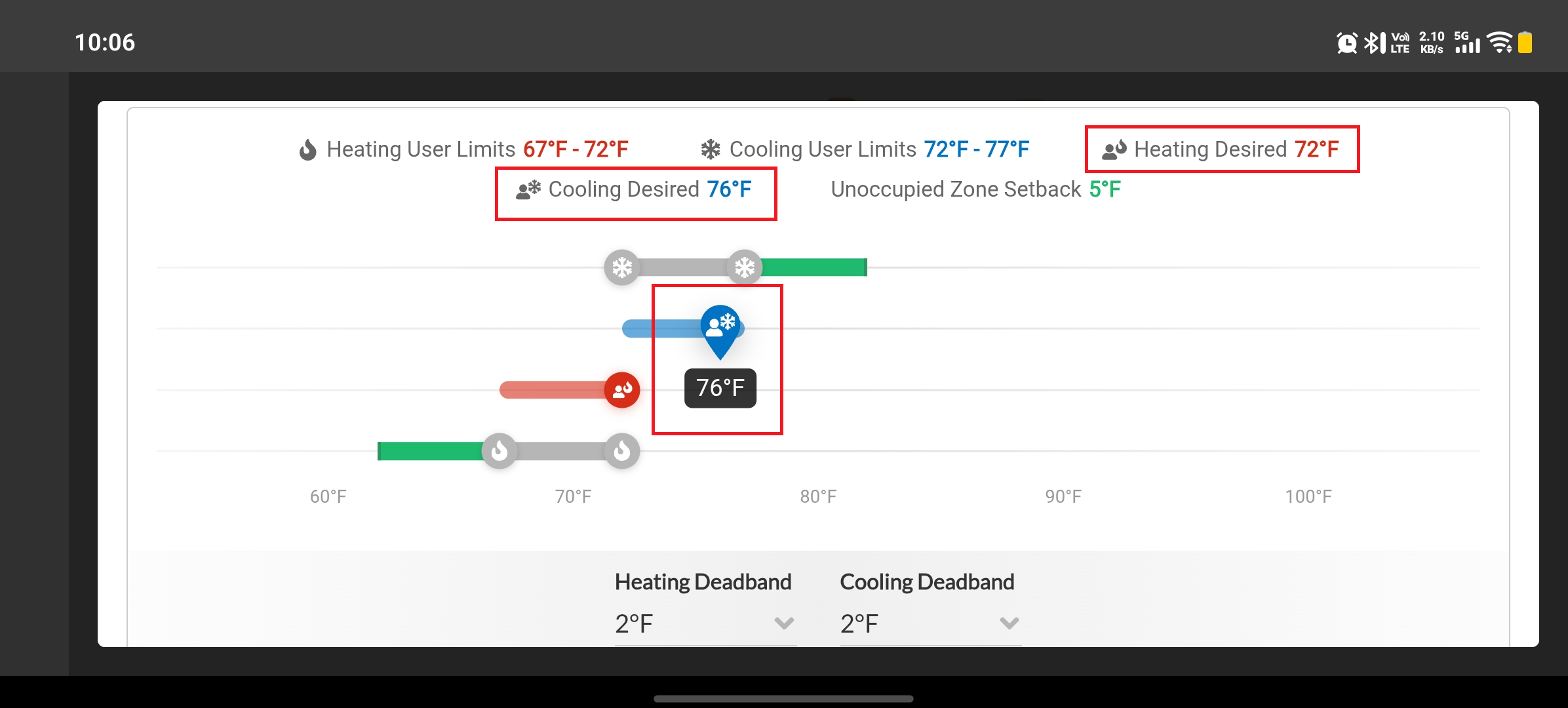

Scenario 1 – Limit Violation

Initial:

HDT = 72
CDT = 76

User attempts:

CDT → 77

Expected shift:

HDT → 73

But:

Heat Max = 72

Result:

CDT remains 76

Scenario 2 – Overlapping Limits

If limits allow both movements:

HDT = 72 → 73
CDT = 76 → 77

Movement is allowed.

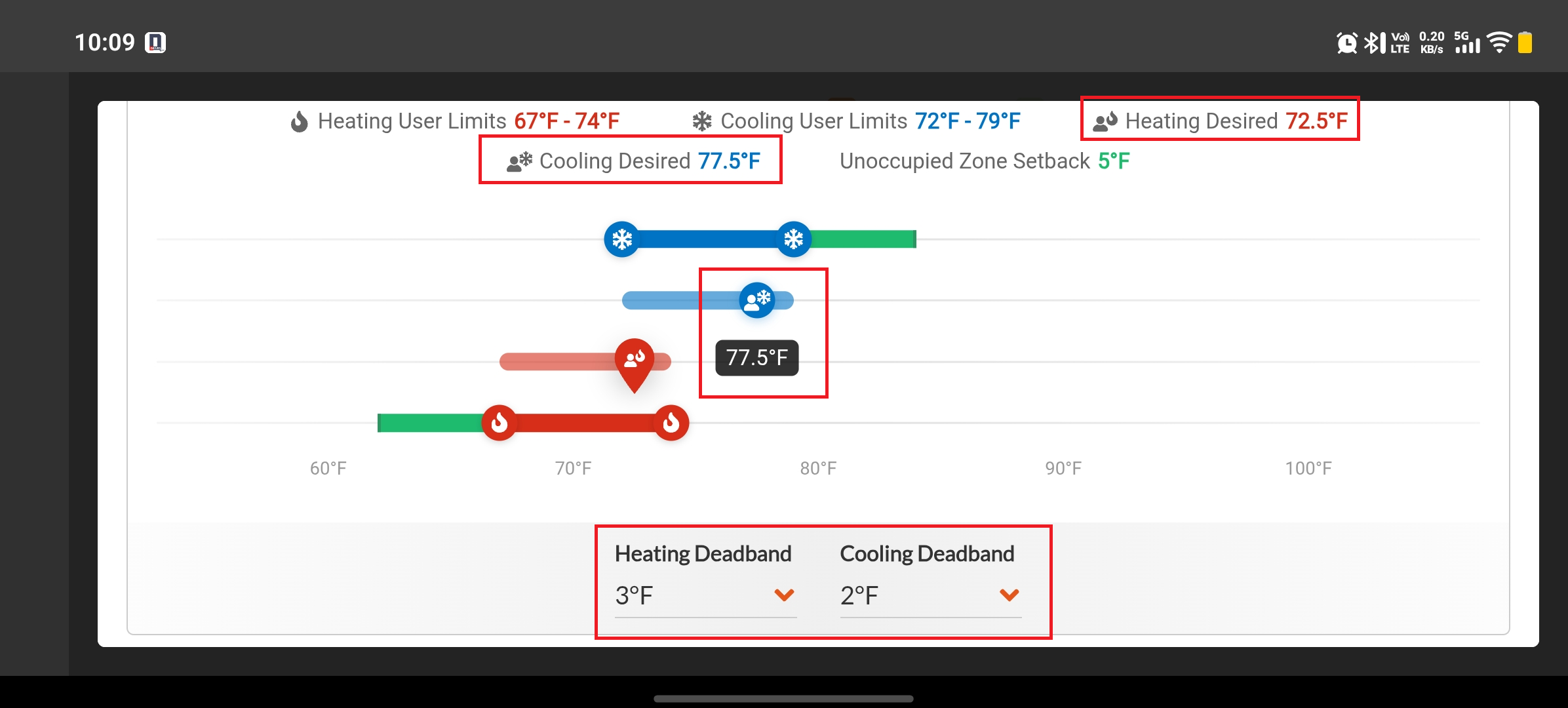

Scenario 3 – Unequal Deadbands

Example:

Heat DB = 3
Cool DB = 2

Total separation:

Deadband = 5

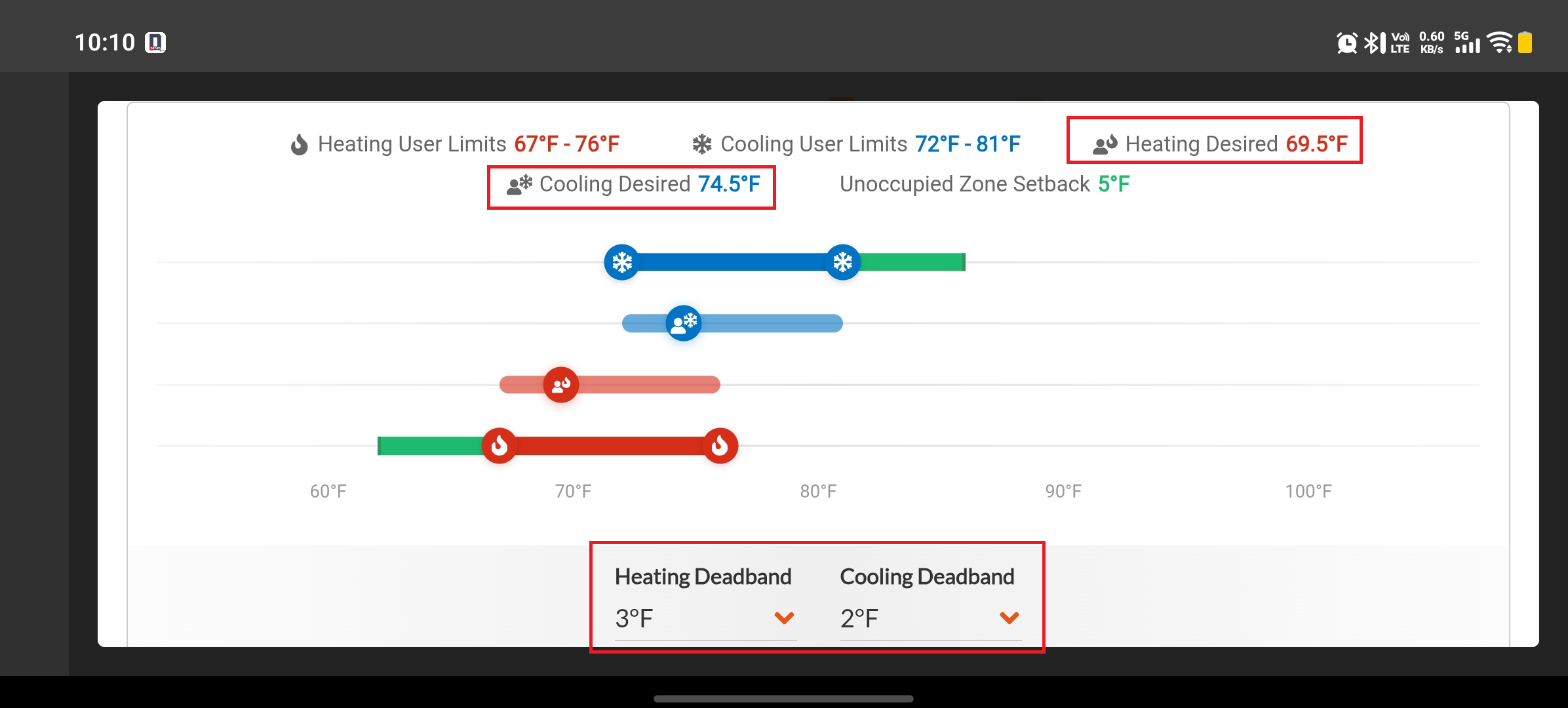

Setpoints are placed symmetrically:

HDT = 69.5
CDT = 74.5

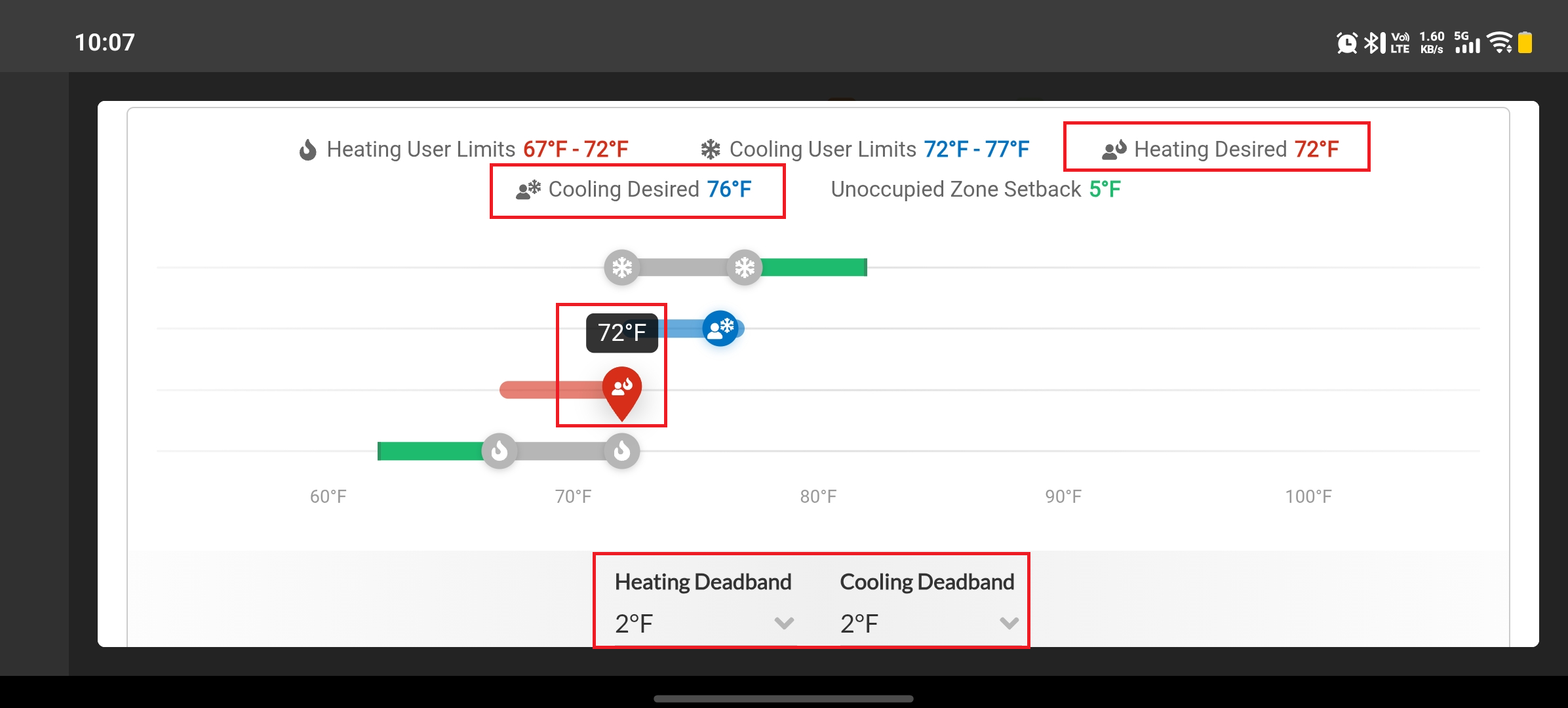

| Dual Setpoint with Variable Deadband

This is the existing system behaviour.

Users can adjust HDT and CDT independently.

Constraint:

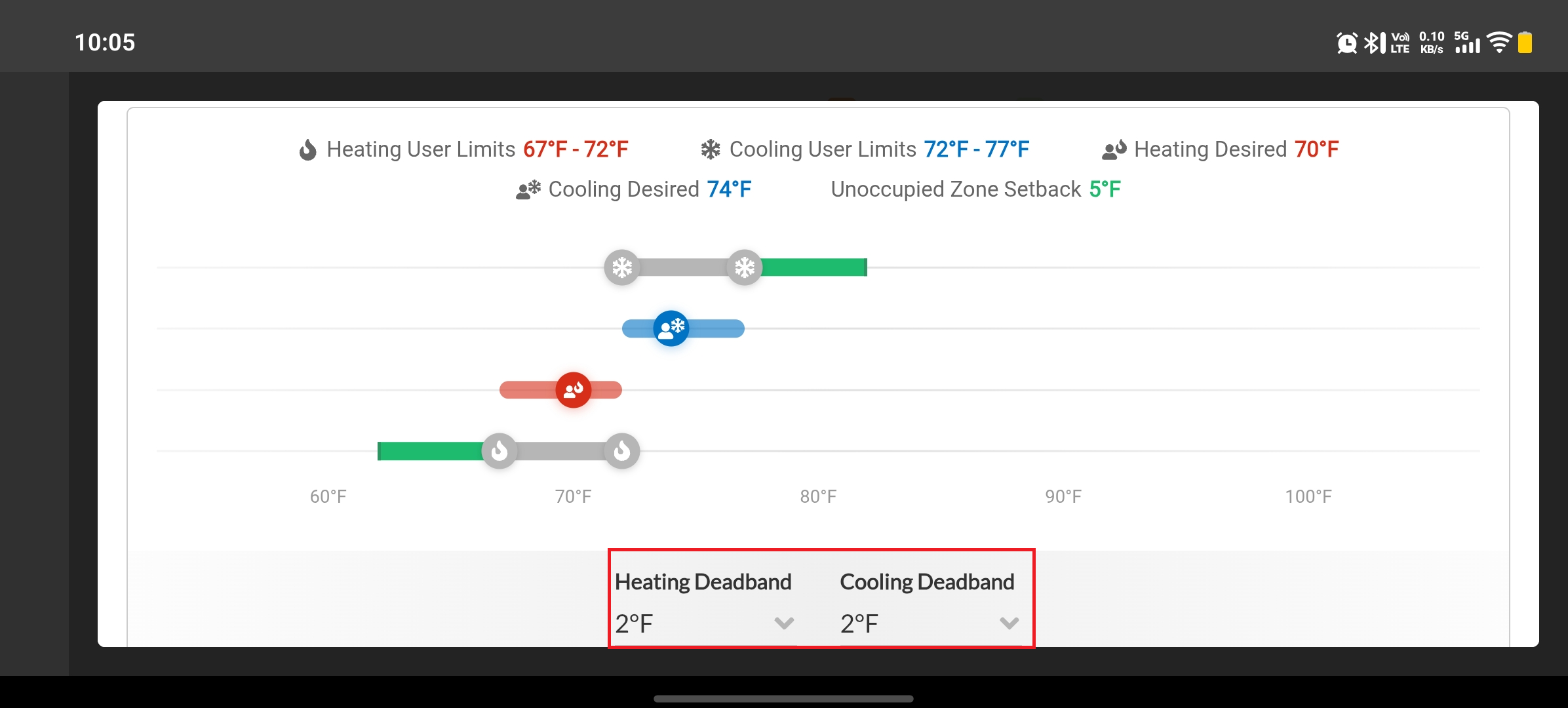

CDT - HDT >= Heat DB + Cool DB

Example:

Heat DB = 2
Cool DB = 2
Minimum separation = 4°F

Any configuration respecting this minimum is allowed.

| Mode Change Behaviour

Switching from Variable Deadband → Fixed Deadband

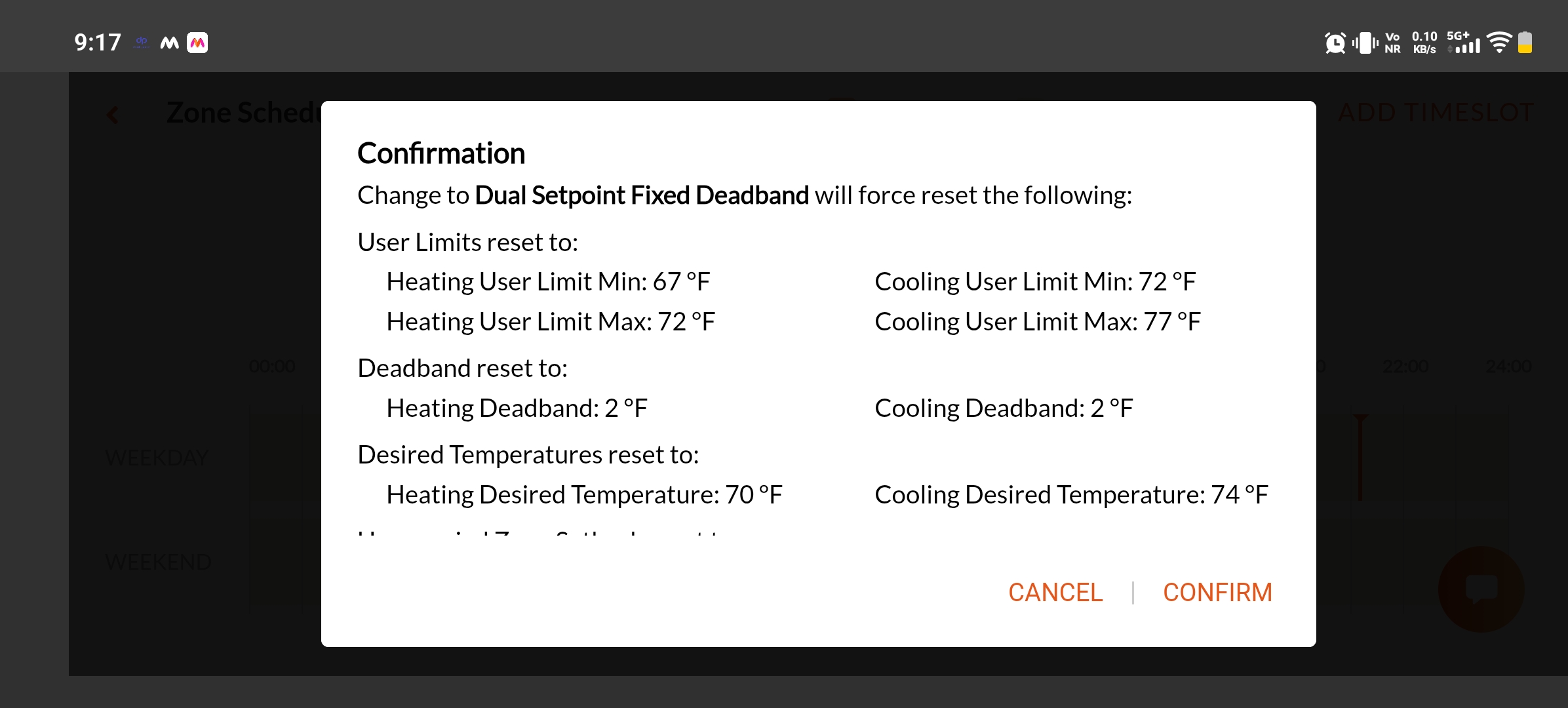

If existing schedules violate the fixed deadband rule, schedules are reset to default values.

Default Values

Schedule timings remain unchanged.

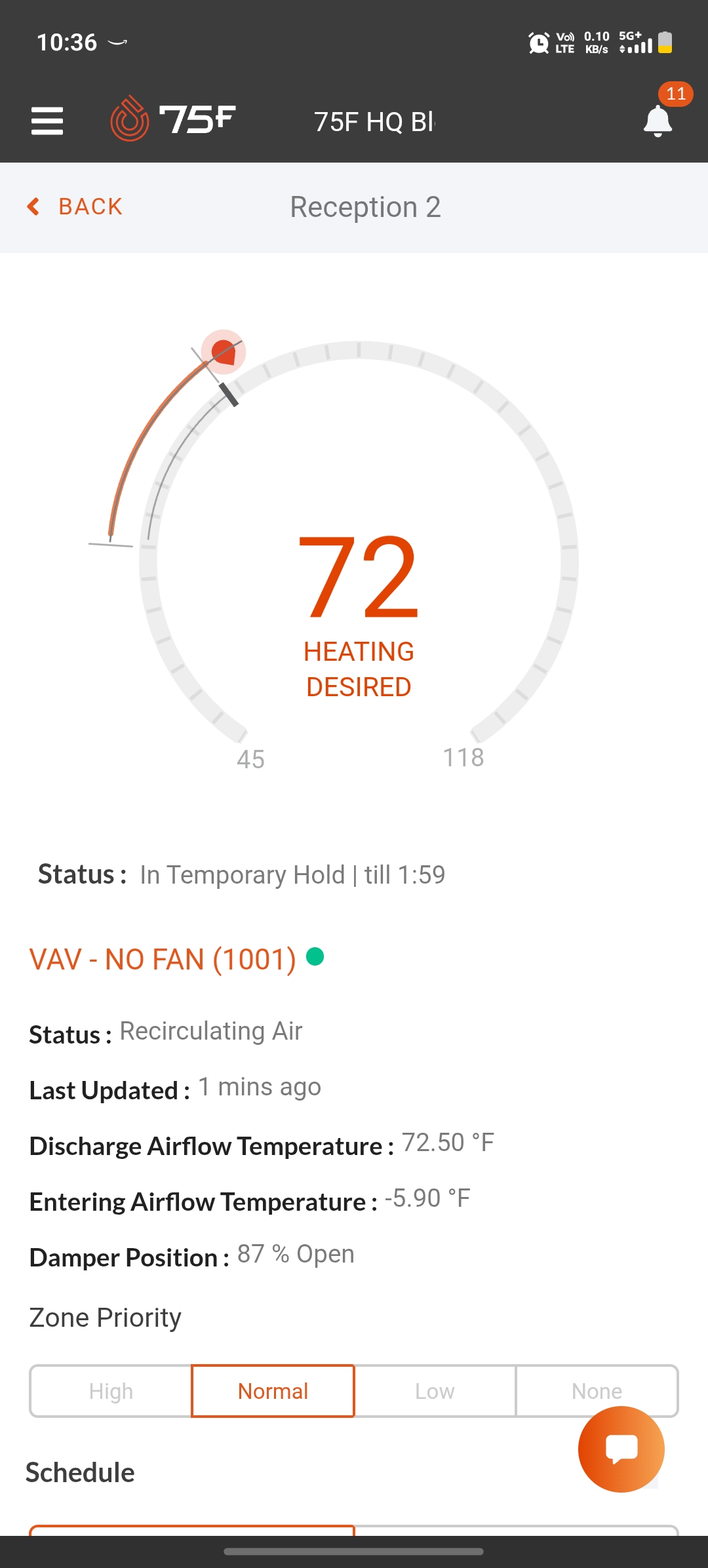

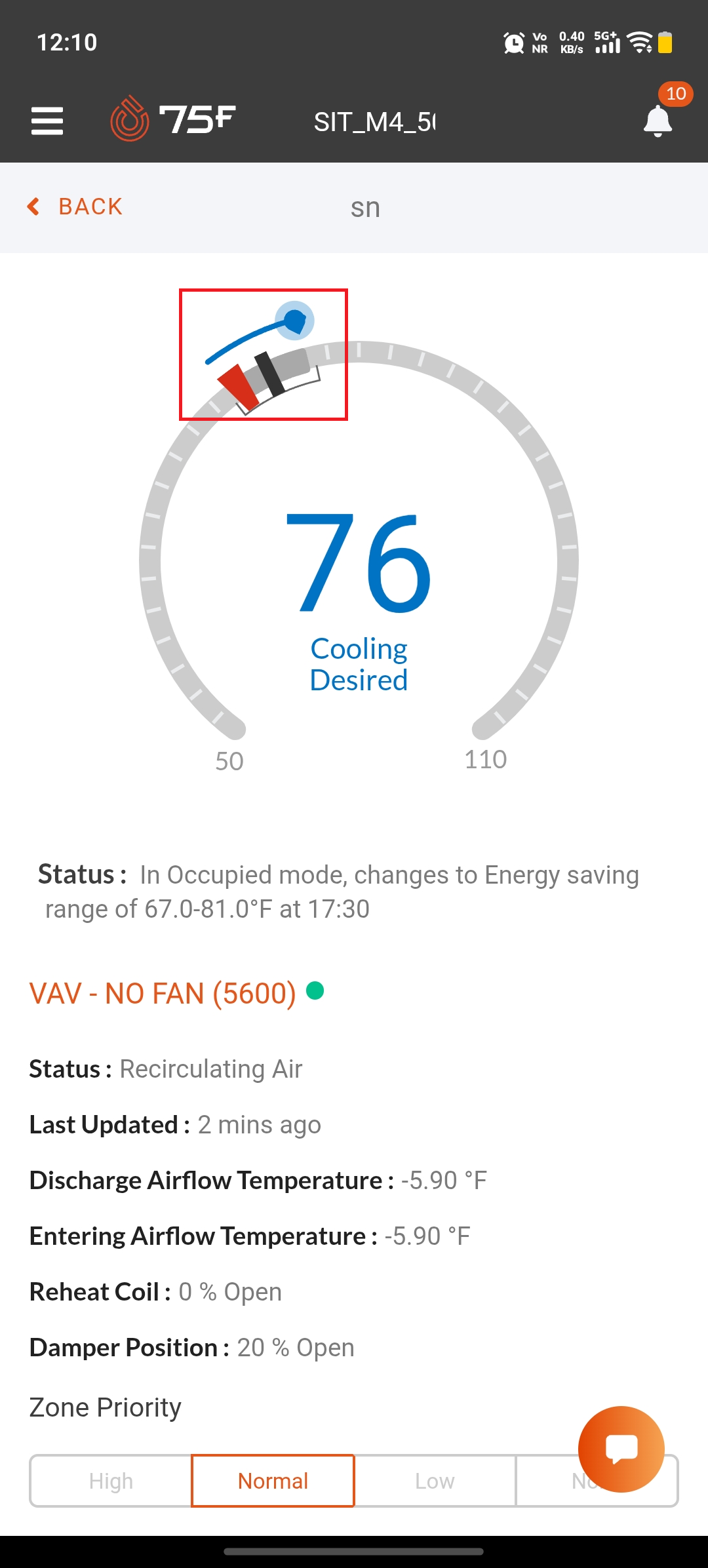

| Dual Setpoint modes in Occupant App

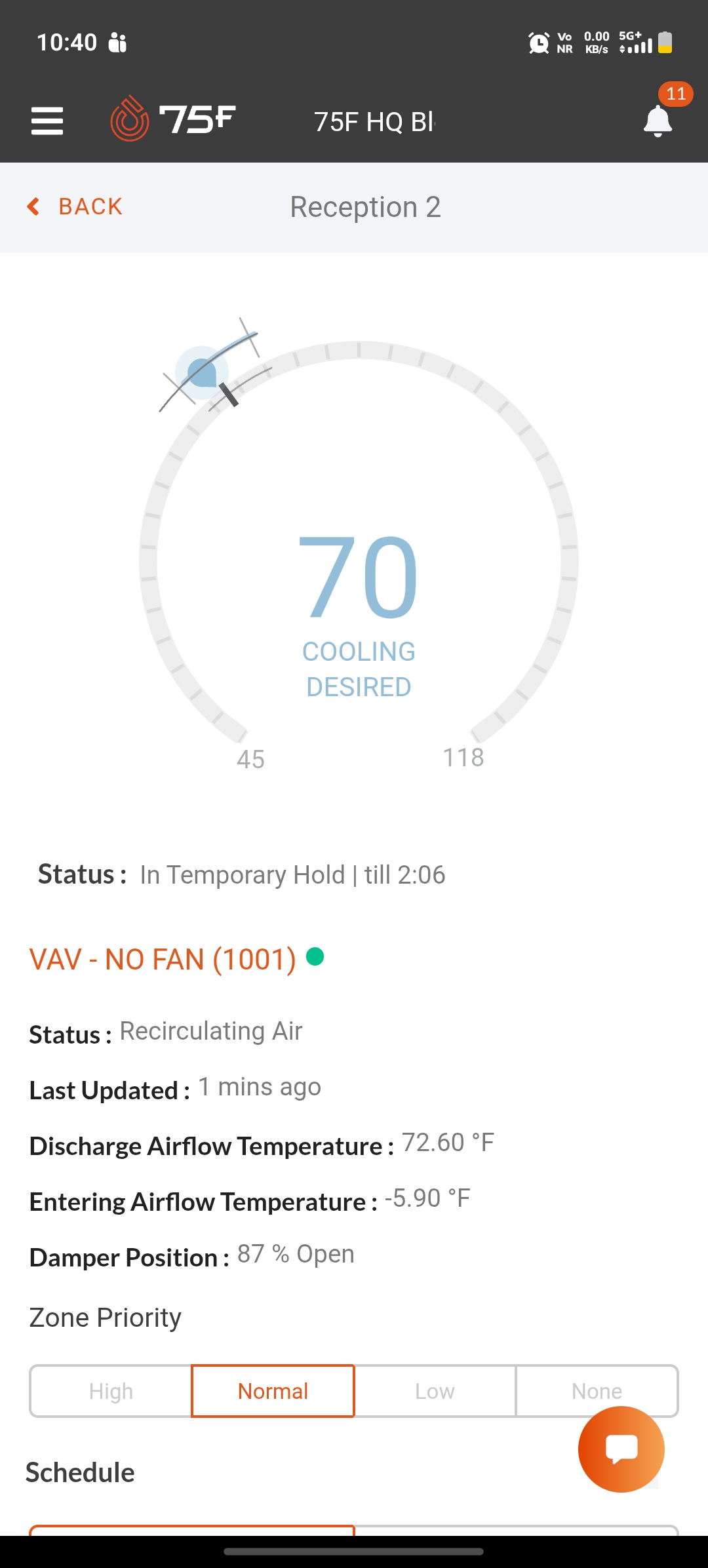

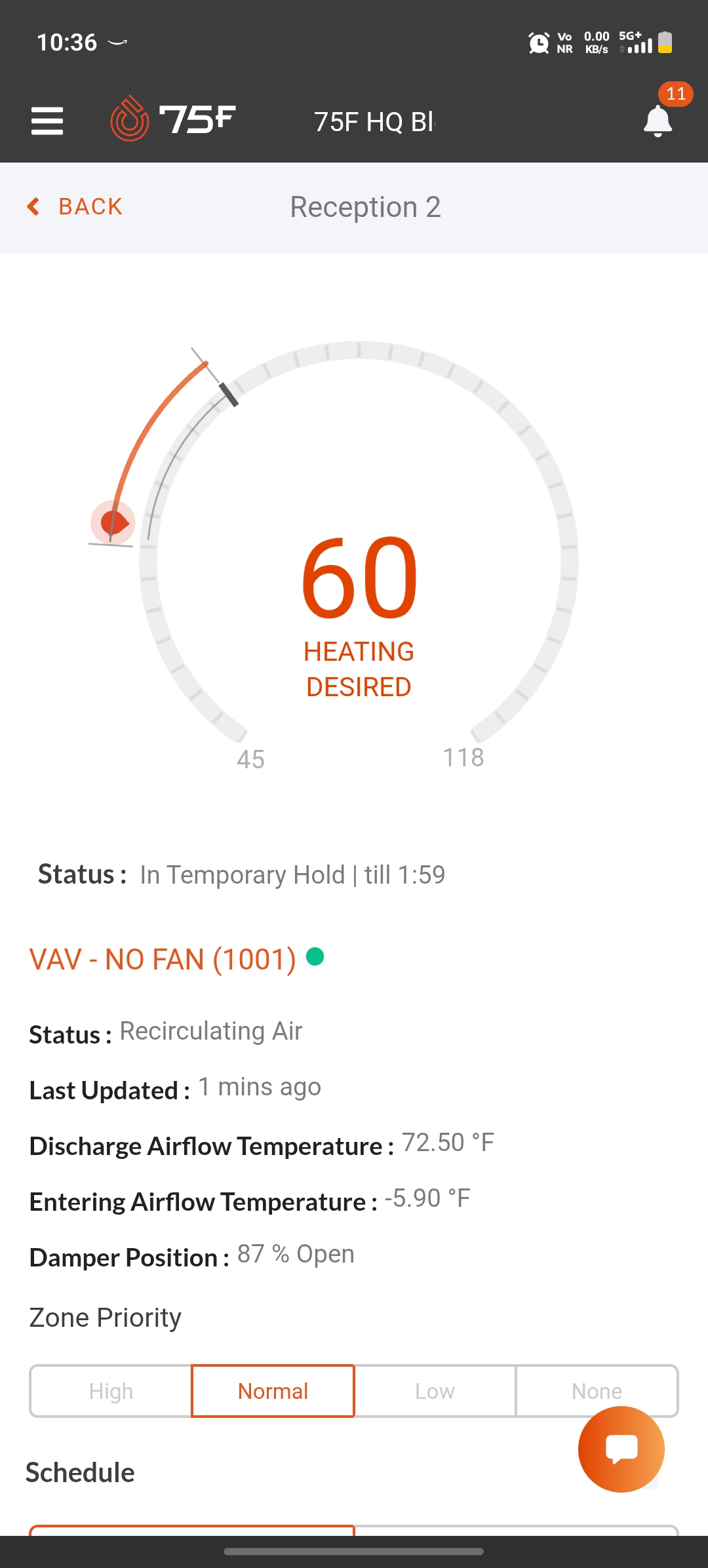

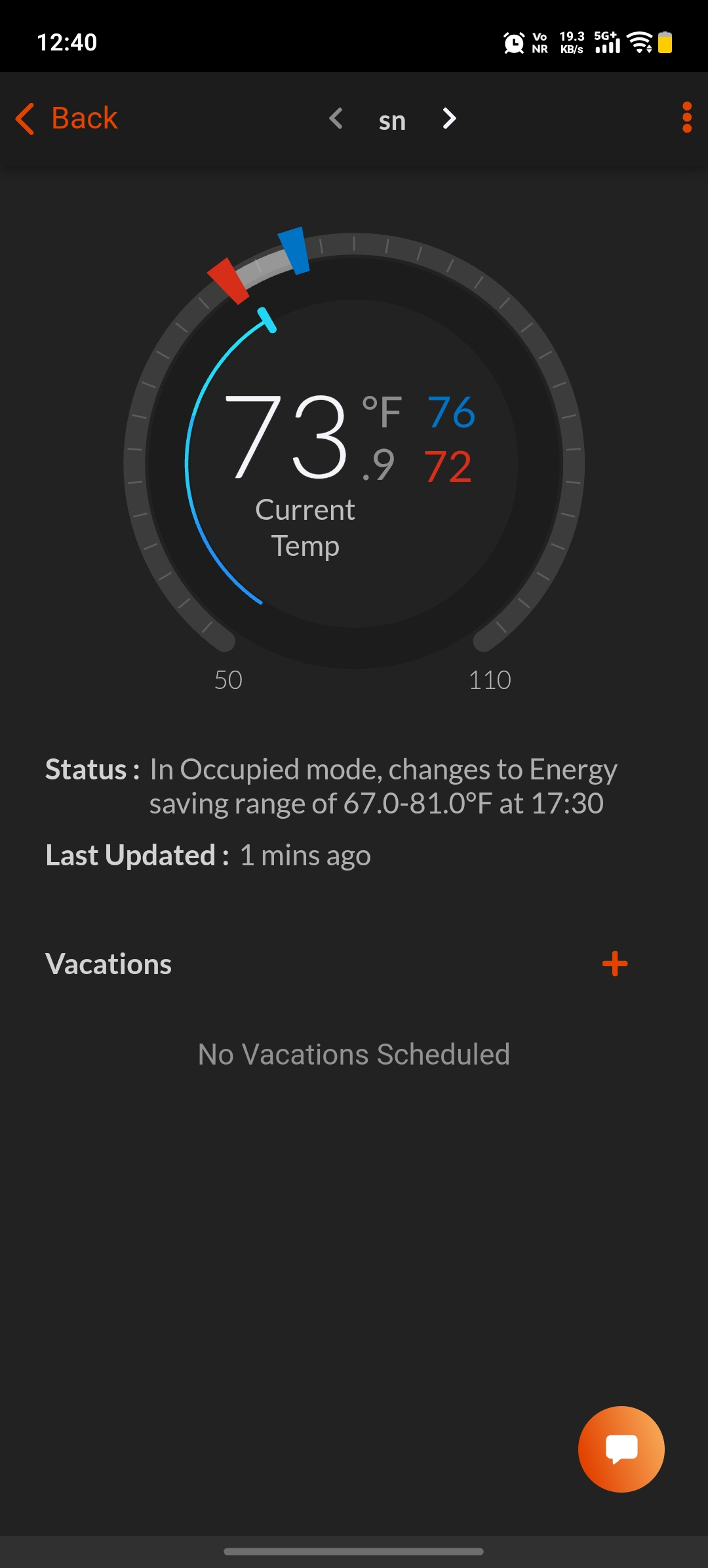

The interface displays:

• Current Room Temperature (shown in white)
• Heating Desired Temperature (Setpoint) (shown in orange)
• Cooling Desired Temperature (Setpoint) (shown in blue)
• Configured minimum and maximum temperature limits
• Draggable temperature control handle (shown in orange & blue)

When the occupant adjusts the control handle, the desired temperature updates in real time.
