Installer Auto-Commissioning Via Easy Street

| Introduction

Easy Street is a feature designed to automate functionality and logic checks for 75F CCUs. This automation eliminates the need for manual testing, ensures consistent results, and provides a comprehensive overview of the system's health.

This feature introduces a standardized, automated script for verifying the functionality and logic of profiles connected to the 75F CCU. It eliminates the need for manual testing by commissioning engineers.

Installers can initiate a backend script from the Easy Street page to perform installation tests for a selected CCU. The script checks all profile points and logic, providing an automated score for the tested CCU.

| Accessing Easy Street

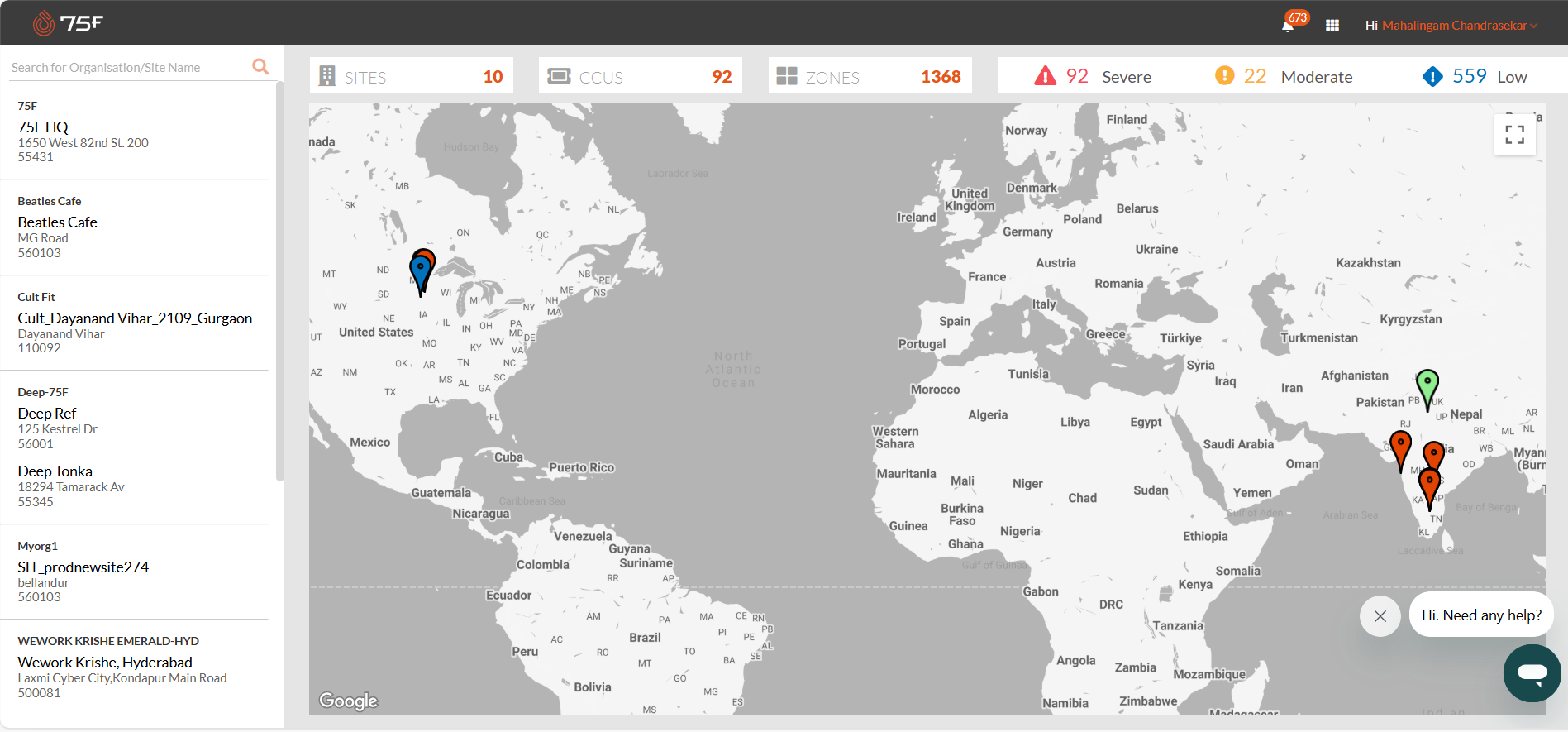

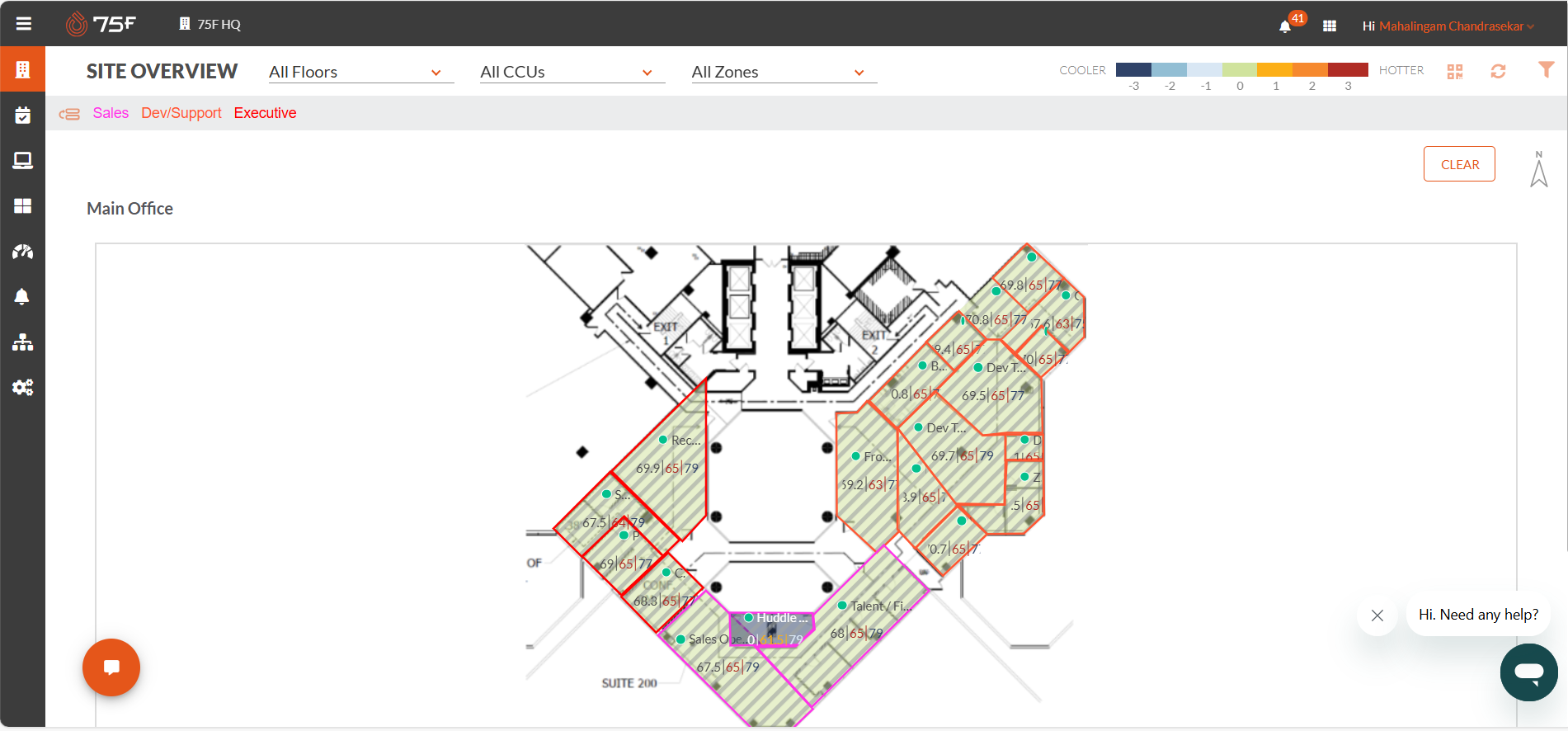

• Log in to the Facilisight Portal.

• Select the site in scope.

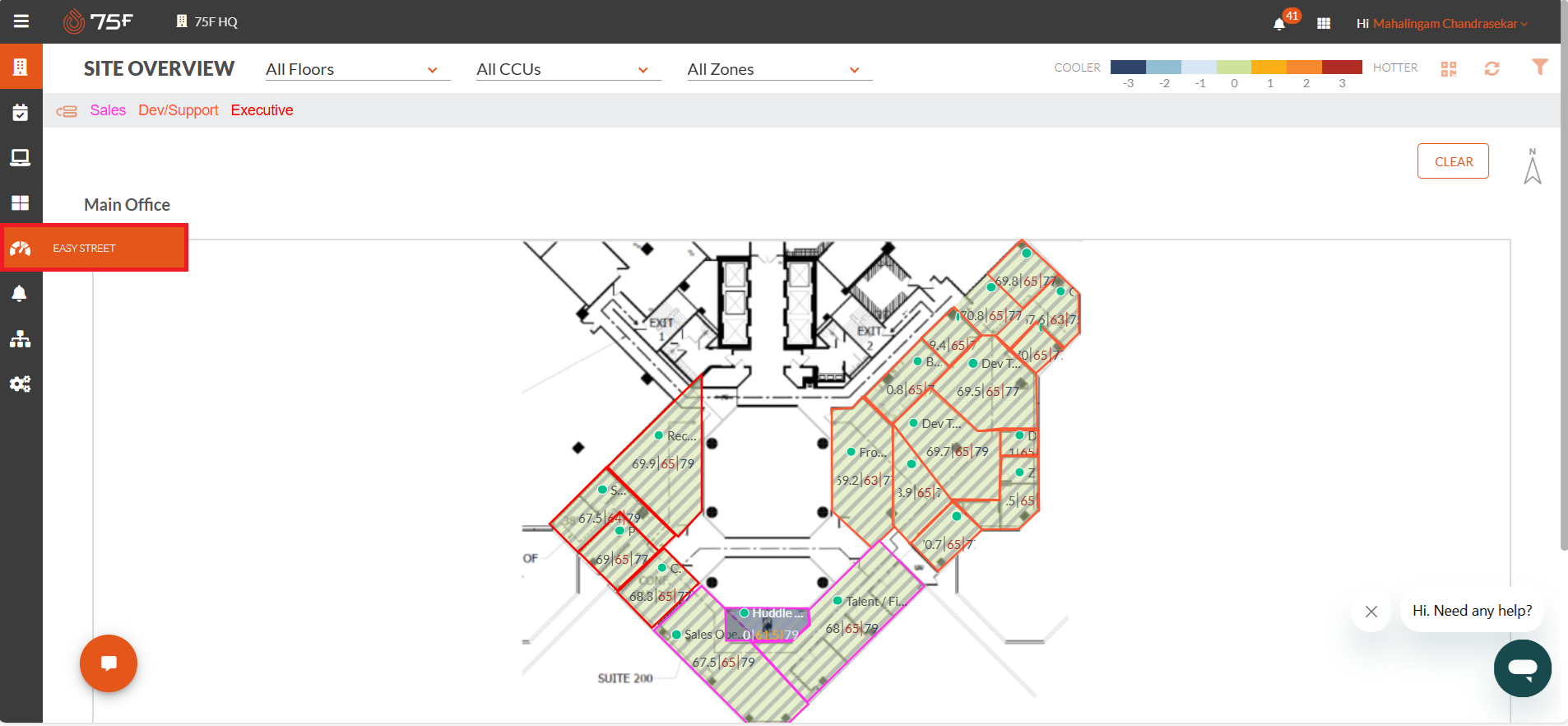

• Click on Easy Street.

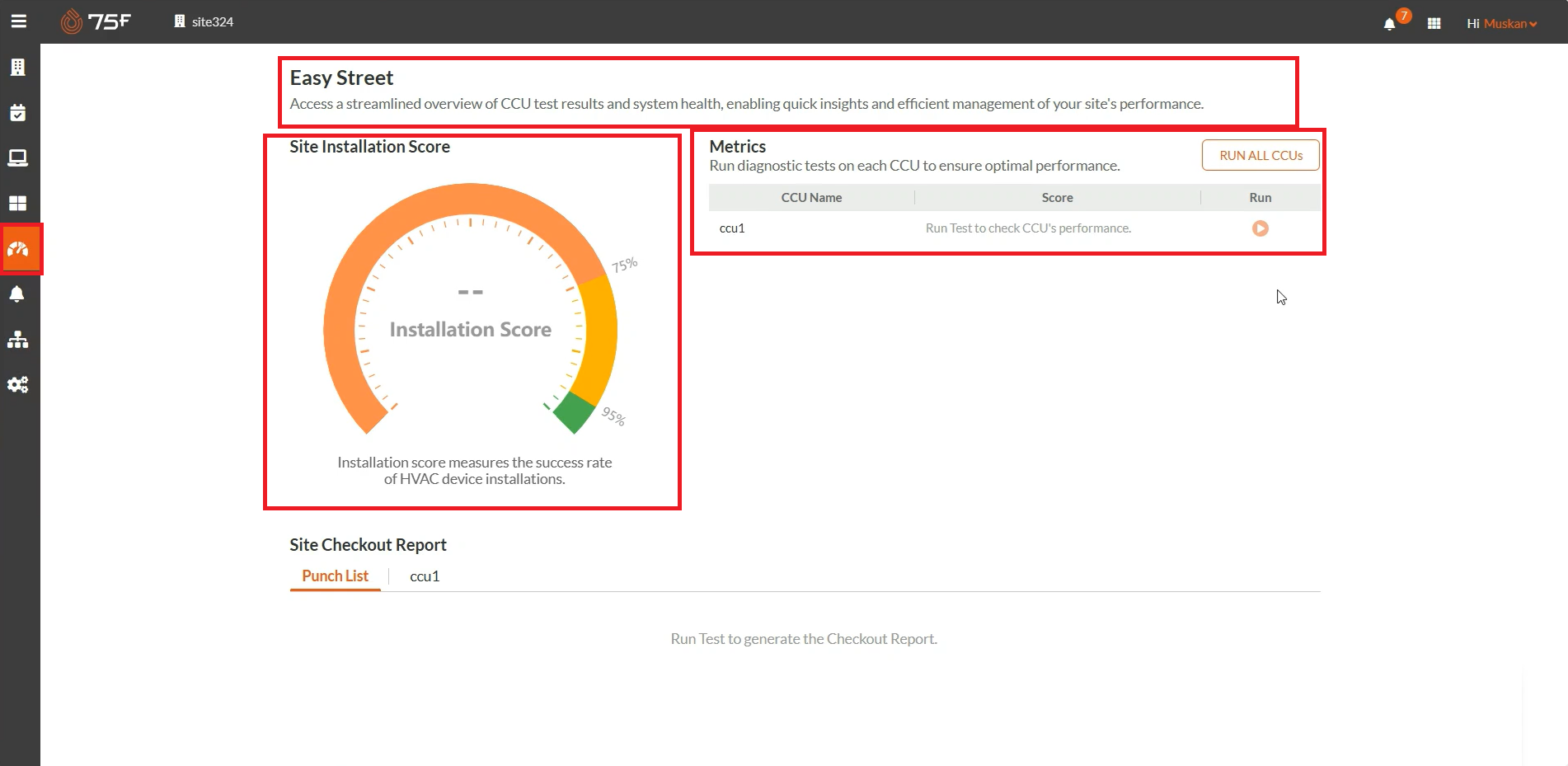

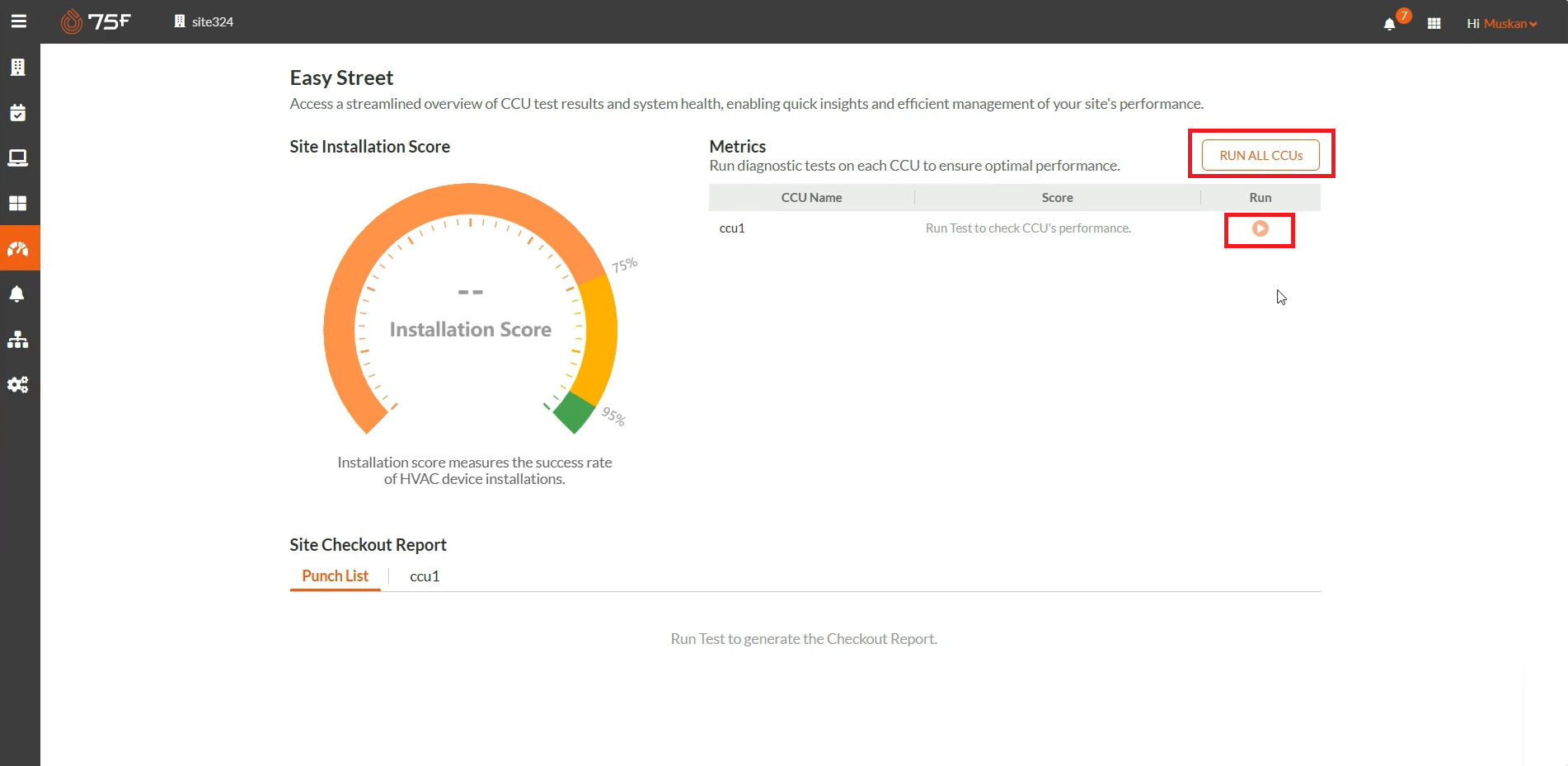

The Easy Street Home Page is displayed, as below, with information about the tool, the installation score meter, and metrics sections.

| Initializing Tests Via Easy Street

Users can now initialize the commissioning tests from the screen.

To start the tests

• Click Run All CCUs to start the test for all the CCUs in the site

or

• Click Run   icon to start the tests for a particular CCU in the site.

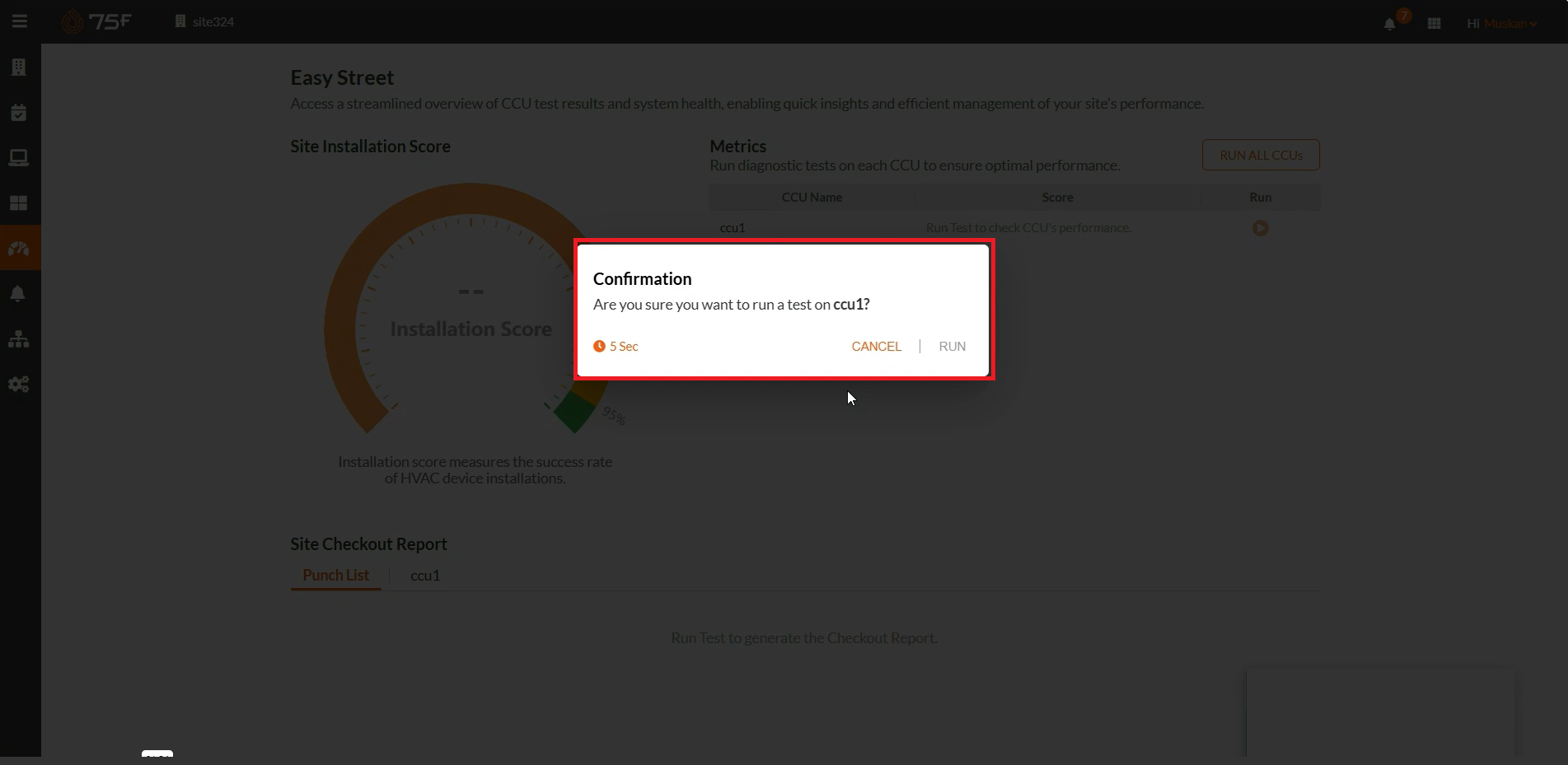

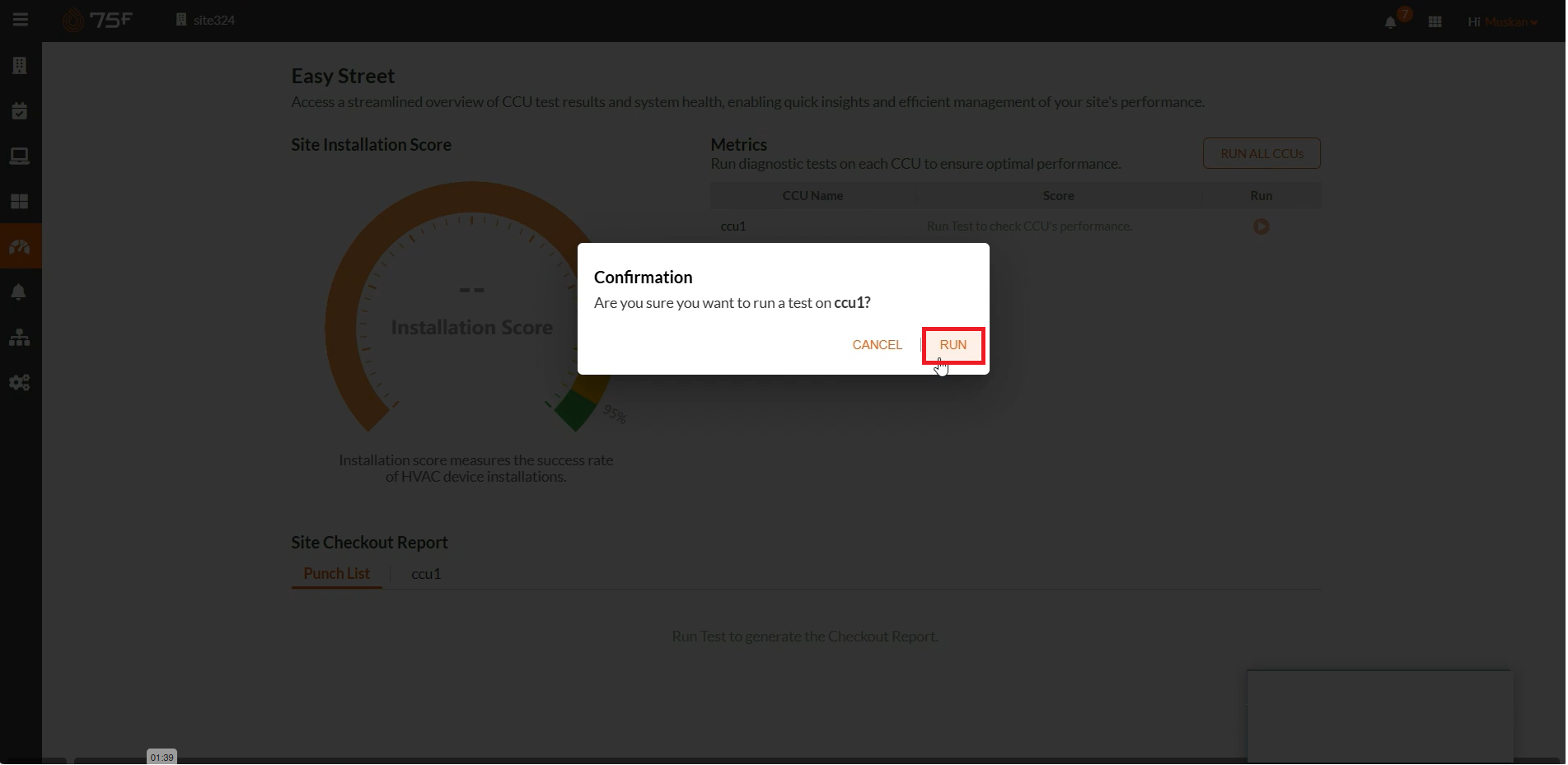

A confirmation window with the timer is dieplayed.

• Click Run to confirm.

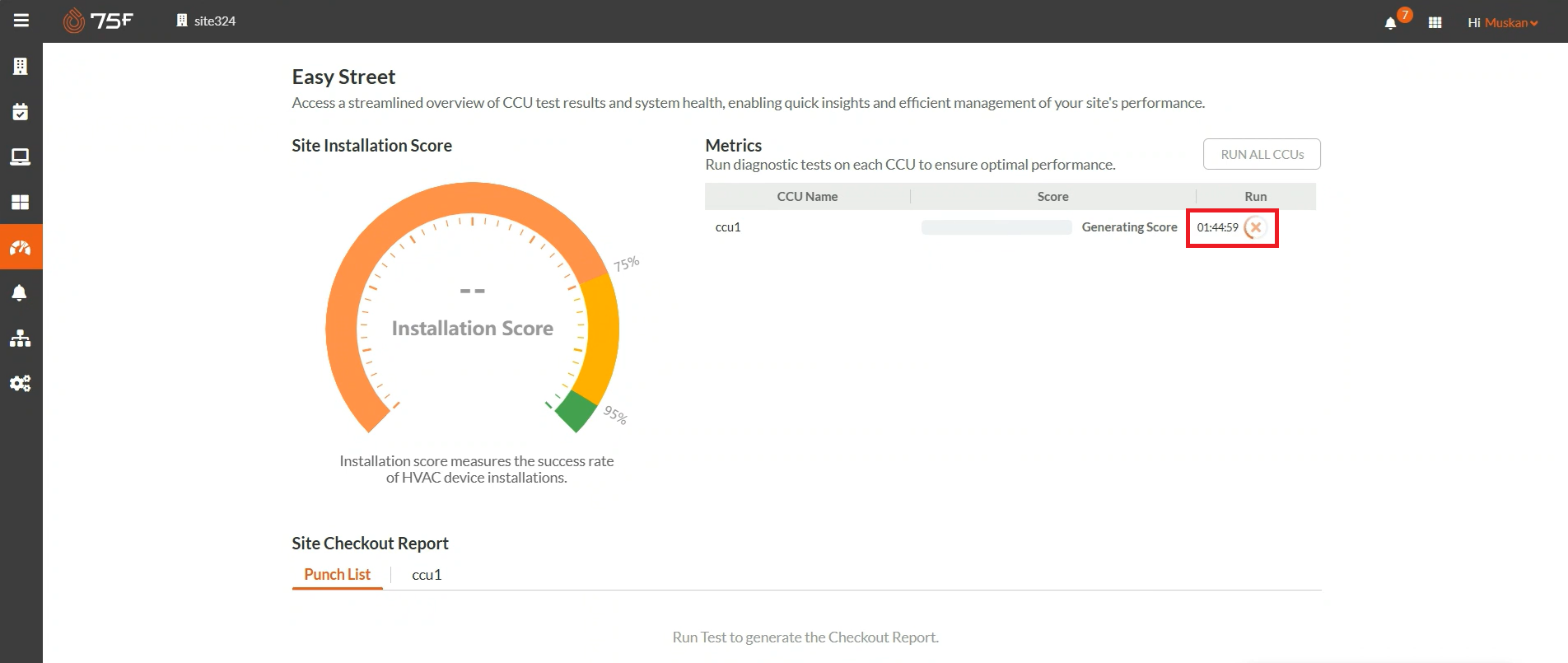

The commissioning tests have been initialized, and their progress can be visualized as shown below.

The progress bar also provides details on the time required for test completion.

| Verifying Tests

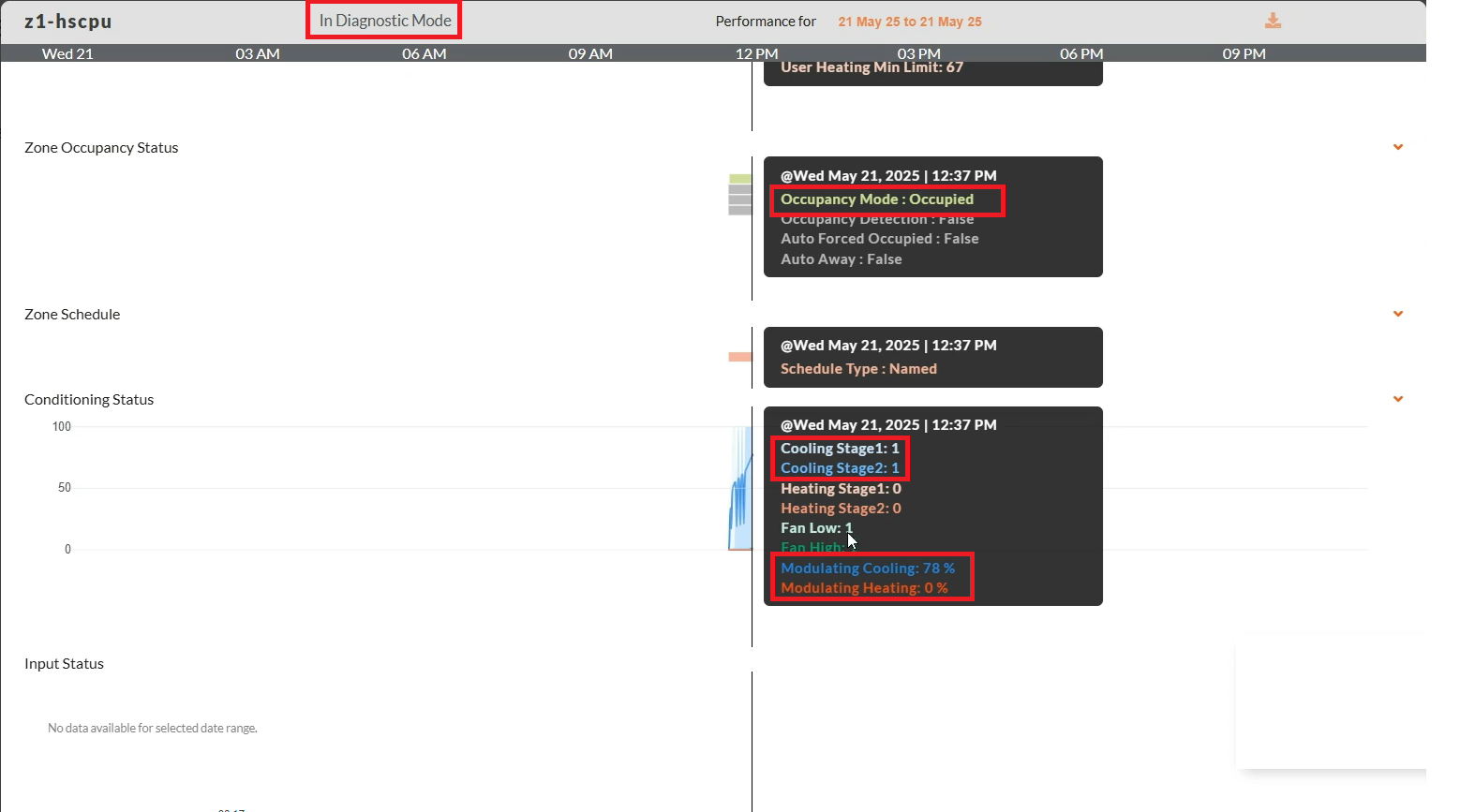

The test being run can be verified in the widget screen for the system and zones, as in Diagnostic Mode.

The variables used for the tests can also be visualized in the information in the widgets.

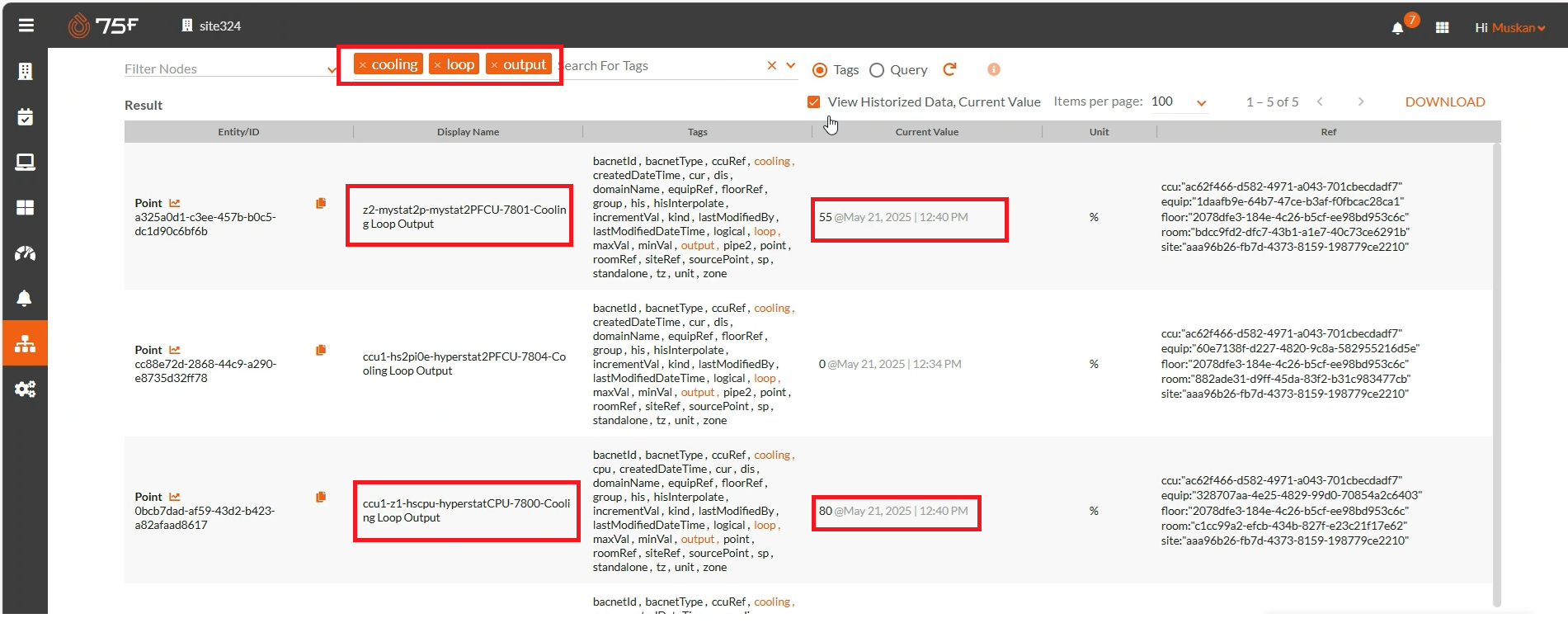

The inference from the rest can be cross-checked in site explorer as below.

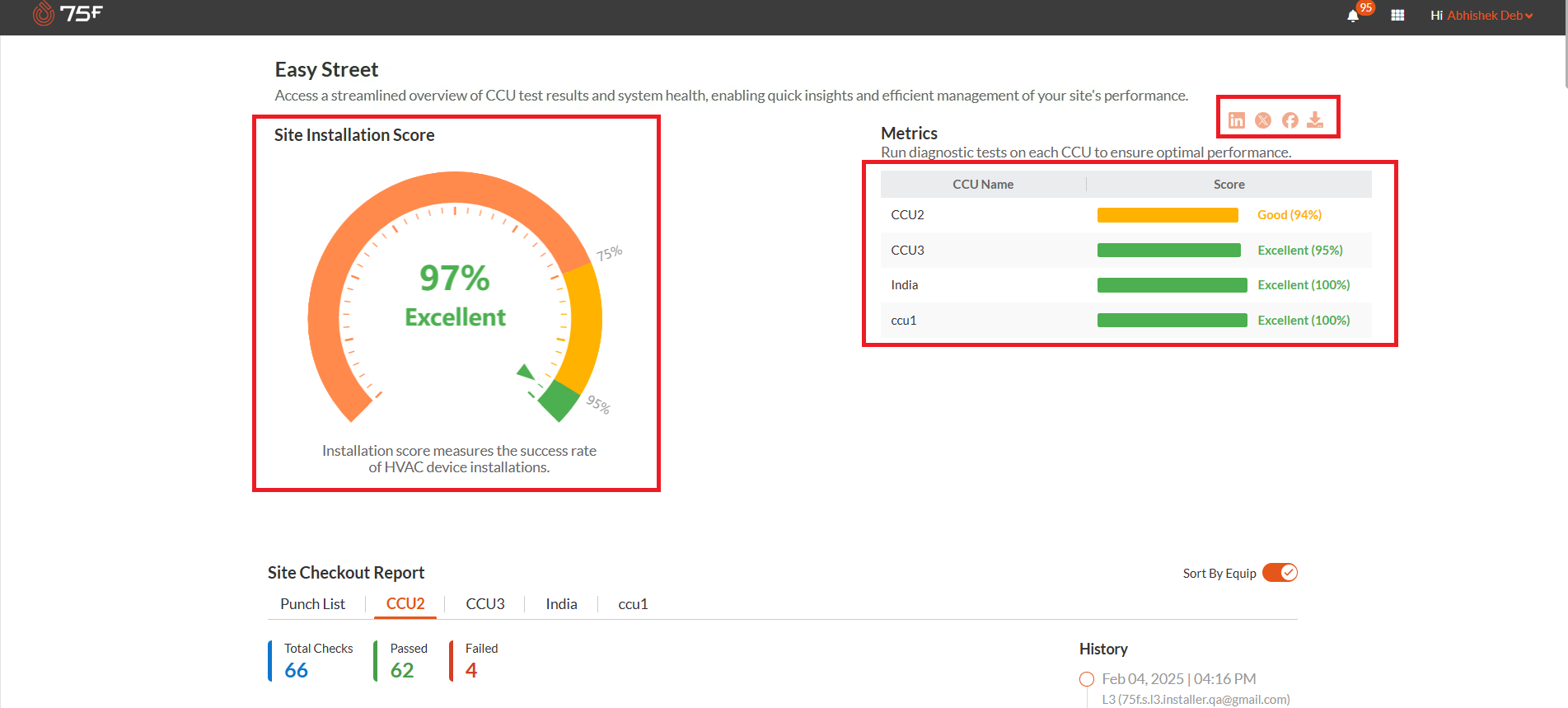

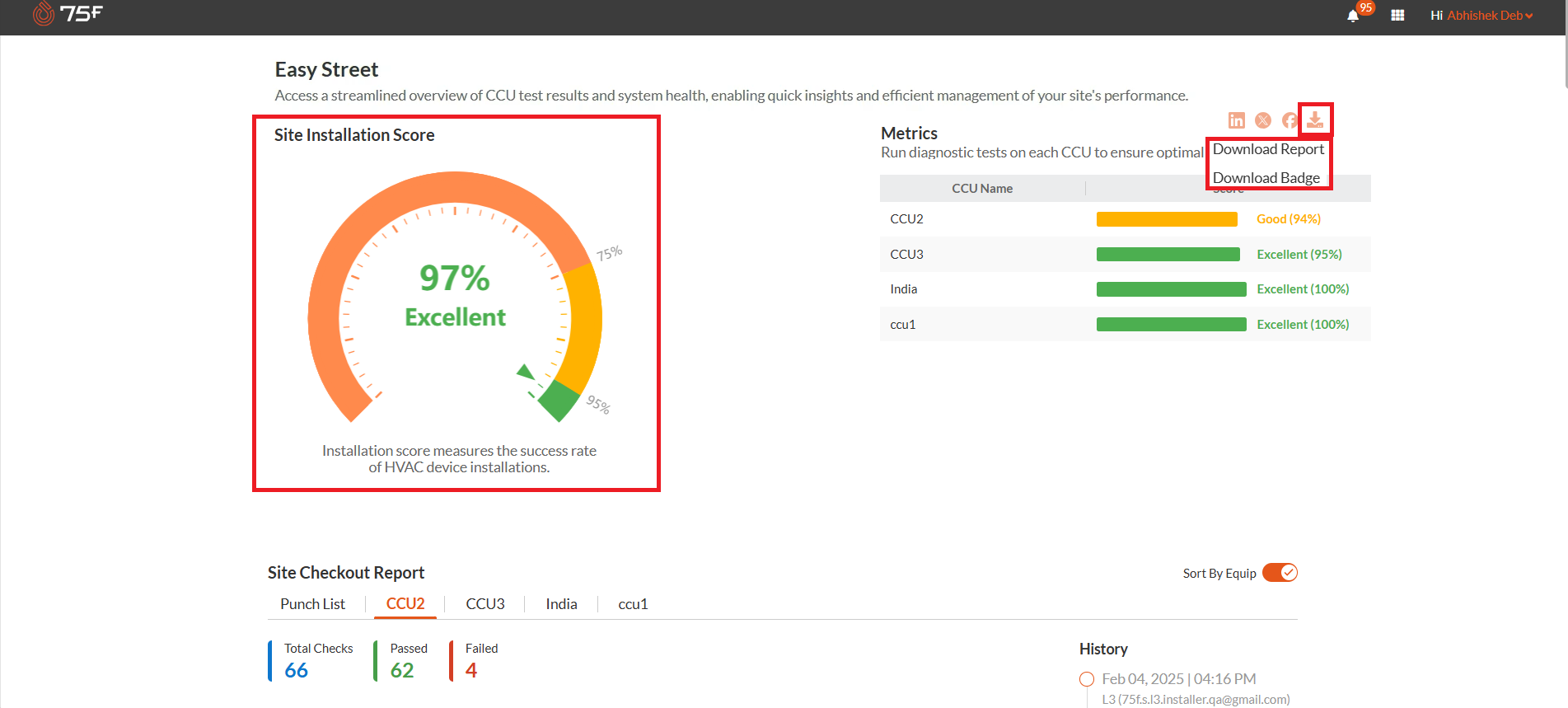

Once the tests are done, the test scores and metrics are displayed, along with the options to download and share the test report details.

| Download Report

• Click the Download report to download the report in a PDF format.

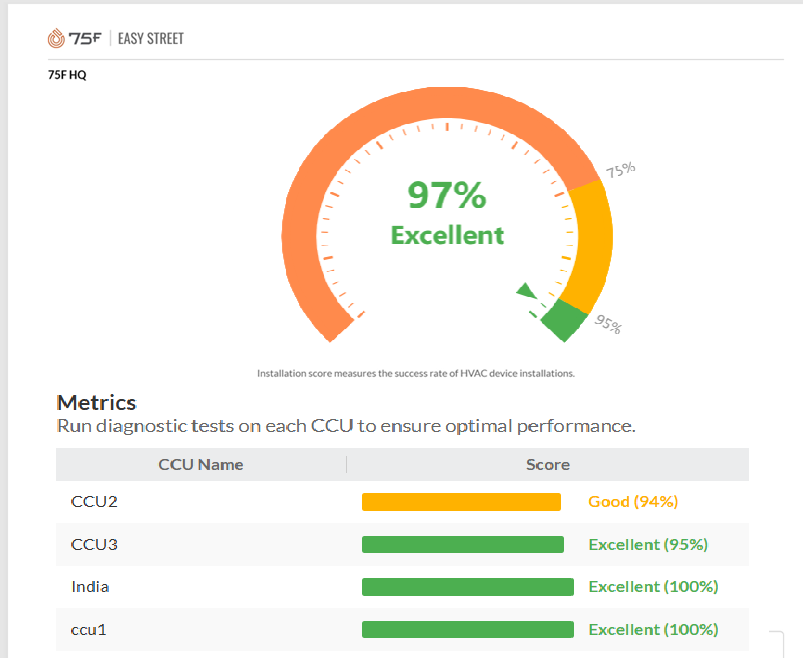

The downloaded PDF is displayed as below.

| Download Badge

• Click the Download badge to download the badge for the installation score in .jpg format.

The downloaded badge resembles that shown below.

| Publish Badge

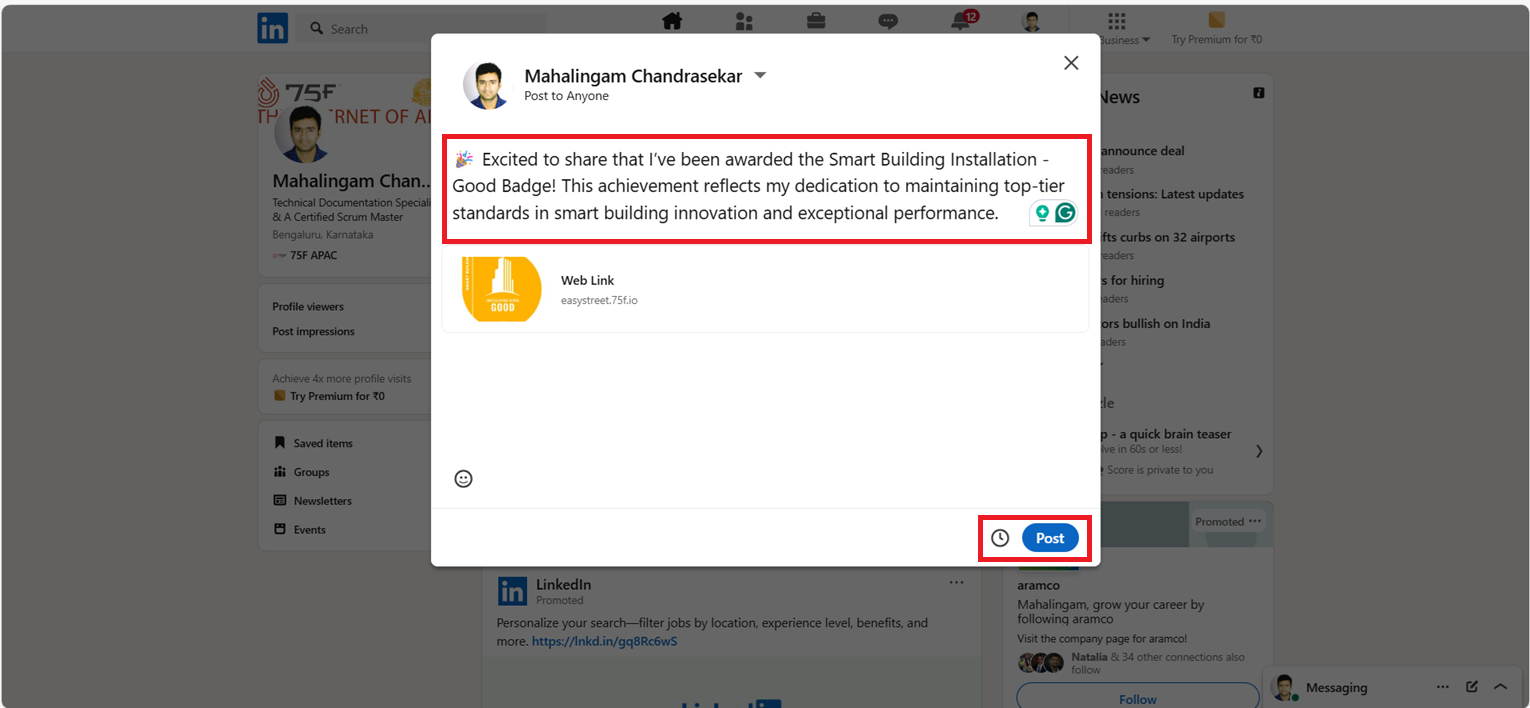

You can share the installation score badgers over social media using the provided options.

• Click the corresponding social media icon.

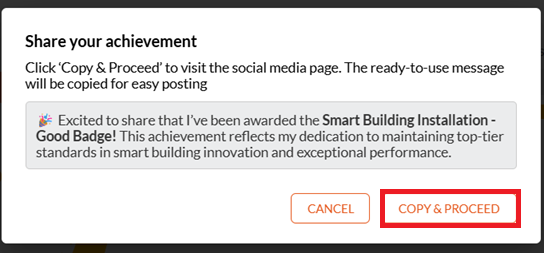

• Click Copy & Proceed in the pop-up window to copy message for the post.

• Click the post in the pop-up window to post the site score badge with the copied message.
