Site Installation Report Via Easy Street - Facilisight App

| Overview

Easy Street is an automated commissioning tool that validates the functionality and logic of profiles connected to a 75F CCU. By replacing manual testing with a standardized backend validation script, Easy Street helps ensure consistent results, reduces commissioning time, and provides a comprehensive assessment of system health.

Users can initiate an installation test from the Easy Street page for a selected CCU. The test automatically evaluates profile points and control logic, then generates a site installation score that reflects the accuracy and completeness of the configuration.

Facility managers and other authorized users can review these scores and test results to verify installation quality and identify potential issues.

Easy Street can be accessed from the Facilisight mobile application to view site installation scores, validation results, checkout reports, and other Easy Street features.

| Access Easy Street

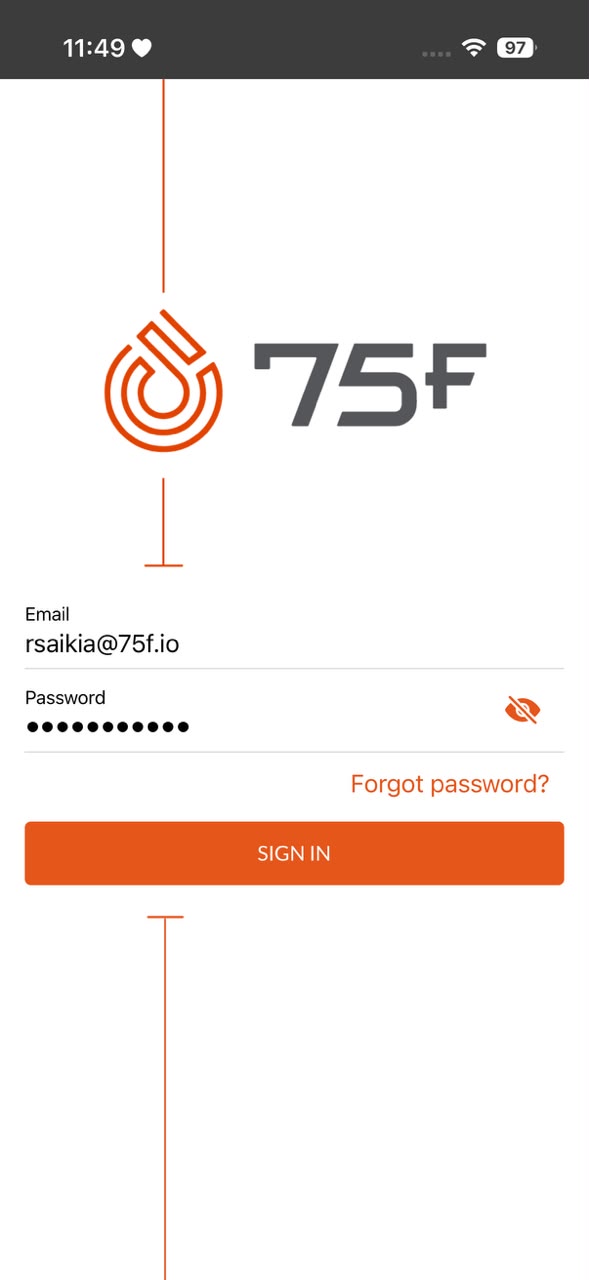

• Log in to the Facilisight mobile application using your credentials.

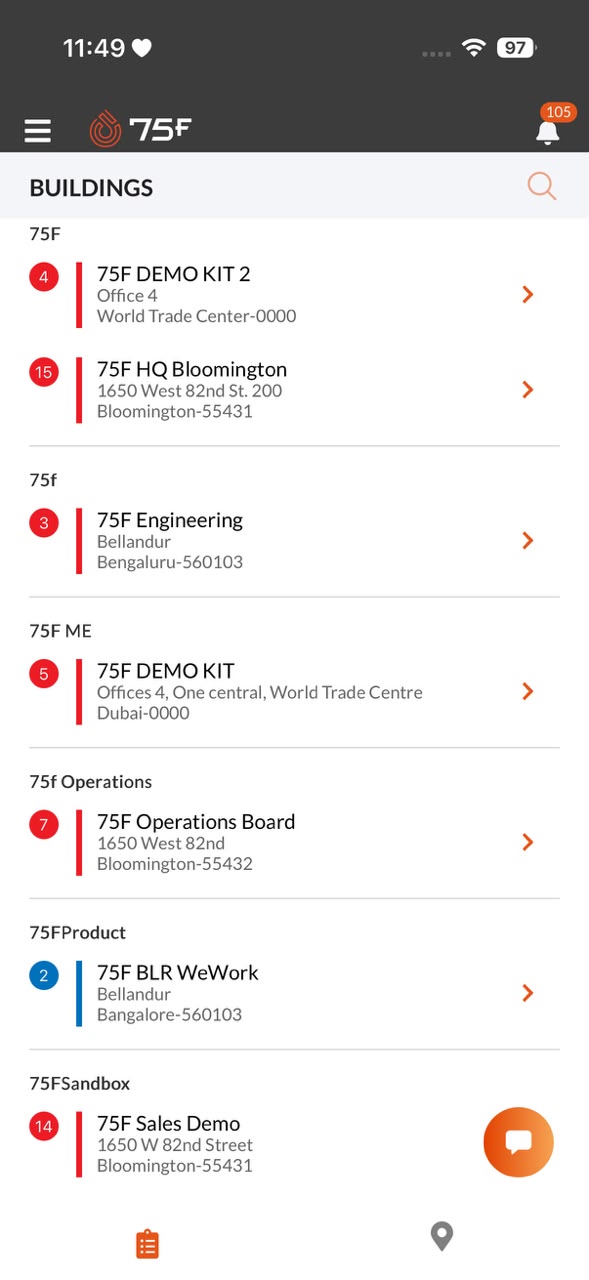

• From the Buildings screen, select the desired Site.

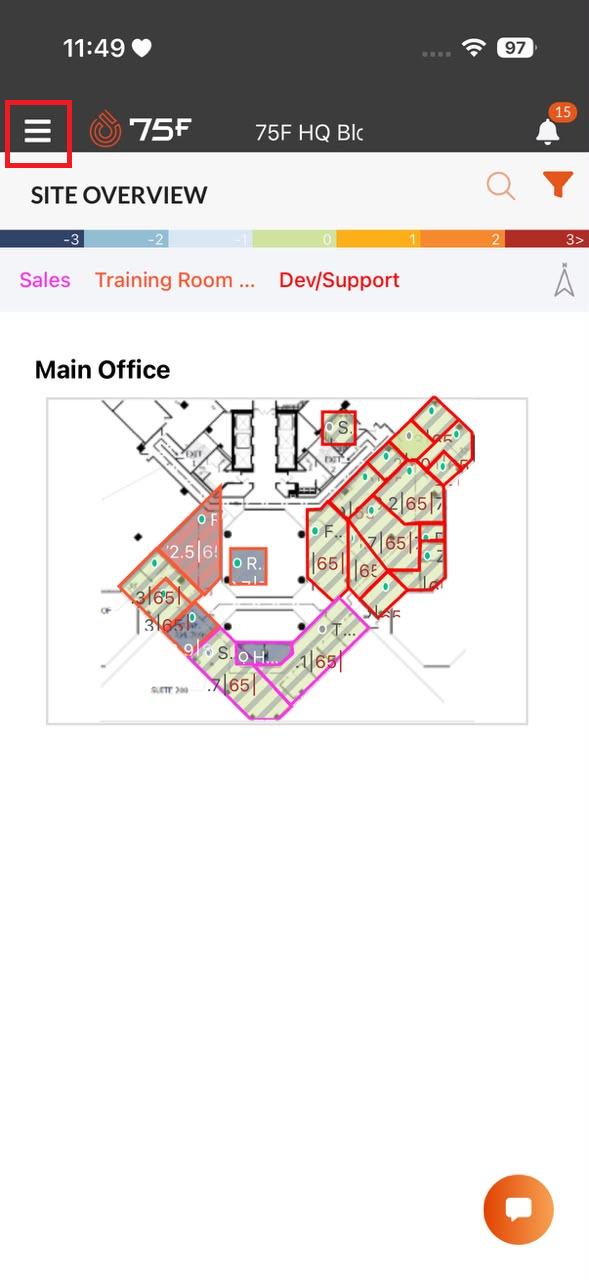

• On the Site Overview page, tap the Menu icon (☰) located in the upper-left corner.

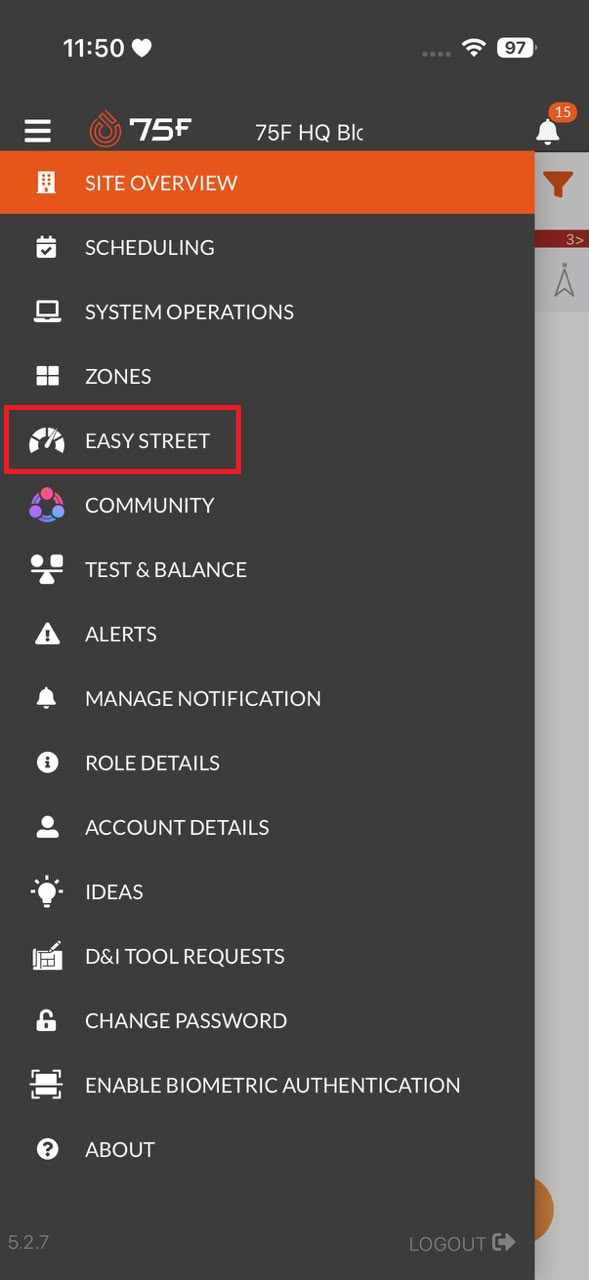

• Select Easy Street from the navigation menu.

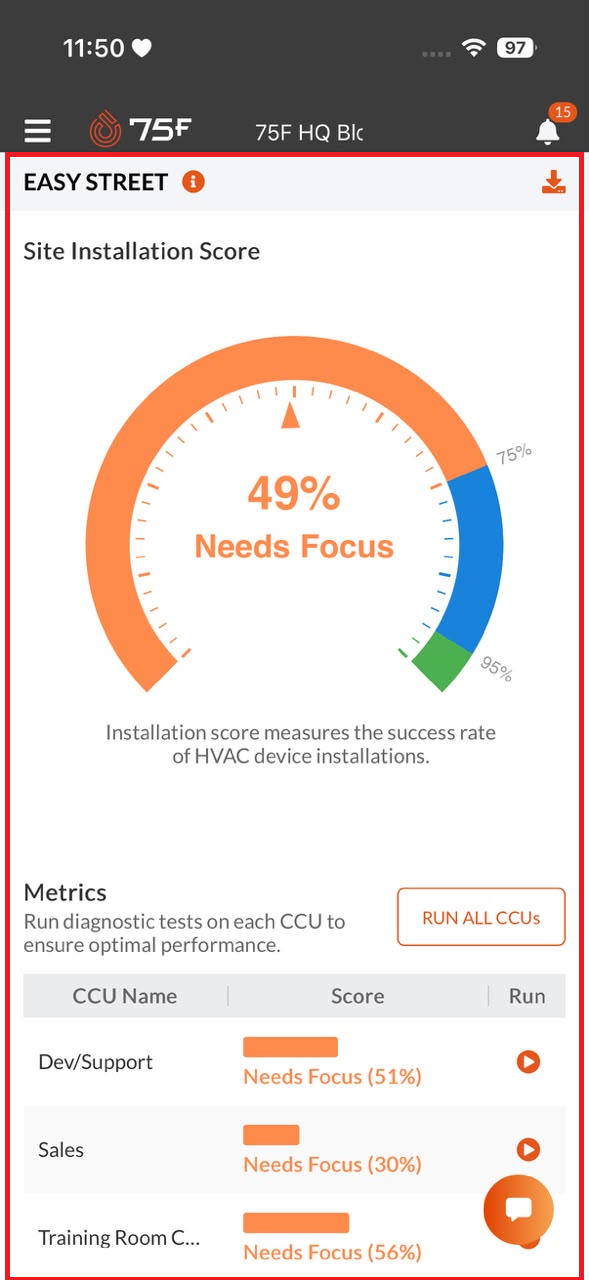

• The Easy Street Home Page is displayed.



| Site Installation Score

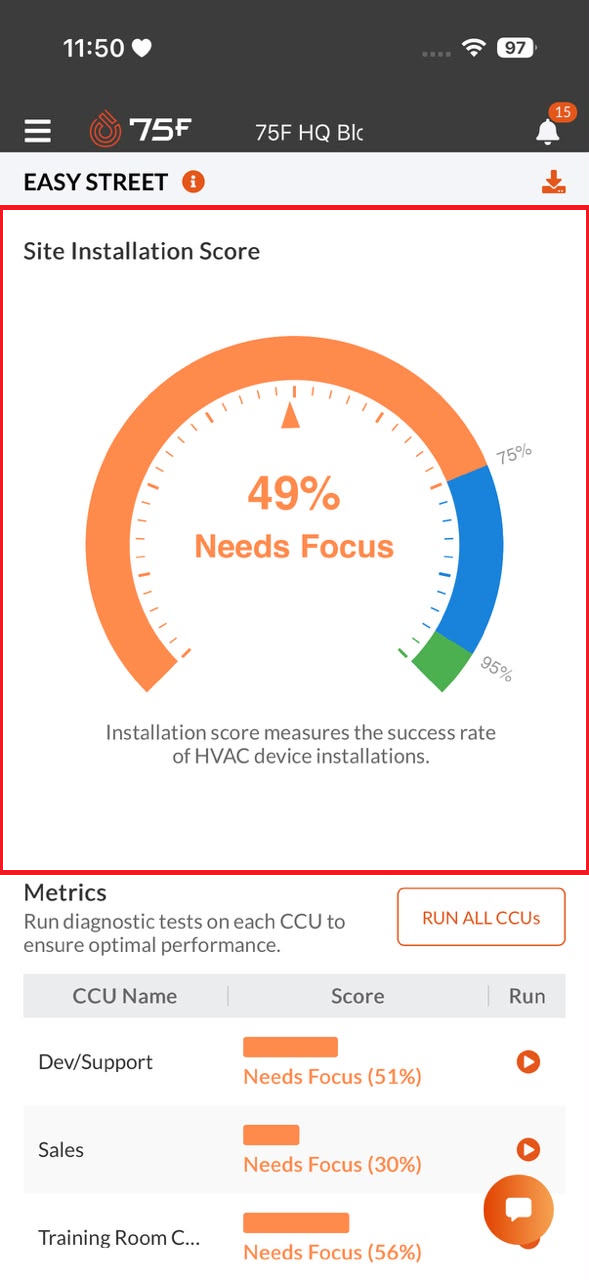

The Site Installation Score provides an overall assessment of the quality and completeness of HVAC device installations across Zone and System Profiles. The score is calculated based on the results of automated Easy Street validation checks and is displayed as a gauge chart on the left side of the page.

The gauge indicates the percentage of successful checks performed on the selected site's devices and control logic, helping users quickly evaluate installation health and identify areas that require attention.

Higher scores indicate that more validation checks have passed, while lower scores suggest configuration, connectivity, or logic issues that should be reviewed and resolved before site handoff.

Score Indicators

Metrics

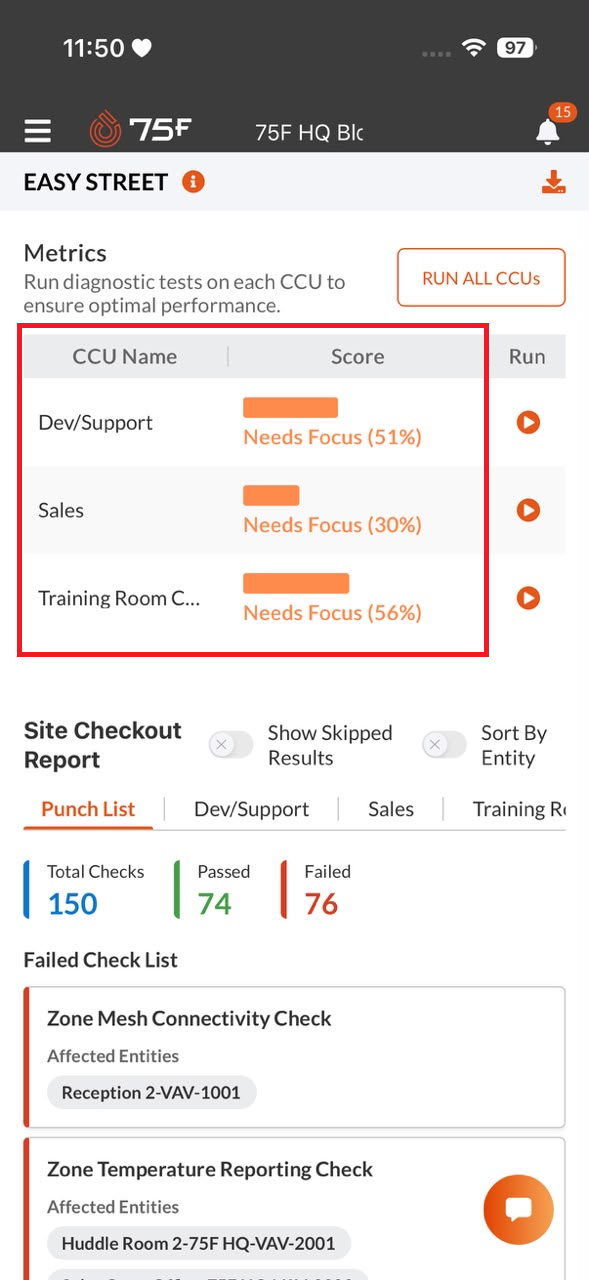

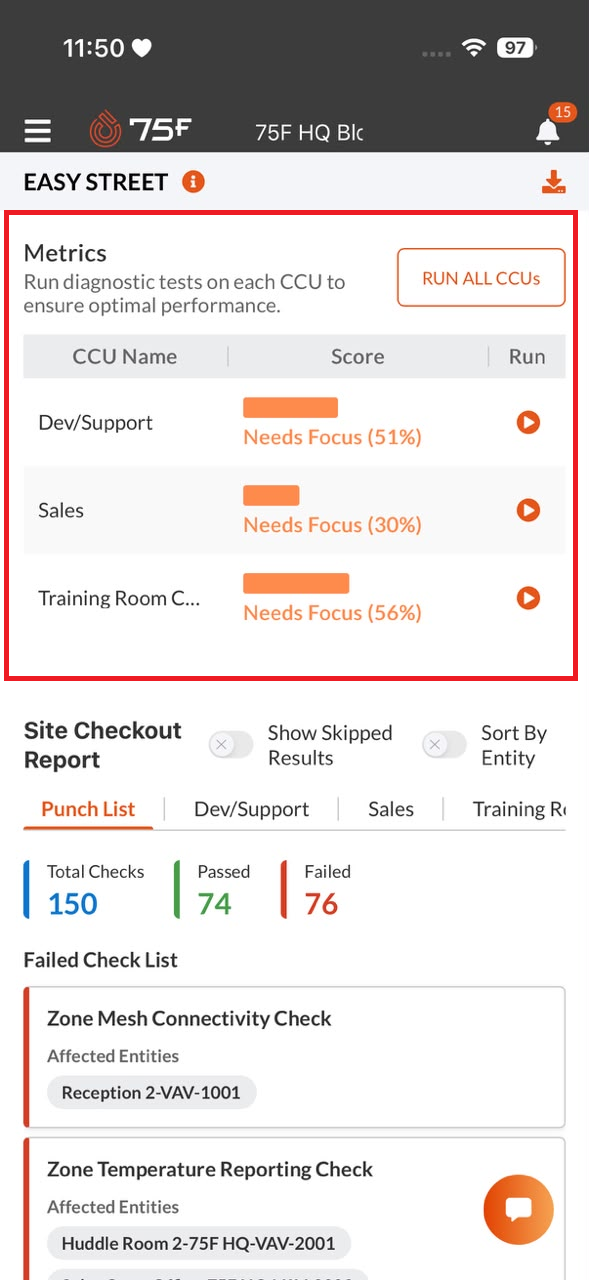

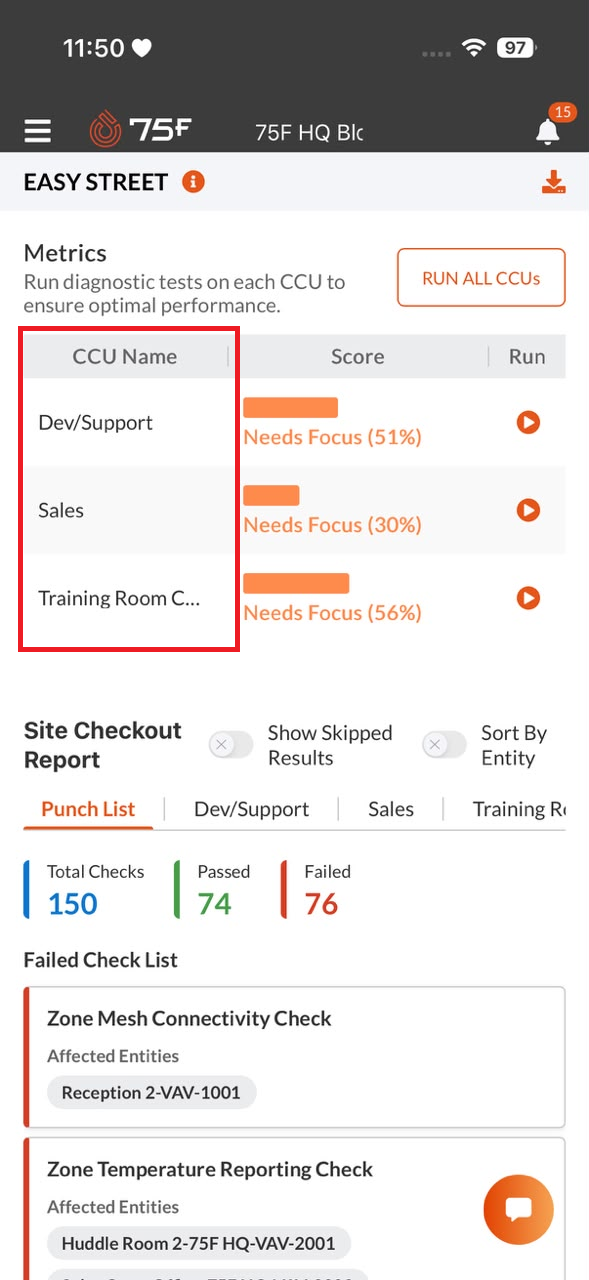

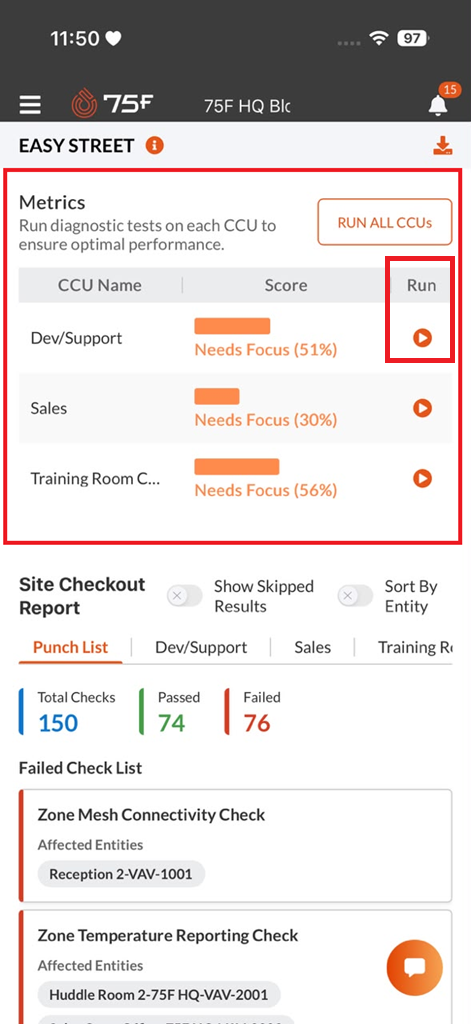

The Metrics section displays all CCUs associated with the selected site along with their individual installation scores. These scores are generated based on the results of Easy Street automated validation tests and provide visibility into the performance and health of each CCU.

Metrics Table:

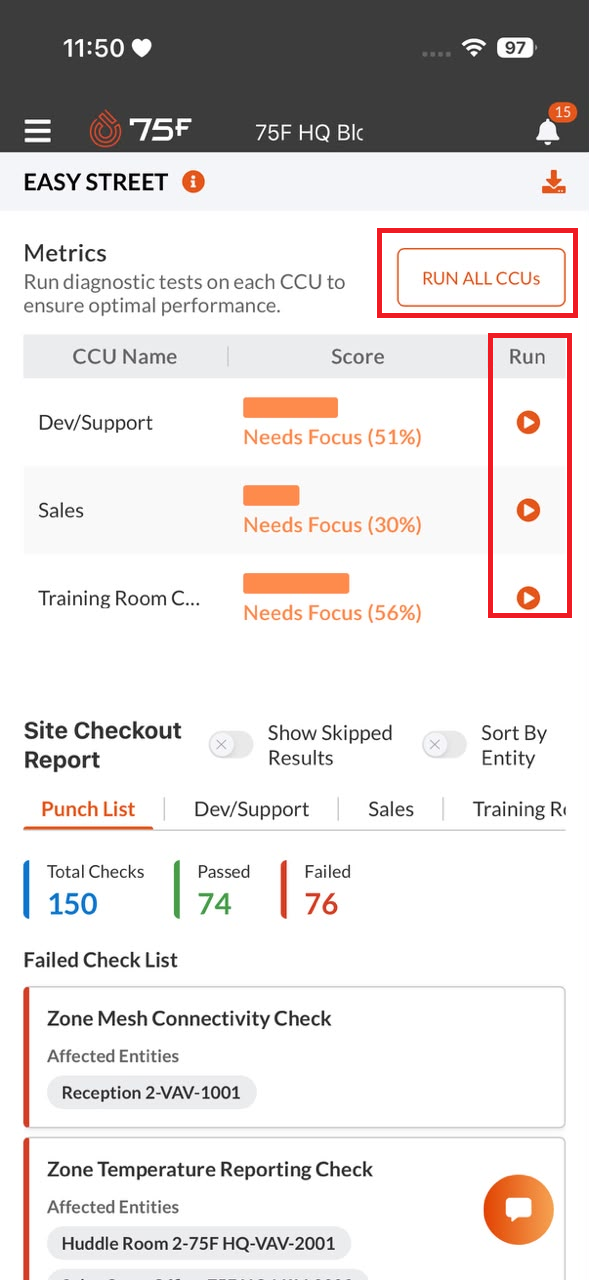

The CCU Metrics list is populated automatically when a site is selected. Users can run diagnostic checks for all CCUs using the Run All CCUs option or initiate a test Run for an individual CCU directly from the list.

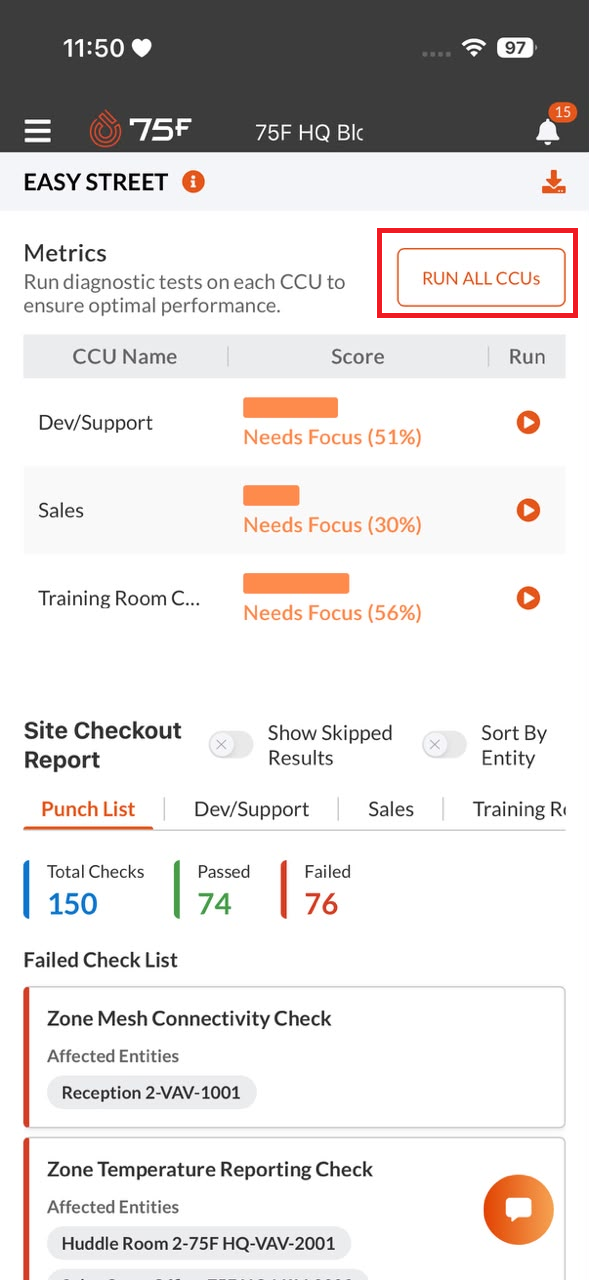

The Run All CCUs option allows users to initiate Easy Street validation tests for all CCUs associated with the selected site simultaneously.

To run tests for all CCUs:

• Click Run All CCUs in the Metrics section.

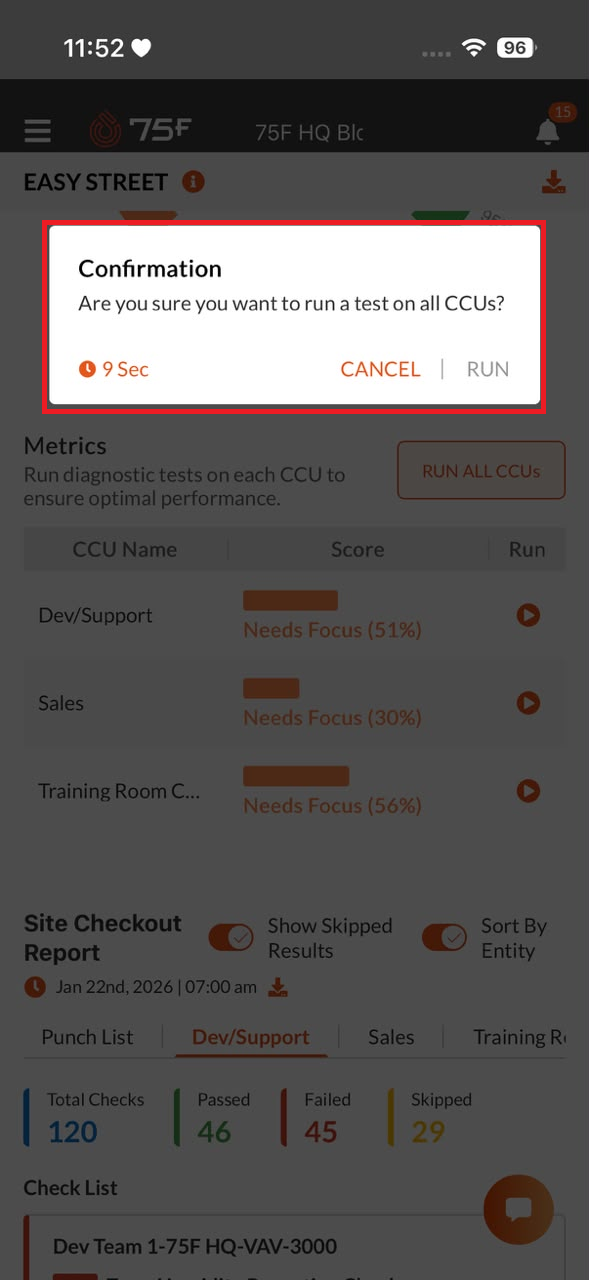

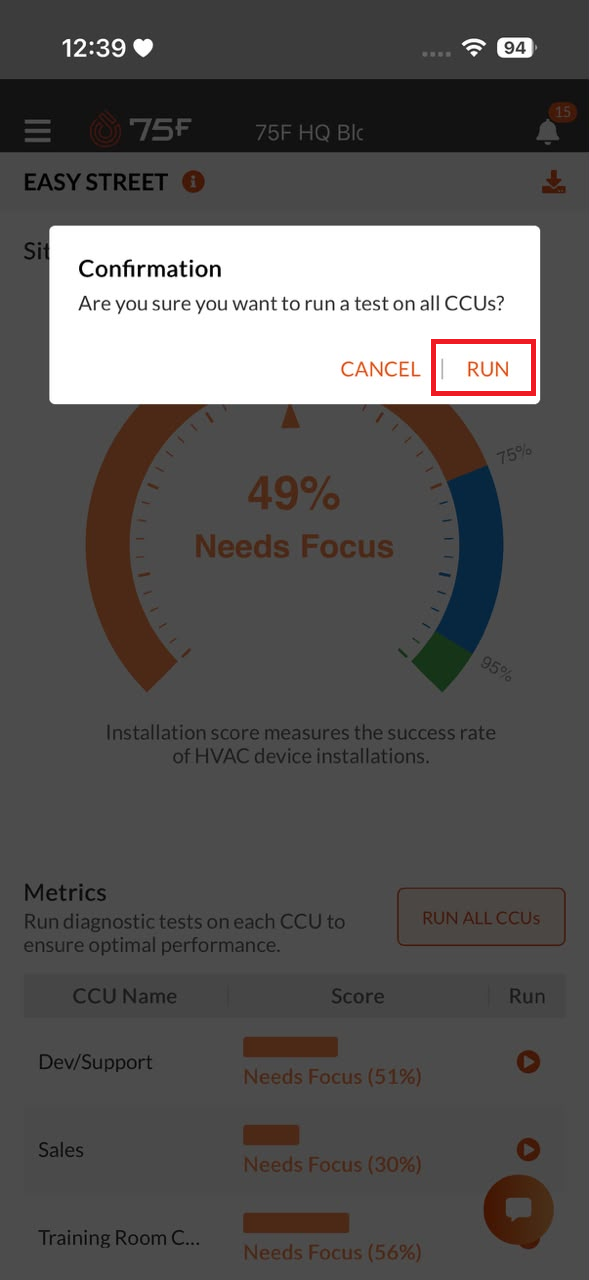

• A Confirmation dialog box appears asking whether you want to run tests on all CCUs.



• A 10-second countdown timer is displayed to prevent accidental test execution.



• Once the countdown completes, the Run button becomes available.



• Click Run to start validation tests for all CCUs in the selected site.



The system then initiates the Easy Street test workflow for each CCU and begins collecting validation results.

Note: Running tests for all CCUs may take several minutes depending on the number of CCUs associated with the site. Users can monitor the status and results from the Progress section for each CCU.

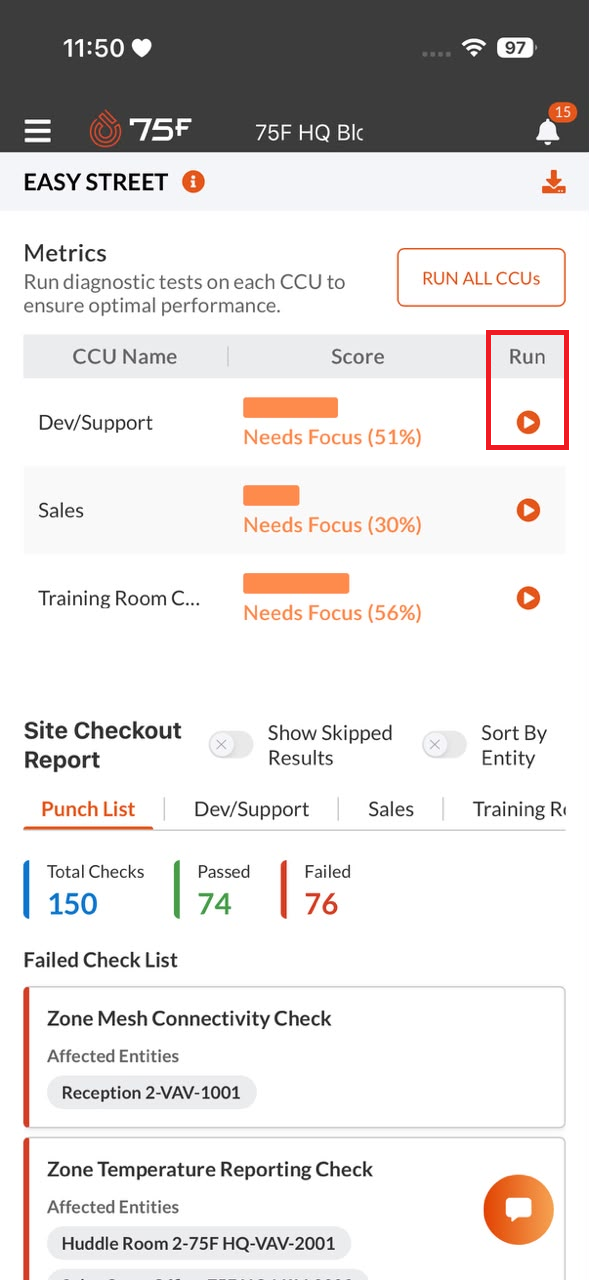

The Run option allows users to initiate an Easy Street validation test for a specific CCU.

To run a test for an individual CCU:

• In the Metrics section, locate the desired CCU.



• Click the Run icon corresponding to the CCU.

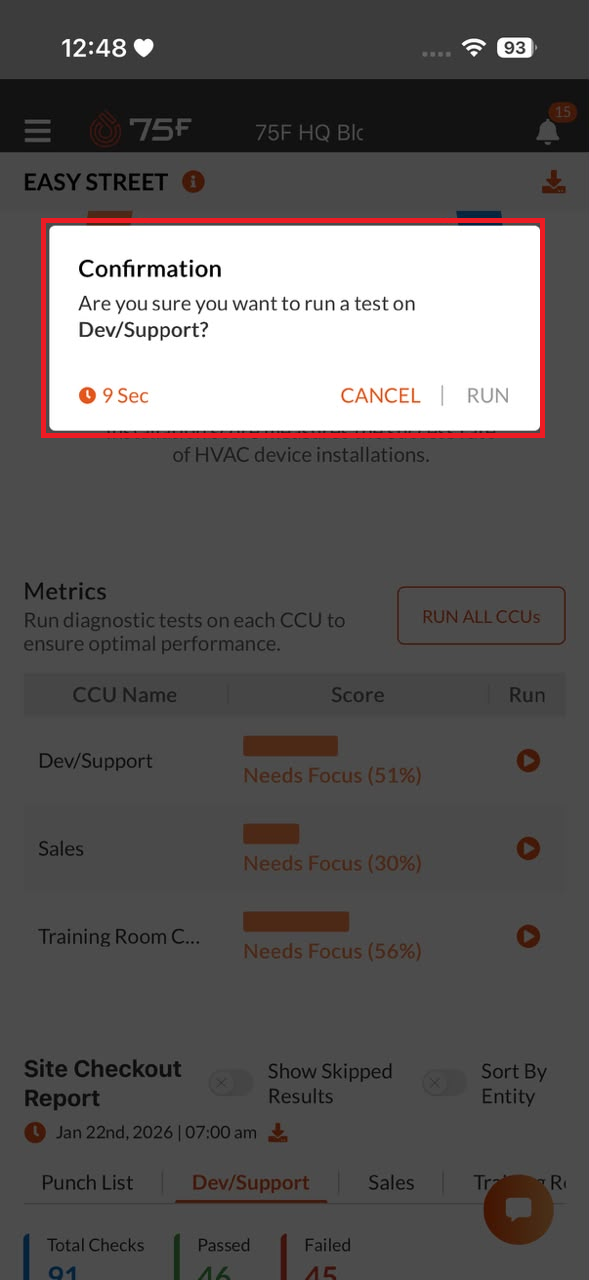

• A Confirmation dialog box appears, prompting you to confirm the test execution for the selected CCU.

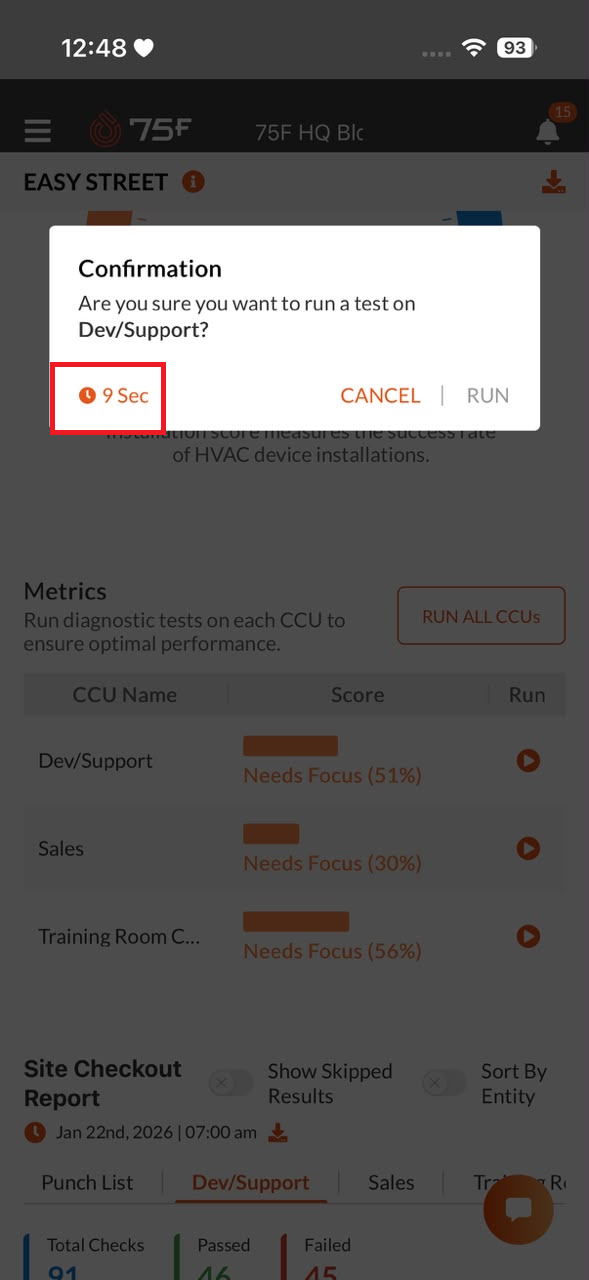

• A 10-second countdown timer is displayed to prevent accidental test execution.



• Upon completion of the countdown, the Run button becomes active.

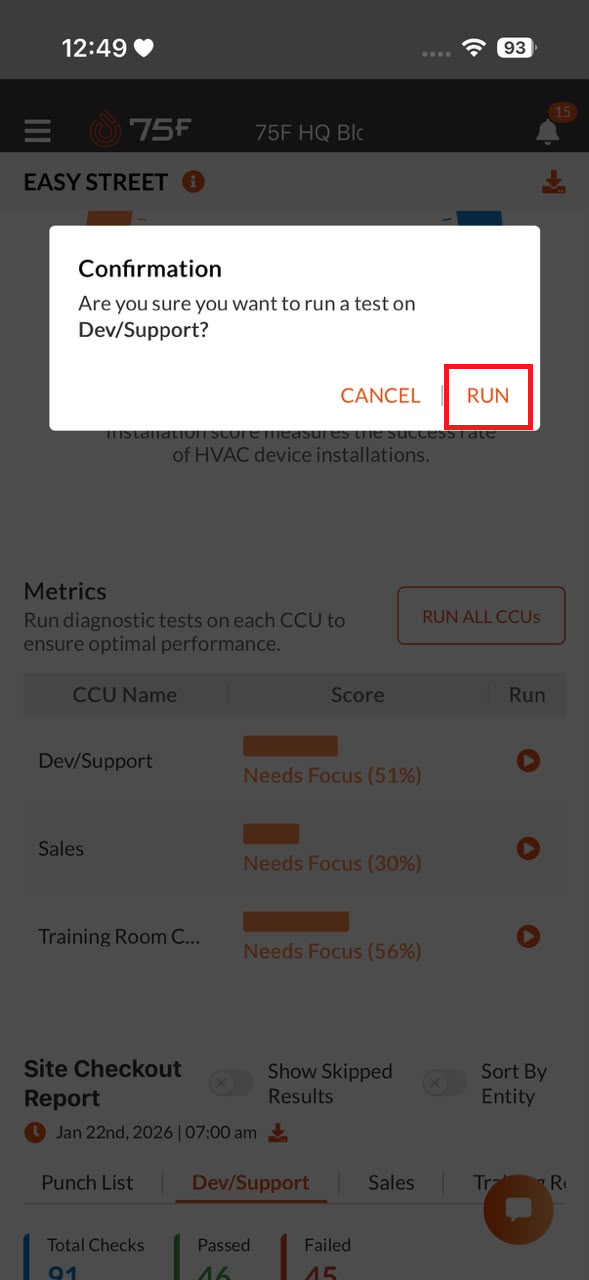

• Click Run to start the Easy Street validation test for the selected CCU.



The system begins executing the validation workflow and updates the test status as the checks progress.

Note: Running a test on an individual CCU affects only the selected CCU. Users can monitor the execution status and review the test results through the Score option once the test is initiated.

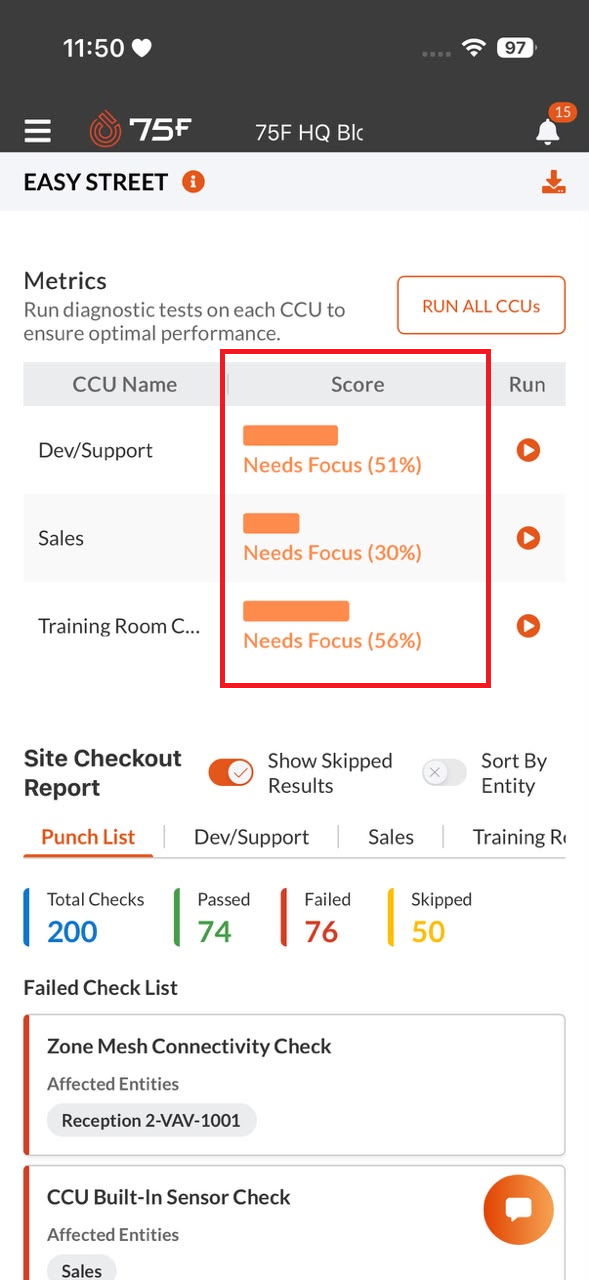

The Score column shows the current installation status and percentage score for each CCU, helping users quickly identify systems that may require attention.

Note: Scores are updated after each successful test execution and reflect the latest validation results for the selected CCU.

| Site Checkout Report

The Site Checkout Report provides a detailed view of the validation results generated by Easy Street for the selected site. The report displays a horizontal list of all CCUs associated with the site, allowing users to view installation test results for individual CCUs or review site-wide findings through the Punch List tab.

The Site Checkout Report consists of the following components:

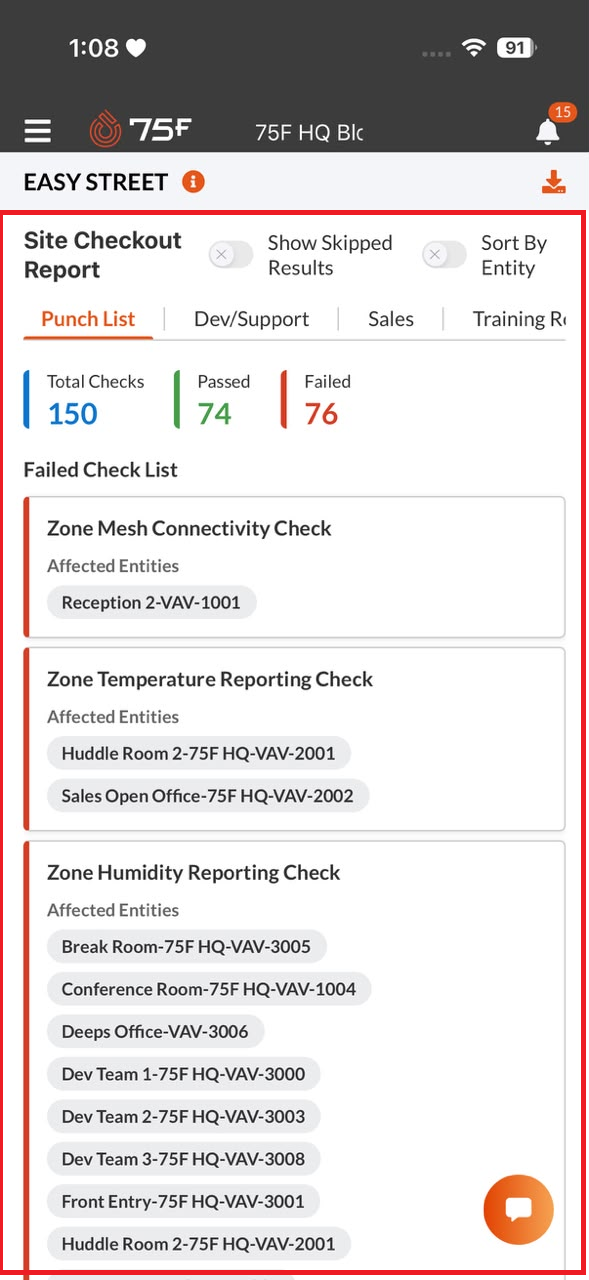

Punch List

The Punch List Summary provides an overview of the validation results by displaying:

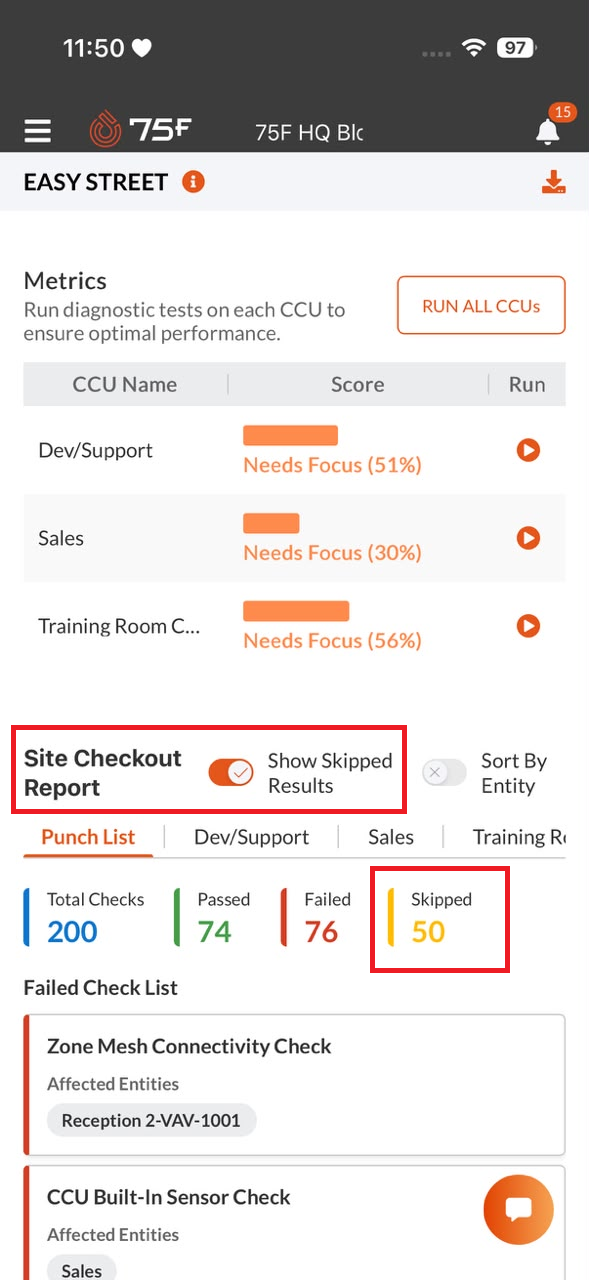

When Show Skipped Results toggle is enabled, an additional Skipped section is displayed in the Punch List Summary, showing the total number of validations checks that were skipped during the Easy Street test execution.

This summary enables users to quickly assess the overall installation quality and identify whether corrective actions are required.

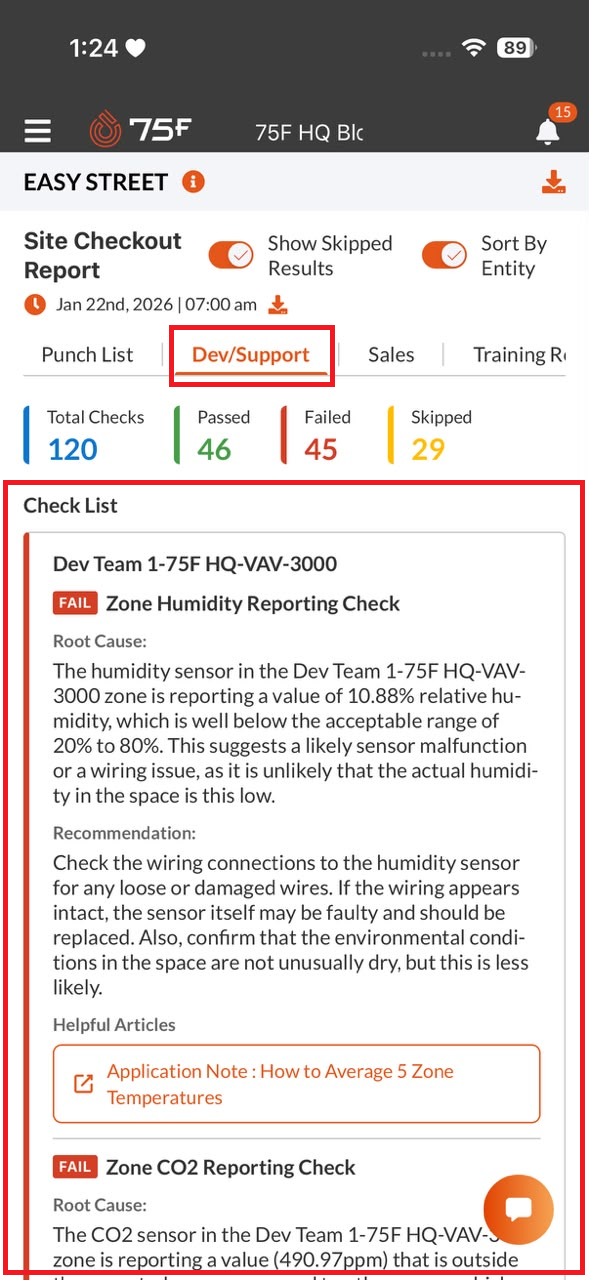

Individual CCU Report

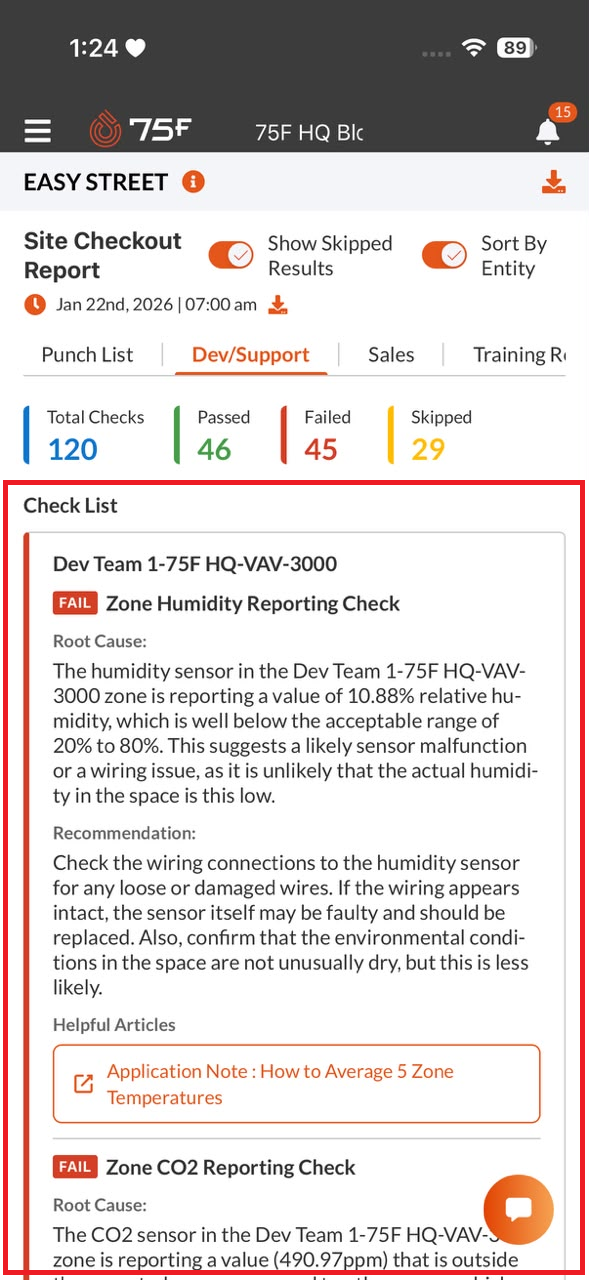

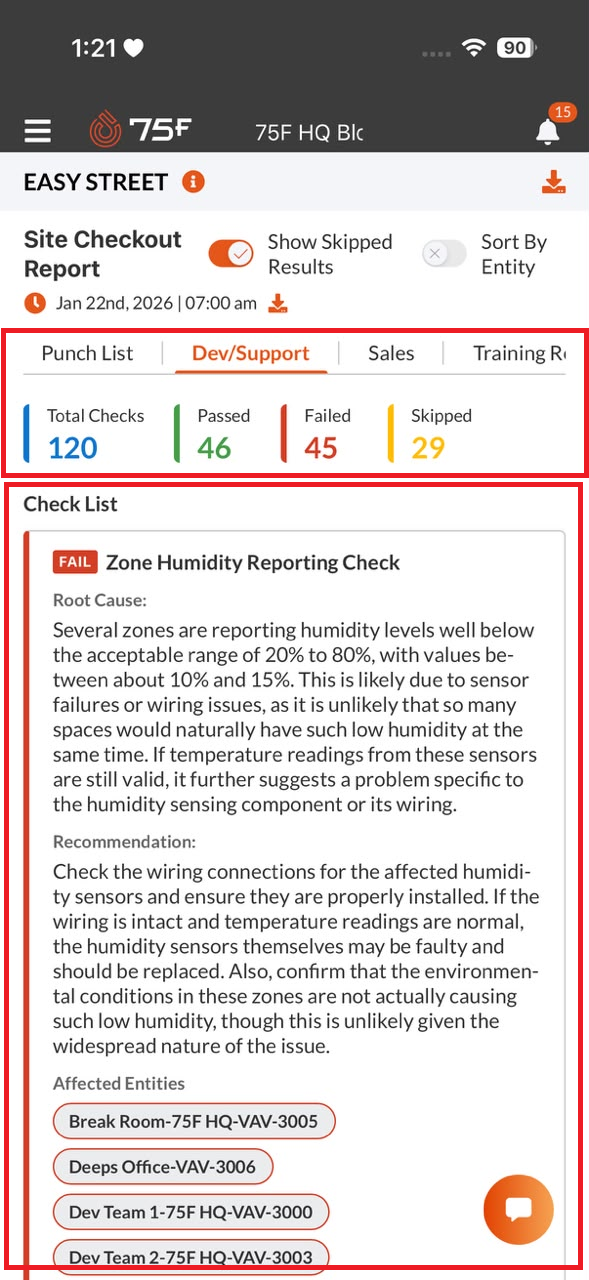

The Individual CCU Report provides detailed validation results for a selected CCU. It enables users to review the outcome of each Easy Street check and troubleshoot issues identified during the installation validation process.

For each CCU, the report displays:

Users can review the information provided for each failed check to diagnose installation, configuration, or logic issues and take the necessary corrective actions.

Sort By Entity

Select the Sort By Entity toggle to organize the checklist results by affected entity. When enabled, all failed and associated validation results are grouped under the corresponding equipment or zone, making it easier to review issues related to a specific entity.

Downloading and Sharing a Report

Easy Street allows users to download and share site validation results, as well as CCU-specific reports directly from the Site Checkout Report section.

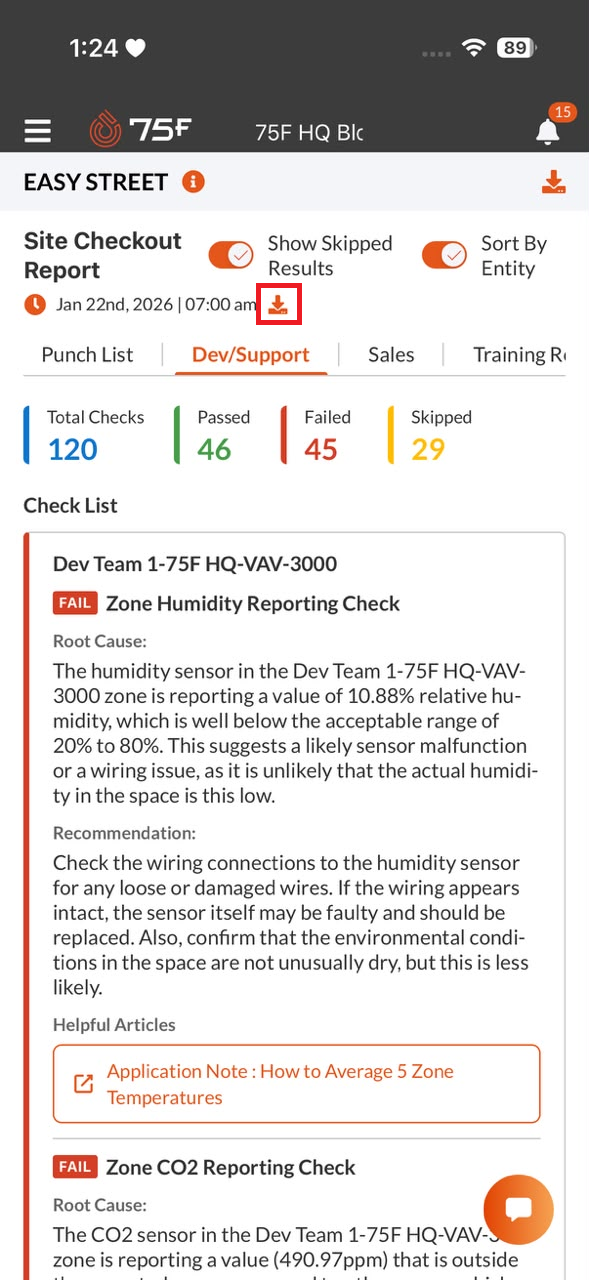

To download a CCU report:

• Navigate to the desired CCU tab within the Site Checkout Report.



• Click the Download icon displayed next to the test execution timestamp.



• The system generates and downloads the report for the selected CCU.



The system generates and downloads the CCU Easy Street report for the selected test execution.

The downloaded report is available in PDF format and contains the validation results, failed checks, recommendations, affected entities, and other diagnostic details associated with the selected CCU.

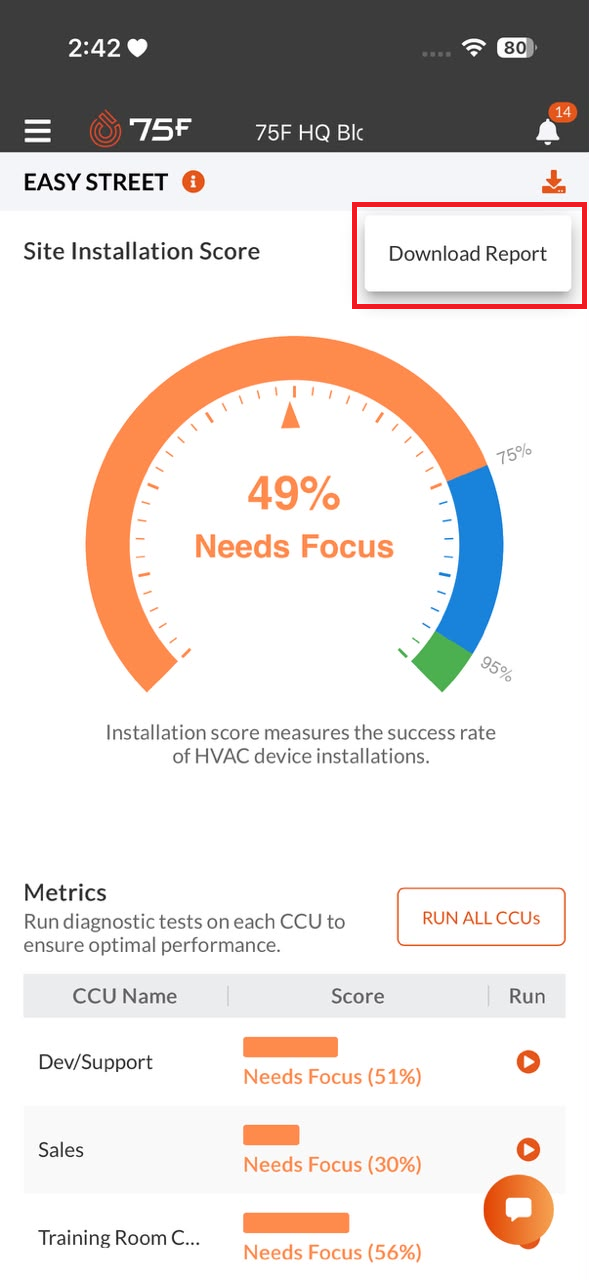

To download a site report:

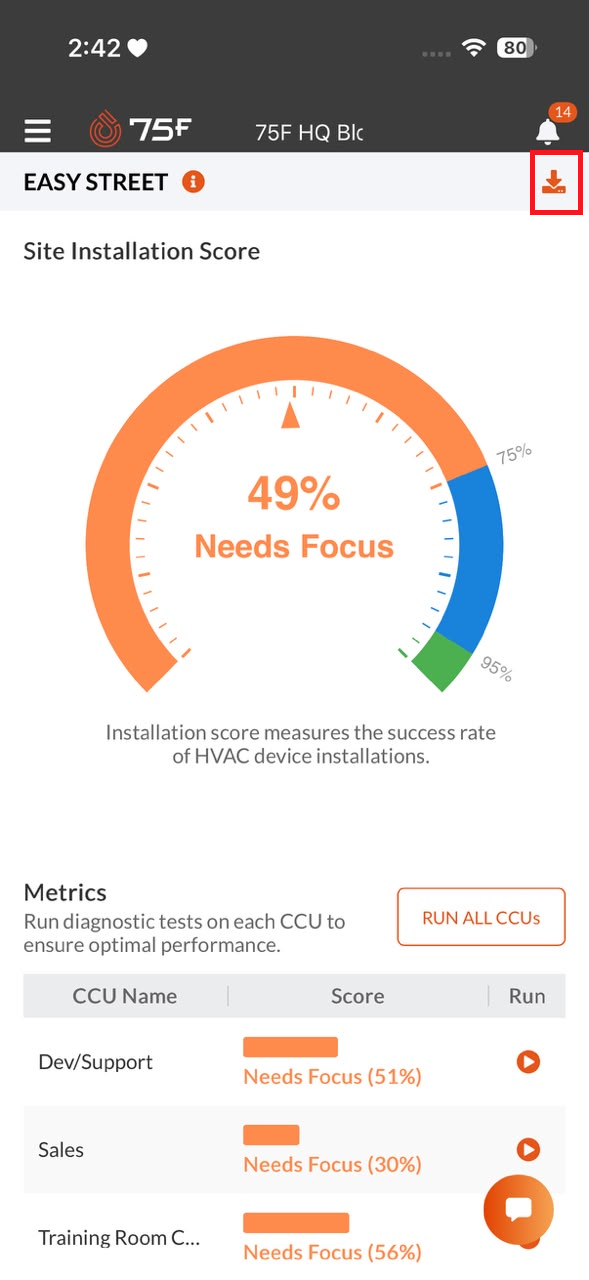

• Click the Download icon located in the upper-right corner of the Easy Street page.



• Select Download Report from the available options.



• The system generates and downloads the Easy Street report.

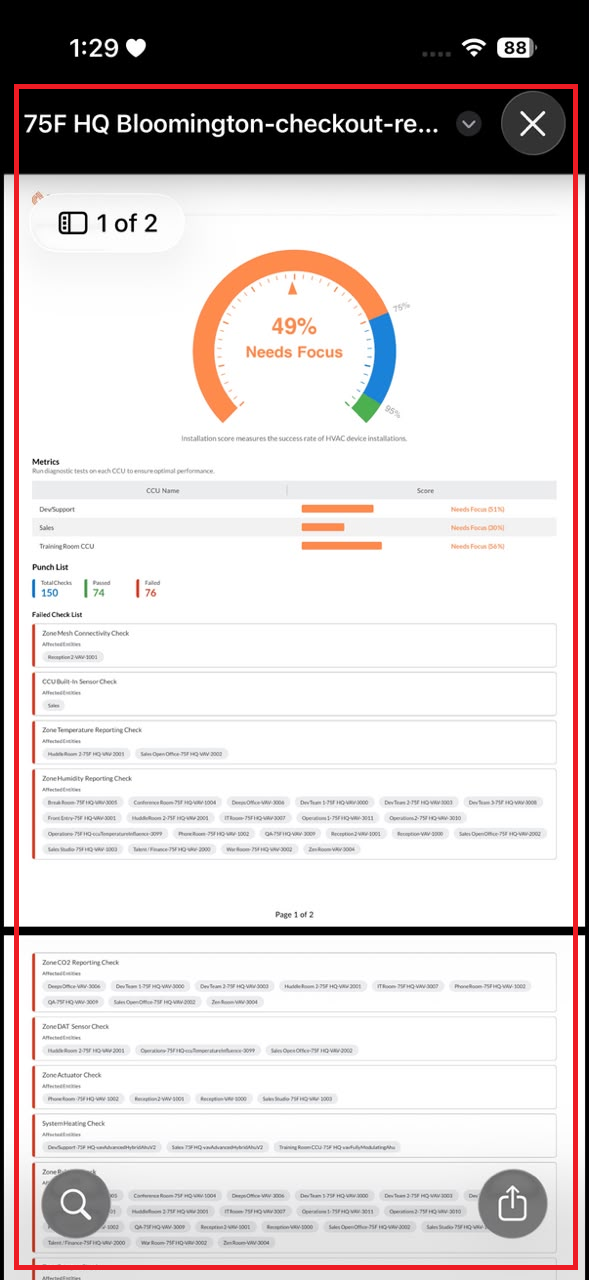

The downloaded report is saved in PDF format and includes:

• Site Installation Score
• CCU Metrics
• Punch List Summary
• Failed Check Results
• Affected Entities
• Site Checkout Report details

The PDF report can be shared with facility managers, commissioning engineers, and other stakeholders to review site installation quality, validation results, and outstanding issues.

Note: The downloaded report reflects the validation results available at the time of download. To ensure the report contains the latest data, run Easy Street tests before generating the report.

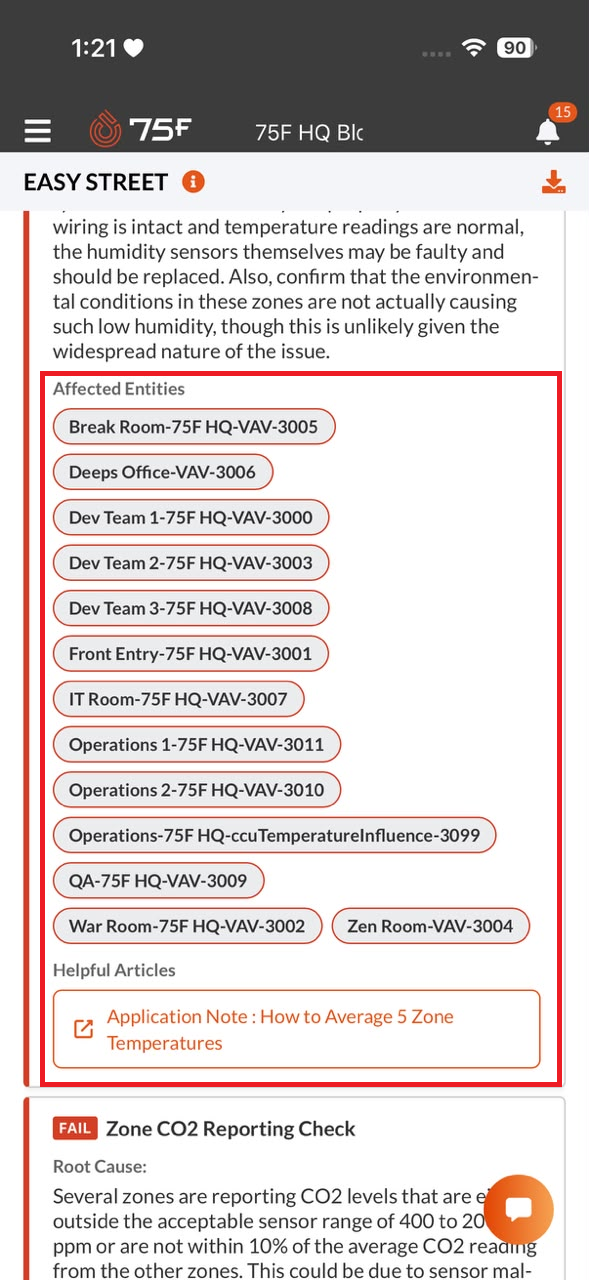

Troubleshoot Failed Tests

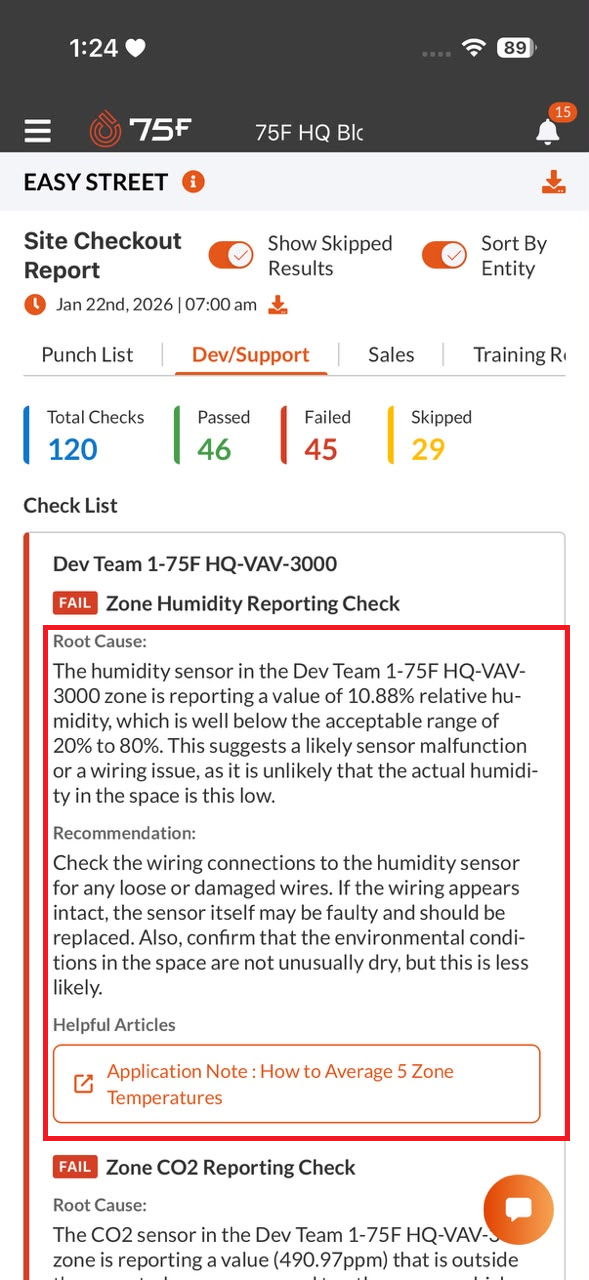

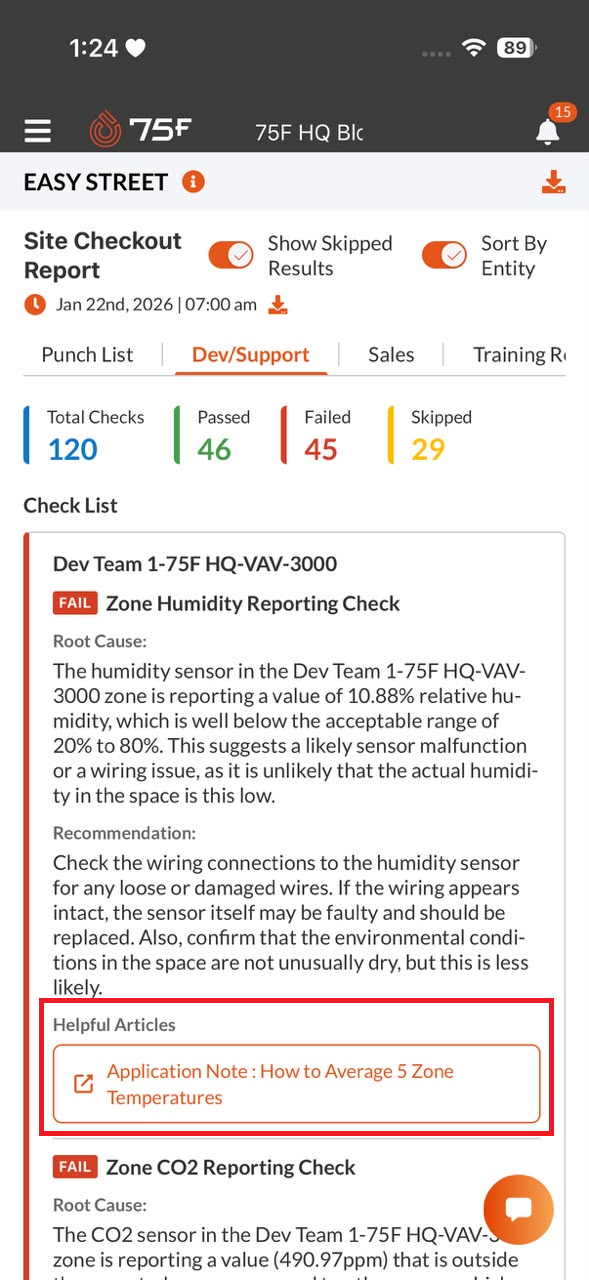

Using Saffron AI, Easy Street provides intelligent troubleshooting assistance for failed validation checks by recommending relevant articles from the 75F Zendesk Knowledge Base.

When a check fails, Easy Street automatically identifies related knowledge base articles and displays them in the Helpful Articles section of the failed check. These articles provide additional guidance, troubleshooting steps, best practices, and reference information to help users resolve the issue.

To troubleshoot a failed test:

• Review the Root Cause and Recommendation provided for the failed check.
• Navigate to the Helpful Articles section within the failed check.
• Select the recommended knowledge base article.
• Review the troubleshooting guidance and corrective actions.

• Implement the recommended changes and rerun the validation test to verify the issue has been resolved
