July 2024 Release

| Important Enhancements & Fixes

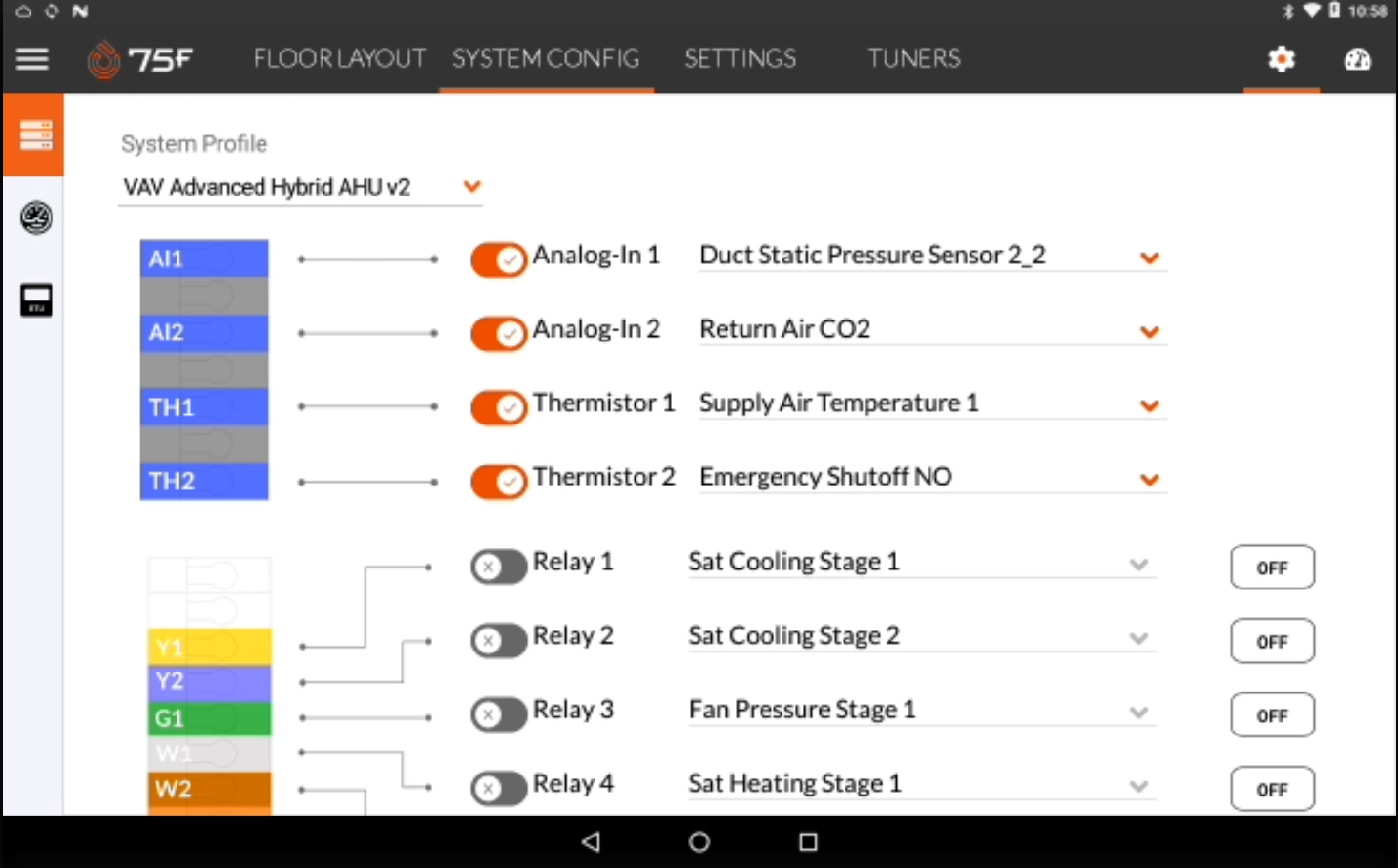

VAV Advanced Hybrid V2 with Advanced AHU Controls

VAV Advanced AHU is now available as a System profile with configurable algorithms and enhanced monitoring and control via the Connect Module. The profile supports Supply Air Temperature control, Duct Static Pressure, and fresh air DCV-based controls, reducing commissioning time and optimizing energy efficiency. The Connect Module acts as an IO Extender, enabling monitoring of additional parameters and providing control outputs.

ahu adv.png

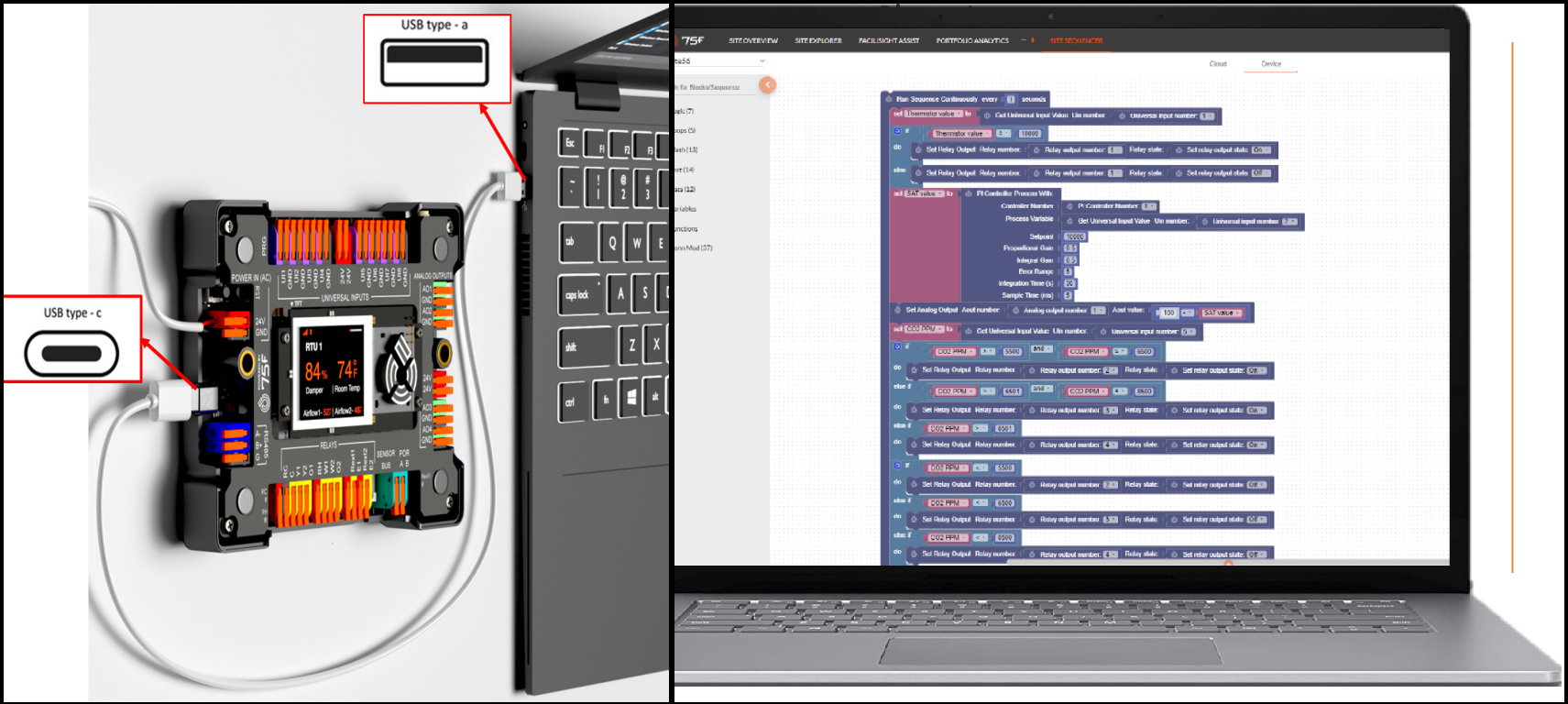

Sequences On Edge (Low Code)

The Site Sequencer on the Edge feature is now available on the Site Sequencer page. This feature allows users to build custom application sequences on the portal and execute them directly on the edge device Connect Module. Users can create custom sequences such as PI Loop controls, lighting controls, and pump lead/lag controls based on specific site use cases, providing optimized control and management for each unique site.

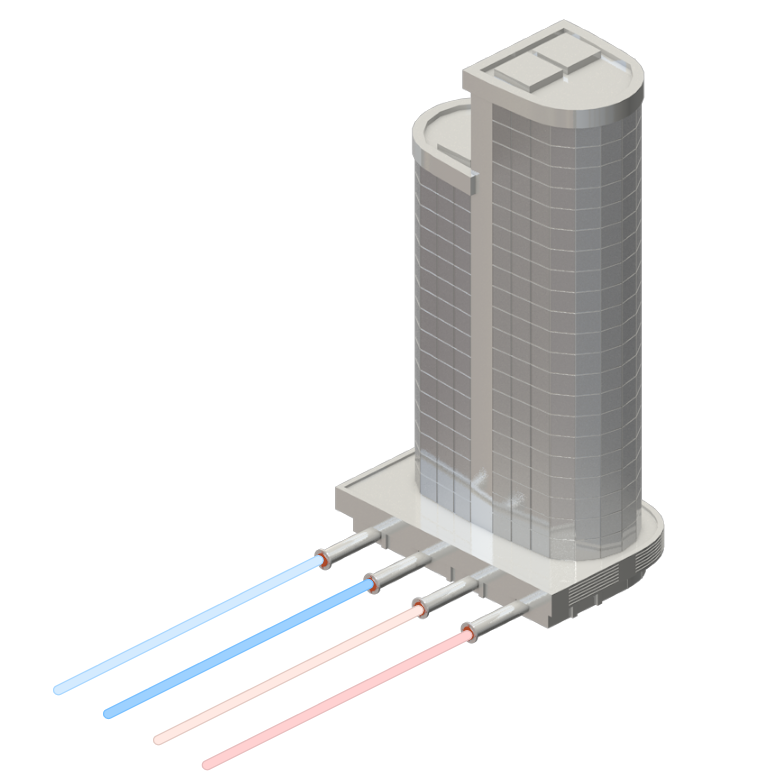

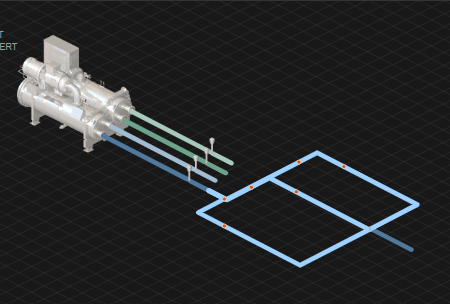

L-Joints to Header Pipe in Central Plant Manager

Enabling parallel configurations between the parent and other parent equipment without the use of a header pipe offers greater flexibility in creating advanced parallel pipe combinations in CPM, which are commonly used in real-world scenarios.

GetImage (7) (1).png

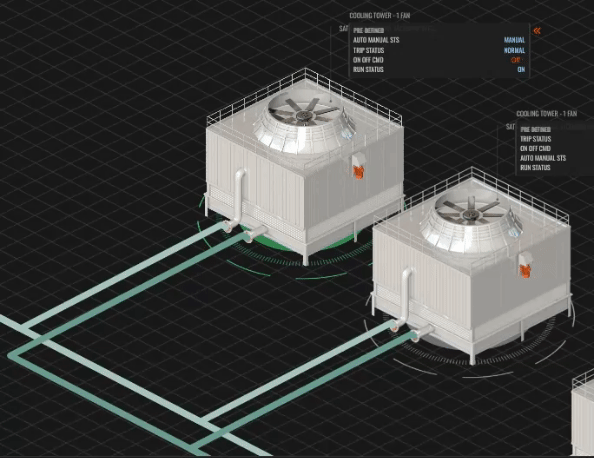

Representation of Equipment through Animated GIF

The cooling towers, pumps, chillers and boilers are represented through animation to determine the status of the equipment whether it is active or not running. This is applicable for master view, hover view, and click view where the equipment status is ON.

Latest GIF (1).gif
