| Important Enhancements & Fixes

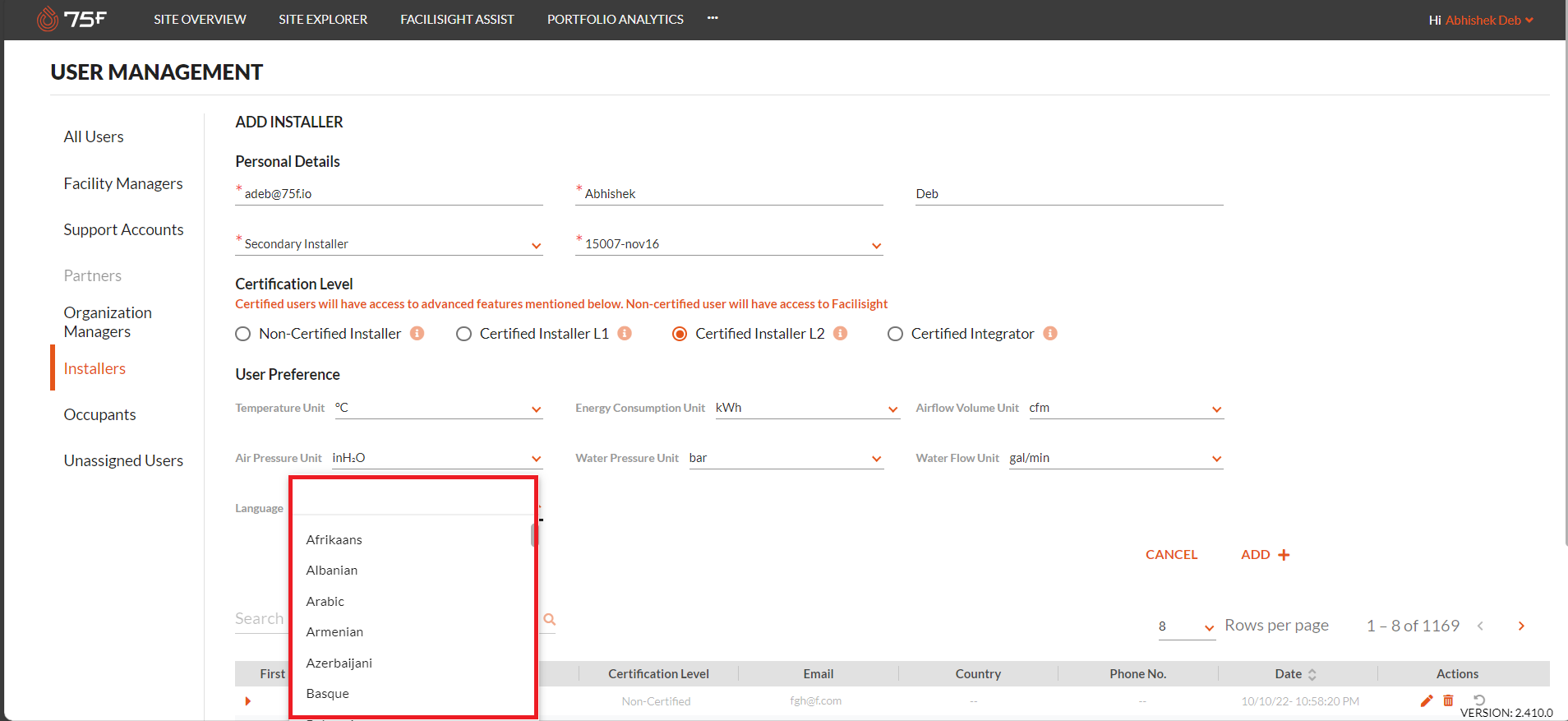

Language Preference for Portals & Apps

Language preference is a new feature that will empower users to change their language preferences across portals and apps. With this update, our platforms will support multiple languages, making them more accessible to a global audience and catering to non-English speaking users.
The language preference change option is now available for the following platforms:

  • Internal Portal
  • Facilisight Portal
  • Facilisight App
  • Occupant App

This update aims to enhance user experience and ensure that all users can interact with our services in their preferred language.

Screenshot 2024-10-03 150035-10.png

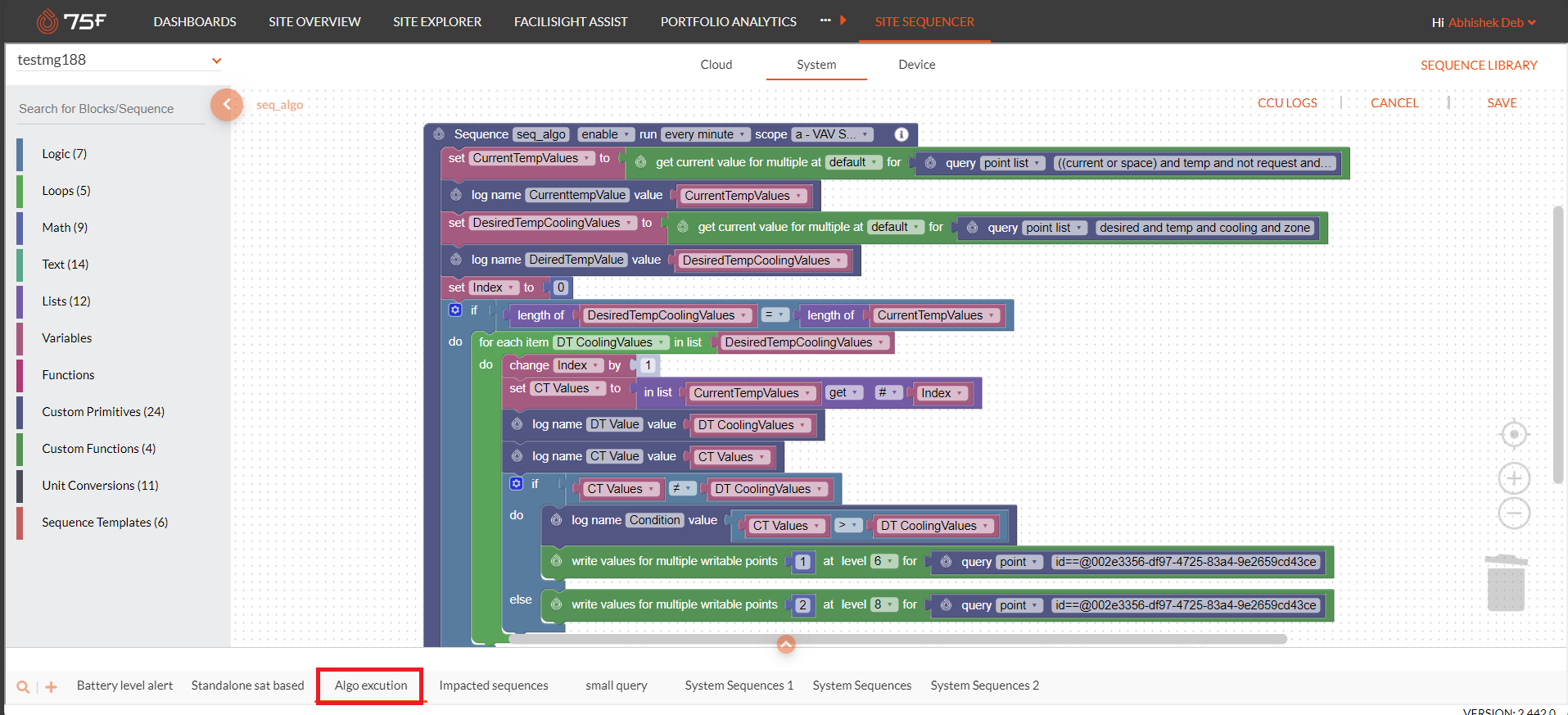

Consumption of Sequencer on CCU

Sequencer on CCU enables the creation of resilient, fail-proof sequences that run directly on the CCU, ensuring continuity even if cloud connectivity is lost. These control path sequences, which influence the behavior of equipment ports, operate locally on-site and maintain autonomous functionality in standalone mode, providing consistent control and reliability.

Screenshot 2024-11-05 134203-181 (1)-yes.png

DAB System Profile - DM CCU Migration

Management of Haystack data on CCU from a central repository of tags and models in Hayloft. Hayloft integration ensures standardization by ensuring consistency and adherence to Haystack standards for points and tags, improved efficiency by reducing development cycle time, improved CCU performance when queries are fetched in CCU to show data.

SM CCU Sync and Writable Framework

There is a growing need for CCU to handle and sync changes made from Site Manager which allows users to change entity structure or influence data behavior (writable to priority array) of ports through custom sequences.

Advanced AHU Enhancements

Individual stories focused on enhancing DAB & VAV Advanced AHU profile. The enhancements provided are provision of separate tuners static pressure and SAT loops, considering CM status for SAT & pressure loops for updating CCU status, portals & widgets.

| New and Updated Docs

DAB Advanced Hybrid AHU v2 with Advanced AHU Controls

VAV Advanced Hybrid AHU v2 with Advanced AHU Controls

Sequences on CCU

Account Management - Facilisight

User Management - Facilisight

Setting Up Your Floorplan

Using Site Overview - Facilisight

User Management- Internal

| Software Release Versions

Component
Latest Version
CCU 2.18.6 and above
Internal Portal 2.444.0 and above
Facilisight Portal 2.431.0 and above
Facilisight App 2.0.86 and above
Occupant App 2.0.69 and above



| Firmware/Hardware Feature Availability Versions

Firmware/ Hardware
Feature Availability Versions
Hyperstat V2.0 101.4 and above
Control Mote 3.56 and above
SmartNode 5.37 and above
HelioNode 6.29.0 and above
HyperStat Main Board 1.32 and above
Connect Module 1.5 and above
